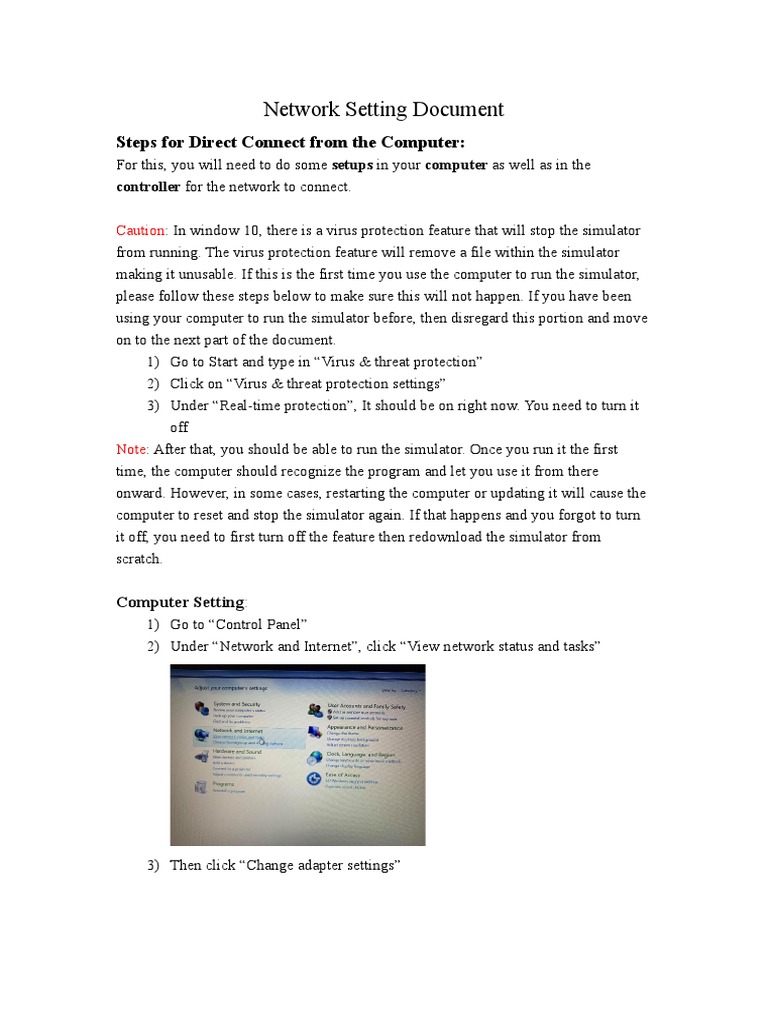

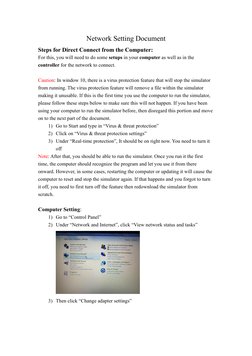

Network Setting Document
Steps for Direct Connect from the Computer:
For this, you will need to do some setups in your computer as well as in the
controller for the network to connect.
Caution: In window 10, there is a virus protection feature that will stop the simulator
from running. The virus protection feature will remove a file within the simulator
making it unusable. If this is the first time you use the computer to run the simulator,
please follow these steps below to make sure this will not happen. If you have been
using your computer to run the simulator before, then disregard this portion and move
on to the next part of the document.
1) Go to Start and type in “Virus & threat protection”
2) Click on “Virus & threat protection settings”
3) Under “Real-time protection”, It should be on right now. You need to turn it
off
Note: After that, you should be able to run the simulator. Once you run it the first
time, the computer should recognize the program and let you use it from there
onward. However, in some cases, restarting the computer or updating it will cause the
computer to reset and stop the simulator again. If that happens and you forgot to turn
it off, you need to first turn off the feature then redownload the simulator from
scratch.
Computer Setting:
1) Go to “Control Panel”
2) Under “Network and Internet”, click “View network status and tasks”
3) Then click “Change adapter settings”
4) Right click on “Local Area Connection”
5) Select “Properties”
6) Double click on “TCP/IPv4”
7) Select “Use the following IP address” and type in those numbers accordingly
⚫ IP Address: “10.10.70.21”
⚫ Subnet Mask: “255.255.255.0”
⚫ Default Gateway: “192.168.1.1”
8) Click OK and a Warning Message will pop up
9) Select Yes on all warnings
10) Finally click OK and all those settings will be saved
11) Go to Start and type in “Windows PowerShell”
12) Right click and choose “Run as administrator”
13) Then type in the following line: “Enable-WindowsOptionalFeature -Online -
FeatureName SMB1Protocol”
14) Press Enter, make sure the message is the same as the picture
15) Go to “Control Panel”, then go to “Uninstall a program”
16) Click on “Turn Windows features on or off”, founded on the left-hand side
17) Scroll down and find “SMB 1.0/CIFS File Sharing Support”
18) Make sure all three boxes of the SMB 1.0 are checked same as the picture

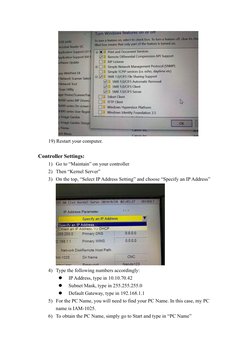

19) Restart your computer.
Controller Settings:
1) Go to “Maintain” on your controller
2) Then “Kernel Server”
3) On the top, “Select IP Address Setting” and choose “Specify an IP Address”
4) Type the following numbers accordingly:
⚫ IP Address, type in 10.10.70.42
⚫ Subnet Mask, type in 255.255.255.0
⚫ Default Gateway, type in 192.168.1.1
5) For the PC Name, you will need to find your PC Name. In this case, my PC
name is IAM-1025.
6) To obtain the PC Name, simply go to Start and type in “PC Name”

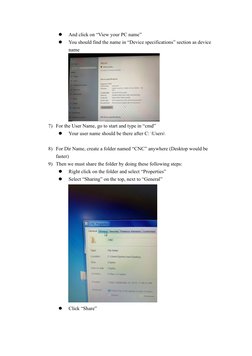

⚫ And click on “View your PC name”
⚫ You should find the name in “Device specifications” section as device
name
7) For the User Name, go to start and type in “cmd”
⚫ Your user name should be there after C: \Users\
8) For Dir Name, create a folder named “CNC” anywhere (Desktop would be
faster)
9) Then we must share the folder by doing these following steps:
⚫ Right click on the folder and select “Properties”
⚫ Select “Sharing” on the top, next to “General”
⚫ Click “Share”

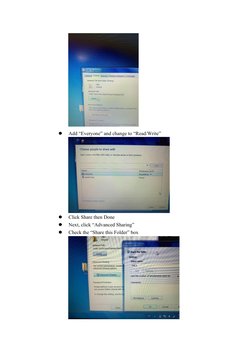

⚫ Add “Everyone” and change to “Read/Write”
⚫ Click Share then Done
⚫ Next, click “Advanced Sharing”
⚫ Check the “Share this Folder” box

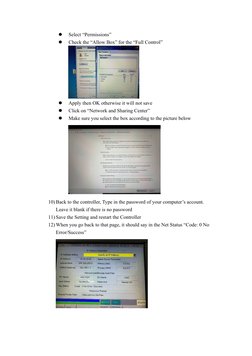

⚫ Select “Permissions”
⚫ Check the “Allow Box” for the “Full Control”
⚫ Apply then OK otherwise it will not save
⚫ Click on “Network and Sharing Center”
⚫ Make sure you select the box according to the picture below
10) Back to the controller, Type in the password of your computer’s account.
Leave it blank if there is no password
11) Save the Setting and restart the Controller
12) When you go back to that page, it should say in the Net Status “Code: 0 No
Error/Success”

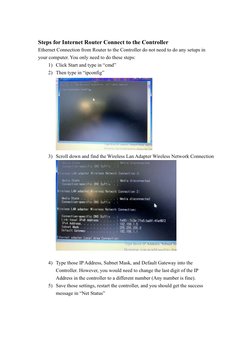

Steps for Internet Router Connect to the Controller
Ethernet Connection from Router to the Controller do not need to do any setups in
your computer. You only need to do these steps:
1) Click Start and type in “cmd”
2) Then type in “ipconfig”
3) Scroll down and find the Wireless Lan Adapter Wireless Network Connection
4) Type those IP Address, Subnet Mask, and Default Gateway into the
Controller. However, you would need to change the last digit of the IP
Address in the controller to a different number (Any number is fine).
5) Save those settings, restart the controller, and you should get the success
message in “Net Status”
