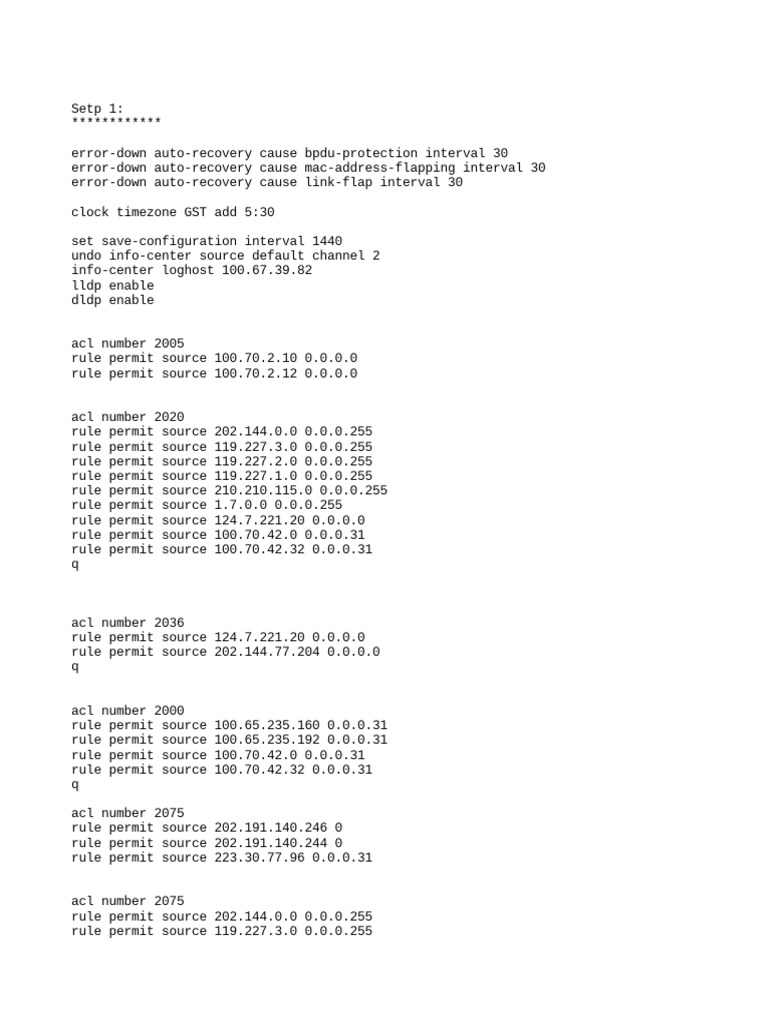

Setp 1:

************

error-down auto-recovery cause bpdu-protection interval 30


error-down auto-recovery cause mac-address-flapping interval 30
error-down auto-recovery cause link-flap interval 30

clock timezone GST add 5:30

set save-configuration interval 1440


undo info-center source default channel 2
info-center loghost [Link]
lldp enable
dldp enable

acl number 2005


rule permit source [Link] [Link]
rule permit source [Link] [Link]

acl number 2020


rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
q

acl number 2036


rule permit source [Link] [Link]
rule permit source [Link] [Link]
q

acl number 2000


rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
q

acl number 2075


rule permit source [Link] 0
rule permit source [Link] 0
rule permit source [Link] [Link]

acl number 2075


rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
q

acl number 2075


rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
q

acl number 2075


rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
rule permit source [Link] [Link]
#
#
set save-configuration interval 1440
#
undo http server enable
y
undo http secure-server enable
y
#
ntp-service access peer 2005
ntp-service unicast-server [Link]
ntp-service unicast-server [Link]
#

snmp-agent
snmp-agent local-engineid 800007DB034C1FCC44F1BD
y
snmp-agent community read cipher S1LR0snmp acl 2000
snmp-agent sys-info version v2c v3
snmp-agent trap enable feature-name MSTP trap-name hwMstpiPortBpduGuarded
snmp-agent trap enable feature-name MSTP trap-name hwMstpiPortRootGuarded
snmp-agent trap enable feature-name MSTP trap-name hwMstpiPortLoopGuarded
snmp-agent trap enable feature-name MSTP trap-name topologyChange
snmp-agent trap enable feature-name IFNET trap-name linkDown
snmp-agent trap enable feature-name IFNET trap-name linkUp
snmp-agent trap enable feature-name SNMP trap-name authenticationFailure
snmp-agent trap enable feature-name system trap-name hwpatcherrortrap
snmp-agent trap enable feature-name system trap-name hwsysreloadnotification
snmp-agent trap enable feature-name system trap-name hwsysimageerrornotification
snmp-agent trap enable feature-name error-down trap-name hwerrordown
snmp-agent trap enable feature-name error-down trap-name hwerrordownrecovery
snmp-agent trap enable feature-name snmp trap-name coldstart
snmp-agent trap enable feature-name line trap-name hwvtynumexceed
snmp-agent trap enable feature-name datasync trap-name hwcfgchgnotify
snmp-agent target-host trap address udp-domain [Link] params securityname
S1LR0snmp v2c
#
header login information "
+---------------------------------------------------------------+
| This system is for the use of authorized users only. |
|Individuals using this system without authority or in excess |
|of their authority are subject to having all of the activities |
|on this system monitored and recorded by system personnel. |
+---------------------------------------------------------------+
NACL_CCE_SW

"
#
#
quit
#
save
y

=====================================
Setp 2:
*****************

Kindly put the configration


----------------------------------

user-interface maximum-vty 15
user-interface con 0
authentication-mode password
set authentication password cipher sify@123
user privilege level 15
telnet server enable
user-interface vty 0 14
protocol inbound telnet
authentication-mode password
set authentication password cipher sify@123
user privilege level 15

Setp 3:
**************
Sysname GJ-AMD-IC1-C3-ST-CCE-U572-S01

setp 4:
***************
vl creation for MGMT in SW

vl 639
des VEL-AB-SWITCH-MGMT-639

setp5:
*******************

interface Vlanif639
description VEL-AB-SWITCH-MGMT-639
ip address 100.X.X.X [Link]

setp6:
****************
ip route-static [Link] [Link] GATEWAYIP

setp7:
****************
kindly check Mgmt vlan allowed uplink port

setp8:
****************
UPlink Interface configration

Fiber uplink interface:


----------------------
interface GigabitEthernet0/0/25
undo negotiation auto
des XXXXX
set flow-stat interval 30
port link-type trunk
undo port trunk allow-pass vlan 1
port trunk allow-pass vlan 639
stp bpdu-filter enable
stp edged-port enable
storm-control broadcast min-rate 297 max-rate 446
storm-control interval 30
storm-control action block
storm-control enable trap
storm-control enable log

RF UPLINK Interface
--------------------
interface GigabitEthernet0/0/1

undo negotiation auto


speed 100
description X.X.X.X
set flow-stat interval 30
port link-type trunk
port trunk pvid vlan 701
undo port trunk allow-pass vlan 1
port trunk allow-pass vlan 701 639
stp bpdu-filter enable
stp edged-port enable

SELF-LOOP
***************
interface GigabitEthernet0/0/7
undo negotiation auto
description XCNTSELF_UL8T_ABS_01_Gi0/0/4_[C-TAG]
set flow-stat interval 30
port link-type trunk
undo port trunk allow-pass vlan 1
stp bpdu-filter enable
stp edged-port enable
#
interface GigabitEthernet0/0/8
undo negotiation auto
description XCNTSELF_UL8T_ABS_01_Gi0/0/3_[S-TAG]
set flow-stat interval 30
port link-type hybrid
qinq vlan-translation enable
undo port hybrid vlan 1
port hybrid untagged vlan 50 51
stp bpdu-filter enable
stp edged-port enable
#

================================
HW:S5735-L8T4S-A1
****************************
snmp-agent
snmp-agent local-engineid 800007DB034C1FCC44F1BD
snmp-agent community read cipher %^%#E/"x7KQApJgqCV8\>7LKtc<nHM$lYUFa`@%&!
<AB.9X&Wd!;=;!3}i(*>ut=Q3cI,&WlvVvrNJ*HO1HJ%^%# acl 2000
snmp-agent sys-info version v2c v3
snmp-agent target-host trap address udp-domain [Link] params securityname
cipher %^%#+hmlP5U"P:NXUPK(tB^Keg(OPrancKR[7G6K5ADQ%^%# v2c
snmp-agent trap enable feature-name MSTP trap-name hwMstpiPortBpduGuarded
snmp-agent trap enable feature-name MSTP trap-name hwMstpiPortRootGuarded
snmp-agent trap enable feature-name MSTP trap-name hwMstpiPortLoopGuarded
snmp-agent trap enable feature-name MSTP trap-name topologyChange
snmp-agent trap enable feature-name IFNET trap-name linkDown
snmp-agent trap enable feature-name IFNET trap-name linkUp
snmp-agent trap enable feature-name LINE trap-name hwVtyNumExceed
snmp-agent trap enable feature-name SYSTEM trap-name hwSysReloadNotification
snmp-agent trap enable feature-name SYSTEM trap-name hwPatchErrorTrap
snmp-agent trap enable feature-name SNMP trap-name authenticationFailure
snmp-agent protocol source-status all-interface
snmp-agent protocol source-status ipv6 all-interface
#
stelnet server enable
ssh server-source all-interface
ssh server cipher aes256_ctr aes128_ctr
ssh server hmac sha2_256
ssh server key-exchange dh_group16_sha512 dh_group15_sha512 dh_group14_sha256
dh_group_exchange_sha256
ssh client cipher aes256_ctr aes128_ctr
ssh client hmac sha2_256
ssh client key-exchange dh_group16_sha512 dh_group15_sha512 dh_group14_sha256
dh_group_exchange_sha256
ssh server dh-exchange min-len 2048
#

Setp 1:
*****************

Kindly put the configration


----------------------------------
user-interface maximum-vty 15
user-interface con 0
authentication-mode password
set authentication password cipher sify@123
user privilege level 15
telnet server enable
user-interface vty 0 14
protocol inbound telnet
authentication-mode password
set authentication password cipher sify@123
user privilege level 15
q
telnet server-source all-interface
