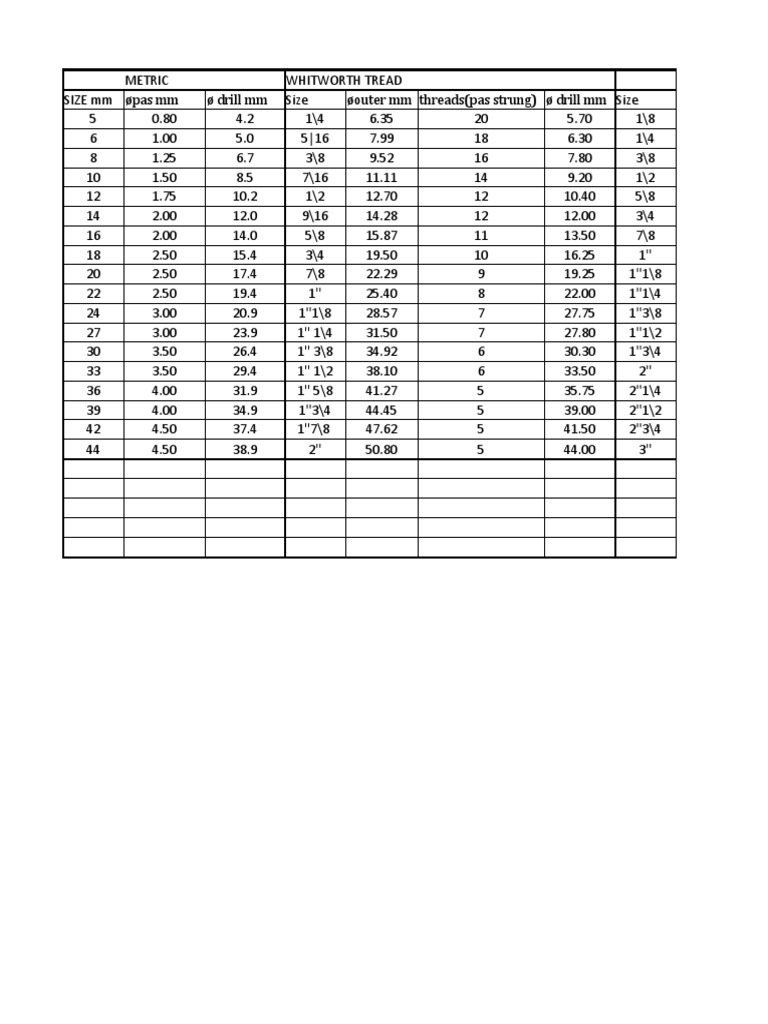

    METRIC WHITWORTH TREAD

    SIZE mm øpas mm ø drill mm Size øouter mm threads(pas strung) ø drill mm Size


    5 0.80 4.2 1\4 6.35 20 5.70 1\8
    6 1.00 5.0 5|16 7.99 18 6.30 1\4
    8 1.25 6.7 3\8 9.52 16 7.80 3\8
    10 1.50 8.5 7\16 11.11 14 9.20 1\2
    12 1.75 10.2 1\2 12.70 12 10.40 5\8
    14 2.00 12.0 9\16 14.28 12 12.00 3\4
    16 2.00 14.0 5\8 15.87 11 13.50 7\8
    18 2.50 15.4 3\4 19.50 10 16.25 1''
    20 2.50 17.4 7\8 22.29 9 19.25 1''1\8
    22 2.50 19.4 1'' 25.40 8 22.00 1''1\4
    24 3.00 20.9 1''1\8 28.57 7 27.75 1''3\8
    27 3.00 23.9 1'' 1\4 31.50 7 27.80 1''1\2
    30 3.50 26.4 1'' 3\8 34.92 6 30.30 1''3\4
    33 3.50 29.4 1'' 1\2 38.10 6 33.50 2''
    36 4.00 31.9 1'' 5\8 41.27 5 35.75 2''1\4
    39 4.00 34.9 1''3\4 44.45 5 39.00 2''1\2
    42 4.50 37.4 1''7\8 47.62 5 41.50 2''3\4
    44 4.50 38.9 2'' 50.80 5 44.00 3''
    PIPE THREAD
    øouter mm threads(pas strung) ø drill mm
    9.72 28 8.70
    13.15 19 11.50
    16.66 19 15.00
    20.90 14 18.70
    22.90 14 20.75
    26.44 14 24.25
    30.20 14 28.00
    33.25 11 30.50
    37.89 11 35.00
    41.91 11 39.00
    44.32 11 41.50
    47.80 11 45.00
    53.74 11 51.00
    59.61 11 56.80
    64.71 11 62.90
    75.18 11 72.40
    81.53 11 78.70
    87.88 11 85.00
