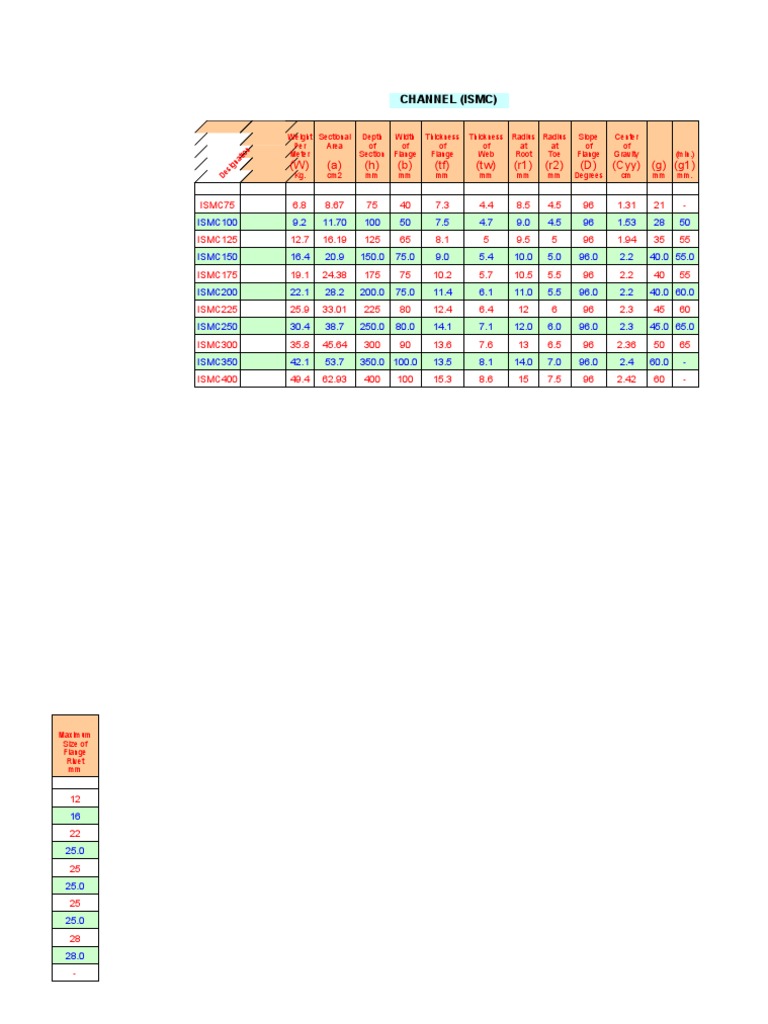

CHANNEL (ISMC)

Weight Sectional Depth Width Thickness Thickness Radius Radius Slope Center
Per Area of of of of at at of of
Meter Section Flange Flange Web Root Toe Flange Gravity (min.)

n
tio
(W) (a) (h) (b) (tf) (tw) (r1) (r2) (D) (Cyy) (g) (g1)

na
ig
es
Kg. cm2 mm mm mm mm mm mm Degrees cm mm mm.

D
ISMC75 6.8 8.67 75 40 7.3 4.4 8.5 4.5 96 1.31 21 -
ISMC100 9.2 11.70 100 50 7.5 4.7 9.0 4.5 96 1.53 28 50
ISMC125 12.7 16.19 125 65 8.1 5 9.5 5 96 1.94 35 55
ISMC150 16.4 20.9 150.0 75.0 9.0 5.4 10.0 5.0 96.0 2.2 40.0 55.0
ISMC175 19.1 24.38 175 75 10.2 5.7 10.5 5.5 96 2.2 40 55
ISMC200 22.1 28.2 200.0 75.0 11.4 6.1 11.0 5.5 96.0 2.2 40.0 60.0
ISMC225 25.9 33.01 225 80 12.4 6.4 12 6 96 2.3 45 60
ISMC250 30.4 38.7 250.0 80.0 14.1 7.1 12.0 6.0 96.0 2.3 45.0 65.0
ISMC300 35.8 45.64 300 90 13.6 7.6 13 6.5 96 2.36 50 65
ISMC350 42.1 53.7 350.0 100.0 13.5 8.1 14.0 7.0 96.0 2.4 60.0 -
ISMC400 49.4 62.93 400 100 15.3 8.6 15 7.5 96 2.42 60 -
Maximum
Size of
Flange
Rivet
mm

12
16
22
25.0
25
25.0
25
25.0
28
28.0
-
tf Weight Sectional Depth Width Thickness Thickness Radius Radius Slope Center
Maximum
Per Area of of of of at at of of
Size of
Meter Section Flange Flange Web Root Toe Flange Gravity (min.)

n
tio
Flange
(W) (a) (h) (b) (tf) (tw) (r1) (r2) (D) (Cyy) (g) (g1)

na
Rivet

ig
es
Kg. cm2 mm mm mm mm mm mm Degrees cm mm mm. mm

D
b-tw b-tw
tw 2 2 ISMC75 6.8 8.67 75 40 7.3 4.4 8.5 4.5 96 1.31 21 - 12
ISMC100 9.2 11.70 100 50 7.5 4.7 9.0 4.5 96 1.53 28 50 16
ISMC125 12.7 16.19 125 65 8.1 5.0 9.5 5.0 96 1.94 35 55 22
h

ISMC150 16.4 20.88 150 75 9.0 5.4 10.0 5.0 96 2.22 40 55 25


ISMC175 19.1 24.38 175 75 10.2 5.7 10.5 5.5 96 2.20 40 55 25
ISMC200 22.1 28.21 200 75 11.4 6.1 11.0 5.5 96 2.17 40 60 25
r1
ISMC225 25.9 33.01 225 80 12.4 6.4 12.0 6.0 96 2.30 45 60 25
r2
ISMC250 30.4 38.67 250 80 14.1 7.1 12.0 6.0 96 2.30 45 65 25

g ISMC300 35.8 45.64 300 90 13.6 7.6 13.0 6.5 96 2.36 50 65 28


ISMC350 42.1 53.66 350 100 13.5 8.1 14.0 7.0 96 2.44 60 - 28
b
ISMC400 49.4 62.93 400 100 15.3 8.6 15.0 7.5 96 2.42 60 - -
