SVC-L5-3

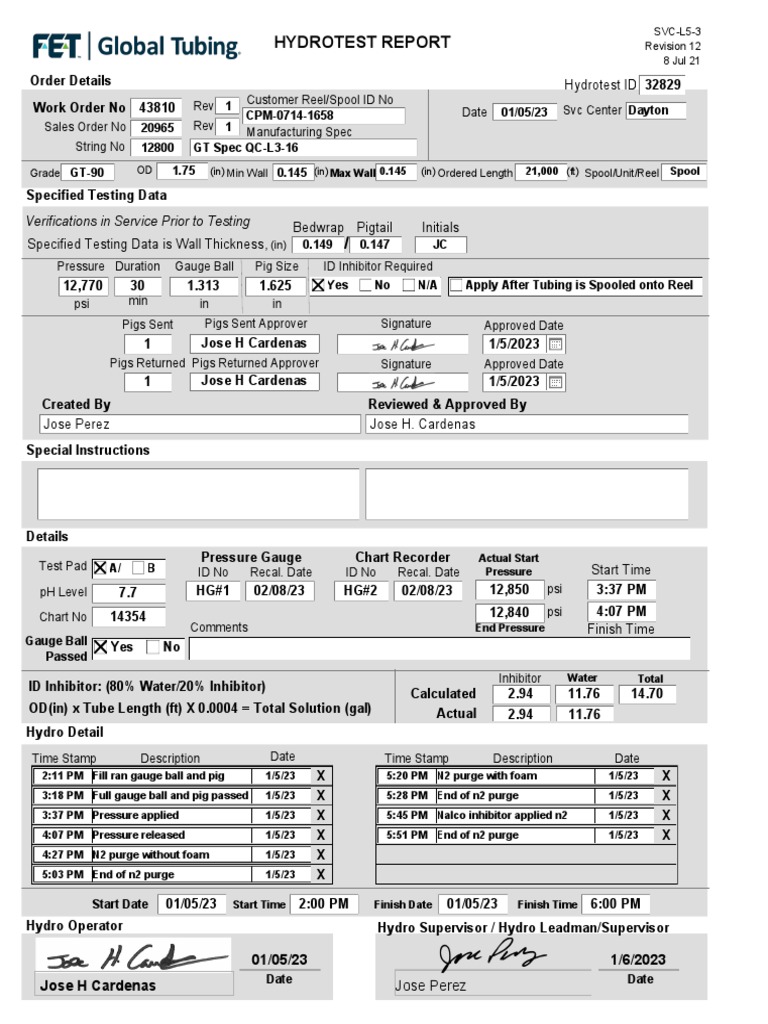

HYDROTEST REPORT Revision 12


8 Jul 21
Order Details Hydrotest ID 32829
Work Order No 43810 Rev 1 Customer Reel/Spool ID No Svc Center Dayton
CPM-0714-1658 Date 01/05/23
Sales Order No 20965 Rev 1 Manufacturing Spec
String No 12800 GT Spec QC-L3-16

Grade GT-90 OD 1.75 (in) Min Wall 0.145 (in) Max Wall 0.145 (in) Ordered Length 21,000 (ft) Spool/Unit/Reel Spool

Specified Testing Data


Verifications in Service Prior to Testing Bedwrap Pigtail Initials
Specified Testing Data is Wall Thickness, (in) 0.149 / 0.147 JC
Pressure Duration Gauge Ball Pig Size ID Inhibitor Required
12,770 30 1.313 1.625 Yes No N/A Apply After Tubing is Spooled onto Reel
psi min in in
Pigs Sent Pigs Sent Approver Signature Approved Date
1 Jose H Cardenas 1/5/2023
Pigs Returned Pigs Returned Approver Signature Approved Date
1 Jose H Cardenas 1/5/2023
Created By Reviewed & Approved By
Jose Perez Jose H. Cardenas

Special Instructions

Details
Pressure Gauge Chart Recorder Actual Start
Test Pad A/ B Pressure Start Time
ID No Recal. Date ID No Recal. Date
pH Level 7.7 HG#1 02/08/23 HG#2 02/08/23 12,850 psi 3:37 PM

Chart No 14354 12,840 psi 4:07 PM


Comments End Pressure Finish Time
Gauge Ball Yes No
Passed
Inhibitor Water Total
ID Inhibitor: (80% Water/20% Inhibitor)
Calculated 2.94 11.76 14.70
OD(in) x Tube Length (ft) X 0.0004 = Total Solution (gal) Actual 2.94 11.76
Hydro Detail
Time Stamp Description Date Time Stamp Description Date
2:11 PM Fill ran gauge ball and pig 1/5/23 X 5:20 PM N2 purge with foam 1/5/23 X
3:18 PM Full gauge ball and pig passed 1/5/23 X 5:28 PM End of n2 purge 1/5/23 X
3:37 PM Pressure applied 1/5/23 X 5:45 PM Nalco inhibitor applied n2 1/5/23 X
purge with Foam
4:07 PM Pressure released 1/5/23 X 5:51 PM End of n2 purge 1/5/23 X
4:27 PM N2 purge without foam 1/5/23 X
5:03 PM End of n2 purge 1/5/23 X

Start Date 01/05/23 Start Time 2:00 PM Finish Date 01/05/23 Finish Time 6:00 PM
Hydro Operator Hydro Supervisor / Hydro Leadman/Supervisor

01/05/23 1/6/2023
Date Date
Jose H Cardenas Jose Perez
