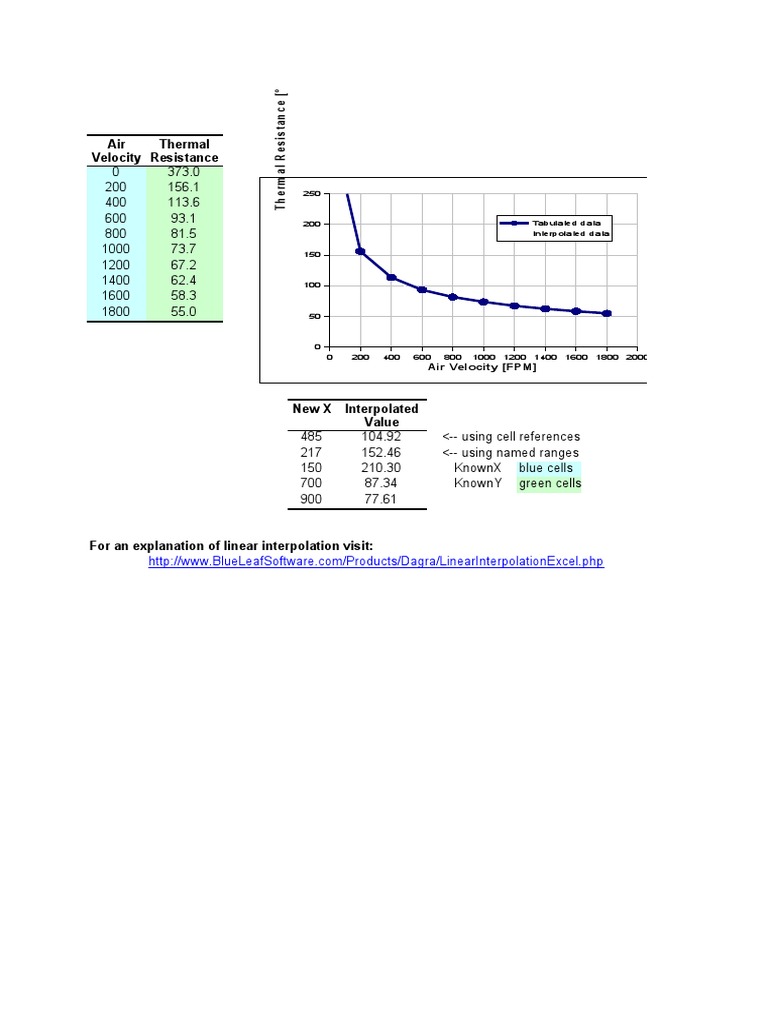

T h e rm a l R e s is ta n c e [°C /W ]

Air Thermal
Velocity Resistance
0 373.0
200 156.1 250
400 113.6
600 93.1 200 Tabulated data
800 81.5 Interpolated data

1000 73.7 150


1200 67.2
1400 62.4 100
1600 58.3
1800 55.0 50

0
0 200 400 600 800 1000 1200 1400 1600 1800 2000
Air Velocity [FPM]

New X Interpolated
Value
485 104.92 <-- using cell references
217 152.46 <-- using named ranges
150 210.30 KnownX blue cells
700 87.34 KnownY green cells
900 77.61

For an explanation of linear interpolation visit:


http://www.BlueLeafSoftware.com/Products/Dagra/LinearInterpolationExcel.php
d data
ed data

00 1800 2000

=FORECAST(E19,OFFSET($C$4,MATCH(E19,$B$4:$B$12,1)-1,0,2),OFFSET($B$4,MATCH(E19,$B$4:$B$12,1)-1,0,2))
=FORECAST(E20,OFFSET(KnownY,MATCH(E20,KnownX,1)-1,0,2),OFFSET(KnownX,MATCH(E20,KnownX,1)-1,0,2))
=FORECAST(E21,OFFSET(KnownY,MATCH(E21,KnownX,1)-1,0,2),OFFSET(KnownX,MATCH(E21,KnownX,1)-1,0,2))
=FORECAST(E22,OFFSET(KnownY,MATCH(E22,KnownX,1)-1,0,2),OFFSET(KnownX,MATCH(E22,KnownX,1)-1,0,2))
=FORECAST(E23,OFFSET(KnownY,MATCH(E23,KnownX,1)-1,0,2),OFFSET(KnownX,MATCH(E23,KnownX,1)-1,0,2))
4:$B$12,1)-1,0,2))
nownX,1)-1,0,2))
nownX,1)-1,0,2))
nownX,1)-1,0,2))
nownX,1)-1,0,2))
