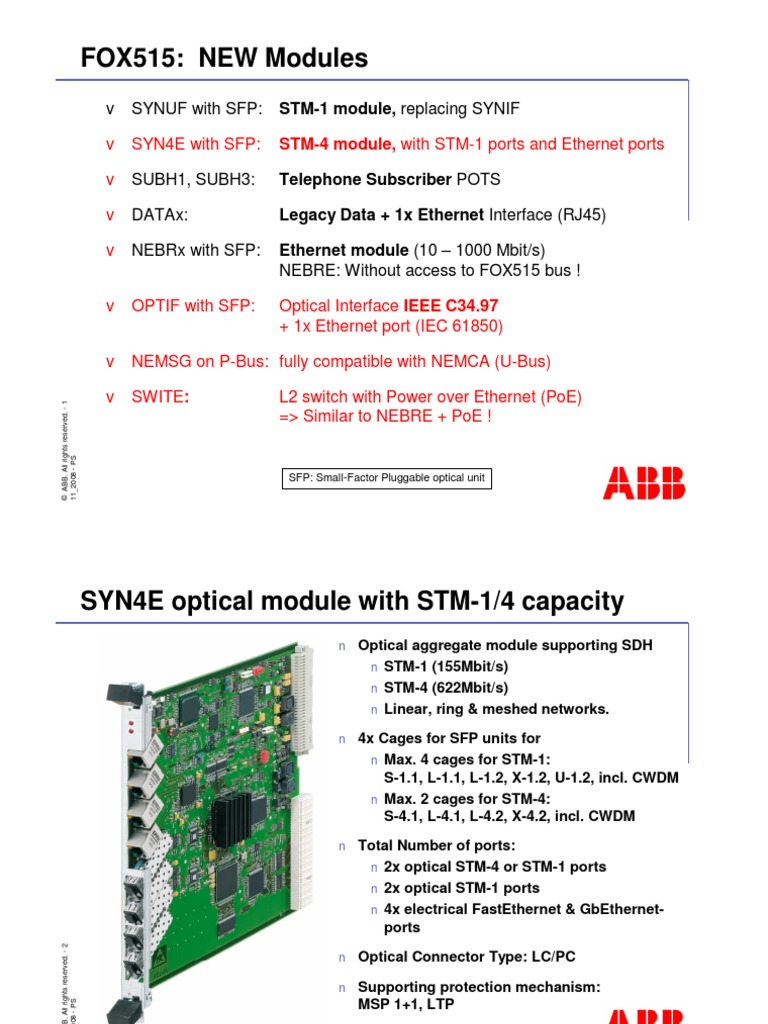

FOX515: NEW Modules
v SYNUF with SFP: STM-1 module, replacing SYNIF
v SYN4E with SFP: STM-4 module, with STM-1 ports and Ethernet ports
v SUBH1, SUBH3: Telephone Subscriber POTS
v DATAx: Legacy Data + 1x Ethernet Interface (RJ45)
v NEBRx with SFP: Ethernet module (10 – 1000 Mbit/s)
NEBRE: Without access to FOX515 bus !
v OPTIF with SFP: Optical Interface IEEE C34.97
+ 1x Ethernet port (IEC 61850)
v NEMSG on P-Bus: fully compatible with NEMCA (U-Bus)
v SWITE: L2 switch with Power over Ethernet (PoE)
© ABB. All rights reserved. - 1
=> Similar to NEBRE + PoE !
11_2008 - PS
SFP: Small-Factor Pluggable optical unit
SYN4E optical module with STM-1/4 capacity
n Optical aggregate module supporting SDH
n STM-1 (155Mbit/s)
n STM-4 (622Mbit/s)
n Linear, ring & meshed networks.
n 4x Cages for SFP units for
n Max. 4 cages for STM-1:
S-1.1, L-1.1, L-1.2, X-1.2, U-1.2, incl. CWDM
n Max. 2 cages for STM-4:
S-4.1, L-4.1, L-4.2, X-4.2, incl. CWDM
n Total Number of ports:
n 2x optical STM-4 or STM-1 ports
n 2x optical STM-1 ports
n 4x electrical FastEthernet & GbEthernet-
ports
© ABB. All rights reserved. - 2
n Optical Connector Type: LC/PC
n Supporting protection mechanism:
11_2008 - PS
MSP 1+1, LTP
FOX515: Optical interfaces using SFP
Optical modules for transport
SFP
n Using SFP (small-factor pluggable) units,
e.g. for STM-1
n S-1.1 on 1310nm for short distances:
12dB for up to 20km.
n L-1.1 on 1310nm for medium distances:
20dB for up to 60km.
SFP
n L-1.2 on 1550nm for long distances:
28dB for up to 100km.
n X-1.2 on 1550nm for extra-long distances
32dB for up to 120km.
© ABB. All rights reserved. - 3
n U-1.2 on 1550nm for ultra long distances:
45dB for up to 160km.
11_2008 - PS
OPTIF: OPtical Teleprotection InterFace
General:
n Max. 4 interfaces per OPTIF module.
n 1+1 path protection on Nx 64kbit/s
for SYMMETRICAL switching Tx- & Rx-path !
n Performance monitoring point-point
n Co- and contra-directional timing
transmission
1x Ethernet Interface: Electrical or Optical
n WAN-capacity: Nx 64kbit/s, N = 1 … 30
n 10/100BaseT (RJ45 connector, electrical)
or 100BaseFX (with SFP, optical)
© ABB. All rights reserved. - 4
n Supporting IEC 61850 !
n Interworking with DTM, LAWA, DATAx
modules.
11_2008 - PS
ANSI / IEEE C37.94: Facts and Benefit
ANSI / IEEE C37.94:
This is a new standard for interfacing (Differential) Protection
Relays.
• All new ABB Relays (e.g. RED 670) are fully supporting this
standard.
Many other suppliers of Protection Relays are also supporting
C37.94
• Connection media: Optical fiber, multi mode.
(Several manufacturers also support single mode fiber).
• Benefits: This standardization offers
© ABB. All rights reserved. - 5
• Simple and secure interconnections.
• Interoperability between relay and communication equipment.
11_2008 - PS
OPTIF with 4x C37.94 interfaces
155 or 622Mbit/s
S/S A S/S B
working path
LED indication: FOX515 p FOX515
ro
Status, alarms te th
ct
in pa
g
ü 1x Ethernet
IEEE IEEE
§ electric RJ45 C37.94 SDH network C37.94
§ optical IF
100Base-FX
RED RED
ü 4x C37.94
with SFP cages
Bene
Benefits
§ Optical connectivity
§ No need for optical/electrical converters
SFP:
© ABB. All rights reserved. - 6
between relay and FOX515
Small-Factor
Pluggable Unit
11_2008 - PS
OPTIF: Applications
4x Optical Interfaces can be individually configured as
n OPTIF: ‘IEEE C37.94 Mode’:
Multi-mode fiber with ST-connector, 850nm:
n Protection Relays with optical interface C37.94
e.g.: ABB Relays REx670, 3rd party Protection Relays.
n Connection capacity 64 - 768kbit/s (12 time slots)
n OPTIF: ‘ABB TPE Mode’
Single mode fiber with FC/PC-connector, 1310nm:
n ABB Protection Relays with ABB optical interface
e.g.: ABB Relays REL316, REL551, REL561.
n
© ABB. All rights reserved. - 7
ABB TeleProtection Equipment NSD570.
11_2008 - PS
FOX515 Telephony interfaces
n SUBH1: 10 ports n EXLAN EXchange Line Analog n NEMSG 2/4 Wire E&M
n SUBH3: 30 ports n 12 exchange interfaces for n 8x interfaces (AF)
n 1 slot per module subscriber connections. 300 Hz ..3.4 kHz
n Simulates telephone sets n Telephone Conference
n 10 /30 PSTN 2-wire
towards the exchange.
© ABB. All rights reserved. - 8
11_2008 - PS
Telephone trunk lines: NEMSG (2/4-Wire E&M)
NEMSG 2/4 Wire E&M:
n 8x Interfaces 300 Hz .. 3400 Hz
(Audio Frequency)
n 2- or 4-wire connection programmable
n 2x signalling channels:
M → E and M’ → E’ with each channel
programmable
n Interface with or without CAS
programmable
n 1+1 path protection programmable
n Input- and output level programmable
© ABB. All rights reserved. - 9
11_2008 - PS
CAS: Channel Associated Signalling
FOX515 NEMSG (2/4-Wire E&M)
New trunk module NEMSG:
n 8x ports voice frequency:
New features NEMSG
ü Access to P-Bus !
ü Multipoint-multipoint configuration
(omnibus)
ü 2- or 4-wire defined by UCST configuration
n New: Conferencing on board:
ü Scalable conferencing engine on board.
ü 32 participants (total per unit)
ü 8 parties (max 17 participants each)
n Network Topology:
ü Point - Point,
ü Point - Multipoint,
ü Multipoint - Multipoint.
© ABB. All rights reserved. - 10
„OMNIBUS“: n Traffic Protection:
Master sending to all slaves,
and all slaves can hear. ü 1+1 Path protection.
11_2008 - PS
When one slave answers all
slaves and master can hear..
ü Shared protection ring (SPR).
SWITE (LAN): L2-Switch with Power over Ethernet
SWITE: Physical Interfaces
8x 10/100/1000 Mbit/s Ethernet front interfaces:
max. 60W power for external equipment
§ 2 x PoE+ (up to 30W, isolated, not isolated)
10/100
§ 2 x PoE (up to 15W, isolated, not isolated)
10/100
§ 2 x PoE (up to 15W not isolated)
10/100Mbit/s
§ 2 x SFP based (electrical or optical
)1000Mbit/s
SWITE: Main Features
§ L2-switching
© ABB. All rights reserved. - 11
§ Supporting of VLAN, Q-in-Q,
§ Standard and jumbo frames
§ Transparent bridging with MAC learning
11_2008 - PS
§ STP and RSTP.
PoE: Power over Ethernet
SWITE (LAN): Application
Power over Ethernet (PoE)
FOX515 FOX515
FOX515
© ABB. All rights reserved. - 12
11_2008 - PS
NO external
Power Supply !
© ABB. All rights reserved. - 13
11_2008 - PS
FOX515 DSL Solutions
FOX515 HDSL
n The FOX515 TDM DSL and the DTM provide
TDM symmetrical broadband data transmission
on copper access lines, for public and private
networks, based on SHDSL.
n Supported DSL standards
n SHDSL (G.991.2, n x 64 kbps ... 2 Mbps)
n Variety of user interfaces
n G.703, G.703/G.704
n X.21/V.11, V.24
© ABB. All rights reserved. - 14
n V.35, V.36
n Ethernet 10/100BaseT
11_2008 - PS
SHDSL for Transport Connections
n SHDSL connects FOX 515 through existing copper cable
FOX 515 / FOX 512 FOX 515 / FOX 512
STIC1 STIC1
PBUS PBUS
PBUS PBUS
© ABB. All rights reserved. - 15
11_2008 - PS
SHDSL Regenerators
FOX 515 FOX 515
STIC1 STIC1
STIC2 STIC2
Power SHDSL SHDSL Speisung
REGEN REGEN
17 km 17 km 17 km
51km *
* Example: 2 x 2 pair @ 512k = 1M = 15 channels
n SHDSL regenerators increase the reach
n Maxium of 2 remotely powered regenerators possible
© ABB. All rights reserved. - 16
n If local power is available, further regenerators can be
used
11_2008 - PS
Remote Access to FOX515 over copper
• Remote access over 2- or 4-wire copper links:
- fixed: E1 (2 Mbit/s)
- modular: RS232 / V24 or X.21/V.11 or
LAN (10/100BaseT)
Remote Site
Substation
Fiber
PABX
Distances: E1
Up to approx. 15km (2 pair) X.21
DTM Desktop
Up to approx. 10km (1 pair)
RS232
FOX 515 Meter
Ethernet
Signal Cable
n x 64kbit/s
© ABB. All rights reserved. - 17
max. 2 Mbit/s
Fiber
11_2008 - PS
SHDSL Distances
Typical Distances for 2,048, 1,024 and 512 kbps at medium noise level
mm
1.4
1.2
1.0 512 kbps
1,024 kbps
0.8
2,048 kbps
0.6
0.4
© ABB. All rights reserved. - 18
0 2.5 5.0 7.5 10.0 12.5 15.0 17.5 20.0 km
11_2008 - PS
FOX515 STIC Interface Card
n 8 x 1-pair or 4 x 2-pair mode
n ITU-T G.991.2 SHDSL transmission
n LT or NT mode for the DSL ports
(configurable)
n Supports SHDSL regenerators
n Supports DSL line rate configurable
from 192 kbps to 2,048 kbps
n Regenerators and the DTM CPEs are
managed and configured via
FOXMAN/UCST
© ABB. All rights reserved. - 19
n STIC2 supports remote powering for
regenerators and FOXMAN SHDSL
11_2008 - PS
DTM modem
DTM Desktop
n ITU-T G.991.2 Annex B 12/2003, G.994.1
(SHDSL, Handshake)
n 1- and 2-pair desktops ABB
n SHDSL-2 DTM (1-/2-pair mode)
n SHDSL-1 DTM (1-pair)
n Remote powering optional
n LT and NT functionality in one desktop
n DC (20 ... 72 V DC) or remote powered
n AC (90 ... 265 V AC) or remote powered
© ABB. All rights reserved. - 20
n Ethernet (10/100BaseT) with Layer2 functionality
(up to 4.6 Mbps over 2 pairs)
11_2008 - PS
n Regenerators are supported
FOX 515 Concept
Network Management
System (NMS)
FOX 515
CPU
CPU
HDSL PDH (8Mbit/s) &
PS
PS
modules SDH modules
Broadband PDH modules (E1, E3)
Ethernet/IP Protection
LAN modules Signaling modules
Voice and Data modules (Legacy Data)
© ABB. All rights reserved. - 21
Substation Environment:
Substation Environment: YES
No. !
11_2008 - PS
