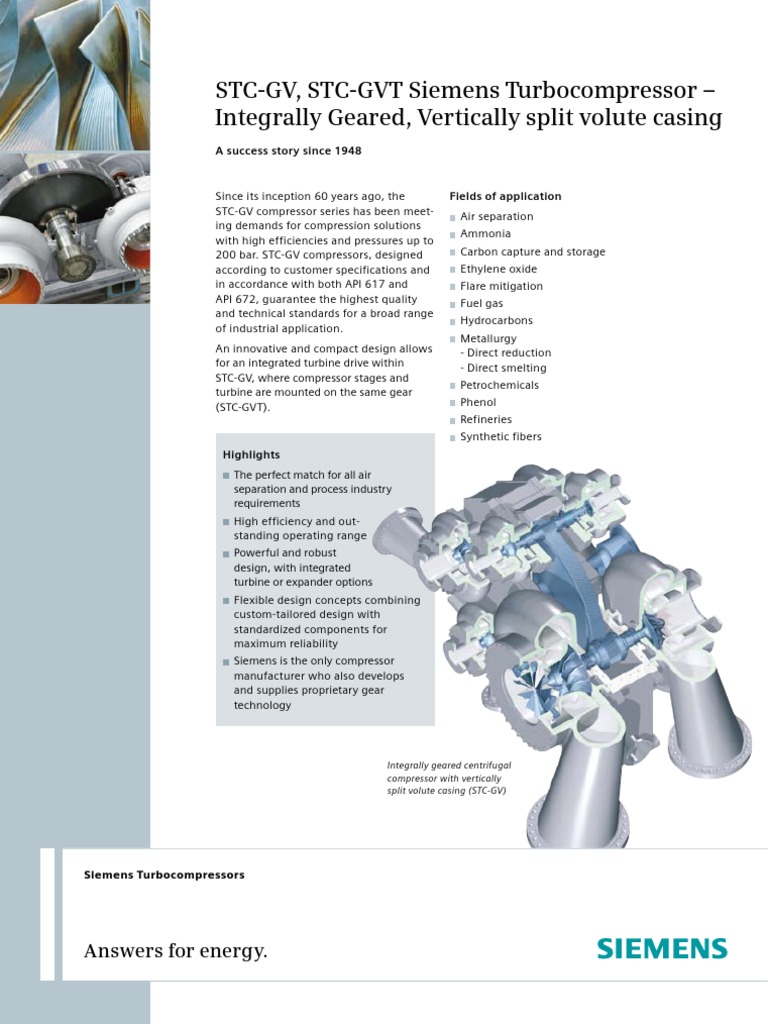

STC-GV, STC-GVT Siemens Turbocompressor –
Integrally Geared, Vertically split volute casing
A success story since 1948
Since its inception 60 years ago, the Fields of application
STC-GV compressor series has been meet- Air separation
ing demands for compression solutions
Ammonia
with high efficiencies and pressures up to
200 bar. STC-GV compressors, designed Carbon capture and storage
according to customer specifications and Ethylene oxide
in accordance with both API 617 and Flare mitigation
API 672, guarantee the highest quality Fuel gas
and technical standards for a broad range
Hydrocarbons
of industrial application.
Metallurgy
An innovative and compact design allows - Direct reduction
for an integrated turbine drive within - Direct smelting
STC-GV, where compressor stages and
Petrochemicals
turbine are mounted on the same gear
(STC-GVT). Phenol
Refineries
Synthetic fibers
Highlights
The perfect match for all air
separation and process industry
requirements
High efficiency and out-
standing operating range
Powerful and robust
design, with integrated
turbine or expander options
Flexible design concepts combining
custom-tailored design with
standardized components for
maximum reliability
Siemens is the only compressor
manufacturer who also develops
and supplies proprietary gear
technology
Integrally geared centrifugal
compressor with vertically
split volute casing (STC-GV)
Siemens Turbocompressors
Answers for energy.
Design Concept
Powerful, robust and reliable Driver: depending on process and energy
The STC-GV integrally geared centrifugal resources: steam turbine, gas turbine or
compressors feature a multi-shaft arrange- electric motor.
ment with different speeds. All shafts are
mounted in maintenance-free, oil-lubri- Siemens also offers variants of
cated hydrodynamic bearings. With up to the STC-GV:
eight compressor stages around a central STC-GV (H): this compressor is designed
bull gear, the STC-GV compressor series for high-pressure application with
forms a compact unit for the multi-stage suction pressures higher than 5 bar,
compression of a wide range of gases. especially booster air in air separation.
Optimized shaft speeds, modern impellers, STC-GVT: a new and compact design,
tailored aerodynamics and mechanics STC-GV is also available with integrated
along with optimized auxiliaries guaran- turbine drive, compressor stages and
tee the highest efficiency. Adjustable turbine being mounted on the same
guide vane units at the first and /or any gear.
other compression stage optimize the STC-GT: single- or multi-stage
operating range. External cooler arrange- expanders enable power recovery
ments allow for operation at extreme from process gases.
site conditions. STC-GVT: with its single or multiple
expander stages, STC-GVT is the ideal
Package and driver options solution for simultaneous gas compres-
For most STC-GV compressor sizes, sion and expansion of process gas.
Siemens offers a package design. The
package includes the compressor, driver,
process gas coolers, lube oil console,
process piping and all tubing and wiring.
The package design leads to significantly
reduced on-site installation time. These
compressor types are also suitable for
direct turbine-drive or integrated turbine
design (STC-GVT).
Integrally geared turbocompressor with STC-GVT on testbed
integrated steam turbine (STC-GVT)
Main air compressor for a steel plant Rotor assembly of an integrally
geared turbocompressor
Highlights Control systems
Integrally geared, multi-stage design Perfect protection and process control via
Wide operating range and outstanding flexible Siemens compressor automation
part-load efficiency at turndown (SCAUT) control systems:
Multi-service capability due to Anti-surge protection
finely-graded standard components Performance controllers acting on
Feeds multiple functions from mass flow, suction pressure or
one casing discharge pressure
Can be used in toxic, corrosive and Simultaneous control of sets of variable
hydrocarbon application inlet guide vanes
Up to eight stages Controlled by throttling, bypass opera-
Casing (volutes) fabricated or cast- tion or inlet whirl variation
material: from cast iron to stainless steel Operation with all available drive
Axial inlet to each impeller, intercooling systems, i. e. electric motors, steam
between stages turbines and gas turbines
High-efficiency water separators Fully automatic or semi-automatic
start-up and shutdown sequences
Flexible cooler design
exactly matched to customers’
Design codes for any kind of gas process demands
Design codes API 617 and API 672 Certified safety systems available
GVT with expansion stage (s)
Inlet guide vane unit in front
of each stage
Optional interheating between stages
Air separation
Siemens integrally geared turbocompressors STC-GV are the perfect
match for air separation and air compression. In these processes,
the integrally geared turbocompressor serves as main or booster air
compressor, combined main and booster air compressor and oxygen
compressor. While as main air compressor (MAC), discharge pressures
between 5 and 30 bar are key, the booster air compressor (BAC)
STC-GV (H) realizes up to 100 bar, depending on process specifications.
CO2 compression
The compressors in the STC-GV series are ideal for CO2 compression
where high-pressure capacities of about 200 bar are essential, paired
with the highest efficiencies and most reliable technologies. Based on
standardized machine concepts, Siemens has developed a tailor-made,
optimized solution for carbon capture and storage. The integrally
geared compressor series STC-GV covers a suction volume of CO2 bet-
ween 25,000 and 250,000 m3 /h. With multistage design and possible
intercooling after each stage, the STC-GV realizes up to 200 bar in one
machine. Up to eight stages enable four different rotational speeds,
leading to optimized aerodynamic efficiencies.
Technical data Benefits
Volume flow rates up to 480,000 m /h 3
Proven design concept, patented in 1948
(280,000 cfm)
High efficiency and wide operating range
Discharge pressure up to 100 bar
Multi-service capability and various application options in one casing
(1,450 psi) air and other gases
Long life due to process-optimized materials
Discharge pressure up to 200 bar
(2,900 psi) CO2 Cost-efficient, compact compression solution
Gearbox ratings up to 60,000 kW Siemens-owned gear technology
(80,000 hp) Flexible cooler design
High-efficiency water separators
Application range STC-GV for air and other gases
bar
100 p.psi atmospheric conditions
2 3 4 6 10 16 20 32 40 50
Suction pressure/Discharge pressure
Stage
60 10 16 20 32 40 50 80 100 125 7 to 8 1000 high pressure application
50
Stage special design for fuel gas,
discharge pressure 160 200 5 to 6 500 direct reduction and phenol
range
Stage
discharge pressure range 3 to 4 200
10
100
5
2 Stages
suction pressure range 50
3
25
suction pressure range
1
1 5 10 50 100 V . 1,000 m3 /h 500 1000
1 5 10 50 100 V . 1,000 cfm 500
Actual suction flow rate
