Automatic Sewing Machines

Via C.A. Dalla Chiesa,19

24020 Scanzorosciate (BG) ITALY
Tel. +39 035 4521484
mail: info@[Link]

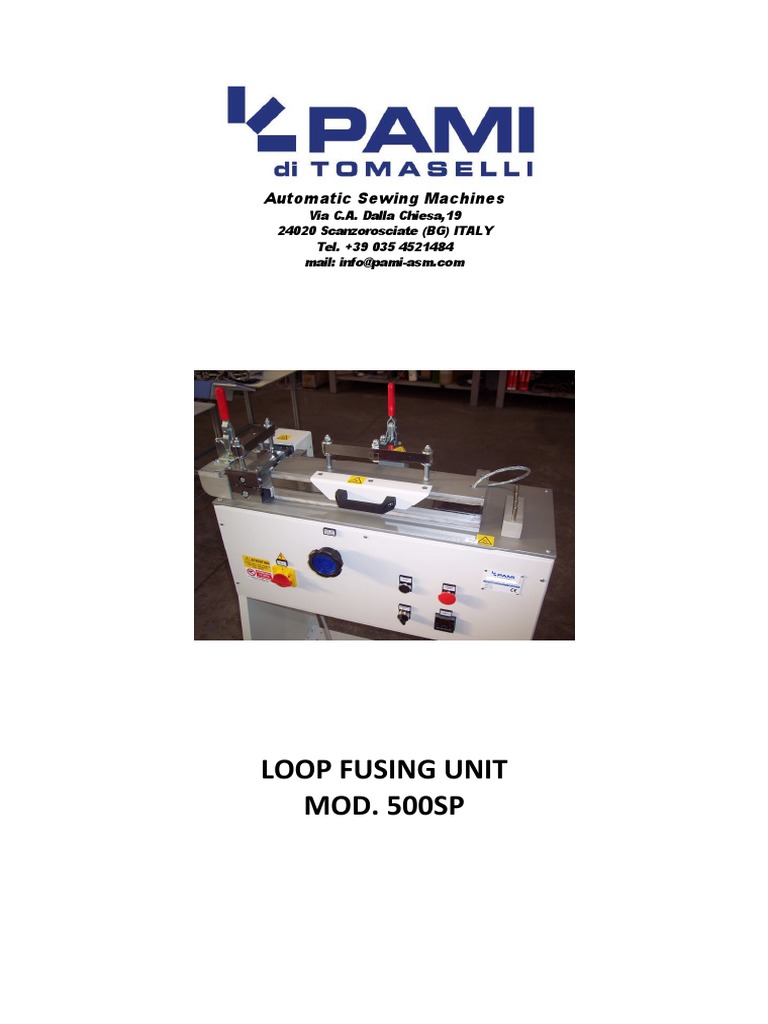

LOOP FUSING UNIT

MOD. 500SP
01 - INSTALLATION
WARNING: Machine installation must be performed by specialized
personnel only.

We disclaim all responsibility for damages resulting from installation not

complying with these instructions or from connecting the machine to power
and utility lines not satisfying the necessary requirements.

ELECTRICAL CONNECTION

The Loop Fusing Unit mod. 500SP is equipped with a cable to be connected
to the supply power. Connect this cable to an outlet with power 230V
monophase 50Hz.

02_MACHINE CONTROLS

In figure 1, the Loop Fusing Unit mod.500SP controls are illustrated.

Motor speed regulator

Emergency push-button - stop

Motor start button

General power switch

Resistance switch
Thermostat

Fig. 1 – Machine controls

03_OPERATION

START UP

Turn the main switch into the position I.

Start up the resistance switch into position 1; check the pre-set temperature is
the right one to use (the right temperature depends on the material to be
ironed).

To adjust act on the keys ▲+ ▼-, keeping them pressed, until it reaches the
desired temperature.

Be careful with the parts involved in the ironing process

because they become extremely hot.

PRESSING

Before starting the pressing it is necessary to unlock the “pressure lever 1”

and the “pressure lever 2”; then raise the upper resistance holder plate
holding the relative handle (see figure 2).

Be careful with the parts involved in the ironing process

because they become extremely hot.

Pressure lever 2
Pressure lever 1

Handle raise upper

plate
Fig. 2 – Pressure levers and handle raise upper plate
Slip the loop through the two traction cylindrical roller and then block the
“pressure lever 1”.
After checking that the loop strips are positioning in the places obtained in the
lower resistance holder plate, move down the upper resistance holder plate
using the apposite handle.
Block the “pressure lever 2”.

Fig. 3 – Placing the loop

To start the running of the machine press the button “START”; to stop the
motor press the button “EMERGENCY – STOP”.
04_ADJUSTMENTS

Always disconnect the machine from the mains supply and

wait for the ironing parts to cool down before undertaking
any adjustment, replacement or maintenance work.

The operations hereinafter described must be performed only

by specialized personnel.

SPEED MOTOR ADJUSTMENT

The loop transport is carried out by a monophase motor, equipped with a

speed mechanical variator and a gear mechanism.
To modify the rotation speed of the motor, act on the adjustment wheel (see
figure 1), turning it clockwise to increase it and anticlockwise to decrease it.
ATTENTION: to ensure a longer lifespan to the transmission parts,
never turn the wheel when the motor is not working.

PRESSURES ADJUSTMENT

To increase or decrease the pressure on the transport rollers or on the

resistance holder plate, act with a wrench CH24 on the working of the
springs, as illustrated in figure 4.

Fig. 4 – Springs pressure adjustment

05_TROUBLESHOOTING

Always disconnect the machine from the mains supply and

wait for the ironing parts to cool down before undertaking
any adjustment, replacement or maintenance work.

The operations hereinafter described must be performed only

by specialized personnel.

THE MACHINE DOES NOT HEAT

Check and eventually replace the resistances, the thermostat, the

thermocouple and the resistances contactor.

IRREGULAR TEMPERATURE

Check and eventually replace the thermostat and the thermocouple.

THE MOTOR WILL NOT START

Check that the “pressure lever 1” is blocked: the machine is equipped with a
safety micro-switch that prevents the start of the motor if the aforementioned
lever is unlocked.
If the motor however doesn’t start, check that the cylindrical gears of the two
pinch rollers are perfectly matched to allow the operation of the micro-switch;
if not turn lightly the upper roller.
If after the checking described above the motor still doesn’t work, check and
eventually replace the motor, the relative contactor and fuses.
Belt loop pressing unit

500 – SP

Please order your genuine spare parts at info@[Link]

Machine model: 500 SP Draft n° 1

P.A.M.I. S.R.L. DI TOMASELLI PRODUZIONE AUTOMAZIONE MACCHINE INDUSTRIALI

Machine model: 500 - SP Draft n° 1
Number Code Description
1 500-PT-32 Detail of the machine
15 500-PT-13 Detail of the machine
16 500-PT-12 Detail of the machine
33 RID-500 Reduction unit
35 MOT-500 Electric motor
36 500-PT-20 Detail of the machine
37 14L075-16 Motor pulley
38 187L075 Belt 187 L 075
51 Component combined whit cod. 35, 91
52 500-PT-48 Detail of the machine
56 TPSEI-M8x30 Countersunk screw M8x30
63 500-PT-39 Detail of the machine
64 TCEI-M8x20 Cap head screw M8x20
65 TE-M8x20 Hexagon head screw M8x20
66 D8 Nut M8
78 R8 Flat washer M8
79 GPI-M5x8 Grub screw M5x8
91 VAR-500 Variator unit
92 500-PT-41 Detail of the machine
93 Component combined whit cod. 91
94 GPI-M5x15 Tapered Grub Screw M5x15
95 500-PT-47 Flexible cylindrical pin
Machine model: 500 SP Draft n° 2

P.A.M.I. S.R.L. DI TOMASELLI PRODUZIONE AUTOMAZIONE MACCHINE INDUSTRIALI

Machine model: 500 - SP Draft n° 2
Number Code Description
1 500-PT-32 Detail of the machine
4 500-PT-9 Detail of the machine
6 500-PT-11 Detail of the machine
28 500-PT-5 Detail of the machine
40 HV650 Toggle clamp / Vertical handle
53 500-PT-2 Detail of the machine
66 D8 Nut M8
67 500-PT-40 Detail of the machine
68 R6 Flat washer M6
71 TCEI-M6x10 Cap head screw M6x10
72 TCEI-M6x16 Cap head screw M6x16
75 R10 Flat washer M10
76 TE-M10x30 Hexagon head screw M10x30
80 R5 Flat washer M5
81 TBEI-M5x10 Button head screw M5x10
83 D5 Nut M5
84 TPSEI-M6x25 Countersunk screw M6x25
96 R8M Oversize flat washer M8
97 500-PT-25 Detail of the machine
98 500-PT-42 Detail of the machine
99 TCEI-M8x80 Cap head screw M8x80
Machine model: 500 SP Draft n° 3

P.A.M.I. S.R.L. DI TOMASELLI PRODUZIONE AUTOMAZIONE MACCHINE INDUSTRIALI

Machine model: 500 - SP Draft n° 3
Number Code Description
1 500-PT-32 Detail of the machine
3 500-PT-8 Detail of the machine
7 500-PT-17 Detail of the machine
14 500-PT-16 Detail of the machine
25 500-PT-4 Detail of the machine
26 500-PT-6 Detail of the machine
40 HV650 Toggle clamp / Vertical handle
46 500-PT-35 Detail of the machine
49 500-PT-36 Detail of the machine
62 AM1501F Mecanic sensor
66 D8 Nut M8
68 R6 Flat washer M6
70 GPI-M6x5 Grub screw M6x5
71 TCEI-M6x10 Cap head screw M6x10
73 TBEI-M6x10 Button head screw M6x10
75 R10 Flat washer M10
76 TE-M10x30 Hexagon head screw M10x30
77 TE-M10x20 Hexagon head screw M10x20
78 R8 Flat washer M8
80 R5 Flat washer M5
83 D5 Nut M5
85 TCEI-M8x25 Cap head screw M8x25
87 TPSEI-M5x25 Countersunk screw M5x25
88 TCEI-M5x25 Cap head screw M5x25
90 TBEI-M5x25 Button head screw M5x25
96 R8M Oversize flat washer M8
97 500-PT-25 Detail of the machine
98 500-PT-42 Detail of the machine
99 TCEI-M8x80 Cap head screw M8x80
Machine model: 500 SP Draft n° 4

P.A.M.I. S.R.L. DI TOMASELLI PRODUZIONE AUTOMAZIONE MACCHINE INDUSTRIALI

Machine model: 500 - SP Draft n° 4
Number Code Description
1 500-PT-32 Detail of the machine
2 500-PT-10 Detail of the machine
5 500-PT-15 Detail of the machine
17 500-PT-21 Detail of the machine
18 500-PT-22 Detail of the machine
19 500-PT-45 Detail of the machine
20 14L075-15 Motor pulley
21 500-PT-19 Detail of the machine
22 500-PT-14 Detail of the machine
23 500-PT-44 Detail of the machine
24 500-PT-18 Detail of the machine
29 6001-2rs1 Bearing
30 SG26 Circlip Ø 26
31 16002-2Z Bearing
32 SG32 Circlip Ø 32
38 187L075 Belt 187 L 075
41 SG12-E External circlip Ø 12
42 SG16-E External circlip Ø 16
45 500-PT-34 Detail of the machine
50 500-PT-37 Detail of the machine
54 GPI-M6x10 Grub screw M6x10
57 500-PT-38 Detail of the machine
58 KU081010 Lubricated bushing
59 500-PT-43 Detail of the machine
68 R6 Flat washer M6
70 GPI-M6x5 Grub screw M6x5
73 TBEI-M6x10 Button head screw M6x10
74 TCEI-M6x40 Cap head screw M6x40
79 GPI-M5x8 Grub screw M5x8
86 TCEI-M6x25 Cap head screw M6x25
Machine model: 500 SP Draft n° 5

P.A.M.I. S.R.L. DI TOMASELLI PRODUZIONE AUTOMAZIONE MACCHINE INDUSTRIALI

Machine model: 500 - SP Draft n° 5
Number Code Description
1 500-PT-32 Detail of the machine
8 500-PT-30 Detail of the machine
9 500-PT-26 Detail of the machine
10 500-PT-28 Detail of the machine
39 500-PT-1 Detail of the machine
47 500-PT-29 Detail of the machine
55 TPSEI-M6x30 Countersunk screw M6x30
60 RES-500 Electric resistance
61 SONDA-500 Temperature sensor
68 R6 Flat washer M6
73 TBEI-M6x10 Button head screw M6x10
74 TCEI-M6x40 Cap head screw M6x40
8 0 R5 Flat washer M5
82 TCEI-M5x10 Cap head screw M5x10
89 TPSEI-M5x10 Countersunk screw M5x10
Machine model: 500 SP Draft n° 6

P.A.M.I. S.R.L. DI TOMASELLI PRODUZIONE AUTOMAZIONE MACCHINE INDUSTRIALI

Machine model: 500 - SP Draft n° 6
Number Code Description
9 500-PT-26 Detail of the machine
11 500-PT-27 Detail of the machine
12 500-PT-31 Detail of the machine
13 500-PT-7 Detail of the machine
43 500-PT-33 Detail of the machine
44 500-PT-46 Detail of the machine
47 500-PT-29 Detail of the machine
48 KU121412 Lubricated bushing
55 TPSEI-M6x30 Countersunk screw M6x30
60 RES-500 Electric resistance
64 TCEI-M8x20 Cap head screw M8x20
66 D8 Nut M8
68 R6 Flat washer M6
69 TBEI-M6x30 Button head screw M6x30
73 TBEI-M6x10 Button head screw M6x10
78 R8 Flat washer M8
Machine model: 500 SP Draft n° 7

P.A.M.I. S.R.L. DI TOMASELLI PRODUZIONE AUTOMAZIONE MACCHINE INDUSTRIALI

Machine model: 500 - SP Draft n° 7
Number Code Description
1 500-PT-3 Detail of the machine
2 R6 Flat washer M6
3 TBEI-M6x10 Button head screw M6x10
4 TERM-500 Thermostat
5 PS2 Selector button with 2 positions
6 PC Contact button
7 M22K10 Normally open contact
8 PFN Start mushroom button
9 Component combined whit cod. 5, 8 and 11
10 M22K01 Normally closed contact
11 PFE Emergency mushroom button
12 IGC-1 General switch power
13 IGC-2 Accessories for switch power
14 IGC-3 Accessories for switch power
15 IGC-4 Accessories for switch power
