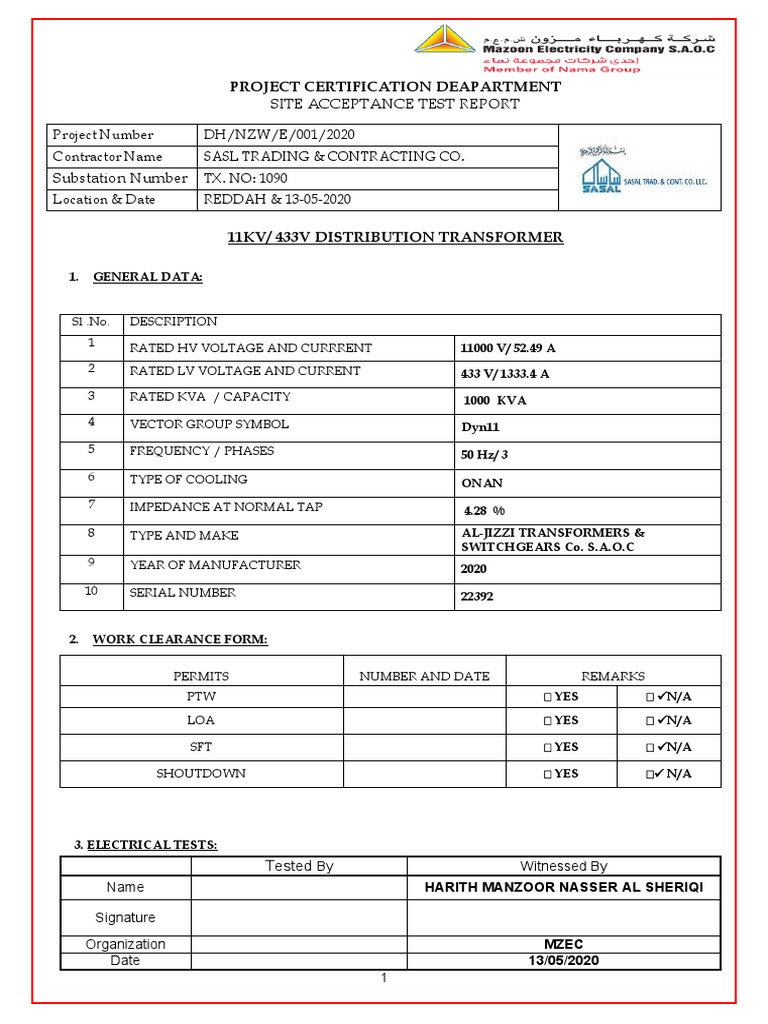

PROJECT CERTIFICATION DEAPARTMENT

SITE ACCEPTANCE TEST REPORT

Project Number DH/NZW/E/001/2020

Contractor Name SASL TRADING & CONTRACTING CO.
Substation Number TX. NO: 1090
Location & Date REDDAH & 13-05-2020

11KV/ 433V DISTRIBUTION TRANSFORMER

1. GENERAL DATA:

Sl .No. DESCRIPTION
1 RATED HV VOLTAGE AND CURRRENT 11000 V/ 52.49 A
2 RATED LV VOLTAGE AND CURRENT 433 V/ 1333.4 A
3 RATED KVA / CAPACITY 1000 KVA
4 VECTOR GROUP SYMBOL Dyn11
5 FREQUENCY / PHASES 50 Hz/ 3
6 TYPE OF COOLING ONAN
7 IMPEDANCE AT NORMAL TAP 4.28 %
8 TYPE AND MAKE AL-JIZZI TRANSFORMERS &
SWITCHGEARS Co. S.A.O.C
9 YEAR OF MANUFACTURER 2020
10 SERIAL NUMBER 22392

2. WORK CLEARANCE FORM:

PERMITS NUMBER AND DATE REMARKS

PTW  YES  N/A
LOA  YES  N/A

SFT  YES  N/A

SHOUTDOWN  YES  N/A

3. ELECTRICAL TESTS:
Tested By Witnessed By
Name HARITH MANZOOR NASSER AL SHERIQI

Signature
Organization MZEC
Date 13/05/2020
1
 PROJECT CERTIFICATION DEAPARTMENT
SITE ACCEPTANCE TEST REPORT

Project Number DH/NZW/E/001/2020

Contractor Name SASL TRADING & CONTRACTING CO.
Substation Number TX. NO: 1090
Location & Date REDDAH & 13-05-2020

11KV/ 433V DISTRIBUTION TRANSFORMER

A) WINDING INSULATION RESISTANCE MEASUREMENT

TIME(MIN) HV TO EARTH: 5KV DC LV TO EARTH : 500 V DC HV TO LV : 2.5KV DC

1 33.8 GΩ 34.4 GΩ 45.8 GΩ

B) WINDING RESISTANCE MEASUREMENT: OES 5, IEC 60076 – 1, CLAUSE 10.2 PAGE.NO :61
H.V SIDE AMB. TEMP: @ 31 °C
R ph – Y ph (mΩ) Y ph –B ph (mΩ) B ph – R ph (mΩ)
TAP POSITION REMARKS
@ 31°C @ 75°C @ 31°C @ 75°C @ 31°C @ 75°C

1 744.2 867.3 727.7 848.1 736.4 858.3 OK

2 709.1 826.5 702 818.4 716.7 835.2 OK

3 682.5 795.4 681.1 793.8 689.2 803.1 OK

4 678.5 789.5 675.9 787.0 682.3 796.3 OK

5 660.0 769.1 659.2 768.3 671.5 782.5 OK

L.V SIDE : TAP-3 (Normal Tap)

r ph – n (mΩ) y ph –n (mΩ) b ph – n (mΩ)
@ 37 °C @ 75°C @ 37 °C @ 75°C @ 37 °C @ 75°C REMARKS

9.404 10.96 8.819 10.28 9.978 11.63 OK

Tested By Witnessed By
Name HARITH MANZOOR NASSER AL SHERIQI

Signature
Organization MZEC
Date 13/05/2020
2
 PROJECT CERTIFICATION DEAPARTMENT
SITE ACCEPTANCE TEST REPORT

Project Number DH/NZW/E/001/2020

Contractor Name SASL TRADING & CONTRACTING CO.
Substation Number TX. NO: 1090
Location & Date REDDAH & 13-05-2020

11KV/ 433V DISTRIBUTION TRANSFORMER

C) VECTOR GROUP CHECK: OES 5 ,IEC 60076 - 1 CLAUSE 10.3 PAGE.NO :63

1. CONNECT TERMINALS ‘1U& 2U’ TOGETHER

2. TAP CHANGER BEING ON RATED TAP NO:3

3. APLLIED 3 PHASE VOLTAGE ON HV TERMINAL

MEASURED VOLTAGE ON

HV SIDE MAIN LV SIDE MAIN

VOLTAGE MEASURED BETWEEN HV AND LV TERMINALS(V)
VOLTAGE(V) VOLTAGE(V)

TERMINAL VOLTAGE TERMINAL VOLTAGE TERMINAL VOLTAGE TERMINAL VOLTAGE TERMINAL VOLTAGE

1U-1V 356.3 2U-2V 12.56 1U-1V 326.3 1U-2N 7.41 2N-1V 348.6

1V-1W 344.5 2V-2W 14.27 1V-2W 307.4 1V-2V 307.1 1U-2V 12.91

1W-1U 362.5 2W-2U 13.50 1W-2V 365.3 1W-2W 353.7 1U-2U 0

VECTOR GROUP = Dyn11

1. 1U-1V = 1U-2N+2N-1V=> 356.3 = 7.41+348.6

2. 1V-2W = 1V-2V => 307.4 = 307.1

3. 1W-2V > 1W-2W => 365.3 > 353.7
D) MAGNETIZING CURRENT MEASUREMENT: (OPEN CIRCUIT TEST)

Tested By Witnessed By
Name HARITH MANZOOR NASSER AL SHERIQI

Signature
Organization MZEC
Date 13/05/2020
3
 PROJECT CERTIFICATION DEAPARTMENT
SITE ACCEPTANCE TEST REPORT

Project Number DH/NZW/E/001/2020

Contractor Name SASL TRADING & CONTRACTING CO.
Substation Number TX. NO: 1090
Location & Date REDDAH & 13-05-2020

11KV/ 433V DISTRIBUTION TRANSFORMER

APPLIED VOLTAGE TAP R PH CURRENT IN HV Y PH CURRENT IN B PH CURRENT IN HV

IN HV SIDE NO. SIDE (mA) HV SIDE (mA) SIDE (mA)
1 10.3 7.0 8.4
R-Y 2 9.0 6.6 7.9
Y-B 3 8.8 6.5 7.6
4 8.6 6.4 7.2
B-R
5 8.4 6.3 7.0

E) TURNS RATIO TEST: OES 5, IEC 60076 - 1 CLAUSE 10.3, PAGE.NO:63

3 PHASE VOLTAGES APPLIED IN HV SIDE:

TAP HV VOLTAGE(V) LV VOLTAGE(V)

NO.
MEASURED
NOMINAL ERROR
RATIO
RATIO (%)
U-V V-W W-U u-v / u-n v-w / v-n w-u / w-n AVERAGE

1 361.4 362.4 363.3 13.53/7.82 13.6/7.85 13.56/7.84 26.717 26.67 0.159

2 361.1 362.1 363.1 13.82/7.98 13.91/8.06 13.88/8.02 26.107 26.04 0.259

3 361.8 362.7 363.5 14.28/8.23 14.26/8.24 14.38.29 25.367 25.40 -0.145

4 361.2 362.9 363.3 14.61/8.46 14.68/8.51 14.78.54 24.708 24.77 -0.246

5 361.5 362.4 363.2 15.02/8.69 15.09/8.71 15.11/8.75 24.040 24.13 -0.388

 ACCEPTANCE CRITERIA % ERROR TO BE WITH IN +/- 0.5% OF NAME PLATE RATING

(IEC 60076-1: 2011-14 Edition-3)

Tested By Witnessed By
Name HARITH MANZOOR NASSER AL SHERIQI

Signature
Organization MZEC
Date 13/05/2020
4
 PROJECT CERTIFICATION DEAPARTMENT
SITE ACCEPTANCE TEST REPORT

Project Number DH/NZW/E/001/2020

Contractor Name SASL TRADING & CONTRACTING CO.
Substation Number TX. NO: 1090
Location & Date REDDAH & 13-05-2020

11KV/ 433V DISTRIBUTION TRANSFORMER

F) OIL BDV / DIELECTRIC TEST:

OES 5, CLAUSE: 17.0 TESTS (IEC 60076 -, 1 CLAUSE: 10.1.1 (E), PAGE NO: 59 - IEC60076-3)

TEST NUMBER 1 2 3 4 5 6 AVERAGE

BREAKDOWN
59.4 55.9 61.3 62.6 62.9 59.2 59.2
VOLTAGE (KV)

IEC 60156 & IEC 60422 TEST VALUE IS ACCEPTED IF

> 55KV FOR NEW OIL / > 40KV FOR IN SERVICE OIL

G) INSTRUMENTS DETAILS:

INSTRUMENTS MAKE SERIAL NUMBER CAL.DUE DATE

MULTIMETER FLUKE 31410020 12.10.2020

INSULATION TESTER MEGGER 101851808 07.09.2020

WINDING RESISTANCE KIT OMICRON CPC100 FL773J 06.12.2020

BDV KIT B2 ELECTRONICS GB5008.17C018 19.06.2020

Tested By Witnessed By
Name HARITH MANZOOR NASSER AL SHERIQI

Signature
Organization MZEC
Date 13/05/2020
5
