EP25-35(C)N Service Manual

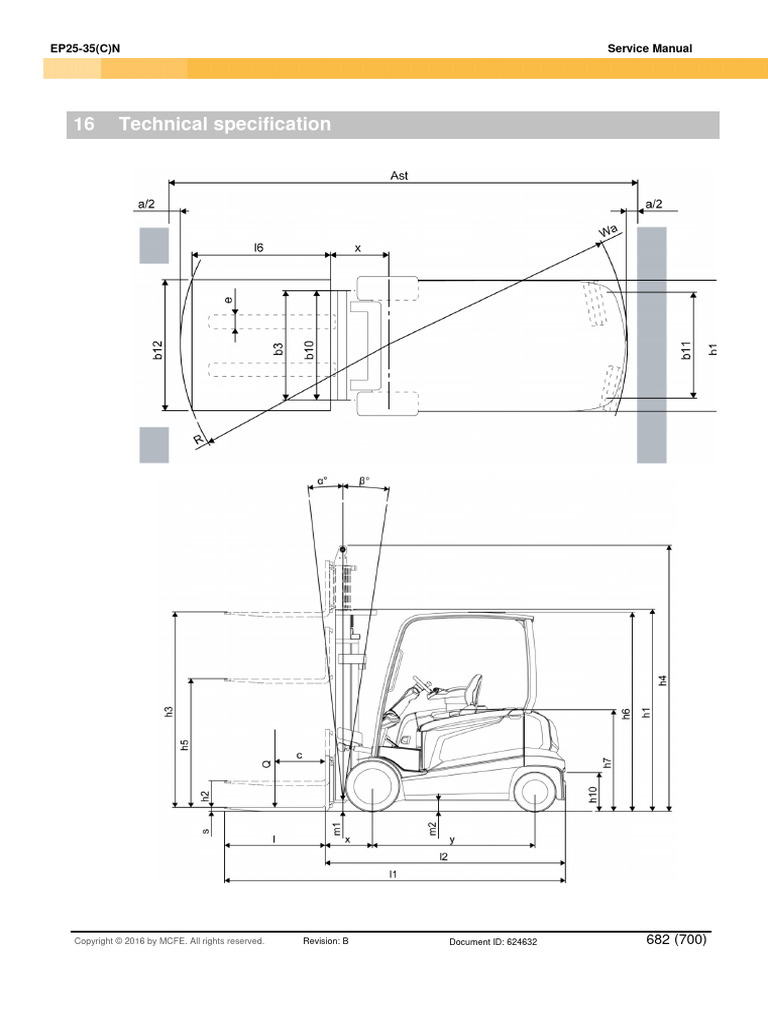

16 Technical specification
Copyright © 2016 by MCFE. All rights reserved. Revision: B Document ID: 624632 682 (700)
EP25-35(C)N Service Manual
16.1 EP25N, EP25CN,EP30N, EP30CN and EP35N
1 CHARACTERISTICS
1.1 Manufacturer Mitsubishi Mitsubishi Mitsubishi Mitsubishi Mitsubishi
Manufacturer's model
1.2 EP25N EP25CN EP30N EP30CN EP35N
designation
1.3 Power source Electric Electric Electric Electric Electric
1.4 Operator type Seated Seated Seated Seated Seated
1.5 Load capacity Q [kg] 2,500 2,500 3,000 3,000 3,500
1.6 Load centre distance c [mm] 500 500 500 500 500
Load distance, axle to fork
1.8 x [mm] 476 476 504 504 504
face
1.9 Wheel base y [mm] 1,730 1,585 1,730 1,585 1,730
2 WEIGHT
Truck weight, without load /
2.1 including battery (simplex [kg] 4,700 4,621 5,152 5,234 5,591
mast, lowest lift height)
Axle loading with maximum
2.2 load, front / rear (simplex [kg] 6,336 / 864 6,332 / 789 7,313 / 839 7,355 / 878 8,186 / 904
mast, lowest lift height)
Axle loading without load,
2.3 front / rear (simplex mast, [kg] 2,424 / 2,275 2,292 / 2,329 2,571 / 2,581 2,454 / 2,780 2,654 / 2,937
lowest lift height)
3 WHEELS, DRIVE TRAIN
Wheels, material (V = solid, L
3.1 = pneumatic, SE = solid SE SE SE SE SE
pneumatic), front / rear
3.2 Tire dimensions, front pcm/ [mm] 23 x 9-10 23 x 9-10 23 x 10-12 23 x 10-12 23 x 10-12
3.3 Tire dimensions, rear [mm] 18 x 7-8 18 x 7-8 18 x 7-8 18 x 7-8 18 x 7-8
Number of wheels, front / rear
3.5 2x / 2 2x / 2 2x / 2 2x / 2 2x / 2
(x = driven)
Track width (centre of
3.6 b10 [mm] 985 985 950 950 950
wheels), front
Track width (centre of wheels,
3.7 b11 [mm] 970 970 970 970 970
rear
4 DIMENSIONS
4.1 Mast tilt, forward / backward ∂ / ß [˚] 6/8 6/8 6/8 6/8 6/8
Height with mast lowered
4.2 h1 [mm] 2,145 2,145 2,165 2,165 2,291
(see tables)
4.3 Free lift (see tables) h2 [mm] 100 100 100 100 100
4.4 Lift height (see tables) h3 [mm] 3,300 3,300 3,270 3,270 3,300
Overall height with mast
4.5 h4 [mm] 4,355 4,355 4,325 4,325 4,345
raised
Height to the top of the
4.7 h6 [mm] 2,240 2,240 2,240 2,240 2,240
overhead guard
4.8 Seat height * h7 [mm] 1,130 1,130 1,130 1,130 1,130
Copyright © 2016 by MCFE. All rights reserved. Revision: B Document ID: 624632 683 (700)
EP25-35(C)N Service Manual
4.12 Tow coupling height h10 [mm] 395 395 395 395 395
4.19 Overall length l1 [mm] 3,600 3,459 3,628 3,487 3,628
Length to fork face (includes
4.20 l2 [mm] 2,530 2,389 2,558 2,417 2,558
fork thickness)
4.21 Overall width b1/b2 [mm] 1,190 1,190 1,190 1,190 1,190
Fork dimensions (thickness, 40 x 100 x 40 x 100 x 45 x 125 x 45 x 125 x 45 x 125 x
4.22 s/e/l [mm]
width, length) 1,070 1,070 1,070 1,070 1,070
Fork carriage to DIN 15 173
4.23 2A 2A 3A 3A 3A
A/B/no
4.24 Fork carriage width b3 [mm] 1,000 1,000 1,000 1,000 1,000
Ground clearance under
4.31 m1 [mm] 105 105 115 115 115
mast, with load
Ground clearance at the
4.32 centre of wheel base, with m2 [mm] 122 122 122 122 122
load (forks lowered)
Working aisle width with
4.33 1,000 x 1,200 mm pallets, Ast [mm] 3,805 3,660 3,830 3,690 3,830
crosswise
Working aisle width with 800
4.34 x 1,200 mm pallets, Ast [mm] 3,960 3,815 3,985 3,840 3,985
lengthwise
4.35 Turning circle radius Wa [mm] 2,064 1,920 2,064 1,920 2,064
Minimum distance between
4.36 b13 [mm] 160 160 160 160 160
centres of rotation
5 PERFORMANCE
Travel speed, with / without
5.1 [km/h] 20 / 20 20 / 20 20 / 20 20 / 20 18 / 18
load
Lifting speed, with / without
5.2 [m/s] 0.5 / 0.65 0.5 / 0.65 0.45 / 0.6 0.45 / 0.6 0.45 / 0.6
load
Lowering speed, with /
5.3 [m/s] 0.55 / 0.5 0.55 / 0.5 0.5 / 0.45 0.5 / 0.45 0.5 / 0.45
without load
Rated drawbar pull, with /
5.5 [N] 9,300 / 9,700 9,300 / 9,700 9,100 / 9,550 9,100 / 9,550 8,950 / 9,500
without load
Maximum drawbar pull, with /
15,800 / 15,800 / 15,550 / 15,550 / 15,400 /
5.6 without load (5 min. short [N]
16,200 16,200 16,050 16,050 16,000
duty)
Gradeability, with / without
5.7 [%] 15 / 25 15 / 25 13 / 22 13 / 22 12 / 20
load
Maximum gradeability, with /
5.8 [%] 23 / 38 23 / 38 20 / 34 20 / 33 18 / 31
without load
Acceleration time (10 metres),
5.9 [s] 4.2 / 3.9 4.2 / 3.9 4.3 / 3.9 4.3 / 3.9 4.4 / 3.9
with / without load
5.10 Service brakes Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
6 ELECTRIC MOTORS
Traction motor capacity (60
6.1 [kW] 2x8 2x8 2x8 2x8 2x8
min. short duty)
Lift motor output at 15% duty
6.2 [kW] 20.8 20.8 25.5 25.5 25.5
factor
Battery to DIN 43 531/35/36
6.3 43.536A 43.536A 43.536A 43.536A 43.536A
A/B/C/no
Copyright © 2016 by MCFE. All rights reserved. Revision: B Document ID: 624632 684 (700)
EP25-35(C)N Service Manual
Battery voltage /min-max
6.4 [V/Ah] 80 / 700-775 80 / 560-620 80 / 700-775 80 / 560-620 80 / 700-775
capacity
6.5 Battery weight [kg] 1,863 1,558 1,863 1,558 1,863
Energy consumption
6.6 [kWh/h] 7.4±0.2 7.4±0.2 7.9±0.2 8.2±0.2 8.9±0.2
according to VDI 60 cycle
8 MISCELLANEOUS
8.1 Type of traction control AC AC AC AC AC
Maximum operating pressure
8.2 [bar] 185 185 185 185 205
for attachments
8.3 Oil flow for attachments [l/min] 30 30 30 30 30
Noise level, value at
8.4 [dB (A)] 65 65 66 66 66
operator’s ear (EN 12053)
Noise level in work
[dB A] 65 65 66 66 66
(EN 12053 and EN ISO 4871)
Noise level operation/lift/idle
[dB A] 67 / 71 / - 67 / 71 / - 71 / 68 / - 71 / 68 / - 71 / 68 / -
(EN 12053 and EN ISO 4871)
Towing coupling design / DIN
8.5 DIN15170-H DIN15170-H DIN15170-H DIN15170-H DIN15170-H
rype, ref.
Whole body vibration
[m/s²] 0.4 0.4 0.4 0.4 0.4
(MSG65)
Whole body vibration
[m/s²] 0.4 0.4 0.4 0.4 0.5
(MSG75)
Whole body vibration
[m/s²] 1.0 1.0 1.0 1.0 1.1
(MSG20)
Hand-arm vibration [m/s²] <2.5 <2.5 <2.5 <2.5 <2.5
Temperature operating range [°C] -20…+45 -20…+45 -20…+45 -20…+45 -20…+45
Manufacturer reserves the right to make technical changes.
* h7 values recorded with MSG65 seat.
Copyright © 2016 by MCFE. All rights reserved. Revision: B Document ID: 624632 685 (700)
