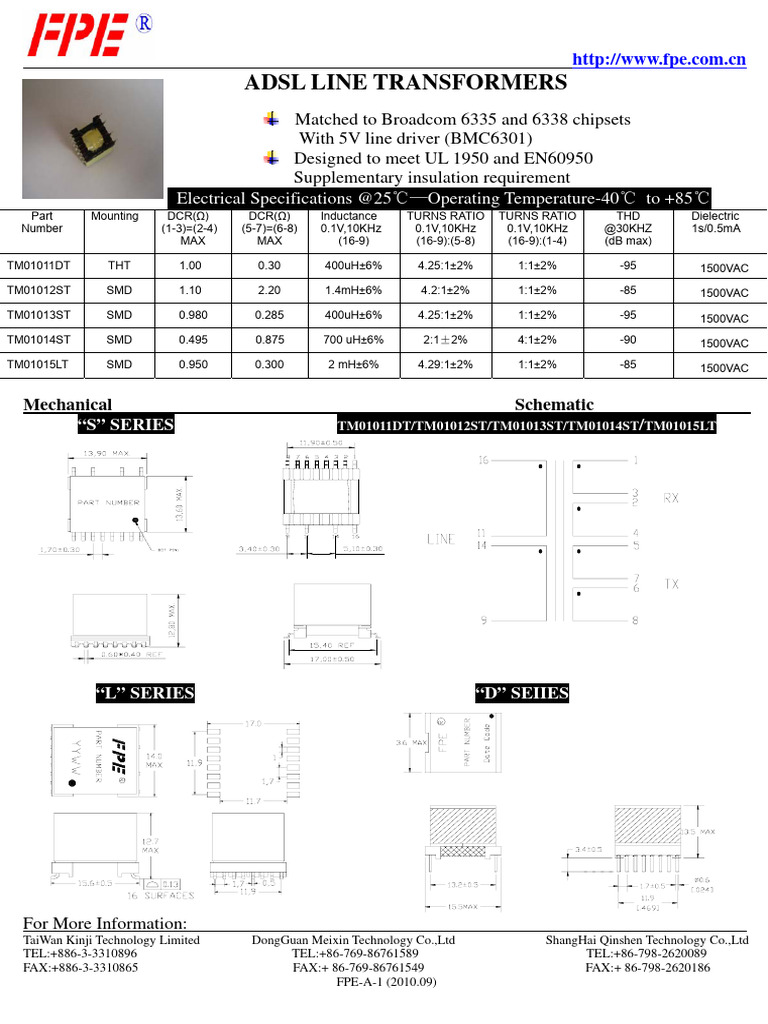

ADSL LINE TRANSFORMERS
Matched to Broadcom 6335 and 6338 chipsets
With 5V line driver (BMC6301)
Designed to meet UL 1950 and EN60950
Supplementary insulation requirement
Electrical Specifications @25℃—Operating Temperature-40℃ to +85℃
Part Mounting DCR(Ω) DCR(Ω) Inductance TURNS RATIO TURNS RATIO THD Dielectric
Number (1-3)=(2-4) (5-7)=(6-8) 0.1V,10KHz 0.1V,10KHz 0.1V,10KHz @30KHZ 1s/0.5mA
MAX MAX (16-9) (16-9):(5-8) (16-9):(1-4) (dB max)
TM01011DT THT 1.00 0.30 400uH±6% 4.25:1±2% 1:1±2% -95 1500VAC

TM01012ST SMD 1.10 2.20 1.4mH±6% 4.2:1±2% 1:1±2% -85 1500VAC
TM01013ST SMD 0.980 0.285 400uH±6% 4.25:1±2% 1:1±2% -95 1500VAC
TM01014ST SMD 0.495 0.875 700 uH±6% 2:1±2% 4:1±2% -90 1500VAC
TM01015LT SMD 0.950 0.300 2 mH±6% 4.29:1±2% 1:1±2% -85 1500VAC
Mechanical Schematic
“S” SERIES TM01011DT/TM01012ST/TM01013ST/TM01014ST/TM01015LT
“L” SERIES “D” SEIIES
For More Information:

TaiWan Kinji Technology Limited DongGuan Meixin Technology Co.,Ltd ShangHai Qinshen Technology Co.,Ltd
TEL:+886-3-3310896 TEL:+86-769-86761589 TEL:+86-798-2620089
FAX:+886-3-3310865 FAX:+ 86-769-86761549 FAX:+ 86-798-2620186
FPE-A-1 (2010.09)
http://www.fpe.com.cn
HDSL AND RADSL TRANSFORMER
Designs exceed standards for ANSI and ETSI
UL 1950 and BABT certified
Excellent THD performance
Matched to Globespan ADSL chipset
Part Mounting DC Insertion Isolation Longitudinal Turns Ratio OCL Primary Leakage
Number Resistance Loss Voltage Balance (db Chip-Line (µH±10%) Inductance
@(1-3),(2-4) (db) (Vrms) TYP) (±2%) (1-4)with(2-3) ( µH±10%)
,(10-8),(9-7) MAX shorted
(ΩMAX)
TM04003DT THT 1.2 3 1500 62 1.4:1.4:1:1 940 10
TM04004DT THT 0.8 3 1500 62 1:1:1:1 410 10
TM02001DL THT 3.0 600 1:1: 8.77(mH)
TM04003/004DT TM04003/004DT
× .015
0.38
TM02001DL TM02001DL

TEL:+886-3-3310896 TEL:+86-769-86761589 TEL:+86-798-2620089
FAX:+886-3-3310865 FAX:+ 86-769-86761549 FAX:+ 86-798-2620186
FPE-A-2 (2010.09)
VDSL LINE TRANSFORMERS
Matched to Infineon PEB22716—dual line driver for
The GEMINAX Octal chipsets PEB55508 and and PEB
22720 and Broadband SLIC
Designed to comply with EN60950 supplementary insulation
Requirements for working voltages up to 250Vrms
Compact footprint for high density board layouts
Part Mounting Inductance Leakage DCR (Ω) DCR(Ω) Interwinding THD Turn Ratios Dielectric
Number 10KHz 0.1V Inductance (1-4)=(2-3) (8-6)=(7-5) Capacitance 100Khz,4.5V 10KHz 0.1V 1S/0.5mA
(1-4) 100khz/0.1v max max (pF) (dB) (1-4) : (8-5) (1-10)
tie(2+3) 1-4 MAX MAX Tie(2+3,7+8) Tie(2+3,7+8)
tie(2+3,6+7,8-5)
TM01001LT SMD 109 uH±10% 2.0uH MAX 0.25 0.03 N/A -80 4:1±2.5% 18750Vac
TM01002LT SMD 1.4mH±5% 5.0uH MAX 1.22 0.55 N/A -80 1.33:1±2.% 18750Vac
TM01003LT SMD 470 uH±5% 1.1uH MAX 1.0 0.55 60 -75 1.33:1±2.% 18750Vac
TM01004LT SMD 400uH±5% 10uH MAX 1.05 0.55 20 -60 1.9:1±2.5% 18750Vac
Methanical Schematic
TM01001LT/TM01002LT/TM01003LT/TM01004LT

TEL:+886-3-3310896 TEL:+86-769-86761589 TEL:+86-798-2620089
FAX:+886-3-3310865 FAX:+ 86-769-86761549 FAX:+ 86-798-2620186
FPE-A-3 (2010.09)
ISDN S-INTERFACE DUAL TRANSFORMERS
RoHS Compliant ( PB Free )
Surface mounting type
Operating Temperature Range:-40℃to +85℃
Designed to comply with the following requirements as
defined by IEC60950-1
Part Mounting DCR(Ω) DCR(Ω) TURNSRATIO CWW Inductance Hi-pot LK
Number LINE SIDE CHIP SIDE 100mV,10KHz (1-16) 0.1V,10 KHz LINE TO 0.1V,100 KHz
LINE:CHIP 100KHZ;0.1V LINE SIDE CHIP LINE SIDE
2mA/2s Short CHIP
LN16201SN SMT 3.5±15% 6.1±15% 1:2±2% 80pF MAX 25 mH MIN 1800Vac 12.0 uH MAX
LN16204SN SMT 0.5 (REF) 0.5 MAX 1:1±2% 10pF MAX 25 mH MIN 1500/Vac 5.0uH MAX
LN16201SN/LN16202SN LN16201SN/LN16202SN/LN16203SN
LN16203SN
0°-8°
LN16204SN LN16204SN

TEL:+886-3-3310896 TEL:+86-769-86761589 TEL:+86-798-2620089
FAX:+886-3-3310865 FAX:+ 86-769-86761549 FAX:+ 86-798-2620186
FPE-A-4 (2010.09)
T1/E1 S-SURFACE TRANSFORMERS
Operating Temperature Range:-40℃to +85℃
Minimum Isolation voltage：1500Vrms
Part Mounting DCR(Ω) DCR(Ω) TURNSRATIO Inductance(LINE) CW/W LK(CHIP) Hi-POT
Number MAX MAX 1V,20KHz +/-3% 0.1V,100 KHz pF 0.1V,100 KHz LINE TO
CHIP:LINE mH(±25%) MAX uH(MAX) CHIP
9-7/4-6=1:2
LN12201SN SMD 9-7=0.9 12-10=0.9 1.2 30 0.8 1800VAC
12-10/1-3=1:
16-14/1-3=1:1.67
LN16208SN SMD 1-3=1.2 16-14=0.8 1.5 35 0.8 1800VAC
6-8/11-9=1:1
LN32801SN SMD 1.0 1.0 1:1.67 1.8 35 0.6 1800VAC
LN12201SN LN12201SN
LN16208SN LN16208SN
LN32801SN LN32801SN

TEL:+886-3-3310896 TEL:+86-769-86761589 TEL:+86-798-2620089
FAX:+886-3-3310865 FAX:+ 86-769-86761549 FAX:+ 86-798-2620186
FPE-A-5 (2010.09)
COMMON CHOKE AND INDUCTOR

Part Mounting DCR(Ω) DCR(Ω) TURNSRATIO CWW Inductance Hi-pot LK max
Number 1-3 4-6 100mV,10KHz (pF) max 0.1V,100 KHz 2mA/1SEC 0.1V,100 KHz
TM11001SL SMD 0.6 TYP 0.6 TYP (1-3)/(4-6)=1:1.3±1% 10 400uH min 3000VAC 25uH
TM11002DL THT 0.60 MAX 0.60 MAX 1:1±1% NIL 4.5mH±30% 1500VAC NIL
TM10004SL SMD 0.35 MAX 0.35 MAX (4-3)/(1-2)=1.67:1±1% NIL 30uH min 3750VAC NIL
TM11003DL THT 0.30 MAX 0.30 MAX 1:1±1% NIL 50uH+50%-30% 600VAC NIL
1-8=2-7 3-6=4-5
TM11002SL SMD 1:1±1% NIL 24uH min 600VAC NIL
0.25 MAX 0.25 MAX
TM10001SL SMD 0.70 MAX 0.70 MAX 1:1±1% NIL 4.7mH+50%,-30% 600VAC 0.4 uH
1-4=0.6 5-8=0.4
TM10002ST SMD 1.33:1±5% 25 1-4=177 5-8=100 1500VAC 1.0
MAX MAX
TM11001SL TM11001SL
TM11002DL TM11002DL
9.10± 0.30
TM10004SL TM10004SL

TEL:+886-3-3310896 TEL:+86-769-86761589 TEL:+86-798-2620089
FAX:+886-3-3310865 FAX:+ 86-769-86761549 FAX:+ 86-798-2620186
FPE-A-6.1 (2010.09)
TM11003DL TM11003DL
3 S h ift 1
2
1 2
1
4
J/M-Cod
W1 W2
4 3
TM11002SL TM11002SL
TM10001SL TM10001SL
TM10002ST TM10002ST
1.27 TYP
4
1 R 8 5
0.40± 0.127
2 7
3 TM10002ST 6
4 YYWW 5 1 8
8.30± 0.25
8.30
2.60± 0.1 4.0± 0.25 0.4
0°~8° 2.54
0.7
1.0

TEL:+886-3-3310896 TEL:+86-769-86761589 TEL:+86-798-2620089
FAX:+886-3-3310865 FAX:+ 86-769-86761549 FAX:+ 86-798-2620186
FPE-A-6.2 (2010.09)
POWER AND CURRENT TRANSFORMERS
11.5 mm Maximum Height
Surface mounting type
Part Mounting DCR(Ω) DCR(Ω) TURNSRATIO Inductance LEAKAGE Inductance HI-POT
Number (1-3) (6-4) 1V,20KHz 0.1V,100 KHz 0.1V,100 KHz 1mA/1sec
1-8/2-7=1.03:1±7%
1-8=0.40 3-5=0.06 3-4=3.38 uH MAX (3-4)= 0.16 uH MAX 600VAC
1-8/8-2=1.04:1±7%
PW05001ST SMT 8-2=0.44 5-4=0.07
1-8/3-5=2.77:1±7%
2-7=0.48 3-4=2.7 uH MIN(6ADC) (TIE1-2-7-8)
1-8/5-4=2.75:1±7%
PW05002ST SMT 0.68 MAX 0.8 MAX (1-3)=(6-4)=1V±7% (1-3)= (6-4)=900 uH MIN 600VAC
1-8=0.38 3-5=0.52 3-5=5-4=
PW06001ST SMT 5.5uH±15% 1.0 uH MAX 600VAC
MAX MAX 116.0mV±5%
PW05002ST PW05002ST
PW05001ST
PW05001ST/PW06001ST
PW06001ST

TEL:+886-3-3310896 TEL:+86-769-86761589 TEL:+86-798-2620089
FAX:+886-3-3310865 FAX:+ 86-769-86761549 FAX:+ 86-798-2620186
FPE-A-7.1 (2010.09)
POWER AND DRIVE TRANSFORMERS
Designed to meet EN60950
TRANSFORMERS FOR Power over Ethernet(PoE)
Power: 3W to 20W
Part Mountig DCR(Ω) DCR(Ω) DCR(Ω) DCR(Ω) LK(uH) TURNSRATIO Inductance Inductance Hi-pot
Number Pri Sec drive bias MAX 1V,20KHz 0.1V,100 0.1V,100 22SEC
max max max max Pri:sec KHz(0A) KHz((uH) 2mA
Pri::drive ±10%(uH) With I.2A
PW07003ST SMD 0.52 0.0275 0.525 0.770 2.0 5.0:1,3.2:1 3-5=150 135 min 1500vac
PW07002ST SMD 0.225 0.013 0.013 0.270 4.5 8.50:1,2.13:1 2-4=117 85.0 1500vac
PW01002ST SMD 0.222 0.039 NIL 0.348 0.95 1:0.25,1:0.50 3-4=127 114.3 min 1500vac
PW07003ST PW07003ST
PW07002ST PW07002ST
PW01002ST PW01002ST
3
8
7
4
2
6 10
FPE 9
10
PW 01002ST
1
YYW W
5 1
( T o p V ie w )

TEL:+886-3-3310896 TEL:+86-769-86761589 TEL:+86-798-2620089
FAX:+886-3-3310865 FAX:+ 86-769-86761549 FAX:+ 86-798-2620186
FPE-A-7.2 (2010.09)
