Scaffolding Components Size - OSHA

Safety Management Study

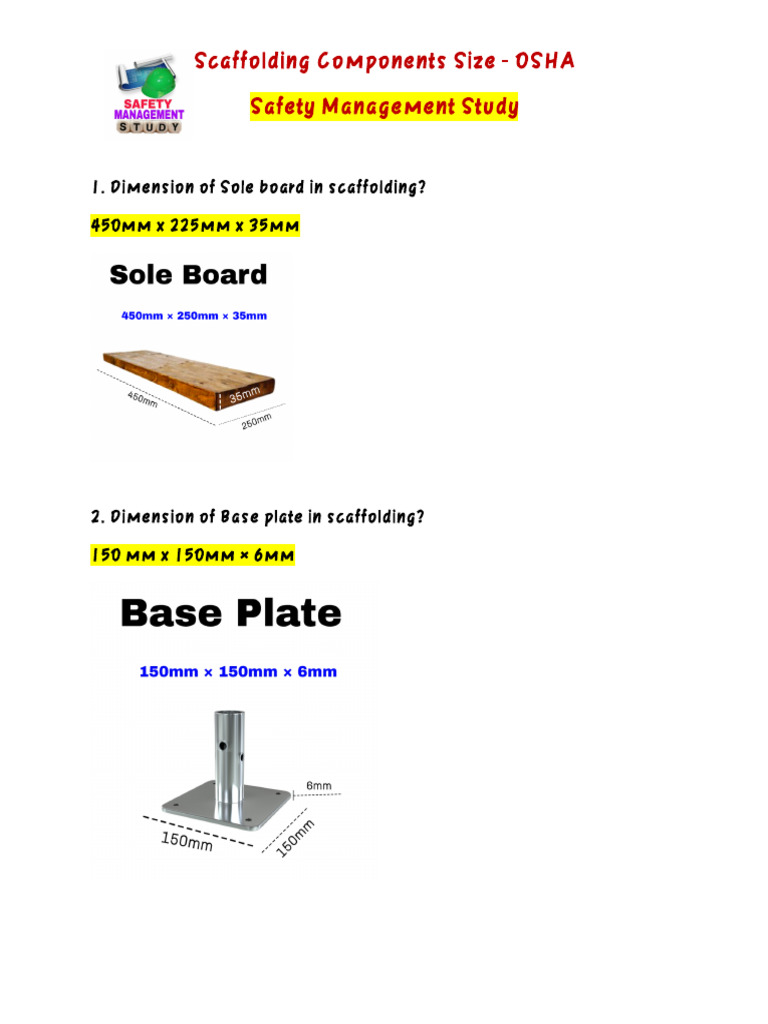

1. Dimension of Sole board in scaffolding?

450mm x 225mm x 35mm

2. Dimension of Base plate in scaffolding?

150 mm x 150mm × 6mm


Scaffolding Components Size - OSHA
Safety Management Study

3. Maximum bay length (distance between two post) in scaffolding?

Maximum 2M for light duty & Maximum 1.8M for Heavy duty.

4. Outer dia of scaffolding tube?

48.3mm

5. Length of post or standard in scaffolding?

6.3M
Scaffolding Components Size - OSHA
Safety Management Study

6. Which material used for scaffolding tube?

Galvanized steel

7. What should be the thickness of scaffolding tube.

4mm

8. Scaffolding tube use to connect two scaffolding post horizontally is


called?

ledger or runner
Scaffolding Components Size - OSHA
Safety Management Study

9.Name of components use to support scaffolding plank in scaffold?

Transoms

10. Scaffolding component use to provide more stability?

Bracings
Scaffolding Components Size - OSHA
Safety Management Study

11. Types of bracings in scaffolding?

Faced bracing & Cross bracing.

12. At what angle faced bracing fixed in scaffolding?

45°
Scaffolding Components Size - OSHA
Safety Management Study

13.Maximum spacing allowed between two plank in scaffolding?

1 inch

14.Width of walkway & platform in scaffolding?

Minimum 18 inch

15. What should be width of scaffolding plank?

150-300 mm
Scaffolding Components Size - OSHA
Safety Management Study

16. What should be the height of scaffolding toe Board?

6 inch

17. Height of top rail in scaffolding?

38-45 inches
Scaffolding Components Size - OSHA
Safety Management Study

18.Types of clamps & couplers used in scaffolding?

Load bearing & non - load bearing.

19. Examples of clamps/couplers.

1. Right angle coupler or fixed coupler used to connect two standard at


90°.

2. Swivel Coupler used to joint tube at any angle.


Scaffolding Components Size - OSHA
Safety Management Study

3. Single coupler or putlog coupler used to secure transoms to ledger.

4. Sleeve Coupler used to joint two scaffolding tube by outer dia.

5. Gravlok Coupler or beam clamp - used to support scaffolding by a


beam of structure.
Scaffolding Components Size - OSHA
Safety Management Study

6. Board Retaining Coupler - Used to secure plank or board.

7. Joint pin - used to connect two tube by internal dia.

8. Toe Board clamp - used to secure toe Board.


Scaffolding Components Size - OSHA
Safety Management Study

9. Ladder clamp - used to secure ladder.

20. How much force guardrails must be withstand?

90kg

21. Ladder should be extended above landing platform at least?

1m
Scaffolding Components Size - OSHA
Safety Management Study

22. Safe angle to place a ladder?

75°

23. Types of Scaffolding as per Load bearing capacity?

Light duty - 25 pounds per square foot

Medium duty - 50 pounds per square foot

Heavy duty - 75 pounds per square foot
