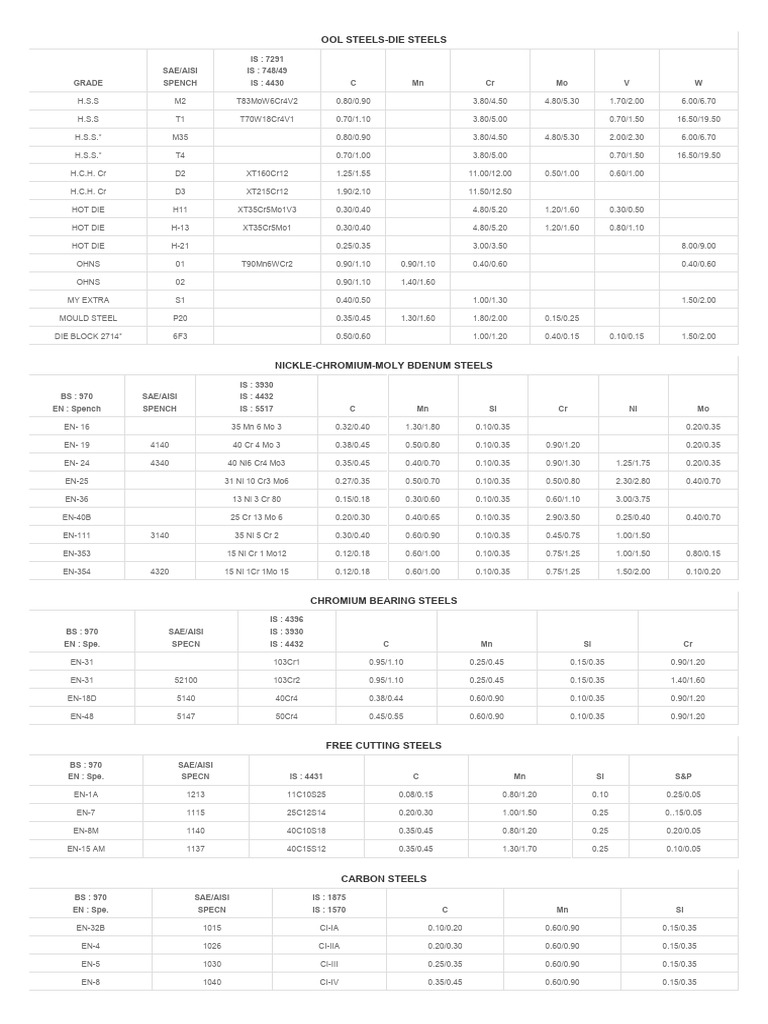

OOL STEELS-DIE STEELS

IS : 7291
SAE/AISI IS : 748/49
GRADE SPENCH IS : 4430 C Mn Cr Mo V W

H.S.S M2 T83MoW6Cr4V2 0.80/0.90 3.80/4.50 4.80/5.30 1.70/2.00 6.00/6.70

H.S.S T1 T70W18Cr4V1 0.70/1.10 3.80/5.00 0.70/1.50 16.50/19.50

H.S.S.* M35 0.80/0.90 3.80/4.50 4.80/5.30 2.00/2.30 6.00/6.70

H.S.S.* T4 0.70/1.00 3.80/5.00 0.70/1.50 16.50/19.50

H.C.H. Cr D2 XT160Cr12 1.25/1.55 11.00/12.00 0.50/1.00 0.60/1.00

H.C.H. Cr D3 XT215Cr12 1.90/2.10 11.50/12.50

HOT DIE H11 XT35Cr5Mo1V3 0.30/0.40 4.80/5.20 1.20/1.60 0.30/0.50

HOT DIE H-13 XT35Cr5Mo1 0.30/0.40 4.80/5.20 1.20/1.60 0.80/1.10

HOT DIE H-21 0.25/0.35 3.00/3.50 8.00/9.00

OHNS 01 T90Mn6WCr2 0.90/1.10 0.90/1.10 0.40/0.60 0.40/0.60

OHNS 02 0.90/1.10 1.40/1.60

MY EXTRA S1 0.40/0.50 1.00/1.30 1.50/2.00

MOULD STEEL P20 0.35/0.45 1.30/1.60 1.80/2.00 0.15/0.25

DIE BLOCK 2714* 6F3 0.50/0.60 1.00/1.20 0.40/0.15 0.10/0.15 1.50/2.00

NICKLE-CHROMIUM-MOLY BDENUM STEELS

IS : 3930
BS : 970 SAE/AISI IS : 4432
EN : Spench SPENCH IS : 5517 C Mn Si Cr Ni Mo

EN- 16 35 Mn 6 Mo 3 0.32/0.40 1.30/1.80 0.10/0.35 0.20/0.35

EN- 19 4140 40 Cr 4 Mo 3 0.38/0.45 0.50/0.80 0.10/0.35 0.90/1.20 0.20/0.35

EN- 24 4340 40 Ni6 Cr4 Mo3 0.35/0.45 0.40/0.70 0.10/0.35 0.90/1.30 1.25/1.75 0.20/0.35

EN-25 31 Ni 10 Cr3 Mo6 0.27/0.35 0.50/0.70 0.10/0.35 0.50/0.80 2.30/2.80 0.40/0.70

EN-36 13 Ni 3 Cr 80 0.15/0.18 0.30/0.60 0.10/0.35 0.60/1.10 3.00/3.75

EN-40B 25 Cr 13 Mo 6 0.20/0.30 0.40/0.65 0.10/0.35 2.90/3.50 0.25/0.40 0.40/0.70

EN-111 3140 35 Ni 5 Cr 2 0.30/0.40 0.60/0.90 0.10/0.35 0.45/0.75 1.00/1.50

EN-353 15 Ni Cr 1 Mo12 0.12/0.18 0.60/1.00 0.10/0.35 0.75/1.25 1.00/1.50 0.80/0.15

EN-354 4320 15 Ni 1Cr 1Mo 15 0.12/0.18 0.60/1.00 0.10/0.35 0.75/1.25 1.50/2.00 0.10/0.20

CHROMIUM BEARING STEELS

IS : 4396
BS : 970 SAE/AISI IS : 3930
EN : Spe. SPECN IS : 4432 C Mn Si Cr

EN-31 103Cr1 0.95/1.10 0.25/0.45 0.15/0.35 0.90/1.20

EN-31 52100 103Cr2 0.95/1.10 0.25/0.45 0.15/0.35 1.40/1.60

EN-18D 5140 40Cr4 0.38/0.44 0.60/0.90 0.10/0.35 0.90/1.20

EN-48 5147 50Cr4 0.45/0.55 0.60/0.90 0.10/0.35 0.90/1.20

FREE CUTTING STEELS

BS : 970 SAE/AISI
EN : Spe. SPECN IS : 4431 C Mn Si S&P

EN-1A 1213 11C10S25 0.08/0.15 0.80/1.20 0.10 0.25/0.05

EN-7 1115 25C12S14 0.20/0.30 1.00/1.50 0.25 0..15/0.05

EN-8M 1140 40C10S18 0.35/0.45 0.80/1.20 0.25 0.20/0.05

EN-15 AM 1137 40C15S12 0.35/0.45 1.30/1.70 0.25 0.10/0.05

CARBON STEELS
BS : 970 SAE/AISI IS : 1875
EN : Spe. SPECN IS : 1570 C Mn Si

EN-32B 1015 CI-IA 0.10/0.20 0.60/0.90 0.15/0.35

EN-4 1026 CI-IIA 0.20/0.30 0.60/0.90 0.15/0.35

EN-5 1030 CI-III 0.25/0.35 0.60/0.90 0.15/0.35

EN-8 1040 CI-IV 0.35/0.45 0.60/0.90 0.15/0.35

 EN-9 1055 CI-V 0.50/0.60 0.60/0.90 0.15/0.35

EN-42B 1065 CI-VI 0.60/0.70 0.60/0.90 0.15/0.35

CASE HARDENING STEELS

IS (NEW) IS (OLD) EN DIN AISI/SAE BS

10C4 C10 En 32A 1012

15C8 C15Mn75 En 32B En32C Ck15 C15 1016 ,1018

15Cr3 15Cr65 En 207 15Cr 3 527M20

16Mn5Cr4 17Mn1Cr95 16Mn Cr5

20MnCr5 20MnCr1 20MnCr5

15Ni5Cr4Mo1 15NiCr1Mo12 En 353 815M17

15Ni7Cr4Mo2 15Ni2Cr1Mo15 En 354 4320 820M17

20Ni7Mo2 20Ni2Mo25 En 34 4620 665M17

20NiCrMo2 20Ni55Cr50Mo20 En 362 8620 805M20

13Ni13Cr3 13Ni3Cr80 En 36A 3310 655M13

16Ni3Cr2 16Ni80Cr60 En 351 635M15

16Ni8Cr6Mo2 16NiCr2Mo20 En 355 17CrNiMo6 822M17

20Ni7Cr4Mo2 En 325

14CrNi6 15CrNi6

STAINLESS STEELS
BS : 970 SAE/AISI
EN : Spe SPECN IS : 6529 C Mn Si Cr Ni Mo

EN- 58E 304 04Cr18Ni10 0.06/0.08 1.80/2.00 0.80/1.00 18.00/20.00 8.00/10.00

304L 02Cr18Ni11 0.02/0.04 1.80/2.00 0.80/1.00 18.00/20.00 9.00/11.00

EN-58J 316 04Cr17Ni12Mo2 0.05/0.08 1.80/2.00 0.80/1.00 16.00/18.00 10.00/14.00 2.00/3.00

316L 02Cr17Ni12Mo2 0.02/0.03 1.80/2.00 0.80/1.00 16.00/18.00 10.00/14.00 2.00/3.00

EN-58B/C 321* 04Cr18Ni10Ti20 0.06/0.08 1.80/2.00 0.80/1.00 17.00/19.00 9.00/13.00

EN-56A 410 12Cr13 0.12/0.15 0.80/1.00 0.80/1.00 11.50/13.00

420 20Cr13 0.15/0.20 0.80/1.00 0.80/1.00 12.00/14.00

EN-57 431 15Cr16Ni2 0.15/0.20 0.80/1.00 0.80/1.00 15.00/17.00 1.25/2.50

310 10Cr25Ni18 0.15/0.25 1.80/2.00 1.00/1.50 24.00/26.00 19.00/22.00

*Ti = 0.30/0.50%

FERRITIS GRADES
430 S43000 0.12 16.0 - 18.0 Mn1.0; P .04;S 1.0;Si 1.0 1.4016 A-580 5627

446 S44600 0.20 23.0 - 27.0 Mn1.5; P .04; S .03; Si 1.0; N .25 1.4762 A-580

MARTENSITIC GRADES
410 S41000 0.15 11.5 - 13.5 Mn 1.0; P .04; S .03; Si1.0 1.4006 A-580 5613

416 S41623 0.15 12.0-14.0 Mn 1.25;P .06; S .15min; Si 1.0; Mo .60 1.4005 A-581 5610

420 S42000 .15Min 12.0-14.0 Mn 1.0;P .04; S .03; Si 1.0 1.4021 A-580 5621

PRECIPITAON HARDENING GRADES

17-7PH S17700 0.09 6.50-7.75 16.0-18.0 Al .75-1.5; Si 1.0; P .04; S .03 1.4568 CHEM(A-693 CHEM (5528,5529)

A285 S66286 0.86 24.0-27.0 13.5-16.0 Mn2.0;Si1.0;P .040;S .030; Mo1.0-1.5; Al .035 1.4980 5731

B. .001- .010; Ti 1.90-2.35, V .10-50

NICKEL ALLOYS
TYPICAL CHEMICAL ANALYSIS
ALLOY DIN ASTM AMS
UNS Ni C Mn Fe Si OTHER

NICKEI 200 N02200 99.5 MIN 0.8MAX 0.18 0.20 0.18 CU.13 MAX 2.4066 B-160

NICKEI 201 N02201 99.5 MIN .01 MAX 0.18 0.20 0.18 CU.13 MAX 2.4068 B-160
 NICKEI 233 N02233 99.5 0.09 0.18 0.05 0.005 Mg.07,Cu.03,Ti.003,S.005 2.4061

MONEL 400 N04400 66.5 0.15 1.0 1.25 0.50 Cu.31.5,S 0.12 2.4360 B-164 4730,4731

INCONEL 600 N06600 76.0 0.08 0.5 8.0 0.25 Cu25, Cr15.5 2.4816 B-166 5665,5687

INCONEL 601 N06601 60.5 0.05 0.50 14.1 0.25 Cu 50, Cr23 2.4851 5715

INCONEL 625’ N06625 61.0 0.08 0.25 2.5 0.25 Cr21.5 MAX, Al.2,Ti.2,Mo9.0MAX, (Cb+Ta)3.65 2.4856 B-446 5837

INCONEL 702’ N07702 79.0 0.04 0.50 1.0 0.35 S .005, Cu .25, Cr 15.5, Ti .60, Al 3.25

INCONEL 718’ N07718 52.5 0.04 0.18 BAL 0.18 Cu.15,Al.50,Ti.90,Cr19.0,S.008,Mo3.05, (Cb+Ta)5.13 2.4668 5832

INCONEL 722’ N07722 75.0 0.04 0.50 7.0 0.35 S .005, Cu .25, Al .70, Cr 15.5, Ti 2.38 5714

5667,5670
INCONEL X-750’ N07750 73.0 0.04 0.50 7.0 0.25 S.005, Cu .25, Al .70 Cr15.5, Ti2.50, (Cb+Ta) .95 2.4669 5698,5699

INCONEL 800’ N08800 32.5 0.05 0.75 46.0 0.50 Cr 21.0, Ti .38,Al .38, Cu .38 1.4876 B-408 5766

INCONEL825’ N08825 42.0 0.03 0.50 29.0 0.25 S .015, Ti .90, Al .10, Cu 2.25, Cr21.5, Mo 3.0 2.4858 B-425

2.4615,
HASTELLOY B-22 N10665 BAL >=.02 >=1.00 >=2.0 1.0MAX Co>=1.0, Cr>=1.0, Mo 26.0-30.0 2.4617

HASTELLOY C-2762 N10276 BAL 0.02MAX 1.00MAX 4.0-7.0 0.08 Co 2.50 MAX, Cr 14.5-16.5, W .2-1.0, Mo 15-17 2.4819 B-574

HASTELLOY X2 N06002 BAL 0.05-0.15 1.0MAX 17.0-20.0 1.0MAX Co .5-2.5, Cr20.5-23.0, W .2-1.0,Mo 8.0-10.0 2.4665 B-572

COBALT ALLOYS

HEYNES 25 R30605 9.0-11 0.05-0.15 1.25MAX 3.0MAX 0.40MAX Co balance, Cr19.0-21.0,W14.0-16.8 2.4967

L-605 2.4964 5759

WASPALOY N07001 BAL 0.2-1.0 10MAX 2.0MAX 0.15MAX Co13.5, Al 1.3, Cr19.5,Cu.10,Mo4.25,Ti3.0 2.4654 5706

COMMERCIALLY PURE TITANIUM

ALLOY UNS C Fe N O H ASTM AMS

Ti 35A GRADE 1 R507 0.08 0.20 0.03 0.18 0.0100 F67GR1 4921.00

Ti 40A GRADE 2 R507 0.10 0.30 0.03 0.25 0.0100 F67GR2 4921.00

Ti 75A GRADE 4 R507 0.10 0.50 0.05 0.40 0.0100 F67GR4 4921.00

CARBON CONSTRUCTIONAL GRADES

IS (NEW) IS (OLD) EN DIN AISI/SAE BS

20C8 C20 En 3A C22 1020 05A20/060A20

25C8 C25 Mn 75 En 4 1025

30C8 C30 En 5 1030 080M30/080A30

35C8 C35 Mn 75 Ck35, C35 1035

Ck38 1038

40C8 C40 En 8 1040 080 M 40

45C8 C45 Ck45,C45 1045

50C8 C50 Ck53 1050

55C8 C55 Mn 75 En 9 Ck55 1055 070 M 55

CASE HARDENING STEELS

NORMINAL CHEMESTRY EQUIVALENT SPECIFICATION
IS:1570/1961
ASP DESIGNATION BS:970 SAE DIN GOST
DESIGNATION C Mn Si S Cr Ni Mo
DESIGNATION DESIGNATION DESIGNATION DESIGNATION

C-10 CH-1 0.15 0.60 0.35 0.05 En 32A 1012/1015

MAX MAX

17Mn1Cr95 CH-2 0.17 1.1 0.30 0.05 0.95 16Mn Cr 5

20Mn1Cr1 CH-3 0.20 1.2 0.30 0.05 1.1 20MnCr5 20 xTA

20Ni2Mo25 CH-4 0.17 0.60 0.30 0.05 1.8 0.25 En 34 4620 15HMA

15Cr65 CH-5 0.17 0.60 0.30 0.05 0.75 En 207 5115 15Cr3 15 x1

16Ni-80Cr60 CH-6 0.18 0.90 0.30 0.05 0.70 0.80 En 351

20Ni55Cr

50Mo20 CH-7 0.18 0.80 0.30 0.05 0.50 0.60 0.22 En 362 8620, 8720

13Ni3

Cr80 CH-8 0.14 0.60 0.30 0.05 0.80 3.4 En 36A 3310

36B
15NiCr CH-9 0.17 0.90 0.30 0.05 1.0 1.22 0.12 En 353

1Mo12 CH-10 0.16 0.50 0.30 0.05 0.80 3.4 0.20 En 36C

15Ni2Cr

1Mo15 CH-11 0.17 0.80 0.30 0.05 1.0 1.7 0.15 En 354 4320

16NiCr

2Mo20 CH-12 0.18 0.60 0.30 0.05 1.5 2.0 0.20 En 355

0.15 0.50 0.30 0.035 1.5 1.5 15CrNi6

ALLOY CONSTRUCTIONAL GRADES

IS (NEW) IS (OLD) EN DIN AISI/SAE BS

20 C15 20Mn2 En 14A 1524 150M28

27C15 27Mn2 En14B 28Mn6 1527 150M28

37C15 37Mn2 En15, En15A 36Mn5 1536 150M36

35 Mn5 1041

35Mn6Mo3 35 Mn2Mo28 En16 605M36

35Mn6Mo4 35 Mn2Mo45 En17 608M38

40Cr4 40Cr1 En18 37Cr4,39Cr4,41Cr4 5140 530M40

40Cr4Mo3 40Cr1Mo28 En19, En19A 42CrMo4 4140, 4142 708M40

40Ni6Cr4Mo3 40Ni2Cr1Mo28 En24 34CrNiMo6 4340 817M40

31NiOCr3Mo6 31Ni3Cr65Mo55 En25 826M31

40Ni10Cr3Mo6 40Ni3Cr65Mo55 En26 826M40

30Ni13Cr5 30Ni4Cr1 En30A

40Ni6Cr4Mo2 40Ni1Cr1Mo15 En110 816M40

35Ni5Cr2 35Ni1Cr60 En111 640M40

50CrMo4 4150

NITRIDING GRADES
IS (NEW) IS (OLD) EN DIN AISI/SAE BS

40Cr7Al10Mo2 40Cr2AlMo18 En 41B 41CrAlMo7 905M39

En 41A 34CrAlMo5 905M31

En 30B 835M30

SPRING STEELS
BS : 970 SAE/AISI
EN: Spe. SPECN IS : 3749 C Mn Si Cr

EN-42J 1085 0.75/0.90 0.60/0.90 0.20/0.35

EN-45 9225 T55Si7 0.55/0.65 0.70/1.00 1.50/2.00

EN-47* 6150 T50Cr4V2 0.45/0.55 0.50/0.80 0.30/0.50 0.80/1.20

EN-48 5147 T55Cr3 0.45/0.55 0.60/0.90 0.10/0.35 0.90/1.20

*V : 0.15%

SPRING STEELS
IS (NEW) IS (OLD) EN DIN AISI/SAE BS

60C6 C60 En 43 C55 1055 080M50

80C6 En 42 Ck75 1074

65C6 C65 En 42B 1065

98C6 En 44 Ck101

36Si7 37Si2Mn90 En 46

55Si7 55Si2Mn90 En 45 55Si7 9255

50Cr4 50Cr1 En 48 5147

50Cr4V2 50Cr1V23 En 47 50CrV4 6150

60Si7 En 45A 9260

HIGH CARBON HIGH CHROMIUM BEARING STEELS

IS EN DIN AISI/SAE BS
 103Cr1 51100

103Cr2 En 31 100 Cr6 52100 534A99/535A99

103Cr2Mn70

TOOLS STEELS
IS BS DIN AISI/SAE ASP

T55i7Mo3 BS-5 45WCrV7 S-5 SR-2

T40W8Cr5V2 BS-1 60WCrV7 S-1 SR-3

T50W8Cr5V2 BS-1 X37CrMoV51 S-1 SR-4

T35Cr20Mo14W6V3 BH-12 X40CrMoV51 H-12 HW-1

T35Cr20Mo14V11 BH-13 X30WCrV93 H-13 HW-2

XT32W9Cr3V BH-21 X38CrMoV51 H-21 HW-3

T35Cr20Mo14V3 BH-1 105WCr6 H-11 HW-4

T90Mn6WCr2 BO-1 X100CrMoV51 CW-1

BA-2 X165CrMoV12 CW-2

XT160Cr12 BD-2 X210Cr12 CW-3

XT100Cr12 BD-3 C70W2 W1 CW-4

70T3 C80W2 W1 CTS-1

80T3 C90W2 W1 CTS-2

90T3 BW1A C100W2 W1 CTS-3

102T3 BW1B CTS-4

T60Ni5 224/2 DB-2

224/3 DB-3

224/5 DB-4

224/5 DB-5

56NiCrMoV7 DB-6

STAINLESS STEEL
IS EN DIN AISI/SAE BS

AUSTENITIC GRADES

X07Cr18Ni9 En58A X12CrNi188 302 302S35

X04Cr18Ni11 En58E X5CrNi189 304 304S15

X02Cr18Ni11 X2CrNi189 304L 304S12

X15Cr24Ni13 X15CrNiSi2012 309

X20Cr25Ni20 X15CrNiSi2520 310 310S24

X04Cr25Ni20 XCrNi2521 310S

X04Cr17Ni12Mo2 En58H X5CrNiMo1810 316 316S16

X02Cr17Ni12Mo2 X2CrNiMo1810 316L 316S12

X04Cr19Ni13Mo3 En58J X5CrNiMo1713 317 317S16

X2CrNiMo1812 317L

X04Cr18Ni10Ti En58C X10CrNiTi189 321 312S12

X04Cr18Ni10Nb En58G X10CrNiN6189 347 314S17

FERRITIC GRADES

X07Cr17 En60 XBCr17 430 430S15

X15Cr25N 446

MARTENSITIC GRADES

X12Cr13 410 410S21

X20Cr13, X30Cr13 En56C, En56D 420 420S37

X15Cr16Ni2 En57 X22CrNi17 431 431S29

CONVERSION OF THE GAUGE TO INCH AND MM WITH APPROXIMATE WEIGHT OF STEELS SHEETS
SIZE INCH MM Kg./Sq. Ft. Kg./Sq. METER

1/ 2” 0.500 12.700 9.340 100.440

7/16” 0.437 11.112 8.172 87.887

3/8” 0.375 9.525 7.005 75.329

5/16” 0.313 7.937 5.837 62.776

1G 0.300 7.620 5.603 60.261

2G 0.276 7.010 5.155 55.442

3G 0.252 6.400 4.707 50.623

4G 0.232 5.892 4.333 46.604

5G 0.212 5.384 3.982 42.586

6G 0.192 4.876 3.586 38.568

7G 0.176 4.470 3.287 35.355

8G 0.160 4.064 2.988 32.137

9G 0.144 3.657 2.690 28.925

10 G 0.128 3.251 2.391 25.712

11 G 0.116 2.946 2.166 23.300

12 G 0.104 2.641 1.942 20.888

13 G 0.092 2.336 1.718 18.481

14 G 0.080 2.012 1.495 16.069

15 G 0.072 1.828 1.345 14.462

16 G 0.064 1.625 1.195 12.856

17 G 0.056 1.422 1.046 11.250

18 G 0.048 1.219 0.896 9.638

19 G 0.040 1.016 0.747 8.032

20 G 0.036 0.914 0.672 7.231

21 G 0.032 0.812 0.598 6.426

22 G 0.028 0.711 0.523 5.625

23 G 0.024 0.609 0.448 4.819

24 G 0.022 0.558 0.411 4.419

25 G 0.020 0.508 0.373 4.013

26 G 0.018 0.457 0.336 3.613

27 G 0.0164 0.416 0.306 3.291

28 G 0.0148 0.375 0.277 2.974

29 G 0.0136 0.345 0.254 2.729

30 G 0.0124 0.314 0.232 2.490

TOLARANCE IN MILLIMETER (SIZE IN METRIC) DIA

H11 H10 H9
Turned Bar Drawn Bar ground Bar

1 to 3 .060 .040 .025

3 to 6 .075 .048 .030

6 to 10 .090 .058 .036

10 to 18 .110 .070 .043

18 to 30 .130 .084 .052

30 to 50 .160 .100 .062

50 to 80 .190 .120 .074

80 to 120 .220 .140 .087

120 to 180 .250 .160 .100

TOLERANCE IN THOUSANDS OF AN INCH

H11 H10 H9
Turned Bar Drawn Bar ground Bar

1/16” - 1/8” .0024 .0016 .0010

1/8” – ¼” .0029 .0019 .0012

¼” – 3/8” .0035 .0023 .0014

3/8” – ¾” .0043 .0028 .0017

¾” – 1-3/16” .0051 .0033 .0020

 1-3/16” – 2” .0063 .0039 .0025

2” – 3-1/8” .0074 .0047 .0029

3-1/8” – 4-3/4” .0086 .0055 .0034

4-3/4” – 7” .0098 .0063 .0039

CONVERSION FACTORS
TO CONVERT MULTIPLY BY TO CONVERT MULTIPLY BY

Centimeter to inches 0.3937 Kilograms to tons 0.0009842

Cubic Centimeter to cubic inches 0.06103 Kilo per sq mm to tons per sq in 0.635

Cubic feet to Cubic meters 0.02832 Meters to feet 3.281

Cubic inches to Cubic centimeter 16.39 Miles to kilometer 1.609

Cubic inches to Cubic liters 0.01639 Millimeter in inches 0.0394

Cubic meters to Cubic feet 35.32 N/mm2 to tons f/n2 0.06475

Cubic meter to Cubic yards 1.308 Pounds to kilometers 0.4536

Cubic yards to Cubic meter 0.7645 Pound per foot to kilo per mete 1.488

Feet to meter 0.3048 Square centimeter to sq inches 0.1550

Foot pounds to kilogram meter 0.1382 Square feet to meters 0.09290

Gallons to liters 4.536 Square inches to sq. centimeter 6.452

Gallons to cubic feet 0.1606 Square meter to sq. feet 10.76

Grains to grams 0.06480 Temperature conversion

Grains to lbs 0.002205 °C = 5/9 (°F – 32)

Inches to millimeter 25.40 °F = (9/5 X °C)+32

Kilogram meter to foot pounds 7.233 Inches to centimeter 2.540

Kilograms to lbs 2.505 Tons per Sq. in to kilo per sq. mm 1.575

Tons per f/in2 to N/mm2 15.444

Tons to kilograms 1016.0

Weight in kgs per meter (FLATS)

WIDTH THICKNESS IN INCH AND EQUIVALENT MILLIMETER

1/8* 3/16* 5/6* 3/8* 7/16* 1/ 2* 9/16* 5/8* 3/ 4* 7/8* 1* 1.1/ 4* 1.1/ 2* 2*
INCH mm 3.175 4.762 1/ 4* 6.350 7.925 9.525 11.112 12.70 14.287 15.875 19.05 22.225 25.40 31.75 38.10 50.80

1/ 2 12.70 0.317 0.475 0.632 0.790 0.948

5/8 15.87 0.395 0.593 0.790 0.989 1.186

3/ 4 19.05 0.475 0.711 0.984 1.186 1.423 1.660 1.897

1 25.40 0.632 0.948 1.265 1.577 1.897 2.231 2.530 2.842 3.162 3.795

1.1/ 4 31.75 0.790 1.186 1.581 1.977 2.372 2.767 2.162 3.558 3.953 4.744

1.1/ 2 38.10 0.949 1.423 1.897 2.372 2.846 3.320 3.795 4.629 4.744 5.692 6.641 7.570

1.3/ 4 44.45 1.107 1.661 2.214 2.760 3.919 3.874 4.427 4.981 5.534 6.641 7.748 8.855

2 50.80 1.265 1.897 2.530 3.162 3.795 4.427 5.060 5.692 6.325 7.590 8.555 10.12

2.1/ 4 57.15 1.423 2.134 2.845 3.558 4.269 4.081 5.692 6.404 7.115 8.538 9.961 11.38

2.1/ 2 63.50 1.582 2.372 3.165 3.953 4.744 5.534 6.325 7.115 7.906 9.487 11.07 12.65 15.81

2.3/4 69.85 1.739 1.609 3.479 4.348 5.218 6.088 6.959 7.827 8.696 10.44 12.17 13.91 17.39

3 76.20 1.897 2.846 3.795 4.744 5.692 6.641 7.590 8.538 9.487 11.38 13.28 15.18 18.97 22.77 30.36

3.1/ 4 82.55 2.056 3.083 4.111 5.139 6.167 7.194 8.222 9.250 10.28 12.33 14.39 16.44 21.55 24.67 32.89

3.1/ 2 88.90 2.214 3.320 4.427 5.534 6.641 7.748 8.854 9.960 11.07 13.28 15.49 17.71 22.14 26.56 35.42

4 101.6 2.530 3.795 5.060 6.325 7.590 8.855 10.12 11.38 12.65 15.18 17.71 20.24 25.30 30.36 40.48

4.1/ 2 114.3 5.692 7.114 8.540 9.961 11.38 12.83 14.23 17.08 19.92 22.77 28.46 34.15 45.54

5 127 6.325 7.906 9.487 11.07 12.65 14.23 15.81 18.97 22.41 25.30 31.62 37.95 50.60

6 152.4 7.590 9.487 11.38 13.28 15.18 17.08 18.97 22.77 26.56 30.36 37.95 45.58 60.72

7 177.8 8.855 11.07 13.28 15.49 17.71 19.92 22.14 26.56 30.99 35.42 42.27 53.13 70.84

8 203.2 10.12 12.65 15.18 17.71 20.24 22.77 25.30 30.36 35.42 40.48 50.60 60.72 80.96

9 228.6 17.08 19.22 22.77 25.61 28.46 34.15 39.85 45.54 56.92 68.31 91.08

10 254.0 18.97 22.14 25.30 28.46 31.62 37.95 44.27 50.60 63.25 75.90 101.2

12 304.8 22.77 26.56 30.36 34.95 37.95 45.54 53.13 60.72 75.90 91.08 121.4
16 406.4 30.35 35.42 40.48 45.54 50.60 60.72 70.84 80.96 101.20 121.4 161.9

Weight in kgs per meter (ROUNDS-SQUARES-HEXAGONES)

SIZE ROUNDS Squares hexagons size rounds Squares hexagons

inch mm Kg/m Kg/m Kg/m inch mm Kg/m Kg/m Kg/m

3/16 4.76 0.14 0.18 0.1541 1.7/8 47.63 13.97 17.79 15.42

1/ 4 6.35 0.25 0.32 0.2739 2 50.80 15.90 20.24 17.53

5/16 7.94 0.39 0.49 0.4279 2.1/8 53.98 17.95 22.85 19.79

3/8 9.53 0.56 0.71 0.6162 2.1/ 4 57.15 20.12 25.61 22.18

7/16 11.11 0.76 0.97 0.8387 2.3/8 60.33 22.42 28.54 24.72

1/ 2 12.70 0.99 1.26 1.095 2.1/ 2 63.50 24.84 31.63 27.4

9/16 14.29 1.25 1.26 1.386 2.5/8 66.58 27.38 34.87 30.20

5/8 15.88 1.55 1.98 1.712 2.3/ 4 69.85 30.05 38.26 33.14

3/ 4 19.05 2.23 2.85 2.470 2.7/8 73.03 32.85 41.82 36.22

7/8 22.23 3.04 3.87 3.350 3 76.20 35.77 45.54 39.44

1 25.40 3.97 5.06 4.380 3.1/ 4 82.55 41.98 53.44 -

3.1/ 2 88.90 48.68 61.98 -

1.1/8 28.58 5.03 6.40 5.550 4 101.6 63.59 80.96 -

1.1/ 4 31.75 6.21 7.91 6.850 4.1/ 2 114.3 80.47 102.46 -

1.3/8 34.93 7.51 9.97 8.280 5 127.0 99.35 126.5 -

1.1/ 2 38.1 8.94 11.38 9.860 6 152.4 143.1 182.2 -

1.5/8 41.28 10.50 13.36 11.57 8 203.2 254.3 323.8 -

1.3/ 4 44.45 12.17 13.5 13.42 10 254.0 397.4 505.9 -

CONVERSION CHART (FEET INTO METERS)

FEET 0 1 2 3 4 5 6 7 8 9

0 0.30 0.61 0.91 1.22 1.52 1.83 2.13 2.44 2.74

10 3.05 3.35 3.66 3.96 4.27 4.57 4.88 5.18 5.49 5.79

20 6.10 6.40 6.71 7.01 7.32 7.62 7.92 8.23 8.53 8.84

30 9.14 9.45 9.74 10.06 10.36 10.67 10.97 11.28 11.58 11.89

40 12.19 12.50 12.80 13.11 13.41 13.72 14.02 14.33 14.63 4.94

50 15.24 15.54 15.85 16.15 16.45 16.76 17.07 17.37 17.68 17.98

60 18.29 18.59 18.90 19.20 19.51 19.81 20.12 20.42 20.73 21.03

70 21.24 21.64 21.95 22.25 22.56 22.86 23.16 23.47 23.77 24.08

80 24.38 24.69 24.99 25.30 25.60 25.91 26.21 26.52 26.82 27.13

90 27.43 27.74 28.04 28.35 28.66 28.96 29.26 29.57 29.87 30.18

100’=30.48m., 200’=61m., 300’=91.48m., 500’=152.40m., 1000’=304.8m.

SPECIAL FORMULA
WEIGHT OF ROUNDS IN MM PER FEET WEIGHT OF FLATE IN MM PER FEET
DIAMETER X DIAMETER X 0.0019 = WT. / FT. DIAMETER X THICKNESS X 0.0024 = WT. / FT.

WEIGHT OF SQUARE IN MM PER FEET WEIGHT OF SHEETS & PLATES IN MM PER FEET
DIAMETER X DIAMETER X 0.0024 = WT. / FT. LENGTH X WIDTH X THICKNESS X 8 = WT./PCS.

WEIGHT OF HEXIN IN MM PER FEET WEIGHT OF PIPE IN MM PER FEET

DIAMETER X DIAMETER X 0.0024 = WT. / FT. OD – W.T. X W.T. X 0.0075 = WT./FT.
