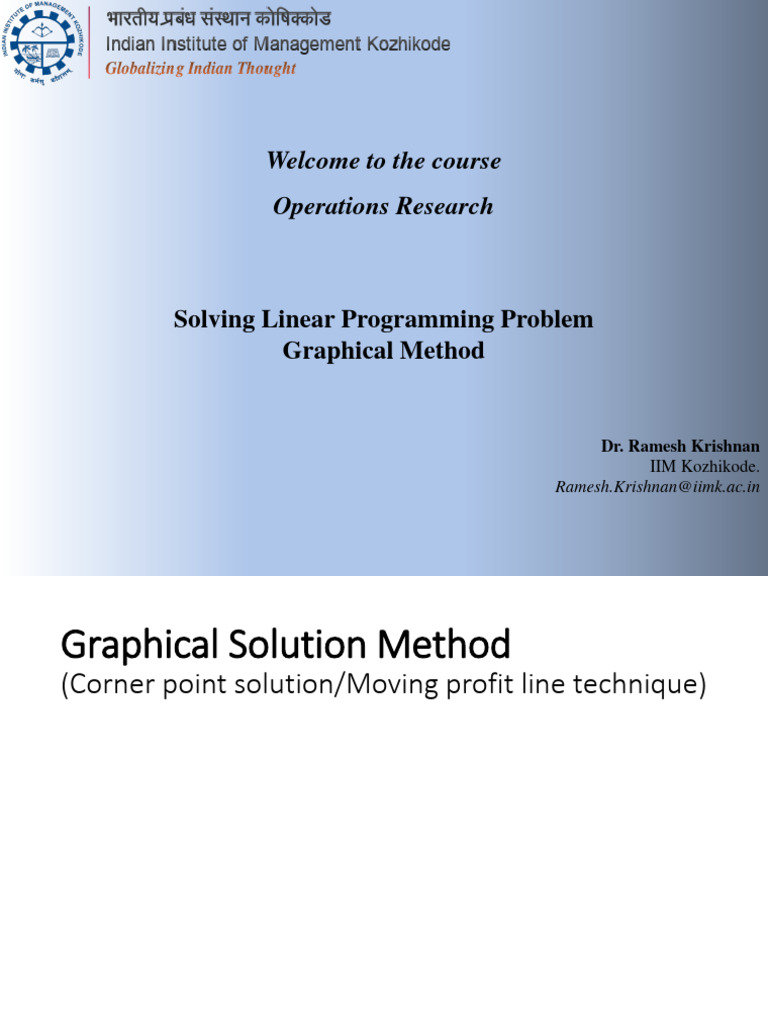

Welcome to the course

Operations Research

Solving Linear Programming Problem


Graphical Method

Dr. Ramesh Krishnan


IIM Kozhikode.
Ramesh.Krishnan@iimk.ac.in
Graphical Solution Method
(Corner point solution/Moving profit line technique)
Solution
Decision Variables:
X1 = Number of units of Product A made
X2 = Number of units of Product B made
Parameters/Resources:
Resources R1 & R2
Objective Function:

Constraints:
Graphical Method
https://www.transum.org/Maths/Activity/Graph/Desmos.asp Visuals
Example
𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀 𝑍𝑍 = 3𝑥𝑥1 + 5𝑥𝑥2

Subject to constraints,

𝑥𝑥1 ≤ 4
2𝑥𝑥2 ≤ 12
3𝑥𝑥1 + 2𝑥𝑥2 ≤ 18
𝑥𝑥1 , 𝑥𝑥2 ≥ 0

Convert inequalities into equalities before plotting. Then, identify the region that the constraint is
representing. Determine the feasible region.
Example

𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀𝑀 𝑍𝑍 = 3𝑥𝑥1 + 5𝑥𝑥2

Subject to constraints,

𝑥𝑥1 ≤ 4
2𝑥𝑥2 ≤ 12
3𝑥𝑥1 + 2𝑥𝑥2 ≤ 18
𝑥𝑥1 , 𝑥𝑥2 ≥ 0

The optimal solution coincides with one of the corner points of the feasible region

https://www.transum.org/Maths/Activity/Graph/Desmos.asp
Why corner points result in
optimal solution?

Points lying on an iso-objective function line result in producing the same profits.
Moving the objective function line parallelly changes the value of profit.
Special cases
• Multiple solutions
• Infeasible solutions
• Unbounded solutions
• Variables are negative / unrestricted in sign
Special case – Multiple optimal
solutions
𝑀𝑀𝑀𝑀𝑀𝑀 6.3 𝑆𝑆 + 9𝐷𝐷
𝑧𝑧 = 6.3 300 + 9 420 = 5670
𝑧𝑧 = 6.3 500 + 9 252 = 5670
Subject to constraints 𝑧𝑧 = 6.3 420 + 9 336 = 5670

7
𝑆𝑆 + 𝐷𝐷 ≤ 630
10

1 5
𝑆𝑆 + 𝐷𝐷 ≤ 600
2 6
2
𝑆𝑆 + 𝐷𝐷 ≤ 708
3

1 1
𝑆𝑆 + 𝐷𝐷 ≤ 135
10 4

When the objective function line coincides with one of the constraints on the boundary of feasible
region, then there are multiple optimal solutions. Also when the slope of 2 functions same.
Special case – Infeasible solution

𝑴𝑴𝑴𝑴𝑴𝑴 𝟏𝟏𝟏𝟏 𝑺𝑺 + 𝟗𝟗𝟗𝟗


Subject to constraints
7
𝑆𝑆 + 𝐷𝐷 ≤ 630
10

1 5
𝑆𝑆 + 𝐷𝐷 ≤ 600
2 6
2
𝑆𝑆 + 𝐷𝐷 ≤ 708
3
1 1
𝑆𝑆 + 𝐷𝐷 ≤ 135
10 4

𝑆𝑆 ≥ 500

D ≥ 360

If the feasible region doesn’t exist, then the optimization problem doesn’t have any solutions
Special case – Unbounded
solution

When the value of the objective function can be made infinitely large (small) without violating any of the
constraints, then the solution is unbounded
