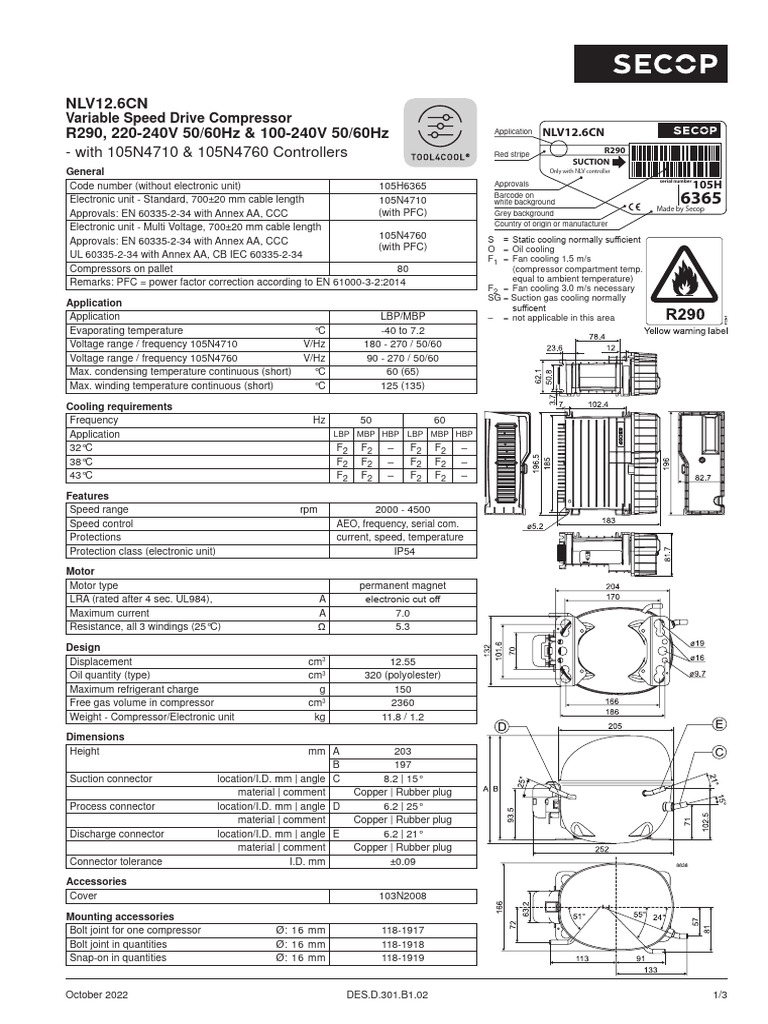

NLV12.

6CN
Variable Speed Drive Compressor
R290, 220-240V 50/60Hz & 100-240V 50/60Hz Application NLV12.6CN
- with 105N4710 & 105N4760 Controllers Red stripe
R290
SUCTION
General Only with NLV controller
serial number
Code number (without electronic unit) 105H6365 Approvals 105H
Electronic unit - Standard, 700±20 mm cable length 105N4710
Barcode on
white background 6365
Made by Secop
Approvals: EN 60335-2-34 with Annex AA, CCC (with PFC) Grey background
Country of origin or manufacturer
Electronic unit - Multi Voltage, 700±20 mm cable length
105N4760 S = Static cooling normally sufficient
Approvals: EN 60335-2-34 with Annex AA, CCC
(with PFC) O = Oil cooling
UL 60335-2-34 with Annex AA, CB IEC 60335-2-34 F1 = Fan cooling 1.5 m/s
Compressors on pallet 80 (compressor compartment temp.
Remarks: PFC = power factor correction according to EN 61000-3-2:2014 equal to ambient temperature)
F2 = Fan cooling 3.0 m/s necessary
SG = Suction gas cooling normally
Application sufficent
Application LBP/MBP – = not applicable in this area
Evaporating temperature °C -40 to 7.2
Voltage range / frequency 105N4710 V/Hz 180 - 270 / 50/60
Voltage range / frequency 105N4760 V/Hz 90 - 270 / 50/60
Max. condensing temperature continuous (short) °C 60 (65)
Max. winding temperature continuous (short) °C 125 (135)

Cooling requirements
Frequency Hz 50 60
Application LBP MBP HBP LBP MBP HBP
32°C F2 F2 – F2 F2 –
38°C F2 F2 – F2 F2 –
43°C F2 F2 – F2 F2 –

Features
Speed range rpm 2000 - 4500
Speed control AEO, frequency, serial com.
Protections current, speed, temperature
Protection class (electronic unit) IP54

Motor
Motor type permanent magnet
LRA (rated after 4 sec. UL984), A electronic cut off
Maximum current A 7.0
Resistance, all 3 windings (25°C) Ω 5.3

Design
Displacement cm3 12.55
Oil quantity (type) cm3 320 (polyolester)
Maximum refrigerant charge g 150
Free gas volume in compressor cm3 2360
Weight - Compressor/Electronic unit kg 11.8 / 1.2

Dimensions
Height mm A 203
B 197
Suction connector location/I.D. mm | angle C 8.2 | 15°
material | comment Copper | Rubber plug
Process connector location/I.D. mm | angle D 6.2 | 25°
material | comment Copper | Rubber plug
Discharge connector location/I.D. mm | angle E 6.2 | 21°
material | comment Copper | Rubber plug
Connector tolerance I.D. mm ±0.09

Accessories
Cover 103N2008

Mounting accessories
Bolt joint for one compressor Ø: 16 mm 118-1917
Bolt joint in quantities Ø: 16 mm 118-1918
Snap-on in quantities Ø: 16 mm 118-1919

October 2022 DES.D.301.B1.02 1/3

LBP: ASHRAE 115/220V, 50/60Hz, fan cooling F2
Speed (rpm) 2000 2250 2400 2500 2750 2900 3000 3500 4000 4500 Test conditions
Capacity [W] 422 481 517 541 597 631 653 748 843 938 Evaporation pressure -23.3°C -10°F
Capacity [BTU/h] 1442 1644 1765 1846 2039 2155 2232 2556 2880 3204 Condensing presssure 54.4°C 130°F
Power cons. [W] 251 280 298 309 340 359 371 436 501 566 Liquid temperature 32.2°C 90°F
Current cons. [A] 1.23 1.36 1.44 1.49 1.63 1.71 1.77 2.06 2.35 2.64 Return gas temperature 32.2°C 90°F
COP [W/W] 1.68 1.72 1.74 1.75 1.76 1.76 1.76 1.72 1.68 1.66
EER [BTU/Wh] 5.75 5.87 5.93 5.97 5.99 6.01 6.02 5.86 5.75 5.66
LBP: CECOMAF 115/220V, 50/60Hz, fan cooling F2
Speed (rpm) 2000 2250 2400 2500 2750 2900 3000 3500 4000 4500 Test conditions
Capacity [W] 316 360 386 404 448 474 492 562 633 703 Evaporation pressure -25°C -13°F
Capacity [BTU/h] 1080 1230 1320 1379 1529 1619 1679 1920 2160 2401 Condensing presssure 55°C 131°F
Power cons. [W] 243 269 285 296 326 345 357 419 482 545 Liquid temperature 55°C 131°F
Current cons. [A] 1.19 1.31 1.38 1.43 1.57 1.65 1.70 1.99 2.27 2.55 Return gas temperature 32°C 90°F
COP [W/W] 1.30 1.34 1.36 1.37 1.37 1.38 1.38 1.34 1.31 1.29
EER [BTU/Wh] 4.45 4.57 4.63 4.67 4.69 4.70 4.71 4.58 4.48 4.41
LBP: EN12900 115/220V, 50/60Hz, fan cooling F2
Speed (rpm) 2000 2250 2400 2500 2750 2900 3000 3500 4000 4500 Test conditions
Capacity [W] 253 278 292 302 329 345 355 424 494 563 Evaporation pressure -35°C -31°F
Capacity [BTU/h] 865 948 998 1031 1122 1176 1213 1449 1686 1922 Condensing presssure 40°C 104°F
Power cons. [W] 181 195 203 208 229 242 250 298 346 394 Liquid temperature 40°C 104°F
Current cons. [A] 0.91 0.98 1.01 1.04 1.13 1.19 1.22 1.44 1.66 1.87 Return gas temperature 20°C 68°F
COP [W/W] 1.40 1.43 1.44 1.45 1.44 1.43 1.42 1.43 1.43 1.43
EER [BTU/Wh] 4.77 4.87 4.92 4.96 4.90 4.87 4.85 4.87 4.87 4.88
MBP: ASHRAE 115/220V, 50/60Hz, fan cooling F2
Speed (rpm) 2000 2250 2400 2500 2750 2900 3000 3500 4000 4500 Test conditions
Capacity [W] 753 852 912 952 1044 1100 1137 1316 1495 1675 Evaporation pressure -6.7°C 20°F
Capacity [BTU/h] 2572 2911 3115 3250 3566 3756 3882 4495 5107 5719 Condensing presssure 54.4°C 130°F
Power cons. [W] 348 394 422 441 481 504 520 620 719 818 Liquid temperature 46.1°C 115°F
Current cons. [A] 1.66 1.87 2.00 2.08 2.26 2.37 2.44 2.89 3.33 3.78 Return gas temperature 35°C 95°F
COP [W/W] 2.17 2.16 2.16 2.16 2.17 2.18 2.19 2.12 2.08 2.05
EER [BTU/Wh] 7.40 7.39 7.38 7.37 7.42 7.45 7.46 7.25 7.10 6.99
MBP: CECOMAF 115/220V, 50/60Hz, fan cooling F2
Speed (rpm) 2000 2250 2400 2500 2750 2900 3000 3500 4000 4500 Test conditions
Capacity [W] 598 679 727 760 832 876 905 1046 1188 1329 Evaporation pressure -10°C 14°F
Capacity [BTU/h] 2041 2318 2484 2595 2842 2990 3089 3572 4056 4539 Condensing presssure 55°C 131°F
Power cons. [W] 330 375 401 419 456 478 493 585 677 769 Liquid temperature 55°C 131°F
Current cons. [A] 1.58 1.78 1.91 1.99 2.15 2.25 2.32 2.73 3.15 3.56 Return gas temperature 32°C 90°F
COP [W/W] 1.81 1.81 1.81 1.81 1.83 1.83 1.83 1.79 1.75 1.73
EER [BTU/Wh] 6.19 6.19 6.19 6.19 6.23 6.25 6.26 6.11 5.99 5.90
MBP: EN12900 115/220V, 50/60Hz, fan cooling F2
Speed (rpm) 2000 2250 2400 2500 2750 2900 3000 3500 4000 4500 Test conditions
Capacity [W] 673 755 804 836 914 961 992 1161 1329 1497 Evaporation pressure -10°C 14°F
Capacity [BTU/h] 2299 2577 2744 2855 3122 3282 3389 3963 4538 5112 Condensing presssure 45°C 113°F
Power cons. [W] 305 342 364 378 413 434 448 532 616 700 Liquid temperature 45°C 113°F
Current cons. [A] 1.47 1.64 1.74 1.80 1.96 2.05 2.12 2.49 2.87 3.25 Return gas temperature 20°C 68°F
COP [W/W] 2.21 2.21 2.21 2.21 2.21 2.21 2.22 2.18 2.16 2.14
EER [BTU/Wh] 7.54 7.54 7.54 7.54 7.56 7.56 7.57 7.45 7.37 7.30
Optimization Point 115/220V, 50/60Hz, fan cooling F2
Speed (rpm) 2000 2250 2400 2500 2750 2900 3000 3500 4000 4500 Test conditions
Capacity [W] 428 481 514 535 583 611 630 737 844 951 Evaporation pressure -25°C -13°F
Capacity [BTU/h] 1462 1644 1754 1827 1990 2087 2152 2518 2883 3248 Condensing presssure 35°C 95°F
Power cons. [W] 217 238 250 259 284 299 309 368 427 486 Liquid temperature 35°C 95°F
Current cons. [A] 1.08 1.17 1.23 1.26 1.38 1.45 1.49 1.76 2.02 2.29 Return gas temperature 32°C 90°F
COP [W/W] 1.97 2.03 2.05 2.07 2.05 2.04 2.04 2.00 1.98 1.96
EER [BTU/Wh] 6.73 6.91 7.01 7.07 7.01 6.98 6.96 6.84 6.75 6.68
Optimization Point 115/220V, 50/60Hz, fan cooling F2
Speed (rpm) 2000 2250 2400 2500 2750 2900 3000 3500 4000 4500 Test conditions
Capacity [W] 701 786 837 870 952 1001 1033 1208 1383 1558 Evaporation pressure -10°C 14°F
Capacity [BTU/h] 2393 2683 2857 2972 3250 3417 3528 4126 4724 5321 Condensing presssure 45°C 113°F
Power cons. [W] 305 342 364 378 413 434 448 532 616 700 Liquid temperature 45°C 113°F
Current cons. [A] 1.47 1.64 1.74 1.80 1.96 2.05 2.12 2.49 2.87 3.25 Return gas temperature 32°C 90°F
COP [W/W] 2.30 2.30 2.30 2.30 2.30 2.31 2.31 2.27 2.25 2.23
EER [BTU/Wh] 7.85 7.85 7.85 7.85 7.87 7.87 7.88 7.76 7.67 7.60
Optimization Point 115/220V, 50/60Hz, fan cooling F2
Speed (rpm) 2000 2250 2400 2500 2750 2900 3000 3500 4000 4500 Test conditions
Capacity [W] 1197 1330 1409 1462 1618 1711 1774 2070 2366 2662 Evaporation pressure 5°C 41°F
Capacity [BTU/h] 4088 4541 4813 4994 5526 5845 6058 7069 8081 9092 Condensing presssure 45°C 113°F
Power cons. [W] 372 410 432 447 502 535 556 664 772 879 Liquid temperature 45°C 113°F
Current cons. [A] 1.77 1.94 2.04 2.11 2.36 2.51 2.60 3.09 3.57 4.06 Return gas temperature 32°C 90°F
COP [W/W] 3.22 3.25 3.26 3.27 3.22 3.20 3.19 3.12 3.07 3.03
EER [BTU/Wh] 10.99 11.08 11.13 11.16 11.01 10.93 10.89 10.65 10.47 10.34

2/3 DES.D.301.B1.02 October 2022

 105N4710

CLK/TXD

Defrost

105N4710
GND

GND

LSW

PE
RXD
V+
D1

N
L
SWI Freq. AEO MAINS

RAST 2.5 Spade connectors 6.3 x 0.8

CLK/TXD

Defrost

105N4710
GND
GND

LSW
RXD

PE
V+
D1

N
L
8850
SWI Freq. AEO MAINS
1 2 3 1 2 3
connected
not

R- R+ Earth
Serial communcation Frequency signal Thermostat
5V + Defrost N Mains
Comm. L 230 V ~ AC
GND 50/60 Hz
Freq./DWI AEO mode

105N4760
CLK/TXD

Defrost

105N4760
GND
GND

LSW

PE
RXD
V+
D1

N
L

SWI Freq. AEO MAINS

RAST 2.5 Spade connectors 6.3 x 0.8

CLK/TXD

Defrost

105N4760
GND
GND

LSW
RXD

Drawing shows controller 105N4710.

PE
V+
D1

Controller 105N4760 has a slightly

N
L

larger heatsink.

SWI Freq. AEO MAINS

1 2 3 1 2 3
connected
not

R- R+ Earth
Serial communcation Frequency signal Thermostat
5V + Defrost N Mains
Comm. L 100-240 V ~ AC
50/60 Hz
GND
Freq./DWI AEO mode 8850-2

Secop accepts no responsibility for possible errors in catalogs, brochures, and other printed material. Secop reserves the right to alter its products without notice. This also applies to products
already on order provided that such alterations can be made without subsequential changes being necessary to specifications already agreed. All trademarks in this material are the property of the
respective companies. Secop and the Secop logotype are trademarks of Secop GmbH. All rights reserved. www.secop.com

3/3 DES.D.301.B1.02 October 2022

 HK183FV User Manual Universal temperature controller

Set button | Set

-Pressing SET button for 3s to display the value of set point；
-Switch menu and display interface；
Enter/Defrost button | Rst

-Check the temperature of evaporator sensor ( If enabled )；

-Save the parameters and exit the parameter setting interface；
-Pressing the key for 3 seconds to start manual defrost, or manually terminate
defrost/defrost drip state；
Up/Light button |
-Scrolls through menu items and decreases values；
-Turn on or off the light ( if the controller with the light function )；
Please read carefully before use and keep it properly -Transfer the data from the controller to copy key；
Down button |
HK183FV -Scrolls through menu items and decreases values；
-Transfer the date from the copy key to the controller；
1. Dimensions and Panel mounting Key combination | Set +
-Pressing Set button+ light button for 10s to restore to factory setting and will display
“rSt”code；

28.4mm
34.0mm

Edit the value of Set point (compressor stop temperature)

edit the current value of
pressing 3s enter
compressor stopped temperature
77.5mm 72.0mm enter
Set Set
96.2mm
Rst

display the parameter label for display the current value of

② display temperature
compressor stopped temperature compressor stopped temperature
71mm
save the new set point of compressor stopped temperature and drop out Note(1)
② ①
29mm

Edit the set point of other parameters ( Administrator menu)

pressing 3s enter

Set Set

Installation Precautions
-The thickness of the mounting panel should be in the range from 0.8 to 2.0mm；
-Please ensure that the working environment of the controller meets the requirements display temperature display the parameter label for display the parameter
in the technical parameters before installation； compressor stopped temperature label for password
-Do not install the instrument in damp or dirty places; in fact, it is suitable for use in places with ordinary enter Note(2)
or normal levels of pollution. Keep the area around the instrument cooling slots adequately ventilated. type the password
Set enter

2. Wiring diagrams Set

enter the administrator menu confirm password Enter password interface

10A 16A 16A

edit the set point adjust the parameter save the value
230VAC NTC and drop out Note(1)
HIGH
enter
1 2 3 4 5 VOLTAGE！ 6 7
Set Rst

display the set point of the parameters return to the parameter menu
L N N N N Cabinet Evap.

Note(1)：the new value will be saved and drop out auto if no operations more than 30s；
3. Panel and operation Note(2)：the factory password is : 55 。

aux heater door switch voltage protect Set button

indicator indicator indicator

compressor indicator
Set Up/ Light button
defrost indicator
fan indicator
Rst Down button
dripping indicator

Set indicator Enter/Defrost button

HK183FV User Manual |230715 1/3

4. Parameter table
32 A6 45℃ Higher temperature alarm A5～85℃(185℉)

33 A7 5 (Absolute
Alarm value)
active delay time 0～60, delay time =A7x3 mins
No. Para. Default Description Range
34 A8 10 First time alarm active delay time 0～60, delay time =A8x3 mins
0 St -22℃ Set point c5～c6
after power
Higher on
temperature alarm
1 Po 00 Password 00～255 35 A9 10℃ 1℃(1℉)～30℃(60℉)
differential
2 c1 3.0℃ Differential 0.5℃(1℉)～9.0℃(20℉)
lower temperature alarm
36 A10 5℃ 1℃(1℉)～30℃(60℉)
3 c2 5 Compressor min OFF time 0～60 mins differential
Output activation delay at 37 A11 0 Alarm calculation method 0: Absolute 1: relative
4 c3 5 0～90 mins
start-up temperature
38 A12 0 Auxiliary relay appointment 0: defrost 1: fan 2: light 3: alarm
5 c4 0.0℃ Probe for cold room calibration -10.0℃(-20℉)～10.0℃(20℉)
0: disabled
6 c5 -22℃ Minimum Set Point -50℃(-58℉)～St 1: Turn off the fan when the door
7 c6 -19 ℃ Maximum Set Point St～85℃(185℉) is open;
2: Turn on the light when the door
8 c7 30 Max compressor stand by time 0～9 mins, 0: disabled is open, and turn off the light
9 c8 5 Compressor min on time 0～90 mins, 0: disabled when the door is closed;
3: Turn on the light when the door
10 d1 1 Enable the evaporator probe 0: disabled 1: enable 39 do1 0 Disabled or enabled door switch
is open and turn off the fan; turn
11 d2 0.0℃ Probe for evaporator calibration -10.0℃(-20℉)～10.0℃(20℉) off the light when the door is
closed, and the fan will return to
Selects the count mode for the 0: compressor running time
12 d3 1 the state before the door is
defrost interval 1: device running time
opened;
Interval between the start of two 4: As a synchronous defrost
13 d4 12 0～90h, 0: defrost disabled
consecutive defrost cycles signal, start defrost;
0:displays the temperature read Disabled or enabled alarm when
by probe Pb1; 40 do2 0 0: disabled 1: enable
door opened
1:display dEF until timeout of d9,
Disabled or enabled the Probe
then display the temperature 41 cd1 00 0: disabled 1: enable
for condenser
read by Pb1;
2: display dEF during the whole Higher temperature alarm active
42 cd2 60℃ 30℃(86℉)～90℃(194℉)
period of defrost and draining; value of condenser
14 d5 1 Display mode during defrost
3: locks recorded value of Pb1 at 43 cd3 5℃ Condenser alarm differential 1℃(2℉)～15℃(30℉)
defrost start during the whole
period of defrost and draining ; The value of condenser
44 cd4 72℃ temperature to active the 30℃(86℉)～90℃(194℉)
4:locks recorded value of Pb1 at
defrost start until timeout of d9, protection
then display the temperature 45 uE 1 Voltage protect select 0: disabled 1: enable
read by Pb1;
46 uLP 175 Under voltage protect value 155~240VAC
Determines the maximum
15 d6 10 1～90 mins Under voltage protect relieve
defrost duration 47 uLd 15 5~30VAC
differential
16 d7 8℃ Defrost end temperature 0℃(32℉)～50℃(122℉)
Control recovery delay after
17 d8 10 Draining time after defrost 48 uLt 3 1~360 (unit:10s)
0～60 mins, 0: disabled under voltage protect relieves
Timeout time value of delay to 49 uHP 270 Over voltage protect value 230~295VAC
18 d9 40 display the temperature read by 0～90 mins
Pb1 Over voltage protect relieve
50 uHd 20 5~80VAC
differential
19 d10 0 Defrost delay time after call 0～60 mins, 0: disabled
Control recovery delay after
0: electric defrost with aux heater 51 uHt 6 1~360 (unit:10s)
1: reverse cycle defrost over voltage protect relieves
20 d11 2 Defrost type
2: reverse cycle defrost with aux 52 uLr --- Minimum voltage unit: VAC, read only
heater
53 uHr --- Maximum voltage unit: VAC, read only
Aux heater start earlier than
21 d12 10 0～30 mins, 0:disabled 54 u1 01 Unit 00: Fahrenheit 01: Celsius
defrost
55 u2 00 Start stand by model 00: disabled 01: enable
0:working with the step of
compressor and always on 56 PAS 55 Password set 0~255, 0: disabled
during the period of defrost and
draining
1:always on
5. Technical data sheet
2:always on except the period of
22 F1 3 Fan management
defrost and draining Power supply： 230VAC±10%，50/60Hz
3:always on until defrost enable; power consume： 3.0VA max
restart when time out of F3 after
Display ： Three-digit digital tube and symbol light
defrost
4:Determined by evaporator Resolution： 0.1℃ or 1℉
probe (F4/F5) Temperature measurement range and accuracy：
First time activation delay after -50℃～90℃,-40℃～50℃@±1℃, others ±2℃
23 F2 4 0～60 mins
power on Input : 2 NTC probes
24 F3 2 Activation delay after any defrost 0～60 mins, 0:disabled Outputs: Refer to the wiring diagram
25 F4 -12℃ Min working temperature for fan -50℃(-58℉)～F5 Working temperature: 0℃～55℃
26 F5 -5℃ Max working temperature for fan F4～85℃(185℉) Storage temperature: -25℃～75℃
Relative humidity: 20%～85% (no frost)
Proportional start-stop mode
27 A1 1 when the cabinet temperature 0:disabled 1:enable
probe failed

Compressor switch-off time in

28 A2 15 1～60 mins
the event of error probe

Compressor switch-on time in

29 A3 45 1～60 mins
the event of error probe
30 A4 1 Buzzer alarm 0:disabled 1:enable

31 A5 -40℃ Lower temperature alarm -50℃(-58℉)～A6

(Absolute value)

HK183FV User Manual |230715 2/3

3-2
6. Alarm label and description

Label Description Cause Problem solving

E1 Probe 1 in error 1.Measured values are
Verify probe type
outside operating range
E2 Evaporator probe error Verify probe wiring
2.Probe inoperable/short
E3 Condenser probe error Replace probe
circuited/open
Voltage out range of
E4 Voltage error /
150~280VAC
If A11=0, the cabinet
temperature>A6(If A11=1, If A11=0,wait for value read by
Alarm due to HIGH cabinet temperature> St+A9) Pb1 to return < A6;
rH
Temperature Pb1 and the cabinet continues If A11=1,wait for value read by
Temperature alarm delay Pb1 to return < ST + A9;
time;
If A11=0, the cabinet
temperature <A5(If A11=1, If A11=0,wait for value read by
Alarm due to LOW cabinet temperature <St-A10) Pb1 to return > A5;
rL
Temperature Pb1 and the cabinet continues If A11=1,wait for value read by
Temperature alarm delay Pb1 to return > ST – A10;
time;
dEF Defrosting or draining / /
Voltage> uLP + uLd,and delay
uL under voltage protect Voltage＜uLP
for uLt time
Voltage< uHP – uHd and
uP over voltage protect Voltage>uHP
delayfor uHt time
Success to recovery to
rSt / /
factory set

HK183FV User Manual |230715 3/3

3-2
