RCC Beam

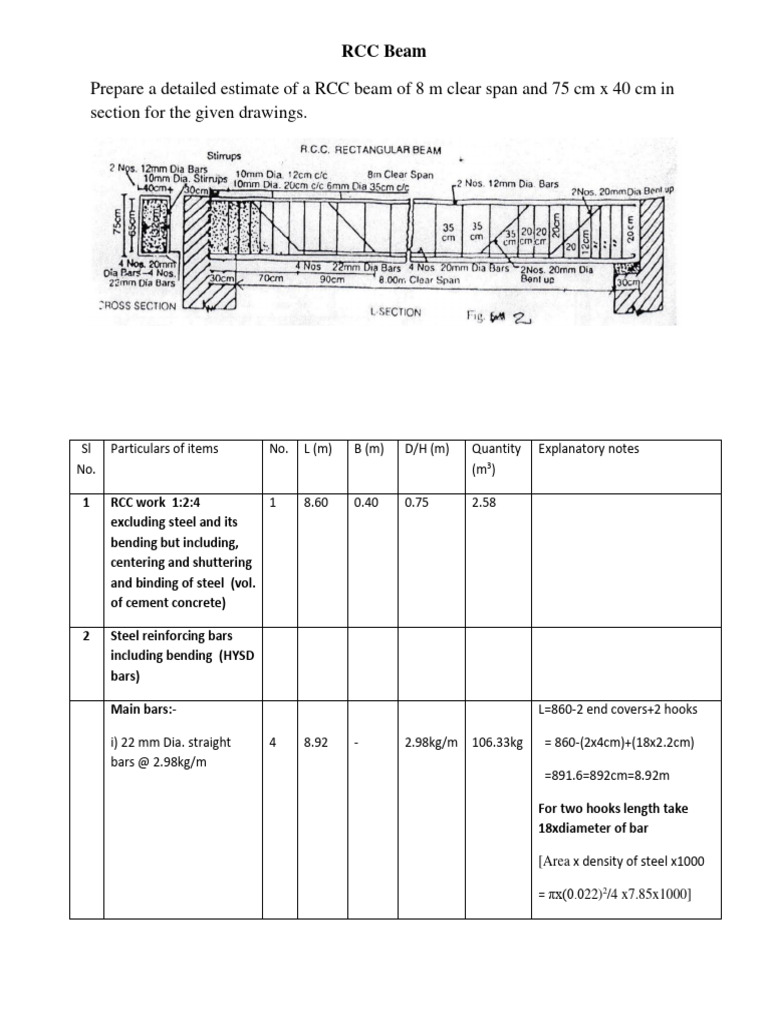

Prepare a detailed estimate of a RCC beam of 8 m clear span and 75 cm x 40 cm in


section for the given drawings.

Sl Particulars of items No. L (m) B (m) D/H (m) Quantity Explanatory notes
No. (m3)

1 RCC work 1:2:4 1 8.60 0.40 0.75 2.58


excluding steel and its
bending but including,
centering and shuttering
and binding of steel (vol.
of cement concrete)

2 Steel reinforcing bars


including bending (HYSD
bars)

Main bars:- L=860-2 end covers+2 hooks

i) 22 mm Dia. straight 4 8.92 - 2.98kg/m 106.33kg = 860-(2x4cm)+(18x2.2cm)


bars @ 2.98kg/m
=891.6=892cm=8.92m

For two hooks length take


18xdiameter of bar

[Area x density of steel x1000

= πx(0.022)2/4 x7.85x1000]
= 2.98k/m

ii) 20 mm dia. bent up 4 9.53 - 2.47kg/m 94.16kg For 450 bent up at both ends
bars @ 2.47kg/m add one depth in between
bars

L = 860-2 end covers +2


hooks+one depth

L=860-(2x4cm)+(18x2)+65cm

= 953cm=9.53m

iii) 12mm dia. top bars @ 2 8.74 - 0.89kg/m 15.56kg L= 860-2 end covres+2 hooks
0.89kg/m
L = 860-(2x4cm)+(18x1.2cm)

L= 873.6cm=874cm=8.74m

Stirrups, 10 mm dia. bars L = [(65x2)+(32x2)]+2hooks+


@0.62kg/m -
Extra 30cm
i) At end 12 cm c. to c.
2x5 2.42 - 0.62kg/m 15.00kg L =194+(18x1cm)+30cm
ii) Next at 20 cm c. to c.
2x4 2.42 - 0.62kg/m 12.00kg =242cm=2.42m

Total 27.00kg

Stirrups, 6 mm dia. bars 16 2.35 - 0.22kg/m 8.27kg L = 860-(20+48+80)2


@0.22kg/m – At central
L= 564cm=5.64m
remaining length of
5.54m at 35 cm c. to c. Nos. =564/35=16.11=16nos.

L=(65x2)+(32x2)+(18x0.6cm)+

30cm extra

L=234.8cm=235cm=2.35m
