ORIGINAL Date Rev. Date Rev.

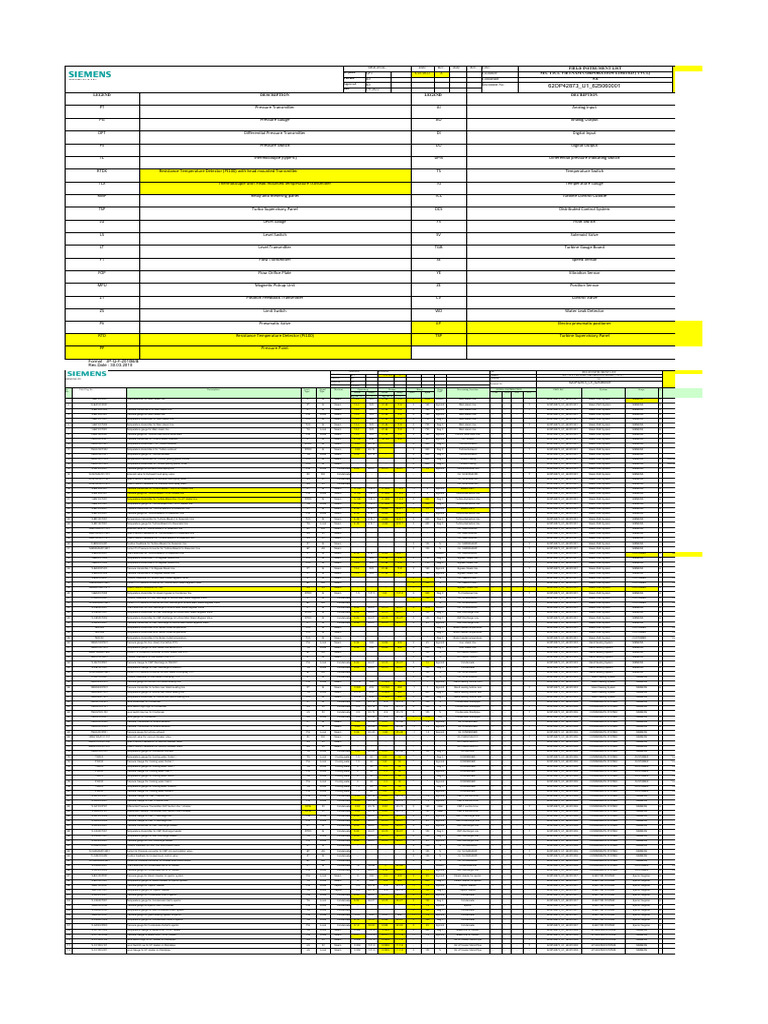

Title: FIELD INSTRUMENT LIST

Prepared KPT 8/26/2022 A Customer: M/s. TTCL VIETNAM CORPORATION LIMITED ( TVCL)
SIEMENS LTD. Checked SD Consultant NA Rev.A
Approved SD Document No. 62OP42873_U1_625060001
Date 5/9/2022
LEGEND DESCRIPTION LEGEND DECRIPTION

PT Pressure Transmitter AI Analog Input

PG Pressure Gauge AO Analog Output

DPT Differential Pressure Transmitter DI Digital Input

PS Pressure Switch DO Digital Output

TC Thermocouple (type-K) DPIS Differential pressure indicating switch

RTDX Resistance Temperature Detector (Pt100) with head mounted Transmitter TS Temperature Switch

TCX Thermocouple with Head mounted temperature transmitter TG Temperature Gauge

RMP Relay and metering panel TCC Turbine Control Cubicle

TSP Turbo Supervisory Panel DCS Distributed Control System

LG Level Gauge FS Flow Switch

LS Level Switch SV Solenoid Valve

LT Level Transmitter TGB Turbine Gauge Board

FT Flow Transmitter SE Speed Sensor

FOP Flow Orifice Plate YE Vibration Sensor

MPU Magnetic Pickup Unit ZE Position Sensor

ZT Position Feedback Transmitter CV Control Valve

ZS Limit Switch WD Water Leak Detector

PV Pneumatic Valve EP Electro pneumatic postioner

RTD Resistance Temperature Detector (Pt100) TSP Turbine Supervisiory Panel

PP Pressure Point

Format :IP-Q-F-2010B/B
Rev.Date : 30.03.2010
ORIGINAL REVISION Title: FIELD INSTRUMENT LIST
PREPARED KPT 8/26/2022 A Customer: M/s. TTCL VIETNAM CORPORATION LIMITED ( TVCL)
SIEMENS LTD. CHECKED SD Consultant NA Rev.A
APPROVED SD
Document No.
62OP42873_U1_625060001
DATE 5/9/2022
Sr. Field Tag No. Description Instr. Signal Medium Operating Design Range Engg. Processing Location SIGNAL DISTRIBUTION P&ID Ref. System Scope Re
No. Type Type Press Temp. Press Temp. Zero Span Unit TGB DCS TSP TCC v.
Remarks
Kg/cm2-G °C Kg/cm2-G °C
1 1LBA10CF201 Flow transmitter for Main steam line FT AI Steam 74.4 505 81.84 515 0 2500 mmWC Main steam line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

2 1LBA10CP201 PT AI Steam 74.4 505 81.84 515 0 160 Kg/cm2 Main steam line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

3 1LBA10CP202 Pressure transmitter-2 for Main steam line PT AI Steam 74.4 505 81.84 515 0 160 Kg/cm2 Main steam line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

4 1LBA10CP001 Pressure gauge for Main steam line PG Local Steam 74.4 505 81.84 515 0 160 Kg/cm2 Main steam line - - - - 62OP42873_U1_643010301 Steam Path System SIEMENS A

5 1LBA10CT201 Temperature transmitter for Main steam line TCX AI Steam 74.4 505 81.84 515 0 700 Deg C Main steam line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

6 1LBA10CT202 Temperature transmitter for Main steam line TCX AI Steam 74.4 505 81.84 515 0 700 Deg C Main steam line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

7 1LBA10CT001 Temperature gauge for Main steam line TG Local Steam 74.4 505 81.84 515 0 700 Deg C Main steam line - - - - 62OP42873_U1_643010301 Steam Path System SIEMENS A

8 1MAL10CP001 Pressure gauge for Turbine Inlet control valve drain PG Local Steam 74.4 505 81.84 515 0 160 Kg/cm2 Control valve drain line - - - - 62OP42873_U1_643010301 Steam Path System SIEMENS A

9 1MAA10CP201 Pressure transmitter for Turbine wheel chamber PT AI Steam 41.88 444 46.068 454 -1 60 Kg/cm2 On Turbine - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

10 1MAA10CT201 Temperature transmitter-1 for Turbine exhaust RTDX AI Steam -0.93 45.74 - - 0 300 Deg C Turbine Exhaust - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

11 1MAA10CT202 Temperature transmitter-2 for Turbine exhaust RTDX AI Steam -0.93 45.74 - - 0 300 Deg C Turbine Exhaust - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

12 1MAA10CT001 Temperature gauge for Turbine exhaust TG Local Steam 0.93 45.74 - - 0 300 Deg C Turbine Exhaust - - - - 62OP42873_U1_643010301 Steam Path System SIEMENS -

13 1MAA10CT203 Temperature transmitter for Turbine parting plane -Center TCX AI Steam - - - - 0 600 Deg C Turbine Casing - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A DIN rail mounted Temp. Tx.

14 1MAA10CT204 Temperature transmitter for Turbine parting plane - inner TCX AI Steam - - - - 0 600 Deg C Turbine Casing - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A DIN rail mounted Temp. Tx.

15 1LCE10CP001 Pressure gauge for Exhaust hood spray line PG Local Condensate 8.65 46.07 9.515 56.07 0 16 Kg/cm2 Turbine Exhaust line - - - - 62OP42873_U1_643010301 Steam Path System SIEMENS A

16 1LCE10AA101-Y01 Solenoid valve for Exhaust hood spray valve SV DO Condensate - - - - - - - On 1LCE10AA105 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

17 1LCE10CG101-S21 Open Position Feedback For Exhaust hood spray valve ZS DI Condensate - - - - - - - On 1LCE10AA105 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

18 1LCE10CG101-S11 Close Position Feedback For Exhaust hood spray valve ZS DI Condensate - - - - - - - On 1LCE10AA105 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

19 1LBS10CP201 Pressure transmitter for Turbine Bleed-1 line to LP Heater line PT AI Steam 0.128 103.3 0.1408 113.3 -1 3 Kg/cm2 Bleed Line-1 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

20 1LBS10CP001 Pressure gauge for Turbine Bleed-1 to LP Heater line PG Local Steam 0.128 103.3 0.1408 113.3 -1 3 Kg/cm2 Turbine Extraction line - - - - 62OP42873_U1_643010301 Steam Path System SIEMENS A

21 1LBS10CT201 Temperature transmitter for Turbine Bleed line-1 to LP Heater line RTDX AI Steam 0.128 103.3 0.1408 113.3 0 300 Deg C Turbine Extraction line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

22 1LBS10CT001 Temperature gauge for Turbine Bleed line-1 to LP Heater line TG Local Steam 0.128 103.3 0.1408 113.3 0 300 Deg C Turbine Extraction line - - - - 62OP42873_U1_643010301 Steam Path System SIEMENS A

23 1LBD10CP201 Pressure transmitter for Turbine Bleed-2 to Deaerator line PT AI Steam 4.49 215.7 4.939 225.7 -1 10 Kg/cm2 Bleed Line-2 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

24 1LBD10CP001 Pressure gauge for Turbine Bleed-2 to Deaerator line PG Local Steam 4.49 215.7 4.939 225.7 0 10 Kg/cm2 Turbine Extraction line - - - - 62OP42873_U1_643010301 Steam Path System SIEMENS -

25 1LBD10CT201 Temperature transmitter for Turbine Bleed-2 to Deaerator line TCX AI Steam 4.49 215.7 4.939 225.7 0 400 Deg C Turbine Extraction line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

26 1LBD10CT001 Temperature gauge for Turbine Bleed-2 to Deaerator line TG Local Steam 4.49 215.7 4.939 225.7 0 400 Deg C Turbine Extraction line - - - - 62OP42873_U1_643010301 Steam Path System SIEMENS -

27 1LBD10AA101-Y01 Solenoid valve for Turbine Bleed-2 to Deaerator line SV DO Steam - - - - - - - On 1LBD10AA301 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

28 1LBD10CG101-S21 Open Position Feedback For Turbine Bleed-2 to Deaerator line ZS DI Steam - - - - - - - On 1LBD10AA301 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

29 1LBD10CG101-S11 Close Position Feedback For Turbine Bleed-2 to Deaerator line ZS DI Steam - - - - - - - On 1LBD10AA301 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

30 1LBD20CG201 Position Feedback for Turbine Bleed-2 to Deaerator line ZT AI Steam - - - - 0 100 % On 1LBD20AA001 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

31 1LBD20AA001-B01 Current To Pressure Converter for Turbine Bleed-2 to Deaerator line EP AO Steam - - - - 0 100 % On 1LBD20AA001 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS -

32 1LBD20CF201 Flow transmitter for Turbine Bleed-2 to Deaerator line FT AI Steam 4.49 214.7 4.939 224.7 * * mmWC On 1LBD20AA501 - - - Y 62OP42873_U1_643010301 Steam Path System CUSTOMER A *customer to specify

33 1LBA20CT203 Temperature transmitter-1 for Bypass Steam line TCX AI Steam 74.4 505 81.84 515 0 700 Deg C Bypass Steam line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

34 1LBA20CT204 Temperature transmitter-2 for Bypass Steam line TCX AI Steam 74.4 505 81.84 515 0 700 Deg C Bypass Steam line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

35 1LBA20CP203 Pressure transmitter-1 for Bypass Steam line PT AI Steam 74.4 505 81.84 515 0 160 Kg/cm2 Bypass Steam line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

36 1LBA20CP204 Pressure transmitter-2 for Bypass Steam line PT AI Steam 74.4 505 81.84 515 0 160 Kg/cm2 Bypass Steam line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

37 1LBA20CG201 Position Feedback for Turbine Main Steam Bypass Valve ZT AI Steam - - - - 0 100 % On 1LBA20CG201 - - - Y 62OP42873_U1_643010301 Steam Path System CUSTOMER - * Customer to specify

38 1LBA20AA001-B01 Current To Pressure Converter for Turbine Main Steam Bypass Valve EP AO Steam - - - - 0 100 % On 1LBA20CG201 - - - Y 62OP42873_U1_643010301 Steam Path System CUSTOMER - * Customer to specify

39 1LBA20CG201-S11 Close Position Feedback For TBV ZS DI Steam - - - - - - - Bypass Steam line - - - Y 62OP42873_U1_643010301 Steam Path System CUSTOMER A

40 1LBA20CT205 Temperature transmitter for steam bypass to Condenser line RTDX AI Steam 1.5 127.5 1.65 137.5 0 300 Deg C To Condenser line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

41 1LCE50CG201 Position Feedback for CEP discharge to turbine Main Steam Bypass Valve ZT AI Condensate - - - - 0 100 % On 1LCE50AA001 - - Y 62OP42873_U1_643010301 Steam Path System CUSTOMER A * Customer to specify

42 1LCE20AA001-B01 Current To Pressure Converter for CEP discharge to turbine Main Steam Bypass Valve EP AO Condensate - - - - * * % On 1LCE50AA001 - - - Y 62OP42873_U1_643010301 Steam Path System CUSTOMER - * Customer to specify

43 1LCE20CF201 Flow transmitter for CEP discharge to turbine Main Steam Bypass Valve FT AI Condensate 8.65 46.07 9.515 56.07 0 1250 mmWC On 1LCE50AA501 - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

44 1LCE50CT201 Temperature transmitter for CEP discharge to turbine Main Steam Bypass Valve RTDX AI Condensate 8.65 46.07 9.515 56.07 0 100 Deg C CEP Discharge Line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

45 1LCE50CT202 Temperature transmitter for CEP discharge to turbine Main Steam Bypass Valve RTDX AI Condensate 8.65 46.07 9.515 56.07 0 100 Deg C CEP Discharge Line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

46 1LCE50CP201 Pressure transmitter for CEP discharge to turbine Main Steam Bypass Valve PT AI Condensate 8.65 46.07 9.515 56.07 0 25 Kg/cm2 CEP Discharge Line - - - Y 62OP42873_U1_643010301 Steam Path System SIEMENS A

47 TEXXXA Temperature transmitter-A for Boiler Outlet temperature TCX AI Steam * * * * * * Deg C Boiler header temperature - - - - 62OP42873_U1_643010301 Steam Path System CUSTOMER - * Customer to specify

48 TEXXXB Temperature transmitter-B for Boiler Outlet temperature TCX AI Steam * * * * * * Deg C Boiler header temperature - - - - 62OP42873_U1_643010301 Steam Path System CUSTOMER - * Customer to specify

49 TEXXXC Temperature transmitter-C for Boiler Outlet temperature TCX AI Steam * * * * * * Deg C Boiler header temperature - - - - 62OP42873_U1_643010301 Steam Path System CUSTOMER - * Customer to specify

50 1MAW10CP001 Pressure gauge for Aux. steam line before PCV PG Local Steam 8.96 390 9.856 400 0 25 Kg/cm2 Aux. steam line - - - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS -

51 1MAW10CT001 Temperature gauge for Aux. steam line before PCV TG Local Steam 8.96 390 9.856 400 0 600 Deg C Aux. steam line - - - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS -

52 1MAW10AA001-B01 Current To Pressure Converter for Aux. steam line PCV EP AO Steam - - - - 0 100 % On 1MAW70AA001 - - - Y 62OP42873_U1_643010303 Gland Sealing System SIEMENS -

53 1MAW10CG201 Position Feedback for Aux.steam Line PCV ZT AI Steam - - - - 0 100 % On 1MAW70AA001 - - - Y 62OP42873_U1_643010303 Gland Sealing System SIEMENS -

54 1LCE70CP001 Pressure Gauge for CEP Discharge to DSH301 PG Local Condensate 8.65 46.07 9.515 56.07 0 16 Kg/cm2 Condensate - - - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS A

55 1LCE70CT001 Temperature Gauge for CEP Discharge to DSH301 TG Local Condensate 8.65 46.07 9.515 56.07 0 100 Deg C Condensate - - - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS A

56 1LCE10AA001-B01 Current To Pressure Converter for Aux. steam Line spray TCV EP AO Condensate - - - - 0 100 % On 1LCE70AA001 - - - Y 62OP42873_U1_643010303 Gland Sealing System SIEMENS -

57 1LCE10CG201 Position Feedback for Aux.steam Line spray TCV ZT AI Condensate - - - - 0 100 % On 1LCE70AA001 - - - Y 62OP42873_U1_643010303 Gland Sealing System SIEMENS -

58 1MAW30CP001 Pressure gauge for turbine front Gland sealing line PG Local Steam 0.078 380 0.0858 390 -1 1 Kg/cm2 Gland sealing turbine front - - - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS -

59 1MAW40CP001 Pressure transmitter for turbine rear Gland sealing line PT AI Steam 0.066 250 0.0726 260 -1 1 Kg/cm2 Gland sealing turbine rear - - - Y 62OP42873_U1_643010303 Gland Sealing System SIEMENS A

60 1MAW40CT001 Temperature gauge for turbine rear Gland sealing line TG Local Steam 0.078 250 0.0858 260 0 400 Deg C Gland sealing turbine rear - - - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS -

61 1MAW40CT201 Temperature transmitter for turbine rear Gland sealing line TCX AI Steam 0.078 250 0.0858 260 0 400 Deg C Gland sealing turbine rear - - - Y 62OP42873_U1_643010303 Gland Sealing System SIEMENS -

62 1MAW10CL201 Level transmitter for Condenser LT AI Condensate -0.9 45.74 -0.9 45.74 0 100 % Condensate Standpipe - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

63 1MAG10CL101 Level switch high high for Condenser LS DI Condensate -0.9 45.74 -0.9 45.74 0 100 % Condensate Standpipe - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

64 1MAG10CL102 Level switch low low for Condenser LS DI Condensate -0.9 45.74 -0.9 45.74 0 100 % Condensate Standpipe - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

65 1MAG10CL001 Level gauge for Condenser LG Local Condensate -0.9 45.49 -0.9 45.49 0 1050 mm Condensate Standpipe - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

66 1MAA10CP202 Pressure Transmitter for turbine exhaust PT AI Steam -0.93 45.49 -0.93 45.49 -1 1.5 Kg/cm2 On CONDENSER - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

67 1MAA10CP203 Pressure Transmitter for turbine exhaust PT AI Steam -0.93 45.49 -0.93 45.49 -1 1.5 Kg/cm2 On CONDENSER - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

68 1MAA10CP001 Pressure gauge for turbine exhaust PG Local Steam 0.93 45.49 1.023 55.49 -1 1.5 Kg/cm2 On CONDENSER - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

69 1MAG10AA101-Y01 Solenoid valve For vacuum breaker valve SV DO Steam - - - - - - - On 1MAG10AA101 - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

70 1MAG10CG101-S21 Open Position Feedback For vacuum breaker valve ZS DI Steam - - - - - - - On 1MAG10AA101 - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

71 1MAG10CG101-S11 Close Position Feedback For vacuum breaker valve ZS DI Steam - - - - - - - On 1MAG10AA101 - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

72 1MAG10CT001 Temperature gauge for Condenser Hot-well TG Local Condensate -0.93 45.49 -0.93 45.49 0 100 Deg C On Hot Well - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

73 TGXXX Temperature gauge for Cooling water Outlet-1 TG Local Cooling water 1.5 42 1.65 52 * * Deg C CONDENSER - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM CUSTOMER - * Customer to specify

74 PGXXX Pressure Gauge For Cooling water Outlet-1 PG Local Cooling water 1.5 42 1.65 52 * * Kg/cm2 CONDENSER - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM CUSTOMER - * Customer to specify

75 TGXXX Temperature gauge for Cooling water Inlet-1 TG Local Cooling water 2 32 2.2 42 * * Deg C CONDENSER - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM CUSTOMER - * Customer to specify

76 PGXXX Pressure Gauge For Cooling water Inlet-1 PG Local Cooling water 2 32 2.2 42 * * Kg/cm2 CONDENSER - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM CUSTOMER - * Customer to specify

77 TGXXX Temperature gauge for Cooling water Inlet-2 TG Local Cooling water 2 32 2.2 42 * * Deg C CONDENSER - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM CUSTOMER - * Customer to specify

78 PGXXX Pressure Gauge For Cooling water Inlet-2 PG Local Cooling water 2 32 2.2 42 * * Kg/cm2 CONDENSER - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM CUSTOMER - * Customer to specify

79 TGXXX Temperature gauge for Cooling water Outlet-2 TG Local Cooling water 1.5 40 1.65 50 * * Deg C CONDENSER - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM CUSTOMER - * Customer to specify

80 PGXXX Pressure Gauge For Cooling water Outlet-2 PG Local Cooling water 1.5 40 1.65 50 * * Kg/cm2 CONDENSER - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM CUSTOMER - * Customer to specify

81 1LCA10CP001 Pressure Gauge For CEP 1 suction line PG Local Condensate -0.93 45.74 -0.93 45.74 -1 1.5 Kg/cm2 CEP-1 suction Line - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

82 1LCA20CP001 Pressure Gauge for CEP 2 suction line PG Local Condensate -0.93 45.74 -0.93 45.74 -1 1.5 Kg/cm2 CEP-2 suction Line - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

83 1LCA10CP101 Differential Pressure Transmitter CEP Suction line 1 strainer DPIS DI Condensate -0.93 45.74 -0.93 45.74 0 160 mBar CEP-1 suction Line - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

84 1LCA20CP101 Differential Pressure Transmitter CEP Suction line 2 strainer DPIS DI Condensate -0.93 45.74 -0.93 45.74 0 160 mBar CEP-2 suction Line - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

85 1LCA10CP002 Pressure Gauge for CEP 1 Discharge line PG Local Condensate 8.65 46.07 9.515 56.07 0 25 Kg/cm2 CEP-1 discharge Line - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

86 1LCA20CP002 Pressure Gauge for CEP 2 Discharge line PG Local Condensate 8.65 46.07 9.515 56.07 0 25 Kg/cm2 CEP-2 discharge Line - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

87 1LCA30CP201 Pressure transmitter for CEP Discharge header PT AI Condensate 8.65 46.07 9.515 56.07 0 25 Kg/cm2 CEP discharge Line - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

88 1LCA30CT201 Temperature transmitter for CEP Discharge header RTDX AI Condensate 8.65 46.07 9.515 56.07 0 100 Deg C CEP discharge Line - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

89 1LCA30CT001 Temperature gauge for CEP Discharge header TG Local Condensate 8.65 46.07 9.515 56.07 0 100 Deg C CEP discharge Line - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

90 1LCA30CP001 Pressure gauge for CEP Discharge header PG Local Condensate 8.65 46.07 9.515 56.07 0 25 Kg/cm2 CEP discharge Line - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS A

91 1LCA40CG201 Position feedback for CEP min recirculation valve ZT AI Condensate - - - - 0 100 % On 1LCA40AA001 - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

92 1LCA40AA001-B01 Current to Pressure converter for CEP min recirculation valve EP AO Condensate - - - - 0 100 % On 1LCA40AA001 - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

93 1LCA40CG202 Position feedback for Hotwell level control valve ZT AI Condensate - - - - 0 100 % On 1LCA50AA001 - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

94 1LCA40AA002-B01 Current to Pressure converter for Hotwell level control valve EP AO Condensate - - - - 0 100 % On 1LCA50AA001 - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS -

95 1LCA50CF201 Flow transmitter for condensate line to LP Heater FT AI Condensate 10 50.84 11 60.84 * * mmWC Condensate line - - - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM CUSTOMER A * Customer to specify

96 1LCA30CP002 Pressure gauge for condensate line to LP Heater PG Local Condensate 11.5 46.07 12.65 56.07 0 16 Kg/cm2 CEP discharge Line - - - - 62OP42873_U1_643010306 CONDENSATE SYSTEM CUSTOMER A * Customer to specify

97 1LBG10CP001 Pressure gauge for Steam Header for ejector system PG Local Steam 9 390 9.9 400 0 25 Kg/cm2 Steam Header for ejector - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

98 1LBG10CT001 Temperature gauge for Steam Header for ejector system TG Local Steam 9 390 9.9 400 0 500 Deg C Steam Header for ejector - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

99 1MAJ10CP001 Pressure gauge for Vapour Header PG Local Vapour -0.9 45.74 -0.9 45.74 -1 1.5 Kg/cm2 Vapour Header - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

100 1MAJ10CT001 Temperature gauge For Vapour Header TG Local Vapour -0.9 45.74 -0.9 45.74 0 100 Deg C Vapour Header - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

101 1LCA50CP001 Pressure gauge for Condensate inlet to ejector PG Local Condensate 8.65 46.07 9.515 56.07 0 25 Kg/cm2 Condensate - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

102 1LCA50CT001 Temperature gauge for Condensate inlet to ejector TG Local Condensate 8.65 46.07 9.515 56.07 0 100 Deg C Condensate - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

103 1MAJ20CP002 Pressure gauge for Ejector After Condenser PG Local Condensate - - - - -1 1.5 Kg/cm2 Ejector - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

104 1LCN60CP003 Temperature gauge for After condenser Drain system TG Local Condensate - - - - 0 100 Deg C Condensate - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

105 1MAJ40CP001 Pressure gauge for gland sealing system to ejector PG Local Condensate -0.03 240 -0.03 240 -1 1.5 Kg/cm2 Condensate - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

106 1LCA50CT002 Temperature gauge for Condensate Outlet to ejector TG Local Condensate 8.14 50.83 8.954 60.83 0 100 Deg C Condensate - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

107 1LCA50CP003 Pressure gauge for Condensate Outlet to ejector PG Local Condensate 8.14 50.83 8.954 60.83 0 25 Kg/cm2 Condensate - - - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier A

108 1LCC10CT002 Temperature Gauge for Bleed Line-1 to LP Heater TG Local Steam 0.082 101.9 0.0902 111.9 0 300 Deg C Bleed line LP Heater - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -

109 1LCC10CP002 Pressure Gauge for Bleed Line-1 to LP Heater PG Local Steam 0.07 101.9 0.077 111.9 -1 1.5 Kg/cm2 Bleed line LP Heater - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS A

110 1LCC10CL102 Level switch High for LP Heater on Standpipe LS DI Steam 0.082 101.9 0.0902 111.9 - - - On LP Heater Stand Pipe - - - Y 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -

111 1LCC10CL101 Level Switch Low for LP Heater on Standpipe LS DI Steam 0.082 101.9 0.0902 111.9 - - - On LP Heater Stand Pipe - - - Y 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -

112 1LCC10CL001 Level Gauge for LP Heater on Standpipe LG Local Steam 0.082 101.9 0.0902 111.9 0 100 % On LP Heater Stand Pipe - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -
113 1LCC10CL201 Level Transmitter for LP Heater on Standpipe LT AI Steam 0.5 101.9 0.55 111.9 0 100 % On LP Heater Stand Pipe - - - Y 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS A

114 1LCJ20AA002-B01 Current To Pressure Converter for LP heater Emergency drain LCV902 EP AO Steam - - - - 0 100 % On 1LCC10AA002 - - - Y 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -

115 1LCJ20CG202 Position Feedback for LP heater Emergency drain LCV902 ZT AI Steam - - - - 0 100 % On 1LCC10AA002 - - - Y 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -

116 1LCJ20CP005 Pressure Gauge for LP heater Emergency Drain PG Local Condensate 0.07 101.26 0.077 111.26 -1 1.5 Kg/cm2 Emergency Drain to Flashbox - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS A

117 1LCJ20CT005 Temperature Gauge for LP heater Emergency Drain TG Local Steam 0.082 101.26 0.0902 111.26 0 300 Deg C Emergency Drain to Flashbox - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -

118 1LCJ10CP004 Pressure Gauge for LP Heater normal drain PG Local Condensate 0.07 56.83 0.077 66.83 -1 1.5 Kg/cm2 Normal Drain To Flashbox - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS A

119 1LCJ10CT004 Temperatue Gauge for LP Heater normal drain TG Local Steam 0.082 56.83 0.0902 66.83 0 100 Deg C Normal Drain To Flashbox - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -

120 1LCJ10AA001-B01 Current To Pressure Converter for LP heater Normal drain LCV901 EP AO Steam - - - - 0 100 % On 1LCC10AA001 - - - Y 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -

121 1LCJ10CG201 Position Feedback for LP heater Normal drain LCV901 ZT AI Steam - - - - 0 100 % On 1LCC10AA001 - - - Y 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -

122 1LCE60CP001 Pressure Gauge for Condensate inlet to LP Heater PG Local Condensate 7.12 50.84 7.832 60.84 0 16 Kg/cm2 Condensate to LP Heater - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS A

123 1LCE60CT001 Temperature Gauge for condensate inlet to LP Heater TG Local Condensate 10 50.84 11 60.84 0 100 Deg C Condensate to LP Heater - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS A

124 1LCE60CP002 Pressure Gauge for Condensate outlet from LP Heater PG Local Condensate 6.16 98.86 6.776 108.86 0 16 Kg/cm2 LP Heater to Deaerator - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS A

125 1LCE60CT002 Temperature Gauge for Condensate outlet from LP Heater TG Local Condensate 7.5 102 8.25 102 0 200 Deg C LP Heater to Deaerator - - - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS -

126 1MAV10CP001 Pressure gauge for Main Oil tank PG Local Oil - 67.99 - 67.99 -200 200 mmWC On MOT - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
127 1MAV10CT201 Temperature transmitter for Main Oil Tank RTDX AI Oil - 67.99 - 67.99 0 100 Deg C On MOT - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
128 1MAV10CT001 Temperature gauge for Main Oil tank TG Local Oil - 67.99 - 67.99 0 100 Deg C On MOT - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
129 1MAV10CL201 Level transmitter for Main Oil Tank LT AI Oil - 67.99 - 67.99 0 100 % On MOT - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
130 1MAV10CL001 Level gauge for Main Oil Tank LG Local Oil - 67.99 - 67.99 0 100 % On MOT - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier A
System COMBINED LT+LG+LS

131 1MAV10CL101 Level switch Low for Main Oil Tank LS DI Oil - 67.99 - 67.99 - - - On MOT - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
132 1MAV10CP002 Pressure gauge for MOP discharge PG Local Oil 12 67.99 - - 0 25 Kg/cm2 MOP Discharge - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
133 1MAV10CP003 Pressure gauge for AOP discharge PG Local Oil 12 67.99 - - 0 25 Kg/cm2 AOP Discharge - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
134 1MAV10CP004 Pressure gauge for EOP discharge PG Local Oil 1.5 67.99 - - 0 4 Kg/cm2 EOP Discharge - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
135 1MAV10CP005 Pressure Point for Lube oil before cooler PP Local Oil 11 67.99 - - - - - Before Lube Oil Cooler - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
136 1MAV10CP006 Pressure gauge for lube oil from lube oil cooler to filter PG Local Oil 10.2 48 - - 0 16 Kg/cm2 After Lube Oil Cooler - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
137 1MAV10CT202 Temperature transmitter for lube oil from lube oil cooler to filter RTD Pt100 Oil 10.2 48 - - 0 100 Deg C After Lube Oil Cooler - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
138 1MAV10CT002 Temperature gauge for lube oil from lube oil cooler to filter TG Local Oil 10.2 48 - - 0 100 Deg C After Lube Oil Cooler - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
139 1MAV10CP101 Differential pressure switch across lube oil filter DPIS DI Oil 10.2 48 - - 0 1.6 Kg/cm2 Across Oil Filter - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
140 1MAV30CP009 Pressure gauge for Lube Oil Supply header PG Local Oil 2.5 48 - - 0 6 Kg/cm2 Lube Oil Header - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS -
System
141 1MAV30CP201 Pressure transmitter for Lube Oil header PT AI Oil 2.5 48 - - 0 6 Kg/cm2 Lube Oil Header - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS -
System
142 1MAV30CP103 Pressure switch-A Low for Lube oil header for AOP start PS DI Oil 2.5 48 - - 0.6 6 Kg/cm2 Lube Oil Header - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS -
System
143 1MAV30CP104 Pressure switch Low Low for Lube Oil header PS DI Oil 2.5 48 - - 0.6 6 Kg/cm2 Lube Oil Header - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS A
System
144 1MAV30CP105 Pressure switch Low Low for Lube Oil header PS DI Oil 2.5 48 - - 0.6 6 Kg/cm2 Lube Oil Header - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS -
System
145 1MAV30CP106 Pressure switch Low Low for Lube Oil header PS DI Oil 2.5 48 - - 0.6 6 Kg/cm2 Lube Oil Header - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS -
System
146 1MAV30CP107 Pressure switch Low Low for Lube oil header for EOP start PS DI Oil 2.5 48 - - 0.6 6 Kg/cm2 Lube Oil Header - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS A
System
147 1MAV30CP010 Pressure gauge for Lube oil supply to turbine front bearing PG Local Oil 1 48 - - 0 4 Kg/cm2 Turbine front inlet - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS -
System
148 1MAV30CP011 Pressure gauge for Lube oil supply to turbine rear bearing PG Local Oil 1 48 - - 0 4 Kg/cm2 Turbine rear Inlet - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS -
System
149 1MAV30CP012 Pressure gauge for Lube oil supply to gear box PG Local Oil 2 48 - - 0 4 Kg/cm2 Gearbox Inlet - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS -
System
150 1MAV30CP013 Pressure gauge for Lube oil supply to generator front end bearing PG Local Oil 1.5 48 - - 0 4 Kg/cm2 Generator front Inlet - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer Alternator Supplier -
System
151 1MAV30CP014 Pressure gauge for Lube oil supply to generator rear end bearing PG Local Oil 1.5 48 - - 0 4 Kg/cm2 Generator rear Inlet - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer Alternator Supplier -
System
152 1MAV30CG101 Barring Gear Motor Cover Switch ZS DI Oil - - - - - - - Barring Gear Cover Switch - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer Gearbox Supplier -
System
153 1MAX32CP008 Pressure gauge For Control oil header PG Local Oil 9.7 48 - - 0 16 Kg/cm2 Control Oil Header - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS A
System
154 1MAX32CP102 Pressure switch Low for Control oil header PS DI Oil 9.7 48 - - 1.6 16 Kg/cm2 Control Oil Header - - - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS A
System
155 1MAV20CP007 Pressure gauge For Control oil header On Accumulator PG Local Oil 9.7 48 - - 0 16 Kg/cm2 Control Oil Header - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer LOS Supplier -
System
156 PGXXX Pressure gauge For Alternator Cooling water inlet line PG Local Cooling Water 3 32 - - * * Kg/cm2 Alternator CW line - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer CUSTOMER - * Customer to specify
System
157 TGXXX Temperature gauge For Alternator Cooling water inlet line TG Local Cooling water 3 32 - - * * Deg C Alternator CW line - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer CUSTOMER - * Customer to specify
System
158 PGXXX Pressure gauge For Alternator Cooling water Outlet line PG Local Cooling Water 2 40 - - * * Kg/cm2 Alternator CW line - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer CUSTOMER - * Customer to specify
System
159 TGXXX Temperature gauge For Alternator Cooling water Outlet line TG Local Cooling water 2 40 - - * * Deg C Alternator CW line - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer CUSTOMER - * Customer to specify
System
160 PGXXX Pressure gauge For Lube Oil Coolers inlet line PG Local Cooling Water 4 32 - - * * Kg/cm2 Lube Oil CW line - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer CUSTOMER - * Customer to specify
System
161 TGXXX Temperature gauge For Lube Oil Coolers inlet line TG Local Cooling water 4 32 - - * * Deg C Lube Oil CW line - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer CUSTOMER - * Customer to specify
System
162 PGXXX Pressure gauge For Lube Oil Coolers Outlet line PG Local Cooling Water 3.2 42 - - * * Kg/cm2 Lube Oil CW line - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer CUSTOMER - * Customer to specify
System
163 TGXXX Temperature gauge For Lube Oil Coolers Outlet line TG Local Cooling water 3.2 42 - - * * Deg C Lube Oil CW line - - - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer CUSTOMER - * Customer to specify
System
164 1MAD10CS201 Turbine Speed-1 MPU Voltage - - - - - 0 9999 RPM Turbine front pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

165 1MAD10CS202 Turbine Speed-2 MPU Voltage - - - - - 0 9999 RPM Turbine front pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

166 1MAD10CS203 Turbine Speed-3 MPU Voltage - - - - - 0 9999 RPM Turbine front pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

167 1MAD10CS204 Turbine Speed-4 MPU Voltage - - - - - 0 9999 RPM Turbine front pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

168 1MAD10CS205 Turbine Speed-5 MPU Voltage - - - - - 0 9999 RPM Turbine front pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

Sr. Field Tag No. Description Instr. Signal Medium Operating Design Range Engg. Processing Location SIGNAL DISTRIBUTION P&ID Ref. System Scope Re
No. Type Type Press Temp. Press Temp. Zero Span Unit TGB DCS TSP TCC v.
Remarks
Kg/cm -G2
°C Kg/cm -G2
°C
169 1MAD10CT201 Turbine Thrust temperature element - Non active side top RTD Pt100 Metal - - - - 0 200 Deg C Turbine front pedestal - - - Y 62OP42873_U1_643010314 Protection System SIEMENS -

170 1MAD10CT202 Turbine Thrust temperature element - Non active side Bottom RTD Pt100 Metal - - - - 0 200 Deg C Turbine front pedestal - - - Y 62OP42873_U1_643010314 Protection System SIEMENS -

171 1MAD10CT203 Turbine Thrust temperature element - Active side top RTD Pt100 Metal - - - - 0 200 Deg C Turbine front pedestal - - - Y 62OP42873_U1_643010314 Protection System SIEMENS -

172 1MAD10CT204 Turbine Thrust temperature element - Active side bottom RTD Pt100 Metal - - - - 0 200 Deg C Turbine front pedestal - - - Y 62OP42873_U1_643010314 Protection System SIEMENS -

173 1MAD10CT205 Turbine front bearing temperature element RTD Pt100 Metal - - - - 0 200 Deg C Turbine front pedestal - - - Y 62OP42873_U1_643010314 Protection System SIEMENS -

174 1MAD10CT206 Turbine rear bearing temperature element RTD Pt100 Metal - - - - 0 200 Deg C Turbine rear pedestal - - - Y 62OP42873_U1_643010314 Protection System SIEMENS -

175 1MAK10CT201 Gearbox High Speed DE bearing temperature element RTD Pt100 Metal - - - - 0 200 Deg C GB bearing pedestal - - - Y 62OP42873_U1_643010314 Protection System Gearbox Supplier -

176 1MAK10CT202 Gearbox High Speed NDE bearing temperature element RTD Pt100 Metal - - - - 0 200 Deg C GB bearing pedestal - - - Y 62OP42873_U1_643010314 Protection System Gearbox Supplier -

177 1MAK10CT203 Gearbox Low Speed NDE bearing temperature element RTD Pt100 Metal - - - - 0 200 Deg C GB bearing pedestal - - - Y 62OP42873_U1_643010314 Protection System Gearbox Supplier -

178 1MAK10CT204 Gearbox Low Speed NDE Thrust bearing temperature element RTD Pt100 Metal - - - - 0 200 Deg C GB bearing pedestal - - - Y 62OP42873_U1_643010314 Protection System Gearbox Supplier -

179 1MAK10CT205 Gearbox Low Speed DE Thrust bearing temperature element RTD Pt100 Metal - - - - 0 200 Deg C GB bearing pedestal - - - Y 62OP42873_U1_643010314 Protection System Gearbox Supplier -

180 1MAK10CT206 Gearbox Low Speed DE bearing temperature element RTD Pt100 Metal - - - - 0 200 Deg C GB bearing pedestal - - - Y 62OP42873_U1_643010314 Protection System Gearbox Supplier -

181 1MKD10CT201 Alternator front bearing temperature element RTD Pt100 Metal - - - - 0 200 Deg C Alternator Front Pedestal - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

182 1MKD10CT202 Alternator rear bearing temperature element RTD Pt100 Metal - - - - 0 200 Deg C Alternator rear Pedestal - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

183 1MKA10CT201 Alternator core temperature element-1 RTD Pt100 Metal - - - - 0 200 Deg C Alternator core - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

184 1MKA10CT202 Alternator core temperature element-2 RTD Pt100 Metal - - - - 0 200 Deg C Alternator core - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

185 1MKA10CT203 Alternator core temperature element-3 RTD Pt100 Metal - - - - 0 200 Deg C Alternator core - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

186 1MKA10CT204 Alternator winding temperature element -U1 phase RTD Pt100 Winding - - - - 0 200 Deg C Alternator Winding - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

187 1MKA10CT205 Alternator winding temperature element -V1 phase RTD Pt100 Winding - - - - 0 200 Deg C Alternator Winding - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

188 1MKA10CT206 Alternator winding temperature element -W1 phase RTD Pt100 Winding - - - - 0 200 Deg C Alternator Winding - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

189 1MKA10CT207 Alternator winding temperature element -U2 phase RTD Pt100 Winding - - - - 0 200 Deg C Alternator Winding - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

190 1MKA10CT208 Alternator winding temperature element -V2 phase RTD Pt100 Winding - - - - 0 200 Deg C Alternator Winding - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

191 1MKA10CT209 Alternator winding temperature element -W2 phase RTD Pt100 Winding - - - - 0 200 Deg C Alternator Winding - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

192 1MKA10CT210 Inlet air temperature element -1 RTD Pt100 AIr - - - - 0 200 Deg C Alternator Cooler - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

193 1MKA10CT211 Outlet air temperature element -1 RTD Pt100 AIr - - - - 0 200 Deg C Alternator Cooler - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

194 1MKA10CT212 Inlet air temperature element -2 RTD Pt100 AIr - - - - 0 200 Deg C Alternator Cooler - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

195 1MKA10CT213 Outlet air temperature element -2 RTD Pt100 AIr - - - - 0 200 Deg C Alternator Cooler - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

196 1MKA10CT214 Temperature element for exciter coil RTD Pt100 Exciter - - - - 0 200 Deg C Exciter - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

197 1MAD10CY201 Turbine front shaft vibration X-position PROBE AI - - - - - 0 200 μ Turbine front pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

198 1MAD10CY202 Turbine front shaft vibration Y-position PROBE AI - - - - - 0 200 μ Turbine front pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

199 1MAD10CY203 Turbine rear shaft vibration X-position PROBE AI - - - - - 0 200 μ Turbine rear pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

200 1MAD10CY204 Turbine rear shaft vibration Y-position PROBE AI - - - - - 0 200 μ Turbine rear pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

201 1MAK10CY201 Gearbox Casing Low speed DE casing vibration (Vertical) PROBE AI - - - - - 0 25 mm/sec GB bearing pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

202 1MAK10CY202 Gearbox Casing Low speed DE casing vibration (Horizontal) PROBE AI - - - - - 0 25 mm/sec GB bearing pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

203 1MKD10CY201 Alternator front bearing casing vibration PROBE AI - - - - - 0 25 mm/sec Alternator Front Pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

204 1MKD10CY202 Alternator rear bearing casing vibration PROBE AI - - - - - 0 25 mm/sec Alternator Front Pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

205 1MAD10CG201 Rotor Axial Displacement-1 PROBE AI - - - - - -1 1 mm Turbine front pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

206 1MAD10CG202 Rotor Axial Displacement-2 PROBE AI - - - - - -1 1 mm Turbine front pedestal - - Y - 62OP42873_U1_643010314 Protection System SIEMENS -

207 1MKA10CL101 Water leakage detector-1 WD DI Water - - - - - - - Alternator Cooler - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

208 1MKA10CL102 Water leakage detector-2 WD DI Water - - - - - - - Alternator Cooler - - - Y 62OP42873_U1_643010314 Protection System Alternator Supplier -

209 1MAX10CP201 Control oil pressure transmitter after trip solenoid-1 PT AI Oil 9.7 48 - - 0 16 Kg/cm2 Safety Block - - - Y E03144361 Control Oil System SIEMENS -

210 1MAX10CP202 Control oil pressure transmitter after trip solenoid-2 PT AI Oil 9.7 48 - - 0 16 Kg/cm2 Safety Block - - - Y E03144361 Control Oil System SIEMENS -

211 1MAX10CP203 Control oil pressure transmitter after trip solenoid-3 PT AI Oil 9.7 48 - - 0 16 Kg/cm2 Safety Block - - - Y E03144361 Control Oil System SIEMENS -

212 1MAX10CP204 ESV safety block outlet pressure transmitter PT AI Oil 9.7 48 - - 0 16 Kg/cm2 Safety Block - - - Y E03144361 Control Oil System SIEMENS -

213 1MAX10CP205 Impulse oil pressure transmitter-Gov valve PT AI Oil 2…4 48 2…4 48 0 10 Kg/cm2 Impulse line - - - Y E03144361 Control Oil System SIEMENS -

214 1MAX10CP001 Control valve piston pressure gauge-Gov valve PG Local Oil 9.7 48 - - 0 16 Kg/cm2 Control valve piston - - - - E03144361 Control Oil System SIEMENS -

215 I/H-Gov Electro-Hydraulic converter Governor valve I/H AO - 2..4 48 2..4 48 4 20 mA Turbine CV - - Y - E03144361 Control Oil System SIEMENS -
 Rev.A

witch

Rev.A

Remarks

DIN rail mounted Temp. Tx.

DIN rail mounted Temp. Tx.

*customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify
COMBINED LT+LG+LS

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

* Customer to specify

Remarks
Sr. Field Tag No. Description Instr. Signal Medium Operating Design
No. Type Type Press Temp. Press
Kg/cm2-G °C Kg/cm2-G
1 1LBA10CF201 Flow transmitter for Main steam line FT AI Steam 74.4 505 81.84

2 1LBA10CP201 PT AI Steam 74.4 505 81.84

3 1LBA10CP202 Pressure transmitter-2 for Main steam line PT AI Steam 74.4 505 81.84

4 1LBA10CP001 Pressure gauge for Main steam line PG Local Steam 74.4 505 81.84

5 1LBA10CT201 Temperature transmitter for Main steam line TCX AI Steam 74.4 505 81.84

6 1LBA10CT202 Temperature transmitter for Main steam line TCX AI Steam 74.4 505 81.84

7 1LBA10CT001 Temperature gauge for Main steam line TG Local Steam 74.4 505 81.84

8 1MAL10CP001 Pressure gauge for Turbine Inlet control valve drain PG Local Steam 74.4 505 81.84

9 1MAA10CP201 Pressure transmitter for Turbine wheel chamber PT AI Steam 41.88 444 46.068

10 1MAA10CT201 Temperature transmitter-1 for Turbine exhaust RTDX AI Steam -0.93 45.74 -

11 1MAA10CT202 Temperature transmitter-2 for Turbine exhaust RTDX AI Steam -0.93 45.74 -

12 1MAA10CT001 Temperature gauge for Turbine exhaust TG Local Steam 0.93 45.74 -

13 1LCE10CP001 Pressure gauge for Exhaust hood spray line PG Local Condensate 8.65 46.07 9.515

14 1LBS10CP201 Pressure transmitter for Turbine Bleed-1 line to LP Heater line PT AI Steam 0.128 103.3 0.1408

15 1LBS10CP001 Pressure gauge for Turbine Bleed-1 to LP Heater line PG Local Steam 0.128 103.3 0.1408

16 1LBS10CT201 Temperature transmitter for Turbine Bleed line-1 to LP Heater line RTDX AI Steam 0.128 103.3 0.1408

17 1LBS10CT001 Temperature gauge for Turbine Bleed line-1 to LP Heater line TG Local Steam 0.128 103.3 0.1408

18 1LBD10CP201 Pressure transmitter for Turbine Bleed-2 to Deaerator line PT AI Steam 4.49 215.7 4.939

19 1LBD10CP001 Pressure gauge for Turbine Bleed-2 to Deaerator line PG Local Steam 4.49 215.7 4.939

20 1LBD10CT201 Temperature transmitter for Turbine Bleed-2 to Deaerator line TCX AI Steam 4.49 215.7 4.939

21 1LBD10CT001 Temperature gauge for Turbine Bleed-2 to Deaerator line TG Local Steam 4.49 215.7 4.939

22 1LBA20CT203 Temperature transmitter-1 for Bypass Steam line TCX AI Steam 74.4 505 81.84

23 1LBA20CT204 Temperature transmitter-2 for Bypass Steam line TCX AI Steam 74.4 505 81.84

24 1LBA20CP203 Pressure transmitter-1 for Bypass Steam line PT AI Steam 74.4 505 81.84

25 1LBA20CP204 Pressure transmitter-2 for Bypass Steam line PT AI Steam 74.4 505 81.84

26 1LBA20CT205 Temperature transmitter for steam bypass to Condenser line RTDX AI Steam 1.5 127.5 1.65

27 1LCE20CF201 Flow transmitter for CEP discharge to turbine Main Steam Bypass Valve FT AI Condensate 8.65 46.07 9.515

28 1LCE50CT202 Temperature transmitter for CEP discharge to turbine Main Steam RTDX AI Condensate 8.65 46.07 9.515
Bypass Valve
29 1LCE50CP201 Pressure transmitter for CEP discharge to turbine Main Steam Bypass PT AI Condensate 8.65 46.07 9.515
Valve
30 1MAW10CP001 Pressure gauge for Aux. steam line before PCV PG Local Steam 8.96 390 9.856

31 1MAW10CT001 Temperature gauge for Aux. steam line before PCV TG Local Steam 8.96 390 9.856

32 1LCE70CP001 Pressure Gauge for CEP Discharge to DSH301 PG Local Condensate 8.65 46.07 9.515

33 1LCE70CT001 Temperature Gauge for CEP Discharge to DSH301 TG Local Condensate 8.65 46.07 9.515

34 1MAW30CP001 Pressure gauge for turbine front Gland sealing line PG Local Steam 0.078 380 0.0858

35 1MAW40CP001 Pressure transmitter for turbine rear Gland sealing line PT AI Steam 0.066 250 0.0726

36 1MAW40CT001 Temperature gauge for turbine rear Gland sealing line TG Local Steam 0.078 250 0.0858

37 1MAW40CT201 Temperature transmitter for turbine rear Gland sealing line TCX AI Steam 0.078 250 0.0858

38 1MAG10CL101 Level switch high high for Condenser LS DI Condensate -0.9 45.74 -0.9

39 1MAG10CL102 Level switch low low for Condenser LS DI Condensate -0.9 45.74 -0.9

40 1MAG10CL001 Level gauge for Condenser LG Local Condensate -0.9 45.49 -0.9

41 1MAA10CP202 Pressure Transmitter for turbine exhaust PT AI Steam -0.93 45.49 -0.93

42 1MAA10CP203 Pressure Transmitter for turbine exhaust PT AI Steam -0.93 45.49 -0.93

43 1MAA10CP001 Pressure gauge for turbine exhaust PG Local Steam 0.93 45.49 1.023

44 1MAG10CT001 Temperature gauge for Condenser Hot-well TG Local Condensate -0.93 45.49 -0.93

45 1LCA10CP001 Pressure Gauge For CEP 1 suction line PG Local Condensate -0.93 45.74 -0.93

46 1LCA20CP001 Pressure Gauge for CEP 2 suction line PG Local Condensate -0.93 45.74 -0.93

47 1LCA10CP101 Differential Pressure Transmitter CEP Suction line 1 strainer DPIS DI Condensate -0.93 45.74 -0.93

48 1LCA20CP101 Differential Pressure Transmitter CEP Suction line 2 strainer DPIS DI Condensate -0.93 45.74 -0.93

49 1LCA10CP002 Pressure Gauge for CEP 1 Discharge line PG Local Condensate 8.65 46.07 9.515

50 1LCA20CP002 Pressure Gauge for CEP 2 Discharge line PG Local Condensate 8.65 46.07 9.515

51 1LCA30CP201 Pressure transmitter for CEP Discharge header PT AI Condensate 8.65 46.07 9.515

52 1LCA30CT201 Temperature transmitter for CEP Discharge header RTDX AI Condensate 8.65 46.07 9.515

53 1LCA30CT001 Temperature gauge for CEP Discharge header TG Local Condensate 8.65 46.07 9.515

54 1LCA30CP001 Pressure gauge for CEP Discharge header PG Local Condensate 8.65 46.07 9.515
 55 1MAJ10CP001 Pressure gauge for Vapour Header PG Local Vapour -0.9 45.74 -0.9

56 1MAJ10CT001 Temperature gauge For Vapour Header TG Local Vapour -0.9 45.74 -0.9

57 1MAJ20CP002 Pressure gauge for Ejector After Condenser PG Local Condensate - - -

58 1MAJ40CP001 Pressure gauge for gland sealing system to ejector PG Local Condensate -0.03 240 -0.03

59 1LCC10CT002 Temperature Gauge for Bleed Line-1 to LP Heater TG Local Steam 0.082 101.9 0.0902

60 1LCC10CP002 Pressure Gauge for Bleed Line-1 to LP Heater PG Local Steam 0.07 101.9 0.077

61 1LCC10CL102 Level switch High for LP Heater on Standpipe LS DI Steam 0.082 101.9 0.0902

62 1LCC10CL101 Level Switch Low for LP Heater on Standpipe LS DI Steam 0.082 101.9 0.0902

63 1LCC10CL001 Level Gauge for LP Heater on Standpipe LG Local Steam 0.082 101.9 0.0902

64 1LCJ20CP005 Pressure Gauge for LP heater Emergency Drain PG Local Condensate 0.07 101.26 0.077

65 1LCJ20CT005 Temperature Gauge for LP heater Emergency Drain TG Local Steam 0.082 101.26 0.0902

66 1LCJ10CP004 Pressure Gauge for LP Heater normal drain PG Local Condensate 0.07 56.83 0.077

67 1LCJ10CT004 Temperatue Gauge for LP Heater normal drain TG Local Steam 0.082 56.83 0.0902

68 1LCE60CP001 Pressure Gauge for Condensate inlet to LP Heater PG Local Condensate 7.12 50.84 7.832

69 1LCE60CT001 Temperature Gauge for condensate inlet to LP Heater TG Local Condensate 10 50.84 11

70 1LCE60CP002 Pressure Gauge for Condensate outlet from LP Heater PG Local Condensate 6.16 98.86 6.776

71 1LCE60CT002 Temperature Gauge for Condensate outlet from LP Heater TG Local Condensate 7.5 102 8.25

72 1MAV30CP009 Pressure gauge for Lube Oil Supply header PG Local Oil 2.5 48 -

73 1MAV30CP201 Pressure transmitter for Lube Oil header PT AI Oil 2.5 48 -

74 1MAV30CP103 Pressure switch-A Low for Lube oil header for AOP start PS DI Oil 2.5 48 -

75 1MAV30CP104 Pressure switch Low Low for Lube Oil header PS DI Oil 2.5 48 -

76 1MAV30CP105 Pressure switch Low Low for Lube Oil header PS DI Oil 2.5 48 -

77 1MAV30CP106 Pressure switch Low Low for Lube Oil header PS DI Oil 2.5 48 -

78 1MAV30CP107 Pressure switch Low Low for Lube oil header for EOP start PS DI Oil 2.5 48 -

79 1MAV30CP010 Pressure gauge for Lube oil supply to turbine front bearing PG Local Oil 1 48 -

80 1MAV30CP011 Pressure gauge for Lube oil supply to turbine rear bearing PG Local Oil 1 48 -

81 1MAV30CP012 Pressure gauge for Lube oil supply to gear box PG Local Oil 2 48 -

82 1MAX32CP008 Pressure gauge For Control oil header PG Local Oil 9.7 48 -

83 1MAX32CP102 Pressure switch Low for Control oil header PS DI Oil 9.7 48 -

Sr. Field Tag No. Description Instr. Signal Medium Operating Design
No. Type Type Press Temp. Press
Kg/cm2-G °C Kg/cm2-G
84 1MAD10CT201 Turbine Thrust temperature element - Non active side top RTD Pt100 Metal - - -

85 1MAD10CT202 Turbine Thrust temperature element - Non active side Bottom RTD Pt100 Metal - - -

86 1MAD10CT203 Turbine Thrust temperature element - Active side top RTD Pt100 Metal - - -

87 1MAD10CT204 Turbine Thrust temperature element - Active side bottom RTD Pt100 Metal - - -

88 1MAD10CT205 Turbine front bearing temperature element RTD Pt100 Metal - - -

89 1MAD10CT206 Turbine rear bearing temperature element RTD Pt100 Metal - - -

90 1MAX10CP205 Impulse oil pressure transmitter-Gov valve PT AI Oil 2…4 48 2…4

91 1MAX10CP001 Control valve piston pressure gauge-Gov valve PG Local Oil 9.7 48 -
 Design Range Engg. Unit Processing Location SIGNAL DISTRIBUTION
Press Temp. Zero Span TGB DCS
Kg/cm2-G °C
81.84 515 0 2500 mmWC Main steam line - -

81.84 515 0 160 Kg/cm2 Main steam line - -

81.84 515 0 160 Kg/cm2 Main steam line - -

81.84 515 0 160 Kg/cm2 Main steam line - -

81.84 515 0 700 Deg C Main steam line - -

81.84 515 0 700 Deg C Main steam line - -

81.84 515 0 700 Deg C Main steam line - -

81.84 515 0 160 Kg/cm2 Control valve drain line - -

46.068 454 -1 60 Kg/cm2 On Turbine - -

- - 0 300 Deg C Turbine Exhaust - -

- - 0 300 Deg C Turbine Exhaust - -

- - 0 300 Deg C Turbine Exhaust - -

9.515 56.07 0 16 Kg/cm2 Turbine Exhaust line - -

0.1408 113.3 -1 3 Kg/cm2 Bleed Line-1 - -

0.1408 113.3 -1 3 Kg/cm2 Turbine Extraction line - -

0.1408 113.3 0 300 Deg C Turbine Extraction line - -

0.1408 113.3 0 300 Deg C Turbine Extraction line - -

4.939 225.7 -1 10 Kg/cm2 Bleed Line-2 - -

4.939 225.7 0 10 Kg/cm2 Turbine Extraction line - -

4.939 225.7 0 400 Deg C Turbine Extraction line - -

4.939 225.7 0 400 Deg C Turbine Extraction line - -

81.84 515 0 700 Deg C Bypass Steam line - -

81.84 515 0 700 Deg C Bypass Steam line - -

81.84 515 0 160 Kg/cm2 Bypass Steam line - -

81.84 515 0 160 Kg/cm2 Bypass Steam line - -

1.65 137.5 0 300 Deg C To Condenser line - -

9.515 56.07 0 1250 mmWC On 1LCE50AA501 - -

9.515 56.07 0 100 Deg C CEP Discharge Line - -

9.515 56.07 0 25 Kg/cm2 CEP Discharge Line - -

9.856 400 0 25 Kg/cm2 Aux. steam line - -

9.856 400 0 600 Deg C Aux. steam line - -

9.515 56.07 0 16 Kg/cm2 Condensate - -

9.515 56.07 0 100 Deg C Condensate - -

0.0858 390 -1 1 Kg/cm2 Gland sealing turbine front - -

0.0726 260 -1 1 Kg/cm2 Gland sealing turbine rear - -

0.0858 260 0 400 Deg C Gland sealing turbine rear - -

0.0858 260 0 400 Deg C Gland sealing turbine rear - -

-0.9 45.74 0 100 % Condensate Standpipe - -

-0.9 45.74 0 100 % Condensate Standpipe - -

-0.9 45.49 0 1050 mm Condensate Standpipe - -

-0.93 45.49 -1 1.5 Kg/cm2 On CONDENSER - -

-0.93 45.49 -1 1.5 Kg/cm2 On CONDENSER - -

1.023 55.49 -1 1.5 Kg/cm2 On CONDENSER - -

-0.93 45.49 0 100 Deg C On Hot Well - -

-0.93 45.74 -1 1.5 Kg/cm2 CEP-1 suction Line - -

-0.93 45.74 -1 1.5 Kg/cm2 CEP-2 suction Line - -

-0.93 45.74 0 160 mBar CEP-1 suction Line - -

-0.93 45.74 0 160 mBar CEP-2 suction Line - -

9.515 56.07 0 25 Kg/cm2 CEP-1 discharge Line - -

9.515 56.07 0 25 Kg/cm2 CEP-2 discharge Line - -

9.515 56.07 0 25 Kg/cm2 CEP discharge Line - -

9.515 56.07 0 100 Deg C CEP discharge Line - -

9.515 56.07 0 100 Deg C CEP discharge Line - -

9.515 56.07 0 25 Kg/cm2 CEP discharge Line - -

 -0.9 45.74 -1 1.5 Kg/cm2 Vapour Header - -

-0.9 45.74 0 100 Deg C Vapour Header - -

- - -1 1.5 Kg/cm2 Ejector - -

-0.03 240 -1 1.5 Kg/cm2 Condensate - -

0.0902 111.9 0 300 Deg C Bleed line LP Heater - -

0.077 111.9 -1 1.5 Kg/cm2 Bleed line LP Heater - -

0.0902 111.9 - - - On LP Heater Stand Pipe - -

0.0902 111.9 - - - On LP Heater Stand Pipe - -

0.0902 111.9 0 100 % On LP Heater Stand Pipe - -

0.077 111.26 -1 1.5 Kg/cm2 Emergency Drain to Flashbox - -

0.0902 111.26 0 300 Deg C Emergency Drain to Flashbox - -

0.077 66.83 -1 1.5 Kg/cm2 Normal Drain To Flashbox - -

0.0902 66.83 0 100 Deg C Normal Drain To Flashbox - -

7.832 60.84 0 16 Kg/cm2 Condensate to LP Heater - -

11 60.84 0 100 Deg C Condensate to LP Heater - -

6.776 108.86 0 16 Kg/cm2 LP Heater to Deaerator - -

8.25 102 0 200 Deg C LP Heater to Deaerator - -

- - 0 6 Kg/cm2 Lube Oil Header - -

- - 0 6 Kg/cm2 Lube Oil Header - -

- - 0.6 6 Kg/cm2 Lube Oil Header - -

- - 0.6 6 Kg/cm2 Lube Oil Header - -

- - 0.6 6 Kg/cm2 Lube Oil Header - -

- - 0.6 6 Kg/cm2 Lube Oil Header - -

- - 0.6 6 Kg/cm2 Lube Oil Header - -

- - 0 4 Kg/cm2 Turbine front inlet - -

- - 0 4 Kg/cm2 Turbine rear Inlet - -

- - 0 4 Kg/cm2 Gearbox Inlet - -

- - 0 16 Kg/cm2 Control Oil Header - -

- - 1.6 16 Kg/cm2 Control Oil Header - -

Design Range Engg. Unit Processing Location SIGNAL DISTRIBUTION

Press Temp. Zero Span TGB DCS
Kg/cm2-G °C
- - 0 200 Deg C Turbine front pedestal - -

- - 0 200 Deg C Turbine front pedestal - -

- - 0 200 Deg C Turbine front pedestal - -

- - 0 200 Deg C Turbine front pedestal - -

- - 0 200 Deg C Turbine front pedestal - -

- - 0 200 Deg C Turbine rear pedestal - -

2…4 48 0 10 Kg/cm2 Impulse line - -

- - 0 16 Kg/cm2 Control valve piston - -

 P&ID Ref. System Scope
DCS TSP TCC

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - - 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - - 62OP42873_U1_643010301 Steam Path System SIEMENS

- - - 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - - 62OP42873_U1_643010301 Steam Path System SIEMENS

- - - 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - - 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - - 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - - 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - - 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - Y 62OP42873_U1_643010301 Steam Path System SIEMENS

- - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS

- - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS

- - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS

- - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS

- - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS

- - Y 62OP42873_U1_643010303 Gland Sealing System SIEMENS

- - - 62OP42873_U1_643010303 Gland Sealing System SIEMENS

- - Y 62OP42873_U1_643010303 Gland Sealing System SIEMENS

- - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - Y 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - - 62OP42873_U1_643010306 CONDENSATE SYSTEM SIEMENS

- - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier

- - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier

- - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier

- - - 62OP42873_U1_643010307 EJECTOR SYSTEM Ejector Supplier

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - Y 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - Y 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010308 LP HEATER SYSTEM SIEMENS

- - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS

System
- - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
- - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
- - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
- - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
- - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
- - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
- - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
- - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
- - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
- - - 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
- - Y 62OP42873_U1_643010310 Lube Oil Supplier and Consumer SIEMENS
System
P&ID Ref. System Scope
DCS TSP TCC

- - Y 62OP42873_U1_643010314 Protection System SIEMENS

- - Y 62OP42873_U1_643010314 Protection System SIEMENS

- - Y 62OP42873_U1_643010314 Protection System SIEMENS

- - Y 62OP42873_U1_643010314 Protection System SIEMENS

- - Y 62OP42873_U1_643010314 Protection System SIEMENS

- - Y 62OP42873_U1_643010314 Protection System SIEMENS

- - Y E03144361 Control Oil System SIEMENS

- - - E03144361 Control Oil System SIEMENS

 Scope Rev.
Remarks

NS A

NS A

NS A

NS A

NS A

NS A

NS A

NS A

NS A

NS -

NS -

NS -

NS A

NS A

NS A

NS A

NS A

NS A

NS -

NS -

NS -

NS A

NS A

NS A

NS A

NS A

NS A

NS A

NS A

NS -

NS -

NS A

NS A

SIEMENS -

SIEMENS A

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS A

SIEMENS A

SIEMENS A

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS A

SIEMENS A

SIEMENS A

SIEMENS A

SIEMENS A

SIEMENS A

SIEMENS A

SIEMENS A
Ejector Supplier A

Ejector Supplier A

Ejector Supplier A

Ejector Supplier A

SIEMENS -

SIEMENS A

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS A

SIEMENS -

SIEMENS A

SIEMENS -

SIEMENS A

SIEMENS A

SIEMENS A

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS A

SIEMENS -

SIEMENS -

SIEMENS A

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS A

SIEMENS A

Scope Rev.
Remarks

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS -

SIEMENS -
