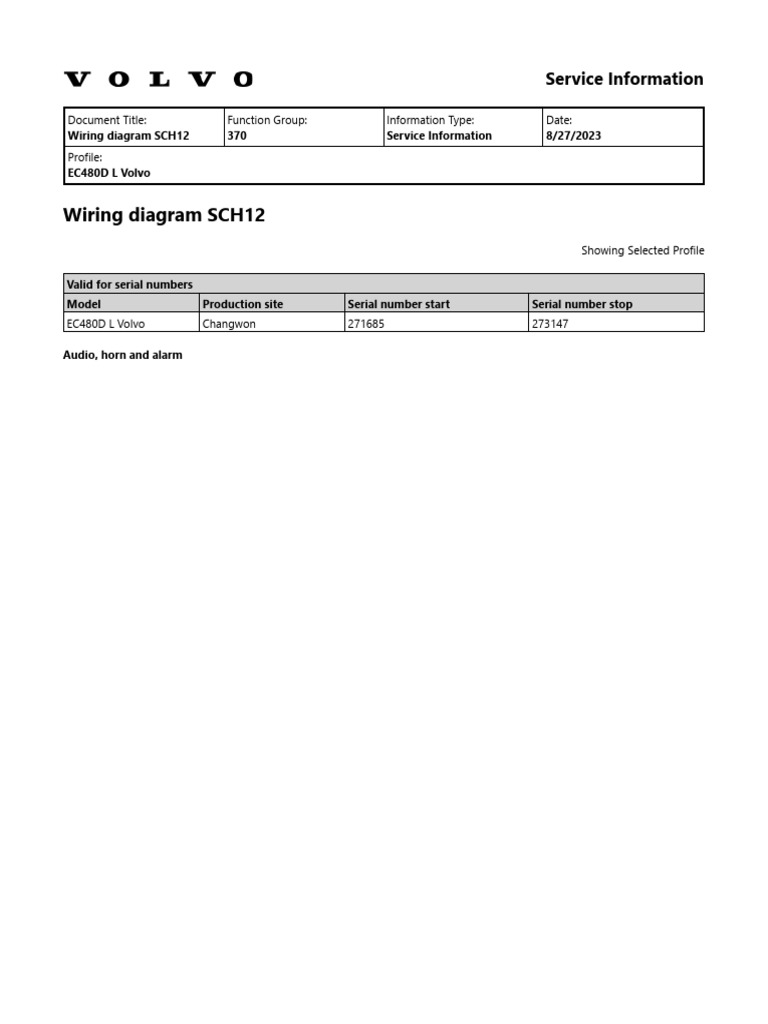

Service Information

Document Title: Function Group: Information Type: Date:


Wiring diagram SCH12 370 Service Information 8/27/2023
Profile:
EC480D L Volvo

Wiring diagram SCH12


Showing Selected Profile

Valid for serial numbers


Model Production site Serial number start Serial number stop
EC480D L Volvo Changwon 271685 273147

Audio, horn and alarm


Figure 1
Wiring diagram SCH12

Marking Designation Marking Designation


ANT3901 Antenna SA3902 Speaker, rear right
CR3901 Audio SO3902 Voltage converter, 20A
PO3902 Power outlet, 14 VDC SW3902 Audio remote control
RE3611 Horn relay SWJS4BL Control lever left-hand 4 button switch
(SW3609, SW6405, SW6406)

¡ SW3609, horn switch

RE4206 Travel alarm relay SWJSPBL Control lever left-hand proportional and
switch (SW3609, SW9161, SW9165)

¡ SW3609, horn switch

SA3602 Horn, 1st FU01 Fuse, 10A, RE3611


SA3603 Horn, 2nd FU07 Fuse, 10A, SWJSPBL, SWJS4BL
SA4206 Travel alarm FU21 Fuse, 10A, RE4206
SA3901 Speaker, rear left FU25 Fuse, 15A, SO3902
Figure 2
Component position
