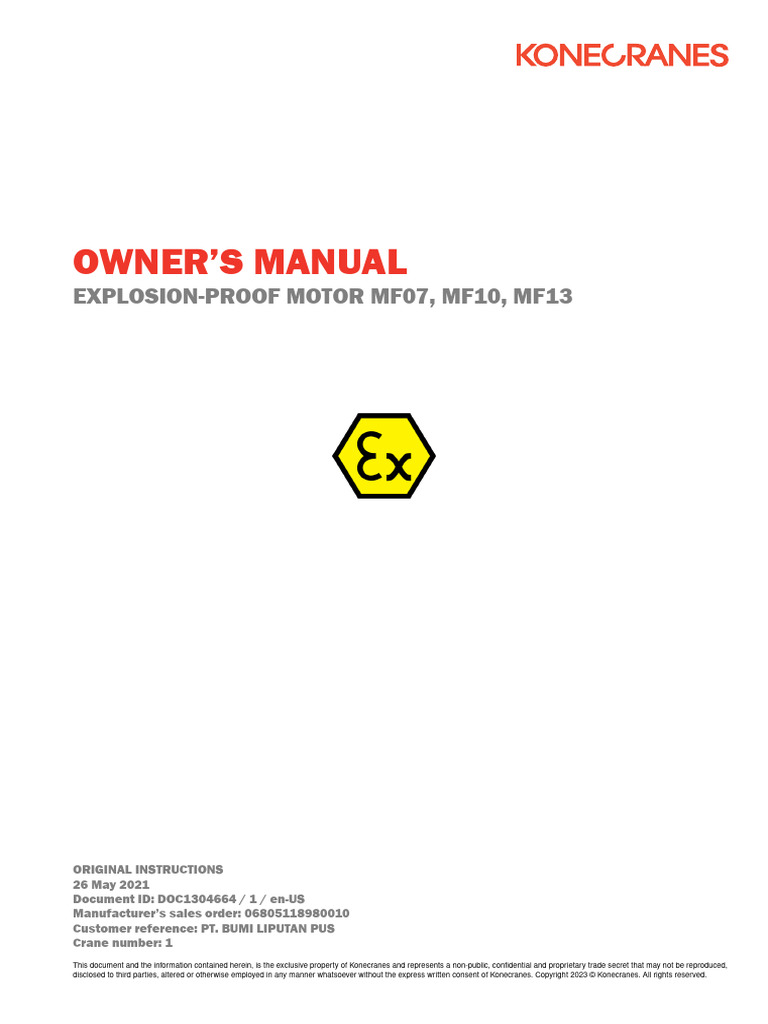

OWNER’S MANUAL
EXPLOSION-PROOF MOTOR MF07, MF10, MF13
ORIGINAL INSTRUCTIONS
26 May 2021
Document ID: DOC1304664 / 1 / en-US
Manufacturer’s sales order: 06805118980010
Customer reference: PT. BUMI LIPUTAN PUS
Crane number: 1
This document and the information contained herein, is the exclusive property of Konecranes and represents a non-public, confidential and proprietary trade secret that may not be reproduced,
disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Konecranes. Copyright 2023 © Konecranes. All rights reserved.
Internal reference: X099091 en-US / D / SI
TABLE OF CONTENTS OWNER’S MANUAL

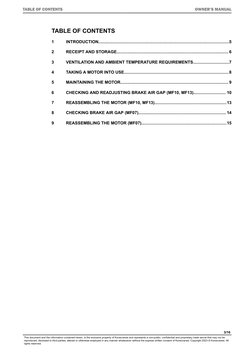

TABLE OF CONTENTS
1 INTRODUCTION.............................................................................................................5
2 RECEIPT AND STORAGE............................................................................................. 6
3 VENTILATION AND AMBIENT TEMPERATURE REQUIREMENTS..............................7
4 TAKING A MOTOR INTO USE....................................................................................... 8
5 MAINTAINING THE MOTOR.......................................................................................... 9
6 CHECKING AND READJUSTING BRAKE AIR GAP (MF10, MF13)........................... 10
7 REASSEMBLING THE MOTOR (MF10, MF13)............................................................13
8 CHECKING BRAKE AIR GAP (MF07)......................................................................... 14
9 REASSEMBLING THE MOTOR (MF07).......................................................................15
3/16
This document and the information contained herein, is the exclusive property of Konecranes and represents a non-public, confidential and proprietary trade secret that may not be
reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Konecranes. Copyright 2023 © Konecranes. All
rights reserved.

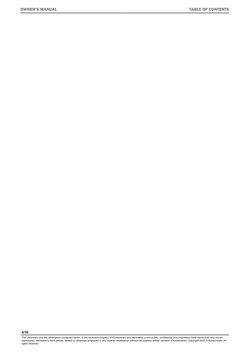

OWNER’S MANUAL TABLE OF CONTENTS
4/16
This document and the information contained herein, is the exclusive property of Konecranes and represents a non-public, confidential and proprietary trade secret that may not be
reproduced, disclosed to third parties, altered or otherwise employed in any manner whatsoever without the express written consent of Konecranes. Copyright 2023 © Konecranes. All
rights reserved.
1 INTRODUCTION OWNER’S MANUAL

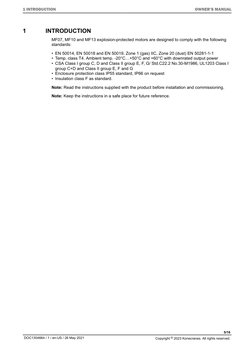

1 INTRODUCTION
MF07, MF10 and MF13 explosion-protected motors are designed to comply with the following
standards:
• EN 50014, EN 50018 and EN 50019, Zone 1 (gas) IIC, Zone 20 (dust) EN 50281-1-1
• Temp. class T4. Ambient temp. -20°C…+50°C and +60°C with downrated output power
• CSA Class I group C, D and Class II group E, F, G/ Std.C22.2 No.30-M1986, UL1203 Class I
group C+D and Class II group E, F and G
• Enclosure protection class IP55 standard, IP66 on request
• Insulation class F as standard.
Note: Read the instructions supplied with the product before installation and commissioning.
Note: Keep the instructions in a safe place for future reference.
5/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
OWNER’S MANUAL 2 RECEIPT AND STORAGE

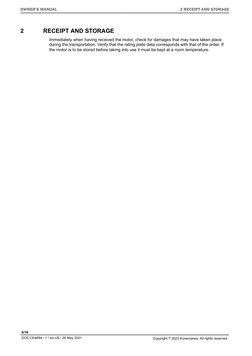

2 RECEIPT AND STORAGE
Immediately when having received the motor, check for damages that may have taken place
during the transportation. Verify that the rating plate data corresponds with that of the order. If
the motor is to be stored before taking into use it must be kept at a room temperature.
6/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
3 VENTILATION AND AMBIENT TEMPERATURE OWNER’S MANUAL
REQUIREMENTS
3 VENTILATION AND AMBIENT TEMPERATURE REQUIREMENTS
Ambient temperature must not exceed 40°C (105°F), unless otherwise stated in the order. Flow
of cooling air must not be obstructed and the motor must be able to freely discharge the coolant
air. Air must not be directed back to the air intake.
7/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
OWNER’S MANUAL 4 TAKING A MOTOR INTO USE

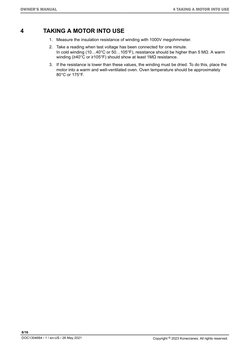

4 TAKING A MOTOR INTO USE
1. Measure the insulation resistance of winding with 1000V megohmmeter.
2. Take a reading when test voltage has been connected for one minute.
In cold winding (10…40°C or 50…105°F), resistance should be higher than 5 MΩ. A warm
winding (≥40°C or ≥105°F) should show at least 1MΩ resistance.
3. If the resistance is lower than these values, the winding must be dried. To do this, place the
motor into a warm and well-ventilated oven. Oven temperature should be approximately
80°C or 175°F.
8/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
5 MAINTAINING THE MOTOR OWNER’S MANUAL

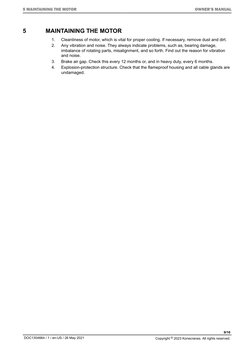

5 MAINTAINING THE MOTOR
1. Cleanliness of motor, which is vital for proper cooling. If necessary, remove dust and dirt.
2. Any vibration and noise. They always indicate problems, such as, bearing damage,
imbalance of rotating parts, misalignment, and so forth. Find out the reason for vibration
and noise.
3. Brake air gap. Check this every 12 months or, and in heavy duty, every 6 months.
4. Explosion-protection structure. Check that the flameproof housing and all cable glands are
undamaged.
9/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
OWNER’S MANUAL 6 CHECKING AND READJUSTING BRAKE AIR GAP
(MF10, MF13)
6 CHECKING AND READJUSTING BRAKE AIR GAP (MF10, MF13)
This information relates to motor sizes MF10 and MF13.
1. Remove fan cover fixing screws (1) and the cover (2).
2. Remove the retaining ring (3) and washer (4).
3. Turn open the screw(s) (5) that tighten(s) the clamp.
4. Pull the fan (6) from the shaft. To do this, take a firm grip from the opposite sides of the fan
rim and pull in turns.
5. Unscrew the end-shield fixing screw (7). In type MF10, there are 4 screws and in MF13,
there are 8 screws.
6. With a help of two big screwdrivers and slight hammering, take the end-shield (8) from the
stator.
NOTE There is no need to disassemble the fan shaft.
7. Disconnect the power supply cables from the terminal strip (13).
8. Unscrew the three brake fixing screws and pull out the brake.
9. Measure the thickness of the brake disc and compare the result with the values in table
Minimum thickness (S) of brake disc in Reassembling the motor (MF10, MF13) (page 13).
If the thickness is smaller than the value given in the table, replace the brake disc.
NOTE It is advisable to change the disc every time the brake is open.
10/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
6 CHECKING AND READJUSTING BRAKE AIR GAP OWNER’S MANUAL
(MF10, MF13)
Figure 1. MF10
1. Fan cover fixing screw 8. End shield
2. Fan cover 9. Brake fixing screws
3. Retaining ring 10. Disk brake
4. Washer 11. Sleeve
5. Fan clamp and tightening screw(s) 12. Brake disc
6. Fan 13. Terminal block
7. End shield fixing screw(s) 14. Tightening torque: 41 Nm
• S = Minimum thickness of brake disk
11/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
OWNER’S MANUAL 6 CHECKING AND READJUSTING BRAKE AIR GAP
(MF10, MF13)
Figure 2. MF13
1. Fan cover fixing screw 9. Brake fixing screws
2. Fan cover 10. Disk brake
3. Retaining ring 11. Sleeve
4. Washer 12. Brake disc
5. Fan clamp and tightening screw(s) 13. Terminal block
6. Fan 14. Tightening torque: 41 Nm
7. End shield fixing screw 15. Do not remove the retaining rings!
8. End shield
• S = Minimum thickness of brake disk
12/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
7 REASSEMBLING THE MOTOR (MF10, MF13) OWNER’S MANUAL
7 REASSEMBLING THE MOTOR (MF10, MF13)
This information relates to motor sizes MF10 and MF13.
1. Put the sleeve (11) onto the fan shaft in MF10 and onto the motor shaft in MF13.
2. Put the brake disc onto the hub.
3. Assemble the brake and tighten the fixing screws to the values given in table Tightening
torque of brake screws.
4. Reconnect the power supply cables to the terminal block.
5. Reassemble the end shield (with the fan shaft) and tighten the screw to 41 Nm torque.
6. Reassemble the fan and clamp, and tighten the screw(s).
7. Reassemble the fan cover and its fixing screws.
Table 1. Minimum thickness (S) of brake disc
Motor size S [mm (in)]
MF10 7.75 (0.3)
MF13 10.75 (0.42)
Table 2. Tightening torque of brake screws
Motor size Torque [Nm]
MF10 8.6
MF13 21
13/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
OWNER’S MANUAL 8 CHECKING BRAKE AIR GAP (MF07)
8 CHECKING BRAKE AIR GAP (MF07)
This information relates to motor size MF07.
1. Loosen the 2 set screws (1) locking the terminal box cover (2).
2. To open the cover, turn it counterclockwise.
3. Disconnect the brake cables from the rectifier in the terminal box.
4. Loosen the two set screws (4) locking the cover (5).
5. To open the cover, turn it counterclockwise.
6. Remove the three brake fixing screws (6) and pull out the brake.
7. Take out the brake disc (7) and measure its thickness (S).
If the wheel thickness is less than 5.7 mm, replace the brake wheel with a new one.
1. Junction box locking screws 5. Brake cover
2. Junction box cover 6. Brake fixing screws
3. Disc brake 7. Brake disc
4. Brake cover locking screws 8. Friction disc
• S = Minimum thickness of brake disc
14/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
9 REASSEMBLING THE MOTOR (MF07) OWNER’S MANUAL
9 REASSEMBLING THE MOTOR (MF07)
1. Put the brake disc onto the hub on the motor shaft.
2. Thread the brake wires through the opening in the wall and through the hole at the bottom of
the terminal box.
3. Reconnect the brake wires to the rectifier.
4. Reassemble the brake body. Make sure that the brake fixing screws go through the hole in
the thin backing plate (8).
5. Tighten the screws to 2.5 Nm torque.
6. To reassemble both covers, turn them clockwise until the flange of the cover touches the
mating surface.
7. Tighten the two set screws in both covers. For the flameproof thread of junction box cover, it
is recommended to use lubricant (Mobilith SHC 460 or equivalent) to avoid damaging the
thread.
Table 3. Minimum thickness (S) of brake disc
Motor size S [mm (in)]
MF07 5.7 (0.22)
Table 4. Tightening torque of brake screws
Motor size Torque [Nm]
MF07 2.5
15/16
DOC1304664 / 1 / en-US / 26 May 2021 Copyright © 2023 Konecranes. All rights reserved.
OWNER’S MANUAL 9 REASSEMBLING THE MOTOR (MF07)
16/16
