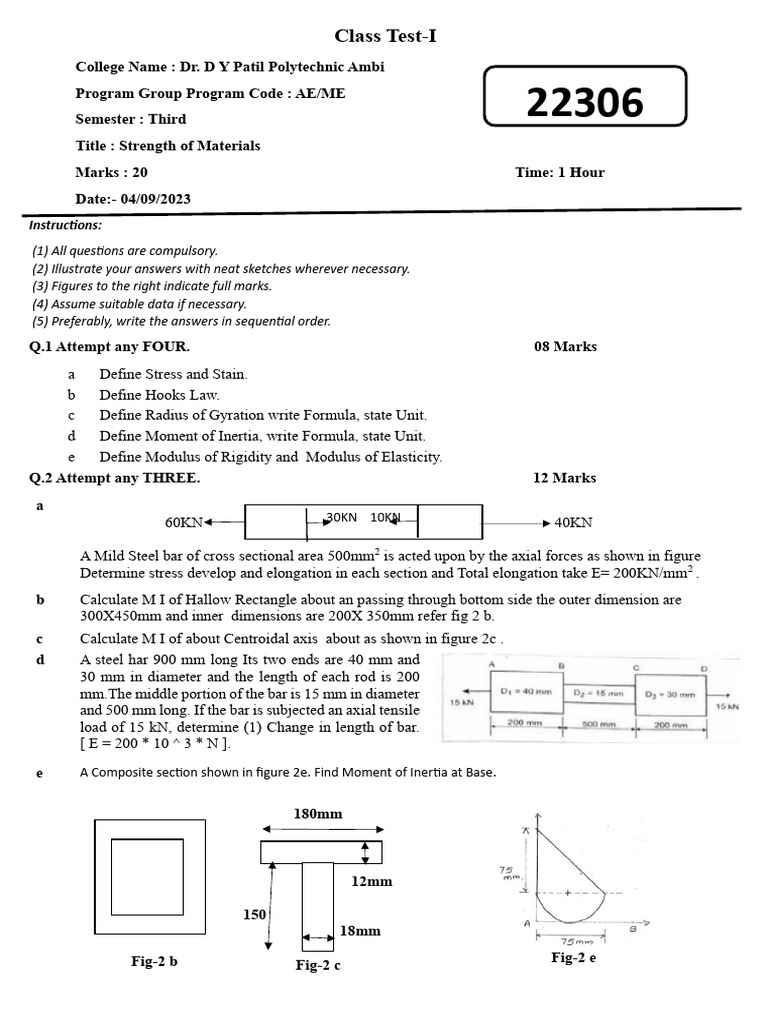

Class Test-I

College Name : Dr. D Y Patil Polytechnic Ambi


Program Group Program Code : AE/ME
Semester : Third
22306
Title : Strength of Materials
Marks : 20 Time: 1 Hour
Date:- 04/09/2023
Instructions:
(1) All questions are compulsory.
(2) Illustrate your answers with neat sketches wherever necessary.
(3) Figures to the right indicate full marks.
(4) Assume suitable data if necessary.
(5) Preferably, write the answers in sequential order.
Q.1 Attempt any FOUR. 08 Marks
a Define Stress and Stain.
b Define Hooks Law.
c Define Radius of Gyration write Formula, state Unit.
d Define Moment of Inertia, write Formula, state Unit.
e Define Modulus of Rigidity and Modulus of Elasticity.
Q.2 Attempt any THREE. 12 Marks
a
60KN 30KN 10KN 40KN

A Mild Steel bar of cross sectional area 500mm2 is acted upon by the axial forces as shown in figure
Determine stress develop and elongation in each section and Total elongation take E= 200KN/mm2 .
b Calculate M I of Hallow Rectangle about an passing through bottom side the outer dimension are
300X450mm and inner dimensions are 200X 350mm refer fig 2 b.
c Calculate M I of about Centroidal axis about as shown in figure 2c .
d A steel har 900 mm long Its two ends are 40 mm and
30 mm in diameter and the length of each rod is 200
mm.The middle portion of the bar is 15 mm in diameter
and 500 mm long. If the bar is subjected an axial tensile
load of 15 kN, determine (1) Change in length of bar.
[ E = 200 * 10 ^ 3 * N ].

e A Composite section shown in figure 2e. Find Moment of Inertia at Base.

180mm

12mm

150
18mm

Fig-2 b Fig-2 e
Fig-2 c
