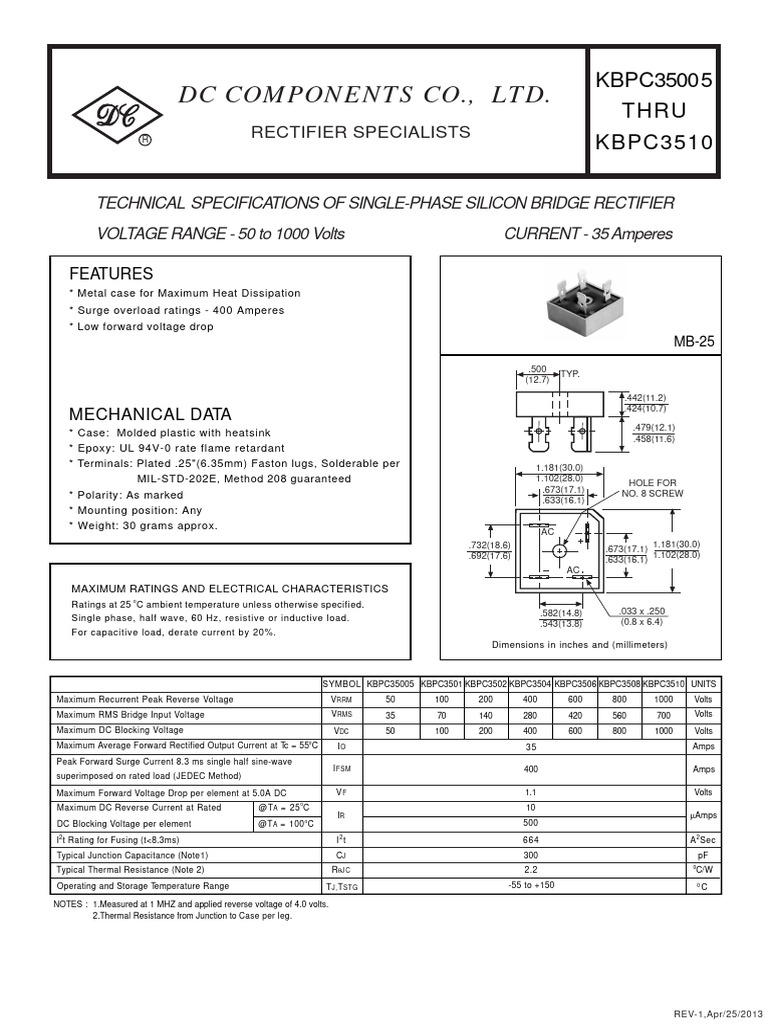

KBPC35005

DC COMPONENTS CO., LTD.

THRU
RECTIFIER SPECIALISTS
R
KBPC3510

TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 35 Amperes

FEATURES
* Metal case for Maximum Heat Dissipation
* Surge overload ratings - 400 Amperes
* Low forward voltage drop
MB-25
.500
TYP.
(12.7)

.442(11.2)
.424(10.7)
MECHANICAL DATA
.479(12.1)
* Case: Molded plastic with heatsink
.458(11.6)
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Plated .25"(6.35mm) Faston lugs, Solderable per 1.181(30.0)
MIL-STD-202E, Method 208 guaranteed 1.102(28.0)
HOLE FOR
.673(17.1) NO. 8 SCREW
* Polarity: As marked
.633(16.1)
* Mounting position: Any
* Weight: 30 grams approx.
AC
.732(18.6) .673(17.1) 1.181(30.0)
.692(17.6) .633(16.1) 1.102(28.0)
AC

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 o C ambient temperature unless otherwise specified.
.582(14.8) .033 x .250
Single phase, half wave, 60 Hz, resistive or inductive load. (0.8 x 6.4)
.543(13.8)
For capacitive load, derate current by 20%.
Dimensions in inches and (millimeters)

SYMBOL KBPC35005 KBPC3501 KBPC3502 KBPC3504 KBPC3506 KBPC3508 KBPC3510 UNITS

Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 Volts
Maximum RMS Bridge Input Voltage VRMS 35 70 140 280 420 560 700 Volts
Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 Volts
Maximum Average Forward Rectified Output Current at Tc = 55oC IO 35 Amps
Peak Forward Surge Current 8.3 ms single half sine-wave
I FSM 400 Amps
superimposed on rated load (JEDEC Method)
Maximum Forward Voltage Drop per element at 5.0A DC VF 1.1 Volts
Maximum DC Reverse Current at Rated @T A = 25 oC 10
IR µAmps
DC Blocking Voltage per element @T A = 100 oC 500
I 2t Rating for Fusing (t<8.3ms) I2t 664 A 2 Sec
Typical Junction Capacitance (Note1) CJ 300 pF
0
Typical Thermal Resistance (Note 2) RθJ C 2.2 C/W
Operating and Storage Temperature Range T J, T STG -55 to +150 0
C
NOTES : [Link] at 1 MHZ and applied reverse voltage of 4.0 volts.
[Link] Resistance from Junction to Case per leg.

REV-1,Apr/25/2013
 RATING AND CHARACTERISTIC CURVES (KBPC35005 THRU KBP3510)

FIG. 1 - MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT FIG. 2 - TYPICAL FORWARD CURRENT DERATING CURVE

AVERAGE FORWARD OUTPUT CURRENT, (A)

500 50
PEAK FORWARD SURGE CURRENT, (A)

400 8.3ms Single Half Sine-Wave 40

(JEDEC Mathod)

300 30

200 20
Single Phase Half Wave
60Hz Inductive or
Resistive Load
100 10

0
1 2 5 10 20 50 100 0 50 100 175
NUMBER OF CYCLES AT 60Hz CASE TEMPERATURE, (oC)

FIG. 3 - TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS FIG. 4 - TYPICAL REVERSE CHARACTERISTICS

100 10
INSTANTANEOUS REVERSE CURRENT, (µA)
INSTANTANEOUS FORWARD CURRENT, (A)

TJ=25oC

10 1.0

Pulse Width=300ms
1% Duty Cycle
1 .1

TJ=25oC

.1 .01
.6 .7 .8 .9 1.0 1.1 1.2 1.3 0 20 40 60 80 100 120 140
INSTANTANEOUS FORWARD VOLTAGE, (V) PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)

DC COMPONENTS CO., LTD.

R

REV-1,Apr/25/2013
