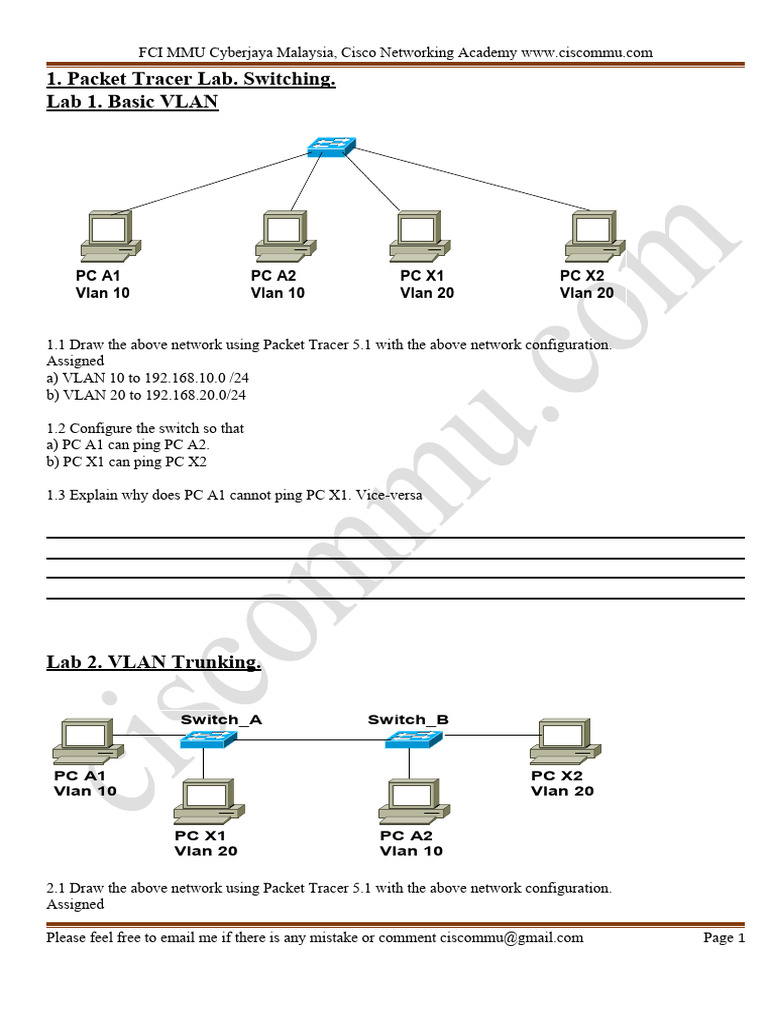

1. Packet Tracer Lab. Switching.
Lab 1. Basic VLAN
PC A1 PC A2 PC X1 PC X2
Vlan 10 Vlan 10 Vlan 20 Vlan 20
1.1 Draw the above network using Packet Tracer 5.1 with the above network configuration.
Assigned
a) VLAN 10 to 192.168.10.0 /24
b) VLAN 20 to 192.168.20.0/24
1.2 Configure the switch so that
a) PC A1 can ping PC A2.
b) PC X1 can ping PC X2
1.3 Explain why does PC A1 cannot ping PC X1. Vice-versa
Lab 2. VLAN Trunking.
Switch_A Switch_B
PC A1 PC X2
Vlan 10 Vlan 20
PC X1 PC A2
Vlan 20 Vlan 10
2.1 Draw the above network using Packet Tracer 5.1 with the above network configuration.
Assigned
Please feel free to email me if there is any mistake or comment ciscommu@gmail.com Page 1
FCI MMU Cyberjaya Malaysia, Cisco Networking Academy www.ciscommu.com
a) VLAN 10 to 192.168.10.0 /24
b) VLAN 20 to 192.168.20.0/24
2.2 Configure the switch_A and switch_B so that
a) PC A1 can ping PC A2.
b) PC X1 can ping PC X2
If both (a) and (b) is successful then your trunking configuration is correct.
2.3 Explain why does PC A1 cannot ping PC X1. Vice-versa
Lab 3. Inter-VLAN Routing using external Router. (non-802.1q router)
RTA
Fa0/0 Fa0/1
Vlan 10 Vlan 20
Switch_A Switch_B
PC A1 PC X2
Vlan 10 Vlan 20
PC X1 PC A2
Vlan 20 Vlan 10
3.1 Draw the above network using Packet Tracer 5.1 with the above network configuration.
Assigned
a) VLAN 10 to 192.168.10.0 /24
b) VLAN 20 to 192.168.20.0/24
3.2 Configure the switch_A, switch_B and RTA so that all PC can ping each other.
If everybody can ping each other then your trunking and routing configuration is correct.
3.3 Explain why does PC A1 ping PC X1? Why the ping is not successful in Lab 1 and Lab 2.
Please feel free to email me if there is any mistake or comment ciscommu@gmail.com Page 2
FCI MMU Cyberjaya Malaysia, Cisco Networking Academy www.ciscommu.com
Lab 4. Inter-VLAN Routing using external Router. (802.1q compliant)
RTA
Fa0/0 trunk mode
Switch_A Switch_B
PC A1 PC X2
Vlan 10 Vlan 20
PC X1 PC A2
Vlan 20 Vlan 10
4.1 Draw the above network using Packet Tracer 5.1 with the above network configuration.
Assigned
a) VLAN 10 to 192.168.10.0 /24
b) VLAN 20 to 192.168.20.0/24
4.2 Configure the switch_A, switch_B and RTA so that all PC can ping each other.
If everybody can ping each other then your trunking and routing configuration is correct.
4.3 Explain why only one router port is required in RTA instead of two router port in Lab 3.?
Please feel free to email me if there is any mistake or comment ciscommu@gmail.com Page 3
FCI MMU Cyberjaya Malaysia, Cisco Networking Academy www.ciscommu.com
Lab 5. Native VLAN.
Switch_A Hub Switch_B
Trunk Trunk
mode mode
PC A1 PC X2
Vlan 10 Vlan 20
PC X1 PC A3 PC A2
Vlan 20 Vlan 10 Vlan 10
5.1 Draw the above network using Packet Tracer 5.1 with the above network configuration.
Assigned
a) VLAN 10 to 192.168.10.0 /24
b) VLAN 20 to 192.168.20.0/24
5.2 Configure the switch_A and switch_B so that
a) PC A1, PC A2 and PC A3 can ping each other
b) PC X1 can ping PC X2
If both (a) and (b) is successful then your trunking and native VLAN configuration is correct.
5.3 Explain how native VLAN enable PC A1 to ping PC A3 without affecting the switchport trunking
configuration.
Please feel free to email me if there is any mistake or comment ciscommu@gmail.com Page 4
FCI MMU Cyberjaya Malaysia, Cisco Networking Academy www.ciscommu.com
Lab 6. Configure IP Address in the Switch
RTA
Fa0/0 trunk mode
Switch_A Switch_B
PC A1 PC X2
Vlan 10 Vlan 20
PC X1 PC A2
Vlan 20 Vlan 10
6.1 Draw the above network using Packet Tracer 5.1 with the above network configuration.
6.2 Create an interface VLAN10 on switch_A and interface VLAN20 on switch_B. Assign the respective ip
address and default-gateway on switch_A and switch_B. Both are layer 2 switches.
Note: You can configure multiple VLAN interfaces on a Catalyst 2950 or 2960 switch. However, only one
interface is active at any one time. If interface VLAN 10 is down, it does not mean that VLAN 10 is down (not
operational). However, if VLAN 10 is down, most likely interface VLAN 10 is down.
6.3 Ensure that you can ping switch_A and switch_B IP Address from both PC A1 and PC X1. If the ping is
successful, your configuration is correct.
Please feel free to email me if there is any mistake or comment ciscommu@gmail.com Page 5
FCI MMU Cyberjaya Malaysia, Cisco Networking Academy www.ciscommu.com
Lab 7. Configure EtherChannel on Switches.
Switch A
PC2
Fa0/1 Fa0/9
Fa0/1 Fa0/9
PC1
Switch B
Configure the above network with PC1 and PC2 in the same IP subnet. Configure EtherChannel on port Fa0/1
and fa0/9. Write down the EtherChannel configuration below.
Do a continuous ping from PC1 to PC2, quickly remove one of the link in the Etherchannel group. Pluck back
one of the link and remove the other link once the ping recovered.
How long does it take for the EtherChannel to recover from a connectivity lost?
Does the conversation between PC1 and PC2 always remain in one link? Yes/No. Why?
Please feel free to email me if there is any mistake or comment ciscommu@gmail.com Page 6
FCI MMU Cyberjaya Malaysia, Cisco Networking Academy www.ciscommu.com
Lab 8. Configure Static MAC address and Port Security on Switches.
Configure the above network. Make sure that
i) Switch port fa0/1 can only be used by Server0 and no other PC can use that port fa0/1.
ii) PC0 and PC1 must stay in port fa0/4 and fa0/3 only. PC0 and PC1 will be inaccessible if they are
moved to another port.
iii) All PC and servers are in the same IP subnet
Note: Cat3560 in Packet Tracer 5.1 does not support port security. Use 2960 and 2950 instead
Write down the configuration for the switch to enforce the above policy
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
List down what are the differences between static MAC address and port Security.
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
Connect PC2 to port fa0/1. and start to ping PC0, what will happen to port fa0/1?
__________________________________________________________________________________________
__________________________________________________________________________________________
List down the steps to re-enable port fa0/1 again
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
Please feel free to email me if there is any mistake or comment ciscommu@gmail.com Page 7
FCI MMU Cyberjaya Malaysia, Cisco Networking Academy www.ciscommu.com
Lab 9. Configure VTP on Switches.
Configure the network below.
There is only one switch is a VTP Server. The rest of the switch is VTP Client.
The VTP Domain name is CISCO.
Write down the VTP Configuration for Switch 3
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
Write down the VTP Configuration for Switch 0, 1 or 2.
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
PC0 and PC2 is in VLAN 1.
PC1 and PC3 is in VLAN 2.
After everything is configured,
PC0 must be able to ping PC2
PC1 must be able to ping PC3
Delete the switch 3 (VTP Server) from the network.
Can PC1 ping PC3.?
Explain why ?
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
Please feel free to email me if there is any mistake or comment ciscommu@gmail.com Page 8
FCI MMU Cyberjaya Malaysia, Cisco Networking Academy www.ciscommu.com
Lab 10. Configure Routing in Layer 3 Switch
Configure the above network. There are two ways to configure Layer 3 switching in 3560
i) Via switch virtual interface (write down the configuration below)
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
ii) Via routed switch port (write down the configuration below)
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
_________________________________________________________________________________________
