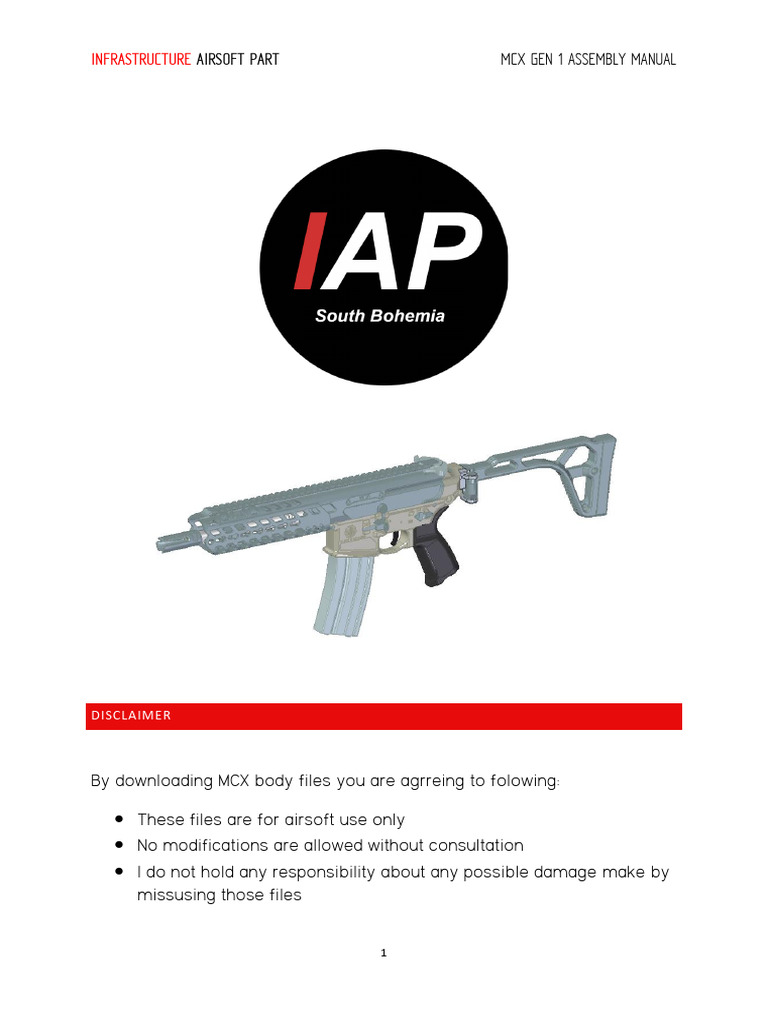

INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

DISCLAIMER

By downloading MCX body files you are agrreing to folowing:

• These files are for airsoft use only
• No modifications are allowed without consultation
• I do not hold any responsibility about any possible damage make by
missusing those files

1
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

BEFORE YOU START

We are happy that you bought this kit and we hope you will like it..However
there are few things to follow that will help you having good time.

This kit is mainly for experienced user in bot airsoft tech and 3D print.

At this point i cant confirm VFC MCX compability !

Motor grip is not part of this kit, in future one will be added.
Stock on renders is not part of this kit, only buffer tube adapter.

2
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

WHAT WILL YOU NEED TO ASSEMBLY THIS KIT:

• Basic tools
• V2 gearbox with sunk in screws (1.)
• Rotary hopuo for m4 airsoft guns
• Optionaly shs M4 mag catch
• Airsoft AEG barrel
• Airsoft AEG bucking
• Airsoft AEG buffer tube
• Airsoft AEG M4 grip

If you do not have rotary hopup and gearbox with fluch screws print „Old Hupup
version files“

3
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

WHAT DOESM4_SPEC AND SIG_SPEC MEANS?

Sig spec model is designed closely to real deal, and might be vfc
compatible,, over all dimension, M4 spec is compatible with your classic
m4 lowers, also gearbox is more easy to but gearbox in, differentce
between these two you can see on image bellow.

Purple for MCX_Spec, pink for M4_Spec, but overall dimension is same.

4
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

LOWER RECIEVER

PARTS LIST:

• Lower • Mag catch buttom

• Pin 1 • Mag catch flip
• Bolt catch • Fire selector
• Mag catch

M5 screw

5
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

BOLT ASSEMBLY

PARTS LIST:

• 2x Rods • Bolt imitation

• 2x Springs • Upper lock
• Bolt carrier • Charging handle assembly

2 set screws

Glue here

6
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

CHARGING HANDLE ASSEMBLY

PARTS LIST:

2x pins

Sring here and

on other side

7
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

UPPER RECIEVER

PARTS LIST:

• Upper • Dustcover
• 2x Upper pin • Dustcover rod
• Asssit housing • Window cover
• Assist buton • Virtus plaquet

Pin

Sring here
Screws

8
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

BARREL ASSEMBLY

PARTS LIST:

• Barrel • 2x Gasblock pins

• Gasblock • Muzzel device
• Gasblock rod

OPTIONAL: M3 setscrew to
secure gas block on barrel.

9
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

UPPER, BOLT CARRIER AND BARREL ASSEMBLY

2x M5 screw and nut from

other side

Charging handle
goes in first

2x M3 screws

10
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL

HANDGUARD ASSEMBLY

PARTS LIST:

• Handguard • Handguard hook

2x M4 nuts

2x M4 screws

11
INFRASTRUCTURE AIRSOFT PART MCX GEN 1 ASSEMBLY MANUAL
FINAL ASSEMBLY

ATTENTION*

* Your spring loaded „Lock“ of bolt assembly must fit and stay in those holes

FINAL WORDS

Now your main body is done, only stock and grip is missing, more files will be added after
some time, with any problem or question please let me know on my email

IAP - Josef

12
