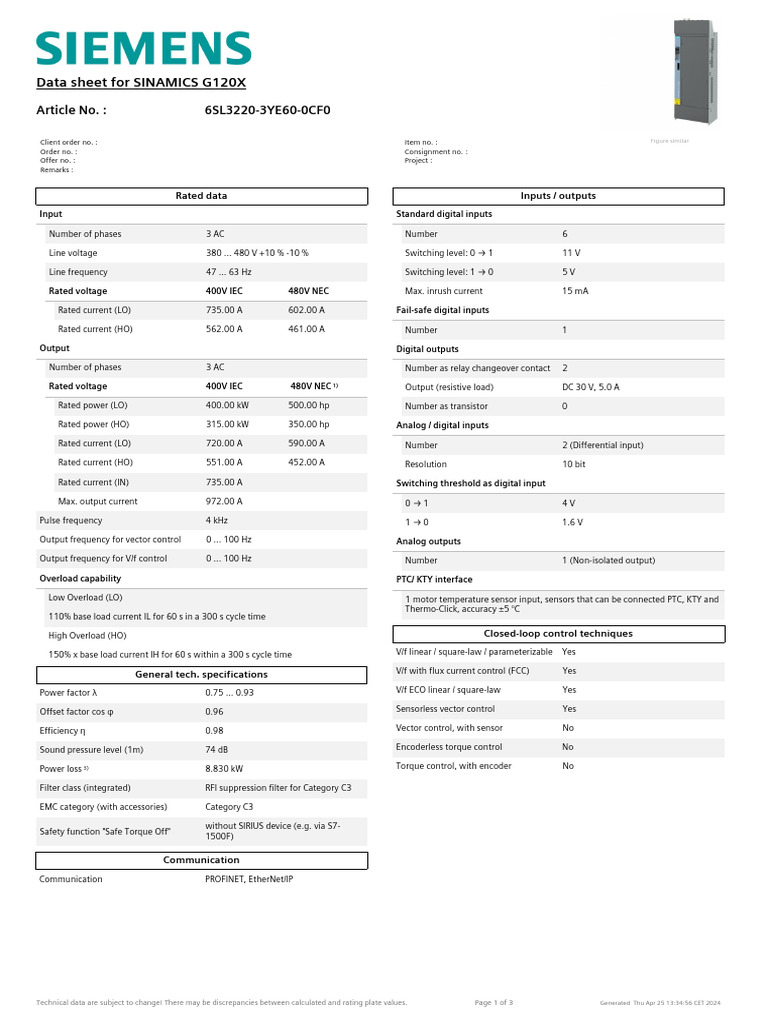

Data sheet for SINAMICS G120X
Article No. : 6SL3220-3YE60-0CF0
Client order no. : Item no. : Figure similar
Order no. : Consignment no. :
Offer no. : Project :
Remarks :
Rated data Inputs / outputs
Input Standard digital inputs
Number of phases 3 AC Number 6
Line voltage 380 ... 480 V +10 % -10 % Switching level: 0 → 1 11 V
Line frequency 47 ... 63 Hz Switching level: 1 → 0 5V
Rated voltage 400V IEC 480V NEC Max. inrush current 15 mA
Rated current (LO) 735.00 A 602.00 A Fail-safe digital inputs
Rated current (HO) 562.00 A 461.00 A Number 1
Output Digital outputs
Number of phases 3 AC Number as relay changeover contact 2
Rated voltage 400V IEC 480V NEC 1) Output (resistive load) DC 30 V, 5.0 A
Rated power (LO) 400.00 kW 500.00 hp Number as transistor 0
Rated power (HO) 315.00 kW 350.00 hp Analog / digital inputs
Rated current (LO) 720.00 A 590.00 A Number 2 (Differential input)
Rated current (HO) 551.00 A 452.00 A Resolution 10 bit
Rated current (IN) 735.00 A Switching threshold as digital input
Max. output current 972.00 A 0→1 4V
Pulse frequency 4 kHz 1→0 1.6 V
Output frequency for vector control 0 ... 100 Hz Analog outputs
Output frequency for V/f control 0 ... 100 Hz Number 1 (Non-isolated output)
Overload capability PTC/ KTY interface
Low Overload (LO) 1 motor temperature sensor input, sensors that can be connected PTC, KTY and
Thermo-Click, accuracy ±5 °C
110% base load current IL for 60 s in a 300 s cycle time
High Overload (HO) Closed-loop control techniques
150% x base load current IH for 60 s within a 300 s cycle time V/f linear / square-law / parameterizable Yes
General tech. specifications V/f with flux current control (FCC) Yes
Power factor λ 0.75 ... 0.93 V/f ECO linear / square-law Yes
Offset factor cos φ 0.96 Sensorless vector control Yes
Efficiency η 0.98 Vector control, with sensor No
Sound pressure level (1m) 74 dB Encoderless torque control No
Power loss 3) 8.830 kW Torque control, with encoder No
Filter class (integrated) RFI suppression filter for Category C3
EMC category (with accessories) Category C3
without SIRIUS device (e.g. via S7-
Safety function "Safe Torque Off"
1500F)
Communication
Communication PROFINET, EtherNet/IP
Technical data are subject to change! There may be discrepancies between calculated and rating plate values. Page 1 of 3 Generated Thu Apr 25 [Link] CET 2024
Data sheet for SINAMICS G120X
Article No. : 6SL3220-3YE60-0CF0
Ambient conditions Mechanical data
Class 3C2, according to IEC 60721-3-3: Degree of protection IP20 / UL open type
Standard board coating type
2002
Frame size FSH
Cooling Air cooling using an integrated fan
Net weight 159 kg (350.54 lb)
Cooling air requirement 0.362 m³/s (12.784 ft³/s)
Dimensions
Installation altitude 1,000 m (3,280.84 ft)
Width 548 mm (21.57 in)
Ambient temperature
Height 1,695 mm (66.73 in)
Operation 0 ... 45 °C (32 ... 113 °F)
Depth 393 mm (15.47 in)
Transport -40 ... 70 °C (-40 ... 158 °F)
Storage -25 ... 55 °C (-13 ... 131 °F) Standards
UL, cUL, CE, C-Tick (RCM), EAC, KCC,
Relative humidity Compliance with standards
SEMI F47, REACH
95 % At 40 °C (104 °F), condensation
Max. operation EMC Directive 2004/108/EC, Low-
and icing not permissible CE marking
Voltage Directive 2006/95/EC
Connections
Converter losses to IEC61800-9-2*
Signal cable
Efficiency class IE2
0.15 ... 1.50 mm²
Conductor cross-section Comparison with the reference
(AWG 24 ... AWG 16) 42.5 %
converter (90% / 100%)
Line side
Version M12 screw I 6,780.0 W (1.3 %) 7,660.0 W (1.5 %) 8,830.0 W (1.7 %)
100%
4 x 240.00 mm²
Conductor cross-section
(MCM 2 x 500 ... MCM 4 x 500)
Motor end
Version M12 screw
4 x 240.00 mm² 3,200.0 W (0.6 %) 3,560.0 W (0.7 %) 3,990.0 W (0.8 %)
Conductor cross-section
(MCM 2 x 500 ... MCM 4 x 500) 50%
DC link (for braking resistor)
2,110.0 W (0.4 %) 2,270.0 W (0.4 %)
PE connection M12 screw 25%
Max. motor cable length
Shielded 150 m (492.13 ft)
50% 90% f
The percentage values show the losses in relation to the rated apparent power of
the converter.
The diagram shows the losses for the points (as per standard IEC61800-9-2) of
the relative torque generating current (I) over the relative motor stator frequency
(f). The values are valid for the basic version of the converter without
options/components.
*calculated values
1)
The output current and HP ratings are valid for the voltage range 440V-480V
3)
Typical value. More information can be found in the element group "Converter losses to IEC 61800-9-2" in this datasheet.
Technical data are subject to change! There may be discrepancies between calculated and rating plate values. Page 2 of 3 Generated Thu Apr 25 [Link] CET 2024
Data sheet for SINAMICS G120X
Article No. : 6SL3220-3YE60-0CF0
Operator panel: Intelligent Operator Panel (IOP-2)
Screen Ambient conditions
Display design LCD color Ambient temperature
Screen resolution 320 x 240 Pixel Operation 0 ... 50 °C (32 ... 122 °F)
55 °C only with door installation kit
Mechanical data
Storage -40 ... 70 °C (-40 ... 158 °F)
Degree of protection IP55 / UL type 12
Transport -40 ... 70 °C (-40 ... 158 °F)
Net weight 0.134 kg (0.30 lb)
Relative humidity at 25°C during
Dimensions
Max. operation 95 %
Width 70.00 mm (2.76 in)
Approvals
Height 106.85 mm (4.21 in)
Certificate of suitability CE, cULus, EAC, KCC, RCM
Depth 19.65 mm (0.77 in)
Technical data are subject to change! There may be discrepancies between calculated and rating plate values. Page 3 of 3 Generated Thu Apr 25 [Link] CET 2024
Data sheet for Line reactor
MLFB-Ordering data
6SL3000-0CE37-7AA0
Figure similar
Client order no. : Item no. :
Order no. : Consignment no. :
Offer no. : Project :
Remarks :
Rated data Connections
Input
Number of phases 3 AC
Line voltage 380 ... 480 V
Output Load side
Rated current 773.0 A Version 1 x hole for M12
Mechanical data
Dimensions
Width 300.0 mm (11.8 in) PE connection
Version M6 screw
Height 269.0 mm (10.6 in)
Depth 212.0 mm (8.3 in)
Degree of protection IP00
Net weight 51.3 kg (113.0 lb)
Technical data are subject to change! There may be discrepancies between calculated and rating plate values.
Page 1 of 1 Generated Thu Apr 25 [Link] CEST 2024
