MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200

9-WE97-001-C

19 20
8

18

12

13

3
17 1

15

1
7 16
10

11

1
4
5 9 14
6

Ref WE979001-1 Page 025-0005

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200

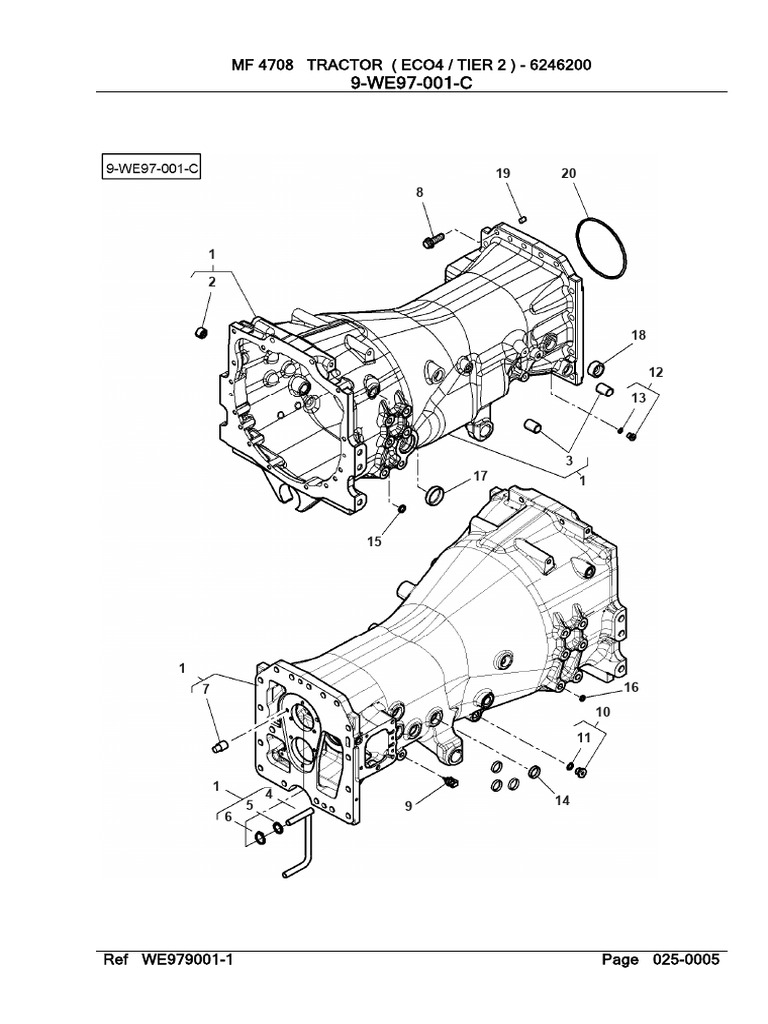

Transmission - Housing - With Mechanical Reversing Gear Page025-0005
Item Part Number Qty Description Comments
1 4313852M92 1 [Link] [B]
4313853M92 1 [Link] [A]
2 4311012M1 1 Bush (1)
3 4312303M1 2 Friction Washer (1)
4 4313143M91 1 Kit, Oil Pipe [B]
(1)
5 70923952 1 O-Ring [B]
(1)
6 1440522X1 1 Retaining Ring [B]
(1)
7 3581130M2 1 Seal Cap [A]
(1)
8 3014251X1 16 Screw 12 Points M14x50
9 4358296M1 1 Temperat Sensor
10 3010898X91 1 Plug
11 3019397X1 1 O Ring (10)
12 3012263X91 1 Plug M12X1.5
13 3019394X1 1 O Ring (12)
14 3007458X1 4 Cup Plug Diameter 32mm
15 3015464X1 1 Plug Diameter 20.25 - 20.38mm
16 392427X1 1 Plug Diameter 15.15 / 15.22mm
17 3015334X1 1 Plug 52 X 16 X 2
18 3007458X1 1 Cup Plug Diameter 32mm
19 3385839M2 2 Locator
20 378310X1 1 O Ring Diameter 126mm

FOOTNOTE [A] WITHOUT CREEPER

FOOTNOTE [B] WITH SUPER CREEPER GEAR
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WE97-003-A

15 16
8

14

12

13

3
1

1
2 7
10

11

1
4
5 9
6

Ref WE979003-1 Page 025-0010

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Transmission - Housing - With Power Shuttle Page025-0010
Item Part Number Qty Description Comments
1 4313148M92 1 Housing [A]
4312092M92 1 Housing [B]
2 3581130M2 1 Seal Cap [A]
(1)
3 4312303M1 1 Friction Washer (1)
4 4313143M91 1 Kit, Oil Pipe [B]
(1)
5 70923952 1 O-Ring [B]
(1)
6 1440522X1 1 Retaining Ring [B]
(1)
7 392427X1 1 Plug Diameter 15.15 / 15.22mm
8 3014251X1 16 Screw 12 Points M14x50
9 4358296M1 1 Temperat Sensor
10 3010898X91 1 Plug
11 3019397X1 1 O Ring (10)
12 3012263X91 1 Plug M12X1.5
13 3019394X1 1 O Ring (12)
14 3007458X1 1 Cup Plug Diameter 32mm
15 3385839M2 2 Locator
16 378310X1 1 O Ring Diameter 126mm

FOOTNOTE [A] WITHOUT CREEPER

FOOTNOTE [B] WITH SUPER CREEPER GEAR
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WE23-001-A

13
14
15
12
11
5
3 5
4 9 10
2 8
7
1
6

Ref WE239001-1 Page 025-0015

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
8 Speed Non-Synchromesh Transmission - Main Shaft - With Mechanical Reversing Gear Page025-0015
Item Part Number Qty Description Comments
1 3016348X1 1 Adjusting Shim Thickness 0.30mm
3016349X1 1 Shim Thickness 0.35mm
3016350X1 1 Adjusting Shim Thickness 0.40mm
3016351X1 1 Adjusting Shim Thickness 0.45mm
3016352X1 1 Adjusting Shim Thickness 0.50mm
3016353X1 1 Adjusting Shim Thickness 0.55mm
3016354X1 1 Adjusting Shim Thickness 0.60mm
3016355X1 1 Adjusting Shim Thickness 0.65mm
3016356X1 1 Adjusting Shim Thickness 1mm
2 3009853X1 1 Taper Bearing
3 4358749M91 1 Primary Shaft
4 3014561X1 1 Needle Cage (3)
5 4306180M1 2 Segment
6 4358614M1 1 Drive Pinion Number of teeth/spines 40
7 4358613M2 1 Coupler
8 4358610M1 1 Hub
9 3016383X91 1 Taper Bearing
10 4358729M3 1 Double Gear Number of teeth/spines 40/26
11 339673X1 1 Bearing 65x100x18
12 X619.045.300.009 1 Taper Roller Brg
13 4310599M92 1 Selector
14 4308911M1 1 Fork
15 3386683M3 2 Screw Special
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WE24-001-B

9
5
4
37
36
44
43
25
32
31
30
40 29
42 42
41

33 41
34
35
38
28 45
27 39
26
25
46

23
20
19
18
15 22
7
8 24
3 22
21
17
16 14
13
12
11
2 10
6
1

Ref WE249001-1 Page 025-0020

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
8 Speed Non-Synchromesh Transmission - Counter Shaft Page025-0020
Item Part Number Qty Description Comments
1 4312142M91 1 Cover
2 3581130M2 2 Seal Cap (1)
3 195869M1 1 O Ring
4 3006444X1 2 Roll Pin Diameter 6x10
5 4311721M1 1 Backplate
6 3014218X1 5 Screw M10X30
7 4310777M1 1 Plunger
8 3011177X1 2 Pin
9 4302670M1 6 Screw M8x25
10 4314991M1 1 Spacer
11 3011516X1 1 Ball Bearing 35x80x21
12 339437X1 1 Retaining Ring Diameter 80
13 1440477X1 1 Retaining Ring
14 4312037M1 1 Shaft
15 3796361M2 1 Tube
16 195562M1 1 O Ring Diameter 10.77
17 3382828M1 1 Spring Alternative 4361027M1
4361027M1 1 Spring Alternative 3382828M1
18 3791278M2 1 Adjusting Shim Thickness 0.30mm
3791280M2 1 Shim Thickness 0.40mm
3791076M2 1 Shim Thickness 0.50mm
3791080M2 1 Shim Thickness 0.70mm
3791082M2 1 Shim Thickness 0.80mm
19 339481X1 1 Roller Bearing
20 4359228M1 1 Nut
21 3012268X1 1 Shim Thickness 0.30mm
3016466X1 1 Shim Thickness 0.35mm
3012269X1 1 Shim Thickness 0.40mm
3016467X1 1 Shim Thickness 0.45mm
3012270X1 1 Shim Thickness 0.50mm
3016468X1 1 Shim Thickness 0.55mm
3012271X1 1 Shim Thickness 0.6
22 3016463X91 2 Bearing Assy
23 4359303M1 1 Drive Pinion Number of teeth/spines 59
24 4359229M1 1 Spacer Part
25 4358613M2 2 Coupler
26 4358617M1 1 Drive Pinion Number of teeth/spines 53
27 4310234M1 1 Seal
28 4359300M1 1 Countershaft Number of teeth/spines 45/30
29 339673X1 1 Bearing 65x100x18
30 3014643X91 1 Taper Bearing
31 4358616M1 1 Bush
32 4311723M1 1 Spacer
33 4308921M2 1 Actuating Rod
34 1442085X1 1 Ball Diameter 8mm
35 4310774M1 1 Locking Spring
36 4312141M1 1 Output Shaft
4312082M92 1 Shaft [A,B]
37 X619.045.300.009 1 Taper Roller Brg
38 4309830M93 1 Control Lever
39 3009856X1 1 Oil Seal 20x30x7
40 4310601M92 1 Selector
41 3386683M3 4 Screw Special
42 4308911M1 2 Fork
43 4358611M1 1 Hub
44 4358615M1 1 Pinion Number of teeth/spines 75 - 44
45 3015250X1 1 Retaining Ring
46 4358610M1 1 Hub

FOOTNOTE [A] WITH SUPER CREEPER GEAR

FOOTNOTE [B] INCLUDE: 3014936X1
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WE29-001-A

13
14
8

12
11
3 5 5
4
9 10
2
7
1
6

Ref WE299001-1 Page 025-0025

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
8 Speed Synchromesh Transmission - Main Shaft Page025-0025
Item Part Number Qty Description Comments
1 3016348X1 1 Adjusting Shim Thickness 0.30mm
3016349X1 1 Shim Thickness 0.35mm
3016350X1 1 Adjusting Shim Thickness 0.40mm
3016351X1 1 Adjusting Shim Thickness 0.45mm
3016352X1 1 Adjusting Shim Thickness 0.50mm
3016353X1 1 Adjusting Shim Thickness 0.55mm
3016354X1 1 Adjusting Shim Thickness 0.60mm
3016355X1 1 Adjusting Shim Thickness 0.65mm
3016356X1 1 Adjusting Shim Thickness 1mm
2 339481X1 1 Roller Bearing
3 4358749M91 1 Primary Shaft
4 3014561X1 1 Needle Cage (3)
5 4306180M1 2 Segment
6 4310348M1 1 Drive Pinion Number of teeth/spines 40
7 4358760M91 1 Synchro
8 3386683M3 2 Screw Special
9 3016383X91 1 Taper Bearing
10 4358727M3 1 Double Gear Number of teeth/spines 49/26
11 339673X1 1 Bearing 65x100x18
12 X619.045.300.009 1 Taper Roller Brg
13 4310599M92 1 Selector
14 4308911M1 1 Fork
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WE30-001-A

9
5
4
43
37
36
32
31
30
40 29
42 42
41

33 41
34
35
28 38
27 45
26 39
25

23
20
19
7 18 22
15 24
3 8
22
21
17 14
16 13
12
11
2 10
6 44
1

Ref WE309001-1 Page 025-0030

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
8 Speed Synchromesh Transmission - Countershaft Page025-0030
Item Part Number Qty Description Comments
1 4312142M91 1 Cover
2 3581130M2 2 Seal Cap (1)
3 195869M1 1 O Ring
4 3006444X1 2 Roll Pin Diameter 6x10
5 4311721M1 1 Backplate
6 3014218X1 5 Screw M10X30
7 4310777M1 1 Plunger
8 3011177X1 2 Pin
9 4302670M1 6 Screw M8x25
10 4314991M1 1 Spacer
11 3011516X1 1 Ball Bearing 35x80x21
12 339437X1 1 Retaining Ring Diameter 80
13 1440477X1 1 Retaining Ring
14 4312037M1 1 Shaft
15 3796361M2 1 Tube
16 195562M1 1 O Ring Diameter 10.77
17 3382828M1 1 Spring
18 3791278M2 1 Adjusting Shim Thickness 0.30mm
3791280M2 1 Shim Thickness 0.40mm
3791076M2 1 Shim Thickness 0.50mm
3791080M2 1 Shim Thickness 0.70mm
3791082M2 1 Shim Thickness 0.80mm
19 339481X1 1 Roller Bearing
20 4359228M1 1 Nut
21 3012268X1 1 Shim Thickness 0.30mm
3016466X1 1 Shim Thickness 0.35mm
3012269X1 1 Shim Thickness 0.40mm
3016467X1 1 Shim Thickness 0.45mm
3012270X1 1 Shim Thickness 0.50mm
3016468X1 1 Shim Thickness 0.55mm
3012271X1 1 Shim Thickness 0.60mm
22 3016463X91 1 Bearing Assy
23 4359302M1 1 Pinion Number of teeth/spines 59
24 4359229M1 1 Spacer Part
25 4359306M91 1 Synchro Unit
26 4310464M1 1 Gear Number of teeth/spines 53
27 4310234M1 1 Seal
28 4359300M1 1 Countershaft Number of teeth/spines 45/30
29 339673X1 1 Bearing 65x100x18
30 3014643X91 1 Taper Bearing
31 4311723M1 1 Spacer
32 4310133M91 1 Synchro Unit
33 4308921M2 1 Actuating Rod
34 1442085X1 1 Ball Diameter 8
35 4310774M1 1 Locking Spring
36 4309603M1 1 Pinion Number of teeth/spines 75
37 4312141M1 1 Output Shaft
38 4309830M93 1 Control Lever
39 3009856X1 1 Oil Seal 20x30x7
40 4310601M92 1 Selector
41 3386683M3 4 Screw Special
42 4308911M1 2 Fork
43 X619.045.300.009 1 Taper Roller Brg
44 Part Not Used
45 3015250X1 1 Retaining Ring
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WE44-001-A

17
16
15
13
14
13
12
11
10
8
9

7
5
6
3 5
4
2
1

Ref WE449001-1 Page 025-0035

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
12 Speed Synchromesh Transmission - Main Shaft - With 30 KPH Tractor Page025-0035
Item Part Number Qty Description Comments
1 3016348X1 1 Adjusting Shim Thickness 0.30mm
3016349X1 1 Shim Thickness 0.35mm
3016350X1 1 Adjusting Shim Thickness 0.40mm
3016351X1 1 Adjusting Shim Thickness 0.45mm
3016352X1 1 Adjusting Shim Thickness 0.50mm
3016353X1 1 Adjusting Shim Thickness 0.55mm
3016354X1 1 Adjusting Shim Thickness 0.60mm
3016355X1 1 Adjusting Shim Thickness 0.65mm
3016356X1 1 Adjusting Shim Thickness 1mm
2 3009853X1 1 Taper Bearing
3 4358743M92 1 Primary Shaft
4358744M1 1 Shaft [B]
4 3014561X1 1 Needle Cage (3)
Part Not Used [B]
5 3016018X1 2 Cage
6 4311732M1 1 Double Gear Number of teeth/spines 36/30
7 4310131M91 1 Synchro Unit
8 4309592M1 1 Sleeve
9 4309594M1 1 Drive Pinion Number of teeth/spines 36
10 4309593M1 1 Drive Pinion Number of teeth/spines 43
11 4358760M91 1 Synchro
12 3016383X91 1 Taper Bearing
13 4306180M1 2 Segment
14 4358728M2 1 Pinion Shaft Number of teeth/spines 40
15 339673X1 1 Bearing 65x100x18
16 4358406M2 1 Pinion Number of teeth/spines 32
17 X619.045.300.009 1 Taper Roller Brg

FOOTNOTE [B] WITH POWER SHUTTLE

 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WE44-002-A

16
15
13
14
13
12
11
10
8
9

7
5
6
3 5
4
2
1

Ref WE449002-1 Page 025-0040

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
12 Speed Synchromesh Transmission - Main Shaft - With 40 KPH Tractor Page025-0040
Item Part Number Qty Description Comments
1 3016348X1 1 Adjusting Shim Thickness 0.30mm
3016349X1 1 Shim Thickness 0.35mm
3016350X1 1 Adjusting Shim Thickness 0.40mm
3016351X1 1 Adjusting Shim Thickness 0.45mm
3016352X1 1 Adjusting Shim Thickness 0.50mm
3016353X1 1 Adjusting Shim Thickness 0.55mm
3016354X1 1 Adjusting Shim Thickness 0.60mm
3016355X1 1 Adjusting Shim Thickness 0.65mm
3016356X1 1 Adjusting Shim Thickness 1mm
2 3009853X1 1 Taper Bearing
3 4358743M92 1 Primary Shaft
4 3014561X1 1 Needle Cage (3)
5 3016018X1 2 Cage
6 4311732M1 1 Double Gear Number of teeth/spines 36/30
7 4310131M91 1 Synchro Unit [A]
8 4309592M1 1 Sleeve
9 4309594M1 1 Drive Pinion Number of teeth/spines 36
10 4309593M1 1 Drive Pinion Number of teeth/spines 43
11 4358760M91 1 Synchro [A]
12 3016383X91 1 Taper Bearing
13 4306180M1 2 Segment
14 4358726M3 1 Double Gear Number of teeth/spines 43/26
15 339673X1 1 Bearing 65x100x18
16 X619.045.300.009 1 Taper Roller Brg

FOOTNOTE [A] DETAILS TO BE ADVISED

 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WE45-001-A

27
8
4
3
6
35
34
33
32
31
30
29

28
26 23
25 22

18 24
17
14
2 7
21
20
19
16
15 13
12
11
10
5 9
1 36

Ref WE459001-1 Page 025-0045

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
12 Speed Synchromesh Transmission - Counter Shaft Page025-0045
Item Part Number Qty Description Comments
1 4308825M2 1 Cover
2 195869M1 1 O Ring
3 X619.045.300.009 1 Taper Roller Brg
4 3006444X1 2 Roll Pin Diameter 6x10
5 3014218X1 5 Screw M10X30
6 4312141M1 1 Output Shaft
4312082M92 1 Shaft [D,F]
7 3011177X1 2 Pin
8 4311721M1 1 Backplate
9 4314633M1 1 Spacer
10 3011516X1 1 Ball Bearing 35x80x21
11 339437X1 1 Retaining Ring Diameter 80
12 1440477X1 1 Retaining Ring Diameter 80
13 4309606M1 1 Shaft Length 150.40mm
4309789M1 1 Shaft [E]
Length 266.40mm
14 3796361M2 1 Tube
15 195562M1 1 O Ring Diameter 10.77
16 3382828M1 1 Spring Alternative 4361027M1
4361027M1 1 Spring Alternative 3382828M1
17 3791278M2 1 Adjusting Shim Thickness 0.30mm
3791280M2 1 Shim Thickness 0.40mm
3791076M2 1 Shim Thickness 0.50mm
3791080M2 1 Shim Thickness 0.70mm
3791082M2 1 Shim Thickness 0.80mm
18 339481X1 1 Roller Bearing
19 339437X1 1 Retaining Ring
20 3011516X1 1 Ball Bearing
21 4309792M1 1 Washer
22 4309604M1 1 Gear Number of teeth/spines 75
23 4309605M1 1 Gear Number of teeth/spines 48
24 3014880X1 1 Cage
25 4310137M91 1 Synchro Unit
26 339470X1 1 Retaining Ring
27 4302670M1 6 Screw M8X25
28 4311725M1 1 Shaft
29 4358425M2 1 Double Gear [C]
Number of teeth/spines 42/36
4358736M2 1 Double Gear [B]
Number of teeth/spines 42/30
30 339673X1 1 Bearing
31 3014643X91 1 Taper Bearing
32 4311723M1 1 Spacer
33 4310133M91 1 Synchro Unit
34 4309603M1 1 Pinion [C]
Number of teeth/spines 75
4310143M1 1 Pinion [B]
Number of teeth/spines 70
35 4310234M1 1 Seal
36 339322X1 1 Retaining Ring [E]

FOOTNOTE [B] WITH 30KPH TRACTOR

FOOTNOTE [C] WITH 40KPH TRACTOR
FOOTNOTE [D] WITH SUPER CREEPER GEAR
FOOTNOTE [E] WITH POWER SHUTTLE
FOOTNOTE [F] INCLUDE: 3014936X1
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WE46-001-A

1
2

8
4
1
2

3
1

5
4
2 1
2

10
6 12
11
7

Ref WE469001-1 Page 025-0050

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
12 Speed Synchromesh Transmission - Fork And Gearshift Rail Page025-0050
Item Part Number Qty Description Comments
1 4308911M1 4 Fork
2 3386683M3 8 Screw Special
3 4309653M92 1 Selector
4 4310777M1 2 Plunger
5 4308921M2 1 Actuating Rod
6 1442085X1 1 Ball Diameter 8mm
7 4310774M1 1 Locking Spring
8 4309651M92 1 Selector
9 4309099M92 1 Selector
10 4309830M93 1 Control Lever
11 3009856X1 1 Oil Seal
12 3015250X1 1 Retaining Ring
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WF40-003-B

18
17
14
15
14
16
13

30
6 12
9
1 11
5 8
7 10
3
2
32
31

4
19
24
25 26
20 27
5 28

21 29
22
23

Ref WF409003-1 Page 025-0055

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Transmission - Reverse Gear - Hydraulic Control Page025-0055
Item Part Number Qty Description Comments
1 4313887M91 1 Cover
2 3388063M2 1 Seal Cap (1)
3 3011690X1 1 Oil Seal (1)
Diameter 45
4 3010802X1 10 Hex Cap Screw M10x25
5 3011177X1 2 Pin
6 4311979M1 1 Input Shaft
7 3019268X1 1 Retaining Ring (6)
8 3014992X1 1 Radial Seal (6)
9 3014561X1 1 Needle Cage (6)
10 4306180M1 1 Segment
11 3014892X1 1 Shim Thickness 0.3mm
3014893X1 1 Shim Thickness 0.5mm
3014894X1 1 Shim Thickness 0.7mm
3014895X1 1 Shim Thickness 1mm
12 3014917X1 1 Ball Bearing
13 4310468M1 1 Drive Pinion Number of teeth/spines 47
14 3014915X1 2 Thrust Washer 40x60x3.5
15 3014916X1 1 Thrust Washer
16 4310132M91 1 Synchro Unit
17 3015317X1 1 Cage
18 4311720M1 1 Spacer
19 4310471M1 1 Pinion Number of teeth/spines 48
20 3014918X1 1 Ball Bearing
21 4308917M1 1 Stem
22 4308920M93 1 Reverser Unit
23 3009856X1 1 Oil Seal
24 1442085X1 1 Ball
25 4310774M1 1 Locking Spring
26 3012263X91 1 Plug
27 3019394X1 1 O Ring (26)
28 4308911M1 1 Fork
29 3386683M3 2 Screw Special
30 4311940M1 1 Pin
31 70923850 1 O Ring
32 4309598M1 1 Shaft
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WF40-001-B

18
17
14
15
14
16
13

33
6 12
9
1 11
5 8
7 10
3
2
32
31

4
19
24
25 26
20 27
5 28

21 29
22
30
23

Ref WF409001-1 Page 025-0060

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Transmission - Reverse Gear - Mechanical Control Page025-0060
Item Part Number Qty Description Comments
1 4313827M91 1 Cover
2 3388063M2 1 Seal Cap (1)
3 3011690X1 1 Oil Seal (1)
Diameter 45
4 3010802X1 10 Hex Cap Screw M10x25
5 3011177X1 2 Pin
6 4311979M1 1 Input Shaft
7 3019268X1 1 Retaining Ring (6)
8 3014992X1 1 Radial Seal (6)
9 3014561X1 1 Needle Cage (6)
10 4306180M1 1 Segment
11 3014892X1 1 Shim Thickness 0.3mm
3014893X1 1 Shim Thickness 0.5mm
3014894X1 1 Shim Thickness 0.7mm
3014895X1 1 Shim Thickness 1mm
12 3014917X1 1 Ball Bearing
13 4310468M1 1 Drive Pinion Number of teeth/spines 47
14 3014915X1 2 Thrust Washer 40x60x3.5
15 3014916X1 1 Thrust Washer
16 4310132M91 1 Synchro Unit
17 3015317X1 1 Cage
18 4311720M1 1 Spacer
19 4310471M1 1 Pinion Number of teeth/spines 48
20 3014918X1 1 Ball Bearing
21 4308917M1 1 Stem
22 4308920M93 1 Reverser Unit
23 3009856X1 1 Oil Seal
24 1442085X1 1 Ball
25 4310774M1 1 Locking Spring
26 3012263X91 1 Plug
27 3019394X1 1 O Ring (26)
28 4308911M1 1 Fork
29 3386683M3 2 Screw Special
30 3015250X1 1 Retaining Ring
31 70923850 1 O Ring
32 4309598M1 1 Shaft
33 4311940M1 1 Pin
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WF39-003-A

36
37
14

15

35 16
34 17
33
32 18
19
36 20
37 21
22
23

25
30 6
29 7
28
8 4
3
9

27
26
1 24 25
31

10
11
12
13 5

Ref WF399003-1 Page 025-0065

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Transmission - Dual Clutch Page025-0065
Item Part Number Qty Description Comments
1 3010555X1 1 Retaining Ring
2 4310089M92 1 Clutch Housing
3 4310471M1 1 Pinion Number of teeth/spines 48
4 3016038X1 1 Ball Bearing Diameter 25x52x15mm
5 3796349M1 3 Segment
6 3799261M4 1 Piston
7 3799707M2 1 Gasket Diameter INT 151mm
8 3796289M2 1 Gasket Diameter INT 79mm
9 3796342M1 4 Counterplate
10 3796343M1 4 Clutch Disc
11 3796344M1 1 Tooth Washer
12 3011258X1 1 Stop Ring
13 3799068M1 1 Ring
14 4304412M91 1 Pinion Number of teeth/spines 47
15 3796340M2 1 Washer
16 4305937M91 1 Kit, Washer
17 3796587M1 1 Washer
18 1444488X1 1 Stop Ring
19 390143X1 1 Stop Ring
20 3010462X1 1 Bearing Assy Diameter 85x100x13mm
21 3799469M1 1 Deflector
22 3001025X1 1 Stop Ring
23 3012104X1 1 Ball Bearing Diameter 90x115x13mm
24 4302669M1 6 Screw M8x20
25 1 Bearing Carrier Not serviced,order rep.26 a 30
26 3388607M2 1 Seal Cap (25)
Diameter 4 X 3.2 / 4.08
27 3790879M2 1 Plug (25)
Diameter 5 X 4.17 / 4.98
28 3581130M2 1 Seal Cap (25)
Diameter 8 X 7.01 / 7.82
29 70923561 2 O-Ring (25)
30 4304075M1 1 Bearing Carrier (25)
31 3011624X1 1 Bearing Assy Diameter 50x72x12mm
32 4313166M91 1 Cover
33 3790879M2 1 Plug (32)
34 3011690X1 1 Oil Seal (32)
35 1440515X1 1 Stop Ring (32)
36 3011177X1 2 Pin
37 3010802X1 10 Hex Cap Screw M10x25
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WF39-002-B

10
9
8
7

4
3
2

17

16

15
13
14

12
11

Ref WF399002-1 Page 025-0070

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Transmission - Dual Clutch Page025-0070
Item Part Number Qty Description Comments
1 4310003M1 1 Hub
2 3796289M2 1 Gasket Diameter INT 79mm
3 3799707M2 1 Gasket Diameter INT 151mm
4 3799261M4 1 Piston
5 3796340M2 1 Washer
6 4305937M91 1 Kit, Washer
7 3796587M1 1 Washer
8 1444488X1 1 Stop Ring
9 3014563X1 1 Ball Bearing Diameter 35x62x9mm
10 3796350M1 1 Segment
11 366434X1 1 O Ring
12 4304406M1 1 Sealing Holder
13 3796343M1 4 Clutch Disc
14 3796342M1 4 Counterplate
15 3796344M1 1 Tooth Washer
16 3011258X1 1 Stop Ring
17 3799068M1 1 Ring
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WE96-001-A

1
2
3
1
20
19
4

5 18
9 17 23
8

21
6 22
7 24

16
15
14
13
12
11
10

Ref WE969001-1 Page 025-0075

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Transmission - Creeper Page025-0075
Item Part Number Qty Description Comments
1 4311694M1 2 Washer
2 4309295M1 1 Creeper Gear Number of teeth/spines 54-34
3 4311693M1 1 Ring
4 4309158M92 1 Coupler
5 3582978M1 1 Bush (4)
Diameter 14.00/14.011mm
Up to Serial or Engine Number 28-08-2014
4361698M1 1 Bush (4)
Diameter 14.030/14.065mm
From Serial or Engine Number 29-08-2014
6 4309164M1 1 Fork
7 3382979M1 1 Screw M8 X 20
8 4310774M1 1 Locking Spring
9 1442085X1 1 Ball Diameter 8mm
10 4309542M1 1 Locknut M24
11 4309180M1 1 Pinion Number of teeth/spines 56-13
12 3014442X91 1 Taper Bearing
13 3014378X1 X Adjusting Shim Thickness 0.30mm
3014379X1 X Adjusting Shim Thickness 0.40mm
3014380X1 X Adjusting Shim Thickness 0.50mm
3014381X1 X Adjusting Shim Thickness 0.60mm
14 3014459X1 3 Hex Socket Screw M10 X 35
15 4310122M1 1 Sheath
16 3790330M1 2 Centraliser
17 3012996X91 1 Taper Bearing
18 4309160M2 1 Shaft Length 251.50mm
19 4312058M2 1 Retaining Ring
20 390863X1 1 Retaining Ring
21 4310109M1 1 Pto Lever
22 195868M1 1 O Ring
23 4311417M1 1 Hex Cap Screw M8 X 16
24 4309175M1 1 Rod
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WA14-001-A

2 4

5 3 2

29 2 13

10

9
7
8
7
6 8
7 14
9 15
25 16
26 6 17
22 24 7
12 8
12
18 11
21 19 18
23

27 19
22 20
28 21

Ref WA149001-1 Page 025-0080

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Miscellaneous controls - Control Lever Page025-0080
Item Part Number Qty Description Comments
1 4380937M1 1 Helmet [A]
2 4380470M1 3 Gear Lever Knob
3 4380977M2 1 Helmet
4 4381107M1 1 Helmet
5 ACW0143930 1 Gear Lever
6 339229X1 2 Hex Cap Screw M6 X 40
7 391038X1 4 Flat Washer D6 18X1.5
8 4384218M1 4 Washer
9 1442021X1 2 Nut Metric
10 4390044M1 1 Lever
11 4390095M92 1 Lever
12 3783464M1 2 Key
13 ACW0128250 1 Lever
14 4381864M1 1 Spacer
15 3010467X1 1 Flat Washer
16 1440313X1 1 Spring Washer
17 339228X1 1 Hex Cap Screw M8 X12
18 4347255M2 2 Clevis
19 3009693X1 2 Hex Nut
20 4378037M2 1 Rod
21 339402X1 2 Nut Metric
22 390734X1 2 Flat Washer D10 21X2
23 4380327M1 1 Centraliser
24 4377239M3 1 Rod Link
25 1440350X1 1 Hex Socket Screw M6 X 20
26 339030X1 1 Nut Metric M6
27 339070X1 1 Hex Jam Nut M14
28 4383271M1 1 Sensor
29 4381880M2 1 Plug

FOOTNOTE [A] WITH TRANSMISSION 8 X 8

 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WA14-002-A

32

40
25 26 27
24 44 45 39
30 31 42
41
50 40
23
22 29
2 28
21 3
43
39
17 2
18
19
20 1 5
37 38
15 36
40
6 7
2
49 5
39
48 4 15

9 33
8 16 34
35
15 34
33
47 10
11
46 12
13
14

Ref WA149002-1 Page 025-0085

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Miscellaneous controls Page025-0085
Item Part Number Qty Description Comments
1 4378838M93 1 Brake Pedal
2 4379839M1 3 Spring
3 4378839M93 1 Brake Pedal
4 4378837M95 1 Clutch Pedal
5 4352624M1 2 Bearing Carrier
6 4352613M5 1 Shaft
7 3580982M1 1 Plug
8 4377238M2 1 Connecting Link
9 364525X1 1 O Ring
10 3011395X1 1 Spacer
11 4380131M2 1 Bumper
12 4380169M2 1 Insert
13 391472X1 1 Flat Washer
14 339805X1 1 Hex Cap Screw M16 X 100
15 4355728M1 1 Key
16 4377235M2 1 Bush
17 1441858X1 1 Grease Nipple
18 4392090M1 1 Grease Fitting
19 3389958M1 1 Spacer
20 4377584M2 1 Washer
21 1441500X1 1 Nylon Locknut
22 390971X1 1 Flat Washer
23 3015335X1 1 Spring
24 4374528M2 1 Brake Pedal Lock
25 1440350X1 1 Hex Socket Screw M6 X 20
26 4382681M3 1 Bracket
27 4382682M3 1 Cover
28 4385276M1 2 Pad
29 392309X1 2 Nut Special
30 391074X1 2 Hex Cap Screw M6 X 12
31 391884X1 1 Hex Cap Screw M6 X 50
32 4382589M1 2 Brake Sensor
33 4347255M2 2 Clevis
34 3009693X1 2 Hex Nut
35 4352616M2 1 Rod
36 4385960M2 2 Brake Rod
37 3009696X1 1 Hex Nut
38 4377578M1 1 Clevis
39 3019213X1 3 Clevis Pin
40 1442965X1 3 Split Pin
41 4391673M1 1 Right Hand Rod
42 339537X1 1 Nut M12
43 4391658M1 1 Turnbuckle
44 3009695X1 1 Nut Metric M12
45 4391670M1 1 Right Hand Rod
46 4384754M2 1 Switch
47 339070X1 2 Hex Jam Nut M14
48 4387293M2 1 Harness
49 4387292M2 1 Harness
50 4374528M2 1 Brake Pedal Lock
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WP49-001-A

3 1
4
5
3

Ref WP499001-1 Page 025-0090

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Control casing - Semi-Platform Page025-0090
Item Part Number Qty Description Comments
1 ACW0064780 1 Casing
2 339804X1 1 Hex Cap Screw M6X25
3 4378927M1 2 Guide Bush
4 4378928M1 1 Bush
5 4375120M3 1 Rod Link
6 1441500X1 1 Nylon Locknut M6
7 ACW0058410 1 Control Cable
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WA14-003-A

3
7 8
5
6
6
5
4

9 12 17 16
11
11 13
14 27
10

11
2
12

15

18 19 26
20
5 6
5
7 4
5
6
25
22
21
23 18

24

Ref WA149003-1 Page 025-0095

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Miscellaneous controls - Semi-Platform Page025-0095
Item Part Number Qty Description Comments
1 4380938M1 1 Helmet [A]
2 4380470M1 2 Gear Lever Knob
3 ACW0143930 1 Gear Lever
4 339229X1 2 Hex Cap Screw M6x40
5 391038X1 6 Flat Washer Diameter 6
6 4384218M1 4 Washer
7 1442021X1 2 Nut Metric M6
8 4382620M1 1 Cover
9 339123X1 3 Hex Cap Screw M8x20
10 4391392M1 1 Support
11 390972X1 9 Flat Washer Diameter 8
12 339169X1 6 Hex Nut M8
13 ACW0064780 1 Casing See Page - Reference Number 025-0090
14 339009X1 3 Hex Cap Screw M8X35
15 3580983M1 1 Grommet
16 4392620M1 1 Knob
17 4391391M3 1 Lever
18 3783464M1 3 Key
19 4391058M1 1 Rod Link
20 339560X1 2 Hex Cap Screw M6X16
21 339070X1 1 Hex Jam Nut
22 4388309M2 1 Support
23 4383271M1 1 Sensor
24 ACW0093590 1 Support
25 4390095M91 1 Lever
26 4390044M1 1 Lever
27 4380977M2 1 Helmet

FOOTNOTE [A] WITH 12X12 SPEED SYNCHRO SHUTTLE

 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WA14-005-A

7
5
9 6
5
11 32
10
8
11 27

12
16
13 2

15
14 26
12
19 11
12 22
31 23 6
17 5
36 24 7 4
5
14 6
30 25
18
20
21
35 29
34
33 28

Ref WA149005-1 Page 025-0100

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Miscellaneous controls - With Power Shuttle Page025-0100
Item Part Number Qty Description Comments
1 4380938M1 1 Helmet [B]
2 4380470M1 2 Gear Lever Knob
3 ACW0143930 1 Gear Lever
4 339229X1 1 Hex Cap Screw M6x40
5 391038X1 6 Flat Washer Diameter 6
6 ACW0144060 4 Washer
7 1442021X1 2 Nut Metric M6
8 4381880M2 1 Plug
9 339123X1 2 Hex Cap Screw M8x20
10 4380669M2 1 Bracket
11 390972X1 5 Flat Washer Diameter 8
12 339169X1 5 Hex Nut M8
13 4299464M2 1 Spring See Page - Reference Number 025-0090
14 339761X1 3 Hex Cap Screw M8X35
15 4382352M1 2 Pulley
16 3009194X1 1 Screw
17 392362X1 1 Nut Metric
18 3783464M1 3 Key
19 ACW0078100 1 Bracket
20 339704X1 2 Washer M6X16
21 3006431X1 1 Roll Pin
22 3011180X1 1 Spacer
23 339337X1 1 Hex Cap Screw
24 ACW0072830 1 Pedal
25 4390095M91 1 Lever
26 ACW0167190 1 Lever
27 4380977M2 1 Helmet
28 ACW0068950 1 Shield
29 339721X1 2 Hex Cap Screw
30 AG55412 2 Nut
31 3580982M1 1 Plug
32 391244X1 1 Hex Cap Screw M6 X 45
33 4290395M4 1 Transducer
34 ACW0063220 1 Fork
35 3787143M1 1 Screw M3 x 10
36 4289783M1 3 Screw M4 x 20

FOOTNOTE [B] WITH 12X12 SPEED SYNCHRO SHUTTLE

 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WG88-001-B

16
15
14
13
10
12 11
7
9
8
5

5
4
3
6
7 2
23 17 1
18
24 19
20
21
22

Ref WG889001-1 Page 025-0105

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Transmission Control - 8 Speed Transmission Page025-0105
Item Part Number Qty Description Comments
1 4308928M2 1 Housing
2 3010185X1 6 Screw M8 X 25
3 4310775M1 1 Spacer Diameter 8mm
Length 45mm
4 4310774M1 2 Locking Spring
5 1442085X1 3 Ball Diameter 8mm
6 4310776M1 1 Spacer Diameter 8mm
Length 59.40mm
7 3000052X1 4 Pin Diameter 11
Length 10mm
8 4308932M1 1 Screw Special
9 339070X1 1 Hex Jam Nut M14
10 3010654X1 1 Grease Fitting
11 4360890M1 1 Lever
12 339055X1 1 Pin (11)
8 X 40mm
13 4311020M1 1 Ring
14 4311943M1 1 Washer Diameter 36mm
15 339199X1 1 Stop Ring
16 4360881M1 1 Bellows
17 4312079M1 1 Spacer Length 10.3mm
18 4308929M2 1 Selector
19 4312078M1 1 Bush
20 4310190M1 1 Spring
21 4308931M1 1 Spacer
22 4308933M1 1 Shaft
23 4310088M1 1 Cover
24 3010346X1 8 Screw M8 X 20
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WG88-002-C

16
15
14
13
10
12 11
7
9
8 3
5

5
4
19 23
6
7 2
21 1
17
22
18
20

Ref WG889002-1 Page 025-0110

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Transmission Control - 12 Speed Transmission Page025-0110
Item Part Number Qty Description Comments
1 4308928M2 1 Housing
2 3010185X1 6 Screw M8 X 25
3 4310775M1 1 Spacer Diameter 8mm
Length 45mm
4 4310774M1 3 Locking Spring
5 1442085X1 4 Ball Diameter 8mm
6 4310776M1 1 Spacer Diameter 8mm
Length 59.40mm
7 3000052X1 4 Pin Diameter 11
Length 10mm
8 4308932M1 1 Screw Special
9 339070X1 1 Hex Jam Nut M14
10 3010654X1 1 Grease Fitting
11 4360890M1 1 Lever
12 339055X1 1 Pin (11)
8 X 40mm
13 4311020M1 1 Ring
14 4311943M1 1 Washer Diameter 36mm
15 339199X1 1 Stop Ring
16 4360881M1 1 Bellows
17 4308929M2 1 Selector Length 10.3mm
18 4308931M1 2 Spacer
19 4310190M1 1 Spring
20 4308933M1 1 Shaft
21 4310088M1 1 Cover
22 3010346X1 8 Screw M8 X 20
23 4310775M1 1 Spacer Diameter 8mm
Length 45mm
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WG83-001-B

2
3
4

6
8
7
11
1

9 10

Ref WG839001-1 Page 025-0115

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Gear Box Lubrication Page025-0115
Item Part Number Qty Description Comments
1 195869M1 1 O Ring
2 6215496M1 1 Union
3 3019395X1 1 O Ring (2)
4 195561M1 1 O Ring (2)
9.25 X 1.78
5 4314287M1 1 [Link] Pipe Diameter 10mm
6 4314280M91 1 Elbow Union 90°
7 195561M1 1 O Ring (6)
Diameter 9.25 X 1.78
8 3019398X1 1 O Ring (6)
Diameter 19.3
9 3019639X91 1 Plug M14 X 1.5
10 3019395X1 1 O Ring (9)
11 4309193M1 1 Pipe
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WG83-002-A

15
17
16

14
18
20
19

22
21
26
27

23
24 1
2
25 7
3
4
11
13
12

6
5
8
9
10
1

Ref WG839002-1 Page 025-0120

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Gear Box Lubrication - With Power Shuttle Page025-0120
Item Part Number Qty Description Comments
1 4359867M1 1 Hyd Drive Cover
2 4314565M2 1 Filter (1)
3 3011998X1 2 Seal Cap (1)
12 X 10.7/11.5
4 363549X1 2 O Ring (1)
Diameter 15.60 X 1.78
5 3019639X91 2 Plug (1)
M14 X 1.5
6 3019395X1 1 O Ring (5)
7 3712249M2 1 Seal Cap (1)
9.3 X 9.6/9.8
8 4300296M1 2 Bridle (1)
9 3009285X1 2 Hex Socket Screw (1)
M8 X 16
10 4308980M1 2 Electrovalve (1)
11 4313020M1 2 Tube
12 3014592X1 1 Screw M8 X 55
13 4302669M1 6 Screw M8 X 20
14 4314287M1 1 [Link] Pipe
15 6215496M1 1 Union
16 195561M1 1 O Ring (15)
17 3019395X1 1 O Ring (15)
18 4314280M91 1 Elbow Union
19 195561M1 1 O Ring (18)
20 3019398X1 1 O Ring (18)
21 195869M1 1 O Ring
22 4309193M1 1 Pipe
23 4359870M1 1 Bracket
24 3619551M3 1 Accumulator
25 4359883M1 1 Union
26 3011673X1 1 Nut Metric M28
27 3010185X1 2 Screw M8 X 25
 MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200
9-WU37-001-B

3
1
3
2

8
3

10

10
4
1 5
9 3
3 6
7

Ref WU379001-1 Page 025-0125

Massey Ferguson
MF 4708 TRACTOR ( ECO4 / TIER 2 ) - 6246200 6246200
Electronic Equipment - Sensors Page025-0125
Item Part Number Qty Description Comments
1 4310438M1 2 Inductive Sensor [A,B]
Length 46 mm
2 4310439M1 1 Inductive Sensor [A,B]
Length 67 mm
3 3014697X1 X Hex Socket Screw M8 X 16
4 3019913X1 1 O Ring
5 4359436M1 1 Oil Level Gauge [A]
4359435M1 1 Oil Level Gauge [B]
6 832268M1 1 O Ring
7 3016128X1 1 Cup Plug [A]
Diameter 25
8 4310438M1 1 Inductive Sensor [B,D]
Length 46 mm
9 Part Not Used
10 3016127X1 1 Cup Plug [B]

FOOTNOTE [A] WITH MECHANICAL REVERSING GEAR

FOOTNOTE [B] WITH POWER SHUTTLE
FOOTNOTE [D] 12 SPEED
