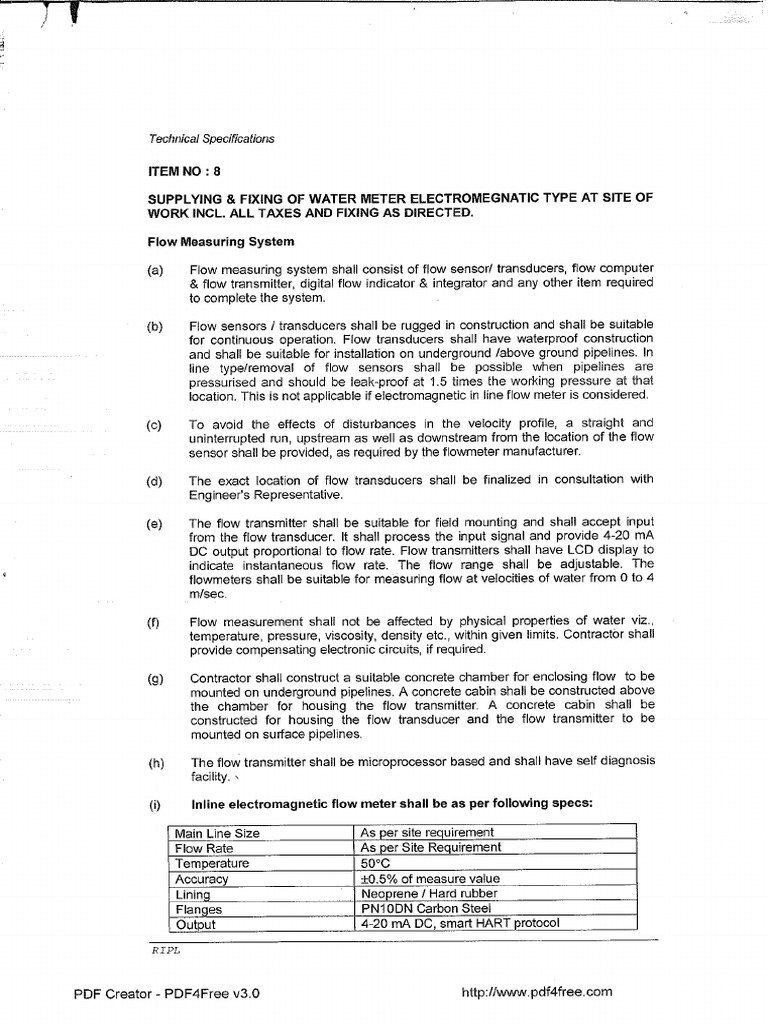

Technical Specifications ITEMNO : 8 ‘SUPPLYING & FIXING OF WATER METER ELECTROMEGNATIC TYPE AT SITE OF WORK INCL, ALL TAXES AND FIXING AS DIRECTED. Flow Measuring System (a) (b) () @) @) o (9) (hy (i) Flow measuring system shall consist of flow sensor! transducers, fiow computer & flow transmitter, digital flow indicator & integrator and any other item required to complete the system Flow sensors / transducers shall be rugged in construction and shall be suitable for continuous operation. Flow transducers shall have waterproof construction and shall be suitable for installation on underground /above ground pipelines. In line type/removal of flow sensors shall be possible when pipelines are pressurised and should be leak-proof at 1.5 times the working pressure at that location. This is not applicable if electromagnetic in line flow meter is considered To avold the effects of disturbances in the velocity profile, a straight and uninterrupted run, upstream as well as downstream from the location of the flow ‘sensor shall be provided, as required by the flowmeter manufacturer. The exact location of flow transducers shall be finalized in consultation with Engineer's Representative. The flow transmitter shall be suitable for field mounting and shall accept input from the flow transducer. It shall process the input signal and provide 4-20 mA DC output proportional to flow rate. Flow transmitters shall have LCD display to indicate instantaneous flow rate. The flow range shall be adjustable, The flowmeters shall be suitable for measuring flow at velocities of water from 0 to 4 msec. Flow measurement shall not be affected by physical properties of water viz temperature, pressure, viscosity, density etc., within given limits, Contractor shall provide compensating electronic circuits, if required. Contractor shall construct a suitable concrete chamber for enclosing flow to be mounted on underground pipelines. A conerete cabin shall be constructed above the chamber for housing the flow transmitter. A concrete cabin shall be constructed for housing the flow transducer and the flow transmitter to be mounted on surface pipelines. The flow transmitter shall be microprocessor based and shall have self diagnosis facility.» Inline electromagnetic flow meter shall be as per following specs: Main Line Size As per site requirement Flow Rate ‘As per Site Requirement Temperature 60°C ‘Accura 40.5% of measure value Lining Neoprene / Hard rubber Flanges PNi0DN Carbon Steel Output 4-20 mA DC, smart HART protocol IPE PDF Creator - PDF4Free v3.0 hittp:/Aww.pdfafree.comTechnical Specifications Display 2 line back It LCD display with builtin totalizer Electrodes Measuring, reference and empty pipe electrodes of $8316. Empty pipe alarm facility to be provided Coll Housing $8204 Power Suppl ‘230VAC, 50HZ Protection encloser IP 68 fs Note {i) Digital Flow indicator and flow integrator shall be @ combined unit mounted on panel. (i) Mechanical type water meter shall be conforming to 1S : 2373 with latest amendment, PDF Creator - PDF4Free v3.0 hitp:/mww.pdféfree.com
