4 Initialize Setting

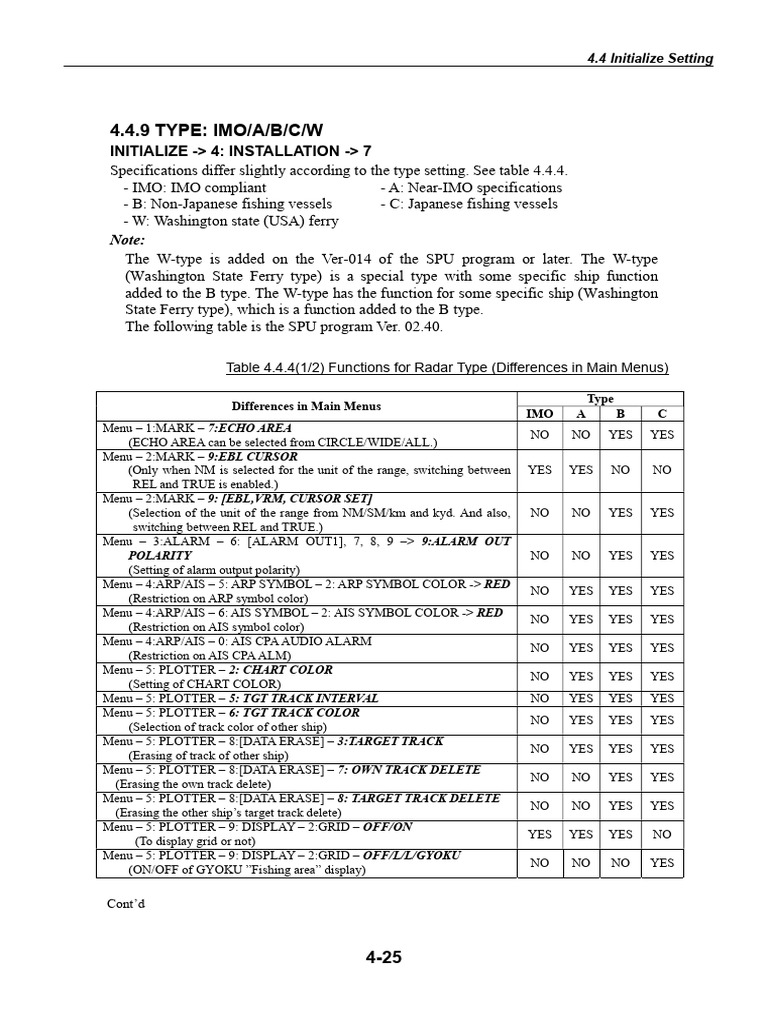

4.4.9 TYPE: IMO/A/B/C/W

INITIALIZE -> 4: INSTALLATION -> 7
Specifications differ slightly according to the type setting. See table 4.4.4.
- IMO: IMO compliant - A: Near-IMO specifications
- B: Non-Japanese fishing vessels - C: Japanese fishing vessels
- W: Washington state (USA) ferry
Note:
The W-type is added on the Ver-014 of the SPU program or later. The W-type
(Washington State Ferry type) is a special type with some specific ship function
added to the B type. The W-type has the function for some specific ship (Washington
State Ferry type), which is a function added to the B type.
The following table is the SPU program Ver. 02.40.

Table 4.4.4(1/2) Functions for Radar Type (Differences in Main Menus)

Type
Differences in Main Menus
IMO A B C
Menu – 1:MARK – 7:ECHO AREA
NO NO YES YES
(ECHO AREA can be selected from CIRCLE/WIDE/ALL.)
Menu – 2:MARK – 9:EBL CURSOR
(Only when NM is selected for the unit of the range, switching between YES YES NO NO
REL and TRUE is enabled.)
Menu – 2:MARK – 9: [EBL,VRM, CURSOR SET]
(Selection of the unit of the range from NM/SM/km and kyd. And also, NO NO YES YES
switching between REL and TRUE.)
Menu – 3:ALARM – 6: [ALARM OUT1], 7, 8, 9 –> 9:ALARM OUT
POLARITY NO NO YES YES
(Setting of alarm output polarity)
Menu – 4:ARP/AIS – 5: ARP SYMBOL – 2: ARP SYMBOL COLOR -> RED
NO YES YES YES
(Restriction on ARP symbol color)
Menu – 4:ARP/AIS – 6: AIS SYMBOL – 2: AIS SYMBOL COLOR -> RED
NO YES YES YES
(Restriction on AIS symbol color)
Menu – 4:ARP/AIS – 0: AIS CPA AUDIO ALARM
NO YES YES YES
(Restriction on AIS CPA ALM)
Menu – 5: PLOTTER – 2: CHART COLOR
NO YES YES YES
(Setting of CHART COLOR)
Menu – 5: PLOTTER – 5: TGT TRACK INTERVAL NO YES YES YES
Menu – 5: PLOTTER – 6: TGT TRACK COLOR
NO YES YES YES
(Selection of track color of other ship)
Menu – 5: PLOTTER – 8:[DATA ERASE] – 3:TARGET TRACK
NO YES YES YES
(Erasing of track of other ship)
Menu – 5: PLOTTER – 8:[DATA ERASE] – 7: OWN TRACK DELETE
NO NO YES YES
(Erasing the own track delete)
Menu – 5: PLOTTER – 8:[DATA ERASE] – 8: TARGET TRACK DELETE
NO NO YES YES
(Erasing the other ship’s target track delete)
Menu – 5: PLOTTER – 9: DISPLAY – 2:GRID – OFF/ON
YES YES YES NO
(To display grid or not)
Menu – 5: PLOTTER – 9: DISPLAY – 2:GRID – OFF/L/L/GYOKU
NO NO NO YES
(ON/OFF of GYOKU ”Fishing area” display)

Cont’d

4-25
 4.4 Initialize Setting

Menu – 5: PLOTTER – 9: DISPLAY – 4: TARGET TRACK

NO YES YES YES
(To display of track of other ship or not)
Menu – 5: PLOTTER – 9: DISPLAY – 6: LAND DENSITY
NO YES YES YES
(To display the land density or not)
Menu – 5: PLOTTER – 9: DISPLAY – 7: PLACE NAME
NO YES YES YES
(To display the place name or not)

Table 4.4.4(2/2) Functions for Radar Type (Differences in Main Menus)

Type
Differences in Main Menus
IMO A B C
Menu – 6: CARD – 7: [WR TARGET TRACK]
NO YES YES YES
(To write the track of other ship or not)
Menu – 8:NAV LINE WPT – 2:NAV LINE DATA – WPT MARK NO YES YES YES
Menu – 9: CUSTOMIZE/TEST – 3: [F1], 4, 5, 6 – 5: [OPERATION] – 2 ->
NO NO YES YES
TLL, ANCHOR WATCH, COLOR SHIFT, ICON DISP
Menu – 9: CUSTOMIZE/TEST – 3: [F1], 4, 5, 6 – 5: [OPERATION] – 2 ->
NO YES YES YES
TARGET TRACK DELETE
Menu – 9: CUSTOMIZE/TEST – 3: [F1], 4, 5, 6 – 5: [OPERATION] – 2 ->
NO NO NO YES
TLL (Presence or absence of TLL output)
Menu – 9: CUSTOMIZE/TEST – 9: [DUAL RADAR]
NO YES YES YES
(DUAL RADAR function)
Menu – 9: CUSTOMIZE/TEST – 7: [OPERATION] – 5: POP UP
GUIDANCE NO NO YES YES
(ON/OFF settting of pop up guidance)
Menu – 0:INITIALIZE– 4:INSTALLATION – 3:RANGE UNIT
NO NO YES YES
(Set measure the Range ring)
Menu – 0:INITIALIZE– 6:ARP PRESET – 6:ARP W/O GYRO
NO YES YES YES
(ARPA operation setting without GYRO data)

Table 4.4.5 Functions for Radar Type (Differences On-Screen Box Menus)

Type
Differences in Icon Menus
IMO A B C
[OS POSN] – 1:NAV AID – DEAD RECKONING
(On the IMO type, manual input is disabled when ON is set in NO YES YES YES
“[Menu]->4->8:AIS FUNCTION”)
[SPD] – 1:SHIP SPEED – MANUAL/REF
(On the IMO type, MANUAL/REF cannot be switched when ON is set in NO YES YES YES
“[Menu]->4->8:AIS FUNCTION”)
[SPD] – 1:SET DRIFT – OFF/ON
(On the IMO type, SET DRIFT is disabled when ON is set in NO YES YES YES
“[Menu]->4->8:AIS FUNCTION”)
[BRILL] (1/2 page) - 1: ECHO COLOR ! COLOR
NO NO YES YES
(On the IMO type, ECHO COLOR COLOR is unable.)
[BRILL] (2/2 page) - 0: NEXT! 0: CHART NO YES YES YES

Cont’d

4-26
 4.4 Initialize Setting

[TRAIL] - 3: NARROW TRAIL

NO NO YES YES
(Setting of narrow trail)
[TRAIL] - 8: TRAIL LENGTH NO NO YES YES
[TRAIL] - 9: TRAIL HIDE NO NO YES YES
[TRAIL] - 0: TRAIL COLOR NO NO YES YES
[MARK] -0: MAP MARK COLOR
NO NO YES YES
(Specification of chart color. CHART is disabled on the IMO type.)
[ANT INF] – 8: SUB MONITOR
NO NO YES YES
(Easy ON/OFF switching between radar and sub monitor)
[COURSOL] – TARGET TRACK ON, TARGET TRACK OFF
NO YES YES YES
(ON/OFF setting of TARGET TRACK is not displayed on the IMO type)

Table 4.4.6 Functions for Radar Type

Differences in Functions Type Functions

IMO, A 0.125/0.25/0.5/0.75/1.5/3/6/12/24/48/96
Range
B, C 0.125/0.25/0.5/0.75/1.5/3/4/6/8/12/16/24/32/48/96/120
IMO, A Rader/Rader+Plotter
Handling of chart
B, C Rader/Plotter/Rader+Plotter
IMO IEC61162 2nd ED NMEA Ver-3.0 (Equivalent)
NAV data
A, B, C IEC61162 NMEA Ver-1.5 (Equivalent)
DATUM error is displayed when there is no DTM (WSG-84)
IMO
sentence.
When handling DTM
DATUM error is not displayed even when there is no DTM sentence.
Sentence error
A, B, C However, when DTM data is discontinued, DATUM error is
displayed.
When DTM is WGS-84, ON/OFF of “[Menu]->4->8:
When handling AIS
IMO AIS FUNCTION” is enabled. When DTM is other than WGS-84, AIS
display, there is no DTM
function is turned off.
sentence error.
A, B, C No restriction
EPFS error display when IMO EPFS error is displayed.
GPS accuracy is changed. A, B, C EPFS error is not displayed.
ALARM 1 is set in a range of 3 to 6 NM. There is no restriction on
IMO
Range of Alarm Zone the range of ALARM 2.
A, B, C There is no restriction either on ALARM 1 and ALARM 2.
IMO, A One (1)
Cursor data box When “3: SET DRIFT” is set to OFF in the [SPD] icon menu, one
B, C
more cursor data box is added.
Handling of the HDT IMO Fixed 34.8 kbps (SPU Ver. 02.40and 50.08 and after)
sentence A, B, C 4800 to 34.8 kbps
