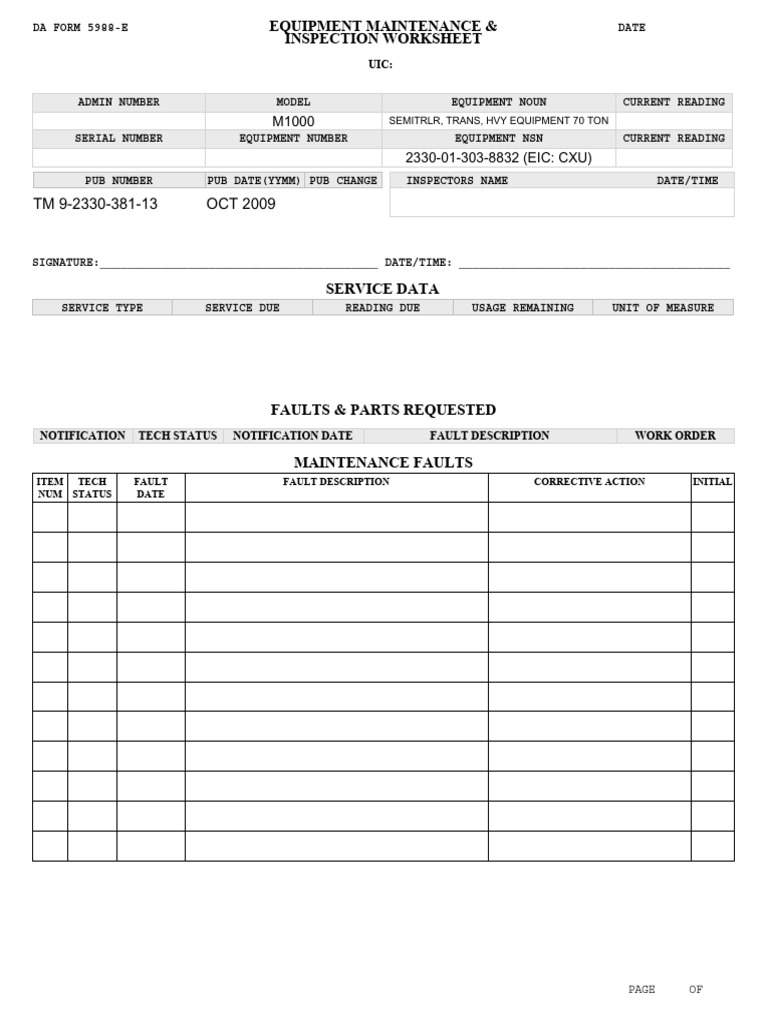

DA FORM 5988-E EQUIPMENT MAINTENANCE & DATE

INSPECTION WORKSHEET
UIC:

ADMIN NUMBER MODEL EQUIPMENT NOUN CURRENT READING

M1000 SEMITRLR, TRANS, HVY EQUIPMENT 70 TON
SERIAL NUMBER EQUIPMENT NUMBER EQUIPMENT NSN CURRENT READING
2330-01-303-8832 (EIC: CXU)
PUB NUMBER PUB DATE(YYMM) PUB CHANGE INSPECTORS NAME DATE/TIME

TM 9-2330-381-13 OCT 2009

SIGNATURE:_________________________________________ DATE/TIME: ________________________________________

SERVICE DATA
SERVICE TYPE SERVICE DUE READING DUE USAGE REMAINING UNIT OF MEASURE

FAULTS & PARTS REQUESTED

NOTIFICATION TECH STATUS NOTIFICATION DATE FAULT DESCRIPTION WORK ORDER

MAINTENANCE FAULTS
ITEM TECH FAULT FAULT DESCRIPTION CORRECTIVE ACTION INITIAL
NUM STATUS DATE

PAGE OF
 TM 9-2330-381-13

TECHNICAL MANUAL
OPERATOR AND FIELD MAINTENANCE MANUAL
FOR
SEMITRAILER, TRANSPORTER, HEAVY EQUIPMENT
70 TON, M1000
NSN 2330-01-303-8832 (EIC: CXU)

DISTRIBUTION STATEMENT A - Approved for public release, distribution is unlimited.

HEADQUARTERS, DEPARTMENT OF THE ARMY

OCTOBER 2009
 TM 9-2330-381-13 0035

FIELD MAINTENANCE

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS)

INITIAL SETUP:
Tools and Special Tools WP 0037.1
General Mechanic’s Tool Kit (GMTK) (WP 0168, WP 0067
Item 11) WP 0069
WP 0069.1
Materials/Parts WP 0069.2
Sealing Compound (WP 0170, Item 25.1) WP 0096
Annual Service Kit (1) WP 0151
References WP 0169
WP 0004 Equipment Condition
WP 0037 Heavy Equipment Transporter (HET) set up (WP 0004)

Preventive Maintenance Checks and Services (PMCS) for HET

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
1 Before Cable Guide For recovery of
disabled
vehicles: Rollers
that are so
severely gouged
that they tear or
shred the cable
or will not turn.

Figure 1. Cable Guide.

Driver
1. Inspect the cable guide rollers for freedom of
movement and corrosion.
2. Check for presence of lubrication.

0035-1 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
2 Before Davit Assembly
WARNING

On some semitrailers a solar battery charger is

mounted to the top of the gooseneck directly in
front of the spare tires. Persons working on top of
the gooseneck must take EXTREME care not to
step on the gooseneck or trip over the solar battery
charger. Failure to follow this warning may result
in serious injury or death to personnel or damage to
equipment.

Figure 2. Davit Assembly.

Driver
1. Inspect the davit assembly for secure mounting.
2. Check the cable for damage and corrosion.
3. Ensure the hand winch operates properly.
4. Ensure the cable guide is secured by the hitch pin.

Change 1 0035-2
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
3 Before Spare Wheel Any tire is
Assembly
WARNING missing.

On some semitrailers a solar battery charger is

mounted to the top of the gooseneck directly in
front of the spare tires. Persons working on top of
the gooseneck must take EXTREME care not to
step on the gooseneck or trip over the solar battery
charger. Failure to follow this warning may result
in serious injury or death to personnel or damage to
equipment.

Figure 3. Spare Wheel Assembly.

Driver
1. Ensure both spare wheel assemblies are present and
securely mounted.
a. Check the spare tires for tread wear, cuts, and
weather deterioration.
b. Inspect the valve stems.
c. Check to see if tires are flat or under-inflated.

0035-3 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
4 Before APU Coolant Any Class III
Level
WARNING leaks exist.

 Use protective gloves when inspecting the APU

or serious injury to personnel may result from
engine heat.
 When checking for leaks, never open any type of
fluid holding tanks while the APU is hot or
severe burns from the spraying of hot fluids may
result. Give the systems time to cool before
attempting to make any fluid checks.
Failure to follow these warnings may result in
injury to personnel.

NOTE
 If the gooseneck is lowered to the lowest position,
the oil level in the APU will appear low on the
dipstick. If the oil is visible on the dipstick, the
APU may be started to adjust the gooseneck to
normal running height.
 Prior to checking the fluid levels on the semitrailer,
both the gooseneck and the platform must be placed
at normal running height for accurate readings.

Figure 4. Coolant Level.

Driver
1. Check the APU coolant level.

Change 1 0035-4
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
4 Continued APU Coolant a. If coolant level is low, fill the radiator with
Level coolant as required.
b. Check the cooling system for leaks.
c. Check the APU coolant for contamination.
5 Before APU Oil Level Any Class III
leaks exist.

Figure 5. Oil Level.

Driver
1. Remove the oil level gauge (dipstick) and check the
APU oil level.
2. Inspect the APU for oil leaks.
3. Add oil as required.
a. Maintain the oil level between the ADD and
FULL marks.
b. DO NOT overfill.

0035-5 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
6 Before APU Hydraulic Any Class III
Tank leaks exist.

Figure 6. Hydraulic Tank.

Driver
1. Inspect the hydraulic tank for leaks and secure
mounting.
a. Check the hydraulic fluid level.
2. Ensure the valve is in the open position.
7 Before APU Fuel Tank Any Class III
leaks exist.

Figure 7. APU Fuel Tank.

Driver
1. Check the APU fuel tank for fuel.
a. If fuel is not visible on sight gauge, remove the
cap and screen and look inside the tank.
b. If fuel is low or there is an insufficient amount for
intended use, refill the tank as required.

Change 1 0035-6
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
8 Before APU Fuel Filter Any Class III
Assembly leaks exist.

Figure 8. APU Fuel Filter Assembly.

Driver
1. Visually check the sediment bowl on the fuel filter
assembly for contaminants and water.
2. If contaminants are found, notify sustainment
maintenance.

0035-7 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
9 Before APU Battery Battery is
WARNING unserviceable,
missing, or
leaking;
terminals are
burnt; or hold-
down brackets
DO NOT wear watches, rings, or other jewelry that
are not secure.
could short out the battery terminals while
servicing the battery. DO NOT smoke or use open
flame around batteries. The battery may explode
from a spark. Battery acid is harmful to skin and
eyes. Wear protective goggles to prevent injury to
personnel when working with batteries. Failure to
follow this warning may result in injury to
personnel.

Figure 9. APU Battery.

Change 1 0035-8
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
Driver
1. Ensure the battery is secured to the APU frame.
a. Ensure the battery hold-down bracket is properly
installed for the type of battery used.
b. Visually inspect the battery for a cracked or
leaking casing and broken, burned, or corroded
terminals.
2. If a solar battery charger is installed, ensure that the
leads are firmly attached to the battery terminals.
10 Before APU Fan Belt Fan belt is
missing.

Fan dynamo is
cracked or
missing
hardware.

Figure 10. APU Fan Belt.

Driver
1. Check for the presence of a fan belt.
a. Inspect the fan dynamo for cracks, breaks, or
missing hardware.

0035-9 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
11 Before APU Engine

Figure 11. APU Engine.

Driver
1. Check the APU engine for proper mounting to the
APU frame.
12 Before APU Control Controls fail to
Box operate or APU
does not start
after four
attempts.

Oil pressure
indicator light
does not go off
within 15
Figure 12. APU Control Box. seconds of
starting the
APU.
Driver
1. Inspect the APU control box for secure mounting and
corrosion.
a. Ensure the APU throttle control and START
switch operate properly without binding or
sticking.
2. Ensure the START switch returns to the OFF
position when released from the GLOW or START
position.
3. Ensure the throttle is pushed in and the START
switch is in the OFF position.
4. Start the APU.

Change 1 0035-10
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
13 Before Auxiliary Power Any Class III
Unit (APU)
WARNING leaks exist.

Excessive noise
or discolored
exhaust.
 Use eye and ear protection and protective gloves
when inspecting the APU while it is running or
serious injury to personnel may result from
moving parts, excessive noise level, and engine
heat.
 When checking for leaks, never open any type of
fluid holding tanks during operation or while
under pressure or severe burns from the
spraying of hot fluids may result.
Failure to follow these warnings may result in
injury to personnel.

Driver
1. Check for unusual noises, excessive or discolored
exhaust smoke, or fluid leaks from the APU while
the APU is running.
a. Check the APU for coolant, fuel, oil, and
hydraulic leaks.
b. Ensure the APU responds to the throttle control.
2. Leave the APU running.

0035-11 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
14 Before Steering Console Any cracks
NOTE exist.
The hydraulic component/system inspection is a
multiple point inspection that must be performed each Any Class III
time a hydraulic component/item is encountered. leaks exist.

Figure 13. Steering Console.

Driver
1. Inspect the steering console for the condition of the
kingpin, steering wedge assembly, steering plate,
steering cylinders, hydraulic hoses, and slider bar.
2. Check for cracks, dents, leaks, and presence of
lubrication.
3. If the semitrailer is coupled to the tractor, ensure that
the steering wedge is snugly seated in the fifth wheel
vee.
4. Check condition of steering wedge lockwasher.
a. Replace lockwasher if lockwasher is flat, cracked,
or missing.

Change 1 0035-12
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
15 Before Intervehicular Connectors are
NOTE loose or
 The electrical/air system component and system damaged
inspections on the semitrailer are multiple making them
inspections that must be performed each time an inoperable.
electrical/air system component is encountered.
 It is possible to have what sounds like an air leak Gladhand or
coming from air frame weldments that are not part packing is
of the air system and is not a deadline. missing,
damaged, or
leaking.

Any air system

leaks.

Any damage is
present.

Figure 14. Intervehicular Connections.

Driver
1. Inspect two electrical connectors for secure mounting
and damage.
2. Inspect the pins for any bent, burned, or broken
conditions. Look for foreign matter buildup.
3. Inspect the gladhands for secure mounting and for
damaged or missing packing.
4. Couple the tractor and semitrailer.

0035-13 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
16 Before Pivot Pin Hardware is
missing.

For recovery of
disabled
vehicles: Pulley
is cracked or so
severely gouged
that it
tears/shreds
cable or will not
turn.

Figure 15. Pivot Pin.

Driver
1. Ensure two locking pins and attaching hardware are
in place and secure.
2. Check the cable guide pulley for wear, cracks,
binding, and obvious damage.

Change 1 0035-14
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
17 Before Front Support Front support
Legs
WARNING leg is
inoperative or
missing.

Legs cannot be
 Before performing any maintenance on retracted or
platform, lower front and rear support legs. tightened.
Failure to follow this warning may result in
injury to personnel.
 When lowering support legs, ensure feet and
hands are clear of the support leg foot as it nears
the ground. Failure to follow this warning may
result in injury to personnel.
 When lowering or raising the front support legs,
always install the retaining pins. Failure to
follow this warning may result in injury to
personnel.

Figure 16. Front Support Legs.

Driver
1. Inspect the front support leg welds and
attaching/mounting hardware.
2. Remove the linch pin and retaining pin.
3. Operate the handcrank to ensure proper operation
without binding.

0035-15 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
18 Before Gooseneck Pivot Any Class III
Cylinder leaks exist.

Damage to
cylinder occurs.

Figure 17. Gooseneck Pivot Cylinder.

Driver
1. Inspect the gooseneck pivot cylinders for damage,
missing hardware, and leaks on the hydraulic
cylinder, line fracture valve, and hydraulic lines.

Change 1 0035-16
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
19 Before Vehicle Lights Taillights or
NOTE brake lights are
 Some semitrailers may have light emitting diode not working
(LED) lights installed (12 volt or 24 volt). properly.
 An assistant is needed while checking the brake
lights. Twenty five
percent or more
of diodes do not
light.

Figure 18. Vehicle Lights.

Driver
1. Look for damage and the presence of lenses for the
running lights, beacon warning light, turn indicators,
and brake lights.
a. Look for the presence of and damage to
reflectors.
b. Operate the running lights, convoy warning light,
turn indicators, and brake lights.
c. Ensure all lights are working properly, including
the blackout and marker lights.

0035-17 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
20 Before Stowage
Compartment
and BII

Figure 19. Stowage Compartment.

Driver
1. Inspect the stowage compartment door hinges and
latch for damaged or missing parts.
a. Inventory the BII (WP 0169).
b. Replace any BII that is damaged or missing.

Change 1 0035-18
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
21 Before Payload/Cargo For missions
Tiedown Rings requiring use of
And Lifting Eyes tiedown straps:
Any
cargo/transport
tiedown rings
are broken or
missing.

For missions
requiring use of
tiedown chains:
Any payload
tiedown rings
are broken or
missing.

For missions
requiring ISO
container
brackets: Any
brackets are
damaged or
missing parts.

Figure 20. Payload/Cargo Tiedown Rings

and Lifting Eyes.

Driver
1. Inspect 34 cargo/transport tiedown rings for damaged
and missing hardware.
a. Inspect four lifting eyes and six payload tiedown
rings for damage and excessive corrosion.
b. Inspect eight ISO container brackets for damaged
and missing parts.

0035-19 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
22 Before Brake Release
Valve/Drain
Cocks

Figure 21. Brake Release Valve/Drain Cocks.

Driver
1. Check the pneumatic brake valve for leaks and
damage.
a. Check the pneumatic brake valve for loose or
missing hardware.
2. Ensure that the emergency gladhand is not
pressurized.
3. Push the valve handle in to release the brakes. The
handle should stay in and release the brakes.
a. Pull out the valve handle and ensure the brakes
are engaged.

Change 1 0035-20
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
23 Before Suspension Any damage
System
CAUTION exists.
 If mud or debris builds up in the lower
suspension arm it must be cleared immediately Any Class III
or damage to the brake air lines will result leaks exist.
 If the brake dust cover or brake chamber dust
plugs are distorted or missing, the brake
chamber hole should be covered with tape or
some other temporary means of protection until
dust plug can be replaced or damage to
equipment may result

NOTE
The suspension system consists of ten assemblies that
require multiple-point inspections each time a
component/item is encountered.

Figure 22. Suspension System.

Driver
1. Inspect the upper and lower suspension arms, axle,
dual wheel assemblies, suspension cylinder, dust
covers, slack adjusters, and service/parking brake
chamber for leaks, damage, missing parts, and
buildup of mud or debris.

0035-21 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
24 Before Suspension Any damage
Isolation Valves exists.
and Fittings
Any Class III
leaks exist.

Figure 23. Suspension System.

Driver
1. Inspect the suspension isolation valves and all line
fittings in the area for leaks, obvious damage, and
missing hardware.
a. Ensure the handle of the valve is open (pushed in
toward the center of the semitrailer).

Change 1 0035-22
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
25 Before Tire and Wheel Three or more
nuts are missing
from any wheel.

One or more flat

tires that will
not hold air.

Figure 24. Tire and Wheel.

Driver
1. Inspect each tire for cuts, cracks, bulges, blisters,
ripples, foreign objects, unusual tread wear, or other
defects (i.e., exposed cords or protruding filaments).
a. Ensure that all lug nuts are present and tight.
b. Inspect the valve stems for leaks and cuts.
c. Inspect the valve stems for the presence of a
valve cap.
d. Inspect each wheel for obvious damage.
e. Strike the tires with a blunt object to identify flat
or under-inflated tires.

0035-23 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
26 Before Steering Any links that
WARNING are broken or
not attached.

Any Class III

leaks exist.
Prior to inspection, if the platform was raised, no
one shall go under the semitrailer unless all support
legs have been lowered and are supporting the
platform. Failure to follow this warning may result
in serious injury or death to personnel.

NOTE
The steering installation consists of four steering plates
and interconnecting linkages that require multiple-
point inspections each time a component/item is
encountered.

Figure 25. Steering Installation.

Change 1 0035-24
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
Driver
1. Check four steering plates, all longitudinal struts, all
connecting links, and two fixed linkages for breaks
and secure mounting.
a. Check the steering cylinders and hydraulic lines
for leaks, defects, and secure mounting.
27 Before Rear Support Rear support
Legs
WARNING legs are
inoperative or
missing.

Legs cannot be
 Before performing any maintenance on retracted or
platform, lower front and rear support legs. tightened.
Failure to follow this warning may result in
injury to personnel.
 When lowering support legs, ensure feet and
hands are clear of the support leg foot as it nears
the ground. Failure to follow this warning may
result in injury to personnel.
 When lowering or raising the front support legs,
always install the retaining pins. Failure to
follow this warning may result in injury to
personnel.

0035-25 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:

Figure 26. Rear Support Legs.

Driver
1. Inspect the rear support legs, welds, and
attaching/mounting hardware.
2. Operate the handcrank on each support leg to ensure
proper operation without binding.
3. Ensure that protective covers are in place.
4. Check that rear support legs are fully retracted and
the cover closes freely and latches properly.
5. Ensure raised portion of nut or socket head screw is
positioned outboard.

Change 1 0035-26
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
28 Before Splash Guards

Figure 27. Splash Guards.

Driver
1. Check for deteriorating or missing parts.
29 Before Covers

Figure 28. Splash Guards.

Driver
1. Inspect the covers for cracks, breaks, and missing
parts.

0035-27 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
30 Before Defectors

Figure 29. Deflectors.

Driver
1. Inspect the deflectors for cracks, breaks, and missing
parts.

Change 1 0035-28
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
31 Before Data Plates,
Decals, and
Stencils

Figure 30. Data Plates.

Driver
1. Inspect the data plates, decals, and stencils to ensure
that they are visible and legible.
a. Ensure that rivets are not missing.
b. Inspect the decals to ensure that there are no rips
or tears.
32 Before Loading Ramps Ramp(s) cannot
be lowered or
raised properly.

Ramp is missing
or severely
damaged.

Figure 31. Loading Ramps.

0035-29 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
Driver
1. Inspect the ramps, tiedown chains/load binders, ramp
spring, guide rod assembly, and pivot shafts for
obvious damage.
a. Lower and raise both ramps.
b. Ensure that loading ramps are raised and the
tiedown chains/load binders are secured with no
sags in the chains.
33 Before Snatch Block For missions
requiring dual
winch
unloading:
Snatch block is
cracked or
gouged so
severely that it
tears or shreds
the cable,
cannot be
moved, or will
not operate.

Figure 32. Snatch Block.

Driver
1. Inspect the snatch block for obvious damage and
secure mounting.
a. Ensure the locking pin (linch pin) assembly is
properly installed to secure the keeper pin.
b. Check that the snatch block is in proper stow
position and is held firmly secured by the stow
clamp handle.

Change 1 0035-30
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
34 Before Hydraulic Any Class III
Control Module leaks exist.

Difficult
operation of any
handles exist.

Erratic
operation of
hydraulic
components
exist.

Figure 33. Hydraulic Control Module.

Driver
1. Inspect the hydraulic control module for leaks,
obvious defects, and secure mounting.
2. Ensure that the control valve handles can operate
freely without binding or sticking.
3. Operate the hydraulics in accordance with WP 0004.
4. Check for leaks, erratic operation of hydraulic
components, and unusual noises during operation.
35 Before Hydraulic Any Class III
Pressure Gauges leaks exist.

Obvious
discoloration of
the gauge fluid
or bulging of the
gauge face
occurs.

Figure 34. Hydraulic Pressure Gauges.

Driver
1. Inspect the hydraulic pressure gauges for leaks,
obvious defects, and secure mounting.

0035-31 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
2. Turn the clearance marker lights on and check the
steering low pressure indicator light.
a. If the steering low pressure indicator light is lit,
recharge the steering system.
3. If the semitrailer is coupled to the tractor, ensure the
gooseneck isolation valve is in the RUN position and
the suspension shutoff valve is in the SHUTOFF
position (handle pushed inward).
36 Before Hydraulic Any Class III
Pressure Filter leaks exist.
Assembly

Figure 35. Hydraulic Pressure Filter Assembly.

Driver
1. Inspect the area around the hydraulic pressure filter
assembly for leaks.
37 Before Starter

Figure 36. Starter.

Driver
1. Inspect cables for corrosion.
a. Inspect the cables for frayed or broken wires.

Change 1 0035-32
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
38 Before Auxiliary Power Driver
Unit Jump Start
1. Inspect cables for corrosion.
System
a. Inspect the cables for frayed or broken wires.
b. Inspect the cables for defective terminal lugs or
battery clamps.
39 Before Pressurize Operator
Steering
1. Verify steering system is straight.
2. Start APU.

NOTE
Do not steer tires.
3. Momentarily move steering handle up and then down
and to center.
4. Repeat 4 to 6 times.
40 During Cable Guide For recovery of
disabled
vehicles: Any
rollers are so
severely gouged
that they tear or
shred the cable
or will not turn.

Figure 37. Cable Guide.

Driver
1. Inspect the cable guide rollers for freedom of
movement and corrosion.
2. Check for presence of lubrication.

0035-33 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
41 During Davit Assembly
WARNING

On some semitrailers a solar battery charger is

mounted to the top of the gooseneck directly in
front of the spare tires. Persons working on top of
the gooseneck must take EXTREME care not to
step on the gooseneck or trip over the solar battery
charger. Failure to follow this warning may result
in serious injury or death to personnel or damage to
equipment.

Figure 38. Davit Assembly.

Driver
1. Inspect the davit assembly for secure mounting.
2. Check the cable for damage and corrosion.
3. Ensure the hand winch operates properly.
4. Ensure the cable guide is secured by the hitch pin.

Change 1 0035-34
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
42 During Auxiliary Power Any Class III
Unit (APU)
WARNING leaks exist.

Excessive noise
or discolored
exhaust.
 Use eye and ear protection and protective gloves
when inspecting the APU while it is running or
serious injury to personnel may result from
moving parts, excessive noise level, and engine
heat.
 When checking for leaks, never open any type of
fluid holding tanks during operation or while
under pressure or severe burns from the
spraying of hot fluids may result.
Failure to follow these warnings may result in
injury to personnel.

Driver
1. Check for unusual noises, excessive or discolored
exhaust smoke, or fluid leaks from the APU while
the APU is running.
2. Check the APU for coolant, fuel, oil, and hydraulic
leaks.
3. Ensure the APU responds to the throttle control.
4. Leave the APU running.
43 During Intervehicular Any air system
Connections
NOTE leak.
 The electrical/air system component and system
inspections on the semitrailer are multiple
inspections that must be performed each time an
electrical/air system component is encountered.
 It is possible to have what sounds like an air leak
coming from air frame weldments that are not part
of the air system and is not a dead line.

Driver
1. Couple the tractor and semitrailer.
2. Listen for air leaks.

0035-35 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
44 During Pivot Pin Pulley is
cracked.

Pulley is so
severely gouged
that it tears or
shreds cable or
will not turn.

Figure 39. Pivot Pin.

Driver
1. Check the cable guide pulley for wear, cracks,
binding, and obvious damage.
45 During Suspension Driver More than one
System suspension
1. Check the suspension assembly for a failure that
assembly is
would make a suspension assembly non-operational.
non-operational.
a. Refer to WP 0024 and isolate the affected
suspension assembly.
46 During Tire and Wheel More than six
tires/wheels fail.

Figure 40. Tire/Wheel Assembly.

Driver
1. Check to see if semitrailer has multiple tire and
wheel failures and that existing spare tires are not
enough to repair all failures. One suspension
assembly may be isolated and tires on isolated
suspension assembly used as required.

Change 1 0035-36
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
a. Remove and replace the tires until all defective
tires/wheels are stowed on the spare wheel carrier
and the isolated suspension assembly.
b. Remove and replace the tires and wheels
(WP 0077 through WP 0081) and isolate the
affected suspension assembly (WP 0024).
47 During Snatch Block For missions
requiring dual
winch
unloading:
Snatch block is
cracked or
gouged so
severely that it
tears or shreds
the cable,
cannot be
moved, or will
not operate.

Figure 41. Snatch Block.

Driver
1. Inspect the snatch block for obvious damage and
secure mounting.
a. Ensure the locking pin (linch pin) assembly is
properly installed to the secure keeper pin.
b. Check that the snatch block is in proper stow
position and is held firmly secured by stow clamp
handle.

0035-37 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
48 During Hydraulic Indicator is in
Pressure Filter the red zone
Assembly after oil has
warmed to
normal
temperature.

Figure 42. Hydraulic Pressure Filter Assembly.

Driver
1. Check the position of the indicator. The indicator
should show a reading in the green zone.
a. If the indicator is reading in the yellow zone, the
element should be replaced as soon as possible.
49 During Monitor Steering 1. If sluggish or slightly erratic, perform steering
Response pressurization step 39.

Change 1 0035-38
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
50 After Steps and
Guardrail

Figure 43. Steps and Guardrail.

Driver
1. Inspect the step sections, guardrails, and safety rail
for secure mounting and missing hardware.
51 After Auxiliary Power Any Class III
Unit (APU) Fuel leaks exist.
Filter Assembly

Figure 44. APU Filter Assembly.

Driver
1. Visually check the sediment bowl on the fuel filter
assembly for contaminants and water.
a. If contaminants are found, notify sustainment
maintenance.

0035-39 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
52 After Steering Wedge
Lockwasher

Figure 45. Steering Wedge.

Driver
1. Uncouple semitrailer from tractor (WP 0013).
2. Check the condition of the steering wedge
lockwasher.
a. Replace the lockwasher if it is flat, cracked, or
missing.
53 After Gooseneck Pivot Any Class III
Cylinders leaks exist.

Any damage to
cylinders has
occurred.

Figure 46. Gooseneck Pivot Cylinder.

Driver
1. Inspect the gooseneck pivot cylinders for damage,
missing hardware, and leaks on hydraulic cylinder,
line fracture valve, and hydraulic lines.

Change 1 0035-40
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
54 After Vehicle Lights

Figure 47. Vehicle Lights.

Operator
1. Look for presence of and damage to lenses for
running lights, convoy warning light, turn indicators,
and brake lights.
b. Look for presence of and damage to reflectors.

0035-41 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
55 After Air Tank Drain
Cock Lanyards

Figure 48. Lanyards.

Operator
1. Pull and hold each of the five air tank drain cock
lanyards until moisture is no longer being discharged.

Change 1 0035-42
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
56 After Suspension Any damage
System
CAUTION exists.
 If mud or debris builds up in the lower
suspension arm it must be cleared immediately Any Class III
or damage to the brake air lines will result leaks exist.
 If the brake dust cover or brake chamber dust
plugs are distorted or missing, the brake
chamber hole should be covered with tape or
some other temporary means of protection until
dust plug can be replaced or damage to
equipment may result

NOTE
The suspension system consists of ten assemblies that
require multiple-point inspections each time a
component/item is encountered.

Figure 49. Suspension System.

Driver
1. Inspect the upper and lower suspension arms, axle,
dual wheel assemblies, suspension cylinder, dust
covers, slack adjusters, and service/parking brake
chamber for leaks, damage, missing parts, and
buildup of mud or debris.

0035-43 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
57 After Suspension Any damage
Isolation Valves exists.
and Fittings
Any Class III
leaks exist.

Figure 50. Suspension System.

Driver
1. Inspect the suspension isolation valves and all line
fittings in the area for leaks, obvious damage, and
missing hardware.
a. Ensure the handle of the valve is open (pushed in
toward the center of the semitrailer).

Change 1 0035-44
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
58 After Tire and Wheel Three or more
nuts are missing
from any wheel.

One or more flat

tires that will
not hold air.

Figure 51. Tire and Wheel.

Driver
1. Inspect each tire for cuts, cracks, bulges, blisters,
ripples, foreign objects, unusual tread wear, or other
defects (i.e., exposed cords or protruding filaments).
a. Ensure that all lug nuts are present and tight.
b. Inspect the valve stems for leaks and cuts.
c. Inspect the valve stems for the presence of a
valve cap.
d. Inspect each wheel for obvious damage.
e. Strike the tires with a blunt object to identify flat
or under-inflated tires.

0035-45 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
59 After Steering Any Class III
WARNING leaks exist.

Prior to inspection, if the platform was raised, no

one shall go under the semitrailer unless all support
legs have been lowered and are supporting the
platform. Failure to follow this warning may result
in serious injury or death to personnel.

NOTE
The steering installation consists of four steering plates
and interconnecting linkages that require multiple-
point inspections each time a component/item is
encountered.

Figure 52. Steering.

Driver
1. Check the steering cylinders and hydraulic lines for
leaks, defects, and secure mountings.

Change 1 0035-46
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
60 After Splash Guards

Figure 53. Splash Guards.

Driver
1. Check for deteriorating or missing parts.
61 After Covers

Figure 54. Covers.

Driver
1. Inspect the covers for cracks, breaks and missing
parts.

0035-47 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
62 After Deflectors

Figure 55. Deflectors.

Driver
1. Inspect the deflectors for cracks, breaks and missing
parts.

Change 1 0035-48
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
63 After Data Plates,
Decals, and
Stencils

Figure 56. Data Plates, Decals, and Stencils.

Driver
1. Inspect the data plates and stencils to ensure that they
are visible and legible.
a. Ensure that rivets are not missing.
b. Inspect the decals to ensure that there are no rips
or tears.
64 After Hydraulic Any Class III
Control Module leaks exist.

Difficulty in
operating any
handles.

Figure 57. Hydraulic Control Module.

Driver
1. Inspect the hydraulic control module for leaks,
obvious defects, and secure mounting.
2. Ensure the control valve handles operate freely
without binding or sticking.

0035-49 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
65 After Hydraulic
Isolation Valves

Figure 58. Hydraulic Isolation Valves.

Driver
1. If the semitrailer is coupled to the tractor, ensure that
the gooseneck isolation valve is in the RUN position
and the suspension shutoff valve is in the SHUTOFF
position (handle pushed inward).
66 After Hydraulic Any Class III
Pressure Filter leaks exist.
Assembly

Figure 59. Hydraulic Pressure Filter Assembly.

Driver
1. Inspect the area around the hydraulic pressure filter
assembly for leaks.

Change 1 0035-50
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
67 Weekly Tires
WARNING

Always use a snap-on chuck, an extension air hose

(10 ft [3.1m] minimum), and an in-line pneumatic
tire inflator gauge, and stay out of the sidewall
trajectory area when inflating tires that are
mounted on the M1000 semitrailer. Failure to
follow this warning may result in serious injury or
death to personnel.

NOTE
Always check the air pressure before moving the
M1000 semitrailer and when the tires are cold. During
use, tires generate heat, which increases pressure and
will provide an inaccurate reading.

Figure 60. Tires.

Driver
1. Check the tire pressure (including spares) with a tire
gauge.
2. Inflate the tires to the proper pressure of 95 psi ±5 psi
(655 kPa ±34 kPa). Adjust the tire pressure using the
inflator gauge with a 10 ft. extension air hose.

0035-51 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
68 Weekly Rear Landing
Leg

Figure 61. Rear Landing Leg.

Operator
1. Lower rear landing legs enough to inspect inner tube
drain hole.
2. Inspect drain holes for any obstruction that might
prevent proper draining of landing leg. If obstructed,
clean out hole as required.
3. If drain holes are not present, refer to WP 0096.

Change 1 0035-52
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
69 Quarterly Axle System

Figure 62. Axle Assembly.

1. Measure the travel of the brake chamber clevis from
the fully released "A" position to the fully applied
"B" position on all ten suspensions.

NOTE
Adjust brakes upon completion of repair or corrective
action.
2. Perform brake adjustment (WP 0037 or WP 0037.1)
as required if travel distance of clevis is less than
3/4 in. (1.9 cm) or 2 in. (5.1 cm) or more.

0035-53 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
70 Quarterly Starter

Figure 63. Starter.

Driver
1. Inspect the cables for corrosion.
a. Inspect the cables for frayed or broken wires.
71 Quarterly Steering Lube Broken or
System disconnected
hose assembly.

Figure 64. Steering Lubrication Manifold.

1. Inspect two valves and all lube point connections for
excess grease around hoses and fittings.

Change 1 0035-54
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
72 Quarterly Bogie Lube Broken or
System disconnected
hose assembly.

Figure 65. Bogie Lubrication Manifold.

1. Inspect ten bogie manifold valve connections for
excess grease around hoses and fittings.

0035-55 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
73 Annually Gooseneck
Pneumatic
WARNING
Installation

If NBC exposure is suspected, all air filter media

should be handled by personnel wearing protective
equipment. Consult your unit NBC Officer or NBC
NCO for appropriate handling or disposal
instructions. Failure to follow this warning may
result in injury to personnel.

Figure 66. Gooseneck Pneumatic Installation.

Driver
1. Check the connections, lines, and hoses for fraying,
nicks, cuts, abrasion, and leaks (WP 0073).
a. Replace all worn or damaged parts.
2. Replace the filter element and preformed packing
(WP 0072).

Change 1 0035-56
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
74 Annual Platform
Hydraulic
NOTE
Installation Inspect all ten suspension assemblies.

Figure 67. Platform Hydraulic Installation.

Driver
1. Check the hoses, lines, and connections for cuts,
nicks, chafing, and leaks (WP 0124 and/or WP0125).
2. Replace all worn or damaged parts.
3. Replace the filter element and gasket (WP 0043).
a. Fill filter with clean hydraulic fluid (WP 0163).
4. Check the suspension hydraulic hoses, lines, and
fittings for cuts, nicks, corrosion, and signs of
chafing or leaks.
a. Replace any worn or damaged parts (WP 0124).

0035-57 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
75 Annually Brake Drums and
Brake Shoes

Figure 68. Brake Drums and Brake Shoes.

Driver
1. Check the brake drums and brake shoes for
excessive/unusual wear and scoring. The brake
drums (WP 0075) must have a maximum ID less than
12.375 in. (31.433 cm). The brake shoes (WP 0068),
measured at center of each shoe, must be a minimum
of 0.46 in. (1.17 cm) thick.
2. If any rivets are flush with or higher than any portion
of the brake lining, that brake shoe assembly must be
replaced. Replace or repair the brake shoe assembly
as necessary (WP 0068).

Change 1 0035-58
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
76 Annually Suspension
Assembly
NOTE
Some fraying of a new ultra bushing may occur as a
new bushing wears in. Minor fraying of the urethane
part of the bushing protruding beyond the axle housing
over the trunnion cap is common and should be
removed when found.
 If lock plates are installed, straighten two corners of
each lock plate, remove capscrews and lock plates,
and discard. Proceed with ultra bushing inspection
and install lockwasher sets and capscrews per
step 6.
 Do not separate paired lockwashers. If lockwashers
are separated, refer to Figure 70 for proper mating
configuration.

Figure 69. Suspension Assembly.

0035-59 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:

Figure 70. Proper Mating Configuration of

Lockwasher Set.
1. Remove four capscrews, four lockwasher sets, and
trunnion cap from ultra bushing if urethane portions
of ultra bushing are frayed. Discard capscrews and
lockwasher sets.
2. DELETED
3. Check ultra bushing for signs of deterioration and
fraying of urethane part of bushing on all ten
suspension assemblies.

NOTE
If a 0.005 in. (0.013 cm) feeler gauge can be inserted
0.75 in. (1.90 cm) between urethane portion of ultra
bushing and metal housing, replace ultra bushing.
4. Use a knife to trim all frayed strands off of ultra
bushing.
a. If a gap of 0.125 in. (0.32 cm) or more exists
between urethane and either metal shell at top of
ultra bushing, replace ultra bushing (WP 0151).
5. Inspect trunnion bolt holes to ensure they are clean
and free of antiseize or grease. If threads are
damaged or dirty, clean threads with 5/8-18UNF-2B
tap.
5.1 Inspect slack adjusters (Figure 70.1) for damage,
broken or bent, any signs of impact to locking ring,
rounded off or stripped adjusting nuts, or any rubbing
or contact between slack adjusters and axle housing
(WP 0071). Replace slack adjuster if necessary (WP
0069, WP 0069.1, or WP 0069.2).

Change 1 0035-60
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:

Figure 70.1. Slack Adjuster.

6. After trimming is complete, install a trunnion cap
(Figure 71) and secure with four new lockwasher sets
and four new capscrews.

Figure 71. Capscrew Torque Pattern.

0035-61 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:

WARNING
Trunnion capscrews and washers are mandatory
replacement. Using old capscrews and washers
could lead to premature failure of joint causing
trailer to become unstable. Failure to comply may
result in injury of death to personnel or damage to
equipment.
7. Torque capscrews from 140 to 150 lb-ft (190 to 203
Nm) in a circular pattern as shown in Figure 71 until
all screw torques are within specified range (3
iterations at minimum). After torquing, apply torque
stripe with sealing compound across bolt head as
shown in Figure 72.

Figure 72. Torque Stripe Application.

Change 1 0035-62
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
77 Annually Wheel Assembly
WARNING

SOLVENT CLEANING COMPOUND

(DRY CLEANING SOLVENT)
 Solvent cleaning compound MIL-PRF-680
Type II and Type III may be irritating to the
eyes and skin. Use protective gloves and goggles.
Use in well-ventilated areas. Use respirator as
needed. Accidental ingestion may cause
irritation of digestive tract and respiratory tract,
may cause lung and central nervous system
damage, and may be fatal if swallowed.
Inhalation of high/massive concentrations may
cause coma or may be fatal. First aid for
ingestion: do not induce vomiting. Seek
immediate medical attention. First aid for skin
contact: remove contaminated clothing. Wash
skin thoroughly with soap and water. If
symptoms persist, seek medical attention. First
aid for eye contact: flush with water for 15
minutes or until irritation subsides. If symptoms
persist, seek medical attention. First aid for
inhalation: move to fresh air. If not breathing,
provide artificial respiration. If symptoms
persist, seek medical attention. Keep away from
open flames and other sources of ignition.

0035-63 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:

WARNING

SOLVENT CLEANING COMPOUND

(DRY CLEANING SOLVENT)
 The flashpoint for Type II solvent cleaning
compound is 141ºF to 198ºF (61ºC to 92ºC) and
for Type III it is 200ºF to 241ºF (93ºC to 116ºC).
 Improper cleaning methods and use of
unauthorized cleaning solvents may injure
personnel and damage equipment.
 Fire extinguishers should be placed nearby
when using solvent cleaning compound.
 Cloths or rags saturated with solvent cleaning
compound must be disposed of in accordance
with authorized facilities’ procedures.
 Eye shields must be worn when cleaning with a
wire brush. Flying rust and metal particles may
cause injury.
Failure to follow these warnings may result in
serious injury or death to personnel.

Driver
1. Disassemble the wheel assemblies (WP 0075).

Change 1 0035-64
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:

Figure 73. Wheel Assembly.

2. Clean the bearings, hubs, and spindles with dry
cleaning solvent (WP 0170).
3. Inspect any parts that were removed for wear, scoring
and discoloration, scratches, and burrs.
4. Repack the bearings with grease (WP 0170).
78 Annually Lug Nuts and
Lug Studs

Figure 74. Lug Nuts and Lug Studs.

1. Check all lug nuts and lug studs for proper torque of
450 to 500 lb-ft (610 to 678 Nm).
a. Use a torque wrench (WP 0169) to torque all lug
nuts and lug studs as required if loose (WP 0078,
WP 0079, WP 0080, or WP 0081).

0035-65 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
79 Annually Suspension Torque is
Spindle Bearing correct, yet
movement
remains.

Tightening the
spanner nut
causes turning
force to exceed
100 lb (45.4 kg).

Figure 75. Suspension Spindle Bearing.

Driver
1. Isolate, chain up, and connect disconnected links for
each bogie (WP 0080).
2. Apply force to the bogie using the spring scale as
shown. The suspension must turn with no more than
100 lb (45.4 kg) of force applied.
3. If more than 100 lb (45.4 kg) of force is required to
turn the suspension, check for lubrication and
looseness.
a. Attempt to move the upper suspension/lower
suspension arm joint in the fore and aft direction
to check for play.
b. Repeat with the bogie turned 90 degrees.
4. If movement exceeds 0.25 in. (0.6 cm), release the
spindle nut setscrew and check the spindle nut torque
(WP 0065).

Change 1 0035-66
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
80 Annually Bogies Feeler gauge
can be inserted
more than 1.6
inches toward
shouldered shaft
at all checked
locations.

Figure 76. Knee Joint Wear.

1. Torque capscrew and locknut to 140 to 160 lb-ft
(189 to 217 Nm).
2. Insert 0.005 in. (0.013 cm) feeler gauge between
upper and lower casting toward shouldered shaft.
3. Repeat step 2 at several locations around shouldered
shaft.
4. If feeler gauge can be inserted more than 1.6 inches
toward shouldered shaft at all checked locations,
joint should be disassembled and all joint
components, excluding castings, should be replaced
(WP 0067).
5. If at one or more checked locations, feeler gauge
cannot be inserted 1.6 inches, joint is OK for use.
81 Annually Platform Driver
Weldment
1. Check the entire platform for wear, cracks, broken or
defective welds, loose or missing hardware,
deformed components, rust, or corrosion.
a. Repair as required (WP 0147).
b. Refer defective welds to sustainment
maintenance.

0035-67 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
82 Annually Battery
WARNING

 Do not wear watches, rings, or other jewelry

that could short out battery terminals while
servicing battery. Do not smoke or use open
flame around batteries. Battery may explode
from a spark. Battery acid is harmful to skin
and eyes. Wear protective goggles to prevent
injury to personnel when working with
batteries.
 On some semitrailers a solar battery charger is
mounted to top of gooseneck directly in front of
spare tires. Persons working on top of gooseneck
must take EXTREME care not to step on it or
trip over it.
Failure to follow these warnings may result in
injury to personel or damage to equipment.

Figure 77. Battery.

Change 1 0035-68
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
Driver
1. Disconnect or remove the battery as required
(WP 0053).
2. Check all terminals for corrosion.
a. Remove all corrosion with a wire brush, followed
by a solution of sodium bicarbonate (WP 0170)
and water.
3. Apply petroleum jelly (WP 0170) to terminals.
4. Reconnect or install the battery as required
(WP 0053).
5. If a solar battery charger is installed, ensure that the
leads are securely attached to the battery terminals.
6. Visually check the electrolyte level.
a. The electrolyte level should cover the plates. If
necessary, add distilled water until the electrolyte
level has reached the proper level.
7. Check the specific gravity of electrolyte in each cell
using a hydrometer (WP 0069). Refer to
TM 9-6140-200-14.
83 Annually Gooseneck 1. Check the gooseneck hydraulic hoses, lines, and
Hydraulics fittings for cuts, nicks, corrosion, and signs of
chafing or leaks.
2. Replace any worn or damaged parts (WP 0116).

0035-69 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
84 Annually Hydraulic Tank
WARNING

SOLVENT CLEANING COMPOUND

(DRY CLEANING SOLVENT)
 Solvent cleaning compound MIL-PRF-680
Type II and Type III may be irritating to the
eyes and skin. Use protective gloves and goggles.
Use in well-ventilated areas. Use respirator as
needed. Accidental ingestion may cause
irritation of digestive tract and respiratory tract,
may cause lung and central nervous system
damage, and may be fatal if swallowed.
Inhalation of high/massive concentrations may
cause coma or may be fatal. First aid for
ingestion: do not induce vomiting. Seek
immediate medical attention. First aid for skin
contact: remove contaminated clothing. Wash
skin thoroughly with soap and water. If
symptoms persist, seek medical attention. First
aid for eye contact: flush with water for 15
minutes or until irritation subsides. If symptoms
persist, seek medical attention. First aid for
inhalation: move to fresh air. If not breathing,
provide artificial respiration. If symptoms
persist, seek medical attention. Keep away from
open flames and other sources of ignition.
 The flashpoint for Type II solvent cleaning
compound is 141ºF to 198ºF (61ºC to 92ºC) and
for Type III it is 200ºF to 241ºF (93ºC to 116ºC).
 Improper cleaning methods and use of
unauthorized cleaning solvents may injure
personnel and damage equipment.
 Fire extinguishers should be placed nearby
when using solvent cleaning compound.
 Cloths or rags saturated with solvent cleaning
compound must be disposed of in accordance
with authorized facilities’ procedures.
 Eye shields must be worn when cleaning with a
wire brush. Flying rust and metal particles may
cause injury.
Failure to follow these warnings may result in
serious injury or death to personnel.
Change 1 0035-70
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:

Figure 78. Hydraulic Tank.

1. Remove tank filter (WP 0123).
2. Inspect sight tube for clarity and damage. Replace
sight tube if damaged or defective (WP 0126).
3. Clean the filter using dry cleaning solvent (WP 0170)
from the inside to outward.
4. Replace the filter if damaged or clogged (WP 0043).
5. Check the drain plug for metal particles and clean
with a rag (WP 0170).

0035-71 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
85 Annually Air Filter
WARNING

If NBC exposure is suspected, all air filter media

should be handled by personnel wearing protective
equipment. Consult your unit NBC Officer or NBC
NCO for appropriate handling or disposal
instructions. Failure to follow this warning may
result in injury to personnel.

Figure 79. Air Filter.

Driver
1. Replace the air filter element if damaged or clogged.
a. Wipe out the component body with a clean rag
(WP 0170).

Change 1 0035-72
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
86 Annually Oil Filter

Figure 80. Oil Filter.

Driver
1. Clean oil filter and change oil (WP 0132).
a. Replace oil filter if damaged or defective
(WP 0132).
87 Annually Air Filter DELETED

Figure 81. DELETED.

0035-73 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
88 Annually Fuel Tank
WARNING

Fuel is flammable. To avoid serious injury, keep all

smoking materials, sparks, or open flames away
from the fuel tank and fuel system. Failure to follow
this warning may result in injury to personnel.

Figure 82. Fuel Tank.

Driver
1. Clean the filter with clean diesel fuel (WP 0170).
Replace the filter if damaged (WP 0137).
2. Check the exterior and interior of the fuel tank for
contamination or corrosion (WP 0137).
a. Flush, if necessary, with diesel fuel (WP 0170).
3. Inspect sight tube for clarity and damage. Replace
sight tube if damaged or defective (WP 0136).

Change 1 0035-74
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
89 Annually Fan Belt

Figure 83. Fan Belt.

Driver
1. Check fan belt for wear and deterioration (WP 0143).
a. Check tension of fan belt.
b. Adjust or replace fan belt as necessary
(WP 0143).

0035-75 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
90 Annually Kingpin
WARNING

SOLVENT CLEANING COMPOUND

(DRY CLEANING SOLVENT)
 Solvent cleaning compound MIL-PRF-680
Type II and Type III may be irritating to the
eyes and skin. Use protective gloves and goggles.
Use in well-ventilated areas. Use respirator as
needed. Accidental ingestion may cause
irritation of digestive tract and respiratory tract,
may cause lung and central nervous system
damage, and may be fatal if swallowed.
Inhalation of high/massive concentrations may
cause coma or may be fatal. First aid for
ingestion: do not induce vomiting. Seek
immediate medical attention. First aid for skin
contact: remove contaminated clothing. Wash
skin thoroughly with soap and water. If
symptoms persist, seek medical attention. First
aid for eye contact: flush with water for 15
minutes or until irritation subsides. If symptoms
persist, seek medical attention. First aid for
inhalation: move to fresh air. If not breathing,
provide artificial respiration. If symptoms
persist, seek medical attention. Keep away from
open flames and other sources of ignition.
 The flashpoint for Type II solvent cleaning
compound is 141ºF to 198ºF (61ºC to 92ºC) and
for Type III it is 200ºF to 241ºF (93ºC to 116ºC).
 Improper cleaning methods and use of
unauthorized cleaning solvents may injure
personnel and damage equipment.
 Fire extinguishers should be placed nearby
when using solvent cleaning compound.
 Cloths or rags saturated with solvent cleaning
compound must be disposed of in accordance
with authorized facilities’ procedures.
 Eye shields must be worn when cleaning with a
wire brush. Flying rust and metal particles may
cause injury.
Failure to follow these warnings may result in
serious injury or death to personnel.
Change 1 0035-76
 TM 9-2330-381-13 0035

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
1. Clean the kingpin wear surfaces using rags and dry
cleaning solvent (WP 0170).

Figure 84. Kingpin.

2. Inspect the condition of the kingpin.
3. Notify sustainment maintenance that the kingpin
must be replaced if any of the following conditions
exist:
a. Uneven wear on one or more sides of the kingpin
wear surface resulting in wear of 1/8 in. (0.32 cm)
over 1/4 of circumference of the kingpin.
b. Even wear over the kingpin surface causing the
diameter to be reduced by 1/8 in. (0.32 cm).
c. A crack of any size is noted anywhere on the
kingpin.
d. A nick, chip, or gouge deeper than 1/4 in.
(0.64 cm) is found anywhere on the kingpin wear
surface.

0035-77 Change 1
0035 TM 9-2330-381-13

PREVENTIVE MAINTENANCE CHECKS AND SERVICES (PMCS) - CONTINUED

EQUIPMENT
ITEM TO BE
ITEM NOT READY/
INTERVAL CHECKED PROCEDURES
NO. AVAILABLE
OR SERVICES
IF:
91 Annually Starter

Figure 85. Starter.

Driver
1. Inspect cables for corrosion.
a. Inspect the cables for frayed or broken wires.
92 Annually Auxiliary Power Driver
Unit Jump Start
1. Inspect cables for corrosion.
System
a. Inspect the cables for frayed or broken wires.
b. Inspect the cables for defective terminal lugs or
battery clamps.
93 Five Years WP 0036.1 Refer to WP 0036.1 and perform full five year
maintenance.

END OF WORK PACKAGE

Change 1 0035-78
