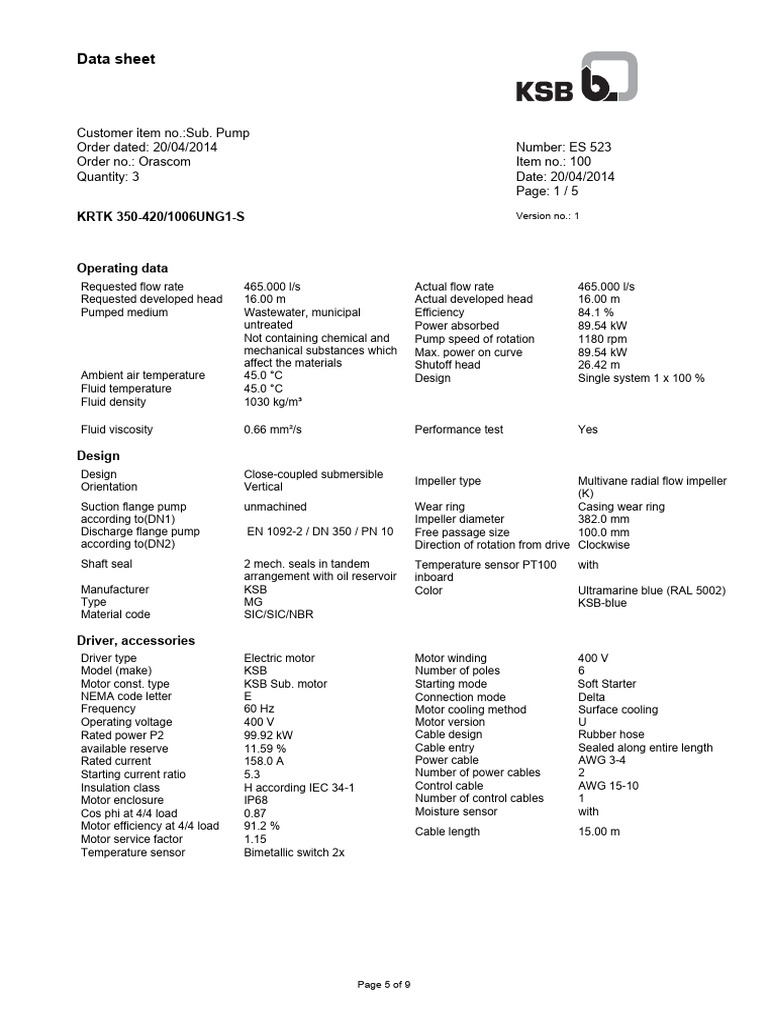

Data sheet

Customer item no.:Sub. Pump

Order dated: 20/04/2014 Number: ES 523
Order no.: Orascom Item no.: 100
Quantity: 3 Date: 20/04/2014
Page: 1 / 5

KRTK 350-420/1006UNG1-S Version no.: 1

Operating data
Requested flow rate 465.000 l/s Actual flow rate 465.000 l/s
Requested developed head 16.00 m Actual developed head 16.00 m
Pumped medium Wastewater, municipal Efficiency 84.1 %
untreated Power absorbed 89.54 kW
Not containing chemical and Pump speed of rotation 1180 rpm
mechanical substances which Max. power on curve 89.54 kW
affect the materials Shutoff head 26.42 m
Ambient air temperature 45.0 °C Design Single system 1 x 100 %
Fluid temperature 45.0 °C
Fluid density 1030 kg/m³

Fluid viscosity 0.66 mm²/s Performance test Yes

Design
Design Close-coupled submersible
Impeller type Multivane radial flow impeller
Orientation Vertical
(K)
Suction flange pump unmachined Wear ring Casing wear ring
according to(DN1) Impeller diameter 382.0 mm
Discharge flange pump EN 1092-2 / DN 350 / PN 10 Free passage size 100.0 mm
according to(DN2) Direction of rotation from drive Clockwise
Shaft seal 2 mech. seals in tandem Temperature sensor PT100 with
arrangement with oil reservoir inboard
Manufacturer KSB Color Ultramarine blue (RAL 5002)
Type MG KSB-blue
Material code SIC/SIC/NBR

Driver, accessories
Driver type Electric motor Motor winding 400 V
Model (make) KSB Number of poles 6
Motor const. type KSB Sub. motor Starting mode Soft Starter
NEMA code letter E Connection mode Delta
Frequency 60 Hz Motor cooling method Surface cooling
Operating voltage 400 V Motor version U
Rated power P2 99.92 kW Cable design Rubber hose
available reserve 11.59 % Cable entry Sealed along entire length
Rated current 158.0 A Power cable AWG 3-4
Starting current ratio 5.3 Number of power cables 2
Insulation class H according IEC 34-1 Control cable AWG 15-10
Motor enclosure IP68 Number of control cables 1
Cos phi at 4/4 load 0.87 Moisture sensor with
Motor efficiency at 4/4 load 91.2 % Cable length 15.00 m
Motor service factor 1.15
Temperature sensor Bimetallic switch 2x

Page 5 of 9
Data sheet

Customer item no.:Sub. Pump

Order dated: 20/04/2014 Number: ES 523
Order no.: Orascom Item no.: 100
Quantity: 3 Date: 20/04/2014
Page: 2 / 5

KRTK 350-420/1006UNG1-S Version no.: 1

Materials G1
Pump casing (101) Cast iron A 48 Class 35 B Casing wear ring (502.1) Cast iron A 48 Class 35 B
Discharge cover (163) Cast iron A 48 Class 35 B Shaft protecting sleeve (524) Chrome steel A 276 Type 410
Shaft (210) Stainless steel Type 410 T
T Motor housing (811) Cast iron A 48 Class 35 B
Impeller (230) Duplex steel A 890 CD4 Motor cable (824) Chloroprene rubber
MCuN Hexagon socket head cap Stainless steel A 193 B8M
Bearing bracket (330) Cast iron A 48 Class 35 B screw (914)
O-Ring (412) Nitrile rubber NBR

Nameplates
Nameplates language International Duplicate nameplate with

Certifications
Test participation Non-witnessed
Hydraulic performance test Quantity, non-witnessed 1
Acceptance standard ISO 9906 class 2B Quantity, witnessed 0
Quantity meas. points Q-H 5
Certificate Inspection cert. 3.1 to EN
10204

Installation parts
Installation type stationary 2 guide rail Type Chain
Scope of supply Pump with installation parts Material CrNiMo steel 1.4404
For guide rail arrangements, Length 5.00 m
the guide rails are not Max. load 2000 kg
included in KSB's scope of
supply.
Installation depth 4.50 m
Material concept G

Duckfoot bend
Size DN 350
Flange design ASME
Duckfoot bend size (DN2 / DN 350 Drilled according to
DN3) ASME
Material Cast iron A 48 Class 35 B
Mounting type Composite anchor bolts
Foundation rail Without

Claw
Design straight
Size DN 350

Lifting chain / -rope

Page 6 of 9
Performance curve

Customer item no.:Sub. Pump

Order dated: 20/04/2014 Number: ES 523
Order no.: Orascom Item no.:100
Quantity: 3 Date: 20/04/2014
Page: 3 / 5

KRTK 350-420/1006UNG1-S Version no.: 1

Qmin

30
Total developed head

[m] Qmin

Qmin
20

450.0/435.0/420.0

10 408.0/382.0/355.0
387.0/355.0/340.0

0 100 [l/s] 200 300 400 500 600 700 800

20

[m]
NPSH req.

10

0 100 [l/s] 200 300 400 500 600 700 800

Efficiency

50

[%]

0
0 100 [l/s] 200 300 400 500 600 700 800

90

[kW ]
Power Input

85

80

0 100 [l/s] 200 300 400 500 600 700 800

Flow

Curve data
Speed of rotation 1180 rpm Efficiency 84.1 %
Fluid density 1030 kg/m³ Power absorbed 89.54 kW
Viscosity 0.66 mm²/s NPSH required 10.33 m
Flow rate 465.000 l/s Curve number K42092s
Requested flow rate 465.000 l/s Effective impeller diameter 382.0 mm
Total developed head 16.00 m Acceptance standard ISO 9906 class 2B
Requested developed head 16.00 m

Page 7 of 9
Installation plan

Customer item no.:Sub. Pump

Order dated: 20/04/2014 Number: ES 523
Order no.: Orascom Item no.:100
Quantity: 3 Date: 20/04/2014
Page: 4 / 5

KRTK 350-420/1006UNG1-S Version no.: 1

150 270

220
ø 89
100
1630
ø 18
1365
310
1160

310
2134
(Lifting bail optional)
1) DN3
1909

900
min 960
500
DN1

460 210
400
180 ø28
405
1895 1) Minimum water level t1

570

580
975 min 1400 500

Access opening

min 1750

Drawing is not to scale Dimensions in mm

Page 8 of 9
Installation plan

Customer item no.:Sub. Pump

Order dated: 20/04/2014 Number: ES 523
Order no.: Orascom Item no.:100
Quantity: 3 Date: 20/04/2014
Page: 5 / 5

KRTK 350-420/1006UNG1-S Version no.: 1

Motor Connections
Motor manufacturer KSB Suction flange pump unmachined
Motor size 100N according to(DN1)
Motor power 99.92 kW Duckfoot bend size (DN2 / DN 350 Drilled according to
Number of poles 6 DN3) ASME
Speed of rotation 1178 rpm

Weight net
Pump, Motor, Cable 1678 kg
Claw / Foot 110 kg
Total 1788 kg
Connect pipes without stress or strain! For auxiliary connections see
Dimensional tolerances for shaft axis height: DIN 747 separate drawing.
Dimensions without tolerances, middle tolerances to: ISO 2768-m
Connection dimensions for pumps: EN735
Dimensions without tolerances - welded parts: ISO 13920-B
Dimensions without tolerances - gray cast iron parts: ISO 8062-CT9

Page 9 of 9
