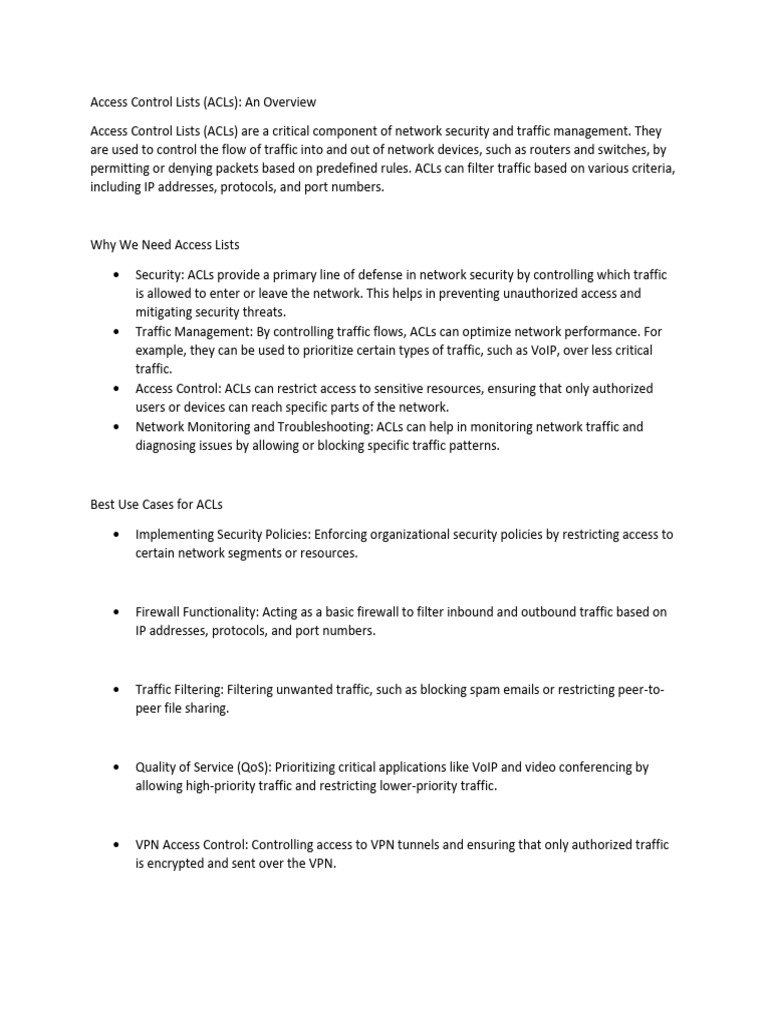

Access Control Lists (ACLs): An Overview

Access Control Lists (ACLs) are a critical component of network security and traffic management. They
are used to control the flow of traffic into and out of network devices, such as routers and switches, by
permitting or denying packets based on predefined rules. ACLs can filter traffic based on various criteria,
including IP addresses, protocols, and port numbers.

Why We Need Access Lists

• Security: ACLs provide a primary line of defense in network security by controlling which traffic
is allowed to enter or leave the network. This helps in preventing unauthorized access and
mitigating security threats.
• Traffic Management: By controlling traffic flows, ACLs can optimize network performance. For
example, they can be used to prioritize certain types of traffic, such as VoIP, over less critical
traffic.
• Access Control: ACLs can restrict access to sensitive resources, ensuring that only authorized
users or devices can reach specific parts of the network.
• Network Monitoring and Troubleshooting: ACLs can help in monitoring network traffic and
diagnosing issues by allowing or blocking specific traffic patterns.

Best Use Cases for ACLs

• Implementing Security Policies: Enforcing organizational security policies by restricting access to

certain network segments or resources.

• Firewall Functionality: Acting as a basic firewall to filter inbound and outbound traffic based on
IP addresses, protocols, and port numbers.

• Traffic Filtering: Filtering unwanted traffic, such as blocking spam emails or restricting peer-to-
peer file sharing.

• Quality of Service (QoS): Prioritizing critical applications like VoIP and video conferencing by
allowing high-priority traffic and restricting lower-priority traffic.

• VPN Access Control: Controlling access to VPN tunnels and ensuring that only authorized traffic
is encrypted and sent over the VPN.
Types of ACLs
Standard ACLs:
Purpose: Filter traffic based solely on source IP addresses.
Usage: Typically used in scenarios where control over the source of the traffic is sufficient.
Limitation: Less granular control since they do not consider destination IP addresses or specific
protocols.
Extended ACLs:
Purpose: Filter traffic based on source and destination IP addresses, protocols (TCP, UDP, ICMP,
etc.), and port numbers.
Usage: Ideal for more granular control and complex filtering requirements.
Advantage: Greater flexibility and precision in defining traffic rules.
Named ACLs:
Purpose: Improve the manageability and readability of ACL configurations by using descriptive
names instead of numeric identifiers.
Usage: Useful in large networks where numerous ACLs are used and easier management is
required.
Time-Based ACLs:
Purpose: Enforce access control based on specific time periods.
Usage: Useful for restricting access during non-business hours or implementing time-sensitive
security policies.
Reflexive ACLs:
Purpose: Dynamically create temporary ACL entries to permit return traffic for sessions initiated
from within the network.
Usage: Useful in scenarios where dynamic, temporary rules are needed for session-based
traffic, such as HTTP or FTP sessions.
Practical Implementation and Examples

Standard ACL Example

Scenario: Permit traffic from the internal network 192.168.1.0/24 and deny all other traffic.

Configuration:

Router(config)#access-list 1 permit 192.168.1.0 0.0.0.255

Router(config)#access-list 1 deny any

Router(config)#interface g0/0

Router(config-if)#ip access-group 1 in

Explanation: This ACL allows traffic from the 192.168.1.0/24 network and denies all other traffic. It is
applied to inbound traffic on interface g0/0.

Extended ACL Example

Scenario: Permit HTTP traffic from the 192.168.1.0/24 network to any destination, and deny all other
traffic.

Configuration:

Router(config)#access-list 100 permit tcp 192.168.1.0 0.0.0.255 any eq 80

Router(config)#access-list 100 deny ip any any

Router(config)#interface g0/0

Router(config-if)#ip access-group 100 in

Explanation: This ACL allows HTTP traffic (TCP port 80) from the 192.168.1.0/24 network and denies all
other traffic. It is applied to inbound traffic on interface g0/0.

Named ACL Example

Scenario: Allow SSH traffic from the 10.0.0.0/8 network to the 192.168.1.0/24 network.

Configuration:

Router(config)#ip access-list extended ALLOW-SSH

Router(config-ext-nacl)#permit tcp 10.0.0.0 0.255.255.255 192.168.1.0 0.0.0.255 eq 22

Router(config-ext-nacl)#deny ip any any

Router(config-ext-nacl)#exit

Router(config)#interface g0/0

Router(config-if)#ip access-group ALLOW-SSH in

Explanation: This named ACL allows SSH traffic (TCP port 22) from the 10.0.0.0/8 network to the
192.168.1.0/24 network and denies all other traffic. It is applied to inbound traffic on interface g0/0.

Time-Based ACL Example

Scenario: Allow HTTP traffic from 192.168.1.0/24 to any destination only during work hours (8 AM to 6
PM, Monday to Friday).

Configuration:

Router(config)#time-range WORK-HOURS

Router(config-time-range)#periodic weekdays 8:00 to 18:00

Router(config-time-range)#exit

Router(config)#ip access-list extended WORK-TIME-ACL

Router(config-ext-nacl)#permit tcp 192.168.1.0 0.0.0.255 any eq 80 time-range WORK-HOURS

Router(config-ext-nacl)#deny ip any any

Router(config-ext-nacl)#exit

Router(config)#interface g0/0

Router(config-if)#ip access-group WORK-TIME-ACL in

Explanation: This time-based ACL allows HTTP traffic (TCP port 80) from the 192.168.1.0/24 network to
any destination only during specified work hours and denies all other traffic. It is applied to inbound
traffic on interface g0/0.

Applying ACLs

Inbound vs. Outbound:

Inbound: Filters traffic coming into an interface before it is processed by the router.

Outbound: Filters traffic leaving an interface after it is processed by the router.

Interface Application:

ACLs can be applied to both router and switch interfaces, providing flexibility in controlling traffic at
various points in the network.

Verification and Monitoring

Show Commands:
show access-lists: Displays all configured ACLs.

show ip interface [interface]: Displays ACLs applied to a specific interface.

Debugging:

debug ip packet detail: Provides detailed information on packets matching ACL entries.

Best Practices

• Explicit Deny Statement: Always include an explicit deny statement at the end of your
ACL to ensure unwanted traffic is blocked.

• Least Privilege: Implement the principle of least privilege by permitting only necessary
traffic and denying all other traffic.

• Documentation: Document ACL rules clearly, especially when using numbered ACLs, to
ensure ease of management and troubleshooting.

• Testing: Test ACL configurations in a lab environment before deploying them in

production to avoid unintentional disruptions.

• Use Named ACLs: Prefer named ACLs for better readability and management, especially
in complex networks.

ACLs are a powerful tool for controlling and securing network traffic. Understanding the different types
of ACLs and their appropriate use cases allows network administrators to implement effective security
measures, manage traffic efficiently, and ensure the smooth operation of network resources. Whether
for basic access control, advanced traffic filtering, or time-based policies, ACLs provide the flexibility and
precision needed to meet diverse network requirements.
