1.

4 Food Plant Design 45

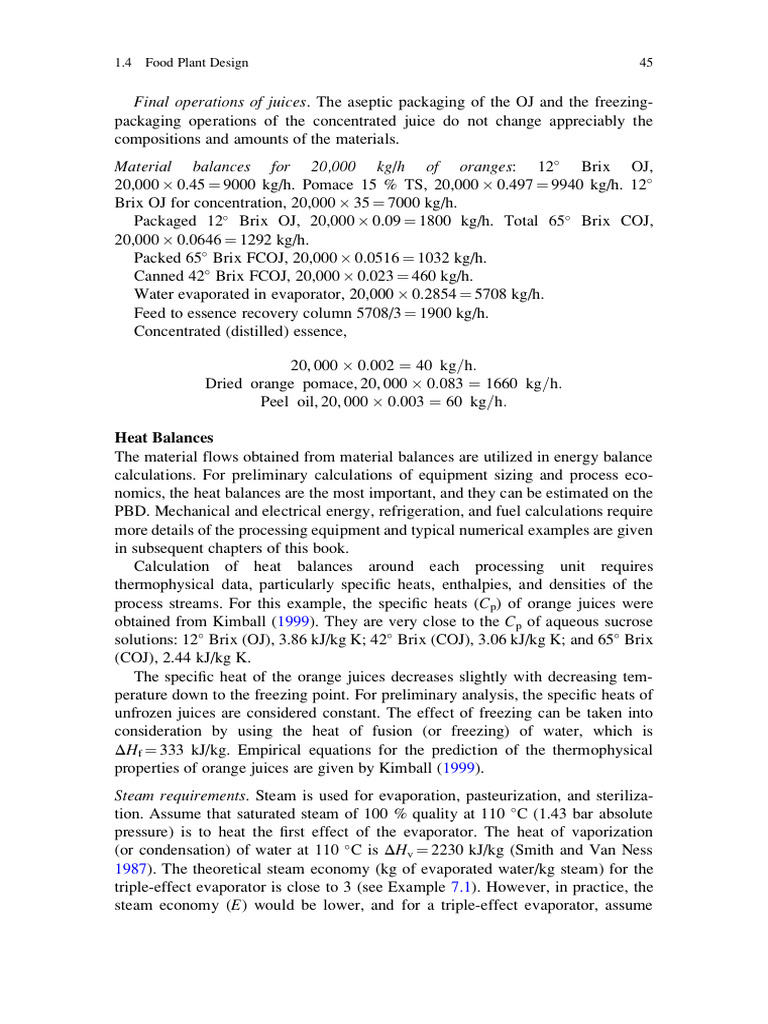

Final operations of juices. The aseptic packaging of the OJ and the freezing-
packaging operations of the concentrated juice do not change appreciably the
compositions and amounts of the materials.
Material balances for 20,000 kg/h of oranges: 12 Brix OJ,
20,000 0.45 ¼ 9000 kg/h. Pomace 15 % TS, 20,000 0.497 ¼ 9940 kg/h. 12
Brix OJ for concentration, 20,000 35 ¼ 7000 kg/h.
Packaged 12 Brix OJ, 20,000 0.09 ¼ 1800 kg/h. Total 65 Brix COJ,
20,000 0.0646 ¼ 1292 kg/h.
Packed 65 Brix FCOJ, 20,000 0.0516 ¼ 1032 kg/h.
Canned 42 Brix FCOJ, 20,000 0.023 ¼ 460 kg/h.
Water evaporated in evaporator, 20,000 0.2854 ¼ 5708 kg/h.
Feed to essence recovery column 5708/3 ¼ 1900 kg/h.
Concentrated (distilled) essence,

20, 000 0:002 ¼ 40 kg=h:

Dried orange pomace, 20, 000 0:083 ¼ 1660 kg=h:
Peel oil, 20, 000 0:003 ¼ 60 kg=h:

Heat Balances
The material flows obtained from material balances are utilized in energy balance
calculations. For preliminary calculations of equipment sizing and process eco-
nomics, the heat balances are the most important, and they can be estimated on the
PBD. Mechanical and electrical energy, refrigeration, and fuel calculations require
more details of the processing equipment and typical numerical examples are given
in subsequent chapters of this book.
Calculation of heat balances around each processing unit requires
thermophysical data, particularly specific heats, enthalpies, and densities of the
process streams. For this example, the specific heats (Cp) of orange juices were
obtained from Kimball (1999). They are very close to the Cp of aqueous sucrose
solutions: 12 Brix (OJ), 3.86 kJ/kg K; 42 Brix (COJ), 3.06 kJ/kg K; and 65 Brix
(COJ), 2.44 kJ/kg K.
The specific heat of the orange juices decreases slightly with decreasing tem-
perature down to the freezing point. For preliminary analysis, the specific heats of
unfrozen juices are considered constant. The effect of freezing can be taken into
consideration by using the heat of fusion (or freezing) of water, which is
ΔHf ¼ 333 kJ/kg. Empirical equations for the prediction of the thermophysical
properties of orange juices are given by Kimball (1999).
Steam requirements. Steam is used for evaporation, pasteurization, and steriliza-
tion. Assume that saturated steam of 100 % quality at 110 C (1.43 bar absolute
pressure) is to heat the first effect of the evaporator. The heat of vaporization
(or condensation) of water at 110 C is ΔHv ¼ 2230 kJ/kg (Smith and Van Ness
1987). The theoretical steam economy (kg of evaporated water/kg steam) for the
triple-effect evaporator is close to 3 (see Example 7.1). However, in practice, the
steam economy (E) would be lower, and for a triple-effect evaporator, assume
46 1 Design of Food Processes and Food Processing Plants

E ¼ 2.5. Thus, the steam requirement for evaporating 5708 kg/h of water will be
5708/2.5 ¼ 2283 kg/h.
The condensate from the first effect of the evaporator (at 110 C) is used to
preheat the feed of orange juice to the evaporator.
Steam requirement for the essence recovery column: The feed enters the
column as a saturated liquid and the rate of F ¼ 1900 kg/h. The distillate is
D ¼ 20,000 0.0002 ¼ 40 kg/h and the residue B ¼ F D ¼ 1900 40 ¼ 1860
kg/h (see Chap. 11). Assume a practical reflux ratio of R ¼ 2, i.e., L/D ¼ 2.
Therefore, L ¼ 2D ¼ 2 40 ¼ 80 kg/h, and V ¼ 80 + 40 ¼ 120 kg/h (L, V, and
D are the flow rates in the enriching section of the column). For the stripping
section of the column, L0 ¼ F + L ¼ 1900 + 80 ¼ 1980 kg/h, and
0 0
V ¼ L B ¼ 1980 1860 ¼ 120 kg/h. The steam (110 C) required in the reboiler
of the distillation column will be approximately equal to the flow rate of vapors in
the stripping section, i.e., S ¼ V0 ¼ 120 kg/h. The column is assumed to operate at
atmospheric pressure with a practically constant boiling point of 100 C.
Steam requirements for pasteurization and sterilization, using 1.43-bar steam
(110 C): Pasteurization of 9000 kg/h 12 Brix OJ by heating from room temper-
ature (assume 20 C) to 90 C requires steam (X, kg/h), obtained from the equation,
X ¼ [(9000) (3.86)(90 20)]/2230 ¼ 1090 kg/h. For sterilization of 1800 kg/h 12
Brix OJ at 95 C for 15 s, steam requirement [(1800) (3.86) (95 20)]/
2230 ¼ 202 kg/h.
Total steam requirement is 3695 kg/h.
The air-dryer of the animal feed will use a fuel (e.g., gas) as a heat source, since
steam is not economical for this product and flue (combustion) gases of high
temperature can be tolerated for this product (see Example 8.1).
Cooling water. The major requirement for cooling water is to condense the water
vapors of the last effect of the evaporator. Assume that the vapors in the last
(vacuum) effect condense at 50 C (see Example 7.1) and that cooling water at
20 C is used. The heat of condensation of water at 50 C is ΔHv ¼ 2384 kJ/kg, and
the required water will be [(1900)(2384)]/[4.18(50 20)] ¼ 36,121 kg/h.
The essence column operates at atmospheric pressure, condensing the vapors
(V ¼ 120 kg/h, mainly water) at 100 C (ΔHv ¼ 2257 kJ/kg), without subcooling.
Cooling water requirement: (120)(2257)/[4.18(100 20)] ¼ 810 kg/h.
Total cooling water requirement: 36,121 + 810 ¼ 36,931 kg/h or about 40 m3/h.
The cooling requirements of the pasteurizer and sterilizer are neglected (heat
regeneration).
Summary of material and energy balances of Example 1.1
Raw material: 20,000 kg/h oranges (13.6 % TS)
Products: Packaged orange juice (OJ) 12 Brix, 1800 kg/h
Canned frozen concentrated (FCOJ) 42 Brix, 460 kg/h
Packed frozen concentrate (FCOJ) 65 Brix, 1032 kg/h
Dried orange peels (pomace) 10 % moisture, 1660 kg/h
Peel oil, 60 kg/h
Fruit essence 40 kg/h
References 47

Steam requirements: evaporation 283 kg/h

Essence recovery 120 kg/h
Pasteurization 1090 kg/h
Sterilization 202 kg/h
Total steam 3695 kg/h

Fuel requirement for drying: 485 kg/h LPG (Example 8.1)

Cooling water: condenser of evaporator 36,121 kg/h

Essence recovery column 810 kg/h
Total cooling water 36,931 kg/h

References

Aggteleky B (1982) Fabrikplanung, vol 2. Hanser, Munich

Aggteleky B (1987) Fabrikplanung, vol 1. Hanser, Munich
Aguilera JM (2000) Microstructure and food product engineering. Food Technol 54(11):56–65
Anonymous (1993) Portable processing. J Food Eng Int 10:33
Aspen (2001) The HACCP training resource pack. Aspen, Gaithersburg
Bandoni JA, Rotstein E, Romagnoli JA (1988) Simulation modeling and optimal operation of an
apple juice concentrate plant. J Food Eng 7:159–175
Bartholomai A (1987) Food factories—processes, equipment, costs. VCH, Weinheim
Bernecker G (1984) Planung und bau verfahrentechnischer anlagen. VDI, Düsseldorf
BEV (2000) Struktur der Bruttoanlageinvestitionen 1998. Bundes Verein der Ernaehrungs
Industrie. www.bve-online.de
Bhatia MV (1979–1983) Process equipment series, vols. 1–5. Technomic, Lancaster
Biegler LT, Grossmann IE, Westerberg AW (1997) Systematic methods of chemical process
design. Prentice-Hall, Englewood Cliffs
Brennan JG, Butters JR, Cowell NP, Lilly AEV (1990) Food engineering operations, 3rd edn.
Applied Science, London
Cadbury RG (1992) Maximizing the output of a batch food plant—the design engineer’s role. In
Food engineering in a computer climate. ICHEME. Taylor and Francis, New York, pp 395–400
CE (1997) Plant construction costs. Chem Eng 104(8):98–108
CE (1999) CAD improves on the basics. Chemical Engineering July, pp 109–110
CEP (2000) CEP software directory. Chemical engineering progress. AIChE, New York
Chilton CH (1960) Cost engineering in the process industries. McGraw-Hill, New York
Clark JP (1997a) Food plant design. Food engineering in practice. In: Jowitt R (ed) Engineering
and food at ICEF 7, part 1. Sheffield Academic, Sheffield, pp A42–A48
Clark JP (1997b) Cost and profitability estimation. In: Handbook of food engineering practice.
CRC, New York, pp 539–557
Codex Alimentarius (1997) Supplement to volume IB, Annex to CAC/RCP 1–1969, Rev. 3
Datta ASK (1998) Computer-aided engineering in food process and product development. Food
Technol 52(10):44–52
de Cindio B, Brancato B, Pollini CM (1994) Process modeling of pasta drying. In: Bimbenet JJ,
Dumoulin E (eds) Automatic control of food and biological processes. Elsevier, Amsterdam,
pp 183–189
48 1 Design of Food Processes and Food Processing Plants

Diefes HA, Okos MR, Morgan MT (1997) A steady state food process design and analysis
program with generalized unit operation models. Paper presented at the annual IFT meeting,
Orlando, FL, June 1997
DIPMIX (1997) Database of transport properties and related thermodynamic data of binary
mixtures. Engineering Research Station. Texas A&M University, College Station
Dolezalek CM, Wamecke HJ (1981) Plannung von fabrikanlagen. Springer, Berlin
Douglas JM (1988) Conceptual design of chemical processes. McGraw-Hill, New York
Downing DL (ed) (1996) A complete course in canning. Books I, II, and III, 13th edn. CTI,
Timonium
Edgar TF (2000) Process information: achieving a unified view. Chem Eng Prog 96(1):51–57
Farkas DF (1977) Unit operations concepts optimize operations. Chem Technol 7:428–433
Farkas DF (1980) Optimizing unit operations in food processing. In: Linko P, Malkki Y, Olkku J,
Larinkari J (eds) Food process engineering, vol 1. Applied Science, London, pp 103–115
Farkas BE, Farkas DF (1997) Material and energy balances. In: Valentas KJ, Rotstein E, Singh RP
(eds) Handbook of food engineering practice. CRC, New York, pp 253–289
Fellows PJ (1990) Food processing technology. Ellis Horwood, London
Fryer PJ, Pyle DL, Rielly CD (1997) Chemical engineering for the food industry. Blackie
Academic and Professional, London
Gekas V (1992) Transport phenomena of foods and biological materials. CRC, New York
Georgiadis M, Rotstein G, Macchietto S (1997) Modeling simulation and optimization of milk
heat treatment processes under fouling and effect on plant’s flexibility. In: Frontiers in food
engineering, CoFE 97. AIChE, New York, pp 382–387
Giese J (2003) Product development. Software aids formulation. Food Technol 57(10):78–79
Gould WA (1994) GMPs/food plant sanitation. CTI, Timonium
Gould WA (1996) Unit operations for the food industry. CTI, Timonium
Gregerson J (Editor-in-Chief) (2001) 26th Plant construction survey: clean, lean, safe, secure.
Magazine Issue 4.1.2001
Guthrie KM (1969) Capital and operating costs for 54 chemical processes. Chem Eng 77
(6):140–156
Haseltine DM (1986) Improve your capital cost estimating. Chem Eng Prog 92(6):26–32
Hausmann KW (1987) Industrielslehre. Oldenburg, Munich
Heldman DR, Hartel RW (1997) Principles of food processing. Chapman & Hall, New York
Heldman DR, Lund DB (1992) Handbook of food engineering. Marcel Dekker, New York
Ibarz A, Barbosa-Canovas GV (2002) Unit operations in food engineering. CRC, Boca Raton
ICHEME (1992) Food engineering in a computer climate. Taylor and Francis, New York
Irudayaraj J (ed) (2001) Food processing operations modeling. Marcel Dekker, New York
James DA (1996) How to use CFD. Leatherhead Food RA, Leatherhead
Jowitt R (1980) Hygienic design and operation of food plant. Ellis Horwood, London
Kettner H, Schmidt J, Greim HR (1984) Leitfaden der systematischen Fabrikplanung. C. Hasner,
Munich
Kimball DA (1999) Citrus processing. Aspen, Gaithersburg
King CJ (1971) Separation processes. McGraw-Hill, New York
Kiranoudis CT, Maroulis ZB, Marinos-Kouris D (1994) An integrated computer-based dryer
simulator. Comput Chem Eng 18:S265–S269
Kontny V (1989) From peanut butter in Paducah to coffee in Kowloon, food plant strategies in
global market. In: The fourth international conference on design and engineering new factor,
renovations and expansions. Food Plants’89, Irvine, CA
Kostaropoulos AE (1977) Mobile factories for food manufacturing. Europa Industrie Revue
3:36–37
Kostaropoulos AE (2001) Mobile module factories. An additional way in food processing. Paper
presented at the symposium food factory of the future. SIK–Swedish Institute of Food and
Biotechnology, Gothenburg, Sweden, June 2001
Kostaropoulos AE (2012) Food engineering within science of food. Int J Food Stud 1:109–113
References 49

Kvenberg JE (1996) The influence of plant and equipment design on the development of HACCP
programs. Paper presented at the annual IFT meeting, New Orleans, June 1996
Leniger HA, Beverloo WA (1975) Food process engineering. D. Reidel, Dordrecht
Liu YA, McGee HA Jr, Epperly WR (eds) (1988) Recent developments in chemical process and
plant design. Wiley, New York
Lokyer K, Muhleman A, Oakland J (1989) Production and operations management. Pitman,
London
Loncin M, Merson RL (1979) Food engineering. Academic, New York
Lord JA (2000) New products failure and success. CRC, Boca Raton
Man J (1994a) Killer floors. Prepared Foods 2:93
Man J (1994b) How to improve your plant-floor flexibility. Prepared Foods 3:94–95, 98
Maroulis ZB, Saravacos GD (2003) Food process design. Marcel Dekker, New York
Maroulis ZB, Saravacos GD (2008) Food plant economics. CRC, New York
Marriott NG (1997) Essentials of food sanitation. Chapman and Hall/Aspen, New York
Mermelstein NH (2000) Software for food processing. Food Technol 54(1):56–59
Moresi M (1984) Economic study of concentrated citrus juice production. In: McKenna B
(ed) Engineering and food, vol 2. Elsevier Applied Science, London, pp 975–991
Mortimore S, Wallace C (2000) HACCP: a practical approach. Kluwer Academic, Norwell
Mortimore S, Wallace C (2001) The HACCP training resource pack. Aspen, Gaithersburg
NACMCF (1997) Hazard analysis and critical control point-principles and applications guidelines.
National Advisory Committee of Microbiological Criteria for Foods, Washington, DC
Nagy S, Chen CS, Shaw PE (1993) Fruit juice processing technology. Agscience, Auburndale
NZIFST (1999) Food industry guide to good manufacturing practice, 2nd edn. New Zealand
Institute of Food Science and Technology, Auckland
Okun S (1989) Taking the guesswork out of contractor selection. In: Fourth international confer-
ence on design engineering of plants, renovations, and expansions, Irvine, CA
Parrish D (1990) Flexible manufacturing. Butterworth-Heinemann, London
Perry RH, Green DW (1984) Perry’s chemical engineers’ handbook, 6th edn. McGraw-Hill,
New York
Perry RH, Green DW (1997) Perry’s chemical engineers’ handbook, 7th edn. McGraw-Hill,
New York
Peters MS, Timmerhaus KD (1990) Plant design and economics for chemical engineers, 4th edn.
McGraw-Hill, New York
Popham KR (1996) Industrial plant design/construction constraints and opportunities. Paper
presented at the annual IFT meeting, New Orleans, LA, June 1996
Pyle DL (1997) Introduction to process design. In: Fryer PJ, Pyle DL, Rielly CD (eds) Chemical
engineering for the food industry. Blackie Academic and Professional, London, pp 1–62
Rahman MS (2009) Food properties handbook, 2nd edn. CRC, New York
Rao MA, Rizvi SSH (eds) (1995) Engineering properties of foods, 2nd edn. Marcel Dekker,
New York
Reid RC, Prausnitz JM, Poling BE (1987) The physical properties of gases and liquids, 4th edn.
McGraw-Hill, New York
Rice J (1987) Mobile aseptic plant. Food Process June, pp 76–78
Rudolph MJ (2004) Cross industry technology transfer. Food Technol 50(1):32–34
Saguy I (ed) (1983) Computer-aided techniques in food technology. Marcel Dekker, New York
Sandler HJ, Luckiewicz ET (1987) Practical process engineering. McGraw-Hill, New York
Saravacos GD (2000) Transport properties in food engineering. Paper presented at the interna-
tional conference on engineering and food (ICEF 8). Puebla, Mexico, April 2000
Saravacos GD, Kostaropoulos AE (1995) Transport properties in processing of fruits and vegeta-
bles. Food Technol 49(9):99–105
Saravacos GD, Kostaropoulos AE (1996) Engineering properties in food processing simulation.
Comput Chem Eng 20:S461–S466
Saravacos GD, Maroulis ZB (2001) Transport properties of foods. Marcel Dekker, New York
50 1 Design of Food Processes and Food Processing Plants

Saravacos GD, Maroulis ZB (2011) Food process engineering operations. CRC, New York
Schwecke W (1989) Thinking food safety in plant design. Food Plants’89. Fourth international
conference on design and engineering. Plant Strategies Inc., Chester
Seibel W, Spicher G (1991) Backwaren. In: Heiss R (ed) Lebensmitteltechnologie. Springer,
Berlin, pp 167–180
Shepard WL (1981) How to attack those nagging floor problems. Food Eng Int 4:26
SIK (2001) Food factory of the future. International symposium. SIK, Gothenburg
Singh RP (1996) Computer applications in food technology. Academic, New York
Sinnott RK (1996) Chemical process design. In: Coulson JM, Richardson JF (eds) Chemical
engineering, vol 6. Butterworth-Heinemann, London
Skjoldebrand C, Ohlsson T (1993) A computer simulation program for evaluation of the contin-
uous heat treatment of particulate food products. Part 1: design. J Food Eng 20:149–165
Skjoldebrand C, Sundstrom B, Janestad H, Anderson CG (1994) Simulators of food processes. In:
Bimbenet JJ, Dumoulin E, Trystram G (eds) Automatic control of food and biological
processes. Elsevier, Amsterdam, pp 433–440
Smith JM, Van Ness HC (1987) Introduction to chemical engineering thermodynamics, 4th edn.
McGraw-Hill, New York
Souci SW, Fachmann W, Kraut H (1981) Die Zusammensetsung der Lebensmittel.
Wissenschafticher Verlag, Stuttgart
Swientek B (1993) Robotics: get a grip in it. Prepared Foods 5:80–84
Teixeira AA, Shoemaker CE (1989) Computerized food processing operations. Van Nostrand
Reinhold, New York
Tijskens LMM, Hertog M, Nicolai BM (eds) (2001) Food process modeling. CRC, New York
Ting SV, Rouseff BL (1986) Citrus fruits and their products. Marcel Dekker, New York
Troller JA (1993) Sanitation in food processing, 2nd edn. Academic, New York
Valentas KJ, Levine L, Clark JP (1991) Food processing operations and scale-up. Marcel Dekker,
New York
Valentas KJ, Rotstein E, Singh RP (1997) Handbook of food engineering practice. CRC,
New York
Viere HP (1994) Mobile Schlachtanlage-Integrierte Schlacht- und Verarbeitungsbetrieb und
Modulbauweise. Fleischwirtschaft 74(4):382–387
Wagner W (1998) Planung in Anlagebau. Vogel Buchverlag, Würzburg
Walas SM (1988) Chemical process equipment. Butterworths, London
Watt BK, Merrill AL (1963) Composition of foods, raw, processed, prepared. Agriculture hand-
book no. 8. USDA, Washington, DC
Wells GL, Rose LM (1986) The art of chemical process design. Elsevier Science, Amsterdam
Young R (2000) Plant construction survey. Food Eng J, 20 May 2000
Chapter 2
Design and Selection of Food
Processing Equipment

2.1 Introduction

The principles of mechanical design and construction of food processing equipment

are similar to those for the equipment of the chemical and process industries. The
basic engineering requirements of process equipment are the containment of the
material, the strength of the components, the efficiency of the operation, and the
transfer of energy during processing. The equipment should be resistant to corro-
sion and be cost effective, and its operation should not present occupational hazards
to the operators. In addition, the food processing equipment must comply with strict
standards and regulations, which are necessary for securing the quality and safety of
the food products to the consumers.
Hygienic (sanitary) design of food processing equipment involves selection of
appropriate materials of construction and design, fabrication, and operation of the
equipment that will ensure the safety of the food products from microbial and other
contaminations and preserve the food quality. The equipment should be easily
cleaned and sanitized by continuous (CIP; see p. 65) or noncontinuous techniques
and be adapted to integrated systems of process control and automation.
Plant and equipment maintenance in food processing are of paramount impor-
tance. Due to stricter regulations and more or less fluid products, mechanization and
automation are more advanced in dairy technology than in other food processing
plants (Tannine and Law 2001).
Equipment used in the processing of seasonal products, such as tomatoes,
oranges, and sugar beets, requires special maintenance. All equipment, remaining
idle for a substantial time, should be examined thoroughly and repaired, if needed,
before starting the new processing period. Equipment failure during the busy
processing period can result in significant losses of raw materials, due to spoilage.
The quality of processed food products is affected significantly by the processing
equipment (Kostaropoulos and Saravacos 1995).

© Springer International Publishing Switzerland 2016 51

G. Saravacos, A.E. Kostaropoulos, Handbook of Food Processing Equipment,
Food Engineering Series, DOI 10.1007/978-3-319-25020-5_2
52 2 Design and Selection of Food Processing Equipment

2.2 Sizing and Costing of Equipment

The sizing of food processing equipment is based on material and energy balances
around each process unit. The process block diagram (PBD) and data tables
obtained in process design (Chap. 1) are essential. Shortcut (simplified) equations
are normally used for preliminary sizing of process equipment. Food engineering
properties and databanks, especially transport properties, are needed for the calcu-
lations (Rao and Rizvi 1995; Rahman 1995; Saravacos and Maroulis 2001). Sizing
calculations yield preliminary data on the dimensions of the equipment and the
requirements for utilities (steam, water, refrigeration, power).
An oversizing capacity of 10–20 % is normally used to account for production
problems, e.g., breakdown of a critical unit, and to meet production peaks.
Oversizing is also advisable, when operating or environmental conditions change
substantially, e.g., higher capacity of an air-cooling unit to account for increased
humidity of cold storage rooms or for higher temperature and humidity of
ambient air.
Equipment sizing also depends on the manufacturing plans of the food company.
Thus, if greater flexibility is desired, two smaller units are better than a larger one.
Splitting the capacity of process and utility units may also be advantageous for a
more steady and flexible operation and for a reduction of the maintenance cost of
the whole processing plant.
The cost of materials is the major component of the cost of the processing
equipment. Typical costs of metallic materials, converted to year 2000 (M&S
index), are carbon steel $430/t, SS 304 $2000/t, SS 316 $3200/t, and aluminum
$1600/t (Sinnott 1996). The cost of construction also depends on the type of
material used, i.e., raw, rolled, extruded, plate, and alloy, and the precision of
workmanship in fabrication.
The price of standardized or “off-the-shelf” equipment is, in general, consider-
ably lower than the price of custom-made equipment. Whenever possible, such
equipment is preferred.
Cost indices and Guthrie charts of Chemical Engineering magazine (M&S, CE)
can be used for general processing equipment (Table 1.3 and Fig. 1.2). Published
cost data for various food processing plants and equipment are very limited, e.g.,
Bartholomai (1987). These data are useful in preliminary equipment and plant
design and in economic evaluation of a proposed food processing plant. Of course,
more realistic cost data on specific equipment can be obtained from price quotations
of equipment suppliers.
Cost data were collected in Europe for certain food processing equipment for the
period 1960–1990 (Kostaropoulos and Saravacos 1997). Typical diagrams of cost
versus capacity for food tanks, plate heat exchangers, and centrifuges, used in the
dairy, edible oil, and juice/beverage industries, are shown in Figs. 2.1, 2.2, 2.3, 2.4
and 2.5. The material of construction is food-grade stainless steel, and the cost in
USD (US dollars) was converted to year 2000, using the M&S equipment cost
index. The “2/3” rule (1.3) was applicable to most equipment, except for tanks of
Fig. 2.1 Cost of storage 50
tanks for liquid foods (year
2000). Data from 40

USD(x1000)
Kostaropoulos and 30
Saravacos (1997)
20
10
0
0 5 10 15 20 25
cubic meters

Fig. 2.2 Cost of plate heat 50

exchangers (year 2000).
Data from Kostaropoulos 40
USD(x1000)

and Saravacos (1997) 30

20
10
0
0 5 10 15 20 25
cubic meters / h

Fig. 2.3 Cost of centrifugal 10

pumps for liquid foods (year
2000). Data from 8
USD(x1000)

Kostaropoulos and
Saravacos (1997) 6
4
2
0
0 10 20 30 40
cubic meters / h

Fig. 2.4 Cost of centrifugal 5000

pumps (5 m3/h) in the
period 1960–2000. Data 4000
from Kostaropoulos and
Saravacos (1997)
3000
USD

2000

1000

0
1950 1960 1970 1980 1990 2000 2010
Year
54 2 Design and Selection of Food Processing Equipment

Fig. 2.5 Cost of centrifugal 30

separators (6 m3/h) in the
period 1960–1990. Data

USD(x1000)
from Kostaropoulos and 20
Saravacos (1997)

10

0
1950 1960 1970 1980 1990 2000
Year

low capacities (below 200 L), where a higher capacity factor (n) was found. The
capacity factor for special mechanical equipment, like centrifuges and homoge-
nizers, is nearly n ¼ 1. There is an almost linear relationship between the weight and
the power of the centrifugal pumps.
Nearly linear increases of the cost of centrifugal pumps and centrifuges during
the period 1960–1990 were observed (Figs. 2.4 and 2.5), corresponding to average
annual increases (inflation) of 6.5 and 7.5 %, respectively. These increases are
significantly higher than the average annual increases of the M&S equipment index
(4.5 %) over the same period (Fig. 1.2). The higher inflation rates of food
processing equipment are due to the higher increases of prices of the alloying
metals, i.e., Cr, Ni, and Mo, used in food-grade stainless steels (Hall et al. 1988).

2.3 Materials of Construction

The properties and cost of materials of construction are very important factors in the
design, construction, operation, and maintenance of general processing equipment.
Selection and application of these materials are based on the principles of metal-
lurgy and materials science (Murray 1999; Cardarelli 2000).
The main materials being used for food processing equipment are metals,
plastics, and glass–ceramics. Furthermore, wood and some natural fibers are used
in some special applications. The materials used in the construction of food
equipment must have the following properties: (1) mechanical strength, (2) easy
to fabricate, (3) easy to repair, (4) resistance to corrosion, (5) hygienic properties,
and (6) desirable thermal properties.
The mechanical strength is especially important in the construction of equipment
used in processing of large quantities in a relatively short time, e.g., in seasonal
processing. Furthermore, strength is usually more important in the first stages of
processing, in which large amounts of raw material have to be processed. Mechan-
ical strength is also important when material stress is involved, such as in loaded
tanks and silos and in abrasion during cutting, milling, and pneumatic transport of
grain. For protection against abrasion, hardening of the surface of the metal is
2.3 Materials of Construction 55

necessary. In fabrication and repair of food processing equipment, the hardness and
welding ability of the materials are also important.
The resistance against corrosion is especially important in (1) wet processing
(e.g., canning industry) and (2) processing of foods or food ingredients of relatively
low pH, which may attack the equipment materials and when corrosive chemicals
are used, e.g., caustic solutions for peeling, SO2 for preservation, and cleaning
chemicals.
Factors that may enhance corrosion are (Perry and Green 1997) (1) increase of
temperature, (2) pressure, (3) acidity (pH), (4) presence of impurities, (5) aeration,
(6) relative velocity (material/product), and (7) temperature difference (ΔT ) during
heat transfer.
Corrosion of food processing equipment may be distinguished as: (1) uniform
corrosion (e.g., oxidation due to humidity), (2) pitting (tiny holes on the surface of
the metals, due to the attack of aqueous solutions containing chlorides), (3) stress
corrosion (e.g., overloading of pumps and grinding machines), (4) intergranular
corrosion (due to high temperature during welding), and (5) galvanic corrosion (due
to the direct contact of dissimilar metals).
The materials that are used for food processing and preservation equipment may
come directly in contact with the food or may be part of supporting elements of
machines and structures without contacting food at all. Nevertheless, due to strict
measures taken for protecting food from contamination, even materials not coming
in direct contact with food should fulfill the hygienic conditions established by
regulations for food protection. For materials of equipment that come directly in
contact with food, the hygienic regulations are to a great extent the same as the
regulations for food containers and packaging materials.
The hygienic (sanitary) materials do not exchange components with the food,
i.e., they do not contaminate the food or absorb components of the processed
product. They should have smooth or polished surfaces, not react with detergents,
and they should be cleaned easily. Thermal properties are important when heat
transfer to and from the processed products must take place (e.g., pasteurization of
liquids in tubes, cooling down food in plate freezers). The main characteristics of
materials employed in the construction of food processing equipment are given in
Table 2.1.

2.3.1 Metals

Metals are the most important materials used in the construction of food processing
equipment. They can be classified into two main categories: ferrous metals and their
alloys and nonferrous metals. The nonferrous metals are either used in the con-
struction of equipment and in equipment parts coming directly in contact with food
or are included in alloys or in chemicals that are used for influencing the properties
of other materials (e.g., paints, plastics).
