What is Instruction Format in Computer

Architecture?

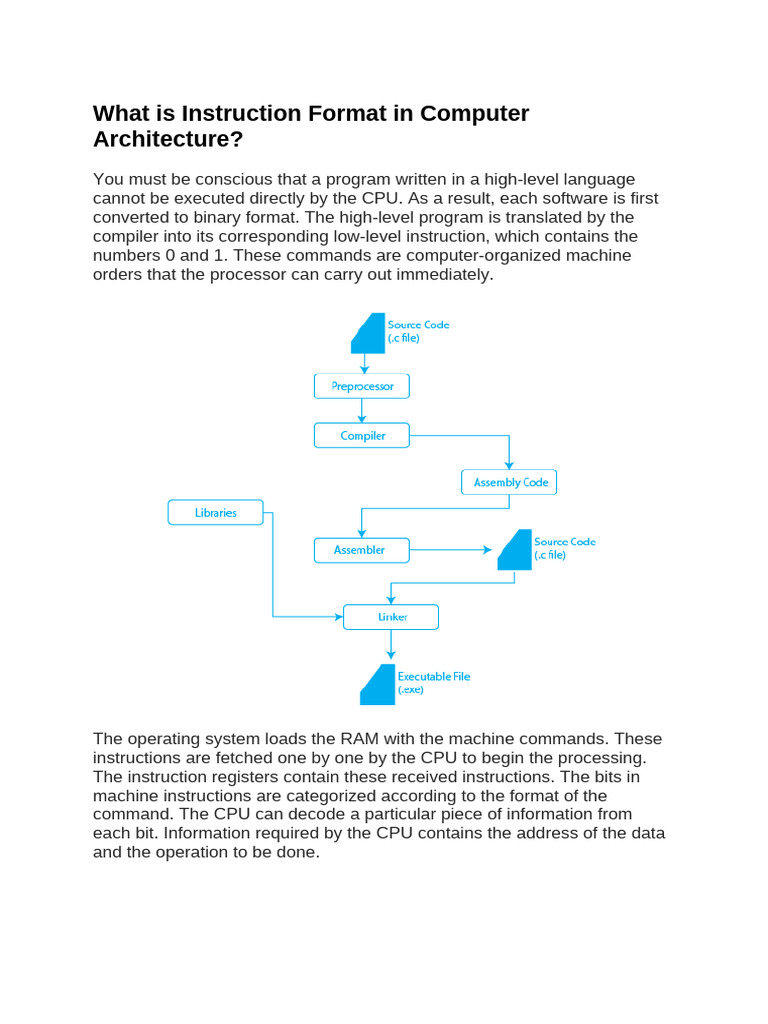

You must be conscious that a program written in a high-level language
cannot be executed directly by the CPU. As a result, each software is first
converted to binary format. The high-level program is translated by the
compiler into its corresponding low-level instruction, which contains the
numbers 0 and 1. These commands are computer-organized machine
orders that the processor can carry out immediately.

The operating system loads the RAM with the machine commands. These
instructions are fetched one by one by the CPU to begin the processing.
The instruction registers contain these received instructions. The bits in
machine instructions are categorized according to the format of the
command. The CPU can decode a particular piece of information from
each bit. Information required by the CPU contains the address of the data
and the operation to be done.
 A rectangular box that represents the instruction bits in memory words or a
control register is used to represent the instruction structure. Three
sections make up the collection of bits:

 Addressing Mode: The addressing mode indicates how the data is

represented.
 Opcode: The opcode part indicates the operation type on the data.
 Operand: The operand part indicates either the data or the address of the
data.

Let’s review and talk about a few key ideas linked to instruction format in
computer architecture before continuing:

 Operational codes, operands, an opcode, and an addressing method are

all included in an instruction.
 The most basic problem with the format design is the instruction length.
The time required to receive an instruction will increase with its length.
 The range of the memory is directly proportional to the number of bits. In
other words, the wider the range needed, the more number bits will be
needed.
 The memory range that the instruction must target will be greater than the
physical memory if a system supports virtual memory.
 The instruction duration should be the same as the data bus length or a
multiple of it.

What is Instruction Format?

The forms for the instructions are a series of bits (0 and 1). When these
pieces are combined, they form fields. The CPU receives precise
information about the operation and location of the data from each field of
the machine.

The bit configuration for an instruction is also specified by the instruction

format. It may have a variety of locations and be of varying lengths. The
address elements in the instruction format change depending on how the
 CPU’s registers are set up. The CPU’s supported file formats rely on the
Instructions Set Architecture the processor has put in place.
Depending on the multiple address fields, the instruction is categorized as
follows:

 Zero address instruction

 One address instructions
 Two address instruction
 Three address instruction

Data that is stored in memory or processor registers is used to carry out the
tasks defined by a computer instruction. A CPU register’s operands are
identified by an address. A binary integer with k bits called the registered
address designates one of the 2k registers in the CPU. Therefore, a CPU
with 16 CPUs will have a four-bit register address field and registers R0
through R15.

Types of Instruction Format in Computer

Architecture
Below are the types of instruction format in Computer Architecture.

Zero Address Instruction

The location of the operands is tacitly represented because this instruction

lacks an operand field. These commands are supported by the stack-
organized computer system. It is necessary to translate the arithmetic
expression into a reverse polish notation in order to assess it.

Example of Zero address instruction: Consider the actions below, which

demonstrate how the expression X = (A + B) (C + D) will be formatted for a
stack-organized computer.

TOS: Top of the Stack

PUSH A TOS ← A

PUSH B TOS ← B
ADD TOS ← (A + B)

PUSH C TOS ← C

PUSH D TOS ← D

ADD TOS ← (C + D)

MUL TOS ← (C + D) ∗ (A + B)

POP X M [X] ← TOS

One Address Instruction

This instruction performs data manipulation tasks using an implied

accumulator. A register that the CPU uses to carry out logical processes is
called an accumulator. The accumulator is inferred in one address
instruction, so it doesn’t need an explicit reference. A second register is
required for addition and subtraction. Instead, we’ll ignore the second
register in this case and presume that the accumulator already holds the
outcomes of all the operations.

B) ∗ (C + D) is as follows:
Example of One address instruction: The program to evaluate X = (A +

LOAD A AC ← M [A]

ADD B AC ← A [C] + M [B]

STORE T M [T] ← AC

LOAD C AC ← M [C]

ADD D AC ← AC + M [D]

MUL T AC ← AC ∗ M [T]

STORE X M [X] ← AC
 All actions involve a memory operand and the accumulator (AC) register.
Any memory address is M[].
M[T] points to a temporary memory spot where the interim outcome is kept.

There is only one operand space in this instruction format. To transfer data,
this address field employs two unique instructions, namely:

 LOAD: This is used to transfer the data to the accumulator.

 STORE: This is used to move the data from the accumulator to the
memory.
Two Address Instructions

The majority of commercial computers use this command. There are three
operand fields in this address command format. Registers or memory
addresses can be used in the two address sections.

B) ∗ (C + D) is as follows:
Example of Two address instruction: The program to evaluate X = (A +

MOV R1, A R1 ← M [A]

ADD R1, B R1 ← R1 + M [B]

MOV R2, C R2 ← M [C]

ADD R2, D R2 ← R2 + M [D]

MUL R1, R2 R1 ← R1∗R2

MOV X, R1 M [X] ← R1

The MOV command moves the operands from the processor registers to
the memory. sensors R1, R2.

Three Address Instruction

A three-address command must have three operand elements in its format.

These three fields could either be registers or memory locations.
Example of Three address instruction: The assembly language program
X = (A + B) * (C + D) Take a look at the instructions that follow, which
describe the register transfer procedure for each instruction.

ADD R1, A, B R1 ← M [A] + M [B]

ADD R2, C, D R2 ← M [C] + M [D]

MUL X, R1, R2 M [X] ← R1 ∗ R2

R1 and R2 are the two CPU registers.

The operand at the memory location represented by A is indicated by the
symbol M [A]. The data or location that the CPU will use is contained in
operands 1 and 2. The address of the output is in operand 3.
