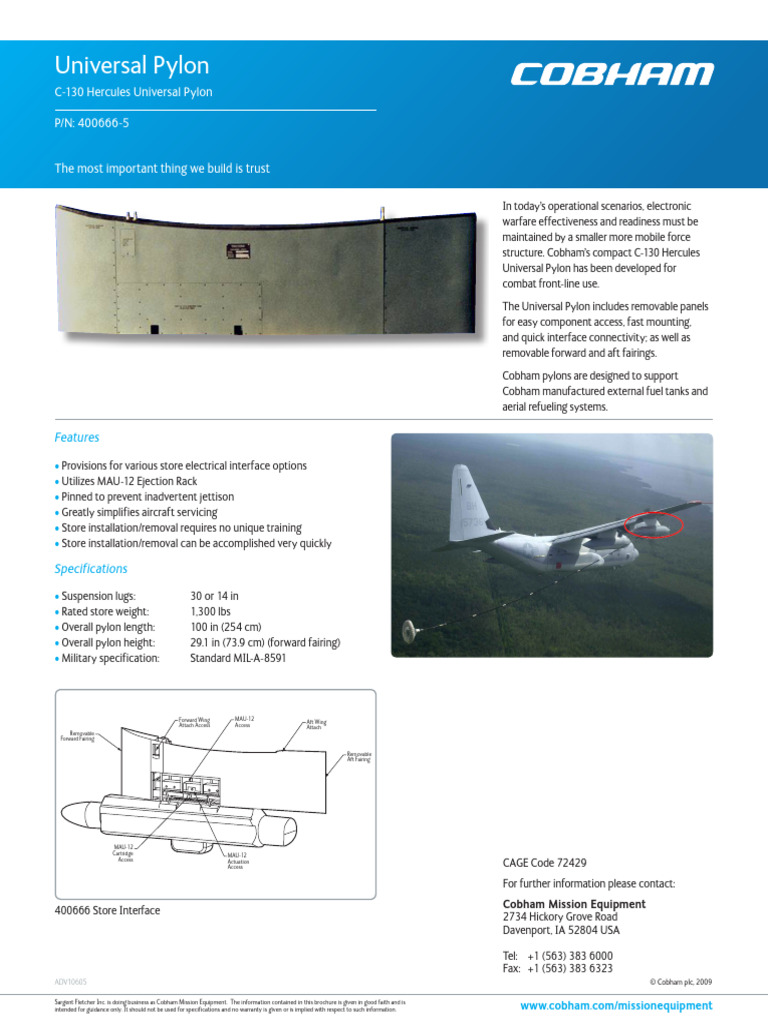

Universal Pylon

C-130 Hercules Universal Pylon

P/N: 400666-5

The most important thing we build is trust

In today’s operational scenarios, electronic

warfare effectiveness and readiness must be
maintained by a smaller more mobile force
structure. Cobham’s compact C-130 Hercules
Universal Pylon has been developed for
combat front-line use.
The Universal Pylon includes removable panels
for easy component access, fast mounting,
and quick interface connectivity; as well as
removable forward and aft fairings.
Cobham pylons are designed to support
Cobham manufactured external fuel tanks and
aerial refueling systems.

Features

• Provisions for various store electrical interface options

• Utilizes MAU-12 Ejection Rack
• Pinned to prevent inadvertent jettison
• Greatly simplifies aircraft servicing
• Store installation/removal requires no unique training
• Store installation/removal can be accomplished very quickly

Specifications

• Suspension lugs: 30 or 14 in
• Rated store weight: 1,300 lbs
• Overall pylon length: 100 in (254 cm)
• Overall pylon height: 29.1 in (73.9 cm) (forward fairing)
• Military specification: Standard MIL-A-8591

Forward Wing MAU-12 Aft Wing

Attach Access Access Attach
Removable
Forward Fairing

Removable
Aft Fairing

MAU-12
Cartridge MAU-12
Access Actuation
Access CAGE Code 72429
For further information please contact:
Cobham Mission Equipment
400666 Store Interface 2734 Hickory Grove Road
Davenport, IA 52804 USA

Tel: +1 (563) 383 6000

Fax: +1 (563) 383 6323
ADV10605 © Cobham plc, 2009
