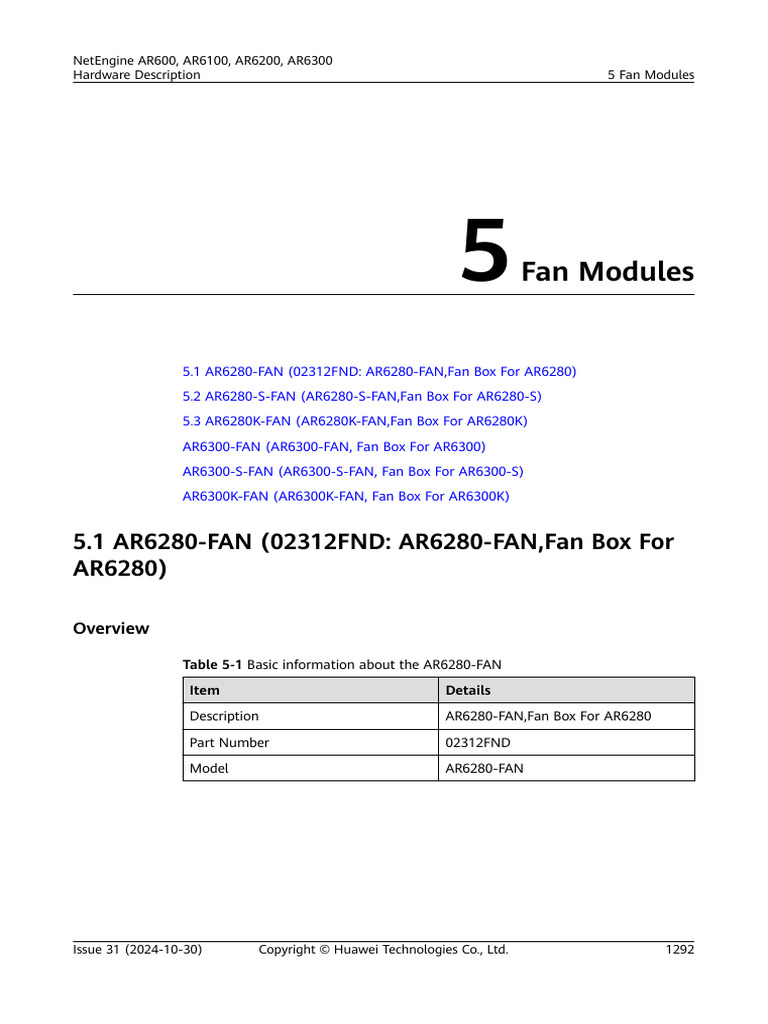

NetEngine AR600, AR6100, AR6200, AR6300
Hardware Description 5 Fan Modules
5 Fan Modules
5.1 AR6280-FAN (02312FND: AR6280-FAN,Fan Box For AR6280)
5.2 AR6280-S-FAN (AR6280-S-FAN,Fan Box For AR6280-S)
5.3 AR6280K-FAN (AR6280K-FAN,Fan Box For AR6280K)
AR6300-FAN (AR6300-FAN, Fan Box For AR6300)
AR6300-S-FAN (AR6300-S-FAN, Fan Box For AR6300-S)
AR6300K-FAN (AR6300K-FAN, Fan Box For AR6300K)
5.1 AR6280-FAN (02312FND: AR6280-FAN,Fan Box For
AR6280)
Overview
Table 5-1 Basic information about the AR6280-FAN
Item Details
Description AR6280-FAN,Fan Box For AR6280
Part Number 02312FND
Model AR6280-FAN
Issue 31 (2024-10-30) Copyright © Huawei Technologies Co., Ltd. 1292
NetEngine AR600, AR6100, AR6200, AR6300
Hardware Description 5 Fan Modules
Appearance
Figure 5-1 Appearance of the AR6280-FAN
Version Mapping
Table 5-2 Mappings between AR6280-FAN and product models
Product Product First Last Unsupported
Model Supported Supported Version
Version Version
AR6200 AR6280 V300R019C00 - -
(02115641)
Panel
Figure 5-2 Panel of the AR6280-FAN
Issue 31 (2024-10-30) Copyright © Huawei Technologies Co., Ltd. 1293
NetEngine AR600, AR6100, AR6200, AR6300
Hardware Description 5 Fan Modules
1. STATUS 2. Captive screw 3. Handle 4. ESD jack
indicator
Table 5-3 Indicators on the AR6280-FAN
Silkscreen Name Color Status Description
STATUS STATUS Green Slow blinking The fan
indicator module is
running
properly.
Green Fast blinking The fan
module
cannot
communicate
with the
system.
Red Blinking The fan
module has
failed, and an
alarm has
been
generated.
Technical Specifications
Table 5-4 Technical specifications of the AR6280-FAN
Item Specification
Dimensions without packaging (H x W 84.3 mm x 27.4 mm x 478.6 mm (3.32
x D) [mm(in.)] in. x 1.08 in. x 18.84 in.)
Hot swapping Supported
Weight without packaging [kg(lb)] 1.05 kg (2.31 lb)
Maximum power consumption [W] 30 W
Number of fans 5
Maximum airflow [CFM] 400CFM
Maximum noise level [dB(A)] 65.7dB
Maximum wind pressure [Pa] 150Pa
Issue 31 (2024-10-30) Copyright © Huawei Technologies Co., Ltd. 1294
NetEngine AR600, AR6100, AR6200, AR6300
Hardware Description 5 Fan Modules
5.2 AR6280-S-FAN (AR6280-S-FAN,Fan Box For AR6280-
S)
Overview
Table 5-5 Basic information about the AR6280-S-FAN
Item Details
Description AR6280-S-FAN,Fan Box For AR6280-S
Part Number 02312XQV
Model AR6280-S-FAN
Appearance
Figure 5-3 Appearance of the AR6280-S-FAN
Issue 31 (2024-10-30) Copyright © Huawei Technologies Co., Ltd. 1295
NetEngine AR600, AR6100, AR6200, AR6300
Hardware Description 5 Fan Modules
Version Mapping
Table 5-6 Mappings between AR6280-S-FAN and product models
Product Product First Last Unsupported
Model Supported Supported Version
Version Version
AR6200 AR6280-S V300R019C10 - -
(02353PBR)
AR6200 AR6280-S V300R022C00 - -
(02353PBR-00
1)
Panel
Figure 5-4 Panel of the AR6280-S-FAN
1. STATUS 2. Captive screw 3. Handle 4. ESD jack
indicator
Table 5-7 Indicators on the AR6280-S-FAN
Silkscreen Name Color Status Description
STATUS STATUS Green Slow blinking The fan
indicator module is
running
properly.
Green Fast blinking The fan
module
cannot
communicate
with the
system.
Issue 31 (2024-10-30) Copyright © Huawei Technologies Co., Ltd. 1296
NetEngine AR600, AR6100, AR6200, AR6300
Hardware Description 5 Fan Modules
Silkscreen Name Color Status Description
Red Blinking The fan
module has
failed, and an
alarm has
been
generated.
Technical Specifications
Table 5-8 Technical specifications of the AR6280-S-FAN
Item Specification
Dimensions without packaging (H x W 84.3 mm x 27.4 mm x 478.6 mm (3.32
x D) [mm(in.)] in. x 1.08 in. x 18.84 in.)
Hot swapping Supported
Weight without packaging [kg(lb)] 1.05 kg (2.31 lb)
Maximum power consumption [W] 30 W
Number of fans 5
Maximum airflow [CFM] 400 CFM
Maximum noise level [dB(A)] 65.7 dB(A)
Maximum wind pressure [Pa] 150 Pa
5.3 AR6280K-FAN (AR6280K-FAN,Fan Box For AR6280K)
Overview
Table 5-9 Basic information about the AR6280K-FAN
Item Details
Description AR6280K-FAN,Fan Box For AR6280K
Part Number 02312XQU
Model AR6280K-FAN
Issue 31 (2024-10-30) Copyright © Huawei Technologies Co., Ltd. 1297
NetEngine AR600, AR6100, AR6200, AR6300
Hardware Description 5 Fan Modules
Appearance
Figure 5-5 Appearance of the AR6280K-FAN
Version Mapping
Table 5-10 Mappings between AR6280K-FAN and product models
Product Product First Last Unsupported
Model Supported Supported Version
Version Version
AR6200 AR6280K V300R019C11 - -
(02116205)
Panel
Figure 5-6 Panel of the AR6280K-FAN
Issue 31 (2024-10-30) Copyright © Huawei Technologies Co., Ltd. 1298
NetEngine AR600, AR6100, AR6200, AR6300
Hardware Description 5 Fan Modules
1. STATUS 2. Captive screw 3. Handle 4. ESD jack
indicator
Table 5-11 Indicators on the AR6280K-FAN
Silkscreen Name Color Status Description
STATUS STATUS Green Slow blinking The fan
indicator module is
running
properly.
Green Fast blinking The fan
module
cannot
communicate
with the
system.
Red Blinking The fan
module has
failed, and an
alarm has
been
generated.
Technical Specifications
Table 5-12 Technical specifications of the AR6280K-FAN
Item Specification
Dimensions without packaging (H x W 84.3 mm x 27.4 mm x 478.6 mm (3.32
x D) [mm(in.)] in. x 1.08 in. x 18.84 in.)
Hot swapping Supported
Weight without packaging [kg(lb)] 1.05 kg (2.31 lb)
Maximum power consumption [W] 30 W
Number of fans 5
Maximum airflow [CFM] 400 CFM
Maximum noise level [dB(A)] 65.7 dB(A)
Maximum wind pressure [Pa] 150 Pa
Issue 31 (2024-10-30) Copyright © Huawei Technologies Co., Ltd. 1299
