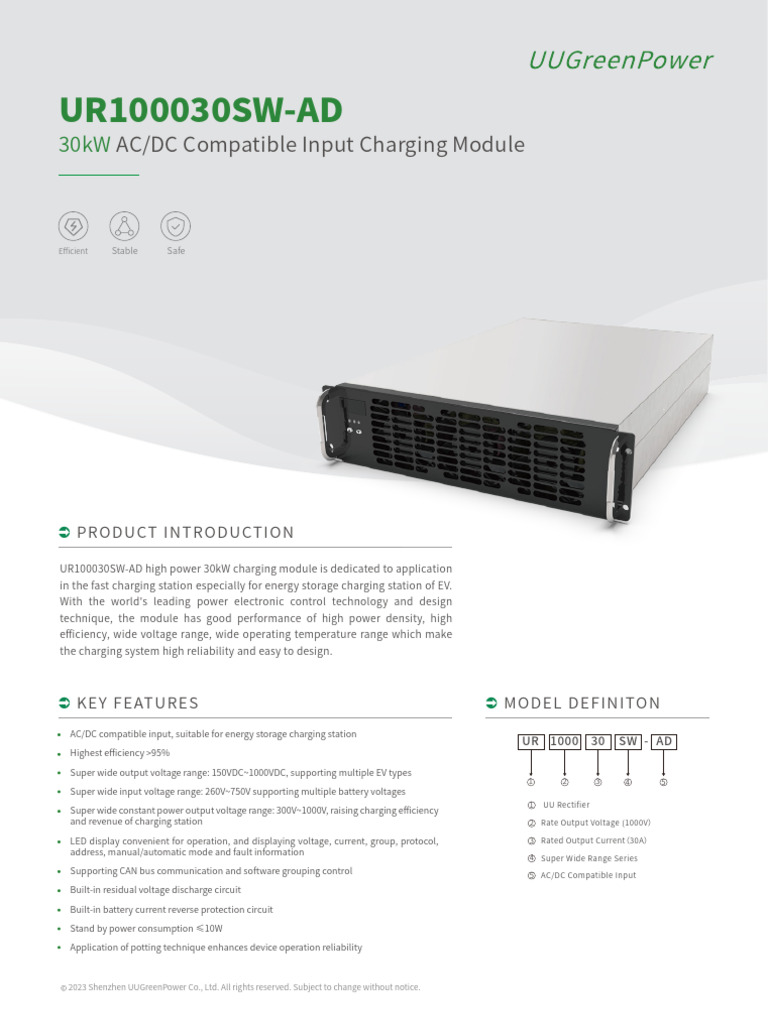

UR100030SW-AD
30kW AC/DC Compatible Input Charging Module
Efficient Stable Safe
P R OD U CT INT RO D U CT I O N
UR100030SW-AD high power 30kW charging module is dedicated to application
in the fast charging station especially for energy storage charging station of EV.
With the world's leading power electronic control technology and design
technique, the module has good performance of high power density, high
efficiency, wide voltage range, wide operating temperature range which make
the charging system high reliability and easy to design.
KE Y FE AT U RES MODE L DEFINITON
AC/DC compatible input, suitable for energy storage charging station
UR 1000 30 SW - AD
Highest efficiency >95%
Super wide output voltage range: 150VDC~1000VDC, supporting multiple EV types
1 2 3 4 5
Super wide input voltage range: 260V~750V supporting multiple battery voltages
1 UU Rectifier
Super wide constant power output voltage range: 300V~1000V, raising charging efficiency
and revenue of charging station 2 Rate Output Voltage (1000V）
LED display convenient for operation, and displaying voltage, current, group, protocol, 3 Rated Output Current（30A）
address, manual/automatic mode and fault information
4 Super Wide Range Series
Supporting CAN bus communication and software grouping control 5 AC/DC Compatible Input
Built-in residual voltage discharge circuit
Built-in battery current reverse protection circuit
Stand by power consumption ≤10W
Application of potting technique enhances device operation reliability
2023 Shenzhen UUGreenPower Co., Ltd. All rights reserved. Subject to change without notice.
T E C H N I CA L PA RA M ET ERS
Rated output 1000V/30A Input voltage 260VAC~530VAC
Constant power voltage range 30kW(300V-1000V) Input frequency 50Hz/60Hz
Output voltage range 150VDC-1000VDC THD ≤5%
Output current range 0-100A Power factor Pf≥0.99@Rated load
Current limit mode when short circuit occurs, Max. input current <40A
Short circuit protection
can recover automatically
Input undervoltage protection 255±5V
Voltage stabilized accuracy ≤±0.5%
Input overvoltage protection 490±5V
Current shabilized accuracy ≤±1%
Current sharing accuracy ≤±3%
Startup time 1s
DC input voltage range 260~750V
Efficiency Max≥95%
500~750V rated output 30kW
DC input power derating 260~500V linear power down to 7.5kW
Communication CAN
Max. number of parallel
60pcs
machines -40℃~70℃
Alarm and status CAN bus communication LED display Operating temperature AC input： derates from 55℃
DC input： derates from 45℃
Over temperature protection >75℃±4℃ or <-40℃±4℃,
module shut down automatically
Noise <65dB
Storage temperature - 40°C~85°C
Cooling Forced air cooling
Humidity ≤95% RH, without condensation
Dimension 300mm(W)*84mm(H)*437.5mm(D)
Atmospheric pressure/ 79kPa~106kPa/2000m
Weight <15kg Altitude
CH A RACT ERI ST I C CU R VE
Output Power (kW)
output Power (kW)
Output Voltage (V)
AC Input Voltage (V) DC Input Voltage (V) Current (A)
AC Input Charateristic Curve DC Input Characteristic Curve Output Characteristic Curve (≤55℃)
ST R U CT U R E S I Z E
84
461
437.5 84
300
336
