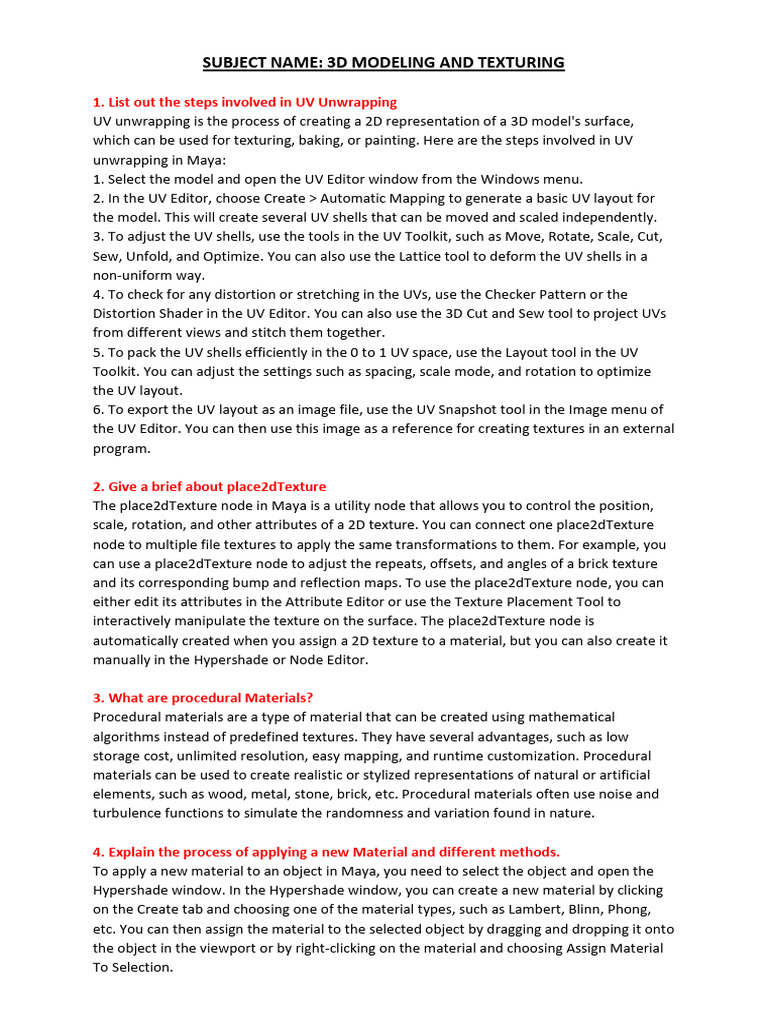

SUBJECT NAME: 3D MODELING AND TEXTURING

1. List out the steps involved in UV Unwrapping

UV unwrapping is the process of creating a 2D representation of a 3D model's surface,
which can be used for texturing, baking, or painting. Here are the steps involved in UV
unwrapping in Maya:
1. Select the model and open the UV Editor window from the Windows menu.
2. In the UV Editor, choose Create > Automatic Mapping to generate a basic UV layout for
the model. This will create several UV shells that can be moved and scaled independently.
3. To adjust the UV shells, use the tools in the UV Toolkit, such as Move, Rotate, Scale, Cut,
Sew, Unfold, and Optimize. You can also use the Lattice tool to deform the UV shells in a
non-uniform way.
4. To check for any distortion or stretching in the UVs, use the Checker Pattern or the
Distortion Shader in the UV Editor. You can also use the 3D Cut and Sew tool to project UVs
from different views and stitch them together.
5. To pack the UV shells efficiently in the 0 to 1 UV space, use the Layout tool in the UV
Toolkit. You can adjust the settings such as spacing, scale mode, and rotation to optimize
the UV layout.
6. To export the UV layout as an image file, use the UV Snapshot tool in the Image menu of
the UV Editor. You can then use this image as a reference for creating textures in an external
program.

2. Give a brief about place2dTexture

The place2dTexture node in Maya is a utility node that allows you to control the position,
scale, rotation, and other attributes of a 2D texture. You can connect one place2dTexture
node to multiple file textures to apply the same transformations to them. For example, you
can use a place2dTexture node to adjust the repeats, offsets, and angles of a brick texture
and its corresponding bump and reflection maps. To use the place2dTexture node, you can
either edit its attributes in the Attribute Editor or use the Texture Placement Tool to
interactively manipulate the texture on the surface. The place2dTexture node is
automatically created when you assign a 2D texture to a material, but you can also create it
manually in the Hypershade or Node Editor.

3. What are procedural Materials?

Procedural materials are a type of material that can be created using mathematical
algorithms instead of predefined textures. They have several advantages, such as low
storage cost, unlimited resolution, easy mapping, and runtime customization. Procedural
materials can be used to create realistic or stylized representations of natural or artificial
elements, such as wood, metal, stone, brick, etc. Procedural materials often use noise and
turbulence functions to simulate the randomness and variation found in nature.

4. Explain the process of applying a new Material and different methods.

To apply a new material to an object in Maya, you need to select the object and open the
Hypershade window. In the Hypershade window, you can create a new material by clicking
on the Create tab and choosing one of the material types, such as Lambert, Blinn, Phong,
etc. You can then assign the material to the selected object by dragging and dropping it onto
the object in the viewport or by right-clicking on the material and choosing Assign Material
To Selection.
There are different methods to apply materials to multiple objects or parts of objects in
Maya. One method is to use sets, which are groups of objects or faces that share the same
material. You can create a set by selecting the objects or faces you want to include and
choosing Edit > Sets > Create Set. You can then assign a material to the set by selecting it in
the Outliner and using the same steps as before.
Another method is to use UV mapping, which is a way of projecting a 2D image onto a 3D
object. You can use UV mapping to apply different materials to different parts of an object
based on how the image is mapped onto it. You can create a UV map by selecting an object
and choosing Create UVs > Automatic Mapping or one of the other mapping options. You
can then edit the UV map in the UV Editor window and apply materials to different UV shells
or faces using the same steps as before.

5. Explain the uses of Displacement Map

A displacement map is a type of image that can be used to modify the appearance of
another image. It works by using the brightness values of the pixels in the displacement map
to shift the pixels in the target image by a certain amount. This can create various effects,
such as distortion, warping, or relief. Displacement maps can be used for artistic purposes,
such as creating realistic textures, adding depth to flat images, or simulating 3D shapes.
They can also be used for practical purposes, such as correcting lens distortion, aligning
images, or enhancing details.

6. What are Utility Nodes?

Utility nodes are nodes that provide extra functions or effects that you can use in a shader
network or a scene in Maya. For example, you can use utility nodes to multiply or divide
inputs and outputs between other nodes, to sample light or surface information, to convert
textures to bump maps, to blend colors, to remap values, and so on .
There are different types of utility nodes in Maya, such as blendColors, bump2d, contrast,
hsvToRgb, multiplyDivide, rgbToHsv and many more. Each utility node has its own attributes
and parameters that you can adjust to achieve the desired effect.
Utility nodes can be created in the Node Editor or the Hypershade window by clicking on the
Create menu and choosing Utility > [node name]. You can also use the Create Render Node
window to create utility nodes by selecting Maya > Utility from the drop-down menu .

7. What is a UV map?
A UV map is a way of applying a 2D image to a 3D model's surface. It is like unfolding a 3D
shape into a flat pattern, similar to how you would cut and sew a piece of clothing. The
letters U and V represent the horizontal and vertical axes of the 2D texture, while X, Y and Z
are used for the 3D model. UV mapping allows you to control the color, detail and realism of
your 3D model by using different images for texture mapping.

8. What is UDIM workflow? Brief.

UDIM workflow is a technique that allows you to use multiple texture maps for a single 3D
model, by assigning each map to a different UV tile. This way, you can increase the
resolution and detail of your textures without having to use a single large image.

Maya supports UDIM workflow by letting you create and edit multi-tile UVs in the UV Editor.
You can also export your UDIMs from Maya to Substance Painter, a powerful 3D texturing
software, where you can paint and bake your textures across the UV tiles.
To create UDIMs in Maya, you need to layout your UVs in different tiles in the UV Editor,
using the Layout tool or manually moving and scaling the UV shells. You can also use the
UDIM Packing Toolbox plugin to automatically pack your UVs into UDIM tiles.
To export your UDIMs from Maya to Substance Painter, you need to save your model as an
FBX file, and make sure that the Embed Media option is checked in the FBX Export Options.
Then, you can import your FBX file into Substance Painter, and choose the UDIM Tiles
option in the Texture Set Settings. This will create a texture set for each UDIM tile, where
you can paint and apply materials as usual.

9. Where does Refraction happen? Brief.

Refraction is the bending of light when it passes from one medium to another with a
different optical density. Refraction happens because light travels at different speeds in
different media, and changes direction at the boundary between them. Refraction can be
observed in many phenomena, such as rainbows, lenses, prisms, and mirages. Refraction
can also occur in three-dimensional media, such as water or air, where the optical density
varies continuously. In this case, the light rays follow curved paths that depend on the
gradient of the optical density.

10. What is an ARM Texture and why is it used.

An ARM Texture is a type of texture map that combines three different textures into one:
Ambient Occlusion, Roughness and Metallic. These textures are used to enhance the realism
and appearance of 3D models by adding details such as shadows, reflections and surface
properties. An ARM Texture uses the red, green and blue channels of an image to store the
Ambient Occlusion, Roughness and Metallic values respectively. This reduces the memory
and bandwidth requirements for rendering 3D graphics, as only one texture map is needed
instead of three. ARM Textures are supported by some graphics APIs such as OpenGL and
OpenGL ES, as well as some tools such as Blender.

11. What is an aiLayerShader?

An aiLayerShader is a node that allows you to combine multiple shaders into a single output.
It works by using a layering system, where each shader is assigned a layer number and a
blending mode. The layer number determines the order in which the shaders are applied,
and the blending mode determines how the shaders are mixed together. The aiLayerShader
can be used to create complex materials, such as car paint, skin, or cloth, by combining
different effects and properties.

12 Explain Normal Maps.

A normal map is a type of texture map that stores the direction of the surface normals for
each pixel of a 3D model. A surface normal is a vector that is perpendicular to the surface at
a given point. Normal maps are used to create the illusion of depth and detail on low-
polygon models by altering the way they reflect light.
Normal maps are usually encoded as RGB images, where the red, green and blue channels
correspond to the X, Y and Z coordinates of the normal vector, respectively. The color of
each pixel represents the angle of the normal vector relative to the original surface. For
example, a pixel with the color (128, 128, 255) means that the normal vector is pointing
straight up along the Z axis.

Normal maps can be generated from high-polygon models or height maps using various
tools and algorithms. They can also be painted by hand or edited in image editing software.
Normal maps can be stored in different spaces, such as object space, tangent space or world
space, depending on how they are applied to the 3D model.

Normal maps are widely used in 3D graphics, especially in video games, to enhance the
appearance and realism of low-polygon models without increasing their complexity. Normal
maps can create the effect of bumps, dents, wrinkles, scratches and other surface details
that would otherwise require more polygons to model.

13. what is the difference between 2D and 3D Texture

The difference between 2D and 3D texture is that 2D texture is a flat image that is mapped
onto a surface, while 3D texture is a volume of data that is sampled in three dimensions. 2D
texture can be used to create the appearance of surface details, such as color, bump,
specular, etc. 3D texture can be used to create the appearance of volumetric effects, such as
clouds, smoke, fire, etc.

14. Explain the uses of noise texture

Noise texture is a type of procedural texture that generates random values for each pixel.
Noise texture can be used for various purposes, such as creating variations, adding details,
masking, blending, etc. For example, noise texture can be used to create realistic terrain,
clouds, water, wood, marble, etc.

15. How does UV Snapshot work? Explain the process in detail.

UV Snapshot is a feature that allows you to export the UV layout of a mesh as an image file.
The process of UV Snapshot is as follows:
- Select the mesh and open the UV Editor window.
- In the UV Editor menu bar, choose Image > UV Snapshot.
- In the UV Snapshot Options window, specify the image format, size, name and location.
- Click OK to save the image file.
The UV Snapshot image can be used as a reference for creating textures in an external
image editing software.

16. Explain the differences between normal map and displacement map
Normal map and displacement map are two types of textures that can be used to create the
illusion of surface details on a low-polygon mesh. The differences between them are:
- Normal map is a type of bump map that stores the direction of the surface normals in RGB
colors. Normal map does not affect the geometry of the mesh, but only changes the way it
reflects light. Normal map can be used to create fine details, such as scratches, wrinkles,
pores, etc.
- Displacement map is a type of height map that stores the displacement values in grayscale
colors. Displacement map affects the geometry of the mesh by moving the vertices along
their normals according to the displacement values. Displacement map can be used to
create large details, such as cracks, holes, bumps, etc.

17. What does Unfold do? Why is it necessary in Texturing?

Unfold is a tool that allows you to flatten a 3D model into a 2D plane, creating a UV map.
This is necessary in texturing because it enables you to apply a texture image to the surface
of the model, without distortion or stretching.
18. What is SSS? Brief.
SSS stands for Subsurface Scattering, which is a phenomenon that occurs when light
penetrates a translucent material and scatters inside it. This creates a soft and realistic
appearance for materials such as skin, wax, marble, etc. SSS can be simulated in rendering
by using special shaders or techniques.

19. What does aitwosided do? Explain.

Aitwosided is a parameter that controls the shading of polygons in computer graphics. It
determines whether the polygons are shaded on both sides or only on the front side. If
aitwosided is set to true, then the polygons are shaded on both sides, regardless of their
orientation. This can be useful for rendering thin objects like leaves or cloth, where the back
side is visible. If aitwosided is set to false, then the polygons are shaded only on the front
side, based on their normal vector. This can be more efficient and realistic for rendering
solid objects like walls or furniture, where the back side is not visible.

20. What is Renderman? Explain.

Renderman is a software system for producing photorealistic images from 3D models. It
consists of a rendering engine and an interface that allows programmers to write custom
shaders and effects. Renderman is widely used in the film industry for creating visual effects
and animation. Some of the movies that used Renderman include Toy Story, Avatar, The
Lord of the Rings, and The Incredibles. Renderman is also compatible with many 3D
modeling and animation software, such as Maya, Blender, and Houdini.

21. Explain Layered Texturing in Maya

Layered texturing in Maya is a technique that allows you to combine multiple textures on a
single surface using different blending modes and masks. Layered texturing can create
complex and realistic effects, such as dirt, scratches, decals, stickers, or wear and tear.
Layered texturing can also help you optimize your scene by reducing the number of
materials and shaders needed.
To create a layered texture in Maya, you need to use the Layered Texture node, which can
be found in the Hypershade window under Utilities. The Layered Texture node has a list of
inputs that can accept any type of texture node, such as file, noise, ramp, or checker. You
can add, remove, reorder, or rename the inputs as you wish. Each input has a blend mode
and an alpha attribute that control how the texture is blended with the ones below it. The
blend mode determines how the color values of the textures are combined, such as
multiply, add, subtract, or overlay. The alpha attribute determines how transparent or
opaque the texture is, which can be controlled by a mask texture or a numeric value. To
apply a layered texture to a surface, you need to connect the outColor attribute of the
Layered Texture node to the color attribute of a material node, such as Lambert, Blinn, or
Phong. You can also connect other attributes of the Layered Texture node to other
attributes of the material node, such as specular color, bump mapping, or displacement
mapping. You can then assign the material to the surface and render it to see the result.

22. Give a brief about Procedural Textures

Procedural textures are textures that are generated by mathematical algorithms rather than
by images or photographs. Procedural textures have several advantages over image-based
textures, such as:
- They are resolution-independent, meaning they can be scaled up or down without losing
quality or detail.
- They are memory-efficient, meaning they take up less space and load faster than image-
based textures.
- They are customizable, meaning they can be modified by changing parameters or inputs to
create different variations or effects.
Some examples of procedural textures are noise, fractal, cellular, wood, marble, brick, or
cloud. Procedural textures can be created in Maya using nodes such as Noise, Fractal, Cloud,
Mountain, or Cloth. These nodes can be found in the Hypershade window under 2D
Textures or 3D Textures. Each node has a set of attributes that control the appearance and
behavior of the procedural texture, such as color range, frequency, amplitude, lacunarity,
gain, or offset. You can also combine procedural textures with other textures using nodes
such as Blend Colors or Layered Texture.
To apply a procedural texture to a surface, you need to connect the outColor attribute of
the procedural texture node to the color attribute of a material node. You can also connect
other attributes of the procedural texture node to other attributes of the material node.
You can then assign the material to the surface and render it to see the result.

23. What is the difference between Height and Displacement?

Height and displacement are two different ways of representing the surface details of a 3D
model. Height is a scalar value that indicates how far a point on the surface is from the
average or base level of the surface. Displacement is a vector value that indicates how far
and in what direction a point on the surface is moved from its original position. Height can
be used to create the illusion of depth and detail on a flat surface, such as a normal map.
Displacement can be used to actually modify the geometry of the surface, such as a
displacement map.

24. What is meant by Mapping texture to attribute?

Mapping texture to attribute is a technique that allows us to assign different properties or
values to the surface of an object based on its texture. For example, we can map the texture
of a brick wall to the attribute of friction, so that the object has more friction where the
texture is rough and less friction where the texture is smooth. This can create more realistic
interactions and effects in computer graphics and simulations. Mapping texture to attribute
can also be used for other purposes, such as changing the color, transparency, reflectivity,
or displacement of an object according to its texture.

25. List a few Utility nodes in Maya

Some of the utility nodes in Maya are:
- Blend Colors: This node allows you to blend two colors or textures using a blending mode
and a blending factor. You can use this node to create complex shading effects, such as dirt,
wear, or decals.
- Clamp: This node limits the input value to a specified minimum and maximum range. You
can use this node to control the output of other nodes, such as ramps, noise, or math
operations.
- Condition: This node compares two input values using a comparison operator and outputs
one of two values depending on the result. You can use this node to create conditional logic
in your shading network, such as switching between textures based on an attribute or a
position.
- Distance Between: This node calculates the distance between two points in space. You can
use this node to measure the distance between objects, vertices, or UV coordinates, and use
it as an input for other nodes, such as ramps, remap, or blend colors.
- Multiply Divide: This node performs a math operation (multiply, divide, or power) on two
input values and outputs the result. You can use this node to scale, offset, or exponentiate
values in your shading network, such as colors, textures, or coordinates.

26. How does the PSD network work? Brief about it

The PSD network is a feature in Maya that allows you to create and edit texture maps using
Photoshop layers. You can use this feature to create complex textures with multiple layers,
masks, and blending modes, and update them interactively in Maya.
To use the PSD network, you need to create a PSD file with the desired layers and save it in a
location that Maya can access. Then, you need to assign a PSD File texture node to your
material and load the PSD file. This will create a PSD network that consists of multiple nodes
that represent each layer in your PSD file. You can adjust the attributes of each node, such
as opacity, blending mode, color balance, or UV mapping, and see the changes in your
material.
You can also edit the PSD file in Photoshop and update the PSD network in Maya. To do this,
you need to enable the Live Update option in the PSD File texture node. This will allow Maya
to detect any changes made to the PSD file and update the PSD network accordingly. You
can also use the Edit Texture option in Maya to launch Photoshop and edit the PSD file
directly from Maya.

27. Explain the process of applying a Material to a specific part of a model.

To apply a Material to a specific part of a model, you need to follow these steps:
1. Select the model in the Scene or Hierarchy view.
2. In the Inspector panel, click on the Mesh Renderer component.
3. You will see a list of Materials that are assigned to the model. Each Material corresponds
to a submesh of the model.
4. To change the Material of a submesh, click on the small circle next to the Material slot
and choose a new Material from the Asset Browser or Project window.
5. Alternatively, you can drag and drop a Material from the Asset Browser or Project
window onto the submesh in the Scene view.
6. You can also create a new Material by clicking on the Create button in the Project window
and choosing Material. Then, you can edit the properties of the new Material in the
Inspector panel and assign it to a submesh as described above.

28. Steps involved in applying displacement map.

A displacement map is a type of texture map that can be used to create realistic surface
details on 3D models. A displacement map modifies the geometry of the model by
displacing the vertices along the normal direction based on the intensity of the map. To
apply a displacement map, you need to follow these steps:
1. Create or import a 3D model that has enough polygons to support the level of detail you
want to achieve. You can use subdivision or tessellation to increase the polygon count if
needed.
2. Create or import a grayscale image that represents the height variation of the surface.
The image should have the same resolution as the model's UV map and match its layout.
You can use a photo, a painting, or a procedural texture as a source for the displacement
map.
3. Assign the image as a displacement map to the model's material. Depending on the
software you are using, you may need to adjust some parameters such as scale, offset, and
strength to control how much the map affects the geometry.
4. Render the model with a suitable lighting and shading setup to see the effect of the
displacement map. You can also use normal maps or bump maps to enhance the surface
details further.

29. What is the use of Blend HSV Utility?

The Blend HSV Utility is a tool that allows you to blend colors in the HSV (hue, saturation,
value) color space. HSV is a cylindrical-coordinate representation of colors, where hue is the
angle of the color wheel, saturation is the distance from the center, and value is the height
or brightness. Blending colors in HSV can produce more natural and harmonious results than
blending in RGB (red, green, blue), which is a Cartesian-coordinate representation of colors.
One example of using the Blend HSV Utility is to create color gradients that smoothly
transition from one hue to another, while keeping the saturation and value constant. This
can be useful for creating backgrounds, textures, or effects that have a consistent tone and
mood. Another example is to adjust the saturation and value of a color without changing its
hue, which can be useful for creating variations of a color scheme or adding contrast and
depth to an image.
There are different ways to implement the Blend HSV Utility, depending on the
programming language and framework you are using. For example, in Python, you can use
the colorutils library , which provides utilities for working with colors in different formats,
including RGB, HEX, WEB, YIQ, and HSV. You can use the Color class to instantiate colors in
any format and convert them to HSV using the hsv property. You can then blend two HSV
colors by adding or subtracting their components, or by using a weighted average function.
You can also use the static methods rgb_to_hsv and hsv_to_rgb to convert between RGB
and HSV without instantiating a Color object.
Another example is in OpenGL, where you can use a fragment shader to blend colors in HSV.
You can use a function like hsv2rgb , which takes an HSV vector as input and returns an RGB
vector as output. You can then use this function to convert your input colors to HSV, blend
them using any arithmetic operation or interpolation function, and then convert them back
to RGB for output. You can also use predefined blend modes such as GL_DIFFERENCE_NV or
GL_HSL_HUE_NV to blend colors in HSV without writing your own function.

30. List the steps involved in UV unwrapping.

UV unwrapping is the process of mapping a 2D image onto a 3D model. It is commonly used
in computer graphics to create realistic textures and materials for 3D objects. UV
unwrapping involves the following steps:

1. Select the 3D model that you want to unwrap and switch to edit mode.
2. Mark the seams on the model where you want to cut the mesh and create UV islands.
Seams are edges that define the boundaries of the UV islands. You can mark seams
manually or use automatic tools such as smart UV project or unwrap.
3. Unwrap the model using the unwrap operator. This will create a UV map that shows how
the 2D image is mapped onto the 3D model. You can adjust the UV map by moving, scaling,
rotating, or pinning the UV vertices.
4. Export the UV map as an image file that you can use as a template for creating your
texture. You can also use a painting tool such as Blender's texture paint mode to paint
directly on the model and see the results on the UV map.
5. Apply the texture to the model using a material and a texture node. You can also use
other nodes such as bump, normal, or specular to enhance the appearance of the texture.
31. What is the difference between Diffuse Roughness and Roughness in Specular?
Diffuse Roughness and Roughness in Specular are two parameters that control the
appearance of materials in computer graphics. Diffuse Roughness affects how light is
scattered by the surface of a material, while Roughness in Specular affects how light is
reflected by the surface of a material.

Diffuse Roughness is usually a value between 0 and 1, where 0 means the surface is
perfectly smooth and 1 means the surface is very rough. A smooth surface will scatter light
evenly in all directions, creating a uniform color. A rough surface will scatter light more
randomly, creating a darker and more varied color. Diffuse Roughness can be used to
simulate materials such as cloth, paper, or concrete.

Roughness in Specular is also usually a value between 0 and 1, where 0 means the surface is
perfectly smooth and 1 means the surface is very rough. A smooth surface will reflect light
in a mirror-like way, creating a sharp and bright highlight. A rough surface will reflect light
more diffusely, creating a softer and dimmer highlight. Roughness in Specular can be used
to simulate materials such as metal, plastic, or glass.

The difference between Diffuse Roughness and Roughness in Specular is that they affect
different aspects of the material's appearance. Diffuse Roughness affects the color of the
material, while Roughness in Specular affects the shininess of the material. Both parameters
can be combined to create realistic and complex materials for computer graphics.

32. Explain the uses of Shadow Matte with example

Shadow Matte is a material that can be applied to an object to make it invisible, but still cast
shadows and reflections. It is useful for compositing 3D elements into a background image
or video. For example, if you want to add a 3D car to a street scene, you can use Shadow
Matte on a plane that matches the ground level of the street. This way, the car will cast
realistic shadows and reflections on the plane, but the plane will not be visible in the final
render. You can then composite the rendered image of the car and the plane over the
background image of the street, creating the illusion that the car is part of the scene.

33. Explain wireframe shader

A wireframe shader is a type of shader that renders the edges of a 3D model as lines,
creating a wireframe effect. Wireframe shaders are useful for debugging, testing, or creating
stylized graphics. To create a wireframe shader, one needs to use a geometry shader that
takes the input triangles and outputs new triangles with an offset along the normal
direction. The offset creates a gap between the original and the new triangles, revealing the
edges. The new triangles are then colored with a solid color, while the original triangles are
discarded or rendered transparently. This way, only the edges are visible on the screen.

34. What is Ambient Occlusion?

Ambient occlusion is a technique that simulates the shading and lighting of a 3D scene by
calculating how much each point on a surface is exposed to ambient light. Ambient light is
the indirect illumination that comes from the environment, such as the sky or the walls.
Ambient occlusion creates realistic shadows in the corners and crevices of objects, where
ambient light is blocked or occluded by other objects. Ambient occlusion can enhance the
perception of depth and shape of 3D models, making them look more natural and realistic.
There are different types of ambient occlusion methods, depending on how they compute
the occlusion factor for each point. Some of the most common types are:

- SSAO (Screen-Space Ambient Occlusion): This method uses only the depth information of
the pixels on the screen to estimate the occlusion factor. It is fast and efficient, but it can
produce artifacts and inaccuracies, especially at the edges of objects or when objects are far
away from the camera.
- HBAO (Horizon-Based Ambient Occlusion): This method improves upon SSAO by using the
normals of the pixels to determine the horizon angle for each point. This reduces the
artifacts and produces more accurate shadows, especially for curved surfaces.
- HDAO (High Definition Ambient Occlusion): This method is similar to HBAO, but it uses
higher resolution depth and normal maps to compute the occlusion factor. It produces more
detailed and realistic shadows, but it is more computationally expensive.
- VXAO (Voxel Accelerated Ambient Occlusion): This method uses voxels (3D pixels) to
represent the scene geometry and compute the occlusion factor. It can handle complex
scenes with dynamic objects and produce soft and natural shadows, but it requires a lot of
memory and processing power.

35. What is the difference between Surface and Volume Shader?

The difference between surface and volume shader is that the surface shader defines how
light interacts with the surface of an object, while the volume shader defines how light
scatters inside the object.

Surface shaders can be used to create materials such as plastic, metal, glass, cloth, skin, etc.
They can also be combined with textures and displacement to add more details to the
surface. Volume shaders can be used to create effects such as smoke, fire, fog, clouds, etc.
They can also be combined with surface shaders to create materials such as cloudy glass or
frosted ice.

Some examples of surface shaders are Principled BSDF, Diffuse BSDF, Glossy BSDF, etc.
Some examples of volume shaders are Principled Volume, Volume Scatter, Volume
Absorption, etc. These shaders can be mixed and added together using Mix Shader and Add
Shader nodes.

To use surface and volume shaders in Blender, you need to create a material and assign it to
an object. Then you can use the Shader Editor or the Material properties to set up the nodes
for the material. You can also use the Shading workspace to preview the material in the 3D
Viewport.

For more information on surface and volume shaders, you can refer to these links:

- Introduction — Blender Manual

- Introduction — Blender Manual
- Introduction — Blender Manual

36. What is a Normal map?

A normal map is a type of texture that encodes the direction of the surface normals at each
pixel of a low-resolution model. This technique allows the creation of the illusion of high-
resolution details, such as bumps, dents, and grooves, without using more polygons. A
normal map is usually stored as an RGB image, where the red, green, and blue channels
correspond to the X, Y, and Z coordinates of the normal vector, respectively. There are
different ways to encode the normals in a texture, such as object-space or tangent-space,
depending on how the normal map is intended to be used. Normal mapping is a common
technique in 3D computer graphics to enhance the appearance and realism of models.

37. How to use Layered shader?

A layered shader is a type of material that allows you to combine multiple shaders into one.
It can be useful for creating complex effects such as dirt, scratches, decals, or blending
different materials. To use a layered shader, you need to follow these steps:

1. Create a new material and assign it to your object.

2. In the material editor, right-click on the material node and choose Create > Layered
Shader.
3. A new node called Layered Shader will appear in the graph. You can connect up to eight
shaders to its inputs, each with its own blending mode and opacity.
4. To adjust the order of the shaders, you can drag and drop them in the Layered Shader
node or use the up and down arrows in the Attribute Editor.
5. To change the blending mode of a shader, you can use the drop-down menu in the
Layered Shader node or in the Attribute Editor. The blending modes are similar to those in
Photoshop, such as Multiply, Screen, Overlay, etc.
6. To change the opacity of a shader, you can use the slider or type a value in the Layered
Shader node or in the Attribute Editor. You can also connect a texture map to the opacity
input of a shader for more control.
7. To preview the result of the layered shader, you can use the viewport or render your
scene with your preferred renderer.

38. How is aiWireframe used?

aiWireframe is a tool that helps designers and developers create wireframes for web and
mobile applications. A wireframe is a low-fidelity sketch of the layout and functionality of an
app, which serves as a blueprint for the design and development process. aiWireframe uses
artificial intelligence to generate wireframes based on natural language descriptions, user
preferences, and best practices. Users can input their ideas in plain English, choose from
different templates and styles, and customize the wireframes with drag-and-drop elements.
aiWireframe also provides feedback and suggestions to improve the usability and aesthetics
of the wireframes. aiWireframe is used by professionals and hobbyists alike to save time,
reduce costs, and enhance creativity.
OR

39. How to create multiple UVs for the same object?

One way to create multiple UVs for the same object is to use the UV Set Editor in Maya. The
UV Set Editor allows you to create, rename, delete, and switch between different UV sets
for a selected mesh. Each UV set can have a different layout and texture map assigned to it.
To create a new UV set, you can either duplicate an existing one or create a blank one. To
duplicate an existing UV set, select the mesh and go to Windows > UV Set Editor. In the UV
Set Editor, select the UV set you want to duplicate and click on the Duplicate button. This
will create a copy of the selected UV set with a new name. You can then edit the new UV set
as you wish. To create a blank UV set, select the mesh and go to Create > Create Empty UV
Set. This will create a new UV set with no UVs. You can then use the UV tools to create a
new layout for the mesh. To switch between different UV sets, select the mesh and go to
Windows > UV Set Editor. In the UV Set Editor, select the UV set you want to view and click
on the Current button. This will make the selected UV set active and visible in the UV Editor.
You can also assign different texture maps to different UV sets by using the Attribute Editor.
Select the mesh and go to Windows > Attribute Editor. In the Attribute Editor, expand the
Shape node and find the uvSet attribute. Under this attribute, you will see a list of all the UV
sets for the mesh. For each UV set, you can click on the Map button and browse for a
texture file to assign to it. You can then view the texture map in the viewport by pressing 6
on your keyboard.

40. Write the steps involved in texturing using Substance painter.

Texturing using Substance Painter involves the following steps:

1. Import your 3D model into Substance Painter. You can choose from various file formats,
such as OBJ, FBX, or glTF. You can also set up the texture resolution and the normal map
format.
2. Create a new project and assign a material to your model. You can use the default PBR
(Physically Based Rendering) material or choose from the library of presets. You can also
customize the material properties, such as base color, roughness, metallic, normal, height,
and emissive.
3. Paint your model using the brush tool. You can select from different brushes, alphas, and
materials to create various effects. You can also use the eraser tool to remove paint or the
clone tool to copy paint from one area to another.
4. Add details and effects using the layer system. You can create multiple layers and adjust
their blending modes, opacity, and masks. You can also use smart materials and smart
masks to apply procedural textures and effects based on the model's shape and curvature.
5. Export your textures to use them in other applications. You can choose from different
texture sets, formats, and configurations. You can also use the export presets to match the
requirements of different game engines or renderers.

41. Short note on UDIMs and its uses

UDIMs are a way of mapping textures onto 3D models that allows for more detail and
flexibility. UDIMs stand for U-Dimension, which refers to the horizontal axis of the UV space.
A UDIM is a tile that covers a range of 0 to 1 on the U axis, and can have any number of tiles
on the V axis. Each UDIM tile can have its own texture map, which means that different
parts of the model can have different resolutions and formats. This is useful for creating
realistic and complex textures for characters, environments, and assets.

Some of the benefits of using UDIMs are:

- They can reduce texture stretching and distortion, especially on curved or organic surfaces.
- They can increase the texture resolution and quality, since each tile can have its own map
with a high pixel density.
- They can simplify the texture painting and editing process, since each tile can be worked
on separately and easily exported and imported.
- They can support multiple texture types, such as color, normal, displacement, specular,
etc.
- They can be compatible with most 3D software and render engines, such as Maya, ZBrush,
Substance Painter, Arnold, etc.

UDIMs are widely used in the film, game, and animation industries, as they offer a powerful
and efficient way of creating realistic and detailed textures for 3D models.

42. What is Texel density and why is it important?

Texel density is a measure of how many pixels (or texels) are mapped to a unit of surface
area in a 3D model. It is important because it affects the visual quality and performance of
the model in a rendering engine. A higher texel density means more detail and sharpness,
but also more memory usage and processing power. A lower texel density means less detail
and more blurriness, but also less memory usage and processing power. Therefore, finding
the optimal texel density for a model is a balance between quality and efficiency.

43. Difference between diffuse and albedo map and their use cases
The difference between albedo and diffuse map is that albedo map defines the base color of
an object, while diffuse map defines the way that light is scattered across the surface of an
object. Albedo is a term used in physics to describe the proportion of light that is reflected
by an object. Diffuse reflection is the reflection of light in many directions, rather than in
just one direction like a mirror (specular reflection).

Albedo and diffuse maps are used to control the appearance and lighting of objects in 3D
environments. They can be combined in various ways to create realistic effects, such as
shadows, rim lighting, and subsurface scattering. Albedo and diffuse maps are often used
together in computer graphics and game development, but they are not interchangeable
terms.

Some examples of use cases for albedo and diffuse maps are:

- Creating a realistic skin texture for a character. The albedo map would define the skin
color, while the diffuse map would define how light is absorbed and reflected by the skin
layers, creating soft shadows and translucency effects.
- Creating a metallic object with scratches and dirt. The albedo map would define the metal
color, while the diffuse map would define how light is scattered by the surface
imperfections, creating contrast and detail.
- Creating a cloth material with folds and wrinkles. The albedo map would define the cloth
color, while the diffuse map would define how light is scattered by the surface curvature,
creating depth and volume.

Sources:

- Albedo vs Diffuse - Computer Graphics Stack Exchange

- Difference between Albedo and Diffuse map - A23D
- Difference between Albedo and Diffuse map - 3DCoat Documentation

44. How to apply texture map using the attribute editor.

A texture map is a 2D image that can be applied to a 3D object to add color, detail, or other
effects. To apply a texture map using the attribute editor, follow these steps:
1. Select the object you want to texture in the viewport.
2. Open the attribute editor by clicking the icon on the right side of the toolbar or pressing
Ctrl+A.
3. In the attribute editor, go to the tab that corresponds to the material of your object. For
example, if your object has a Lambert material, go to the Lambert tab.
4. In the material tab, expand the Color section and click on the checkerboard icon next to
the color slider. This will open the Create Render Node window.
5. In the Create Render Node window, select File from the 2D Textures category. This will
create a file node that will link to your texture map image.
6. In the file node attributes, click on the folder icon next to the Image Name field and
browse to your texture map image file. You can also adjust other parameters such as UV
Tiling Mode, Filter Type, and Color Space.
7. Close the Create Render Node window and return to the attribute editor. You should see
your texture map applied to your object in the viewport.

45. Difference between OpenGL and DirectX normal

OpenGL and DirectX are two popular APIs (Application Programming Interfaces) for graphics
programming. They provide a set of functions and commands that allow developers to
create and manipulate 2D and 3D graphics on various platforms. One of the main
differences between OpenGL and DirectX is that OpenGL is an open standard, meaning that
it is supported by multiple vendors and platforms, while DirectX is a proprietary technology
developed by Microsoft for Windows and Xbox. Another difference is that OpenGL uses a
right-handed coordinate system, where the positive Z-axis points out of the screen, while
DirectX uses a left-handed coordinate system, where the positive Z-axis points into the
screen. This affects how the normals (vectors perpendicular to the surface) of 3D objects are
calculated and rendered. In OpenGL, the normal of a triangle is computed by taking the
cross product of two edges in counter-clockwise order, while in DirectX, the normal is
computed by taking the cross product of two edges in clockwise order. Therefore, to
achieve consistent lighting and shading effects across both APIs, developers need to either
flip the sign of the Z-component of the normals in DirectX, or use different winding orders
for the vertices of the triangles in OpenGL and DirectX.

46. Can Materials be merged with each other. Explain

Yes, materials can be merged with each other in various ways, depending on their physical
and chemical properties. One common way of merging materials is by mixing them together
to form a homogeneous or heterogeneous mixture. A homogeneous mixture is one where
the components are evenly distributed and have the same composition throughout, such as
salt dissolved in water. A heterogeneous mixture is one where the components are not
evenly distributed and have different compositions in different regions, such as sand and
water. Another way of merging materials is by combining them to form a compound or a
composite. A compound is a substance that is formed by the chemical bonding of two or
more elements, such as water (H2O) or carbon dioxide (CO2). A composite is a material that
is made of two or more different materials that are physically combined but not chemically
bonded, such as concrete or fiberglass. Merging materials can have various advantages and
disadvantages, depending on the desired properties and applications of the resulting
material.

47. What is an ARM map? Why is it used?

An ARM map is a tool for analyzing and optimizing the performance of applications running
on ARM-based processors. It provides a graphical representation of the memory layout,
code execution, and resource utilization of an application. ARM maps can help developers
identify bottlenecks, optimize memory usage, reduce power consumption, and improve
code quality. ARM maps are used for various purposes, such as:

- Debugging: ARM maps can help developers find and fix errors in their code, such as
memory leaks, buffer overflows, or incorrect function calls.
- Profiling: ARM maps can help developers measure and compare the performance of
different versions of their code, such as before and after applying optimizations or changing
compiler settings.
- Tuning: ARM maps can help developers fine-tune their code for specific target platforms,
such as different ARM architectures, operating systems, or devices.
- Testing: ARM maps can help developers verify the functionality and reliability of their
code, such as checking for memory corruption, data integrity, or code coverage.

48. Can the intensity of a monochromatic map be adjusted. Explain.

Yes, the intensity of a monochromatic map can be adjusted by changing the brightness and
contrast of the image. A monochromatic map is a type of color map that uses only one hue
and varies its lightness and saturation. By increasing the brightness, the image becomes
lighter and more washed out. By decreasing the brightness, the image becomes darker and
more saturated. By increasing the contrast, the difference between the light and dark areas
of the image becomes more pronounced. By decreasing the contrast, the image becomes
more uniform and less detailed. Adjusting the intensity of a monochromatic map can affect
the visual perception and interpretation of the data represented by the image. For example,
increasing the contrast can enhance the edges and boundaries of features, while decreasing
the contrast can smooth out noise and outliers. Therefore, it is important to choose an
appropriate intensity level that suits the purpose and context of the map.

49. Explain ambient occlusion and its uses.

Ambient occlusion is a shading technique that simulates the soft shadows that occur when
objects block the ambient light in a scene. It is often used to enhance the realism and depth
of 3D graphics, especially in video games and animations. Ambient occlusion can be
computed in different ways, such as ray tracing, screen space, or baking. Each method has
its own advantages and disadvantages in terms of performance, quality, and flexibility.
Ambient occlusion can also be combined with other lighting effects, such as global
illumination, to create more complex and realistic scenes.

50. Write the differences between rocedural texturing and texture painting
Procedural texturing and texture painting are two methods of creating textures for 3D
models. Procedural texturing is the process of generating textures algorithmically, using
mathematical functions, noise patterns, gradients, or other rules. Texture painting is the
process of manually painting textures on a 3D model, using a 2D image editor or a 3D
painting tool.

The main differences between procedural texturing and texture painting are:

- Procedural texturing is more flexible and scalable, as it can produce infinite variations of
textures with different parameters, resolutions, and levels of detail. Texture painting is
more limited by the resolution and size of the image file, and requires more manual work to
create variations.
- Procedural texturing is more efficient and memory-friendly, as it can store textures as
compact data or code, rather than large image files. Texture painting can consume more
memory and disk space, especially for high-resolution textures.
- Procedural texturing is more challenging and technical, as it requires programming skills,
mathematical knowledge, and artistic vision to create realistic and appealing textures.
Texture painting is more intuitive and artistic, as it allows the user to directly paint on the
3D model, using brushes, colors, and effects.
- Procedural texturing and texture painting can also be combined, using procedural textures
as a base or a mask for texture painting, or using texture painting to add details or variations
to procedural textures.

51. What is a LAMA material?

A LAMA material is a type of composite material that consists of layers of metal and
ceramic. LAMA stands for Layered Metal and Ceramic Composite. LAMA materials have high
strength, stiffness, toughness, and thermal stability. They can be used for various
applications, such as aerospace, automotive, biomedical, and energy. LAMA materials are
fabricated by stacking thin sheets of metal and ceramic and bonding them together by heat
or pressure. The metal layers provide ductility and conductivity, while the ceramic layers
provide hardness and resistance to wear and corrosion. LAMA materials can be tailored to
have different properties by changing the type, thickness, and orientation of the layers.

52. What is a stencil in substance painter?

A stencil in Substance Painter is a grayscale image or pattern that can be used to project
details onto a 3D model. Stencils can be applied with the Projection tool or with the Paint
tool by adding a stencil slot to the brush. Stencils can help create realistic textures by adding
variations, scratches, decals, logos, and other effects. To use a stencil, you need to load an
image file into the stencil slot of the tool you are using. You can then adjust the size,
position, rotation, and opacity of the stencil using the contextual toolbar or by holding S and
dragging the mouse. You can also use symmetry and lazy mouse options to control how the
stencil is applied. To paint with the stencil, you need to select a material or a color and paint
over the stencil as if it was a mask. The stencil will only affect the channels that are enabled
in the properties panel. You can toggle between material mode and color mode by clicking
on the material mode button. To remove the stencil, you can either click on the clear button
in the stencil slot or press Alt+S.

53. How to create a custom template in Substance painter

Substance Painter is a powerful tool for creating realistic textures and materials for 3D
models. One of the features of Substance Painter is the ability to create custom templates
that can be used to apply consistent settings and effects to different models. In this tutorial,
we will learn how to create a custom template in Substance Painter.

The first step is to create a new project in Substance Painter and import the model that you
want to use as a base for your template. You can also import any textures, maps, or masks
that you want to use in your template. Next, you need to create a new layer stack for your
template. A layer stack is a collection of layers that can contain different types of
information, such as base color, height, roughness, metallic, normal, etc. You can create a
new layer stack by clicking on the "+" icon at the bottom of the layer panel and choosing
"Add Layer Stack".

To customize your template, you can add different layers and effects to your layer stack. For
example, you can add a fill layer to change the base color of your model, or add a paint layer
to paint details on your model. You can also add generators, filters, or smart masks to create
procedural effects or masks based on the shape or curvature of your model. You can adjust
the parameters and blending modes of each layer and effect to achieve the desired result.

To save your template, you need to export your layer stack as a smart material. A smart
material is a file that contains all the information and settings of your layer stack. You can
export your layer stack as a smart material by right-clicking on the layer stack name and
choosing "Export Layer Stack as Smart Material". You can name your smart material and
choose a location to save it.

To use your template on another model, you need to import your smart material into
Substance Painter. You can import your smart material by clicking on the "Import
Resources" button at the top of the shelf panel and choosing "Add Resources". You can then
browse to the location where you saved your smart material and select it. You can also
choose a category and a tag for your smart material to organize it in the shelf panel.

To apply your template to another model, you need to create a new project in Substance
Painter and import the model that you want to texture. You can then drag and drop your
smart material from the shelf panel onto the model in the viewport or onto the layer panel.
This will create a new layer stack with your template settings and effects. You can then
modify or customize your template as needed for each model.

54. How will you paint surface imperfections in Substance painter

To paint surface imperfections in Substance Painter, you need to use the paint layer and the
stencil tool. The paint layer allows you to apply color, height, roughness, metalness and
other channels to your mesh. The stencil tool lets you project an image onto your mesh as a
mask for the paint layer.

To use the stencil tool, you need to load an image that contains the surface imperfection
you want to paint, such as scratches, dirt, rust, etc. You can find many images online or
create your own in Photoshop or other software. You can also use the Substance Source
library to access a variety of materials and textures.

Once you have loaded the image, you can adjust the size, rotation, opacity and position of
the stencil using the toolbar or the shortcut keys. You can also change the blending mode
and the channel of the stencil to control how it affects the paint layer.

To paint with the stencil, you need to select a brush and a color for the paint layer. You can
also adjust the brush size, flow, opacity and other parameters. Then, you can click and drag
on your mesh to apply the paint layer through the stencil. You can undo or erase any
mistakes using the Ctrl+Z or E keys.

You can repeat this process for different parts of your mesh and different images of surface
imperfections. You can also create multiple paint layers and stack them on top of each other
to create more complex effects. You can preview your result in the 3D viewport and tweak
any settings as needed.

55. What is the difference between Stylized and realistic Textures

Stylized and realistic textures are two different approaches to creating the visual
appearance of objects and environments in digital art. Stylized textures are often simplified,
exaggerated, or abstracted from reality, while realistic textures aim to mimic the natural
look and feel of real-world materials.

Stylized textures can be used to create a distinctive aesthetic, convey a mood or emotion, or
emphasize certain features of the design. They can also be easier to create and optimize, as
they do not require high-resolution details or complex lighting effects. However, stylized
textures may not suit every genre or style of art, and they may clash with other elements
that are more realistic.

Realistic textures can be used to create a sense of immersion, realism, and believability in
the digital world. They can also enhance the quality and fidelity of the graphics, making
them more appealing and impressive. However, realistic textures may require more time
and resources to create and render, as they need to capture the subtle variations and
interactions of light, color, and texture. They may also limit the artistic expression and
creativity of the artist, as they have to adhere to the physical laws and constraints of reality.

56. What is PBR work flow explain.

PBR stands for Physically Based Rendering, which is a method of shading and rendering that
provides a more accurate representation of how light interacts with material properties.
PBR is based on physically accurate formulas and algorithms that mimic how light behaves
in the real world. PBR aims to create realistic-looking assets that work well in different
lighting environments and have consistent appearance across different platforms and
render engines. PBR also improves the workflow of texture artists, as they can focus more
on the creative aspects of their work rather than the technical details.

There are two main workflows for PBR: Metallic Roughness and Specular Glossiness. Both
workflows use a set of texture maps that define the surface attributes of a material, such as
color, reflectivity, roughness, glossiness, metalness, etc. The difference between the two
workflows is how they handle the reflectivity and roughness/glossiness of a material. In the
Metallic Roughness workflow, the reflectivity is split into two maps: a metallic map that
defines whether a material is metallic or non-metallic, and a roughness map that defines
how smooth or rough a material is. In the Specular Glossiness workflow, the reflectivity is
controlled by a specular map that defines the color and intensity of the specular reflection,
and a glossiness map that defines how sharp or blurry the reflection is.

Both workflows have their advantages and disadvantages, and the choice depends on the
preference of the artist and the capabilities of the render engine. However, both workflows
can achieve similar results and are compatible with most PBR systems.

57. Uses of Subsurface sampling in characters explain the principles of SSS

Subsurface sampling (SSS) is a technique that allows the creation of realistic materials for 3D
characters. SSS simulates the scattering of light within a translucent or semi-transparent
surface, such as skin, hair, or cloth. SSS can enhance the appearance of characters by adding
depth, softness, and natural variations to their textures.

The principles of SSS are based on the physics of light transport. When light hits a surface,
some of it is reflected, some of it is absorbed, and some of it is transmitted into the
material. The transmitted light then bounces around inside the material, losing energy and
changing color as it interacts with the molecules. This process is called subsurface
scattering. The scattered light eventually exits the material at a different point than where it
entered, creating a diffuse glow around the edges of the object.

To implement SSS in computer graphics, there are two main approaches: precomputed and
real-time. Precomputed SSS involves baking the scattering effects into texture maps that are
applied to the surface. This method is fast and easy to control, but it does not account for
dynamic lighting or viewing angles. Real-time SSS involves computing the scattering effects
on the fly, using shaders or ray tracing. This method is more accurate and flexible, but it
requires more computational power and memory.

58. How to make glass texture and what is ior?

To make a glass texture, you need to use a material that can refract and reflect light. One
way to do this is to use a **Glass BSDF** node in Blender, which simulates the behavior of
glass based on its **Index of Refraction (IOR)**. The IOR is a property that measures how
much light bends when it passes through a material. Different types of glass have different
IOR values, depending on their composition and structure. For example, window glass has
an IOR of around 1.51, while flint glass has an IOR of around 1.62 . You can find a list of
common IOR values for glass and other materials here: https://pixelandpoly.com/ior.html .

To use the Glass BSDF node, you need to connect it to the **Surface** socket of the
**Material Output** node. You can adjust the **Color**, **Roughness** and **IOR**
parameters of the Glass BSDF node to change the appearance of the glass texture. The Color
parameter controls the tint of the glass, the Roughness parameter controls how blurry the
reflections and refractions are, and the IOR parameter controls how much light bends when
it passes through the glass. You can also use an **Image Texture** node to add some
details or patterns to the glass texture, by connecting it to the Color or Roughness socket of
the Glass BSDF node.

Here is an example of a simple glass texture with an IOR of 1.5 and a Roughness of 0.1:

59. What is an Emissive material

An emissive material is a type of self-illuminated material that emits light across its surface.
Emissive materials can be used to create effects such as neon signs, glowing objects, or
visible light sources in a scene. The emissivity of a material is a measure of how effectively it
emits thermal radiation, which can include both visible and infrared wavelengths. The
emissivity of a material depends on its chemical composition and geometrical structure, and
it can vary from 0 to 1, where 0 means no emission and 1 means perfect emission. Emissive
materials can be created in different software applications by setting the emission property
or input of the material to a value higher than zero, usually in the range of HDR (high
dynamic range) colors. Emissive materials can contribute to the lighting of the scene by
bouncing light off static objects or light probes, but they do not have the same range and
intensity as artificial light sources. Emissive materials can also produce a bloom effect, which
is a glow around bright areas of the image.

60. How to make a metallic surface using Renderman LAMA

To create a realistic metallic surface using Renderman LAMA, you need to use a combination
of shaders, textures and lighting. Here are the steps to follow:

1. Create a PxrSurface shader and assign it to your object. This shader is a versatile material
that can handle different types of surfaces, including metals.
2. In the PxrSurface parameters, set the Specular Model to Metal and the Specular Face
Color to the desired metal color. You can also adjust the Specular Roughness to control how
shiny or dull the metal is.
3. To add more detail and variation to the metal surface, you can use textures to modulate
the Specular Face Color, Specular Roughness and other parameters. For example, you can
use a noise texture to create scratches or dents on the metal, or a dirt texture to add some
grime or rust.
4. To make the metal surface more realistic, you need to add some environment lighting
that can reflect on the metal. You can use a PxrDomeLight with an HDR image of a real
environment, such as a studio or a sky. This will create realistic reflections and highlights on
the metal surface.
5. You can also add some direct lights, such as spotlights or area lights, to create more
contrast and shadows on the metal surface. You can adjust the intensity, color and angle of
these lights to create different effects.
6. Finally, you can render your scene using Renderman LAMA, which is a fast and efficient
rendering engine that supports ray tracing and path tracing. You can tweak the render
settings, such as samples, pixel variance and max depth, to optimize the quality and speed
of your render.
