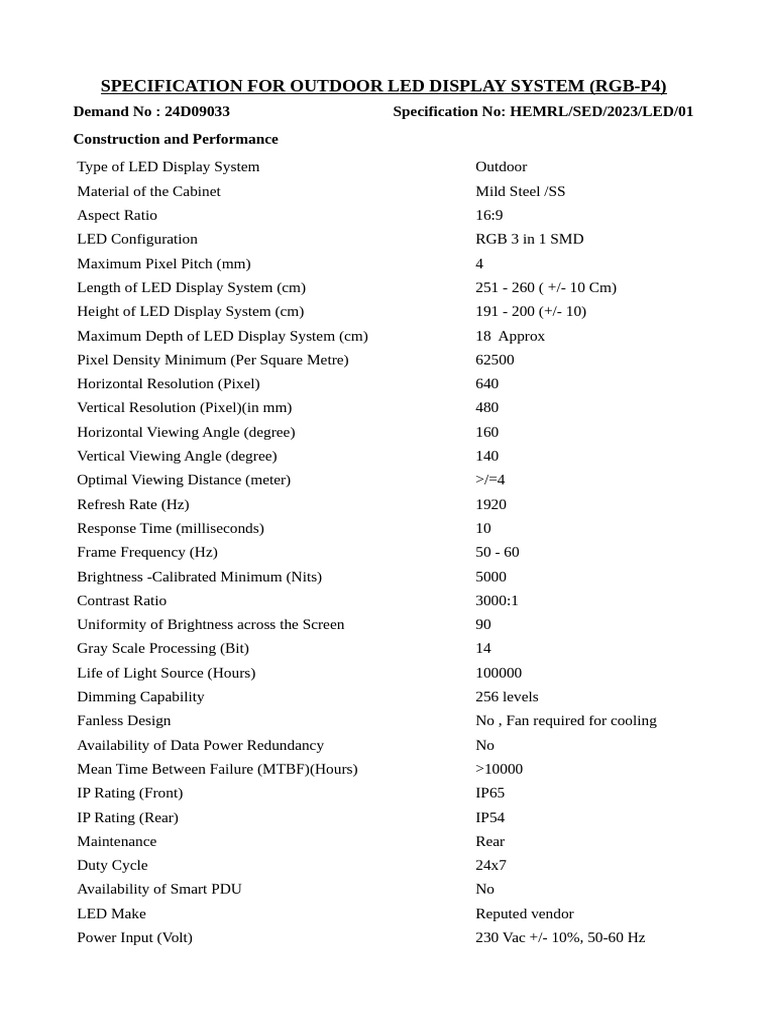

SPECIFICATION FOR OUTDOOR LED DISPLAY SYSTEM (RGB-P4)
Demand No : 24D09033 Specification No: HEMRL/SED/2023/LED/01
Construction and Performance
Type of LED Display System Outdoor
Material of the Cabinet Mild Steel /SS
Aspect Ratio 16:9
LED Configuration RGB 3 in 1 SMD
Maximum Pixel Pitch (mm) 4
Length of LED Display System (cm) 251 - 260 ( +/- 10 Cm)
Height of LED Display System (cm) 191 - 200 (+/- 10)
Maximum Depth of LED Display System (cm) 18 Approx
Pixel Density Minimum (Per Square Metre) 62500
Horizontal Resolution (Pixel) 640
Vertical Resolution (Pixel)(in mm) 480
Horizontal Viewing Angle (degree) 160
Vertical Viewing Angle (degree) 140
Optimal Viewing Distance (meter) >/=4
Refresh Rate (Hz) 1920
Response Time (milliseconds) 10
Frame Frequency (Hz) 50 - 60
Brightness -Calibrated Minimum (Nits) 5000
Contrast Ratio 3000:1
Uniformity of Brightness across the Screen 90
Gray Scale Processing (Bit) 14
Life of Light Source (Hours) 100000
Dimming Capability 256 levels
Fanless Design No , Fan required for cooling
Availability of Data Power Redundancy No
Mean Time Between Failure (MTBF)(Hours) >10000
IP Rating (Front) IP65
IP Rating (Rear) IP54
Maintenance Rear
Duty Cycle 24x7
Availability of Smart PDU No
LED Make Reputed vendor
Power Input (Volt) 230 Vac +/- 10%, 50-60 Hz
Maximum Power Consumption (Per Square Meter) 900
Mounting Arrangement Wall/Pole
Availability of Receiver Card Yes
Earth Leakage Current <3mA
Ports and Connectivity
Number of DVI-I Port /Number of DVI-D Input Port 0
Number of VGA Port /Number of DP Port 0
Number of HDMI Port 1
Number of USB Port 1
Number of Gigabit Ethernet Port 1 Min
Wireless Connectivity Yes
If Yes, Type of Wi-fi Connectivity 802.11b/g/n
Certifications
BIS Registration under CRS of Meity for LED Wall including
Yes
LED Controller
BIS Registration Number and its validity R-81012815 dated 08-12-2024
ROHS Compliance Yes
Certifications Available CE,FCC
ISO Certifications Yes
Generic
Total Weight of Wall with complete structure and frame (kg) 300
Power cable from nearest power
Standard Accessories to be supplied
point,HDMI/DVI cable
ACP Sheet at top of the structure having depth 450mm to
Yes
avoid bird drops at Screen
Mounting structure (Mild Steel) with protectomastic primer
Yes
100 micron with ACP cladding
Minimum Operating Temperature (degree) -20
Maximum Operating Temperature (degree) 50
Minimum Operating Humidity (%RH) 5
Maximum Operating Humidity (%RH) 90
Installation and Commissioning is included in Scope of
Yes
Supply
On Site OEM Warranty (Years): Must 1 Minimum Essential
