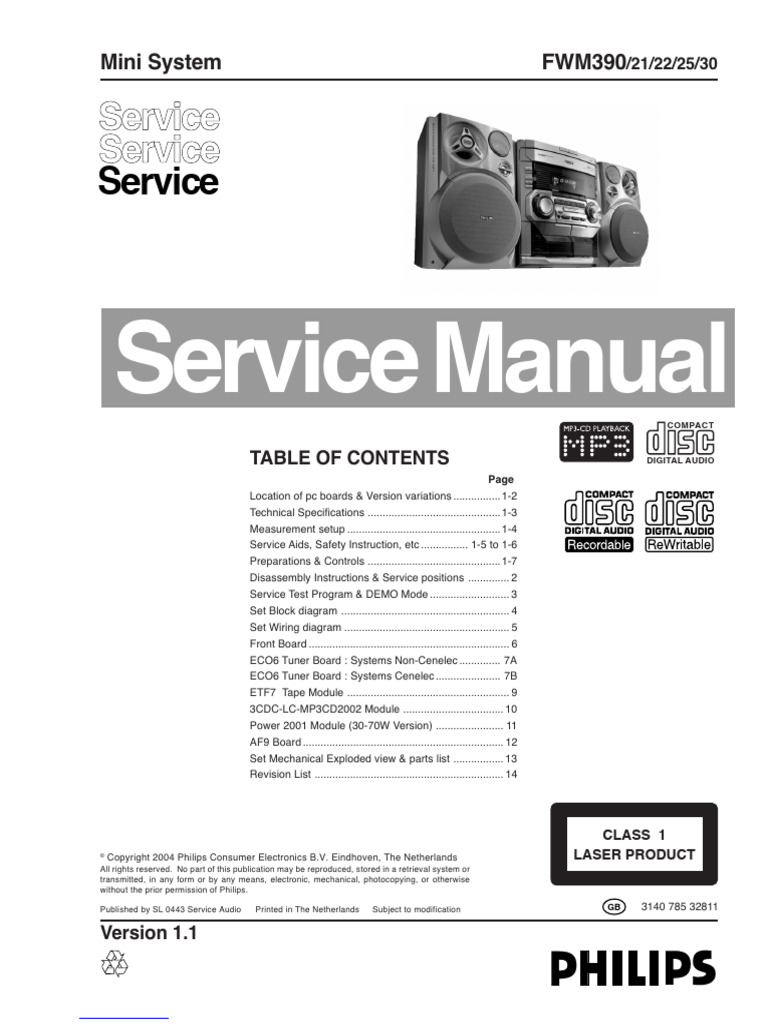

panattonigiuseppeMini System FWM390/21/22/25/30
Service
Service
Service
Service Manual COMPACT
TABLE OF CONTENTS DIGITAL AUDIO
Page
Location of pc boards & Version variations ................ 1-2
Technical Specifications ............................................. 1-3
Measurement setup .................................................... 1-4
Service Aids, Safety Instruction, etc ................ 1-5 to 1-6
Preparations & Controls ............................................. 1-7
Disassembly Instructions & Service positions .............. 2
Service Test Program & DEMO Mode ........................... 3
Set Block diagram ......................................................... 4
Set Wiring diagram ........................................................ 5
Front Board .................................................................... 6
ECO6 Tuner Board : Systems Non-Cenelec .............. 7A
ECO6 Tuner Board : Systems Cenelec ...................... 7B
ETF7 Tape Module ....................................................... 9
3CDC-LC-MP3CD2002 Module .................................. 10
Power 2001 Module (30-70W Version) ....................... 11
AF9 Board .................................................................... 12
Set Mechanical Exploded view & parts list ................. 13
Revision List ................................................................ 14
CLASS 1
©
Copyright 2004 Philips Consumer Electronics B.V. Eindhoven, The Netherlands LASER PRODUCT
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by SL 0443 Service Audio Printed in The Netherlands Subject to modification GB 3140 785 32811
Version 1.1
Downloaded from www.Manualslib.com manuals search engine
1-2
LOCATION OF PC BOARDS
MAINS SOCKET
BOARD
D
R
CD
B D
A
C
O
KE
YB
OA
FR RD
BOONT
A R
D
O E
AR
B UN
R
D S
IN
T
MAARD
BO
E
OK
RA
KA ARD
BO
9
AF ARD
B O
ET
BOF7 LEFT/RIGHT AMPLIFIER
AR & SUPPLY BOARD
D
HEADPHONE
BOARD
VERSION VARIATIONS:
Type /Versions: FWM390
Features & /21 /22 /25 /30
Board in used:
Karaoke
News x x
RDS x x
Rotary Encoder (volume control) x x x x
Jog Shuttle x x x x
Voltage Selector x
Aux Input x x x x
Digital Output
Headphone Socket x x x x
Line Output
Matrix Surround Loudspeakers
Standby - FTD Clock Display x x
ECO Standby - Dark x x
ECO6 Tuner board - System Non-Cenelec x x
ECO6 Tuner board - System Cenelec x x
ETF7 Tape Module: Non-Autoreverse Ferro x x x x
POWER 2001 Module (30-70W Version): x x x x
Downloaded from www.Manualslib.com manuals search engine
1-3
SPECIFICATIONS
GENERAL: CASSETTE RECORDER:
Mains voltage : 110-127V/220-240V Switchable for /21 Number of track : 2 x 2 stereo
230V for /22//25/30 Tape speed : 4.76 cm/sec ± 2%
Mains frequency : 50/60Hz Wow and flutter : < 0.4% DIN
Power consumption : < 0.5W at ECO Standby /22/25 Fast-wind/rewind time C60 : 130 sec
< 15W Standby w/Clock on Bias system : 75kHz ± 10kHz
< 80W Active Rec/Pb frequency response within 8dB : 80Hz - 12.5kHz
Clock accuracy : < 4 seconds per day Signal to noise ratio Type : > 48dBA
Dimension centre unit : 265 x 310 x 365mm
COMPACT DISC:
TUNER: Measurement done at output conn. of the CDC module.
FM Frequency response within ± 1.5dB : 20Hz - 20kHz
Tuning range : 87.5-108MHz Output level (in Vrms) : 550mV ±1dB, Rout = 100Ω
Grid : 50kHz Signal/Noise ratio (A-weighted) : > 80dBA
IF frequency : 10.7MHz ± 20kHz Distortion at 1kHz : < 0.003%
Aerial input : 75Ω coaxial Channel unbalance at 1kHz : ±1dB
Sensitivity at 26dB S/N : < 7µV Channel separation at 1kHz : > 60dB
Selectivity at 600kHz bandwidth : > 25dB De-emphasis : 0 or 15/50 mS (Switched by subcode
IF rejection : > 60dB [80dB] on the disc)
Image rejection : > 25dB [75dB] MPEG 1 Layer 3 (MP3-CD) : MPEG AUDIO
Distortion at RF=1mV, dev. 75kHz : < 3% MP3-CD Bit Rate : 56-256 kbps
-3dB Limiting point : < 8µV MP3-CD Sampling Frequencies : 32 kHz, 44.1kHz,
Crosstalk at RF=1mV, dev. 40kHz : > 18dB 48kHz
Recording Format : ISO 9660
UDF format not
MW supported
Tuning range : 531-1602kHz
530-1700kHz for /21
Grid : 9kHz
10kHz for /21
IF frequency : 450kHz ± 1kHz
Aerial input : Frame aerial
Sensitivity at 26dB S/N : < 4.4mV/M[4.0mv/m]
Selectivity at 18kHz bandwidth : > 18dB [....] Values indicated are strictly for "Cenelec version" only
IF rejection : > 45dB 1) Default setting is OFF, to switch on please refer page 3-1.
Image rejection : > 28dB 2) Frequency response in each setting is software controlled.
Distortion at RF=50mV, m=80% : < 5%
AMPLIFIER:
Output power (6Ω, 1 kHz, 10% THD) : 2 x 40W RMS
Frequency response within -3dB : 50Hz-15kHz
Dynamic Bass Boost : DBB OFF, DBB 1, DBB 2, DBB 3 2)
Digital Sound Control : Jazz, Rock, Techno, Optimal 2)
Headphone output at 32Ω : 15mW ± 2dB
5mW ± 2dB (CD mode)
Input sensitivity
Aux / CDR : 500mV / 1.0V at 600Ω
Downloaded from www.Manualslib.com manuals search engine
1-4
MEASUREMENT SETUP
Tuner FM
Bandpass
DUT 250Hz-15kHz LF Voltmeter
e.g. 7122 707 48001 e.g. PM2534
RF Generator
e.g. PM5326
Ri=50Ω
S/N and distortion meter
e.g. Sound Technology ST1700B
Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).
Tuner AM (MW,LW)
Bandpass
250Hz-15kHz LF Voltmeter
DUT e.g. 7122 707 48001 e.g. PM2534
RF Generator
e.g. PM5326
S/N and distortion meter
e.g. Sound Technology ST1700B
Ri=50Ω
Frame aerial
e.g. 7122 707 89001
To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.
Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).
CD Recorder
Use Audio Signal Disc SBC429 4822 397 30184 Use Universal Test Cassette CrO2 SBC419 4822 397 30069
(replaces test disc 3) or Universal Test Cassette Fe SBC420 4822 397 30071
DUT
DUT LF Generator L
L e.g. PM5110
R
R
S/N and distortion meter
S/N and distortion meter e.g. Sound Technology ST1700B
e.g. Sound Technology ST1700B
LEVEL METER
LEVEL METER e.g. Sennheiser UPM550
e.g. Sennheiser UPM550 with FF-filter
with FF-filter
Downloaded from www.Manualslib.com manuals search engine
1-5
SERVICE AIDS
Service Tools: ESD Equipment:
Universal Torx driver holder ........................ 4822 395 91019 Anti-static table mat - large 1200x650x1.25mm ... 4822 466
Torx bit T10 150mm ................................... 4822 395 50456 10953
Torx driver set T6 - T20 .............................. 4822 395 50145 Anti-static table mat - small 600x650x1.25mm ..... 4822 466
Torx driver T10 extended ............................ 4822 395 50423 10958
Anti-static wristband ................................... 4822 395 10223
Cassette: Connector box (1MΩ) ................................. 4822 320 11307
SBC419 Test cassette CrO2 ...................... 4822 397 30069 Extension cable
SBC420 Test cassette Fe ........................... 4822 397 30071 (to connect wristband to conn. box) ....... 4822 320 11305
MTT150 Dolby level 200nWb/M ................ 4822 397 30271 Connecting cable
(to connect table mat to conn. box) ........ 4822 320 11306
Compact Disc: Earth cable (to connect product to mat or box) ..... 4822 320
SBC426/426A Test disc 5 + 5A .................. 4822 397 30096 11308
SBC442 Audio Burn-in Test disc 1kHz ...... 4822 397 30155 Complete kit ESD3
SBC429 Audio Signals disc ........................ 4822 397 30184 (combining all above products) ............. 4822 320 10671
Dolby Pro-logic Test Disc ........................... 4822 395 10216 Wristband tester .......................................... 4822 344 13999
HANDLING CHIP COMPONENTS
Downloaded from www.Manualslib.com manuals search engine
1-6
NL WAARSCHUWING
GB WARNING ESD
Alle IC’s en vele andere halfgeleiders zijn
All ICs and many other semi-conductors are gevoelig voor electrostatische ontladingen
susceptible to electrostatic discharges (ESD). (ESD).
Careless handling during repair can reduce life Onzorgvuldig behandelen tijdens reparatie kan
drastically. de levensduur drastisch doen verminderen.
When repairing, make sure that you are Zorg ervoor dat u tijdens reparatie via een
connected with the same potential as the mass polsband met weerstand verbonden bent met
of the set via a wrist wrap with resistance. hetzelfde potentiaal als de massa van het
Keep components and tools also at this apparaat.
potential. Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
F ATTENTION
I AVVERTIMENTO
Tous les IC et beaucoup d’autres
D WARNUNG
semi-conducteurs sont sensibles aux Tutti IC e parecchi semi-conduttori sono
décharges statiques (ESD). Alle ICs und viele andere Halbleiter sind sensibili alle scariche statiche (ESD).
Leur longévité pourrait être considérablement empfindlich gegenüber elektrostatischen La loro longevità potrebbe essere fortemente
écourtée par le fait qu’aucune précaution n’est Entladungen (ESD). ridatta in caso di non osservazione della più
prise à leur manipulation. Unsorgfältige Behandlung im Reparaturfall kan grande cauzione alla loro manipolazione.
Lors de réparations, s’assurer de bien être relié die Lebensdauer drastisch reduzieren. Durante le riparazioni occorre quindi essere
au même potentiel que la masse de l’appareil et Veranlassen Sie, dass Sie im Reparaturfall über collegato allo stesso potenziale che quello della
enfiler le bracelet serti d’une résistance de ein Pulsarmband mit Widerstand verbunden massa dell’apparecchio tramite un braccialetto
sécurité. sind mit dem gleichen Potential wie die Masse a resistenza.
Veiller à ce que les composants ainsi que les des Gerätes. Assicurarsi che i componenti e anche gli utensili
outils que l’on utilise soient également à ce Bauteile und Hilfsmittel auch auf dieses gleiche con quali si lavora siano anche a questo
potentiel. Potential halten. potenziale.
GB
Safety regulations require that the set be restored to its original “Pour votre sécurité, ces documents
condition and that parts which are identical with those specified, doivent être utilisés par des spécia-
be used. listes agréés, seuls habilités à réparer
votre appareil en panne”.
NL
Veiligheidsbepalingen vereisen, dat het apparaat bij reparatie in
zijn oorspronkelijke toestand wordt teruggebracht en dat onderdelen, CLASS 1
identiek aan de gespecificeerde, worden toegepast.
LASER PRODUCT
3122 110 03420
F
Les normes de sécurité exigent que l’appareil soit remis à l’état
d’origine et que soient utiliséés les piéces de rechange identiques
à celles spécifiées.
GB Warning !
Invisible laser radiation when open.
Avoid direct exposure to beam.
D
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu S Varning !
beachten. Der Original zustand des Geräts darf nicht verändert werden;
für Reparaturen sind Original-Ersatzteile zu verwenden. Osynlig laserstrålning när apparaten är öppnad och spärren
är urkopplad. Betrakta ej strålen.
SF Varoitus !
I
Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
Le norme di sicurezza esigono che l’apparecchio venga rimesso näkymättömälle laserisäteilylle. Älä katso säteeseen!
nelle condizioni originali e che siano utilizzati i pezzi di ricambio
identici a quelli specificati.
DK Advarse !
"After servicing and before returning set to customer perform a
leakage current measurement test from all exposed metal parts to Usynlig laserstråling ved åbning når sikkerhedsafbrydere er
earth ground to assure no shock hazard exist. The leakage current ude af funktion. Undgå udsaettelse for stråling.
must not exceed 0.5mA."
Downloaded from www.Manualslib.com manuals search engine
Preparations Preparations
FM Antenna Optional connection
The optional equipment and connecting cords
FM wire antenna AM loop are not supplied. Refer to the operating
antenna
instructions of the connected equipment for
details.
FM AERIAL
Connecting other equipment to your
75
AUX/ For better FM stereo reception, connect an system
CDR
IN
R L AM ANTENNA outdoor FM antenna to the FM ANTENNA Use a cinch cable to connect AUX/CDR IN to
Downloaded from www.Manualslib.com manuals search engine
speaker speaker
(right) terminal. the analogue audio out ter minals of an external
(left)
equipment (TV , VCR, Laser Disc player, DVD
C Speakers Connection player or CD Recorder).
+ AC
MAINS
R Note:
— Front Speakers
—
L – If you are connecting equipment with a mono
+ Connect the speaker wires to the SPEAKERS
SPEAKERS 6R output (a single audio out terminal), connect it to
terminals, right speaker to "R" and left speaker to
the AUX/CDR IN left terminal. Alternatively, you
"L", coloured (marked) wire to "+" and black
can use a “single to double” cinch cable (the output
(unmarked) wire to "-".
sound still remain mono).
AC power cord
Inserting batteries into the
1-7
1 2 remote control
Rear connections B Antennas Connection Inser t two batteries (Type R06 or AA) into the
Connect the supplied AM loop antenna and FM Fully inser t the stripped por tion of the speaker remote control with the correct polarity as
The type plate is located at the rear of the wire into the ter minal as shown. indicated by the "+" and "-" symbols inside
antenna to the respective ter minals. Adjust the
system. the battery compar tment.
position of the antenna for optimal reception.
For user s in the U.K.: please follow the Notes:
instructions on page 1-9. – For optimal sound performance, use the
AMAntenna
supplied speakers .
A Power – Do not connect more than one speaker to any
Before connecting the AC power cord to the one pair of +/- speaker terminals.
wall outlet, ensure that all other connections – Do not connect speakers with an impedance
have been made. lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
WARNING!
– For optimal performance, use only the Fix the claw
original power cable. to the slot
CAUTION!
– Never make or change any connections – Remove batteries if they are exhausted
with the power switched on. or will not be used for a long time.
– Do not use old and new or different
To avoid overheating of the system, a safety types of batteries in combination.
circuit has been built in. Therefore, your – Batteries contain chemical substances, so
system mays witch to Standby mode they should be disposed off properly.
automatically under extreme conditions. If
this happens, let the system cool down Position the antenna as far as possible from a TV,
before reusing it (not available for all versions). VCR or other radiation source .
Controls
⁄
4 Controls on the system and ÉÅ PLAY•PAUSE
3 for CD/ MP3-CD .. to start or interrupt
remote control
5 playback.
for Tape ....................... to start playback.
* 1 STANDBY ON y for Plug & Play ......... (on the system only) to initiate
– to switch the system on or to standby mode.
and start plug & play mode.
5 2 ECO POWER í PREV / ë NEXT (- TITLE +)
º – to switch the system on or to Eco Power for MP3-CD ............ to select previous/next title.
% ª standby mode. for CD ........................ to skip to the beginning of
∞ 9 3 DISC 1/2/3 (CD DIRECT 1/2/3) the current, previous, or next
§ •
– to select a disc tray for playback. track.
# ^ for Tuner .................... to select a preset radio
8 27 4 Source selection – to select the following : station.
6 CD (CD 1•2•3) for Clock ................... (on the system only) to set
– to select disc tray 1, 2 or 3. the minute.
Downloaded from www.Manualslib.com manuals search engine
PREPARATIONS AND CONTROLS
TUNER (BAND) 6 SOUND NAVIGATION
– to select waveband : FM, MW or LW. – to select and activate the JOG control for the
TAPE (TAPE 1•2) desired sound feature : DBB, DSC or VEC.
– to select tape deck 1 or 2. 7 JOG
£ ™ – to select the desired sound effect for the
AUX (VIDEO/CDR)
– to select the input for an additional appliance : selected sound feature.
¡
DBB .................. DBB 1, DBB 2 or DBB 3.
1-8
AUX or CDR.
24 DSC .................. OPTIMAL, JAZZ, ROCK or
5 Mode Selection TECHNO.
1 à á SEARCH• TUNING VEC .................. CINEMA, HALL or CONCERT.
2 ( 4 ALBUM 3)
) 8 INCREDIBLE SURROUND (INC.
for MP3-CD ............. to select previous/next
SURR.)
3 album.
( – to activate or deactivate the surround sound
for CD ......................... to search backward/forward.
effect.
4 for Tuner ..................... to tune to a lower or higher
radio frequency. 9 CLOCK•TIMER (CLK/ TIMER)
5 – to view the clock.
* for Tape ....................... to rewind or fast forward.
6 for Clock .................... (on the system only) to set the – set the clock or set the timer (on the set only).
7 hour. 0 Tape Deck Operation
&
Ç STOP•CLEAR (DEMO STOP) RECORD
8 ^ for CD/ MP3-CD .. to stop playback or to clear a
– to start recording on tape deck 2.
9 % programme.
for Tuner ..................... (on the system only) to stop DUBBING
0 programming. – to dub a tape.
$ for Tape ....................... to stop playback or ! Tape deck 1
! # recording.
for Demo ................... (on the system only) to @ Tape deck 2
@ activate/deactivate the
demonstration.
for Clock .................... (on the system only) to exit
clock setting or cancel timer.
for Plug & Play ......... (on the system only) to exit
plug & play mode.
Controls Important notes for users in the Italia
U.K.
# DIM MODE 27 SHUFFLE DICHIARAZIONE DI CONFORMITA’
– to select different brightness for the display – to playback all a vailable discs and their tracks/ Mains plug
Si dichiara che l’apparecchio FW-C717 Philips
screen : DIM 1, DIM 2, DIM 3 or DIM OFF. programme in random order. This apparatus is fitted with an approved 13
risponde alle prescrizioni dell’ar t. 2 comma 1
Amp plug. To change a fuse in this type of plug
$ # OPEN •B del D.M. 28 Agosto 1995 n. 548.
proceed as follows:
– to open the tape deck door. – to switch the system to standby mode. Fatto a Eindhoven
– to switch the system to Eco Power standby 1 Remove fuse cover and fuse.
% PROGRAM
mode. 2 Fix new fuse which should be a BS1362 5 Amp, Philips Consumer Electronics
for CD ................. to programme disc tracks.
for Tuner ............. to programme preset radio A.S.T.A. or BSI approved type. Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Downloaded from www.Manualslib.com manuals search engine
stations. 3 Ref it the fuse cover.
for Clock ............ to select 12- or 24-hour clock If the fitted plug is not suitable for your socket
mode. outlets, it should be cut off and an appropriate
Notes for remote control:
^ MAX SOUND (MAX) – First, select the source you wish to plug f itted in its place.
– to activate or deactivate the optimal mix of control by pressing one of the source select If the mains plug contains a fuse, this should
various sound features. keys on the remote control (CD or TUNER, have a value of 5 Amp. If a plug without a fuse Norge
for example). is used, the fuse at the distribution board Typeskilt finnes på apparatens underside.
&n should not be greater than 5 Amp.
– to connect headphones. – Then select the desired function (É, í,
ë, for example). Observer: Nettbryteren er sekunder t
Note: These vered plug must be disposed of to innkoplet. Den innebygde netdelen er
* VOLUME (VOLUME +/-) avoid a possible shock hazard should it be
– to increase or decrease the volume . derfor ikke frakoplet nettet så lenge
inserted into a 13 Amp socket else where. apparatet er tilsluttet nettkontakten.
( NEWS How to connect a plug
– to hear News automatically. For å redusere faren for brann eller elektrisk
The wires in the mains lead are coloured with
1-9
støt, skal apparatet ikke utsettes for regn eller
) RDS the following code: blue = neutral (N), fuktighet.
– to select RDS information. brown = live (L).
¡ Disc tray ¶ As these colours ma y not cor respond with the
colour mar kings identifying the ter minals in
™ OPEN•CLOSE
your plug, proceed as follows:
– to open or close the disc tray.
– Connect the blue wire to the terminal
£ DISC CHANGE marked N or coloured black. CAUTION
– to change disc(s). – Connect the brown wire to the terminal Use of controls or adjustments or
24 Display screen marked L or coloured red. performance of procedures other than
– to view the current status of the system. – Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
herein may result in hazardous
25 REPEAT coloured green (or green and yellow). radiation exposure or other unsafe
– to playback track(s)/disc(s)/programme operation.
repeatedly. Before replacing the plug cover, make cer tain
that the cord grip is clamped over the sheath
§ SLEEP of the lead - not simply over the two wires.
– to activate/deactivate or set the sleep timer.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyr ight Act 1956 and
The Performer’s Protection Acts 1958 to 1972.
Maintenance Troubleshooting
Cleaning the Cabinet Cleaning the Heads and the Tape Paths RADIO RECEPTION
Use a soft cloth slightly moistened with a mild To ensure good recording and playback quality, Radio reception is poor. – If the signal is too weak, adjust the antenna or
detergent solution. Do not use a solution clean the heads A, the capstan(s) B, and connect an exter nal antenna f or better
containing alcohol, spir its, ammonia or abrasives. pressure roller(s) C after ever y 50 hours of reception.
tape operation. – Increase the distance between the Mini HiFi
Cleaning Discs Use a cotton swab slightly moistened with System and your TV or VCR.
When a disc becomes dirty, cleaning fluid or alcohol.
clean it with a cleaning cloth. You can also clean the heads by playing a TAPE OPERATION/RECORDING
Wipe the disc from the centre cleaning tape once .
Recording or playback cannot be made. – Clean deck parts, see “Maintenance”.
out.
– Use only NORMAL (IEC I) tape.
Do not use solvents such as
– Apply a piece of adhesive tape over the missing
benz ene , thinner , commercially
tab space.
available cleaners, or antistatic spray intended for
analogue records. The tape deck door cannot open. – Remo ve and reconnect the AC power plug and
switch on the system again.
Downloaded from www.Manualslib.com manuals search engine
Cleaning the disc lens C B A B C
After prolonged use, dirt or dust may GENERAL
accumulate at the disc lens. To ensure good Demagnetising the heads The system does not react when – Remove and reconnect the AC power plug and
playback quality, clean the disc lens with Philips Use a demagnetising tape available at your buttons are pressed. switch on the system again.
CD Lens Cleaner or any commercially available dealer. Sound cannot be heard or is of poor – Adjust the volume .
cleaner. Follow the instructions supplied with
quality. – Disconnect the headphones.
MAINTENANCE AND TROUBLESHOOTING
cleaner.
– Check that the speaker s are connected correctly.
– Check if the str ipped speaker wire is clamped.
1-10
The left and right sound outputs are – Check the speaker connections and location.
reversed.
The remote control does not function – Select the source (CD 1/2/3 or TUNER, for
properly. example) before pressing the function button
(É,í,ë).
– Reduce the distance between the remote
control and the system.
Troubleshooting – Inser t the batter ies with their polar ities
(+/– signs) aligned as indicated.
WARNING – Replace the batter ies.
Under no circumstances should you try to repair the system your self, as this will invalidate the – Point the remote control directly towards the IR
warranty. Do not open the system as there is a risk of electric shock. sensor .
If a fault occurs, first check the points listed below before taking the system for repair. If you The timer is not working. – Set the clock cor rectly.
are unable to solve a problem by following these hints, consult your dealer or service centre. – Press and hold CLOCK•TIMER to switch on the
timer.
– If recording or tape dubbing is in progress, stop
Problem Solution recording.
CD OPERATION Not all lighted buttons are showing light. – Press DIM to select DIM OFF display mode.
“NO DISC” is displayed. – Inser t a disc . The Clock/Timer setting is erased. – Power has been interrupted or the po wer cord
has been disconnected. Reset the clock/timer .
– Check if the disc is inser ted upside down.
– Wait until the moisture condensation at the lens The system displa ys features – Press and hold Çon the system to switch off
has cleared. automatically
. the demonstration.
– Replace or clean the disc , see “Maintenance”.
“DISC NOT FINALIZED” is displayed. – Use a f inalised CD-RW or CD-R.
2-1 2-1
DISMANTLING INSTRUCTIONS Dismantling of the CDC Module and Front Panel
Dismantling of the Cassette Cover
4) Remove the Cover Tray CDC (pos 106) as indicated.
2. Twist screw driver
3. Lift up and out
1. Place screw driver
(flat side) between
the cassette cover
& cassette door
Remove Cover Tray CDC
Remove Cassette Cover Cassette Cover
5) Loosen 2 screws A and 2 screws B to remove the CDC
Module (pos 1105) as indicated.
Dismantling of the CDC Module and Front Panel
6) Remove 2 screws (pos 226) at the bottom to separate the
Front Panel Assembly from the Plate Bottom (pos 265).
1) Loosen 4 screws to remove the Cover Top (pos 255) of the
set. Front View CDC
2) Loosen 2 screws to remove the Panel Left (pos 253) and
2 screws to remove the Panel Right (pos 254) of the set.
3) Slide out the CDC Tray as shown in the diagram below with
the help of a flat head screw driver.
Sliding Out The CDC Tray
Remove CDC Module
Downloaded from www.Manualslib.com manuals search engine
2-2 2-2
Dismantling of the Front Board Dismantling of Rear Portion
1) Remove 1 screw C as indicated to loosen the Headphone 1) Remove 3 screws J and uncatch M1 as indicated to
Board (pos 1101-C). loosen the AF Board (pos 1102).
2) For set without Karaoke : 2) Remove 3 screws K and uncatch M2 as indicated to
Remove 11 screws D and 2 screws E as indicated to loosen the Tuner Board (pos 1103).
loosen the Front Board (pos 1101-A). 3) Remove 4 screws L as indicated to loosen the Panel
For set with Karaoke : Rear (pos 256).
Remove 11 screws D as indicated to loosen the Front
Board (pos 1101-A) and 2 screws E as indicated to
loosen the Karaoke Board (pos 1101-D).
Remove AF Board
Repair Hints
Dismantling of the ETF Tape Module
1) The Knob Volume (pos 139) can be remove by inserting Picture 1
a strong string into the slot and pull it out in the direction
1) Remove 6 screws G as indicated to loosen the ETF Tape
as indicated. See picture 1.
Module (pos 1104).
2) The Knob Rotary (pos 138) can be remove by inserting Picture 2
a strong string into the slot and pull it out in the direction
as indicated. See picture 2.
Downloaded from www.Manualslib.com manuals search engine
2-3 2-3
Repair Hints
3) During repair it is possible to disconnect the Tuner board Picture 3 Service pos C
and CDC Module completely unless the fault is sus-
pected to be in that area. This will not affect the
performance of the rest of the set.
4) Due to the short flex cable wires in the ETF Module, the
pc board should be disconnected and reconnected on
the reverse side of the tape mechanism to keep it
electrically connected during repair. See picture 3.
Note: The flex cables are very fragile, care should be taken
not to damage them during repair. After repair, be
very sure that the flex cables are inserted properly
into the flex sockets before encasing, otherwise faults
may occurs.
Service pos A
Service pos D
Service pos B
Downloaded from www.Manualslib.com manuals search engine
3-1 3-1
SERVICE TEST PROGRAM To start service test program DEMO Mode
hold P & AUX
depressed while ACTION
plugging in the mains cord
To Switch off Hold the 9 button down for 5 seconds during the DEMO display,
the set will confirm with "DEMO OFF" and switch to Standby.
To Switch on Hold the 9 button down for 5 seconds during Standby, DEMO
S refers to Service Mode.
Display shows the will begin.
ROM version * V refers to Version.
"S-Vyy"
(Main menu) yy refers to Software version number of Processor.
(Counting up from 01 to 99)
Mini 2002 FW-C399 Dated: wk141
TUNER QUARTZ SERVICE DISPLAY
TEST TEST PLAY MODE TEST
N N N
TUNER O STANDBY-ON N 2;
Button pressed? Button pressed? Button pressed? Button pressed?
Y Y Y Y
Display Tuner Version Display shows
"ccc" Set is in Service PLAY Mode.
32K note 1 : All LEDs are on except ECO POWER. Display shows Fig. 1
Output at (Front Board) In case of failures, error and selected LEDs on
pin 80 of uP = 2048Hz codes according to table 2 Figure 1 (see note 1)
will be displayed.
N TUNER
Button pressed?
The Service Play Mode is intended to
O N detect and identify the failures in the CD Mode.
Button pressed? 2; N
Y In this mode the electronics will still function
even when an error is detected so that Button pressed?
Service frequencies are repair activities can be carried out.
copied to the RAM (see Table1) Y
Tuner works normally Y
except: Display shows
8M note 2 : Only DISC 2, TUNER, AUX, DSC, VEC & MAX SOUND are on. Display shows Fig. 2
PROGRAM button Output at (Front Board) and selected LEDs on
pin 80 of uP = 1,953.125Hz
Figure 2 (see note 2)
N
Disconnect
Mains cord ? 9 N Error code Error Description 9 N
Button pressed? Button pressed?
E1000 Focus Error
Y
Y Triggered when the focus could not be found within a certain time when starting up the CD
or when the focus is lost for a certain time during play. Y
Service Mode left
Various
E1001 Radial Error other Tests
Triggered when the radial servo is off-track for a certain time during play.
E1002 Sledge In Error
The sledge did not reach its inner position (inner-switch is still close) before approximately
6 Sec. have passed by. Inner-switch or sledge motor problem.
Europe East Eur. Extended-band East Eur. USA Oversea TEST Activated with ACTION
PRESET "EUR" "EAS" "EAS" "USA" "OSE" E1003 Sledge Out Error
The sledge did not come out of its inner position (inner-switch is still open) before approximately
1 87.5MHz 65.81MHz 87.5MHz 87.5MHz 87.5MHz 250 mSec. have passed by. Inner-switch or sledge motor problem. EEPROM TEST R A test pattern will be sent to the EEPROM.
"PASS" is displayed if the uProcessor read
2 108MHz 108MHz 108MHz 108MHz 108MHz Jump-offtrack error back the test pattern correctly, otherwise
E1005
Triggered in normal play when the jump destination could not be found within a certain time. 9 to Exit "FAIL" will be displayed.
3 531kHz 74MHz 531kHz 530kHz 530/531kHz*
When this error occurred, software will try to recover by initiating the jump command again.
If it is recoverable, the disc will continue to play.
4 1602kHz 87.5MHz 1602kHz 1700kHz 1700/1602kHz* EEPROM FORMAT Q Load default data. Display shows "NEW"
for 1 second.
5 558kHz 531kHz 558kHz 560kHz 560/558kHz* E1006 Subcode Error
Caution!
Triggered when a new subcode was missing for a certain time during play.
All presets from the customer will be lost!!
6 1494kHz 1602kHz 1494kHz 1500kHz 1500/1494kHz*
E1007 PLL Error
7 153kHz 558kHz 87.5MHz 98MHz 98/87.5MHz* The Phase Lock Loop could not lock within a certain time. ROTARY Volume Knob Display shows value for 2 seconds.
ENCODER TEST or Values increases or decreases in steps of 1
8 279kHz 1494kHz 87.5MHz 87.5MHz 87.5MHz Turntable Motor Error Jog Shuttle knob until 0 (Min.) or 40 (Max.) is reached.
E1008
Generated when the CD could not reached 75% of speed during startup within a certain time.
9 198kHz 98MHz 87.5MHz 87.5MHz 87.5MHz Discmotor problem.
LEAVE SERVICE Disconnect
10 98MHz 70.01MHz 87.5MHz 87.5MHz 87.5MHz TESTPROGRAM mains cord
E1020 Focus Search Error
65.81MHz 87.5MHz The focus point has not been found within a certain time.
11 87.5MHz 98MHz 87.5/98MHz*
E1070 This happens when the carousel switch is defective and closed all the time, or when the
Table 1 carousel is blocked when it is located exactly at a disc position.
Note: * Depending on the selected grid frequency (9 or 10kHz) E1071 This happens when the carousel switch is defective and does not closed electrically, or when
By holding the TUNER and R buttons depressed while switching on the Mains supply, one the carousel is blocked in between two disc positions. The time-out is approximately 5 Sec.
of the undermentioned features will be activated:
- the tuning grid frequency is toggled between 9kHz and 10kHz for the Oversea (/21) version. E1079 The drawer could not open or enter the inside position and is opening again. This happen when
- the extended FM1 (65.81MHz - 74MHz) is toggled on and off for East Eur. (/34) version. the drawer is blocked and cannot go fully inside or when the drawer switch is defective and does
not close.
Table 2
Downloaded from www.Manualslib.com manuals search engine
4-1 4-1
SET BLOCK DIAGRAM
SIMPLE KARAOKE -CMOS (-9V)
SA BUFFER -Vkk -CMOS
REG
500mV
+12A
+CD +12M +12A 76dBA
16dB
SWITCH +9V
-Vkk +9.1V
250mV 3mV
REG HEADPHONE
MIC DET
-6dB TRACK 3CDC-L2C
+5V 650mV
LOW_PWR_SUP +5V6_CON 78dBA
REG
CDC A A 3.2dB
M D A +9.1V
CONTROL
100mV HP DET HP DET
FM (67.5 kHz) +12A
AM (80% MOD)
TDA7468
125mV
ECO6 14 dB 500mV 33R
HEADPHONE
SOFTWARE CONTROL 76dBA AMPLIFIER
16dB
47R
2.50V +VL +VH
TUNER
A +12A 85dBA
CONTROL 3dB
L CHANNEL
AUX / CDR INCREDIBLE TREBLE POWER
500mV / 1000mV
ATTN. SURROUND VOL. 1 & VOL. 2 AMPLIFIER
BASS 1.90V
-8.5dB INTERFACE STK-442
67dBA
A 1K 3.0dB +
125mV
A SOURCE SELECTOR NJM4556AM
I2C -
Gv = 25dB ATTEN. L/R SPEAKER
-CMOS +12M +12A
Rin = 3k 2 X 100W
I2C DATA I2C CLK 500mV +5V6 -Vkk
LEFT/RIGHT + 2 X 6 OHMS
28mV 500mV
250nWb/m ETF7 ATTN. SIS FILTER A D
-
-26 dB CIRCUIT
MUTE +5V6 +5V6 -Vkk
AF9 AMP_ON MUTE MUTE
TAPE AF9 CD_PORE M62320FP CD STANDBY
CONTROL
M A -VL -VH
CONTROL D D
I2C DATA I2C SHIFT CD SUPPLY
HP DET MUTE
I2C CLK REGISTER CONTROL
+CD (+5V)
+5V6 +5V6
BIPLANER/
FRONT +E
MAX
LEDS
CDC DSC/VEC/DBB
POWER SUPPLY TRAFO
ECO POWER
+LED +5V6
LED
LEDS LEDS +5V6 C1
+LED +LED L
D
I2C DATA I2C CLK +12V_A
SHIFT SHIFT
MAINS
+F +G B1 B1 A1 C1
NTC FOR -/21 ONLY CHOKE
REGISTER REGISTER +12V_D N
POWER POWER_DOWN
CLIPPING LED DATA
CONTROL LOW_PWR_CTRL
LED CLK
LED STR VOLTAGE
LED ENABLE LOW_PWR_CTRL (NOT USED FOR -/37)
SELECTOR
RDS +5V6
-Vkk
DECODER
uP +5V6_CON 10M
-Vkk
(ONLY FOR -/37)
TUNER TMP87CS71F +F
CONTROL IR EYE
+5V6_CON
+5V6
NTC
F1x
CDC FTD F2x F1
D ECO
CONTROL POWER +G
SWITCH
JOG
EEPROM +E
CONTROL VOLUME
TAPE +F F2 LOW_PWR_CTRL
CONTROL
CONTROL STANDBY TRAFO
+F (NOT USED IN -/21 & -/37)
+E +5V6_CON
KEY SCAN +F
SA1, SA2, SA3 POWER_DOWN
MATRIX LOW_PWR_SUP
F1x F1
HP DET MIC DET F2x F2
NOTE :
-Vkk
MAIN SIGNAL PATH
MEASUREMENTS ARE IN AUX MODE :
XX mV LEVELS AT MAX VOL
YY dBA S/N AT 500mW D
ZZ dB HEADROOM (1% THD) WRT TO LEVEL AT MAX VOL
Downloaded from www.Manualslib.com manuals search engine
5-1 5-1
SET WIRING DIAGRAM
1805 CDC-L2C
1440 1403
1400
1 P04 FRONT 23 CD_LEFT
CDC KEYS 4P
KEY1
KEY2 (1101)
GND_A
CD_RIGHT CD CHANGER
FFC AD +5V_CD
4 GND_D
(1101) 220mm GND_M
FFC SIDE FFC SIDE
+12V_D 3CDC-L2C
SW_INFO
LOW_PWR_CTRL
SHR_STR
(1105)
POWER_DOWN
CD_SW_INFO
CD_SH_DATA
SH_CLK
TU_STEREO
CD_SH_STR
CD_SH_CLK
TU_ENABLE
CDC-LC
TPSHDATA
+5V6_CON
SICL
TPSHSTR
CLIPPING
I2C_DATA
TPSHCLK
TU_DATA
MIC_DET
I2C_GND
CD_GND
CD_SICL
CD_SILD
19 CD_GND
TU_GND
I2C_CLK
HP_DET
TPADC2
TPADC1
TU_CLK
GND_D
GND_D
ETF7
SH_DATA
SA_IN
+5V6
+5V6
NTC
-Vkk
SILD
+F
F1
F2
GND_D_CD
FFC SIDE
FFC TOP
11
FFC SIDE
7
1
PORE
1404
1401
1402
GND_D
9
1401 7P 140mm 1402 19P 140mm 1403 11P 180mm 1800 15P 180mm
FFC BD FFC AD FFC AD FFC BD
FFC SIDE
FFC SIDE
FFC TOP
1706
1401
1402
1
1701 1531 SIMPLE KARAOKE
ETF7 ETF7
TP_REC_LEFT 1 1 TP_REC_LEFT CDC-L2C 1523
(1101) 1800
TP_REC_RIGHT TP_REC_RIGHT MIC IN
CD_LEFT 1 1801
GND_A 1700 GND_A GND_A 1 MIC_DET
1501
TP_LEFT TP_LEFT CD_RIGHT GND_A
+12V_A 7P +12A 4P
+5V_CD 1503 KAR_OUT
FFC AD FFC BD
TP_RIGHT TP_RIGHT GND_M 4 +12A
1
180mm 120mm
-CMOS 7 -CMOS +12M FFC SIDE
FFC TOP FFC TOP SW_INFO
SHR_STR
SH_CLK
SICL
FFC TOP LEFT/RIGHT AMP 1307
ETF7 1703 1506
SH_DATA
1
1 1701 1 1306 RIGHT
GND_M
(1104) 2P
+12M
SILD
1206 1 LEFT
GND_D_CD
EH TOP GND_AA LEFT ## 1311
180mm EH TOP PORE 1
BACK ENTRY MALE
RIGHT ## 1309 1
GND_D 15
1110 1103 NTC ## 1308 1
FROM ETF7 CHASSIS STOKO PIN FFC TOP
LOW_PWR_CTRL 1 MATRIX SURROUND
(ESD WIRE) 1P ## 1202
180mm 1300 POWER_DOWN
1600 1603
CLIPPING 4P
HEADPHONE 1500
1 HP_IN_LEFT
13P AMP_ON 340mm EH TOP
GND_A
FFC AD -Vkk
4P
1601
(1101) FFC BD
HP_IN_RIGHT
220mm
F1
EH TOP
1602 4 HP_DET
120mm F2
FFC TOP 1302 1203
FFC TOP
AMP_CS_DC
HP AF9 FFC TOP VCD_ON
1 A1
MAINS SUPPLY
1200 A1
FFC TOP GND
1120 1520
1 1 TU_LEFT (1102) 6P
400mm
GND
1204 1310 B1
GND_A
1 1 LOW_PWR_SUP C1
TUNER 1600 TU_RIGHT
+12V_A 1204
+12A EH TOP EH TOP
ECO6 8P TU_ENABLE 1301
GND_A
1304 1209
FFC AD +12V_D
TU_DATA
1 -Vkk
(1103) 220mm
TU_CLK 8P GND_M
F1
8 TU_STEREO 220mm +5V6
GND_D 1201 F2
FFC SIDE FFC TOP PWDN
EH TOP 5V_VCD
1501
1602 1100 7P NTC
STOKO PIN DIPMATE FFC AD
ECO
FROM HEADPHONE PCB 1P 280mm LOW_PWR_SUP
(ESD WIRE) 120mm
FFC TOP FFC TOP
AUX IN TRAFO
Downloaded from www.Manualslib.com manuals search engine
6-1 6-1
FTD DISPLAY PIN CONNECTIONS
14G 1G 2G 3G 4G 5G 6G 7G 8G 9G
MUTE DIM 12 3 ALB NEWS TITLE
FM MW LW AM
10G 11G 12G 13G 10G
FRONT BOARD B2
B3
B4
B4
B5
B6
B11
B10
B12 B6
B5
B4
B12
B11
B10
B6
B5
B4
B8
B7
B6
S3 S4
B1 B3 B9 B3 B9 B3 B5
B2 B8 B2 B8 B2
S1 B1 B7 B1 B7 B1 S6
S2 S5
(10G-13G)
a
S7 S9
f h j k b
S8 g m col
S10
TABLE OF CONTENTS e r p n c
d Dp
FTD pin connection ......................................................... 6-1
Variation Table ................................................................. 6-2 (14G) (1G-8G) (9G)
Key-CDC part - Layout & Circuit diagram ....................... 6-2
Front part - Circuit diagram ............................................. 6-3
Front part - Component layout ........................................ 6-4 1G 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G 13G 14G
Front part - Chip layout .................................................... 6-5 P1 a a a a a a a a B1 B1 B1 B1 S7
Headphone part - Layout & Circuit diagram .................... 6-6 P2 h h h h h h h h B2 B2 B2 B2
Karaoke part - Component & Chip layout ....................... 6-6
P3 j,p j,p j,p j,p j,p j,p j,p j,p S9 B3 B3 B3 B3
Karaoke part - Circuit diagram ........................................ 6-7
P4 k k k k k k k k B4 B4 B4 B4
Electrical parts list ............................................................ 6-8
P5 b b b b b b b b S1 B5 B5 B5
P6 f f f f f f f f - B6 B6 B6 S8
P7 m m m m m m m m FM S2 - S5
P8 g g g g g g g g MW - - -
P9 c c c c c c c c S10 B5 B7 - B7
P10 e e e e e e e e B6 B8 - B8
P11 r r r r r r r r B7 B9 S3 B9
P12 n n n n n n n n B8 B10 S4 B10
P13 d d d d d d d d S6 B11 - B11
P14 MUTE DIM 1 ALB NEWS TITLE - - B12 - B12
P15 - - 2 - - col - - - LW - - -
P16 - - 3 - - Dp - - - AM - - - -
FTD DISPLAY PIN NO. 4 4 4 4 4 3 3 3 3 3 3 3 3 3 3 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 1 1 1 9 8 7 6 5 4 3 2 1
4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0 9 8 7 6 5 4 3 2 1 0
FUNCTION F F - - 1 2 3 4 5 6 7 8 9 10 11 12 13 14 - - - - - - P P P P P P P P P P P P P P P P - - F F
2 2 G G G G G G GG G G G G G G 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 1
Downloaded from www.Manualslib.com manuals search engine
6-2 6-2
VARIATION TABLE KEY-CDC PART - CIRCUIT DIAGRAM
Item No / Features FWM390/30 FWM390/21 FWM390/22/25
RDS / News - - x 1440 A1 1441 A2 1442 A2
Simple Karaoke - x -
Mic Detect - x -
1409 x x x
1 2
1424 - - -
1425 - - x
1427 - - x
1437 - - - 1440 1441 1442
1
3486 1k 1k 1k P04x
2 DISC CHANGE OPEN/CLOSE
3511 10k 10k - KEY1
3530 - - 330R A KEY2
3 A
3531 10k 10k 10k 4
GND_D
3581 10k 10k -
3595 - - - FE-ST-VK-N
D
3808 - - 820R
3139 118 53880 ... 88460 ...3442 pt 2a dd wk147
4402 - - -
4404 - - -
6400 x x x
1 2
6403 x x x
6426 - - x
6440 - x -
6441 x x x
6447 x x x
6448 x x x
9402 - - x
9404 - - x KEY-CDC PART - COMPONENT LAYOUT
9405 - - x
9406 - - x
9407 - - -
9408 x x x
9409 - - - This assembly drawing shows a summary of all possible versions. For components used in a specific version see
schematic diagram and respective parts list.
9410 x x x
9411 - - -
9462 - - -
9488 x x x
9505 - - -
9508 - - x 3139 113 3442 pt 2a dd wk147
9509 - - x
x - item in use
Downloaded from www.Manualslib.com manuals search engine
6-3 6-3
FRONT PART - CIRCUIT DIAGRAM
1400 A9 3445 G6 4522 D4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 1401 C1 3446 A9 5400 B4
1402 G1 3447 A8 5401 A16
1403 B3 3448 C8 5402 C11
1404 G16 3449 C9 5403 I12
6400 1405 D13 3450 D6 5404 L13
+5V6_CON +E 1406 D14 3451 C6 5405 G9
1N4148 1407 D14 3452 D6 5406 G8
1408 E13 3453 C6 6400 A5
2438
100n
1409 I13 3454 D7 6401 A4
1410 E13 3455 D7 6402 B4
3432 3400 5401 1411 E14 3456 C7 6403 B4
A D
F1 F1x 1400 +5V6 +LED
+LED A 1412 E14 3457 D7 6404 B4
1R 2R2 BJ794GNK / HNA-14MS06T 2u2 1413 E13 3458 C7 6405 B6
2404
+G -FTD -FTD -FTD
4u7
6401 9541
2458
100n
2480
100n
16 1414 F14 3459 D7 6406 L6
+5V6 +F
3544 SRG8 1415 F14 3460 C8 6409 E6
1N4003
2400
100u
2476
100n
LedEnable 15 EN1 1416 F14 3461 D8 6410 E6
3447
3596
3446
220R
3401
2405
2434
100p
2477
100p
2478
100p
82K
10K
82K
4u7
LedShStr 3545 10K D D 1417 E14 3462 C8 6411 M6
1
STB 1418 F14 3463 D8 6412 C13
2418
100n
D D -FTD LedShClk 330R 3 1419 F13 3464 C8 6413 C14
6402 7404
FTD +LED 1420 F13 3465 D8 6414 C14
+G 3433 3402 74HC4094D 1421 G14 3466 C8 6415 C15
F2 F2x 2432 2433 6427
1403 D 1N4148
1R 2R2 3548 CDC3 1422 F13 3467 D9 6416 D13
2406
1 P04x LedShData 2 4
4u7
9540 3416 100p 100p D 1 1423 F14 3468 C9 6417 E13
220R
3403
6403 44 43 40 39 38 37 36 35 34 33 32 31 30 29 28 27 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 2 1
2 KEY1 5400 7406 7407 5 270R 1424 G14 3469 D9 6418 E13
+5V6_CON +H 10K F2x F1x 6428
2459
100p
B 2u2 BC847B BC847B
3547 CDC2 B 1425 H13 3470 C9 6419 E13
2407
3 KEY2 1N4003 6
4u7
+5V6 +5V6 +5V6 1426 F14 3471 D9 6420 G13
2487
2402
100u
2403
100n
6404 7 270R 1427 H14 3472 C9 6421 F13
3404
4
22K
+5V6 100p D 6429 1428 G13 3473 D9 6422 F13
6405 3546 CDC1
D 1N4003 -FTD 14 1429 G14 3474 C10 6423 G13
-VKK
* * * *
470R
470R
470R
470R
470R
470R
680R
3512
3513
3588
3514
3515
3587
3517
680R
680R
680R
D
3589
3518
3590
FE-ST-VK-N 1430 G14 3475 D10 6424 G13
BZX79-C5V6 D FTD 13 270R
1431 H13 3476 C10 6425 H13
9401
1432 G13 3477 D10 6426 H12
3597
2435
100p
10K 12
100R
100R
1433 H9 3478 C10 6427 B18
3448
3449
4414
4415
TU FTD
LTL2R3VYKNT
LTL2R3VYKNT
11 1434 J18 3479 D10 6428 B18
9403 1435 K18 3480 D12 6429 B18
6412
6413
6414
6415
1401 9
G09x
G14x
1437 H14 3481 D11 6430 E18
G09
G14
G01
G02
G03
G04
G05
G06
G07
G08
G09
G10
G12
G13
G14
G11
P01
P02
P03
P04
P05
P06
P07
P08
P09
P10
P12
P13
P14
P15
P16
3582
P11
1 NTC
C NTC
1K
10 C 1438 H14 3482 E11 6431 F18
2 4400 4401 2400 A4 3483 E11 6432 E18
GND_I2C
2402 B5 3484 E11 6433 D19
G01
3451 G02
1K G03
3453 G04
1K G05
G06
3456 G07
1K G08
3458G09x
1K G10
1K G12
3462 G13
1K G14x
3464 P01
1K P02
3466 P03
1K P04
3468 P05
1K P06
3470 P07
1K P08
3472 P09
1K P10
1K P12
3476 P13
1K P14
3478 P15
1K P16
-VKK
3460 G11
3474 P11
3 I2C 3405 I2_DAT -FTD 3556 270R 6436 Aux
I2C_DATA 8 2403 B5 3485 E11 6434 D19
3406 1K 3516 3519 3555 270R 2404 A7 3486 E11 6435 C19
5402
4 I2_CLK 7413 7414 OSM D 6435 Tape
I2C_CLK 2405 A7 3487 E11 6436 C19
9400
2u2
1K BC847B 10K BC847B 10K 3554 270R 2406 B7 3488 E11 6437 F18
3454
3455
3457
3459
3461
3463
3465
3467
3469
3471
3473
3475
3477
3479
6434 Tuner
3450
3452
2436
2437
5
22u
22u
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
1K
GND_D
2408
2409
150K
2407 B7 3489 F11 6438 E15
3493
10p
10p
2456 2457 3553 270R CD
2460
100p
BiPlaner
6 D 4522 +LED 6433 2408 D5 3490 F11 6439 E15
+5V6_CON +5V6_CON
22p 2409 D5 3491 F11 6440 E15
7 FTD D D D D 22p
+5V6 2410 F3 3492 F11 6441 J15
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
16
2461
100n
2481
100n
D I2C IIC IIC D
D 2411 F4 3493 D4 6447 F15
D 8
D
P67
P70
P71
P72
P73
P74
P75
P76
P77
P80
P81
P82
P83
P84
P85
P86
P87
P90
P91
P92
P93
P94
P95
P96
+5V6 +5V6 SRG8 2412 F4 3494 G7 6448 J13
+F 15
3480 EN1
KEY0
KEY1
KEY2
P04x
P03x
P02x
HPDet
MicDet
OPTIONS
9 +F 40 P66 P97 65 2413 F4 3495 G7 7402 K14
-Vkk -VKK I/O PORT 7 I/O PORT 8 I/O PORT 9 3552
LedShStr 1 D D 2414 F4 3496 G7 7403 M14
10 39 P65 VKK 66
1K STB
F1 F1
4402 1405 330R 7405 2415 F5 3497 G7 7404 B17
3407
3
10K
VKK 6416 LedShClk
11 3481 KEY0 3520 2416 F4 3498 G7 7405 D18
F2 F2
38 P64 P40 67 P11 1406 1407 74HC4094D +LED
I/O PORT 6
2417 H4 3499 G8 7406 B8
9410 1K 3482 330R 6432
2462
100p
12 CdShData D 1N4148
3541
KEY1 2418 A4 3500 G8 7407 B9
4K7
37 P63 P41 68
CD_SHDATA 2 4 3551 DBB
DATA MEMORY PROGR MEMORY PROGRAM 3483 1K 1408 6438 D 1 2419 I3 3501 G8 7408 H5
3434
13 CdShClk KEY2
10K
CD_SHCLK 6409 36 P62 (RAM) (ROM) COUNTER
P42 69
6417 3521 2420 H3 3502 G8 7410 J4
1024X8 BIT 48KX8 BIT P10 5 560R
14 CdShStr LedEnable 1N4148 3435 1K 3484 OPTIONS 1417 1N4148 D 2421 I3 3503 H9 7411 M7
I/O PORT 4
35 P61 P43 70
CD_SHSTR
1N4148 330R 6 3591 2422 I4 3504 G9 7413 C13
3542
4K7
15 TuClk 6410 3583 1K 3485 1K
E CD_GND 9411 9409
1K
34 P60 P44 71
1K 3486
TuStereo
6418 3522
1410 6439 7 560R E 2423 J3
2424 K3
3505 G9
3506 G9
7414 C15
7415 K13
16 CdSwinfo 1N4148 33 VDD VDD CPU P45 72 LowPwrWakeUp
P09 6430
CD_SWINFO +H 1411 1412 3549 2425 K3 3507 G10 7416 J4
1N4148 14 DSC
17 9408 TpShClk 3436 3487 1K SA1 1N4148 330R 2426 K5 3508 G10 7417 K4
CD_SICL CdSiCl 32 P07 P46 73
13 560R 2427 L3 3509 G10 7418 L4
18 TpShData 1K 3437 1K 3488 SA2 1413 6440
CD_SILD CdSiLd 31 P06 P47 74
6419 2428 K3 3510 J11 9400 D11
3523 12 3592
19 9407 DSA_STR TpShStr 3438 1K 16 BIT INTERRUPT 8 BIT 3489 1K SA3
P08 1414 1415 1N4148 2429 L5 3511 J12 9401 C12
CD_GND 30 P05 P50 75
TIMER/COUNTER CONTROLLER TIMER/COUNTER 1N4148 330R 11 560R 2430 L3 3512 B13 9402 H11
I/O PORT 0
LedShClk 1K 3439 1K 3490 NTC 6437 2431 M5 3513 B13 9403 C5
29 P04 P51 76
1420 3558
9488
2410
100n
2475
2413
I/O PORT 5
2432 B8 3514 B13 9404 I13
2411
9 IS
47p
47p
47p
FE-ST-VK-N LedShStr 3440 100R 1K TpAdC2 6422 3526
28 P03
6 BIT A/D-
P52 77 P07 1418 1416 6447 2433 B9 3515 B14 9405 H14
CLOCK/TIMING CONTROLLER 10 560R
1K 3441 CONVERTER 330R 2434 A8 3516 C14 9406 H14
1N4148
2414
2416
2412
2415
LedShData
F TpAdC1
F
47p
47p
47p
47p
27 P02 (I/O PORT 2) P53 78
1N4148 3593 2435 C10 3517 B15 9407 E3
470K
3543
CD Standby 3442 1K 26 P01 P54 79
3491 CdShStr 1419 2436 D11 3518 B15 9408 E4
6421 3525 8 560R
P06 2437 D11 3519 C15 9409 E4
CD DSA_STR 1K 1K 3492 TuCe 1423 1426 D 6431
25 P00 P55 80
330R 2438 A4 3520 D13 9410 D4
I/O PORT 3 I/O PORT 1 1N4148 TU 3550 VEC
12 RESET
2439 G5 3521 E13 9411 E3
14 XOUT
+F 3444 1K
9 TEST
15 VSS
24 P37
23 P36
22 P35
21 P34
20 P33
19 P32
18 P31
17 P30
16 P20
11 P22
10 P21
P17
P16
P15
P14
P13
P12
P10
P11
13 XIN
1422 560R 2440 G6 3522 E13 9449 L6
3443
3595
10K
10K
1K 6420 3524 2441 G6 3523 E13 9462 J13
3408
3409
BiPlaner
10K
10K
P05
8
1421 1424 3594 2442 G6 3524 G13 9469 L6
P05x
OSM
1402 3445 1N4148 330R
3410 CST 5405 560R 2443 G7 3525 F13 9481 G11
3501
1 D D 5406 D D
3497
3499
3505
3507
10K 3509
3572
TuStereo 7400
3495
3500 10K
10K
2444 G8 3526 F13 9488 F3
1K
1K
1K
1K
1K
1K
TU_STEREO 10K D RES D XTAL 1432 P05x
3411 TMP87CN71 6424 3528 2445 G8 3527 G13 9505 J15
2 1K TuClk DT-38 P04
TU_CLK 8MHz 32K768 2446 H9 3528 G13 9508 I14
3498
3502
3508
4417 9481
G G
3494
3496
3506
1K
1K
1K
1K
3504 1K
1K
3412 330R
3574
3 1K TuDat 1N4148 P04x 2447 G9 3529 H13 9509 I14
1M
TU_DATA
2447
2448
2448 G9 3530 H13 9540 B6
15p
15p
1428 1429 1430
10K
680K
2439
470p
2440
470p
2441
470p
2442
470p
4 1K TU D CD
3573
TuEnable
TU_ENABLE 6423 3527 2449 I7 3531 I13 9541 A6
2444
2445
33p
33p
2485 3413 P03 1404 2450 I8 3532 I14
5 3559
2443
470p
TuCe XTAL D
TU_GND
1N4148 330R TpAdC2 1K 7 2451 I8 3533 I14
P03x
100p 1K TpAdC2
3414
2417
6 TU D 2452 H10 3534 I15
3575
10K
47p
1M
1431 1437 1438 3560
3503
HP_DETECT
2446
RES 4416 9402 TpAdC1 6 2453 H11 3535 K13
10n
TpAdC1
1K
7 D 6425 3529
CdShData
P02 2454 J8 3536 K13
CdSwinfo
SA_IN 1K
CdShClk
5
Clipping
I2_CLK
RdsDat
I2_DAT
CdSiLd
+F
RdsClk
CdSiCl
+F 2455 J11 3537 M13
PWDN
330R +F
JOGA
JOGB
TuDat
VOLB
VOLA
8 1N4148
Reset
TU D IIC D RDS 2463
RC5
PW_DN 2456 D14 3538 M13
D 4
9 3571 GND_D 2457 D15 3539 M14
CLIPPING P02x 100p
D
H STANDBY
10 1K HPDet TpShClk 3561
3
TpShClk H 2458 A18
2459 B16
3540 M14
3541 E15
2
TuEnable
11 1K TpShData 2460 D16 3542 E15
+F
MIC_DETECT 3415 3562 2461 D18 3543 F15
RdsDat
RdsClk
4403 7408 TpShData 1
2452 3578 3579 2453 1425 1427 TpShStr
2420
2462 E16 3544 A16
47p
BC847B 6426
4M332
10K 3530 1K
9406
AT-51
FE-ST-VK-N
1433
9405
TpShStr 2463 H15 3545 A16
P01
D 47p 220K 2K2 47p
2422
D FE-BT-VK-N 2465 K13 3546 B19
1u
330R 3563
3586
2419
2421
9404
TU 1N4148
10K
47p
47p
7401 1K 2466 K13 3547 B19
5403
2u2
SAA6579T 2467 K13 3548 B19
13 14 12
9508
9509
TU 2468 M13 3549 E19
OSCO
SA_IN
OSCI
D TU VDDD 2469 K16 3550 F19
PWDN
1409
2470 K16 3551 E19
I Clipping
2449 3577 2450 4 MUX
ANTI-
ALIASING
57 Khz
BANDPASS
RECONSTRUCTION
OSCILLATOR
AND
QUALITY
BIT
QUAL 1 I 2471 J17 3552 D16
2472 J18 3553 D18
1K5 FILTER 3581
1n 560p
3576
FILTER (8th ORDER) DIVIDER GENERATOR 2473 L17 3554 D18
10K
Standby
3531
470K
470K
470K
3532
3533
3534
2451
LowPwrWakeUp +F 2474 L18 3555 C18
8 SCOUT 10K
3580
MicDet
10K
10K 2475 F4 3556 C18
3418 D 560p 2476 A5 3558 F19
7410 CLOCKED BIPHASE +E
7 CIN COSTAS LOOP DIFFERENTIAL RDDA 2 D D 2477 A9 3559 G16
3567
3568
10K
10K
10K BC847B COMPARATOR SYMBOL 1434
VARIABLE AND DECODER
2423
2478 A9 3560 H16
1u
5 VDDA DECODER EC16
FIXED DIVIDER 2479 J7 3561 H16
VP1 RDCL 16 3510
2
2480 A18 3562 H16
3
TU TU 3 VREF REFERENCE 10K 2481 D18 3563 I16
3511
10K
1
CLOCK TEST LOGIC AND OUTPUT 2484 J15 3564 J15
VOLTAGE T57 15
J J
5
4
REGENERATION SELECTOR SWITCH 2485 G2 3565 K16
MT1
MT2
+F
ZE20
MODE
2471
2472
AND SYNC +5V6_CON 2486 L6 3566 K16
10n
10n
TEST
+F
+F 9505 100R
2479 2487 B8 3567 J17
VSSA VSSD D
D 3564 3400 A7 3568 J18
1N4148
47n 6 9 10 11 6441 3401 A6 3569 K17
9462
6448
680K
2484
D
3585
2454
4u7
2455 +5V6_CON
JOGB
JOGA
7416 3402 B7 3570 K18
BC857B TU D 7402 1N4148 3403 B6 3571 H2
3419 2425 2u2 100n 3535
3565
2469
D
10K
47n
SA1 +F 3404 B6 3572 G10
TSOP2236 D
1K5 47n 10K 7415 3405 C4 3573 G10
470K
2424
2426
2465
100n
3420
3584
220n
VOLA
VOLB
82K
1u
BC847B 3406 C4 3574 G11
CTRL VS 2
D 1435 3407 D4 3575 H10
3569
3570
INP
10K
CIRCUIT 10K
100n
2470
K EC16
K 3408 G3 3576 I7
2n2
2466
D +F D OUT 1 3409 G3 3577 I7
100K
3536
2467
BAND
2
10n
PIN AGC DEM 3410 G2 3578 H10
3566
PASS
3
1K
D
1 3411 G3 3579 H10
GND 3
680K
D 3412 G2 3580 I11
3422
7417
5
MT1 MT2
BC857B D 3413 G3 3581 I12
3421 2428
SA2
4
3414 H4 3582 C5
2473
2474
Reset
10n
10n
RC5
1K5 6n8 3415 H4 3583 E6
2427
100n
2429
+5V6 +5V6_CON +E
470K
D
3423
3424
220n
82K
3416 B8 3584 K4
9469 3418 I3 3585 J4
D
I2_CLK
I2_DAT
3419 K3 3586 I2
D +F D 3420 K4 3587 B14
4448
L L
1N4148
3421 K3 3588 B13
560R
3430
6406
+F 3422 K4 3589 B14
680K
2486 3423 L4 3590 B15
3426
7418
2430 BC857B 3424 L4 3591 E19
3425
5404
SA3
2u2
3425 L3 3592 E19
9449
10u
1K5 820p 3426 L4 3593 F19
470K
2431
3427
3428
220n
82K
7411 3427 M4 3594 G19
BC857B
* VALUES VARIES BETWEEN DIFFERENT MODEL, SEE
RESPECTIVE PARTS LIST FOR CORRECT VALUE. * 7403
*
3428 M4 3595 G12
2468
100n
3537
3430 L6 3596 A8
10K
3539
D D M24C01 8
10K
3431 M6 3597 C9
1 VCC
SA_IN E0 3432 A6 4400 C4
2 3433 B6 4401 C4
M E1 M 3434 E6 4402 D11
3431
4407
4404
47K
3 5 3540
6411
E2 SDA 3435 E6 4403 H2
3538 1K 3436 E6 4404 M6
6
SCL 4406 3437 E6 4405 M13
1K 7 3438 F6 4406 M14
D 4405 WC_ VSS 3439 F6 4407 M6
4 3440 F6 4414 C8
3441 F6 4415 C9
IIC
3442 F6 4416 H11
3139 118 53880 ... 88450 ...3442 pt 2a dd wk147 3443 G5 4417 G11
3444 F6 4448 L6
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Downloaded from www.Manualslib.com manuals search engine
6-4 6-4
FRONT PART - COMPONENT LAYOUT
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.
3139 113 3442 pt 2a dd wk147
Downloaded from www.Manualslib.com manuals search engine
6-5 6-5
FRONT PART - CHIP LAYOUT
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.
3139 113 3442 pt 2a dd wk147
Downloaded from www.Manualslib.com manuals search engine
6-6 6-6
HEADPHONE PART - CIRCUIT DIAGRAM KARAOKE PART - COMPONENT & CHIP LAYOUTS
1600 C1
1 2 3 1601 B3
1602 A3 This assembly drawing shows a summary of all possible versions. For
2600 A2 components used in a specific version see schematic diagram and
# 9600 respective parts list.
2601 A3
2602 A2
2600 5602 # 2601 2603 A2
2u2 5600 B2
22n 22n
5601 B2
A HP A 5602 A2
9600 A2
2602 2603 1602
22n 100n 1 RT-01T
9
7
8
4 1
B B
5600
5601
2u2
2u2
5 2
6 3
1601
TC38
TO AF9
1600 HP
1
HP_DET
2
HP_RIGHT
C HP_GND
3 C
HP_LEFT
4
# PROVISION ONLY
FE-BT-VK-N
HP 3139 118 53880 ... 88480 ...3442 pt 2a dd wk147 3139 113 3442 pt 2a dd wk147
1 2 3
This assembly drawing shows a summary of all possible versions. For
components used in a specific version see schematic diagram and
respective parts list.
HEADPHONE PART - COMPONENT & CHIP LAYOUTS
This assembly drawing shows a summary of all possible versions. For This assembly drawing shows a summary of all possible versions. For
components used in a specific version see schematic diagram and respective components used in a specific version see schematic diagram and respective
parts list. parts list.
3139 113 3442 pt 2a dd wk147
3139 113 3442 pt 2a dd wk147
3139 113 3442 pt 2a dd wk147
Downloaded from www.Manualslib.com manuals search engine
6-7 6-7
KARAOKE PART - CIRCUIT DIAGRAM
30 D9 1802 C2 2802 B5 2805 B5 2808 E3 2811 D6 2814 E7 2817 D8 3800 A2 3803 B3 3806 C4 3809 B6 3812 B8 3815 D5 3818 E6 3821 D8 5800 B2 7800 B4 7803 E6 9800 A5
1800 C1 2800 B2 2803 B4 2806 B6 2809 E4 2812 E6 2815 E7 2818 E8 3801 A2 3804 B4 3807 B4 3810 C6 3813 D4 3816 D6 3819 E7 3822 E8 6800 D5 7801 B6 7804 E8
1801 B9 2801 B3 2804 B4 2807 B6 2810 E5 2813 E6 2816 E8 2819 C3 3802 B2 3805 B4 3808 B6 3811 B6 3814 E5 3817 D6 3820 D8 4800 D7 6801 E5 7802 D4 7805 D3
1 2 3 4 5 6 7 8 9
+12V_A
SIMPLE KARAOKE
3800
4K7
A A
3801
6K8
+12V_A +12V_A
MIC
TO AF9
9800
820R
3804
3808
2802
2K7
47u
3 6
#
2807 1801
2 5 3805 2803 3809 1
Mic_Det
MIC GND_A
1 4 1M 470n 1M 10u 2
GND_A
B B
100K
3811
8 5800 3803 2801 7800 2805 7801 3
Kar_Out
22u 4K7 BC847B BC847B +12V_A 3812
7 220n 470n 4
3807 +12V_A
3802
2800
10K
4n7
9 RK09D GND_A 470R
2804 20K 2806
FE-BT-VK-N
TC38 1n GND_A 1n
330R
3806
3810
2819
100n
MIC MIC GND_A
33R
1800
#
RT-01T 1
MIC
C # 1802 MIC MIC GND_A QE10 C
FOR VCD VERSION : ITEM 3808 IS 390 OHM
VCD +12V_A +12V_A
4800
D TO MPEG D
3816
3820
3K3
3K3
+12V_A
7802
BC847B 30
7805 6800 2811 2817
3815 3817 3821 1
BC847B Mic_Out
3813 10K 1N4148 1u 1M 1M 1u 2
MPEG_GND
2813
1N4148
470R 3819 2815
3814
2809
2810
6801
7804
10K
7803 3
10u
1n
Mic_Det
BC847B 8K2 BC847B
1u 100n
2808
1n
2812 2816
2814
100n
2818
100n
DIPMATE
E GND_A GND_A GND_A
1n 1n E
560R
MIC MIC
3818
3822
2K7
LEGEND :
GND_A GND_A
REFER TO VARIANTS TABLE IN SH130-5
GND_A GND_A
# FOR PROVISION ONLY
3139 118 53880 ... 88470 ...3442 pt 2a dd wk147
1 2 3 4 5 6 7 8 9
Downloaded from www.Manualslib.com manuals search engine
6-8 6-8
ELECTRICAL PARTS LIST - FRONT BOARD ELECTRICAL PARTS LIST - FRONT BOARD
MISCELLANEOUS
1400 3139 110 52900 FTD Display HNA-14MS06T 2410 4822 126 14305 100nF 10% 16V 2600 4822 126 14494 22nF 10% 25V 3443 4822 051 30103 10k 5% 0,062W
1401 4822 265 11545 Flex Socket 19 Pin Hort. 2422 3198 017 41050 1µF 10V 2602 4822 126 14494 22nF 10% 25V 3444 4822 051 30102 1k 5% 0,062W
1402 2422 025 14541 Flex Socket 11 Pin Hort. 2423 3198 017 41050 1µF 10V 2603 4822 126 14305 100nF 10% 16V 3446 4822 117 12864 82k 5% 0,6W
1403 4822 265 11183 Flex Socket 4 Pin Hort. 2424 3198 017 41050 1µF 10V 2800 4822 126 13193 4,7nF 10% 63V 3447 4822 116 52304 82k 5% 0,5W
1404 4822 267 10953 Flex Socket 7 Pin Vert. 2425 3198 017 34730 47nF 16V 2801 4822 126 13879 220nF +80/-20% 16V 3448 4822 051 30101 100R 5% 0,062W
1405 4822 276 13775 Tact Switch 2426 4822 126 13879 220nF +80/-20% 16V 2802 3198 028 44790 47µF 20% 35V 3449 4822 051 30101 100R 5% 0,062W
1406 4822 276 13775 Tact Switch 2427 4822 126 14305 100nF 10% 16V 2803 4822 126 13482 470nF 80/20% 16V 3450 4822 051 30102 1k 5% 0,062W
1407 4822 276 13775 Tact Switch 2428 5322 126 11582 6,8nF 10% 63V 2804 5322 126 11578 1nF 10% 50V 3451 4822 051 30102 1k 5% 0,062W
1408 4822 276 13775 Tact Switch 2429 4822 126 13879 220nF +80/-20% 16V 2805 4822 126 13482 470nF 80/20% 16V 3452 4822 051 30102 1k 5% 0,062W
1409 4822 276 13775 Tact Switch 2430 3198 016 38210 820pF 25V 2806 5322 126 11578 1nF 10% 50V 3453 4822 051 30102 1k 5% 0,062W
1410 4822 276 13775 Tact Switch 2431 4822 126 13879 220nF +80/-20% 16V 2807 4822 124 12255 10µF 20% 50V 3454 4822 051 30102 1k 5% 0,062W
1411 4822 276 13775 Tact Switch 2432 4822 122 31765 100pF 2% 63V 3455 4822 051 30102 1k 5% 0,062W
1412 4822 276 13775 Tact Switch 2433 4822 122 31765 100pF 2% 63V RESISTORS 3456 4822 051 30102 1k 5% 0,062W
1413 4822 276 13775 Tact Switch 2434 4822 122 31765 100pF 2% 63V 3400 4822 116 81154 2R2 5% 0,5W 3457 4822 051 30102 1k 5% 0,062W
1414 4822 276 13775 Tact Switch 2435 4822 122 31765 100pF 2% 63V 3401 4822 116 83872 220R 5% 0,5W 3458 4822 051 30102 1k 5% 0,062W
1415 4822 276 13775 Tact Switch 2436 3198 028 52290 22µF 20% 50V 3402 4822 116 81154 2R2 5% 0,5W 3459 4822 051 30102 1k 5% 0,062W
1416 4822 276 13775 Tact Switch 2437 3198 028 52290 22µF 20% 50V 3403 4822 116 83872 220R 5% 0,5W 3460 4822 051 30102 1k 5% 0,062W
1417 4822 276 13775 Tact Switch 2444 2222 867 15339 33pF 5% 50V 3404 4822 116 52257 22k 5% 0,5W 3461 4822 051 30102 1k 5% 0,062W
1418 4822 276 13775 Tact Switch 2445 2222 867 15339 33pF 5% 50V 3407 4822 050 21003 10k 1% 0,6W 3462 4822 051 30102 1k 5% 0,062W
1419 4822 276 13775 Tact Switch 2446 5322 126 11583 10nF 10% 50V 3408 4822 050 21003 10k 1% 0,6W 3463 4822 051 30102 1k 5% 0,062W
1420 4822 276 13775 Tact Switch 2447 4822 122 33752 15pF 5% 50V 3409 4822 051 30103 10k 5% 0,062W 3464 4822 051 30102 1k 5% 0,062W
1421 4822 276 13775 Tact Switch 2448 4822 122 33752 15pF 5% 50V 3410 4822 050 11002 1k 1% 0,4W 3465 4822 051 30102 1k 5% 0,062W
1422 4822 276 13775 Tact Switch 2449 4822 122 33197 1nF 10% 50V 3411 4822 051 30102 1k 5% 0,062W 3466 4822 051 30102 1k 5% 0,062W
1423 4822 276 13775 Tact Switch 2450 4822 126 14249 560pF 10% 50V 3412 4822 051 30102 1k 5% 0,062W 3467 4822 051 30102 1k 5% 0,062W
1425 4822 276 13775 Tact Switch 2451 4822 126 14249 560pF 10% 50V 3413 4822 051 30102 1k 5% 0,062W 3468 4822 051 30102 1k 5% 0,062W
1426 4822 276 13775 Tact Switch 2452 4822 122 33777 47pF 5% 63V 3414 4822 051 30103 10k 5% 0,062W 3469 4822 051 30102 1k 5% 0,062W
1427 4822 276 13775 Tact Switch 2453 4822 122 33777 47pF 5% 63V 3415 4822 051 30103 10k 5% 0,062W 3470 4822 051 30102 1k 5% 0,062W
1428 4822 276 13775 Tact Switch 2454 4822 124 22652 2,2µF 20% 50V 3416 4822 051 30103 10k 5% 0,062W 3471 4822 051 30102 1k 5% 0,062W
1429 4822 276 13775 Tact Switch 2455 4822 126 14305 100nF 10% 16V 3418 4822 051 30103 10k 5% 0,062W 3472 4822 051 30102 1k 5% 0,062W
1430 4822 276 13775 Tact Switch 2458 4822 126 14305 100nF 10% 16V 3419 4822 116 52243 1k5 5% 0,5W 3473 4822 051 30102 1k 5% 0,062W
1431 4822 276 13775 Tact Switch 2459 4822 122 31765 100pF 2% 63V 3420 4822 117 12864 82k 5% 0,6W 3474 4822 051 30102 1k 5% 0,062W
1432 4822 276 13775 Tact Switch 2461 4822 126 14305 100nF 10% 16V 3421 4822 116 52243 1k5 5% 0,5W 3475 4822 051 30102 1k 5% 0,062W
1433 4822 242 11033 X’tal Resonator 4,332MHz 2462 4822 122 31765 100pF 2% 63V 3422 4822 051 30684 680k 5% 0,062W 3476 4822 051 30102 1k 5% 0,062W
1434 2422 129 16385 Rotary Encoder 12P 2465 4822 126 14305 100nF 10% 16V 3423 4822 117 12864 82k 5% 0,6W 3477 4822 051 30102 1k 5% 0,062W
1435 4822 273 10365 Rotary Encoder 24P 2466 4822 126 14305 100nF 10% 16V 3424 4822 051 30474 470k 5% 0,062W 3478 4822 051 30102 1k 5% 0,062W
1438 4822 276 13775 Tact Switch 2467 5322 126 11583 10nF 10% 50V 3425 4822 116 52243 1k5 5% 0,5W 3479 4822 051 30102 1k 5% 0,062W
1440 4822 265 11183 Flex Socket 4 Pin Hort. 2468 4822 126 14305 100nF 10% 16V 3426 4822 051 30684 680k 5% 0,062W 3481 4822 050 11002 1k 1% 0,4W
1441 4822 276 13775 Tact Switch 2470 4822 126 14238 2,2nF 50V 3427 4822 117 12864 82k 5% 0,6W 3482 4822 050 11002 1k 1% 0,4W
1442 4822 276 13775 Tact Switch 2471 5322 126 11583 10nF 10% 50V 3428 4822 051 30474 470k 5% 0,062W 3483 4822 050 11002 1k 1% 0,4W
1600 4822 267 10733 Flex Socket 4 Pin Vert. 2472 5322 126 11583 10nF 10% 50V 3430 4822 051 30561 560R 5% 0,062W 3484 4822 051 30102 1k 5% 0,062W
1601 4822 265 11529 Headphone Socket 2473 5322 126 11583 10nF 10% 50V 3431 4822 117 12925 47k 1% 0,063W 3485 4822 051 30102 1k 5% 0,062W
1800 4822 265 11529 Karaoke Mic Socket 2474 5322 126 11583 10nF 10% 50V 3432 4822 116 80176 1R 5% 0,5W 3486 4822 051 30102 1k 5% 0,062W
1801 4822 267 10733 Flex Socket 4 Pin Vert. 2476 4822 126 14305 100nF 10% 16V 3433 4822 116 80176 1R 5% 0,5W 3487 4822 051 30102 1k 5% 0,062W
2477 4822 122 31765 100pF 2% 63V 3434 4822 051 30103 10k 5% 0,062W 3488 4822 051 30102 1k 5% 0,062W
CAPACITORS 2478 4822 122 31765 100pF 2% 63V 3435 4822 051 30102 1k 5% 0,062W 3489 4822 051 30102 1k 5% 0,062W
2400 4822 124 23432 100µF 20% 10V 2479 4822 126 12785 47nF 50V 3436 4822 051 30102 1k 5% 0,062W 3490 4822 051 30102 1k 5% 0,062W
2402 4822 124 23432 100µF 20% 10V 2480 4822 126 14305 100nF 10% 16V 3437 4822 051 30102 1k 5% 0,062W 3491 4822 051 30102 1k 5% 0,062W
2403 4822 126 14305 100nF 10% 16V 2481 4822 126 14305 100nF 10% 16V 3438 4822 051 30102 1k 5% 0,062W 3492 4822 051 30102 1k 5% 0,062W
2404 4822 124 12032 4,7µF 20% 50V 2484 4822 124 40769 4,7µF 20% 100V 3439 4822 051 30101 100R 5% 0,062W 3494 4822 051 30102 1k 5% 0,062W
2405 4822 124 12032 4,7µF 20% 50V 2485 4822 122 31765 100pF 2% 63V 3440 4822 051 30102 1k 5% 0,062W 3495 4822 051 30102 1k 5% 0,062W
2406 4822 124 12032 4,7µF 20% 50V 2486 4822 124 40248 10µF 20% 63V 3441 4822 051 30102 1k 5% 0,062W 3496 4822 051 30102 1k 5% 0,062W
2407 4822 124 12032 4,7µF 20% 50V 2487 4822 122 31765 100pF 2% 63V 3442 4822 051 30102 1k 5% 0,062W 3497 4822 051 30102 1k 5% 0,062W
Downloaded from www.Manualslib.com manuals search engine
6-9 6-9
ELECTRICAL PARTS LIST - FRONT BOARD ELECTRICAL PARTS LIST - FRONT BOARD
RESISTORS
3498 4822 051 30102 1k 5% 0,062W 3550 4822 051 30561 560R 5% 0,062W 3808 4822 117 12968 820R 5% 0,62W 4462 4822 051 30008 0R Jumper 0603
3499 4822 050 21003 10k 1% 0,6W 3551 4822 051 30561 560R 5% 0,062W 3809 4822 051 30105 1M 5% 0,062W 4463 4822 051 30008 0R Jumper 0603
3500 4822 051 30102 1k 5% 0,062W 3552 4822 051 30331 330R 5% 0,062W 3810 4822 051 30331 330R 5% 0,062W 4464 4822 051 30008 0R Jumper 0603
3501 4822 051 30102 1k 5% 0,062W 3553 4822 116 83876 270R 5% 0,5W 3811 4822 117 13632 100k 1% 0,062W 4465 4822 051 30008 0R Jumper 0603
3502 4822 050 21003 10k 1% 0,6W 3554 4822 116 83876 270R 5% 0,5W 3812 4822 116 83883 470R 5% 0,5W 4466 4822 051 30008 0R Jumper 0603
3503 4822 050 11002 1k 1% 0,4W 3555 4822 116 83876 270R 5% 0,5W 4400 4822 051 30008 0R Jumper 0603 4467 4822 051 30008 0R Jumper 0603
3504 4822 051 30102 1k 5% 0,062W 3556 4822 116 83876 270R 5% 0,5W 4401 4822 051 30008 0R Jumper 0603 4468 4822 051 30008 0R Jumper 0603
3505 4822 050 21003 10k 1% 0,6W 3558 4822 051 30561 560R 5% 0,062W 4403 4822 051 30008 0R Jumper 0603 4469 4822 051 30008 0R Jumper 0603
3506 4822 051 30102 1k 5% 0,062W 3559 4822 051 30102 1k 5% 0,062W 4416 4822 051 30008 0R Jumper 0603 4470 4822 051 30008 0R Jumper 0603
3507 4822 051 30102 1k 5% 0,062W 3560 4822 051 30102 1k 5% 0,062W 4417 4822 051 30008 0R Jumper 0603 4471 4822 051 30008 0R Jumper 0603
3508 4822 051 30103 10k 5% 0,062W 3561 4822 050 11002 1k 1% 0,4W 4420 4822 051 30008 0R Jumper 0603 4472 4822 051 30008 0R Jumper 0603
3509 4822 050 11002 1k 1% 0,4W 3562 4822 051 30102 1k 5% 0,062W 4421 4822 051 30008 0R Jumper 0603 4473 4822 051 30008 0R Jumper 0603
3510 4822 050 21003 10k 1% 0,6W 3563 4822 050 11002 1k 1% 0,4W 4422 4822 051 30008 0R Jumper 0603 4474 4822 051 30008 0R Jumper 0603
3511 4822 051 30103 10k 5% 0,062W 3564 4822 051 30101 100R 5% 0,062W 4423 4822 051 30008 0R Jumper 0603 4475 4822 051 30008 0R Jumper 0603
3512 4822 051 30471 470R 5% 0,062W 3565 4822 051 30103 10k 5% 0,062W 4424 4822 051 30008 0R Jumper 0603 4476 4822 051 30008 0R Jumper 0603
3513 4822 051 30471 470R 5% 0,062W 3566 4822 050 11002 1k 1% 0,4W 4425 4822 051 30008 0R Jumper 0603 4477 4822 051 30008 0R Jumper 0603
3514 4822 051 30471 470R 5% 0,062W 3567 4822 051 30103 10k 5% 0,062W 4426 4822 051 30008 0R Jumper 0603 4478 4822 051 30008 0R Jumper 0603
3515 4822 051 30471 470R 5% 0,062W 3568 4822 051 30103 10k 5% 0,062W 4427 4822 051 30008 0R Jumper 0603 4479 4822 051 30008 0R Jumper 0603
3516 4822 051 30103 10k 5% 0,062W 3569 4822 051 30103 10k 5% 0,062W 4428 4822 051 30008 0R Jumper 0603 4480 4822 051 30008 0R Jumper 0603
3517 4822 117 11817 1k2 1% 1/16W 3570 4822 051 30103 10k 5% 0,062W 4429 4822 051 30008 0R Jumper 0603 4481 4822 051 30008 0R Jumper 0603
3518 4822 117 11817 1k2 1% 1/16W 3572 4822 051 30102 1k 5% 0,062W 4430 4822 051 30008 0R Jumper 0603 4482 4822 051 30008 0R Jumper 0603
3519 4822 051 30103 10k 5% 0,062W 3573 4822 051 30684 680k 5% 0,062W 4431 4822 051 30008 0R Jumper 0603 4483 4822 051 30008 0R Jumper 0603
3520 4822 051 30331 330R 5% 0,062W 3574 4822 051 30105 1M 5% 0,062W 4432 4822 051 30008 0R Jumper 0603 4484 4822 051 30008 0R Jumper 0603
3521 4822 051 30331 330R 5% 0,062W 3575 4822 051 30105 1M 5% 0,062W 4433 4822 051 30008 0R Jumper 0603 4485 4822 051 30008 0R Jumper 0603
3522 4822 051 30331 330R 5% 0,062W 3576 4822 051 30103 10k 5% 0,062W 4434 4822 051 30008 0R Jumper 0603 4486 4822 051 30008 0R Jumper 0603
3523 4822 051 30331 330R 5% 0,062W 3577 4822 051 30152 1k5 5% 0,062W 4435 4822 051 30008 0R Jumper 0603 4487 4822 051 30008 0R Jumper 0603
3524 4822 051 30331 330R 5% 0,062W 3578 4822 117 12891 220k 1% 0,062W 4436 4822 051 30008 0R Jumper 0603 4488 4822 051 30008 0R Jumper 0603
3525 4822 051 30331 330R 5% 0,062W 3579 4822 051 30222 2k2 5% 0,062W 4437 4822 051 30008 0R Jumper 0603 4489 4822 051 30008 0R Jumper 0603
3526 4822 051 30331 330R 5% 0,062W 3580 4822 050 21003 10k 1% 0,6W 4438 4822 051 30008 0R Jumper 0603 4490 4822 051 30008 0R Jumper 0603
3527 4822 051 30331 330R 5% 0,062W 3581 4822 051 30103 10k 5% 0,062W 4439 4822 051 30008 0R Jumper 0603 4492 4822 051 30008 0R Jumper 0603
3528 4822 051 30331 330R 5% 0,062W 3583 4822 051 30102 1k 5% 0,062W 4440 4822 051 30008 0R Jumper 0603 4494 4822 051 30008 0R Jumper 0603
3529 4822 116 52219 330R 5% 0,5W 3584 4822 051 30474 470k 5% 0,062W 4441 4822 051 30008 0R Jumper 0603 4495 4822 051 30008 0R Jumper 0603
3530 4822 051 30331 330R 5% 0,062W 3585 4822 051 30684 680k 5% 0,062W 4442 4822 051 30008 0R Jumper 0603 4496 4822 051 30008 0R Jumper 0603
3531 4822 051 30103 10k 5% 0,062W 3586 4822 051 30103 10k 5% 0,062W 4443 4822 051 30008 0R Jumper 0603 4498 4822 051 30008 0R Jumper 0603
3532 4822 051 30474 470k 5% 0,062W 3587 4822 051 30471 470R 5% 0,062W 4444 4822 051 30008 0R Jumper 0603 4499 4822 051 30008 0R Jumper 0603
3533 4822 051 30474 470k 5% 0,062W 3588 4822 051 30471 470R 5% 0,062W 4445 4822 051 30008 0R Jumper 0603 4500 4822 051 30008 0R Jumper 0603
3534 4822 051 30474 470k 5% 0,062W 3589 4822 117 11817 1k2 1% 1/16W 4446 4822 051 30008 0R Jumper 0603 4502 4822 051 30008 0R Jumper 0603
3535 4822 051 30103 10k 5% 0,062W 3590 4822 117 11817 1k2 1% 1/16W 4447 4822 051 30008 0R Jumper 0603 4503 4822 051 30008 0R Jumper 0603
3536 4822 117 13632 100k 1% 0603 0,62W 3591 4822 051 30561 560R 5% 0,062W 4448 4822 051 30008 0R Jumper 0603 4504 4822 051 30008 0R Jumper 0603
3537 4822 051 30682 6k8 5% 0,062W 3592 4822 051 30561 560R 5% 0,062W 4449 4822 051 30008 0R Jumper 0603 4505 4822 051 30008 0R Jumper 0603
3538 4822 051 30102 1k 5% 0,062W 3593 4822 051 30561 560R 5% 0,062W 4450 4822 051 30008 0R Jumper 0603 4506 4822 051 30008 0R Jumper 0603
3539 4822 051 30682 6k8 5% 0,062W 3594 4822 051 30561 560R 5% 0,062W 4451 4822 051 30008 0R Jumper 0603 4507 4822 051 30008 0R Jumper 0603
3540 4822 051 30102 1k 5% 0,062W 3596 4822 051 30103 10k 5% 0,062W 4452 4822 051 30008 0R Jumper 0603 4508 4822 051 30008 0R Jumper 0603
3541 4822 051 30472 4k7 5% 0,062W 3597 4822 051 30103 10k 5% 0,062W 4453 4822 051 30008 0R Jumper 0603 4509 4822 051 30008 0R Jumper 0603
3542 4822 051 30472 4k7 5% 0,062W 3800 4822 116 52283 4k7 5% 0,5W 4454 4822 051 30008 0R Jumper 0603 4510 4822 051 30008 0R Jumper 0603
3543 4822 051 30474 470k 5% 0,062W 3801 4822 051 30682 6k8 5% 0,062W 4455 4822 051 30008 0R Jumper 0603 4511 4822 051 30008 0R Jumper 0603
3544 4822 050 21003 10k 1% 0,6W 3802 4822 051 30103 10k 5% 0,062W 4456 4822 051 30008 0R Jumper 0603 4512 4822 051 30008 0R Jumper 0603
3545 4822 051 30331 330R 5% 0,062W 3803 4822 051 30472 4k7 5% 0,062W 4457 4822 051 30008 0R Jumper 0603 4513 4822 051 30008 0R Jumper 0603
3546 4822 051 30271 270R 5% 0,062W 3804 4822 051 30272 2k7 5% 0,062W 4458 4822 051 30008 0R Jumper 0603 4514 4822 051 30008 0R Jumper 0603
3547 4822 051 30271 270R 5% 0,062W 3805 4822 051 30105 1M 5% 0,062W 4459 4822 051 30008 0R Jumper 0603 4515 4822 051 30008 0R Jumper 0603
3548 4822 051 30271 270R 5% 0,062W 3806 4822 051 30339 33R 5% 0,062W 4460 4822 051 30008 0R Jumper 0603 4516 4822 051 30008 0R Jumper 0603
3549 4822 051 30561 560R 5% 0,062W 3807 2120 366 90291 Potm Rotary 20K 4461 4822 051 30008 0R Jumper 0603 4517 4822 051 30008 0R Jumper 0603
Downloaded from www.Manualslib.com manuals search engine
6-10 6-10
ELECTRICAL PARTS LIST - FRONT BOARD ELECTRICAL PARTS LIST - FRONT BOARD
RESISTORS
4518 4822 051 30008 0R Jumper 0603 6401 4822 130 31878 1N4003G 7410 4822 130 60511 BC847B
4519 4822 051 30008 0R Jumper 0603 6402 4822 130 30621 1N4148 7411 4822 130 60373 BC856B
4520 4822 051 30008 0R Jumper 0603 6403 4822 130 31878 1N4003G 7413 5322 130 60159 BC846B
4521 4822 051 30008 0R Jumper 0603 6404 4822 130 31878 1N4003G 7414 5322 130 60159 BC846B
4523 4822 051 30008 0R Jumper 0603 6405 4822 130 34173 BZX79-B5V6 7415 5322 130 60159 BC846B
4524 4822 051 30008 0R Jumper 0603 6406 4822 130 30621 1N4148 7416 4822 130 60373 BC856B
4525 4822 051 30008 0R Jumper 0603 6409 4822 130 30621 1N4148 7417 4822 130 60373 BC857B
4526 4822 051 30008 0R Jumper 0603 6410 4822 130 30621 1N4148 7418 4822 130 60373 BC857B
4527 4822 051 30008 0R Jumper 0603 6411 9322 167 73676 LTL-4221NLC-KA 7800 4822 130 60511 BC847B
4528 4822 051 30008 0R Jumper 0603 6412 9322 161 99676 LTL-2R3VYKNT 7801 4822 130 60511 BC847B
4529 4822 051 30008 0R Jumper 0603 6413 9322 161 99676 LTL-2R3VYKNT
4530 4822 051 30008 0R Jumper 0603 6414 9322 172 75676 LTL-1CHKFK Note: Only the parts mentioned in this list are normal service
4531 4822 051 30008 0R Jumper 0603 6415 9322 172 75676 LTL-1CHKFK spare parts.
4532 4822 051 30008 0R Jumper 0603 6416 4822 130 30621 1N4148
4533 4822 051 30008 0R Jumper 0603 6417 4822 130 30621 1N4148
4534 4822 051 30008 0R Jumper 0603 6418 4822 130 30621 1N4148
4535 4822 051 30008 0R Jumper 0603 6419 4822 130 30621 1N4148
4536 4822 051 30008 0R Jumper 0603 6420 4822 130 30621 1N4148
4537 4822 051 30008 0R Jumper 0603 6421 4822 130 30621 1N4148
4538 4822 051 30008 0R Jumper 0603 6422 4822 130 30621 1N4148
4539 4822 051 30008 0R Jumper 0603 6423 4822 130 30621 1N4148
4540 4822 051 30008 0R Jumper 0603 6424 4822 130 30621 1N4148
4541 4822 051 30008 0R Jumper 0603 6425 4822 130 30621 1N4148
4542 4822 051 30008 0R Jumper 0603 6426 4822 130 30621 1N4148
4801 4822 051 30008 0R Jumper 0603 6427 4822 130 11589 LTL-1CHAE
4802 4822 051 30008 0R Jumper 0603 6428 4822 130 11589 LTL-1CHAE
4803 4822 051 30008 0R Jumper 0603 6429 4822 130 11589 LTL-1CHAE
4804 4822 051 30008 0R Jumper 0603 6430 4822 130 11589 LTL-1CHAE
4805 4822 051 30008 0R Jumper 0603 6431 4822 130 11589 LTL-1CHAE
4806 4822 051 30008 0R Jumper 0603 6432 4822 130 11589 LTL-1CHAE
4807 4822 051 30008 0R Jumper 0603 6433 4822 130 10791 LTL-1CHGE
4808 4822 051 30008 0R Jumper 0603 6434 4822 130 10791 LTL-1CHGE
4809 4822 051 30008 0R Jumper 0603 6435 4822 130 10791 LTL-1CHGE
4810 4822 051 30008 0R Jumper 0603 6436 4822 130 10791 LTL-1CHGE
4811 4822 051 30008 0R Jumper 0603 6437 4822 130 10791 LTL-1CHGE
4812 4822 051 30008 0R Jumper 0603 6438 4822 130 30621 1N4148
4813 4822 051 30008 0R Jumper 0603 6439 4822 130 30621 1N4148
6440 4822 130 30621 1N4148
COILS & FILTERS 6441 4822 130 30621 1N4148
5400 4822 157 62552 Coil 2,2µH 5% 6448 4822 130 30621 1N4148
5401 4822 157 62552 Coil 2,2µH 5%
5403 4822 157 62552 Coil 2,2µH 5%
5404 4822 157 62552 Coil 2,2µH 5% TRANSISTORS & INTEGRATED CIRCUITS
5405 2422 543 01069 X’tal Resonator 32,768kHz 7401 9352 679 67118 SAA6579T/V1/M4
5406 4822 242 72066 Ceram Resonator 8MHz 7400 3140 110 52151 TMP87CS71BF
5600 4822 157 62552 Coil 2,2µH 5% 7402 9322 155 82667 IR Receiver TSOP2236ZC1
5601 4822 157 62552 Coil 2,2µH 5% 7403 9965 000 04931 M24C01-WMN6
5602 4822 157 62552 Coil 2,2µH 5% 7404 4822 209 15449 74HC4094D
5800 4822 157 11235 Coil 22µH 5% 7405 4822 209 15449 74HC4094D
7406 5322 130 60159 BC846B
DIODES 7407 5322 130 60159 BC846B
6400 4822 130 30621 1N4148 7408 5322 130 60159 BC846B
Downloaded from www.Manualslib.com manuals search engine
7A-1 7A-1
BLOCK DIAGRAM
TUNER BOARD
ECO 6 Systems
MPX Vcc1
buffer ampl.
VStabA VStabB 5
Discriminator Vdd
FM-RF FM-IF 1 FM-IF 2
RDS
(MPX) Vcc2
1101 VLoop
VCO
(1102) 10,7 MHz 10,7 MHz 10,7 MHz LF filter
1120
D
4 left 1
A FM 3 39 37 35 33 18 10 11 9
left 14
43 FM FM FM Stereo right 15 4 right
IF1 IF2 Decoder
Frontend Mixer Det.
stereo Vcc
FM-Osc. 24
VLoop
5 FM Pre- RADIO IC
Osc. scaler TEA 5757H Version
RDS
Multi- (MPX)
AM-Osc. plexer
enable 29 enable
6 AM
VLoop Osc.
AM-FRAME AERIAL data 28 data
1103 AM-RF
clock
2 AM AM AM IF AM clock 27
CONTROL
Frontend Mixer Det. stereo
8
C
VLoop
AGC P1 31 3
programmable
output ports P0 30
1 8 Charge
B
VLoop pump
VStabA 38
AFC Reference
34 Stabilizer Oscillator
VStabB
AFC +
AFC -
23 7 22 40 41 36 44 32 19 20 25
AM-IF 1 AM-IF 2 AM-AFC
Vdd Vcc1 Vcc2 75kHz
450kHz 450kHz 450kHz
2
VStabA VStabB VStabB
ECO6 Systems, 140499
ECO6 Tuner Board
version: SYSTEMS non-CENELEC
TABLE OF CONTENTS
Blockdiagram ..................................................................7A-1
Schematic Diagram .........................................................7A-2
Component Layout..........................................................7A-3
Adjustment table .............................................................7A-3
Electrical Partslist ............................................................7A-4
Downloaded from www.Manualslib.com manuals search engine
7A-2 7A-2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 1101 A1
1102 B1
1103 F2
1120 E14
1130 A2
TUNER BOARD ECO6 / SYSTEMS NON CENELEC 1131 B2
1132 G13
2101 B3
VERSION PROGRAMMING COMPONENTS 2102 B1
1101USA USA 2103 C7
3 2105 AM-IF1 2104 B3
1130 2105 A2
2 100n 5111 450kHz VERSION 2106 F3
C-PAD 4 3 6120 3156 3157 3170 7111
2107 F4
1 2 2119 H6
/00 /02 FM/MW/LW
A YKD21
T113
2150
A 2120 G6
2124 H6
6 1 /00 /02 FM/MW
2125 H6
330R
3104
2126 F7
A 100n
3119J
AM-IF2 /01 FM/MW
330R
FM 75 OHM 8 7 2127 E7
FM-IF1 5112 450kHz 2128 C8
T115 4103 /14 FM-OIRT/MW
5109 2129 C7
3 4 2130 F11
0R I 1 O 3 /17 FM/AM
T114
2112J
not USA 2131 G8
100p
1102 2
/06 FM-Japan/AM 2132 G8
2104 G 2 2133 G8
1 1
7119J 6 component mounted 2134 H8
T102 100p 2135 H9
3113J
BFS20 7 8
6103 7P 2136 G14
1K
2 IF-AMP.
2101
B B
47p
BAV99 printed
FM-IF2 2137 G13
5110 2138 F9
C
2102
100n
2139 G9
1 3 2140 G9
1131 T103 I O
AM-AFC 2141 F10
5114 450kHz VERSION DETECTION
0.7V 1.1V
G 2 2143 G12
3105 T109 2144 G11
3 4
0.2V 2128
10u
C-PAD
2145 F12
1.4V
1.4V
1.4V
1.4V
0.7V
6120
1.4V
220R 7101 2146 E12
BAS216
1V
0.8V
P1
6106
TEA5757H 2147 E12
FM-RF TEA5759H J 44 43 42 41 40 39 38 37 36 35 34 BAS216
3103
8K2
1 2148 E12
2165
3156
6 0.2V 2149 H7
AM-MIXOUT
FM-MIXOUT
100K
FM-IF2
FM-IN
RF-GND2
AM-IF1-IN
FM-IF1-IN
AM-IF2
AGC
VSTABB
VSTABA
7 8 2150 A10
0.6V 100n 7P
C Q-multiplier 2129
AM DET
1.2V 7111
BC847C
C 2152 E4
2153 E5
2V 0.7V 2154 D5
OUTPUT PORTS
7102 1 RIPPLE AM-IF FM-IF2-IN 33 2155 D5
BF550 100u AGC P1
100K
0V
3170
3157
100K
2159 F6
PROGR.
FM
2103
2161 p
AM AM 2161 C11
1n
0V 2 IF1 32
0V AM-RF AM-AFC
100n
FRONTEND MIXER 2163 D11
5131 1.4V 2164 F10
CTRL 2165 C7
T128 P0
6131
3 FM-RF P1 31 7.9V
1SV228
AM FM 2166 E11
p
AM AGC
IF IF2 2167 E11
2163
100n
OSC
printed 2169 H8
p
3102 4 RF-GND1 FM P0 30 7.7V 3101 E4
D
CONTROL
2154
2155
11p
FRONTEND
4p7
FM 0.1V 3102 D4
D 100K 0.1V 5 FM-OSC FM
MIXER
AGC
CONTROL WRITE-EN 29 0V 3161 D 3103 C6
3104 A7
printed OSC PRE- MULTI-
22K 3105 B6
SCALER PLEXER
28 0V 3160 3132 G5
0V 6 AM-OSC
AGC
DATA
3134 H6
RIPPLE VSTABA VSTABB 3141 E7
470R
VCC1 7.6V 7 VCC1 VDD CLOCK 27 0V 3159 3142 E7
FM-OSCILLATOR 7.8V STABILIZER 152kHz, 50mVpp
3143 G7
AGC AM 3169 2166 470R 5V 3144 H7
1SV228
3145 F8
6130
220p
I-TUNE
2148
2146
1.6-8V 8 DET DIG-GND 26
2n2
CHARGE
150K
220p
1n 3146 G13
2147
3142 1-8V PUMP
3152 G14
12pE-EU
VCO 3141 FM 5121 2167 0V
1V 9 VCO XTAL 25 1.4V 3153 G13
stereo mono stereo
2p2 J
3101 DET 3154 G13
2153
E E
3181
5130
15p
1.3V VCC2
1K
OSC 12p
56K DT-381 75KkHz 3155 G11
560pE-EU
33K 100K
0.7V 10 AF-OUT MONO/ 24 stereo 0.2V 3 stereo 0.4V
3156 C12
3157 C12
2152
33n
STEREO mono 4.8V mono 4.8V 3158 E13
2127 23 1120
11 MPX-IN STEREO 3159 D13
VDD 3158 T123
9.6V
FIELDSTR-IND
AFC STEREO 8 3160 D12
220n 1.2V DECODER VCC2 3161 D13
FM-DEMOD
AM-RF 9.5V
1 470R
330p
T122
2126
0V CLOCK 7 3167 F12
220p
IF-GND
2145
RIGHT
FILTER
3168 F11
PILOT
MUTE
6105-1
AFC+
2
LEFT
AFC-
MW 0V T121
LPF
DATA 6 3169 E11
AM FRAME AERIAL T111 VDD
3170 C12
1103 5102 8 1 T120 ENABLE/MPX 5
to/from
7 7KL
HN1V02H 7 12 13 14 15 16 17 18 19 20 21 22 MPX 0V 3172 G12
11.1V
2 T105
0.15V
0.8V
0.6V
0.6V
0.8V
1V
6 1 3176 G7
T142 1.1V
T141 1.1V
2V
7.6V T140 3168 3167 from 2169
1V
0V
2u2 1.2V
T127
2107
F 12Vtyp VCC 4
F 3181 E6
1u
1 T106 T110 VCC1
2106
5 5102 F2
11p
2 7.8V 120R 120R (10-14V)
T126
2141 T116
2138
RIGHT 3 5109 B9
VCC2
2130
22n
5110 B10
2159
XH-S T125
33p
3145
2K2
4 3 GND 2 5111 A8
100n
5112 A11
1132
C-PAD
LEFT 1
5
T112
2164 5114 B11
AM-OSCILLATOR
470n
2131
470n 2133
1u
T117 3154 5119 G9
11.1V
470n VCC2 FE-BT-VK-N 5121 E11
3 6 11.1V 5123 G5
330R
2132
BZX284-C11
2139
15p
6105-2
5130 E5
3172
5K6
B
HN1V02H
T124 5131 C6
6107
6105
MW
5119
2 12V
4 6103 B2
470R
470R
5123 6105-1 F3
3153
3152
4 3
G RDS only 7112
G 6105-2 G5
3132
1 8
47R
4 3 BC547C 9.6V
2140
82p
2 6106 C3
VCC1 3155
2 7 9.6V T118 6107 G13
2120
18p
2
VDD 6120 C13
220n
1
22R
2143
3146
3 6 6 9.5V 220R 10.4V 6130 E5
220n
220n
3143
2136
22K
3176
33K
1 2137
6131 D5
2144
6 8 7
1u
4 5 7101 C8
8 7 7102 C6
p
HN1V02H 3144 2169 MPX DISCRIMINATOR
3134
560p
7103 H7
2119
2125
22K
10p
1.3V 7111 C13
1K 2n2 to 1120 7112 G12
0.7V pin 5 T102 B2
7103
BC857C T103 B2
H H T105 F2
2124
2149
T106 F2
22n
33p
MPX T109 B6
T110 F5
22n USA
22n USA
BUFFER AMPLIFIER T111 F4
2134
2135
T112 F7
15n
15n
T113 A8
T114 B10
T115 A8
T116 F10
T117 G13
T118 G11
ECO6 Sys-non Cenelec, 000911 T120 F13
T121 F13
T122 F13
1 2 3 4 5 6 7 8 9 10 11 12 13 14 T123 E13
T124 G14
T125 F14
...V FM mode stereo T126 F13
LEGEND Signal path T127 F13
...V MW mode T128 D7
p ...for provision only FM T140 F11
USA ... for USA version only T141 F10
V EVM ...V LW mode AM T142 F10
E-EU ... for East European version only MPX (Audio Frequency)
voltages measured while
J ... for Japanese version only AF - left/right
set is tuned to a strong transmitter
Downloaded from www.Manualslib.com manuals search engine
7A-3 7A-3
1101 A6 1120 A4 1132 A5 2128 C4 2138 C2 3142 D2 5110 B3 5114 A2 5123 D5 7112 C1 9104 B5 9107 D4
1102 B6 1130 B5 2106 C5 2129 B4 2144 B2 5102 D6 5111 B4 5119 C2 5130 D3 9101 A2 9105 B1 9108 C4
TUNER ADJUSTMENT TABLE ( ECO6 FM/MW- and FM/MW/LW - versions with AM-frame aerial )
1103 D6 1131 D5 2107 B5 2133 D2 2155 C4 5109 A3 5112 A3 5121 B2 5131 D4 9103 B2 9106 B3 9109 D2
Waverange Input frequency Input Tuned to Adjust Output Scope/Voltmeter
TUNER BOARD ECO6 Systems non Cenelec / componentside view VARICAP ALIGNMENT
FM 108MHz 5130 8V ±0.2V
87.5 - 108MHz
A (65.81 - 74, 87.5 - 108MHz) 87.5MHz check 4.3V ±0.5V
(65.81MHz) (1.2V ±0.5V)
MW 1700kHz 5123 8V ±0.2V
FM/AM-version, 10kHz grid
530 - 1700kHz 530kHz check 1.1V ±0.4V
FM/MW-version, 9kHz grid 1602kHz 5123 6.9V ±0.2V
FM 75Ω 531 - 1602kHz 531kHz check 1 1.1V ±0.4V
LW 279kHz 5122 8V ±0.2V
153 - 279kHz 153kHz check 1.1V ±0.4V
MW 1602kHz 5123 8V ±0.2V
FM/MW/LW- version, 9kHz grid
AM FRAME AERIAL 531 - 1602kHz 531kHz check 1.1V ±0.4V
FM IF
IC 7101 21
10.7MHz, 45mV
B FM D shortcircuit 5119 2 0 ± 3 mV DC
continuous wave to block AFC
2141
FM RF
ECO6 System non Cenelec stage .3, 120900
FM 108MHz A 108MHz 2155
87.5 - 108MHz 4 MAX
2101 B4 2119 D3 2130 D5 2137 A4 2146 B7 2153 C5 2165 C4 3103 C4 3134 D3 3152 A4 3158 A4 3169 B6 4106 C4 6107 C7 7103 D7 (65.81 - 74, 87.5 - 108MHz) 87.5MHz mod=1kHz 87.5MHz 5131
2102 B1 2120 D3 2131 C5 2139 C6 2147 A5 2154 C4 2166 B6 3104 B4 3141 C5 3153 A4 3159 A5 3170 A6 4107 C5 6120 A6 7111 A5 (65.81MHz) ∆f=±22.5kHz (65.81MHz)
2103 D4 2124 D3 2132 D6 2140 C6 2148 B6 2159 C5 2167 B6 3105 C4 3143 D6 3154 C7 3160 A5 3172 C7 4108 C5 6130 D4 7119 B5
2104 B4 2125 D3 2134 D7 2141 C6 2149 D6 2161 A6 2169 A4 3113 B5 3144 B7 3155 C7 3161 A5 3176 D6 6103 B3 6131 C4 VCO
2105 C1 2126 D6 2135 D7 2143 C7 2150 B5 2163 B6 3101 D5 3119 B5 3145 C5 3156 A6 3167 B7 3181 D4 6105 C3 7101 C5
2112 B5 2127 C5 2136 A4 2145 A5 2152 C5 2164 C6 3102 C3 3132 D5 3146 C7 3157 A6 3168 C7 4103 B5 6106 C3 7102 D4
98MHz, 1mV
FM A 98MHz 3142 3 152kHz ±1kHz 1)
continuous wave
TUNER BOARD ECO6 Systems - non Cenelec / copperside view AM IF
4 3 IC 7101 36
100nF
C 5111
220R
1 7
max.
2 8
MW 450kHz ∆f=±10kHz IC 7101 40
5
K VRF = 0.5mV
A connect pin 6 of
100nF 5112
220R
(as low as see fo
IC 7101 (AM Osc.) possible) remark 2) symmetric
A
with 3.3kΩ to Vcc
C AM AFC
C
MW
5114 2 0 ± 2 mV DC
C Vdd continuous wave
B E VRF = 2mV
SMD jumper
AM RF 3)
41..
1 (not all items shown
in schematic diagram)
MW 4) 1494kHz 1494kHz 2106
FM/MW/LW- and FM/MW-version B
( 9kHz grid)
531 - 1602kHz 558kHz 558kHz 5102
Vcc2 2
max.
LW 198kHz 198kHz 5103 5
MW 1500kHz ∆f = ±30kHz 1500kHz 2106 fo
symmetric
FM/AM-version, 10kHz grid VRF as low as
530 - 1700kHz 560kHz possible 560kHz 5102
Vcc1 ECO6, Sys + PA with frame aerial, 070799
Use Service Testprogram. By selecting the TUNER TEST test frequencies will be stored as preset frequencies automatically.
D 5 ECO6 Systems non CENELEC stage .3, 120900 1) If sensitivity of frequency counter is too low adjust to max. channel separation 2) RC network serves for damping the IF-filter while adjusting the other one.
(input signal: stereo left 90% + 9%, adjust output on right channel to minimum)
3) For AM RF adjustments the original frame antenna has to be used ! 4) MW has to be aligned before LW.
These assembly drawings show a summary of all possible versions.
For components used in a specific version see schematic diagram respectively partslist. Repeat
Downloaded from www.Manualslib.com manuals search engine
7A-4 7A-4
Electrical Partslist ECO6 SYSTEMS NON-CENELEC
MISCELLANEOUS RESISTORS
––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––
1101 2422 015 19376 SOCKET 2P CLICKFIT USA only 3143 © 4822 051 20223 22kΩ 5% 0,1W RDS only
1102 4822 267 10283 SOCKET COAX, IEC 75Ω not USA 3144 © 4822 051 10102 1kΩ 2% 0,25W RDS only
1103 4822 265 31184 JST CONNECTOR 2 POLE 3145© 4822 117 11449 2,2kΩ 1% 0,1W
1120 4822 265 11515 FFC SOCKET, 8P 3146 © 4822 051 20229 22Ω 5% 0,1W
3152 © 4822 051 20471 470Ω 5% 0,1W
CAPACITORS
––––––––––––––––––––––––––––––––––––––––––––––––––––– 3153 © 4822 051 20471 470Ω 5% 0,1W
2101 © 4822 126 13692 47pF 1% 63V 3154 © 4822 117 13577 330Ω 1% 0,1W
2102 © 4822 126 13838 100nF 10% 50V not USA 3155 © 4822 117 11503 220Ω 5% 0,1W
2103 © 5322 122 31647 1nF 10% 63V 3156 © 4822 117 10837 100kΩ 1% 0,1W
2104 © 5322 122 32531 100pF 5% 50V 3157 © 4822 117 10837 100kΩ 1% 0,1W
2105 © 4822 126 13838 100nF 10% 50V USA only
3158 © 4822 051 20471 470Ω 5% 0,1W
2106 2020 800 00191 3-11pF TRIMCAP.,N450 3159 © 4822 051 20471 470Ω 5% 0,1W
2107 4822 121 51319 1µF 20% 50V 3160 © 4822 051 20471 470Ω 5% 0,1W
2120 © 4822 126 13689 18pF 1% 63V 3161 © 4822 051 20223 22kΩ 5% 0,1W
2124 © 5322 122 32654 22nF 10% 63V 3167 © 4822 051 20121 120Ω 5% 0,1W
2125 © 2020 552 96199 560pF 1% 50V
3168 © 4822 051 20121 120Ω 5% 0,1W
2126 © 5322 122 31863 330pF 5% 50V 3169 © 4822 051 20154 150kΩ 5% 0,1W
2127 © 4822 126 14076 220nF 20% 25V 3170 © 4822 117 10837 100kΩ 1% 0,1W
2128 4822 124 40248 10µF 20% 63V 3172 © 4822 051 20562 5,6kΩ 5% 0,1W
2129 4822 124 41584 100µF 20% 10V 3176 © 4822 051 20333 33kΩ 5% 0,1W RDS only
2130 © 5322 122 32654 22nF 10% 63V
3181 © 4822 051 10102 1kΩ 2% 0,25W
2131 © 4822 126 13482 470nF 20% 16V 4103 © 4822 051 20008 CHIP JUMPER 0805
2132 © 4822 126 13482 470nF 20% 16V 4106 © 4822 051 20008 CHIP JUMPER 0805
2133 4822 124 21913 1µF 20% 63V 4107 © 4822 051 20008 CHIP JUMPER 0805
2134 © 4822 126 13188 15nF 5% 63V not USA 4108 © 4822 051 20008 CHIP JUMPER 0805
2134 © 5322 122 32654 22nF 10% 63V USA only
COILS
2135 © 4822 126 13188 15nF 5% 63V not USA –––––––––––––––––––––––––––––––––––––––––––––––––––––
2135 © 5322 122 32654 22nF 10% 63V USA only 5102 4822 157 71634 RF-COIL MW
2136 © 4822 126 14076 220nF 20% 25V 5109 4822 242 70665 FM-IF FILTER 10,7MHz
2137 © 4822 126 14076 220nF 20% 25V 5110 4822 242 70665 FM-IF FILTER 10,7MHz
2138 4822 124 22652 2,2µF 20% 50V 5111 2422 549 44023 AM-IF FILTER 450kHz
5112 4822 157 70302 AM-IF FILTER 450kHz
2139 © 4822 126 14236 15pF 5% 50V
2140 © 4822 126 13695 82pF 1% 63V 5114 4822 157 70302 AM-IF FILTER 450kHz
2141 © 4822 126 13838 100nF 10% 50V 5119 4822 157 11443 DISCRIMINATOR COIL
2143 © 4822 126 14076 220nF 20% 25V 5121 4822 242 10261 QUARTZ 75kHz
2144 4822 124 21913 1µF 20% 63V 5123 2422 549 44108 RF-COIL, AM-OSCILLATOR
5130 4822 157 11843 RF COIL 1,5 TURNS
2145 © 4822 122 33575 220pF 5% 50V
2146 © 4822 122 33575 220pF 5% 50V 5131 4822 157 11843 RF COIL 1,5 TURNS
2147 © 4822 122 33575 220pF 5% 50V
2148 © 4822 122 33127 2,2nF 10% 63V DIODES
2149 © 5322 122 32659 33pF 5% 50V RDS only –––––––––––––––––––––––––––––––––––––––––––––––––––––
6103 © 5322 130 34337 BAV99
2150 © 4822 126 13838 100nF 10% 50V 6105 © 4822 130 83075 HN1V02H
2152 © 4822 126 12105 33nF 5% 63V not for East Europe 6106 © 4822 130 83757 BAS216
2152 © 5322 116 80853 560pF 5% 63V for East Europe only 6107 © 9340 386 90115 BZX284-C11
2153 © 4822 126 13486 15pF 2% 63V not for East Europe 6120 © 4822 130 83757 BAS216
2153 © 4822 122 33926 12pF 2% 50V for East Europe only
6130 © 4822 130 82833 1SV228
2155 2020 800 00191 3-11pF TRIMCAP.,N450 6131 © 4822 130 82833 1SV228
2159 © 5322 122 32659 33pF 5% 50V
2164 © 4822 126 13482 470nF 20% 16V TRANSISTORS
2165 © 4822 126 13838 100nF 10% 50V –––––––––––––––––––––––––––––––––––––––––––––––––––––
2166 © 5322 122 31647 1nF 10% 63V 7102 4822 130 42131 BF550
7103 © 5322 130 42756 BC857C RDS only
2167 © 4822 122 33926 12pF 5% 50V 7111 © 5322 130 42755 BC847C
2169 © 4822 122 33127 2,2nF 10% 63V RDS only 7112 4822 130 44503 BC547C
RESISTORS INTEGRATED CIRCUITS
––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––
3101 © 4822 051 20333 33kΩ 5% 0,1W 7101 © 9351 740 80557 TEA5757H/V1, RADIO IC
3102 © 4822 117 10837 100kΩ 1% 0,1W
3103 © 4822 051 20822 8,2kΩ 5% 0,1W
3104 © 4822 117 13577 330Ω 1% 0,1W
3105 © 4822 117 11503 220Ω 5% 0,1W
3132 © 4822 051 20479 47Ω 5% 0,1W
3134 © 4822 051 20223 22kΩ 5% 0,1W
3141 © 4822 117 11148 56kΩ 1% 0,1W
3142 4822 100 12159 TRIMPOT. 100kΩ
Downloaded from www.Manualslib.com manuals search engine
TABLE OF CONTENTS
version:
Electrical Partslist............................................................7B-4
Adjustment table .............................................................7B-3
Component Layout ..........................................................7B-3
Schematic Diagram.........................................................7B-2
Blockdiagram...................................................................7B-1
7B-1
Downloaded from www.Manualslib.com manuals search engine
SYSTEMS CENELEC
ECO6 Tuner Board
TUNER BOARD
ECO 6 Systems Cenelec
BLOCK DIAGRAM
Vcc1
MPX
buffer ampl.
D VStabA VStabB 5 Vcc2
1101 Discriminator
(1102) FM FRONTEND
FM-IF 1 FM-IF 2
RDS Vdd
(MPX)
1 7 +FM
A FM MIXER VCO
Ant. IF 10,7 MHz 10,7 MHz 10,7 MHz LF filter
AM/FM 4 1120
out
left 1
37 35 33 18 10 11 9 39
8 5 FM Osc. Pre- left 14 4
Osc. scaler FM Stereo right 15 right
out IF1 IF2 Decoder
GND Det.
VCC stereo Vcc
24
Vvaricap
2 3 4 6 5 RADIO IC
TEA 5762 RDS
Version
AM/FM
Multi- (MPX)
AM-Osc. plexer
+FM VLoop enable 29 enable
6 AM
7B-1
VLoop Osc.
AM-FRAME AERIAL data 28 data
1103 AM-RF
2 AM AM IF AM clock 27 clock
AM CONTROL
Frontend Mixer Det. stereo
8
C
VLoop
AGC P1 31 3
programmable
output ports P0 30
1 8 Charge
B
VLoop pump
38
VStabA AFC Reference MW/LW
34 Stabilizer Oscillator
VStabB
AFC -
AFC +
23 7 22 40 41 36 44 32 19 20 25
AM-RF,
AM-IF 1 AM-IF 2 AM-AFC
AM-Osc.
Vdd Vcc1 Vcc2 75kHz
450kHz 450kHz 450kHz
2
VStabA VStabB VStabB
ECO6 Systems Cenelec, 140499
7B-2 7B-2
1 2 3 4 5 6 7 8 9 10 11 12 13 14 1101
1102
A2
B1
5121 E11
5122 H5
1103 E2 5123 G5
1110 B2 6105-1 E4
VERSION PROGRAMMING COMPONENTS 1120 E14 6105-2 G6
TUNER BOARD ECO6 / SYSTEMS-CENELEC
AM-IF1 VERSION
1130
1131
A2
C2
6106 D4
6107 G13
6120 3156 3157 3170 7111 1132 F13 6120 C13
5111 450kHz 2102 B1 7101 C8
A 4 3
T113
/00 /02 FM/MW/LW A 2105 A2 7103 H8
1101USA 2 2106 E3 7104 D2
2105 USA 2107 E4 7105 F4
6 1 2150 /00 /02 FM/MW 2108 G3 7109 H3
3
100n 1130 AM-IF2
2109 G3 7110 H12
100n 5112 450kHz
2 8 7 2118 H6 7111 C13
C-PAD 3 4 /01 FM/MW
2119 H6 7112 G12
1 T115 T114 2 2120 H6 7122 H4
YKD21
/14 FM-OIRT/MW
A FM 75 OHM 1110 FM FRONTEND FE450 1 6
2122
2123
I6
H6
7124 H7
T102 B2
1102 FM-IF1 FM-IF2 2124 H6 T103 B2
7 8 /17 FM/AM
T102 0V 1 3190 T104 3191 5109 7P 2125 H6 T104 B6
B 1
MIXER
7
IF-OUT
0V 5110
B 2127 E7 T105 E2
120R 120R I 1 O 3 I 1 O 3 component mounted 2128 B8 T106 E2
YKD31- 2
ANT AM-AFC
2128 2129 C7 T107 C3
0432
330R
450kHz
3192
8 0.1V G G 5114 2130 F11 T109 D5
2 2
0.7V 1.1V
OSC. AM/FM 3 4
Vvaricap
2131 F8 T110 D5
2102
100n
10u
OUT D 2132 F8 T111 E5
330R
3193
GND VCC 2
1.4V
1131 T103
0.2V
1.4V
1.4V
0.4V
1.4V
9V
0.7V
1.4V
2133 F8 T112 F7
7101 1 6 VERSION DETECTION 2134 I8 T113 A9
C-PAD 2 3 4 6 5 9 10 TEA5762 44 43 42 41 40 39 38 37 36 35 34 2135 I9 T114 B11
AM-MIXOUT
AM|FM
1.6-8V
AGC 7 8
NC
RF-GND2
AM-IF1-IN
FM-IF1-IN
AM-IF2
FM-IF2
7.2V
VSTABA
VSTABB
2165 7P P1 6120 2136 H14 T116 F10
AM DET 2137 H13 T117 F13
3194 100n 1.2V
C 2129 2V 0.7V
BAS216
C 2138
2139
F9
G9
T118 G11
T120 F13
PROGRAMMABLE
T107 2K2 AM-IF
100K
3156
OUTPUT PORTS
1 RIPPLE FM-IF2-IN 33
2140 G9 T121 F13
3195 AGC P1 0.2V
2180
10n
+FM 100u FM 2141 F10 T122 E13
AM AM
100R 0V 2 AM-RF IF1 0V 2143 G12 T123 E13
2161 p
32
p
FRONTEND MIXER AM-AFC 7111
100n
100n
2190
2144 G11 T124 G14
2191
100u
C CTRL
1.4V
P0
BC847C
2145 E11 T125 F14
100K
100K
3170
3157
3 FM-GND AGC AM FM P1 31 7.5V 2146 E12 T126 F13
AM
2163 LW
IF IF2
OSC 2147 E12 T127 F13
100n
3105 T109
4 RF-GND1 P0 30 7.5V 2148 E12 T140 F11
CONTROL
AGC 2149 H7 T141 F10
220R CONTROL 0.1V
2150 A10 T142 F10
BAS216
3161
D 0.1V 5 FM-OSC 29 0V
D
6106
PRE- MULTI- WRITE-EN 2159 D5
LW only SCALER PLEXER
22K 2161 C11
0V T110 3160 2162 H12
0V 6 AM-OSC DATA 28 0V
3108 0V 7104
AGC
2163 D11
RIPPLE VSTABA VSTABB 470R
BC337-40 2164 G10
2K2 0.7V VDD
27 0V 3159
2159
7.8V 7 VCC1 CLOCK
33p
VCC1 5V 152kHz, 50mVpp 2165 C7
P01 LW =HIGH 8.2V STABILIZER
AGC AM 3169 2166 470R 2166 E11
2167 E11
2148
2147
220p
2146
220p
1.6-8V 8 I-TUNE DET DIG-GND 26
2n2
CHARGE
MW/LW-RF PUMP
150K 1n 2169 G8
VCO 3142 1-8V 0V
5121 2180 C4
1 6105-1 2 1V 9 VCO
FM
XTAL 25 1.4V 2167 stereo mono stereo
2190 C3
T111 3141 DET
7 1.3V VCC2 OSC 2191 C3
12p
E HN1V02H
100K
56K 0.7V 10 AF-OUT MONO/ 24 stereo 0.2V
DT-381 75 kHz
3 stereo 0.4V
E 3105 D5
2107
3108 D2
AM FRAME AERIAL mono 4.8V
1u
STEREO mono 4.8V
1103 5102 8 MW 2127 3135
3109 G4
1120
2145
220p
7 11 MPX-IN STEREO 23 3123 H3
T105 VDD
8.2V 3158 T123
FIELDSTR-IND
STEREO
1 220n 1K 1.2V DECODER AFC
VCC2 8.3V
3125 H2
FM-DEMOD
2 6 1 8
T106 4101 * 0V T122 CLOCK
20p_LW
470R 3128 H3
2106
7.5V
11p
3130 I9
IF-GND
FILTER
RIGHT
PILOT
MUTE
1 5 2 5115 7
0V T121 DATA
AFC+
0R
LEFT
AFC-
3131 I9
LPF
XH-S 4 6 VDD
4 3 T112 6 3132 G4
0V T120 ENABLE/MPX
to/from
8 from
7KL
5 12 13 14 15 16 17 18 19 20 21 22
2169 MPX
3134 H6
0.15V
1.1V
0.8V
0.6V
0.6V
1.1V
0.8V
1V
2V
11V
* T127 5
1V
0V
T140 3168 3167 3135 E7
1.2V
4102
7 7.8V 12Vtyp VCC
0R
6105 VCC1 3137 H7
F 8.2V 120R 120R (10-14V) T126 4 F
2141 T116
1 8 RIGHT 3141 E7
T141
T142
2130
8.2V
22n
3 2 1 3 3142 E6
470n 2133 2K2
VCC2 T125 GND
3145
B LW only
2 7 3143 G7
2138
100n
2u2
2 3144 G8
1132
C-PAD
2131
470n
3 6 LEFT
1u
5103 LW 7105
1
3145 F8
BIRDY FILTER 470n 11V T117 3154
2132
3 BC337-40 4 5 3146 G13
4 VCC2 FE-BT-VK-N
330R 3150 H12
HN1V02H 2164
2109
2108
100p
2 0.7V
10p
3151 H12
BZX284-C11
3172
5K6
5118
1nH
0.1V RDS only T124 3152 G14
6107
1 12V
6 AM-OSCILLATOR 4 3153 G13
3109
2
4K7
8 7 VCC1 7112 9.6V 3154 F13
2139
G G
15p
6105-2 3
HN1V02H 6
BC547C 3155 G12
MW=HIGH
3156 C12
3143
22K
5119 8.2V T118 3155 3157 D12
470R
470R
3171
3146
3153
3152
2143
220n
22R
47K
4 3 VDD 3158 E13
5
P0 5123 MW 3144 2169 MPX 8.3V 150R 3159 D13
1.3V
3132
2140
2144
4 3 2 7.5V
47R
82p
3160 D13
1u
1K 2n2 to 1120
2118 p
22p LW
3176 pin 5 3161 D13
2120
2 0.7V BC857C 1
2p2
18p
8.9V 3167 F12
2137
220n
2136
220n
33K 7103 6
VDD VDD 6 1 3168 F11
BC857B
8 7
2149
3169 E11
33p
MPX
7110
8 7 DISCRIMINATOR 8.9V 3170 D12
BUFFER AMPLIFIER
3151
2162
68K
22u
p
+FM 3171 G12
3123
3134
2125
560p
H H
2119
4K7
22K
10p
8.3V 3172 G12
7.5V 3176 H7
P0 3125 8V BC857B 7122 5122 LW 8.2V 3180 I3
P01 6.7V 7109 BC847C 0V 4 3 0V 3190 B6
10K
4104 *
0V 3191 B7
2124 *
0V 3128 0V 0.7V 3137 P0
3150
2123
390p
LW=HIGH 2
10K
7124
10n
0R
3192 B6
7.4V 2K2 0.7V BC847C 0.1V 22K MW=HIGH 3193 B4
6 1
3180
820R
820R
3194 C4
3130
3131
10K
8 7 3195 C3
2122
3n3
AM/FM 4101 E2
from 7101/39 4102 F3
4104 H5
I I 5102 E3
5103 F2
marked components not for LW version 5109 B9
22nUSA
22nUSA
5110 B10
2135
2134
15n
15n
5111 A9
5112 A11
5114 B11
ECO6 Sys-Cenelec, 010517 5115 E7
5118 G9
5119 G9
1 2 3 4 5 6 7 8 9 10 11 12 13 14
LEGEND ...V FM mode stereo Signal path
* ... only assembled in FM/AM-version SMD jumper
p ...for provision only 41xx
...V MW mode FM
USA ... for USA version only AM
0R V EVM ...V LW mode
LW ... for LW version only MPX (Audio Frequency)
voltages measured while AF - left/right
set is tuned to a strong transmitter
Downloaded from www.Manualslib.com manuals search engine
7B-3 7B-3
1101 B5 1110 B4 1131 C5 2107 B3 2133 C1 2162 A4 5102 C4 5110 A2 5114 A2 5121 B2 7104 C4 9101 A2 9104 B1 9107 B4 9110 A4
1102 B5 1120 A4 1132 A4 2128 A3 2138 B1 2191 B4 5103 C4 5111 A3 5115 C2 5122 C3 7105 C5 9102 B2 9105 B1 9108 B3 9111 A3 TUNER ADJUSTMENT TABLE ( ECO6 Cenelec FM/MW - and FM/MW/LW - versions with AM-frame aerial )
1103 C5 1130 A5 2106 B4 2129 B3 2144 B1 3142 C2 5109 B3 5112 A2 5119 B2 5123 C3 7112 B1 9103 A1 9106 B1 9109 C2
Waverange Input frequency Input Tuned to Adjust Output Scope/Voltmeter
TUNER BOARD ECO6 Systems - Cenelec / componentside view VARICAP ALIGNMENT
FM 108MHz check 8V ±1.2V
87.5 - 108MHz
A (50kHz grid) 87.5MHz check 1.6V ±0.5V
MW 8V ±0.2V 3-band
1602kHz 5123 6.9V ±0.2V 2-band
531 - 1602kHz 1
(9kHz grid) 531kHz check 1.1V ±0.4V
LW 279kHz 5122 8V ±0.2V
FM FRONTEND
FM 75Ω
153 - 279kHz
(3kHz grid) 153kHz check 1.1V ±0.4V
FM - IF
IC 7101 21
10.7MHz, 45mV
AM FRAME AERIAL FM continuous wave D shortcircuit
5119 2 0mV ±3mV
2141
to block AFC
FM - VCO
B
Birdy Filter
98MHz, 1mV
FM A 98MHz 3142 3 152kHz ±1kHz 1)
continuous wave
ECO6 Sys-Cenelec, layout stage .8, 200803
Note: The FM-frontend unit has already been adjusted by the factory
FM RF (channel separation) and needs therefore no further adjustments for service purposes.
2102 B1 2120 C3 2130 B3 2137 A3 2146 B5 2161 A4 2169 A3 3123 A5 3134 C3 3145 C4 3154 B5 3160 A3 3171 B5 3192 A2 4104 C3 6106 B2 7110 B2
2105 B1 2122 C3 2131 C4 2139 B4 2147 A5 2163 A4 2180 B2 3125 A5 3135 C4 3146 B5 3155 B5 3161 A4 3172 B5 3193 B2 4105 B2 6107 B5 7111 A4 IF coil
2108 C1 2123 C3 2132 C4 2140 B4 2148 B4 2164 B4 2190 B2 3128 C2 3137 C4 3150 B3 3156 A4 3167 A5 3176 C4 3194 B2 4106 B3 6120 A4 7122 C3 98MHz, 1mV
2109 C1 2124 C3 2134 C5 2141 B5 2149 C4 2165 B3 3105 B3 3130 C4 3141 B3 3151 A2 3157 A4 3168 C5 3180 A5 3195 B2 4107 C4 7101 B4 7124 C3 inside
2118 C3 2125 C3 2135 C5 2143 B5 2150 B3 2166 B5 3108 C2 3131 C4 3143 C5 3152 A3 3158 A3 3169 B4 3190 B2 4101 C2 5118 C4 7103 C5
FM 90% Left + 9% pilot A 98MHz 4 right channel min.
FM frontend
2119 C3 2127 C4 2136 A3 2145 B5 2159 B3 2167 B4 3109 C1 3132 B3 3144 A5 3153 A3 3159 A3 3170 A4 3191 A3 4102 C2 6105 B2 7109 A5 mod=1kHz
1110
AM IF
TUNER BOARD ECO6 Systems - Cenelec / copperside view
IC 7101 36
4 3 C 100nF
5111
220R
max.
1 7 ∆f = ±10kHz
2 8
MW 450kHz
VRF = 0.5mV IC 7101 40
5
A connect pin 6 of
(as low as 100nF
5112 fo
220R
possible) see symmetric
1 K IC 7101 (AM Osc.) remark 2)
with 3.3kΩ to Vcc
+FM AM AFC C
A 5114 2 0mV ±2mV
MW continuous wave
D C VRF = 2mV
AM RF 3)
Vdd B E
1494kHz 1494kHz 2106
2180
SMD jumper B
C 41.. MW
5118
8 (not all items shown
max.
in schematic diagram) 558kHz 558kHz 5102 5
3135
Vcc2
∆f = ±30kHz
fo
LW 198kHz VRF as low as 198kHz 5103 symmetric
possible
Vcc1
ECO6 Sys Cenelec, 190599
Use Service Testprogram. By selecting the TUNER TEST test frequencies will be stored as preset frequencies automatically.
1) If sensitivity of frequency counter is too low adjust to max. channel separation
ECO6 Sys-Cenelec, layout stage .8, 200803 (input signal: stereo left 90% + 9%, adjust output on right channel to minimum)
1 5 2 2) RC network serves for damping the IF-filter while adjusting the other one.
3) For AM RF adjustments the original frame antenna has to be used!
MW has to be aligned before LW.
These assembly drawings show a summary of all possible versions.
For components used in a specific version see schematic diagram respectively partslist. Repeat
Downloaded from www.Manualslib.com manuals search engine
7B-4 7B-4
Electrical Partslist ECO6 SYSTEMS-CENELEC
MISCELLANEOUS RESISTORS DIODES
––––––––––––––––––––––––––––––––––––––––––––––––––––– ––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––
1101 2422 015 19376 SOCKET CLICKFIT 2P USA only 3128 © 4822 117 11449 2,2kΩ 1% 0,1W LW only 6105 © 4822 130 83075 HN1V02H
1102 4822 267 10283 SOCKET COAX, IEC 75Ω not USA 3130 © 3198 021 38210 820Ω 5% 0,06W 6106 © 4822 130 83757 BAS216
1103 4822 265 31184 JST CONNECTOR, 2 POLE 3131 © 3198 021 38210 820Ω 5% 0,06W 6107 © 9340 386 90115 BZX284-C11
1110 2422 542 90071 FM FRONTEND 3132 © 4822 051 20479 47Ω 5% 0,1W 6120 © 4822 130 83757 BAS216
1120 4822 265 11515 FFC SOCKET, 8P 3134 © 4822 051 20223 22kΩ 5% 0,1W
TRANSISTORS
CAPACITORS 3135 © 3198 021 31020 1kΩ 5% 0,06W –––––––––––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––––––––––––––– 3137 © 4822 051 20223 22kΩ 5% 0,1W LW only 7103 © 5322 130 42756 BC857C RDS only
2102 © 4822 126 13838 100nF 10% 50V not USA 3141 © 4822 117 11148 56kΩ 1% 0,1W 7104 9322 003 64676 TBC337-40 LW only
2105 © 4822 126 13838 100nF 10% 50V USA only 3142 4822 100 12159 TRIMPOT. 100kΩ 7105 9322 003 64676 TBC337-40 LW only
2106 2020 800 00204 TRIMCAP. 4,2 - 20pF, N750 LW only 3143 © 4822 051 20223 22kΩ 5% 0,1W RDS only 7109 © 4822 130 60373 BC856B LW only
2106 2020 800 00191 TRIMCAP. 3 - 11pF, N450 FM/AM only 7110 © 4822 130 60373 BC856B
2107 4822 121 51319 1µF 20% 50V 3144 © 4822 051 10102 1kΩ 2% 0,25W RDS only
3145 © 4822 117 11449 2,2kΩ 1% 0,1W 7111 © 5322 130 42755 BC847C
2108 © 5322 122 32531 100pF 5% 50V LW only 3146 © 4822 051 20229 22Ω 5% 0,1W 7112 4822 130 44503 BC547C
2109 © 5322 122 32448 10pF 5% 50V LW only 3150 © 4822 117 10833 10kΩ 1% 0,1W 7122 © 5322 130 42755 BC847C LW only
2120 © 4822 126 13689 18pF 1% 63V FM/AM only 3151 © 4822 051 20683 68kΩ 5% 0,1W 7124 © 5322 130 42755 BC847C LW only
2120 © 5322 122 32658 22pF 5% 50V LW only
2122 © 4822 122 33891 3,3nF 10% 63V LW only 3152 © 4822 051 20471 470Ω 5% 0,1W INTEGRATED CIRCUITS
3153 © 4822 051 20471 470Ω 5% 0,1W –––––––––––––––––––––––––––––––––––––––––––––––––––––
2123 © 2020 552 93494 390pF 1% 50V LW only 3154 © 4822 117 13577 330Ω 1% 0,1W 7101 4822 209 90315 TEA5762H/V1, RADIO IC
2124 © 4822 122 33177 10nF 20% 50V FM/AM only 3155 © 4822 117 10353 150Ω 5% 0,1W
2125 © 2020 552 96199 560pF 1% 50V 3156 © 4822 117 10837 100kΩ 1% 0,1W
2127 © 4822 126 14076 220nF 20% 25V
2128 4822 124 40248 10µF 20% 63V 3157 © 4822 117 10837 100kΩ 1% 0,1W
3158 © 4822 051 20471 470Ω 5% 0,1W
2129 4822 124 41584 100µF 20% 10V 3159 © 4822 051 20471 470Ω 5% 0,1W
2130 © 5322 122 32654 22nF 10% 63V 3160 © 4822 051 20471 470Ω 5% 0,1W
2131 © 4822 126 13482 470nF 20% 16V 3161 © 4822 051 20223 22kΩ 5% 0,1W
2132 © 4822 126 13482 470nF 20% 16V
2133 4822 124 21913 1µF 20% 63V 3167 © 4822 051 20121 120Ω 5% 0,1W
3168 © 4822 051 20121 120Ω 5% 0,1W
2134 © 3198 017 31530 15nF 10% 50V not USA 3169 © 4822 051 20154 150kΩ 5% 0,1W
2134 © 5322 122 32654 22nF 10% 63V USA only 3170 © 4822 117 10837 100kΩ 1% 0,1W
2135 © 3198 017 31530 15nF 10% 50V not USA 3171 © 4822 117 10834 47kΩ 1% 0,1W
2135 © 3198 017 32230 22nF 10% 25V USA only
2136 © 4822 126 14076 220nF 20% 25V 3172 © 4822 051 20562 5,6kΩ 5% 0,1W
3176 © 4822 051 20333 33kΩ 5% 0,1W RDS only
2137 © 4822 126 14076 220nF 20% 25V 3180 © 4822 117 10833 10kΩ 1% 0,1W LW only
2138 4822 124 22652 2,2µF 20% 50V 3190 © 4822 051 20121 120Ω 5% 0,1W
2139 © 4822 126 14236 15pF 5% 50V 3191 © 4822 051 20121 120Ω 5% 0,1W
2140 © 4822 126 13695 82pF 1% 63V
2141 © 4822 126 13838 100nF 10% 50V 3192 © 4822 117 13577 330Ω 1% 0,1W
3193 © 4822 117 13577 330Ω 1% 0,1W
2143 © 4822 126 14076 220nF 20% 25V 3194 © 4822 117 11449 2,2kΩ 1% 0,1W
2144 4822 124 21913 1µF 20% 63V 3195 © 4822 051 20101 100Ω 5% 0,1W
2145 © 4822 122 33575 220pF 5% 50V 4101 © 4822 051 20008 CHIP JUMPER 0805 FM/AM only
2146 © 4822 122 33575 220pF 5% 50V
2147 © 4822 122 33575 220pF 5% 50V 4102 © 4822 051 20008 CHIP JUMPER 0805 FM/AM only
4104 © 4822 051 20008 CHIP JUMPER 0805 FM/AM only
2148 © 4822 122 33127 2,2nF 10% 63V 4105 © 4822 051 20008 CHIP JUMPER 0805
2149 © 5322 122 32659 33pF 5% 50V RDS only 4106 © 4822 051 20008 CHIP JUMPER 0805
2150 © 4822 126 13838 100nF 10% 50V 4107 © 4822 051 20008 CHIP JUMPER 0805
2159 © 5322 122 31151 22µF 20% 50V
COILS
2163 © 4822 126 13838 100nF 10% 50V LW only –––––––––––––––––––––––––––––––––––––––––––––––––––––
2164 © 4822 126 13482 470nF 20% 16V 5102 4822 157 71634 RF-COIL MW
2165 © 4822 126 13838 100nF 10% 50V 5103 2422 549 44107 RF-COIL LW LW only
2166 © 5322 122 31647 1nF 10% 63V 5109 4822 157 71639 FM-IF FILTER 10,7MHz
2167 © 4822 122 33926 12pF 5% 50V 5110 4822 242 70665 FM-IF FILTER 10,7MHz
5111 2422 549 44023 AM-IF FILTER 450kHz
2169 © 4822 122 33127 2,2nF 10% 63V RDS only
2180 © 3198 017 31030 10nF 10% 50V 5112 4822 157 70302 AM-IF FILTER 450kHz
2190 © 4822 126 13838 100nF 10% 50V 5114 4822 157 70302 AM-IF FILTER 450kHz
2191 4822 124 40178 100µF 20% 10V 5115 4822 157 71636 ANTI BIRDY FILTER
5118 © 2422 535 95881 100nH
RESISTORS 5119 4822 157 11443 DISCRIMINATOR COIL
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3105 © 4822 117 11503 220Ω 5% 0,1W 5121 4822 242 10261 QUARTZ 75kHz
3108 © 4822 117 11449 2,2kΩ 1% 0,1W LW only 5122 2422 549 44108 RF-COIL, LW-OSCILLATOR LW only
3109 © 4822 051 20472 4,7kΩ 5% 0,1W LW only 5123 2422 549 44108 RF-COIL, MW-OSCILLATOR
3123 © 4822 051 20472 4,7kΩ 5% 0,1W LW only
3125 © 4822 117 10833 10kΩ 1% 0,1W LW only
Downloaded from www.Manualslib.com manuals search engine
9-1 9-1
Tapedeck wiring (Double deck)
TO ETF BOARD
CONNECTOR 1770 (ND) 14P
CONNECTOR 1740 (DB) 14P
REC REC
REV FWD CRO2*
CRO2*
* Not for Ferro version
ETF7 TAPE MODULE
(Non-Dolby Version) MODE
–
SW
+
LH
TAPE DECK
MOTOR
Mechanism B Mechanism A
TO ETF BOARD
TO ETF BOARD CONNECTOR 1730 (3P)
CONNECTOR 1710 (ND) 5P
CONNECTOR 1720 (DB) 6P
TABLE OF CONTENTS
Tape Module Wiring & variation table ....................... 9-1 Variations table for Analog Circuit
Block diagram ............................................................ 9-2
Autoreverse Non-autoreverse Autoreverse Non-autoreverse
Brief Introduction ....................................................... 9-3
ND/DD/FR ND/DD/FF ND/DD/FR ND/DD/FF
Connector assignment ............................................... 9-4
Chrome/Ferro Chrome/Ferro Ferro Chrome/Ferro Chrome/Ferro Ferro
Tape deck electronics & Tape adjustments ............... 9-5
2624 - - 100nF 3769 12k 8k2 8k2
ETF7 Non-Dolby board layouts ................................. 9-6
2701 , 2702 150pF 270pF 270pF 3772 6k8 5k6 5k6
Analog Circuit diagram .............................................. 9-7 2703 , 2704 100pF 220pF 220pF 4785 - - 0R jumper
Servo Circuit diagram ................................................ 9-8 2717 , 2718 10nF 15nF 15nF 3774 15k 8k2 8k2
Exploded views & parts list ........................................ 9-9 2721 , 2722 6,8nF 6,8nF - 6614 1N4148 - -
Electrical parts list .................................................... 9-13 2727 , 2728 470pF 1nF 1nF 7616 BC857B - -
3616 10k 1k 1k 7622 BC847B - -
3618 6k8 - -
3620 10k trimmer - -
3622 - 10k trimmer 10k trimmer
3672 4k7 - -
3676 47k - -
3687 220R 220R -
3688 680R - -
3723 , 3724 15k 18k 18k
3725 , 3726 10R 10R -
3727 , 3728 5k6 6k8 6k8
3729 , 3730 3k3 4k7 4k7
3743 , 3744 1k5 2k2 2k2
3745 , 3746 3k3 5k6 5k6
3754 , 3755 1M 47R 47R
Downloaded from www.Manualslib.com manuals search engine
9-2 9-2
BLOCK DIAGRAM
Line-In
ATTEN
7710 7720
9792 # PB Out
Playback SOURCE SEL PRE-AMPLIFIER
Head ATTEN
HEF4952BT AN7318S
For Dolby version only
1A0 1A1 1A2 ALCEN
ALC PB In PB Out
7630
Rec current
Rec/Pb 7740 Rec In DOLBY B NR REC Out
Head 4794 # CXA1101M
PLAYBACK PB EON. SW. PB A ADJ PB B ADJ
EQUALISATION HEF4952BT 2A2 MUTE
1A0 1A1 DOLBY
2A0 2A1 2A2
BIAS SYM MPX 7788
IEC I IEC II 2A2
7640
REC EON.
RECORD AMP REC ADJ
HD SW. NJM4560D
7730 #
REC
REC EON. SW. NOM/HI SPEED
BIAS ADJ
HEF4952BT REC EON.
Erase
Head 3A0 3A1 3A2 NOM/HI SPEED
Bias
(HS) (REC) (CRB) REC EON.
Erase OSCILLATOR 3A0 NS
REC CRB
Deck B (Rec/Pb) switches, sensors & motor
1A0
7787 ALCEN
SOLENOID SOLENOID
Deck A (Pb) switches, sensors & motor
REC
SUPPLY CTRL SUPPLY CTRL
1A2
MOTOR VCC
7780
SUPPLY CTRL
7791 1A1
NS/HS CTRL
CRA DECK(S) SW.
7792 2A0 4x STATUS TO 2x
VOLTS CONV.
NOTE: # For Non-dolby version only
Only 1 channel is presented.
NS/HS HS
MicroProcessor Control / Communication lines
(NS) AD1 AD2
7622
Direct / Indirect Control lines from Shift Registers 1A0
3A0 CLK 7610
SHIFT 2A1
DATA REGISTER 2A2
HEF4094BT REC
STROBE
NS/HS (NS)
Downloaded from www.Manualslib.com manuals search engine
9-3 9-3
Brief introduction
General
1. Playback Mode 13. Motor Speed (For FR versions only)
Signal from the playback head Deck A or Deck B is selected and fed through by the Mode Selector IC7710 (HEF4952BT). During High speed dubbing, a feedback signal from the uP through pin 03 of the IC7610 (HEF4094BT) will trigger the
The signal is amplified by amplifier IC7720 (AN7323S) before feeding to the IC7740 (HEF4952BT) and out to the AF Board transistors 7622 (BC847B) and 7616 (BC857B) to cause a change in the voltage level between High and Low, thus changing
via connector 1701. the speed of the motor.
2. Recording Mode 14. IC7610 (HEF4094BT)
Recording Signal is selected and fed through by the Mode Selector IC7710 (HEF4952BT) which is then amplified by the IC7610 (HEF4094BT) is a Shift Register use for issues the logic for cmos switch ICs (HEF4952BT) via 1A0, 2A1 and 2A2.
amplifier IC7720 (AN7323S). The amplified output signal will pass through IC7730 (HEF4952BT) for record equalization and It also issues logic to On/Off SOL_A, SOL_B and MOT. Recording speed is controlled via NS/HS.
back to IC7710 (HEF4952BT) before registered into the Rec/PB Head of Deck B.
3. Dubbing Mode
In Dubbing mode, signal from the playback head Deck A is selected and fed through by the Mode Selector IC7710 Dolby Circuit (For sets with Dolby B NR version only)
(HEF4952BT) which is then equalised for playback mode by the amplifier IC7720 (AN7323S) so that a flat response is 15. IC7630 (CXA1551M)
obtained after the pre-amp. The equalised signal will then follow the same path as in the Recording mode. IC7630 (CXA1551M) in the Dolby circuit is a Dolby Noise Reduction Type B IC for the Playback and Recording signal. Noise
Reduction ON/OFF are controlled by DOLBY, which is from CLK, direct from uP. After clocking in DATA, CLK is set to HIGH/
4. Mode Selector LOW for NR OFF/ON.
The Mode Selector IC7710 (HEF4952BT) caters for 4 inputs signal, namely Playback Signal from Deck A, Playback Signal
from Deck B, Recording Signal and Dubbing Signal. 16. 19kHz Filter
The 19kHz filters 5631 & 5632 (LXD-210) in the Dolby circuit is for the purpose of filtering the 19kHz Pilot Tone (for Tuner
5. Amplifier PB/REC signal only) of the Recording signal.
Amplifier IC7720 (AN7323S) is for the purpose of amplifying the Playback and Recording signal from the Mode Selector.
17. Level Adjust
6. Automatic Level Control (ALC) The Variable resistor 3635, 3636,3641 and 3642 in the Dolby circuit is for adjusting the playback level of the Dolby reference
ALC circuit consists of resistors (3760, 3765, 3766, 3767), capacitors (2762 , 2763) and control by transistor 7787 (BC847B). (400Hz , 200nWb/m). Transistor 7631, 7632 are ON to enable adjustment of 3641, 3642 during Playback Deck A. Transistor
ALC limits the amplifier output to a constant value when input signal becomes too large, thus limiting recording current to 7633, 7634 and 3635, 3636 are active for Playback Deck B.
below saturation level, to prevent recording distortion.
18. Amplifier IC7640 (NJM4560M)
7. Muting Circuit (For Non-Dolby version only) The Amplifiers 7640A & 7640B (NJM4560M) in the Dolby circuit is for the purpose of amplified the Recording signal.
Switch S4 of the IC7740 (HEF4952BT) is for the purpose of muting the output during Recording mode. During Recording
mode, S4 is closed and shorted to the ground. 19. Muting Circuit
The muting circuit which consists of transistors 7788, 7789 and 7790 (BC847B) is for the purpose of muting the output during
8. IC7740 (HEF4952BT) Recording mode.
The function of the IC7740 (HEF4952BT) is to change time constant between 120us Ferro (IEC I) and 70us Chrome (IEC
II) during playback mode. It will automatically determined whether the tape type is 120us Ferro (IEC I) or 70us Chrome (IEC
II). This IC will switch to Flat Gain during the Recording mode.
NOTATIONS & ABBREVIATIONS USED IN THIS
DOCUMENT
9. IC7730 (HEF4952BT)
CR Chrome (IEC type II)
The function of the IC7730 (HEF4952BT) is to change gain and time constant according to tape type and recording speed DB Dolby NR type B
to boost recording current at higher frequency during recording to compensate for head loss. It will automatically determined DD Double Deck
whether the tape type is 120us Ferro (IEC I ) or 70us Chrome (IEC II). DM Double Motor
FE Ferro (IEC type I)
10. Bias Level FF Non-Autoreverse
Bias Level making use of the Variable resistor (3773) for adjusting the optimal level of the bias current for Ferro or Chrome. FR Autoreverse Deck B
Gnd x Ground x
HSD High speed dubbing
11. Bias Symm (For Dolby B NR version only)
ND Non Dolby
Bias Symm making use of the Variable resistor (3785) to adjust the bias current for the left and the right channel to be equal. NR Noise Reduction
NSD Normal speed dubbing
12. PB Switch PB Playback
Playback Switch which consists of the FETs 7785 (For Dolby B NR version only) & 7786 (J111) is for the purpose of providing REC Record
a virtual ground for the Rec/PB Head (Deck B) during Playback mode. During the Playback mode, the FETs are turn on and S/A Sub-assy
shorted pin 2 and 4 of connector 1720 to the ground. During Recording mode, the FETs are turn off to allow the oscillator SD Single Deck
SM Single Motor
signal to be superposition onto the Recording signal for recording.
Downloaded from www.Manualslib.com manuals search engine
9-4 9-4
CONNECTORS ASSIGNMENTS:
CONNECTOR 1701 INTERCONNECTION TO AF BOARD CONNECTOR 1740 DECK A & B CONTROL INTERFACE (For Dolby B NR version only)
1 REC-L Record input left 1 REC REW Record tab protection status switch (reverse) [open=on: close=off]
2 REC-R Record input right 2 CrO2 B Chrome tape detection switch deck B [open=Cr: close=Fe]
3 GND A AF Ground 3 REC FWD Record tab protection status switch (forward) [open=on: close=off]
4 TAPE-L Playback output left 4 PHOTO B Photo sensor output (tape movement indication)
5 +12V D.C. supply (+12V) for AF electronics 5 SOL B Solenoid supply for deck B
6 TAPE-R Playback output right 6 Vcc Deck / Motor supply
7 -CMOS Negative d.c. supply (-9V) for CMOS ICs 7 MODE B Mode switch (head engagement) [open=off: close=engaged]
8 GND M Deck / Motor ground
CONNECTOR 1703 INTERCONNECTION TO AF BOARD 9 SOL A Solenoid supply for deck A
10 PHOTO A Photo sensor output (tape movement indication)
1 GND M Motor Ground 11 MODE A Mode switch (head engagement) [open=off: close=engaged]
2 +MOTOR D.C. supply (+12V) for tape deck motor & solenoid 12 L L pin for motor
13 CrO2 A Chrome tape detection switch deck A [open=Cr: close=Fe]
CONNECTOR 1706 INTERCONNECTION TO FRONT BOARD 14 H H pin for motor
1 AD2 Deck sensing switches output voltage / Deck A EOT CONNECTOR 1770 DECK A & B CONTROL INTERFACE (For Non-Dolby version only)
2 AD1 Deck sensing switches output voltage / Deck B EOT
3 +5V DC supply +5V for ADC network 1 REC REW Record tab protection status switch (reverse) [open=on: close=off]
4 GND P Control & Oscillator Ground 2 CrO2 B Chrome tape detection switch deck B [open=Cr: close=Fe]
5 CLK HEF4094BT shift register Clock line 3 REC FWD Record tab protection status switch (forward) [open=on: close=off]
6 DATA HEF4094BT shift register Data line 4 PHOTO B Photo sensor output (tape movement indication)
7 STROBE HEF4094BT shift register Strobe line 5 SOL B Solenoid supply for deck B
6 Vcc Deck / Motor supply
CONNECTOR 1710 DECK B HEADS CONNECTON (For Non-Dolby version only) 7 MODE B Mode switch (head engagement) [open=off: close=engaged]
8 GND M Deck / Motor ground
1 B R/P HD L+ R/P Head left channel positive 9 SOL A Solenoid supply for deck A
2 GND A R/P Head return ground 10 PHOTO A Photo sensor output (tape movement indication)
3 B R/P HD R+ R/P Head right channel positive 11 MODE A Mode switch (head engagement) [open=off: close=engaged]
4 ERASE HEAD Erase Head 12 L L pin for motor
5 GND A Erase Head ground 13 CrO2 A Chrome tape detection switch deck A [open=Cr: close=Fe]
14 H H pin for motor
CONNECTOR 1720 DECK B HEADS CONNECTON (For Dolby B NR version only)
1 B R/P HD L+ R/P Head left channel positive
2 B R/P HD L- R/P Head left channel negative
3 B R/P HD R+ R/P Head right channel positive
4 B R/P HD R- R/P Head right channel negative
5 ERASE HEAD Erase Head
6 GND A Erase Head ground
CONNECTOR 1730 DECK A HEAD CONNECTIONS (For Double Deck versions only)
1 A PB HD L+ Pb Head left channel positive
2 GND A Pb Head return ground shield
3 A PB HD R+ Pb Head right channel positive
Downloaded from www.Manualslib.com manuals search engine
9-5 9-5
TAPE MECHANISM ELECTRONICS
TAPE ADJUSTMENT & CHECK TABLE
TEST RECORDER MEASURE ADJUST
READ ON
CASSETTE MODE ON with to
B Photo Sensor Rec-R 1. B Rec Switch (REV)
ADJUST MOTOR SPEED
CrO2* 2. B CrO2 Switch
SBC420 PLAY B 1 or 2 3620 3150Hz +/- 0.5%
NORMAL SPEED frequency
3. B Rec Switch (FWD) 3150Hz PLAY A counter check
Rec-F LEFT RIGHT 3150Hz -0.8/+1.8%
4. B Photo Out CHECK WOW & FLUTTER
Solenoid 5. B Solenoid DECK A & B
SBC420
PLAY
1 or 2
W&F-meter check <0.4 % DIN
3150Hz
LEFT RIGHT
B-Mode 6. Vcc 12V
ADJUST AZIMUTH
7. B Mode Switch
SBC420 PLAY FWD 1 or 2 left hand screw max. output level
DECK A & B mV-meter
8. Gnd 10kHz PLAY REV # LEFT RIGHT right hand screw
& left=right
R1 (680R)
9. A Solenoid CHECK PLAYBACK FREQUENCY RESPONSE
Solenoid 10. A Photo Out 1 or 2
DECK A & B SBC420 PLAY mV-meter check limits see fig.1
Motor LEFT RIGHT
11. A Mode Switch
ADJUST BIAS CURRENT
12. Motor L
SBC419A^ or 3773 995mV
A-Mode 5 6
DECK B RECORD mV-meter
R2 (680R) 13. A CrO2 Switch SBC420 LEFT RIGHT check 750mV +/- 1.5dB
14. Motor H CHECK OVERALL FREQUENCY RESPONSE AND DISTORTION
A Photo Sensor
CrO2* Inject 3mV signals
100Hz, 250Hz, 1kHz, SBC419A^
10kHz, 12.5kHz or RECORD B
Mechanism A Head Wires Soldering SBC420
via 3 or 4
* No Leaf switch & copper pattern
Pink or Play
shorted together for Ferro version Red Head RECORDED 1 or 2
Screen PLAY B mV-meter check limits see fig. 2 *
(Gnd) CASSETTE
White LEFT RIGHT
Inject 1kHz 8.85mV SBC419A^
or RECORD B
via 3 or 4
Mechanism B Head Wires Soldering (Non-Dolby version) SBC420
Head wire
connector pcb RECORDED 1 or 2
Rec/Pb Head wire PLAY B THD-meter check <3% *
Head connector pcb CASSETTE
Rec/Pb 1. White LEFT RIGHT
1. +L ch (White) 2. Black
Head 3. Red
2. - ch (Black) SBC419A^ : 4822 397 30069 # For Auto-reverse version only
3. +R ch (Red) 4. Blue
SBC420 : 4822 397 30071 * If high frequencies are not within limits, decrease bias and re-measure.
4. E Head (Blue) 5. Yellow
Erase If distortion is too high, increase bias and re-meaure
5. E Head (Yellow)
Head ^ Not applicable for Ferro version
For Auto-reverse Head For Normal Head
level(dB) level(dB)
Mechanism B Head Wires Soldering (Dolby B NR version)
Rec/Pb Head wire Head wire 8dB 6dB 8dB 8dB 6dB 8dB
Head connector pcb connector pcb 10dB (HSD) 10dB (HSD)
1. +L ch (White) Rec/Pb 1. White
2. Black
2. - L ch (Black) Head 3. Red
3. +R ch (Red)
4. Blue
4. - R ch (Blue)
5. Yellow f(Hz) f(Hz)
5. E Head (Yellow) Erase 80 250 4k 12.5k 100 250 4k 10k
6. E Head (Yellow) Head figure. 1 figure. 2
For Auto-reverse Head For Normal Head
Downloaded from www.Manualslib.com manuals search engine
9-6 9-6
COMPONENT LAYOUT CHIP LAYOUT
4 2 2 4
3 1 1 3
5 6 3139 113 3409 pt2 dd wk0042
Some location on this board is prepared for both 0603 & 0805 SMDs footprint,
in such locations 0603 SMDs may be substituted.
6 5 3139 113 3409 pt2 dd wk0042
Downloaded from www.Manualslib.com manuals search engine
9-7 9-7
ANALOG CIRCUIT
1701 F9 2705 A2 2712 B6 2719 C5 2726 D4 2735 B3 2745 F5 2765 B4 2785 F1 3705 A4 3712 B4 3719 C6 3726 D5 3733 A2 3744 F8 3753 F5 3760 A7 3767 A7 3774 E3 3781 D2 4794 C6 6774 D3 6786 B7 7782 E1 9791 A8
1710 C1 2706 A2 2713 A6 2720 D5 2727 A3 2737 A6 2746 F8 2769 F7 2786 D1 3706 B4 3713 A7 3720 E6 3727 A7 3734 B2 3745 F8 3754 E8 3761 E3 3768 E8 3775 F3 3784 D1 5701 D2 6775 C3 7710 A3 7783 E2 9792 B8
1730 A1 2707 A4 2714 B6 2721 C5 2728 E5 2738 B6 2747 E8 2770 F8 2787 D3 3707 A5 3714 B7 3721 C6 3728 B7 3735 A2 3746 E8 3755 E7 3762 E2 3769 E4 3776 F2 3786 F4 5703 F1 6776 F3 7720 A5 7784 D2 9793 A6
2701 B2 2708 B4 2715 A4 2722 D5 2729 A8 2741 D6 2760 E3 2780 F3 3701 B1 3708 B4 3715 A6 3722 D6 3729 A7 3736 B1 3748 C8 3756 D8 3763 A5 3770 F2 3777 F2 3787 C3 6770 E2 6777 E2 7730 D6 7786 C2
2702 B2 2709 A5 2716 C4 2723 C5 2730 B8 2742 C3 2761 B5 2781 F2 3702 C2 3709 A4 3716 B6 3723 A3 3730 B7 3741 A6 3749 C7 3757 D8 3764 A5 3771 F2 3778 E1 3788 C3 6771 E2 6778 E4 7740 A8 7787 C8
2703 A2 2710 B5 2717 C6 2724 D5 2733 A5 2743 F1 2762 B6 2782 F2 3703 A2 3710 C4 3717 C6 3724 D5 3731 A7 3742 C7 3751 E5 3758 D8 3765 B6 3772 F3 3779 D3 3789 F4 6772 D1 6782 C7 7780 F4 7791 F5
2704 B2 2711 A6 2718 D6 2725 D4 2734 C4 2744 A4 2763 B6 2784 F1 3704 B1 3711 A5 3718 E6 3725 C5 3732 B7 3743 F8 3752 F4 3759 D7 3766 B7 3773 E3 3780 D2 4790 C3 6773 D1 6785 A7 7781 F3 7792 D8
1 2 3 4 5 6 7 8 9
* 2727
3735 470p 3711 2713 3741
REC_L B1
22K * 3723 150K 3763 10u 2K2
3733
2703
100p
1K2
2733 9793 * 3727 2729
15K 3705 LH A
PLAY BACK 3 *
LEFT CHANNEL 12150K 5 9791
DECK A A A 470p 5K6 22n B3
PC2 PC1
A 220R 3713 3731
A
2707
470p
1730 7710 MODE 10 7740
3703 HEF4952B IN2 2711 HEF4952B P
1 SELECTOR
1N4148
10R 8K2
2709
3715
330p
A
6785
1K8
15 7 13 15 7
220R A0 1A0 OUT2 100p A0 2A0
2705
220p
2 16 S0 +C A 2715
A A1 9 1A1 3707 * 3729 16 S0 A1 9 2A1 M
14 S1 10 11 14 S1 10
3 A2 NF2
14
2737 A 3760 A2 2A2
12 S2 12 S2
470u 100R AN2 3K3
3709
A AN7323S
10R
11 S3 S4 8 11 S3 8
-C 3764 100n 120R S4
2706
2744
220p
100n
16 7720
VSS
A
VSS +12 Vcc
3767
ALCEN
4M7
2 4 2 2 4
4 3704 VEE 220R ALCC 3732 VEE -C
2761
220u
1N4148
1 S0 A 1 S0
3765
2735
100n
6786
3 S1 13 PB/REC 3 S1 13 PLAYBACK
220R VDD 8K2 VDD +C
2765
1
47u
5 S2 GND AMPLIFIER
5 S2
3736 39K * 3730
3734
2704
3766
100p
4M7
EQUALISATION
1K2
4u7
47u
2763
6 S3 6 S3
2762
REC_R S4
A RIGHT A 3
S4
15
22K CHANNEL A RF AIN1 3K3
* 2730
A A 3706 7 * 3728 9792
B IN1 2738 A B4 B
2708
3716
470p
1K8
220R 5K6 22n
2702
150p
2710
330p
A2 A1 A0 S0 S1 S2 S3 S4 4
OUT1 100n 3714
2701
150p
STOP 0 0 0 1 1
Pb deck A 0 0 1 1 1 A 3708 6
3701 * Pb deck B 0 1 0 1 1 NF1 10R
A2 A1 A0 S0 S1 S2 S3 S4
* -- 0 0 0 1 1
-- 0 1 1 1 1 1 100R
2712
100p
2714
5 NC1 NC2
10u
REC in 1 0 0 1 1 STOP 0 0 1 1 1
220R 3712 8 9
Dubbing 1 0 1 1 1 -- 0 1 0 1 1
3702 3742
3788
REC/PB -- A
1M
1 1 0 1 1
150K B2 REC 0 1 1 1 1 1
DECK B -- 1 1 1 1 A
1710 220R 2734 2K2 ALCEN
HS Chrome 1 0 0 1 1
1 Pb Chrome 1 0 1 1 1
6775 --
470p 1 1 0 1 1
2716
470u
2 2719 3721 * 2717 LH 6782 Pb Ferro 1 1 1 1
1A0
1N4148
C 33n 3K9 10n 3748 C
4790
3 1N4148 7787
3787 3719 3717
3710
10R
3749 2K2 BC847B
4794
4
1M * 2721 REC
* 3725 12K 2K2 A
5 A 47K
15 7
6n8 10R A0 3A0
2742
6 7786 +5
22n
2723 16 S0 A1 9 REC
A J111 B1 14 S1 10
12 S2
A2 CRB CONTROL LOGIC
15n 2741
2725
3759
10K
4n7
11 S3 8
3784 A P S4
A VSS P 7792 3756
2 4
A 100n
1K 3781 A * 2722 * 3726 1 S0
VEE -C BC847B CRA
-C 2A0 220K
BC857B
3 S1 13
4M7 3779 6n8 10R VDD +C 3757
5701
D D
2u2
2724 5 S2
7784
HS
6773 REC 6 S3 7730
2786 3780 330K B2 S4 220K
HEF4952B
15n
2726
6774 P
4n7
100p 1M
2787
3758
10K
33n
1N4148 2720 * 2718
* 3724 3722
1N4148
6772
1N4148 A
A A 15K 33n 3K9 10n
+C * 2728 3720 3718 P
+12
A 3762 3761 12K 2K2
470p * 3754
3A0 HS
1N4148 1N4148
820R 10K 1M
2760
100n
6770
BZX79-F8V2
REC EQUALISATION A2 A1 A0 S0 S1 S2 S3 S4
3774
3755
A
15K
1M
NS Ferro 0 0 0 1 1
+5 1 2
3778
6777
2747#
6R8
E HS Ferro 0 0 1 1 1
E
100n
* A 6778 REC MUTE 0 1 0 1 1 *
* 3769
6771
BIAS REC MUTE 0 1 1 1 1 1
LEVEL CRB M 3768
6K8 NS Chrome 1 0 0 1 1 -C 7 -CMOS
3751
BC557B P 1N4148
10K
3773
7782
+12 HS Chrome 1 0 1 1 1 * 3746 10K
REC MUTE 1 1 0 1 1 B4 6 TAPE-R
P 7783 1A1
4K7
-- 1 1 1 1 3K3 +12
BC847B 3752 +12V
3789
MT1 7 8 MT2 7791 5
47K
3 6 3770 3771 6776 * 3745
100K BC847B B3 4 TAPE-L
3772
P
6K8
5 1K5 1K2 3K3
# 2745
100n
2
P
100K
3753
3744
3743
A 3 GND_A
2769
470p
2770
470p
1N4148
1K5
1K5
2782 *
1 4 P 7780 3786
3777 2 REC-R
# 2746
100n
7781 A
F 4n7 BC847B 22K ANALOG CCTRY * * REC_R
F
2780
22u
CLNS-2A833 YEZ BC847B REC
150R 3776 A A A A REC_L 1 REC-L
5703
1A0
6K8
2781
3775
2785
A
2784
4R7
1701
10n
15n
1u
2743 P P
ERASE L Not For ND/DD/FR TO/FROM AF
A 22n P OSCILLATOR * See Variant Table for details
A A P P P 4 3
# For Provision Only
Note : Some values may varies, see respective parts list for correct value.
1 2 3 4 5 6 7 8 9
Downloaded from www.Manualslib.com manuals search engine
9-8 9-8
SERVO CONTROL CIRCUIT
1702 A7 1760 B8 2622 D2 2625 E4 3601 B2 3604 C2 3607 C6 3610 D6 3613 B2 3618 A4 3622 A4 3625 B3 3630 A6 3676 C5 3680 C5 3687 D2 4785 D2 6612 B6 7612 A6 7616 A4 7620 B6 7624 D6
1703 B1 1770 B7 2623 D2 2626 B1 3602 C2 3605 B3 3608 D6 3611 C6 3614 C6 3619 A4 3623 B3 3626 B6 3672 B4 3678 B5 3685 D2 3688 A5 4795 E3 6614 B4 7613 A3 7618 B6 7622 B5 9705 A7
1706 E1 2621 D2 2624 E2 2627 A7 3603 B2 3606 C3 3609 C6 3612 D6 3616 A5 3620 A4 3624 B6 3628 A5 3674 B5 3679 B3 3686 E6 3689 E3 6611 A2 7610 D4 7614 A6 7619 B4 7623 D2
1 2 3 4 5 6 7 8 9
DECK AB
14
H SERVO CONTROL
CR02_A
+MOTOR 7612
13 CCTRY
L
PMBT2907 12
3618
3616
6K8
10K
mode_A
11
* * 1702 PHOTO_A
# 2627
100n
10
680R
A A
# 3619
100K
3628
3620
3622
+MOTOR SOL_A
7613 10K 10K 9705 9 Gnd
PMBT2907 * L
680R
3688
SOL_A 3630 M 8 8
mode_B
1N4003
PHOTO_A 7616 * * 470R +MOTOR 7 7
6611
BC857B 7614 Vcc
CR02_A PMBT2907 6 6
100K
3623
sol_B
L 3674
5 5
photo_B
1N4003
+MOTOR M 3625 4K7
6612
4 4
Rec_FWD
100K
3624
1N4148
1K
6614
7618 3 3
HS
B 2
+5 7619
BC847B *
3672* BC847B M
2
CrO2_B
2
B
3613 3626
# 2626
+5
100n
Rec_RVS
1 4K7 M +5
3678
* 7622
47K
27K M 1K 1 1
Rec_RVS
3679
47K
1703 BC847B 1770 # 1760
7620
M
3601
3603
3605
2K2
2K2
2K2
M BC847B
3614
3676
27K
47K
3680
47K
Rec_RVS M
M * +5
CRA
P
C C
3602
3604
3606
120K
27K
56K
3611
3609
3607
2K2
2K2
2K2
8 P
VSS --
10 7
Os’ O3
9 11
7623 Os O7
BC847B 3685 1 13
2A2 CRB
STR O5
100K
120K
3612
3610
3608
7610
56K
27K
HEF4094BT O6 12
2
P D
2623
2622
2621
D D
470p
470p
14
1n
O4 7624
BC847B
* 3687 3
CP O0
4
220R REC
5
O1 1A0
STROBE 7 * 4785 * See Variant Table for details
6
DATA 6 O2
# For Provision Only
VDD E0
CLK 5
100K
3686
16 15 L Not For ND/DD/FR
GND_P 4
* 2624 2625 2A1
M Note : Some values may varies, see respective parts list for
P 100n P 100n
+5 3 +5 correct value.
+5
E AD1 2
**
E
AD2 1
**
1706 4795
TO/FROM FRONT
3689
4K7
1 2 3 4 5 6 7 8 9
Downloaded from www.Manualslib.com manuals search engine
9-9 9-9
TAPE MODULE EXPLODED VIEW TAPE MECHANISM - MOTOR EXPLODED VIEW
1 3139 118 77130 Autoreverse Mech. CWE44FR01 31 4822 361 11055 Motor Assembly
1 3139 118 77140 Non-Autoreverse Mech. CWE44FF02 Chrome/Ferro 91 - Screw M2,6 x 5
1 3139 118 77950 Non-Autoreverse Mech. CWE44FF05 Ferro 92 - Screw M2 x 5
3 - Screw D3 x 10
6 - Screw M2 x 16 Note: Only the parts mentioned in this list are normal
7 3139 110 34080 Flex Cable 14 pin 7,5 cm service spare parts.
Note: Only the parts mentioned in this list are normal service spare parts.
Downloaded from www.Manualslib.com manuals search engine
9-10 9-10
TAPE MECHANISM A - PLAY
MECHANICAL PARTS - PLAY MECHANISM
1 9965 000 02313 Play Head (Non-Autoreverse deck)
1 9965 000 02321 Play Head (Autoreverse deck)
12 4822 402 10972 Pinch Arm Assembly R
23 9965 000 02314 Coil Assembly
25 9965 000 06443 Cam Gear
32 4822 528 11209 Flywheel Assembly RV
42 9965 000 02315 Belt AF (Autoreverse deck)
42 9965 000 02718 Belt AF (Non-autoreverse deck)
69 4822 492 11761 Spring
102 4822 532 12931 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
Note: Only the parts mentioned in the list are normal service
spare parts.
Downloaded from www.Manualslib.com manuals search engine
9-11 9-11
TAPE MECHANISM B - RECORD/PLAYBACK (Non-Autoreverse version)
MECHANICAL PARTS - REC/PB MECHANISM
1 9965 000 02313 Play Head
3 9965 000 02600 Head, Erase
12 4822 402 10972 Pinch Arm Assembly R
23 9965 000 02314 Coil Assembly
25 9965 000 06443 Cam Gear
32 4822 528 11209 Flywheel Assembly RV
44-2 9965 000 02317 Flex Socket 14 Pin
44-3 9965 000 02320 Photo Interrupter
44-4 4822 050 16801 680R 1% 0,4W
44-6 9965 000 02318 Leaf Switch
44-7 9965 000 02319 Mode Switch
59 9965 000 02719 Belt BF (Large)
69 4822 492 11761 Spring
102 4822 532 12931 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
Note: Only the parts mentioned in the list are normal service
spare parts.
Downloaded from www.Manualslib.com manuals search engine
9-12 9-12
TAPE MECHANISM B - RECORD/PLAYBACK (Autoreverse version)
MECHANICAL PARTS - REC/PB MECHANISM
12 4822 402 10972 Pinch Arm Assembly R
23 9965 000 02314 Coil Assembly
25 9965 000 06443 Cam Gear
32 4822 528 11209 Flywheel Assembly RV
39 9965 000 02322 Belt AF
44-2 9965 000 02317 Flex Socket 14 Pin
44-3 9965 000 02320 Photo Interrupter
44-4 4822 050 16801 680R 1% 0,4W
44-6 9965 000 02318 Leaf Switch
44-7 9965 000 02319 Mode Switch
45 9965 000 02323 Rec/Pb Head Assembly
50 4822 402 10973 Pinch Arm Assembly L
54 9965 000 02324 Flywheel Assembly L
69 4822 492 11761 Spring
73 4822 492 11762 Spring
101 9965 000 02325 Washer
102 4822 532 12931 Washer
103 4822 532 12932 Washer
104 4822 532 12933 Washer
107 9965 000 02326 Washer
109 9965 000 02327 Washer
Note: Only the parts mentioned in the list are
normal service spare parts.
Downloaded from www.Manualslib.com manuals search engine
9-13 9-13
ELECTRICAL PARTS LIST - ETF7 NON-DOLBY BOARD ELECTRICAL PARTS LIST - ETF7 NON-DOLBY BOARD
MISCELLANEOUS
1701 482226710953 Flex Socket 7pin Vert. 2738 482212614585 100nF 10% 50V 3685 482211652234 100k 5% 0,5W 3745 482205120332 3k3 5% 0,1W Autoreverse
1706 482226710953 Flex Socket 7pin Vert. 2741 482212611585 22nF +80/-20% 25V 3686 482211710837 100k 1% 0,1W 3745 482205120562 5k6 5% 0,1W Non-autoreverse
1770 482226751255 Flex Socket 14pin Vert. 2742 532212232654 22nF 10% 63V 3687 482211711503 220R 1% 0,1W not for Ferro 3746 482205120332 3k3 5% 0,1W Autoreverse
2743 532212232654 22nF 10% 63V 3688 482211710361 680R 1% 0,1W Autoreverse 3746 482205120562 5k6 5% 0,1W Non-autoreverse
CAPACITORS 2744 482212614585 100nF 10% 50V 3701 482211711503 220R 1% 0,1W 3748 482211711449 2k2 1% 0,1W
2621 532212231647 1nF 10% 63V 2760 482212614585 100nF 10% 50V 3702 482211711503 220R 1% 0,1W 3749 482211710834 47k 1% 0,1W
2622 532212234099 470pF 10% 63V 2761 482212480144 220µF 20% 25V 3703 482211711503 220R 1% 0,1W 3751 482211710833 10k 1% 0,1W
2623 532212234099 470pF 10% 63V 2762 482212440769 4,7µF 20% 100V 3704 482211711503 220R 1% 0,1W 3752 482211710837 100k 1% 0,1W
2624 482212614585 100nF 10% 50V only for Ferro 2763 482212440433 47µF 20% 25V 3705 482211711503 220R 1% 0,1W 3753 482211710837 100k 1% 0,1W
2625 482212614585 100nF 10% 50V 2765 482212440433 47µF 20% 25V 3706 482211711503 220R 1% 0,1W 3754 482205120105 1M 5% 0,1W Autoreverse
2701 532212233538 150pF 2% 63V Autoreverse 2769 532212234099 470pF 10% 63V 3707 482205120101 100R 5% 0,1W 3754 482205120479 47R 5% 0,1W Non-autoreverse
2701 482212233216 270pF 5% 63V Non-autoreverse 2770 532212234099 470pF 10% 63V 3708 482205120101 100R 5% 0,1W 3755 482205120105 1M 5% 0,1W Autoreverse
2702 532212233538 150pF 2% 63V Autoreverse 2780 482212481151 22µF 20% 50V 3709 482205120109 10R 5% 0,1W 3755 482205120479 47R 5% 0,1W Non-autoreverse
2702 482212233216 270pF 5% 63V Non-autoreverse 2781 482212233177 10nF 20% 50V 3710 482205120109 10R 5% 0,1W 3756 482211713579 220k 1% 0,1W
2703 532212232531 100pF 5% 50V Autoreverse 2782 532212610223 4,7nF 10% 63V 3711 482205120154 150k 5% 0,1W 3757 482211713579 220k 1% 0,1W
2703 482212233575 220pF 5% 63V Non-autoreverse 2784 482212151305 15nF 10% 50V 3712 482205120154 150k 5% 0,1W 3758 482211710833 10k 1% 0,1W
2704 532212232531 100pF 5% 50V Autoreverse 2785 482212421913 1µF 20% 63V 3713 482205120109 10R 5% 0,1W 3759 482211710833 10k 1% 0,1W
2704 482212233575 220pF 5% 63V Non-autoreverse 2786 532212232531 100pF 5% 50V 3714 482205120109 10R 5% 0,1W 3760 482205120121 120R 5% 0,1W
2705 482212233575 220pF 5% 63V 2787 482212612105 33nF 5% 50V 3715 482205120182 1k8 5% 0,1W 3761 482205021003 10k 1% 0,6W
2706 482212233575 220pF 5% 63V 3716 482205120182 1k8 5% 0,1W 3762 482211711454 820R 1% 0,1W
2707 532212234099 470pF 10% 63V RESISTORS 3717 482211711449 2k2 1% 0,1W 3763 482205120154 150k 5% 0,1W
2708 532212234099 470pF 10% 63V 3601 482211711449 2k2 1% 0,1W 3718 482211711449 2k2 1% 0,1W 3764 482211683872 220R 5% 0,5W
2709 532212231863 330pF 5% 63V 3602 482205120273 27k 5% 0,1W 3719 482211711383 12k 1% 0,1W 3765 482205120393 39k 5% 0,1W
2710 532212231863 330pF 5% 63V 3603 482211711449 2k2 1% 0,1W 3720 482211711383 12k 1% 0,1W 3766 482205120475 4M7 5% 0,1W
2711 532212232531 100pF 5% 50V 3604 482211711148 56k 1% 0,1W 3721 482205120392 3k9 5% 0,1W 3767 482205120475 4M7 5% 0,1W
2712 532212232531 100pF 5% 50V 3605 482211711449 2k2 1% 0,1W 3722 482205120392 3k9 5% 0,1W 3768 482211710833 10k 1% 0,1W
2713 482212440248 10µF 20% 63V 3606 482205120124 120k 5% 0,1W 3723 482211683933 15k 1% 0,1W Autoreverse 3769 482211711383 12k 1% 0,1W Autoreverse
2714 482212440248 10µF 20% 63V 3607 482211652256 2k2 5% 0,5W 3723 482211710965 18k 1% 0,1W Non-autoreverse 3769 482205120822 8k2 5% 0,1W Non-autoreverse
2715 482212480195 470µF 20% 10V 3608 482205120273 27k 5% 0,1W 3724 482211683933 15k 1% 0,1W Autoreverse 3770 482211711139 1k5 1% 0,1W
2716 482212480195 470µF 20% 10V 3609 482211652256 2k2 5% 0,5W 3724 482211710965 18k 1% 0,1W Non-autoreverse 3771 482205120122 1k2 5% 0,1W
2717 482212233177 10nF 20% 50V Autoreverse 3610 482205120124 120k 5% 0,1W 3725 482205120109 10R 5% 0,1W not for Ferro 3772 482211711507 6k8 1% 0,1W Autoreverse
2717 482212613188 15nF 5% 63V Non-autoreverse 3611 482211652256 2k2 5% 0,5W 3726 482205120109 10R 5% 0,1W not for Ferro 3772 482205120562 5k6 5% 0,1W Non-autoreverse
2718 482212233177 10nF 20% 50V Autoreverse 3612 482211711148 56k 1% 0,1W 3727 482205120562 5k6 5% 0,1W Autoreverse 3773 482210012227 Trimmer 4k7 30% 0,1W
2718 482212613188 15nF 5% 63V Non-autoreverse 3613 482205120273 27k 5% 0,1W 3727 482211711507 6k8 1% 0,1W Non-autoreverse 3774 482211683933 15k 1% 0,1W Autoreverse
2719 482212612105 33nF 5% 50V 3614 482205120273 27k 5% 0,1W 3728 482205120562 5k6 5% 0,1W Autoreverse 3774 482205120822 8k2 5% 0,1W Non-autoreverse
2720 482212612105 33nF 5% 50V 3616 482211710833 10k 1% 0,1W Autoreverse 3728 482211711507 6k8 1% 0,1W Non-autoreverse 3775 482205120478 4R7 5% 0,1W
2721 532212231866 6,8nF 10% 63V not for Ferro 3616 482205110102 1k 2% 0,25W Non-autoreverse 3729 482205120332 3k3 5% 0,1W Autoreverse 3776 482211711507 6k8 1% 0,1W
2722 532212231866 6,8nF 10% 63V not for Ferro 3618 482211711507 6k8 1% 0,1W Autoreverse 3729 482205120472 4k7 5% 0,1W Non-autoreverse 3777 482211710353 150R 1% 0,1W
2723 482212613188 15nF 5% 63V 3620 482210011141 Trim. 10k 30% Autoreverse 3730 482205120332 3k3 5% 0,1W Autoreverse 3778 482205210688 ! 6R8 5% 0,33W
2724 482212613188 15nF 5% 63V 3622 482210011141 Trim. 10k 30% Non-autoreverse 3730 482205120472 4k7 5% 0,1W Non-autoreverse 3779 482205120334 330k 5% 0,1W
2725 532212610223 4,7nF 10% 63V 3623 482211710837 100k 1% 0,1W 3731 482205120822 8k2 5% 0,1W 3780 482205120105 1M 5% 0,1W
2726 532212610223 4,7nF 10% 63V 3624 482211710837 100k 1% 0,1W 3732 482205120822 8k2 5% 0,1W 3781 482205120475 4M7 5% 0,1W
2727 532212234099 470pF 10% 63V Autoreverse 3625 482205110102 1k 2% 0,25W 3733 482205120122 1k2 5% 0,1W 3784 482205110102 1k 2% 0,25W
2727 532212231647 1nF 10% 63V Non-autoreverse 3626 482205110102 1k 2% 0,25W 3734 482205120122 1k2 5% 0,1W 3786 482205120223 22k 5% 0,1W
2728 532212234099 470pF 10% 63V Autoreverse 3628 482211710837 100k 1% 0,1W 3735 482205120223 22k 5% 0,1W 3787 482205120105 1M 5% 0,1W
2728 532212231647 1nF 10% 63V Non-autoreverse 3630 482205120471 470R 5% 0,1W 3736 482205120223 22k 5% 0,1W 3788 482205120105 1M 5% 0,1W
2729 532212232654 22nF 10% 63V 3672 482205120472 4k7 5% 0,1W Autoreverse 3741 482211711449 2k2 1% 0,1W 3789 482211710834 47k 1% 0,1W
2730 532212232654 22nF 10% 63V 3674 482211652283 4k7 5% 0,5W 3742 482211711449 2k2 1% 0,1W 4701 482205120008 0R Jumper 0805
2733 532212234099 470pF 10% 63V 3676 482211710834 47k 1% 0,1W Autoreverse 3743 482211711139 1k5 1% 0,1W Autoreverse 4702 482205120008 0R Jumper 0805
2734 532212234099 470pF 10% 63V 3678 482211710834 47k 1% 0,1W 3743 482211711449 2k2 1% 0,1W Non-autoreverse 4703 482205120008 0R Jumper 0805
2735 482212614585 100nF 10% 50V 3679 482211710834 47k 1% 0,1W 3744 482211711139 1k5 1% 0,1W Autoreverse 4704 482205120008 0R Jumper 0805
2737 482212614585 100nF 10% 50V 3680 482211710834 47k 1% 0,1W 3744 482211711449 2k2 1% 0,1W Non-autoreverse 4705 482205120008 0R Jumper 0805
Downloaded from www.Manualslib.com manuals search engine
9-14 9-14
ELECTRICAL PARTS LIST - ETF7 NON-DOLBY BOARD
RESISTORS
4706 482205120008 0R Jumper 0805 6612 482213031878 1N4003G
4707 482205120008 0R Jumper 0805 6614 482213030621 1N4148 Autoreverse
4708 482205120008 0R Jumper 0805 6770 482213030621 1N4148
4709 482205120008 0R Jumper 0805 6771 482213030621 1N4148
4710 482205120008 0R Jumper 0805 6772 482213030621 1N4148
4711 482205120008 0R Jumper 0805 6773 482213030621 1N4148
4712 482205120008 0R Jumper 0805 6774 482213030621 1N4148
4713 482205120008 0R Jumper 0805 6775 482213030621 1N4148
4714 482205120008 0R Jumper 0805 6776 482213030621 1N4148
4715 482205120008 0R Jumper 0805 6777 482213034382 BZX79-F8V2
4716 482205120008 0R Jumper 0805 6778 482213030621 1N4148
4717 482205120008 0R Jumper 0805 6782 482213030621 1N4148
4718 482205120008 0R Jumper 0805 6785 482213030621 1N4148
4719 482205120008 0R Jumper 0805 6786 482213030621 1N4148
4720 482205120008 0R Jumper 0805
4721 482205120008 0R Jumper 0805 TRANSISTORS & INTEGRATED CIRCUITS
4722 482205120008 0R Jumper 0805 7610 532220911306 HEF4094BT
4723 482205120008 0R Jumper 0805 7612 482213011201 PMBT2907
4724 482205120008 0R Jumper 0805 7613 482213011201 PMBT2907
4725 482205120008 0R Jumper 0805 7614 482213011201 PMBT2907
4726 482205120008 0R Jumper 0805 7616 482213060373 BC857B Autoreverse
4727 482205120008 0R Jumper 0805 7618 482213060511 BC847B
4728 482205120008 0R Jumper 0805 7619 482213060511 BC847B
4729 482205120008 0R Jumper 0805 7620 482213060511 BC847B
4730 482205120008 0R Jumper 0805 7622 482213060511 BC847B Autoreverse
4731 482205120008 0R Jumper 0805 7623 482213060511 BC847B
4732 482205120008 0R Jumper 0805 7624 482213060511 BC847B
4733 482205120008 0R Jumper 0805 7710 482220932919 HEF4952BT
4734 482205120008 0R Jumper 0805 7720 932214000668 AN7323S
4735 482205120008 0R Jumper 0805 7730 482220932919 HEF4952BT
4736 482205120008 0R Jumper 0805 7740 482220932919 HEF4952BT
4737 482205120008 0R Jumper 0805 7780 482213060511 BC847B
4738 482205120008 0R Jumper 0805 7781 482213042804 BC817-25
4739 482205120008 0R Jumper 0805 7782 482213044568 BC557B
4740 482205120008 0R Jumper 0805 7783 482213060511 BC847B
4741 482205120008 0R Jumper 0805 7784 482213060373 BC857B
4742 482205120008 0R Jumper 0805 7786 482213063494 J111
4744 482205120008 0R Jumper 0805 7787 482213060511 BC847B
4745 482205120008 0R Jumper 0805 7791 482213060511 BC847B
4746 482205120008 0R Jumper 0805 7792 482213060511 BC847B
4748 482205120008 0R Jumper 0805
4785 482205120008 0R Jumper 0805 only for Ferro Note: Only the parts mentioned in this list are normal
4790 482205120008 0R Jumper 0805 service spare parts.
4794 482205120008 0R Jumper 0805
4795 482205120008 0R Jumper 0805
COILS & FILTERS
5701 482215711477 Coil 2,2µH 5%
5703 482215620946 Osc Coil 100kHz
DIODES
6611 482213031878 1N4003G
Downloaded from www.Manualslib.com manuals search engine
10-1
3CDC-LC-MP3CD2002
(3 Disc Carousel Changer+MP3 Board) Layout stage .2
TABLE OF CONTENTS
Service Hints ...................................................................10-2
Wiring Diagram ................................................................10-4
Blockdiagram ...................................................................10-5
CD PART
Component Layout Main Board ...................................10-6
Circuit Diagram ............................................................10-7
MP3 PART
Component Layout Main Board ...................................10-8
Circuit Diagram ............................................................10-9
Exploded View...............................................................10-10
Partslist..........................................................................10-12
Downloaded from www.Manualslib.com manuals search engine
10-2
Service hints
CAUTION
CHARGED CAPACITORS ON THE SERVO BOARD MAY DAMAGE THE CD DRIVE ELECTRONICS WHEN
CONNECTING A NEW CD MECHANISM. THAT´S WHY, BESIDES THE SAFETY MEASURES LIKE
• SWITCH OFF POWER SUPPLY
• ESD PROTECTION
ADDITIONAL ACTIONS MUST BE TAKEN BY THE REPAIR TECHNICIAN.
The following steps have to be done when replacing the CD mechanism:
1. Disconnect flexfoil cable from the old CD drive
2. Put a paperclip on the flexfoil to short-circuit the contacts (fig.1) fig.1
3. Remove the old CD drive
4. Remove paperclip from the flexfoil and connect it to the new drive
5. Position the new CD drive in its studs
6. Remove solder joint from the Laserunit
Attention: The laser diode of this CD drive is protected against ESD by a solder joint which shortcircuits the
laserdiode to ground.
For proper functionality of the CD drive this solder joint must be removed after connection the drive to
the set.
Emergency open
In case of a Supply fault, the tray can be opened manually.
1. Remove the top cover of the set to get access to the Changer Module.
2. Turn gearwheel clockwise (as shown in picture below).
Downloaded from www.Manualslib.com manuals search engine
10-3
Service hints
Dismantling of Tray
1. Open the tray.
2. Release 2x catch as shown in fig. 2 and
Detail A
3. Pull tray out.
Detail A
fig.2
Assembling of Tray
1. Turn Cam (pos. 48) clockwise to end
position.
2. If necessary - move Guiding (pos. 49) to the
right end position.
3. Insert the Tray.
Pos 49 Guiding
Pos 48 Cam
Downloaded from www.Manualslib.com manuals search engine
10-4
Wiring
Disc Motor
Inner switch
Slide Motor
Service Position
Downloaded from www.Manualslib.com manuals search engine
10-5 10-5
Blockdiagram
BLOCK DIAGRAM 3CDC-LC MP3 Version
CD MECHANISM MAINBOARD
VAM2201 5,17,21,52,57
+3,3V
DISC +5V
7802 8 7816 1805
7802
TDA7073A VCC 19 3
LP +
TURNTABLE FOC + 6 15
18 2 - CD LEFT
MOTOR FOCUS 55 LN
FO
MOTOR FOC -
Active low pass 14
Filter Analog Audio
23 5 TDA1308
RAD + RP +
7 13
RADIAL 54 22 15 CD RIGHT
MOTOR RA RN -
RAD -
SCLI 37 IIS_SCLK 1802
7803
SDI 36 AU_IIS_DATA 4
TDA7073A AU_IIS_DATA
SLEDGE + AU_IIS_DATA
SIGNAL PROCESSOR
SLEDGE 56 WCLI 35 IIS_WCLK CD-DA coded IIS_SCLK 7
MOTOR SLEDGE -
SL CD10 IIS_SCLK External MP3-Decoder
SAA7324 (SAA7325) DIGITAL AUDIO
DATA 27 CD_IIS_DATA IIS_WCLK 5
IIS_WCLK
MP3 coded
WCLK 28 IIS_WCLK CD_IIS_DATA 3
TTM - 59 CD_IIS_DATA
M1
TURNTABLE
MOTOR TTM + SCLK 29 IIS_SCLK
60
M2
38 13
LASER & RESET RESET
MONITOR +5V +3,3V
DIODE 42 12
2 13 7801 SILD SILD
1
LD LD ON 7 64
LD ON 41 11
RAB RAB
CD/RW 11
61
V4 40 10
Communication
SCL SICL
µP ↔ Signal Processor
4 39 9
MON SDA SDA
3
ISLICE
PHOTO LASER CONTROL
DIODES &
HF AMPLIFIER 2,6,8,14,15,19
GND
D4 D2-D4 5 TZA1024 10 2
D1 D5 (TZA1025) HF IN 1
D2 D3 +5V +5V
6,14
D1
D1-D5 D2
D3 µP_CLK 11
D4 µP_CLK
not on all versions R1,R2 V1 DOBM
INNER SWITCH µP_DATA 10
63 51 µP_DATA
Front-µP and MP3 module
µP_FRAME 9
µP_FRAME
Communication
1805
5
µP_FRAME
4
µP_CLK
2
µP_DATA
1876 1875
CAROUSEL 5 1
SWITCH INFO 9
POS. RECOGNITION 7813 SWITCH INFO
1 5 1883 open if carousel is in a valid Play-Position. 7 2 6
DATA
1883 SHR-DATA
Changer
3 7
SHR_CL
SHR_CL Control Logic
3 3 1882 closed if carousel is in Position 1. 6 8
1
1882 STB
SHR_STR
CD POS.1 SWITCH SHIFT
1880 REGISTER 1,3
GND
16
Closed if the tray is in one endposition. 4 HEF4094BT VDD +10V
Open during movement.
TRAY SWITCH 5V1
1881
Open if the drive is in one endposition. 5 EN1 15
Closed during movement.
V
CD DRIVE UP/DOWN SWITCH
VDD (pin 16)
EN1 (pin 15)
7814 +3servo
t
TDA7073
Power on
2 4 12 D5
Vref
CAROUSEL
MOTOR 7815
11 D3
4 2
+5V
+3,3V 1805
TRAY 1,3 1,3 10
D2
TRAY 12
+5V +5V
MOTOR 9 D0
2 2 10
+10V +10V Supply
11
1877 1878 GND
Downloaded from www.Manualslib.com manuals search engine
10-6 10-6
Mapping
Copperside Componentside
2800 E4 3730 C3 3848 D3 4823 E3 1451 B5
2801 D4 3731 C2 3849 C3 4824 C5 1455 A4
2802 E4 3732 C2 3850 D1 4825 B4 2450 C1
3CDC-LC-MP3CD2002 Copperside view 2803 D4 3733 C2 3853 E4 4826 C3 2451 B1 3CDC-LC-MP3CD2002 Components seen from Copperside
2804 F3 3734 D2 3854 E3 4828 C3 2452 C2
2805 D4 3735 G2 3855 E3 4829 G4 2453 B1
2806 D4 3736 H3 3856 F4 4830 G3 2454 B1
2807 E4 3738 H3 3857 F4 4831 G3 2455 D2
2808 D4 3740 C4 3858 C2 4832 F3 2457 A2
2809 D1 3741 C4 3859 C2 4833 E3 2461 D4
2810 E4 3742 C4 3860 C2 4834 F4 2463 A3
2811 D4 3743 C4 3861 C2 4837 E3 2464 D4
2812 E4 3744 B4 3862 C4 4838 E3 2465 D4
2813 E4 3745 H2 3863 D2 4839 E3 2466 A3
2814 F1 3746 B3 3864 E4 4840 F3 2467 B4
2815 F4 3747 H3 3865 C4 4841 E3 2468 B4
2816 C4 3748 H3 3866 F3 4842 E3 2469 B4
2818 C4 3750 B4 3867 E4 4844 G3 2472 D3
2820 C3 3751 B4 3871 E2 4845 G4 3450 C1
2822 E3 3752 H3 3872 E3 4846 E4 3451 B1
2823 E3 3753 H2 3878 C3 4847 E4 3454 D2
2824 E3 3754 G2 3881 C3 4848 G4 3465 C1
2827 E4 3755 G1 3882 E2 4849 E3 3467 A3
2829 C3 3756 B2 3883 E2 4851 F3 3468 A3
2831 F4 3757 A5 3884 E3 4855 F1 3469 C4
2833 C4 3758 A5 3885 E2 4856 E4 3470 D3
2834 D4 3759 D2 3890 F4 4857 G1 3471 C4
2835 D2 3760 B4 3891 E2 4858 E1 3473 C4
2840 E1 3761 C4 4700 B2 4868 E1 3474 A3
2841 D2 3762 A4 4701 B2 4869 E2 3475 C4
2842 F1 3763 A4 4702 B2 4870 E2 3476 C4
2843 D4 3764 C4 4703 B2 4871 E2 3477 B4
2844 D2 3765 H2 4704 B1 4872 D2 3479 A2
2848 E4 3766 H1 4705 B1 4873 E2 3480 C4
2859 F2 3767 D4 4706 A3 4874 E2 3481 C4
2860 H3 3769 C5 4707 A3 4875 E2 3484 B4
2862 C4 3770 H2 4708 A3 4876 G2 3490 A4
2863 C4 3771 H1 4709 A3 4878 D2 3494 A2
2864 B2 3772 H2 4710 A3 4879 C3 3496 A4
2865 B2 3773 H1 4711 A3 4880 E3 3499 C1
2866 C4 3774 C2 4712 B3 4881 D2 4450 A4
2867 B4 3776 H1 4713 B3 4882 E4 6451 D4
2868 C4 3777 C5 4714 B3 4883 E4 7451 B3
2869 C4 3800 E4 4715 B4 4884 A2 7456 D4
2870 C2 3801 E4 4716 B3 4885 A2 7458 D1
2871 D2 3802 E4 4717 A3 4886 A2
2872 G2 3803 D4 4718 A4 4887 A2
2874 D2 3804 C3 4719 A4 4888 A2
2877 H1 3805 D4 4720 A4 4889 B2
2878 H1 3806 D4 4722 A4 4890 A2
2882 B3 3807 D4 4724 B4 4891 A2
2883 H1 3808 D4 4726 B4 4892 A3
2884 F2 3810 C3 4727 B4 4893 A2
2885 G2 3811 E4 4728 A4 4894 A3
2886 F3 3812 C3 4729 A4 4895 A3
2887 F2 3813 C2 4730 B4 4896 A3
3700 F2 3814 C2 4731 B4 4897 A3
3701 D2 3816 C3 4732 C5 4898 A3
3702 F3 3817 C3 4733 B3 4899 D2
3703 F2 3818 C3 4734 C4 6801 H2
3704 F2 3819 C3 4735 B5 6802 H1
3705 C2 3820 E4 4736 A5 6803 H2
3706 C1 3821 F4 4737 C5 6804 G3
3707 C2 3822 F4 4738 B5 6805 G2
3708 C2 3823 F3 4739 C4 6806 C4
3709 F2 3824 F3 4740 C5 6807 C4
3710 F2 3825 E3 4741 B4 6808 H2
3711 C2 3826 E3 4742 A5 6809 C2
3712 B3 3827 D4 4743 A5 6811 G2
3713 G2 3828 D2 4744 A5 6812 F2
3714 H2 3829 F3 4745 A5 7801 F3
3715 H2 3830 F4 4746 A5 7802 D3
3716 D2 3832 C3 4747 A5 7806 E3
3717 D2 3833 E4 4748 A5 7811 B4
3718 C2 3834 E4 4749 A5 7812 G2
3719 H3 3836 E2 4801 G1 7813 H2
3720 F2 3837 D2 4803 B2 7815 D4
This assembly drawing shows a summary 3721 F3 3838 D2 4804 A1 7816 C2 This assembly drawing shows a summary
of all possible versions. 3722 F2 3839 E3 4805 B5 7820 F2 of all possible versions.
For components used in a specific version 3723 F4 3840 C3 4806 C4 7821 F2 For components used in a specific version
see schematic diagram respectively partslist. 3724 G2 3842 D2 4807 H3 7822 G2 see schematic diagram respectively partslist.
3CDC-LC-MP3CD2002 Layout stage .2 2002-05-27 3725 F2 3843 E2 4808 H3 7823 F2 3CDC-LC-MP3CD2002 Layout stage .2 2002-05-27
3726 F2 3844 F1 4809 H3
3727 F2 3845 D2 4810 H4
3728 F3 3846 E2 4811 H4
3729 F2 3847 E2 4820 C4
Downloaded from www.Manualslib.com manuals search engine
10-7 10-7
1800 C1 1876 H10 1883 I11 2807 A4 2815 D4 2823 F9 2834 C10 2842 G4 2867 A13 2879 A12 3715 I14 3742 B12 3751 A12 3761 A12 3770 J14 3802 B4 3812 D14 3820 C3 3828 F9 3837 E5 3846 H5 3856 C1 3871 E3 3891 G9 7801 D5 7813 H13
1801 J1 1876 H7 2800 C4 2808 A5 2816 B11 2824 F9 2835 H4 2843 B10 2868 B13 2880 A14 3719 H9 3743 B12 3752 H9 3762 A14 3771 J13 3803 B4 3813 E14 3821 C3 3829 E2 3838 F5 3847 H4 3857 B1 3872 E3 6801 I12 7802 D12 7814 H8
1802 D15 1876 I11 2801 C5 2809 I4 2817 E4 2826 G11 2836 D6 2844 H5 2869 A13 2881 H14 3723 A4 3744 A14 3753 H9 3763 B14 3772 J14 3805 A4 3814 E14 3822 C3 3830 E2 3839 J5 3848 I5 3861 E14 3878 F15 6802 I12 7803 G3 7815 F6
1805 I15 1877 I7 2802 B4 2810 A4 2818 B10 2827 B4 2837 E10 2848 A4 2872 H12 2882 B13 3730 F14 3745 I9 3754 H11 3764 A12 3773 I14 3806 B4 3815 D4 3823 E7 3832 E14 3840 C14 3849 C14 3862 B10 3880 J4 6803 I12 7806 E3
1810 C9 1878 I7 2803 B5 2811 A5 2819 C1 2828 F6 2838 E7 2860 I9 2873 I9 2883 J14 3736 J11 3746 B14 3755 H11 3765 I14 3775 I9 3807 A4 3816 B13 3824 D7 3833 A4 3842 G5 3850 I4 3863 F6 3881 F15 6804 I14 7807 I3
1875 H10 1880 I11 2804 D4 2812 E9 2820 D14 2829 E14 2839 H4 2861 B14 2876 A12 2888 H9 3738 I9 3747 J12 3757 A14 3766 I14 3776 H11 3808 A4 3817 B13 3825 D8 3834 A4 3843 G5 3853 E9 3864 E9 3882 J5 6805 H12 7811-A B13
1875 H7 1881 I11 2805 B5 2813 F9 2821 B11 2832 J4 2840 J4 2862 B12 2877 J14 3713 H14 3740 A11 3748 I9 3758 B14 3767 F7 3800 B4 3810 D14 3818 B14 3826 F9 3835 H4 3844 G4 3854 D7 3865 B11 3883 J4 6807 G6 7811-B A13
1875 I12 1882 I11 2806 A5 2814 H4 2822 D7 2833 C10 2841 G5 2863 A12 2878 J14 3714 H13 3741 A11 3750 A12 3760 A12 3769 G7 3801 B4 3811 B4 3819 D14 3827 E10 3836 J4 3845 H5 3855 G12 3866 D6 3890 C3 6808 I12 7812 H13
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
3764 4.5V
E 3833 3808 +5V
R2 (CD10)
2879
220u
100R
7811-B
3CDC-LC 3740
2810
2811
180p
220p
22K 10K 2V 6 8
TDA1308T
22K 2880 3757
2869
100p
7 2.3V LEFT
LEFT CHANNEL
mainboard F 3834 3807 R1 (CD10) 3741 5 10u 100R
3744
3762
2867
220p
A A
10K
22K
part 1 22K 2V 4
2863
220p
10K
2807
2808
330p
220p
22K
3750
3760
10K
1K
D 3723 3805 D4 (CD10)
Active Low Pass
3751
2876
3761
220u
27K 10K
10K
1K
2806
220p
2848
150p
3742 2V 2 7811-A
C 3811 3806 D3 (CD10) +3.3V TDA1308T
22K 2861 3758 RIGHT
2868
100p
27K 1
10K RIGHT CHANNEL
2827
150p
2805
220p
3743 2.3V 10u 100R
120R
3865
3746
2882
220p
10K
3763
2V 3
2862
220p
22K
A 3802 3803 D2 (CD10) 22K
B B
27K 10K
2802
2803
150p
220p
3862 2818 2821 2816 3816 CD_IIS_DATA
3.2V
+3.3V
470R 3817
100n
2843
120R 1n5 220u 1n5 IIS_WCLK
3857 B 3800 3801 D1 (CD10)
470R 3818 IIS_SCLK
1.5V
1.5V
1.5V
1.5V
68R 5V 27K 10K only if
2800
2801
150p
220p
3V
3V
+5V VDDA2 KILL 470R
3856 EYE-PATTERN quartz used
2819
4u7
VNEG
SELPLL
WCLK
VPOS
TEST1
TEST2
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
SCLK
EF
CL16
DATA
TIMING LN
RN
RP
LP
68R 1810 3849
800mVpp 1.5V 16 CRIN VSSD1 33
2834 2833
33p
4K7
3820
3821
3822
3890
3K3
3K3
3K3
3K3
1.5V SER. DATA
C VrefCD10 Laser power control 15 CROUT BITSTREAM DAC
INTERFACE KILL
VERSAT. V2|V3 34
INTERF.
C
33p
1.5V
1800 HF-Amplifier 14 VSSA2 WCLI 35 IIS_WCLK
B A C D TZA1024/ TZA1025
E
VREF
2.8V 7
Signal Processor
VCC 16 LDON TB = 0.5µs/div 1.5V 13 R2 SER. DATA SDI 36 3840 AU_IIS_DATA
PWRON 8 1.5V
VrefCD10 LOOPBACK
B 15 CMFB 470R
E 6 2x 9 0.9V 3866 INTERF.
C A 1.5V 12 R1 SCLI 37 IIS_SCLK
D 14 Σ (A-D) 2815 0.8V 5 GND RFFB
10 1.7V 10K
2822 3825 HFIN Connection to
D DIN 4x RFEQO
A 13 220n 11 for CD_DA : 0V 2n2 1K 1.5V 11 D4 7802 RESETn 38 3.3V 3819 PORE MP3CD2002 Board
PRE- 1802
SAA7324 / SAA7325
2820
F 12 CDRW for CD_RW : 3V
0.2V 4 PROCESSING
1n
B ADC
D 1x
12 0V
1.5V 10 D3 SDA 39 3810 SDA
19
GND D
C 11
1V 3 MON EQSEL
13 3.0V 3854 µP_CLK
MICROCONTROLLER
U >400mV 18
+3.3V CONTROL AUDIO µP_CLK
2804
->Laser damaged ! 1V CFIL
4n7
10 VCC2 100R 3812
3824
F 14 1.5V 9 D2 FUNCTION PROCESSOR SCL 40 SICL µP_DATA 17
µP_DATA
1K
INTERFACE
V/I
2836
3815
4u7
Vgap
9 ESD sensitive lines! RGADJ
GND 4.7V 2 1.5V µP_FRAME 16
+5V VrefCD10 1.5V 8 D1 RAB 41 3813 µP_FRAME
RAB
LD 8 3829 1 VCCL
3823
4R7 V/I
2838
15
10u
1K
7 2.1V LD SPDIF_GND
GND 4R7 3853 1.5V 7 VRIN SILD 42 3814 SILD
VREF GEN. 14
VrefCD10
2817
SPDIF_GND
4u7
6 3830 7801 470R
MON 470R(5x)
2812
PORE
47n
3827 13
6 IREF STATUS 43 PORE
3861
5
10K
22K
3871
2829
E FOC- SILD E
68K
27p
12
27K 0.8V EFM SILD
4 3864 SRAM
FOCUS
TRACK+ 3.2V 5 VDDA1 DEMOD TEST3 44 RAB
TRACK
+3.3V 11
ADDR RAB
3 3872 100R
2837
4u7
TRACK- BC847B SICL 10
4 VSSA1 FRONT RCK 45 +3.3V SICL
2 7806
FOC+ 4K7 3837 END DIG. ERROR PEAK SDA 9
PROCESSOR
Vref SDA
3730
SUBCODE
33K
1 PLL CORR. DET.
1.6V 1K 1.7V 3 ISLICE SUB 46 8
3838
FMN
Internal Supply
2813
3826
22K
GND
1K
10n
IIS_SCLK 3878 7
33R HFIN 1.7V 2 HFIN EBU SFSY 47 IIS_SCLK
+3servo MOTOR OUTPUT 220R
INTERF. 6
2824 2823
47p
3.2V 3863 CONTROL STAGES GND
2828
VERSATILE
47u
VDDD1P
IIS_WCLK 3881
VDDD2C
F 1.7V 1 HFREF SBSY 48 5 F
VSSD2
INTERFACE
VSSD3
DOBM
IIS_WCLK
CFLG
CL11
3767 220R
22n
3.3V 7815 4.2V AU_IIS_DATA 4
Focus search +3.3V +5V +3.3V 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 AU_IIS_DATA
Service step 2 3.3V 33R CD_IIS_DATA 3
2.8V
M2
M1
V1
V5
V4
3.2V
SL
FO
RA
3.2V
LDON
3.2V
CD_IIS_DATA
BC847B LDON
3828
22K
+ 2V 2
-
voltage stab. 4.1V 3769 InnerSW
=SANYO drive to 7801 GND
1s 1
7803 TDA7073A 100R 2826 +5V +5V
BZX284
from 1801
C3V9
Servo driver
3891
6807
4K7
=MITSUMI drive 47u +3servo
3855
CD Drive
15R
FOC+ 9 +
FOCUS 3843 3842 for CD_DA : 0V
G 7 FO G
- for CD_RW : 3V
FOCUS 33K 47K
3844
2842
270p
2841
2n2
4K7
10 +3.3V
Mitsumi + 6
12 Vref
FOC-
MCD-1b _ 3835
MCD-2 5 10V
VDD +10V 7814 TDA7073A SW_INFO SW_INFO
5 1
2839
47u
3R3
Motor driver 1876 1875
3776
10K
RF-500TB 1876 1875
Sanyo TRACK- 13 _
2
3846 3845
RA 2 4 16 + 3754 3755
5,1V
- 3752 O7 +10V
DA11T3CN TRACK 33K 47K M 8002 -
1
220R 220R
BZX284
H H
2814
3847
2844
270p
6K8
1n5
2881
C5V1
4u7
2872
6805
CAROUSEL 100K 3714
47n
3719
10K
14
2888
4 HEF4094BT
3K9
10u
2
+ 1 14 16 7813
16 Vref 2 3753 O6
TRACK+ CAROUSEL +
3713
TRACK SRG8 5,1V Connection to
22K
13
2835
47n
+
MOTOR _ 100K EN1 15 BC847B
3,4 FO, RA, SL
3R3
+10V
Front / Combi Board
8,11,15 5 7812 0V
VDD STB 1805
NC 3V
Changer Control Logic 1
BAS216
2873
6804
3775
47u
CLK LEFT 15
3715
100K
7807 TDA7073A LEFT_OUT
0V
12 3
Motor driver _
6
3745 O5
Analog Audio 14
GNDA
- 1880 6801 4 RIGHT
16 SLIDE TRAY 10K TRAY POS 1 D 13
+
2860
SLD+ O0 RIGHT_OUT
3738
270R
Power on
22n
I 3848 1877 1878 6802 2 I
1 SL RF-500TB 10 UP/DOWN 1881 5 12
- 3748 O1 Output enable delay +5V
SLIDE 1 + 7 O4 +5V(+5.6V)
220K
3850
2809
220n
9 6808
6K8
M 8003 POS1 1882 3 3 6 11
14 2 + 10K O2 GND
+ 2 6803
Vref POS recog. 1883 1 5 7 10
3773
3765
3766
10K
3 10K
10K
SLD- 13 O3 +10V +10V
3,4 8,11,15
_ 3880
TRAY O4 1876 1875 BAS216(4x) 14 SW_INFO
NC O4 9
5 10V MOTOR SW_INFO
VDD +10V TRAY-MOTOR 3770 SHR_STR
O5 13 8
2832
O5
47u
* SANYO DA11T3CN 3R3 SHR_STR
MITSUMI MCD 1b 3771 1K SHR_CLK 7
1876 1875 O6 12
DISC- 12 8002 1 O6 SHR_CL
_
SW_INFO 5 1K 3772
1801 6 3839 M1 O7 CAROUSEL-MOTOR 11 SHR_DATA 6
_ 1 SLD+ - O7 SHR_DATA
J DISC 4 2 J
100K ACCELERATE DISC 470R µP_FRAME
2840
3736
3747
5
100n
47K
47K
1882 O4 O5 O6 O7 9 µP_FRAME
SLIDE 2 SLD- 10 3 3
+
+ 7 3882 M2 DC voltages measured in Tray stop 0V 0V Carousel stop 0V 0V
10 µP_CLK 4
2877
2878
220p
2883
220p
Moving in 0V 5V Turn left 0V 5V µP_CLK
82p
_ 3 DISC- DISC+ 9 POS1
DISC 100K BRAKE DISC PLAY MODE 2 4
3836
Moving out 5V 0V Turn right 5V 0V
3883
M 3
1K8
+
1K
DISC DISC+ with following conditions: 1883 GND
4 1 8
+ 3,4 8,11,15 3V EVM
RF-500TB 5 µP_DATA 2
"+10V" = 10V POS recog. µP_DATA
5 NC NC CH1
0V "+5V" = 5V CAROUSEL-MOTOR
1
INNERSW. * 6
0V CH2 GND
InnerSW
to 7802 3CDC-LC M355(MP3 Version) 2002-05-23
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Downloaded from www.Manualslib.com manuals search engine
10-8 10-8
1460 A3 3449 C3 3460 C2 3482 B2 3492 A3 6450 C2 1451 B5 2457 A2 2469 B4 3469 C4 3479 A2 4450 A4
2456 A4 3452 B2 3461 B5 3483 B2 3493 B2 7450 B4 1455 A4 2461 D4 2472 D3 3470 D3 3480 C4 6451 D4
2458 D4 3453 A4 3462 C3 3485 B2 3495 B2 7452 C2 2450 C1 2463 A3 3450 C1 3471 C4 3481 C4 7451 B3
2459 D4 3455 B5 3463 C3 3486 A2 3497 B2 7453 C2 2451 B1 2464 D4 3451 B1 3473 C4 3484 B4 7456 D4
2460 D2 3456 D4 3464 C2 3487 A2 3498 D3 7454 C3 2452 C2 2465 D4 3454 D2 3474 A3 3490 A4 7458 D1
2462 C4 3457 D3 3466 A3 3488 B3 4452 A3 7455 D2 2453 B1 2466 A3 3465 C1 3475 C4 3494 A2
2470 B4 3458 D3 3472 D2 3489 B3 4453 B2 7457 B4 2454 B1 2467 B4 3467 A3 3476 C4 3496 A4
2471 C3 3459 C2 3478 B2 3491 B4 5450 D3 7460 B2 2455 D2 2468 B4 3468 A3 3477 B4 3499 C1
1 2 3 4 5 1 2 3 4 5
Side A Side B
A A A A
B B B B
C C C C
D D D D
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram
respectively partslist. MP3 CD2002 Layout stage .1 2002 04 09
1 2 3 4 5 1 2 3 4 5
Downloaded from www.Manualslib.com manuals search engine
10-9 10-9
1 2 3 4 5 6 7 8 9 10 11 12 13 14
MP3-CD-2002 2451 B5
2452 B2
2453 B4
2454 B7
only for FLASH version 2455 C2
2456 C12
AD2
AD1
AD0
AD9
AD8
AD7
AD6
AD5
AD4
AD3
2450 3465 2457 D9
2458 C10
100n 2459 D2
A 100R +3.3V +3.3V +core
A
DD15
DD14
DD13
DD12
DD11
DD10
+3.3V 2460 E13
DD9
DD8
DD7
DD6
7458 8 AD16 2461 D12
CD10_SILD
1
3499
10K
E0 VCC +1.5V 2462 D2
3450
15R
+3.3V 7450 Am29LV800B 2463 D8
EEPROM
3453
2
10R
E1 AD15 1 48 2464 G12
A15 A16 2465 G2
600R
3 5
5450
E2 SDA 2
3451
AD14 47 2466 G8
15R
+core A14 BYTE
470R
6
3478
SCL 2467 H6
AD13 3 46
7 2453 2451 2454 A13 VSS 2468 H4
WC_ VSS 2452 AD12 4 45 DD15 2469 H5
100n 1u 100n A12 DQ15|A-1 2470 D9
M24C32 4 1u
B AD11 5
A11 DQ7
44 DD7
B 2471 E11
2472 D1
144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 AD10 6 43 DD14
A10 DQ14 3449 E11
Text version only 1 DVSS9 A19 108 AD9 7 42 DD6 3450 A4
A21
CVDD7
A9
A8
A7
A6
A5
A4
HD6
A3
A2
A1
A0
HDS2
HDS1
CVSS10
CVDD6
HD5
D15
D14
D13
HD4
D12
D11
D10
D9
D8
D7
D6
CVSS9
A20
DVDD6
DVSS8
DVDD5
AD18 A9
CVSS1 A18 DQ6 3451 B7
2 A22 A17 107 AD17 AD8 8 41 DD13 1455 3452 H3
A8 DQ13 1
+3.3V 3454 2455 SPDIF_GND SPDIF_GND 3453 A12
3 CVSS2 DVSS7 106 9 40 DD5
NC DQ5 2 3454 C1
15R 100n 4 105 10 39 DD12 SPDIF SPDIF 3455 C9
DVDD1 A16 AD16 NC DQ12 4450 3 3456 C10
AD10 5 104 11 38 SPDIF_GND
A10 D5 DD5 DD4 3457 D13
WE DQ4 4
Flash +3.3V +3.3V 3458 D14
C 6 HD7 D4 103 DD4 12
RESET
EPROM VDD
37
FMN
C 3459 F13
102 13 3460 F13
2458
AD11 7 A11 DD3 36 DD11
10n
D3 NC DQ11
3456
3461 E12
2456
100n
1K
AD12 8 A12 D2 101 DD2 14
NC DQ3
35 DD3 3462 E2
3455 3463 F1
AD13 9 A13 D1 100 DD1 15 34 DD10
RY|BY DQ10 3464 F13
10 99 1K AD18 16 33 DD2 3465 A2
AD14 A14 D0 DD0 A18 DQ2 3466 H8
98 2457 17
AD15 11 A15 RS AD17 32 DD9 3467 F8
A17 DQ9
10n 3468 F8
12 CVDD1 X2|CLKIN 97 AD7 18 31 DD1
+core A7 DQ1 3469 E13
+3.3V
Voltage stabilisation 3470 F1
D 96 19
D
2472
220u
2459
13 HAS X1 AD6 30 DD8
1u
A6 DQ8 7455 LM317D 3471 E13
7451 +1.5V 3458
14 DVSS1 HD3 95 AD5 20 29 DD0 2 O1 ADJ 4 3472 H9
provisional A5 DQ0 3 O2 180R 3473 G2
94
2462
3491
2461
220u
15 CVSS3 AD4 21 28
47R
CLKOUT 6 O3 5
1u
A4 OE 3498 3474 G8
680R
3457
7 O4 8
16 CVDD2 93 AD3 22 27 3475 G2
1u 2463
+core DVSS6 2470 A3 VSS
IN
3K3
1 3476 H2
3461 47R
17 92 23 26
DSP
HCS HPIENA AD2 3477 H7
100n A2 CS
3478 B6
18 HR|W CVDD5 91 AD1 24 25
+core 7457 5 74HCT1G04 A1 A0 +5V 3479 H8
90 BZX284-C3V9 3469 3480 H2
19 READY CVSS8
3481 H3
2460
100n
AD0 6451 100R
E nPS
20 PS TMS 89 4 2
7456
E 3482 H5
3483 H6
21 88 nPS
DS TCK BC847BW 3471 33R 3484 H5
NC
22 IS For Flash version: TMS320VC5416 TRST 87 1 3 2471 3449 +3.3V
3485 I11
3486 I13
nRW
3462 23 R|W For ROM version: TMS320VC5406 TDI 86
100n 100R
+3.3V
6450 BZX284-C3V3
3487 I12
3488 I12
3463 100R 85 3492 3459
nMSTRB 24 MSTRB TDO 3489 I12
100R 84 220R 3490 H8
3460
25 IOSTRB EMU1|OFF 1M
1K
7454-B 3491 D9
7454-C 14
26 MSC EMU0 83 1460 14 4 3492 F9
9 6 BC847BW 7452
8 3493 H12
F 27 XF TOUT 82
16.93MHz
OE
10
5 nMSTRB F 3494 H8
28 HOLDA 81 CSTCV 7 3495 H11
HD2 7453
4452
7 3496 H8
29 IAQ 80 BC847BW 3464 3497 I13
HPI16
1451
3467
3468
10K
10K
3470 10K 3498 D14
30 HOLD CLKMD3 79 19
+3.3V nRW +5V 3499 A2
15R 74HC00D
31 BIO 78 18 4450 C13
CLKMD2 GND 4452 F9
2465
100n
2464
100n
32 MP|MC CLKMD1 77 17 4453 I11
14 7454-D CD_IIS_DATA CD_IIS_DATA
3473
100K
3474
15R
+3.3V 5450 B3
33 DVDD2 DVSS5 76 14 7454-A 12 16
AU_IIS_DATA 6450 E13
1 11 AU_IIS_DATA
3 6451 E13
G 34 CVSS4
BDR1
DVDD4 75 WE
2
13
IIS_WCLK
15
IIS_WCLK G 7450 A10
3475 35 BDX1 74 14 7451 D5
BCLKX1
BCLKR1
HCNTL0
BCLKR0
BCLKR2
HCNTL1
BCLKX0
BCLKX2
CD_IIS_DATA 7 GND
CVDD4
CVDD3
CVSS5
CVSS7
DVDD3
BFSR1
CVSS6
BFSR0
BFSR2
DVSS2
DVSS3
BFSX0
BFSX2
2466
100n
7 7452 F13
HRDY
BDR0
BDR2
BDX0
BDX2
100R BFSX1 73
IACK
HINT
HBIL
13
INT0
INT1
INT2
INT3
36
HD1
HD0
NMI
IIS_SCLK IIS_SCLK 7453 F12
DVSS4 7454-A G11
12
GND 7454-B F11
37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72
3472 11 7454-C F11
TMS_RESET CD10_SDA CD10_SDA
+3.3V 7454-D G11
10
3480 #
* CD10_SICL CD10_SICL 7455 D13
100R
100R
470R
150K
3496
3479
9 7456 E12
CD10_RAB CD10_RAB 7457 E9
H +core +3.3V for 5V front uP CD10_SILD
8
CD10_SILD H 7458 A1
+3.3V +5V 7 7460 I12
nCD10_RESET CD10_RESET
100R
470R
3490
3494
3466
10K
6
SPDIF SPDIF
100R
100R
100R
470R
100R
470R
3481
3484
3482
3483
3477
3495
3476
3452
2468
2469
100n
2467
3493
15R
10K
10K
1u
1u
5
SPDIF_GND SPDIF_GND
4
uP_FRAME uP_FRAME
CD10_SICL
nCD10_RESET
3
AU_IIS_DATA
+3.3V
uP_DATA
CD10_RAB
+3.3V
IIS_WCLK
IIS_SCLK
uP_CLK
uP_FRAME
CD10_SDA
uP_CLK 3486
uP_DATA
2
uP_CLK
3485
4453
10K
1K
100K
I 1
I
3487
BC847BW GND
3497
10K
7460 FMN
uP_DATA
3488
100K
3489
# .... only for FLASH version +3.3V
10K
.... only for ROM version
*
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Downloaded from www.Manualslib.com manuals search engine
10-10 10-10
EXPLODED VIEW (3CDC-LC MODULE)
MECHANICAL PARTS Loader 54
49
–––––––––––––––––––––––––––––––––––––––––––––––––––––
20 3103 304 66500 DRAWER BLACK
21 3140 114 29070 PRESSURE RING-DA11 34 4x
23 3140 111 21270 METAL RING-DA11 31
30 3103 304 66560 SUPPORT 45 5x 33 4x
31 4822 529 10386 RUBBER DAMPER CD DRIVE, REAR
32 4822 529 10387 RUBBER DAMPER CD DRIVE, FRONT 46 53
33 3103 304 06970 WASHER 31
35 3103 309 05350 CD DRIVE MCD1B 44
41 3103 304 66480 FRAME 52
42 3103 304 66540 BRACKET-GUIDING
32 32
43 3103 301 06460 SPRING-GUIDING 51
44 3103 304 06890 GEAR-3
45 3103 304 06980 NAIL FIXATION
48
46 3103 304 06880 GEAR-2
35
47 3103 304 66530 BRACKET-LOAD
48 3103 304 06910 CAM 43
49 3103 304 66510 GUIDING 47
51 3103 304 06900 GEAR-4 42
52 3103 304 06870 GEAR-1
53 3103 304 06960 PULLEY-FRAME
59
30
54 3103 304 66910 DRIVING-BELT-DRAWER
55 4822 361 10753 TRAY MOTOR 41
56 4822 502 12548 SCREW M2,6X3,5
60 2x
57 3103 304 69880 COVER-DA11 23
59 4822 466 12146 RUBBER
56 2x
Pos. 53
Pos. 57
Pos. 42
Pos. 49
Pos. 52
Pos. 51
21
Pos. 48
Pos. 47
Pos. 43
Pos. 44
Dust cover
55
20
MP3CD2002
X spare part Board
Y non spare part
57
58 3CDC-LC-MP3 Exploded view 2002 05 22
Downloaded from www.Manualslib.com manuals search engine
10-11
Drawer bottom view
3x
24
MECHANICAL PARTS Drawer
–––––––––––––––––––––––––––––––––––––––––––––––––––––
20 3103 304 66500 DRAWER BLACK 30
21 3103 304 66490 CAROUSEL BLACK
22 3103 304 06860 PULLEY-DRAWER 31
23 3103 304 06850 ECCENTRIC GEAR WHEEL
24 3103 304 06980 NAIL FIXATION 29
36
25 3103 304 66850 DRIVING BELT CAROUSEL
27 4822 532 12365 BUSH DRAWER (height=5,5mm,d=9,4mm) 33
29 3103 304 66550 BRACKET-DISC 34
30 3103 304 66520 TUMBLER 32
31 3103 301 06470 SPRING-DISC
37
32 3103 304 06920 CONTROL-DISC
34 3103 304 06870 GEAR-1 35
37 4822 361 10753 CAROUSEL MOTOR
20
Drawer top view
28
27
26
21
25
24
23
22
20
X spare part
Y non spare part
3CDC-LC Drawer assy 1999 09 13
Downloaded from www.Manualslib.com manuals search engine
10-12
ELECTRICAL PARTSLIST 3CDC-LC MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
MISCELLANEOUS CAPACITORS
––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––
37 4822 361 10753 CAROUSEL MOTOR 2867 © 4822 126 13883 220pF 5% 50V
55 4822 361 10753 TRAY MOTOR 2868 © 2020 552 94427 100pF 5% 50V
1800 2422 025 17389 FFC-CONNECTOR 16Pin 2869 © 2020 552 94427 100pF 5% 50V
1805 4822 265 10979 FFC-CONNECTOR 15Pin 2872 © 3198 024 44730 47nF 5% 50V
1875 4822 267 10958 FFC-CONNECTOR 5Pin 2873 4822 124 80231 47µF 20% 16V
1876 2422 025 08332 FFC-CONNECTOR 5Pin 2876 4822 124 12245 220µF 20% 16V
1880 4822 276 13503 SWITCH 2877 © 4822 126 14226 82pF 50V
1881 4822 276 13503 SWITCH 2878 © 4822 126 13883 220pF 5% 50V
1882 4822 276 13503 SWITCH 2879 4822 124 12245 220µF 20% 16V
1883 4822 276 13503 SWITCH 2880 4822 124 11947 10µF 20% 16V
8001 3103 308 93070 FLEX FOIL CABLE 19P, 170mm BD 2881 4822 124 40769 4,7µF 20% 100V
8002 3103 308 91990 FLEXFOIL CABLE, 5P, 200mm AD 2882 © 4822 126 13883 220pF 5% 50V
8005 3103 308 92930 FLEX FOIL CABLE 16P 170mm 1:n 2888 4822 124 11947 10µF 20% 16V
CAPACITORS RESISTORS
––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––
2800 © 4822 122 33753 150pF 5% 50V 3713 © 4822 051 30223 22kΩ 5% 0,06W
2801 © 4822 126 13883 220pF 5% 50V 3714 © 4822 051 30103 10kΩ 5% 0,06W
2802 © 4822 122 33753 150pF 5% 50V 3715 © 4822 117 13632 100kΩ 1% 0,06W
2803 © 4822 126 13883 220pF 5% 50V 3719 © 4822 051 30392 3,9kΩ 5% 0,06W
2804 © 4822 126 13193 4,7nF 10% 63V 3723 © 4822 051 20273 27kΩ 5% 0,1W
2805 © 4822 126 13883 220pF 5% 50V 3730 © 4822 051 20333 33kΩ 5% 0,1W
2806 © 4822 126 13883 220pF 5% 50V 3736 © 4822 117 12925 47kΩ 1% 0,06W
2807 © 4822 126 14241 330pF 50V 3738 © 4822 051 30271 270Ω 5% 0,06W
2808 © 4822 126 13883 220pF 5% 50V 3740 © 4822 051 20223 22kΩ 5% 0,1W
2809 © 4822 126 13879 220nF 20% 16V 3741 © 4822 051 20223 22kΩ 5% 0,1W
2810 © 4822 126 14508 180pF 5% 50V 3742 © 4822 051 20223 22kΩ 5% 0,1W
2811 © 4822 126 13883 220pF 5% 50V 3743 © 4822 051 20223 22kΩ 5% 0,1W
2812 © 3198 024 44730 47nF 5% 50V 3744 © 4822 051 30103 10kΩ 5% 0,06W
2813 © 4822 122 33177 10nF 20% 50V 3745 © 4822 117 10833 10kΩ 1% 0,1W
2814 © 4822 126 14247 1,5nF 10% 50V 3746 © 4822 051 30103 10kΩ 5% 0,06W
2815 © 4822 126 14076 220nF 20% 25V 3747 © 4822 117 12925 47kΩ 1% 0,06W
2816 © 4822 126 13344 1,5nF 5% 63V 3748 © 4822 051 30103 10kΩ 5% 0,06W
2817 4822 124 40769 4,7µF 20% 100V 3750 © 4822 051 30102 1kΩ 5% 0,06W
2818 © 4822 126 13344 1,5nF 5% 63V 3751 © 4822 051 30102 1kΩ 5% 0,06W
2819 4822 124 40769 4,7µF 20% 100V 3752 © 4822 117 13632 100kΩ 1% 0,06W
2820 © 5322 126 11578 1nF 10% 63V 3753 © 4822 117 13632 100kΩ 1% 0,06W
2821 4822 124 42383 220µF 20% 4V 3754 © 4822 051 30221 220Ω 5% 0,06W
2822 © 4822 126 14238 2,2nF 10% 50V 3755 © 4822 117 11503 220Ω 5% 0,1W
2823 © 4822 126 11785 47pF 5% 50V 3757 © 4822 117 11373 100Ω 1% 0,1W
2824 © 5322 122 32654 22nF 10% 63V 3758 © 4822 051 30101 100Ω 5% 0,06W
2826 4822 124 12362 47µF 20% 4V 3760 © 4822 117 10833 10kΩ 1% 0,1W
2827 © 4822 122 33753 150pF 5% 50V 3761 © 4822 051 30103 10kΩ 5% 0,06W
2828 4822 124 12362 47µF 20% 4V 3762 © 4822 051 30223 22kΩ 5% 0,06W
2829 © 4822 126 11669 27pF 10% 50V 3763 © 4822 051 30223 22kΩ 5% 0,06W
2832 4822 124 40433 47µF 20% 25V 3764 © 4822 117 11373 100Ω 1% 0,1W
2833 © 2222 867 15339 33pF 5% 50V 3765 © 4822 051 30103 10kΩ 5% 0,06W
2835 © 3198 024 44730 47nF 5% 50V 3766 © 4822 117 10833 10kΩ 1% 0,1W
2836 4822 124 40769 4,7µF 20% 100V 3767 © 4822 051 30339 33Ω 5% 0,06W
2837 4822 124 22726 4,7µF 20% 35V 3769 © 4822 051 30101 100Ω 5% 0,06W
2838 4822 124 40248 10µF 20% 63V 3770 © 4822 051 30102 1kΩ 5% 0,06W
2839 4822 124 40433 47µF 20% 25V 3771 © 4822 051 30102 1kΩ 5% 0,06W
2840 © 4822 126 14585 100nF 10% 50V 3772 © 4822 051 30471 470Ω 5% 0,06W
2841 © 4822 122 33216 270pF 5% 50V 3773 © 4822 117 10833 10kΩ 1% 0,1W
2842 © 4822 126 14238 2,2nF 10% 50V 3774 © 4822 117 11373 100Ω 1% 0,1W
2843 © 4822 126 14585 100nF 10% 50V 3775 ! 4822 052 10338 3,3Ω 5% NFR25
2844 © 4822 122 33216 270pF 5% 50V 3776 © 4822 051 30103 10kΩ 5% 0,06W
2848 © 4822 122 33753 150pF 5% 50V 3800 © 4822 051 30273 27kΩ 5% 0,06W
2860 © 4822 126 14494 22nF 10% 25V 3801 © 4822 117 10833 10kΩ 1% 0,1W
2861 4822 124 11947 10µF 20% 16V 3802 © 4822 051 30273 27kΩ 5% 0,06W
2862 © 4822 126 13883 220pF 5% 50V 3803 © 4822 117 10833 10kΩ 1% 0,1W
2863 © 4822 126 13883 220pF 5% 50V 3805 © 4822 051 30103 10kΩ 5% 0,06W
2865 © 5322 122 32654 22nF 10% 63V 3806 © 4822 051 30103 10kΩ 5% 0,06W
2866 © 4822 126 13751 47nF 10% 50V 3807 © 4822 051 30103 10kΩ 5% 0,06W
3808 © 4822 051 30103 10kΩ 5% 0,06W
Downloaded from www.Manualslib.com manuals search engine
10-13
ELECTRICAL PARTSLIST 3CDC-LC MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
RESISTORS RESISTORS
––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––
3810 © 4822 051 30471 470Ω 5% 0,06W 4707 © 4822 051 20008 CHIP JUMPER 0805
3811 © 4822 051 30273 27kΩ 5% 0,06W 4708 © 4822 051 20008 CHIP JUMPER 0805
3812 © 4822 051 20471 470Ω 5% 0,1W 4709 © 4822 051 20008 CHIP JUMPER 0805
3813 © 4822 051 20471 470Ω 5% 0,1W 4710 © 4822 051 20008 CHIP JUMPER 0805
3814 © 4822 051 20471 470Ω 5% 0,1W 4711 © 4822 051 20008 CHIP JUMPER 0805
3815 ! 4822 052 10478 4,7Ω 5% NFR25 4712 © 4822 051 20008 CHIP JUMPER 0805
3816 © 4822 051 20471 470Ω 5% 0,1W 4713 © 4822 051 20008 CHIP JUMPER 0805
3817 © 4822 051 30471 470Ω 5% 0,06W 4714 © 4822 051 20008 CHIP JUMPER 0805
3818 © 4822 051 30471 470Ω 5% 0,06W 4715 © 4822 051 20008 CHIP JUMPER 0805
3819 © 4822 051 20471 470Ω 5% 0,1W 4716 © 4822 051 20008 CHIP JUMPER 0805
3820 © 4822 051 30332 3,3kΩ 5% 0,06W 4717 © 4822 051 30008 CHIP JUMPER 0603
3821 © 4822 051 30332 3,3kΩ 5% 0,06W 4718 © 4822 051 20008 CHIP JUMPER 0805
3822 © 4822 051 20332 3,3kΩ 5% 0,1W 4719 © 4822 051 20008 CHIP JUMPER 0805
3823 © 4822 051 30102 1kΩ 5% 0,06W 4720 © 4822 051 20008 CHIP JUMPER 0805
3824 © 4822 051 30102 1kΩ 5% 0,06W 4722 © 4822 051 20008 CHIP JUMPER 0805
3825 © 4822 051 10102 1kΩ 2% 0,25W 4724 © 4822 051 20008 CHIP JUMPER 0805
3826 © 4822 051 30223 22kΩ 5% 0,06W 4726 © 4822 051 20008 CHIP JUMPER 0805
3827 © 4822 051 20273 27kΩ 5% 0,1W 4727 © 4822 051 20008 CHIP JUMPER 0805
3829 © 4822 117 13608 4,7Ω 5% 0,06W 4728 © 4822 051 20008 CHIP JUMPER 0805
3830 © 4822 051 20223 22kΩ 5% 0,1W 4729 © 4822 051 20008 CHIP JUMPER 0805
3833 © 4822 051 30223 22kΩ 5% 0,06W 4730 © 4822 051 20008 CHIP JUMPER 0805
3834 © 4822 051 30223 22kΩ 5% 0,06W 4731 © 4822 051 30008 CHIP JUMPER 0603
3835 ! 4822 052 10338 3,3Ω 5% NFR25 4732 © 4822 051 20008 CHIP JUMPER 0805
3836 © 4822 117 12903 1,8kΩ 1% 0,06W 4733 © 4822 051 30008 CHIP JUMPER 0603
3837 © 4822 051 10102 1kΩ 2% 0,25W 4734 © 4822 051 20008 CHIP JUMPER 0805
3838 © 4822 051 30102 1kΩ 5% 0,06W 4735 © 4822 051 20008 CHIP JUMPER 0805
3839 © 4822 117 13632 100kΩ 1% 0,06W 4736 © 4822 051 30008 CHIP JUMPER 0603
3840 © 4822 051 20471 470Ω 5% 0,1W 4737 © 4822 051 30008 CHIP JUMPER 0603
3842 © 4822 117 10834 47kΩ 1% 0,1W 4738 © 4822 051 30008 CHIP JUMPER 0603
3843 © 4822 051 20333 33kΩ 5% 0,1W 4739 © 4822 051 30008 CHIP JUMPER 0603
3844 © 4822 051 30472 4,7kΩ 5% 0,06W 4740 © 4822 051 30008 CHIP JUMPER 0603
3845 © 4822 117 10834 47kΩ 1% 0,1W 4741 © 4822 051 20008 CHIP JUMPER 0805
3846 © 4822 051 20333 33kΩ 5% 0,1W 4742 © 4822 051 20008 CHIP JUMPER 0805
3847 © 4822 051 30682 6,8kΩ 5% 0,06W 4743 © 4822 051 20008 CHIP JUMPER 0805
3848 © 3198 021 52240 220kΩ 5% 0,1W 4744 © 4822 051 30008 CHIP JUMPER 0603
3849 © 4822 051 30472 4,7kΩ 5% 0,06W 4745 © 4822 051 20008 CHIP JUMPER 0805
3850 © 4822 051 30682 6,8kΩ 5% 0,06W 4746 © 4822 051 20008 CHIP JUMPER 0805
3853 © 4822 051 20471 470Ω 5% 0,1W 4747 © 4822 051 20008 CHIP JUMPER 0805
3854 © 4822 117 11373 100Ω 1% 0,1W 4748 © 4822 051 20008 CHIP JUMPER 0805
3855 © 4822 117 12971 15Ω 5% 0,06W 4749 © 4822 051 30008 CHIP JUMPER 0603
3856 © 4822 117 12521 68Ω 1% 0,1W 4801 © 4822 051 20008 CHIP JUMPER 0805
3857 © 4822 117 12521 68Ω 1% 0,1W 4804 © 4822 051 20008 CHIP JUMPER 0805
3861 © 4822 051 30103 10kΩ 5% 0,06W 4806 © 4822 051 20008 CHIP JUMPER 0805
3862 © 4822 051 20121 120Ω 5% 0,1W 4807 © 4822 051 20008 CHIP JUMPER 0805
3863 © 4822 051 30339 33Ω 5% 0,06W 4808 © 4822 051 20008 CHIP JUMPER 0805
3864 © 4822 051 30101 100Ω 5% 0,06W 4809 © 4822 051 20008 CHIP JUMPER 0805
3865 © 4822 051 30121 120Ω 5% 0,06W 4810 © 4822 051 20008 CHIP JUMPER 0805
3866 © 4822 051 30103 10kΩ 5% 0,06W 4811 © 4822 051 20008 CHIP JUMPER 0805
3871 © 4822 051 20683 68kΩ 5% 0,1W 4820 © 4822 051 20008 CHIP JUMPER 0805
3872 © 4822 051 30472 4,7kΩ 5% 0,06W 4823 © 4822 051 30008 CHIP JUMPER 0603
3878 © 4822 117 11503 220Ω 5% 0,1W 4824 © 4822 051 30008 CHIP JUMPER 0603
3880 ! 4822 052 10338 3,3Ω 5% NFR25 4825 © 4822 051 20008 CHIP JUMPER 0805
3881 © 4822 117 11503 220Ω 5% 0,1W 4826 © 4822 051 20008 CHIP JUMPER 0805
3882 © 4822 117 10837 100kΩ 1% 0,1W 4828 © 4822 051 30008 CHIP JUMPER 0603
3883 © 4822 051 10102 1kΩ 2% 0,25W 4829 © 4822 051 20008 CHIP JUMPER 0805
3890 © 4822 051 30332 3,3kΩ 5% 0,06W 4830 © 4822 051 20008 CHIP JUMPER 0805
3891 © 4822 051 30472 4,7kΩ 5% 0,06W 4831 © 4822 051 20008 CHIP JUMPER 0805
4700 © 4822 051 20008 CHIP JUMPER 0805 4832 © 4822 051 30008 CHIP JUMPER 0603
4701 © 4822 051 20008 CHIP JUMPER 0805 4833 © 4822 051 20008 CHIP JUMPER 0805
4702 © 4822 051 20008 CHIP JUMPER 0805 4834 © 4822 051 20008 CHIP JUMPER 0805
4703 © 4822 051 20008 CHIP JUMPER 0805 4837 © 4822 051 20008 CHIP JUMPER 0805
4704 © 4822 051 20008 CHIP JUMPER 0805 4838 © 4822 051 30008 CHIP JUMPER 0603
4705 © 4822 051 20008 CHIP JUMPER 0805 4839 © 4822 051 20008 CHIP JUMPER 0805
4706 © 4822 051 20008 CHIP JUMPER 0805 4840 © 4822 051 20008 CHIP JUMPER 0805
Downloaded from www.Manualslib.com manuals search engine
10-14
ELECTRICAL PARTSLIST 3CDC-LC MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
RESISTORS RESISTORS
––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––
4841 © 4822 051 20008 CHIP JUMPER 0805 4892 © 4822 051 20008 CHIP JUMPER 0805
4842 © 4822 051 20008 CHIP JUMPER 0805 4893 © 4822 051 20008 CHIP JUMPER 0805
4844 © 4822 051 20008 CHIP JUMPER 0805 4894 © 4822 051 20008 CHIP JUMPER 0805
4845 © 4822 051 20008 CHIP JUMPER 0805 4895 © 4822 051 20008 CHIP JUMPER 0805
4846 © 4822 051 20008 CHIP JUMPER 0805 4896 © 4822 051 20008 CHIP JUMPER 0805
4847 © 4822 051 20008 CHIP JUMPER 0805 4897 © 4822 051 20008 CHIP JUMPER 0805
4848 © 4822 051 20008 CHIP JUMPER 0805 4898 © 4822 051 20008 CHIP JUMPER 0805
4849 © 4822 051 30008 CHIP JUMPER 0603 4899 © 4822 051 20008 CHIP JUMPER 0805
4851 © 4822 051 30008 CHIP JUMPER 0603
4855 © 4822 051 20008 CHIP JUMPER 0805 COILS
–––––––––––––––––––––––––––––––––––––––––––––––––––––
4856 © 4822 051 20008 CHIP JUMPER 0805 1810 2422 540 98519 RESONATOR 8,467MHz
4857 © 4822 051 20008 CHIP JUMPER 0805
4858 © 4822 051 20008 CHIP JUMPER 0805 DIODES
4868 © 4822 051 20008 CHIP JUMPER 0805 –––––––––––––––––––––––––––––––––––––––––––––––––––––
4869 © 4822 051 20008 CHIP JUMPER 0805 6801 © 4822 130 11397 BAS316
6802 © 4822 130 11397 BAS316
4870 © 4822 051 20008 CHIP JUMPER 0805 6803 © 4822 130 11397 BAS316
4871 © 4822 051 20008 CHIP JUMPER 0805 6804 © 4822 130 11397 BAS316
4872 © 4822 051 20008 CHIP JUMPER 0805 6805 © 9340 548 52115 BZX284-C5V1
4873 © 4822 051 20008 CHIP JUMPER 0805
4874 © 4822 051 20008 CHIP JUMPER 0805 6807 © 9322 129 34685 BZX284-C3V9
6808 © 4822 130 11397 BAS316
4875 © 4822 051 20008 CHIP JUMPER 0805 6809 © 9322 129 34685 BZX284-C3V9
4876 © 4822 051 20008 CHIP JUMPER 0805
4878 © 4822 051 20008 CHIP JUMPER 0805 TRANSISTORS
4879 © 4822 051 20008 CHIP JUMPER 0805 –––––––––––––––––––––––––––––––––––––––––––––––––––––
4880 © 4822 051 20008 CHIP JUMPER 0805 7806 © 5322 130 60159 BC846B
7812 © 5322 130 60159 BC846B
4882 © 4822 051 20008 CHIP JUMPER 0805 7815 © 5322 130 60159 BC846B
4883 © 4822 051 20008 CHIP JUMPER 0805
4884 © 4822 051 20008 CHIP JUMPER 0805 INTEGRATED CIRCUITS
4885 © 4822 051 20008 CHIP JUMPER 0805 –––––––––––––––––––––––––––––––––––––––––––––––––––––
4886 © 4822 051 20008 CHIP JUMPER 0805 7801 © 9352 622 36118 TZA1025T/V2 HF-Amplifier
7802 © 9352 641 80557 SAA7324H/M2B,"CD10" SIGN.PROC.
4887 © 4822 051 30008 CHIP JUMPER 0603 7803 4822 209 32852 TDA7073A/N2
4888 © 4822 051 20008 CHIP JUMPER 0805 7807 4822 209 32852 TDA7073A/N2
4889 © 4822 051 20008 CHIP JUMPER 0805 7811 © 4822 209 33165 TDA1308T/N1
4890 © 4822 051 20008 CHIP JUMPER 0805
4891 © 4822 051 30008 CHIP JUMPER 0603 7813 © 5322 209 11306 HEF4094BT, SHIFT REGISTER
7814 4822 209 32852 TDA7073A/N2
Downloaded from www.Manualslib.com manuals search engine
10-15
ELECTRICAL PARTSLIST MP3CD2002 MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
MISCELLANEOUS RESISTORS
––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––
3103 308 67020 complete MP3CD2002 Module 3474 © 4822 117 12971 15Ω 5% 0,06W
1451 2422 025 17303 FLEX FOIL CONNECTOR 19P 3475 © 4822 051 30101 100Ω 5% 0,06W
3476 © 4822 051 30101 100Ω 5% 0,06W
CAPACITORS 3477 © 4822 051 30471 470Ω 5% 0,06W
––––––––––––––––––––––––––––––––––––––––––––––––––––– 3478 © 4822 051 30471 470Ω 5% 0,06W
2450 © 2238 586 59812 100nF 10% 50V
2451 © 3198 017 41050 1µF 20% 10V 3479 © 4822 051 30471 470Ω 5% 0,06W
2452 © 3198 017 41050 1µF 20% 10V 3480 © 4822 051 30101 100Ω 5% 0,06W
2453 © 2238 586 59812 100nF 10% 50V 3481 © 4822 051 30101 100Ω 5% 0,06W
2454 © 2238 586 59812 100nF 10% 50V 3482 © 4822 051 30471 470Ω 5% 0,06W
3483 © 4822 051 30101 100Ω 5% 0,06W
2455 © 2238 586 59812 100nF 10% 50V
2456 © 2238 586 59812 100nF 10% 50V 3484 © 4822 117 12971 15Ω 5% 0,06W
2457 © 5322 126 11583 10nF 10% 63V 3486 © 4822 051 30101 100Ω 5% 0,06W
2458 © 5322 126 11583 10nF 10% 63V 3488 © 4822 117 13632 100kΩ 1% 0,06W
2459 © 3198 017 41050 1µF 20% 10V 3489 © 4822 051 30103 10kΩ 5% 0,06W
3490 © 4822 051 30101 100Ω 5% 0,06W
2460 © 2238 586 59812 100nF 10% 50V
2461 © 4822 124 81059 220µF 20% 4V 3491 © 4822 051 30479 47Ω 5% 0,06W
2462 © 3198 017 41050 1µF 20% 10V 3492 © 4822 051 30105 1MΩ 5% 0,06W
2463 © 3198 017 41050 1µF 20% 10V 3493 © 4822 051 30103 10kΩ 5% 0,06W
2464 © 2238 586 59812 100nF 10% 50V 3494 © 4822 051 30103 10kΩ 5% 0,06W
3495 © 4822 051 30103 10kΩ 5% 0,06W
2465 © 2238 586 59812 100nF 10% 50V
2466 © 2238 586 59812 100nF 10% 50V 3497 © 4822 051 30103 10kΩ 5% 0,06W
2467 © 3198 017 41050 1µF 20% 10V 3498 © 4822 051 30332 3,3kΩ 5% 0,06W
2468 © 3198 017 41050 1µF 20% 10V 3499 © 4822 051 30103 10kΩ 5% 0,06W
2469 © 2238 586 59812 100nF 10% 50V 4450 © 4822 051 30008 CHIP JUMPER 0603
2470 © 2238 586 59812 100nF 10% 50V COILS
2471 © 2238 586 59812 100nF 10% 50V –––––––––––––––––––––––––––––––––––––––––––––––––––––
1460 4822 242 10989 CER.RES. 16,9MHz
RESISTORS 5450 © 4822 157 11074 100µH
–––––––––––––––––––––––––––––––––––––––––––––––––––––
3449 © 4822 051 30101 100Ω 5% 0,06W DIODES
3450 © 4822 117 12971 15Ω 5% 0,06W –––––––––––––––––––––––––––––––––––––––––––––––––––––
3451 © 4822 117 12971 15Ω 5% 0,06W 6450 © 4822 130 11411 BZX284-C3V3
3452 © 4822 051 30101 100Ω 5% 0,06W 6451 © 4822 130 11366 BZX284-C3V9
3453 © 4822 051 30109 10Ω 5% 0,06W 7454 4822 130 34174 BZX79-B4V7
3454 © 4822 117 12971 15Ω 5% 0,06W TRANSISTORS
3455 © 4822 051 30102 1kΩ 5% 0,06W –––––––––––––––––––––––––––––––––––––––––––––––––––––
3456 © 4822 051 30102 1kΩ 5% 0,06W 7452 © 3198 010 42310 BC847BW
3457 © 5322 117 13051 680Ω 1% 0,063W 7453 © 3198 010 42310 BC847BW
3458 © 5322 117 13061 180Ω 1% 0,063W 7456 © 3198 010 42310 BC847BW
7460 © 3198 010 42310 BC847BW
3459 © 4822 051 30221 220Ω 5% 0,06W
3460 © 4822 051 30102 1kΩ 5% 0,06W INTEGRATED CIRCUITS
3461 © 4822 051 30479 47Ω 5% 0,06W –––––––––––––––––––––––––––––––––––––––––––––––––––––
3462 © 4822 051 30101 100Ω 5% 0,06W 7450 © not available please order complete MP3 module
3463 © 4822 051 30101 100Ω 5% 0,06W 7451 © not available please order complete MP3 module
7455 © 4822 209 17108 LM317LD Voltage Regulator
3464 © 4822 051 30103 10kΩ 5% 0,06W 7457 © 9352 456 50115 HC1G04, Inverter
3465 © 4822 051 30101 100Ω 5% 0,06W 7458 © 9322 130 41668 M24C64, EEPROM
3466 © 4822 051 30471 470Ω 5% 0,06W
3467 © 4822 051 30103 10kΩ 5% 0,06W 3103 308 67020 complete MP3CD2002 Module
3468 © 4822 051 30103 10kΩ 5% 0,06W
3469 © 4822 051 30101 100Ω 5% 0,06W
3470 © 4822 117 12971 15Ω 5% 0,06W
3471 © 4822 051 30339 33Ω 5% 0,06W
3472 © 4822 051 30154 150kΩ 5% 0,06W
3473 © 4822 117 13632 100kΩ 1% 0,06W
Downloaded from www.Manualslib.com manuals search engine
11-1 11-1
Circuit details:
Amplifier:
Attention: In the POWER 2001 module the power amplifier IC AN17850A is used as a bridge-amplifier.
Any connection from output to ground will destroy the outpout stages!
• Via the AMP_ON control line, connected to pins 6 (Stby), the power amplifiers are switched on/off by the µP.
High level (approx. 4,5V): power amplifiers switched on
Low level (approx. 0V): power amplifiers switched off
• Super class G - operation
The power amplifiers operate as so-called super class G - amplifiers:
The supply pins 12 (Vcc) are not just connected to one fixed DC-supply as in conventional amplifiers.
Dependent on the output power there are three different DC-voltages supplied to the power amplifiers:
⇒ +C1 (+20V) for low output power
⇒ +B1 (+29V) for medium output power
⇒ +A1 (+41V for high output power
Principle / benefit of Super Class G
Conventional power stage Class G amplifier Super class G amplifier
+A +A
+B +B
+C +C +C
output signal output signal output signal
activating point +A
activating point +A activating point +B
Voltage drop on power stage IC
Voltage drop on switching transistor(s)
POWER 2001 Module Benefit - voltage drop on switching transistor(s) reduces total power dissipation
(30 - 70W Version) stage .9
% % %
Output power Output power Output power
+A +A +A
Power
Power
Power
+B
it
TABLE OF CONTENTS
f
ne
efit
Be
+C +C
Ben
Power Power Power
Brief Circuit Description.........................................................................11-1 dissipation dissipation dissipation
Block Diagram.......................................................................................11-3
Component Layout Mains part.............................................................11-4
Circuit Diagram Mains part ..................................................................11-5
Component Layout Power part ............................................................11-6
Circuit Diagram Power part..................................................................11-7
Partslist .................................................................................................11-8
Downloaded from www.Manualslib.com manuals search engine
11-2 11-2
Circuit details continued: Generation of +C1
Full wave rectifying with 2 diodes of bridge rectifier 6202, using 50% secondary winding of mains transformer (pin 13-15/13-11).
• Low power standby feature See picture 2 below.
An additional small standby transformer, reduces power consumption in standby-mode.
In case power is switched on, the control line ECO is low → relay 1210 is activated → contacts 1 and 2 are closed →
transformer 5001is connected to mains.
When the set is switched off (standby) the control line ECO is high → relay 1210 is not activated → mainstransformer is
1200
disconnected. Via standby transformer and rectifiers 6210-6214 the supply voltage LOW_PWR_SUP is substituted. This
voltage is always available and so the microprocessor is kept running. 19,5V +C1
2216
2215
5001
17
• DC voltages +A1, +B1, +C1 1
*
These voltages supply the Super Class G amplifier, described on previous page. 16
The whole power supply is optimized for the special characteristic of this type of amplifier. For that reason several “tricky” 2 38V
15
details have been applied to ensure optimal efficiency and symmetrical load to the mains transformer.
3 14
10,5V 6201
13
1207
Generation of +A1
Common full wave rectifying with bridge rectifier 6202, using 100% secondary winding of mains transformer (pin 10-14). 4 6,5V 28,5V
12
6,5V 6200 +B1
2201
Generation of +B1 11 1205
The supply for +B1 consists of one full wave rectifier: 5 10,5V
10
– 2 diodes of bridge rectifier 6202, with 6200(6220 in parallel) 6201(6221 in parallel) for generation of +B1using approx.
6
70% secondary winding of mains transformer (pin 10-13 respectively pin 11-14). 9
As example for generation of +B1 see picture 1. 7 4,5V
8
2203
Signal path
41V
pos. halfwave 6202
+A1
2204
2205
1200 neg. halfwave
2206
19,5V +C1
2216
2215
5001
17
1
* simplified:
16
2 38V
15
3 14 6202
10,5V 6201
13
1207 15 D5SBA20
4 6,5V 28,5V 17V
12 1200 19,5V
+B1 13
6,5V 6200
2201
11 1205
+C1
17V
2216
2215
5 10,5V
10
6 11
9 6202
7 4,5V
8
picture 2
2203
Signal path
41V
pos. halfwave 6202
+A1
2204
2205
neg. halfwave
2206
picture 1
Downloaded from www.Manualslib.com manuals search engine
11-3 11-3
Block Diagram
MAINS BOARD P2001 BOARD
+C1 +B1 +A1
6308
6304
1200
+C1
2216
2215
5001
7309
7304
17 NTC is used for
monitoring the
transformer temparature
Mains socket 16
Level detection
1204 15
supply for Power amplifier
14
1207 6201
(Super Class G)
13
Stand by 12
Relais +B1 7301,7302
6200
2201
1210 11 1205 LEFT, RIGHT Power amplifier
from Source Selector
10 on Audio Frequency Board
9 F1 is used for
filament of
8 display
F2
12V Regulator
6202 B1 +12V_A
+A1 +12V_D
2205
7330
+12V_CDR
LOW_PWR_CNTRL VCD_ON
6206
-Vkk supply of
display
5,6V Regulator
Stand by C1 +5V6
Transformer
5203 6210-6214
VCD_ON
LOW_PWR_SUP is used to 5V Regulator
supply the microprocessor
during ECO stand by +5V_VCD
Blockdiagram Power2001 30-70W, 26 09 2000
Downloaded from www.Manualslib.com manuals search engine
11-4 11-4
1200 B5 6210 C5
1201 B4 6211 B5
Mains Board Copperside view 1202 C1 6212 C5
1203 A5 6213 B5
1205 B3 6214 B5
1206 C1 6215 D5
1207 C3 6216 C5
1208 D1 6217 C5
B C E 1209 C5 6218 C5
01-06-11
1210 C5 6220 B3
1211 D5 6221 B3
1212 D4 6222 B5
1222 B2 7200 A2
1223 B1 7201 D5
B C E 2200 B5 7202 C5
3103 303 3446.9
2201 A4 7203 A3
2202 B3 9206 B2
2203 B4 9208 B1
2204 B4 9210 D1
2205 B3 9211 D4
2206 A4 9212 D5
2207 B2 9213 D4
2208 B3 9214 C5
2209 B2 9216 B4
2210 B2 9217 B3
2211 D5 9218 C4
6222
2212 C5 9219 C1
2213 D5 9220 C3
2214 D5 9221 D3
2215 A5 9222 D3
2216 B5 9223 C4
2217 A5 9224 B4
2250 A3 9225 B4
3200 B2 9226 D4
3201 B2 9227 B4
3202 B3 9228 D3
3204 A3 9229 C5
3205 B4 9230 C3
3206 B5 9231 D3
3207 C5 9232 D2
3208 C5 9233 D3
3209 D5 9234 D2
3211 B3 9235 C3
3212 A4 9236 C3
5001 C2 9237 C3
5202 B1 9238 C3
5203 D5 9239 C3
6200 B3 9240 C2
6201 B3 9241 C2
6202 B4 9242 B5
6203 B2 9243 A4
6204 B2 9244 A5
6206 B3 9245 C2
6207 A2 9246 A2
6208 C5 9247 A2
6209 C5 9248 A3
Mains Socket
3447.9
Mains socket
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram respectively partslist. Power 2001, Mainsboard Layout stage .9 2001-06-26
Downloaded from www.Manualslib.com manuals search engine
11-5 11-5
1200 A6 1207 B6 1222 A2 2204 D7 2210 E7 2216 A7 3204 E7 3211 E6 6201 B8 6208 D4 6214 E3 6221 C8 9208 B2 9215 F6
1201 A9 1208 B4 1223 B2 2205 D8 2211 E3 2217 A8 3205 E4 3212 D9 6202 C8 6209 E4 6215 F3 7200 D7 9210 B4
1202 A4 1209 E9 2200 A7 2206 D8 2212 E3 2250 D8 3206 E3 5001 C5 6203 D6 6210 E3 6216 F4 7201 E4 9211 C4
1203 B9 1210 D4 2201 C8 2207 D8 2213 E4 3200 C2 3207 E4 5202 A2 6204 D9 6211 E3 6217 F5 7202 F5 9212 D2
1205 B6 1211 E2 2202 C8 2208 E8 2214 F3 3201 D6 3208 F4 5203 E1 6206 E6 6212 E5 6218 F6 7203 D7 9213 E1
1206 B3 1212 E1 2203 C7 2209 E6 2215 A7 3202 E7 3209 F3 6200 B8 6207 F7 6213 E3 6220 B8 9206 A2 9214 E5
1 2 3 4 5 6 7 8 9
1201
P2001 30-70W MAINS 4
TO C/S BOARD
GND
C1
3
GND
1200 19.5V CDR ONLY 19.5V 2
C1
A T5A 28.5V 1
B1
A
2216
2200
2215
2217
19372
6m8
4m7
6m8
4m7
EH-B
1204 not on all versions not on all versions
5201 1220 1222 1202
5202
2
T1,6A
1206 optional optional
1 T1,25A
97TS 1221 1223 97TS T4A 5001
1
NTC 1205 6200
2
17
T4A 1N5392
B B
3
1 16 6220
NOT /21
SDKGA 1203
/21 ONLY 9210 2 15
1N5392 19.5V 6
Voltage Selector C1
1208 14 1207
TO POWER BOARD
6201 28.5V
3 28.5V 5
B1
T1,6A 13
4 T4A 1N5392 4
/21 ONLY GND
12 6221
3200
10M
3
5 GND
2201
3m3
11
/37 ONLY 6 1N5392 41V 2
A1
10
T.F.
F2 2202 41V 1
A1
C 7
9 F1 100n
EH-B
C
9211 8 GBU8D
SDT Mains Transformer
2 1 2203 41V
6202
2205 or 2250
4m7 only for /37
3m3 not for /37
100n
2204
100n
3212
33K
3 4 Stand by Relay
2206
1210
100n
LOW_PWR_SUP 6208
D 13.5V 2,5V
ECO 6203 3201 7.8V D
1N4148
BZX79-F8V2
1N4148 4K7
6209 3205 7200 or 7203
2207
6204
47n
BD238
-45V -33V
ONLY /21 1N4148 4K7
9212
NOT /21
9213
1211
2208
0u47
3202
-33.5V
3K9
5203
3211
4R7
1212 T160mA
1N4003*
5
1N4003*
6 9214
NOT /21
6211
2211
6210
47n
NOT /21
T100mA 1209
E /21 ONLY
28V 7201 0V
6212
6206 1 E
680R
-Vkk
8 BC327-25
3204
14V 14V
1N4003
TO POWER BOARD
2
F1 F1
1N4003*
1N4003*
BYV10-40
6213
2212
2213
220u
2209
100u
2210
100u
3206
6214
3207
13.5V 3
47n
10K
4K7
BZX79-C33
1 10 28V 13.5V F2 F2
LOW_PWR_SUP
6207
13.4V 4
Power Down
3208
4K7
Stand by Transformer 8.4V 28V 5
NTC NTC
6215 8.5V 12.9V
6
6216 ECO ECO
7202
BYV10-40 -Vkk regulator 7
BC547B LOW_PWR_SUP Low Power Supply
2214
220u
100K
BZX79-C8V2
3209
F .....V DC-voltages measured V... at 120V AC
14V
6217 6218 6222
F
7.5V FE-BT-VK-N
V EVM with low output power C1
V... at 240V AC
Low Power supply regulator BYV10-40 1N4148 BZX79-C2V7
ONLY /21 version
for /21 version only
1N4003* → for /21 BYV10-40 is used Power2001 Mainsboard, 2001-03-21
1 2 3 4 5 6 7 8 9
Downloaded from www.Manualslib.com manuals search engine
11-6 11-6
POWER BOARD COPPERSIDE VIEW - P2001 30-70W AN17850 (PWR313 )
Downloaded from www.Manualslib.com manuals search engine
11-7 11-7
POWER BOARD CIRCUIT DIAGRAM - P2001 30-70W AN17850 (PWR313 )
0300 D10 6303 E12
1 2 3 4 5 6 7 8 9 10 11 12 13 14 1300 E9 6304 A11
1301 B9 6305 A6
1302 A1 6306 B14
3395 1304 C1 6307 B13
P2001 30-70W +12V Regulator
for non switchable 12V_CDR
1305 D3 6308 C11
CDR ONLY +12V_CDR
0R22 1306 D1 6309 B4
7303
3313 A00 1307-A F14
1307-B E14
6310 C4
6311 C9
BC557B 6K8 3381 B1
+12V_D
1308 F12 6312 C3
+12V_A
LOW_PWR_SUP
C1 B1 A1 1310 G1 6313 C5
3398
9310
2323
1302
8K2
10u
A1
1 F300
A1
B1 S30 7305 STP16NE06 100K 1312 H1
1313 I9
6314 D3
6315 D14
TO SUPPLY MAINS
100K
7330
3393
6332 Amplifier Part
A A1
2 F301
28.5V
BDX53BFI
F305
7306
BD438 11.8V
3380 28V
OCD 6331 0.8V 3377 A 1314 G1
1315 D1
6316 F5
6317 E6
1K 7331 7333 10K 19.5V 28.5V 41V 1316 D1 6318 E6
3 11.9V BC547B 3383 1N4148 BZX79-C15
GND 0V 2307 D8 6319 G3
BC547B
F302 2308 G8 6320 H4
470R
3314
820R
3392
3378
4 VCD_ON
4K7
GND 100K 3394 2309 B9 6321 G5
6335 BZX79-C5V6 3316
270R
3317
1K
BZX79-B10
F303 2310 E9 6322 H5
BYV28-200/20
13.1V
100K
5
B1 B1 0.6V 100K 5V 2315 D9 6325 E5
330R
3315
11.3V
2325
6305
Overvoltage
47u
F304 3382 2316 G9 6326 H2
3396
6304
2326 7304
10K
C1
6
C1 24.2V 24.8V protection 41V 2317 F13 6327 H3
6333
BDW94C 2318 F13 6328 I13
3319
3320
3321
1301 40V
1K
1K
1K
EH-B 7310 2u2 F306 2319 F13 6329 I7
2324
3322
47K
33p
CDR ONLY 2320 F13 6330 H11
BC557B 7307
F307 3318 2321 F14 6331 A10
A95 F3A15
3324
3325
15K
3K3
BC556B
2309
1N4148
1u
10V 2322 F13 6332 A11
9399 7309 7308
10K 3K3 2323 A5 6333 B2
180R
3327
9301
5V STP16NE06 BC337-40 2324 B14 6334 B4
B LOW_PWR_CNTRL 3328 3390
28V
B 2325 A5 6335 B2
2348
13.1V 3.6V
47u
1N4148
40V 2326 A3 7301 B8
F308 7301
6306
Direct OV-Protection ONLY
1K AN17850A 14.4V 2327 B6 7302 E8
12
2327
7311
10u
1N4148
6335 for CDR only
CDR ONLY
7312 3309 2328 D4 7303 A4
6334
3331
33K
BC547B Φ VCC
BZX79-C15
9301 for non CDR 3305 9.5V 3326 2329 E5 7304 A13
BC547B 5 6307 2330 E5 7305 A3
B1 IN LF-POWER 4R7 19V
6309
4.4V 3333 47K 5303 4K7 2331 E6 7306 A5
for 3322 3331 3392 AMP VOUTp 10 2332 F5 7307 B12
6 BZX79-B3V9
3332
F311 2K2
0.6V
OCD
CDR 3k3 3k3 1k5 68R MUTE 1u 2333 F7 7308 B14
7 2334 H6 7309 B12
7314 7315 VOUTn
220R
3329
3336
10K
2 2335 H5 7310 B3
BC547C BC547B STDBY 5301
BZX79-B8V2
0.8V 2336 E4 7311 B3
1 8 1u 2337 F4 7312 B6
BYV27-200
2.5V 1.4V NC1 NC3 9.5V
6310
4 11 2338 F4 7314 C2
NC2 NC4 3311
C 1.4V
6308
C 2339 I2 7315 C5
120R
1304
3337
INGND PWRGND 2340 I14 7316 C5
F309 4R7
220R
A95
3330
1
3
9
1N4148
-Vkk 0.6V 2341 I7 7317 E4
F313
6312
7316 2342 I8 7318 D6
TO SUPPLY MAINS
2
F312
F1 0V BC547B 2343 D3 7319 F6
3338
CL_DET
10R
1N4148
F314 6311 2344 I4 7320 G4
6313
3 2348 B7 7321 H4
F2
2343
2328
100n
2307
220p
0300
3339
3307
3K3
4K7
1N4148
3300 G6 7322 I5
1u
F315
6314
4 1N4003 3305 B7 7323 F3
PWR_DWN
F316 2315 F310 3306 G7 7324 F4
5 9300 3307 D8 7325 H2
NTC
F317 9.5V 3308 G8 7326 I12
6 4n7 3309 B10 7327 H8
ECO
3310 F10 7328 H10
BZX79-B24
220R
3379
D D
220R
3340
LOW_PWR 7 3311 C10 7330 A7
C1 +5V6
6315
_SUPPLY 3312 F10 7331 A8
9303
9302
NON CDR CDR ONLY 3313 A5 7332 I9
FE-BT-VK-N 9308 9309 5V6 Regulator 7318 LRIN
LOW_PWR_SUP 19V 3314 A14 7333 A9
NON CDR L7805 3315 A12 7334 H5
1305 F342 19.5V F344
9306 3316 A3 9300 D9
1315 1316 1306 F318
IN OUT 3317 A3 9301 B3
1 F320
GND
LEFT 1 1 left ECO T2A5 CDR ONLY 3318 B13 9302 D3
5.6V
3344
NON-ECO T1A 9307
10K
3319 B4 9303 D2
2 F348 LRIN
3341
2 2
4K7
GND_A 3320 B5 9306 D3
2331
100n
1N4003
1N4003
3321 B5 9307 E3
1N4003
1N4003
3 3 3 F322 BDW94C 5V6 Regulator 0.6V
6300
6301
6303
6302
right 3322 B2 9308 D4
RIGHT F343
19.5V 3 7317 2 3324 B4 9309 D4
1N4148
1N4003
F319
4 F324
6317
6318
2329
2330
100n
NTC 4 4 3325 B4 9310 A7
1300
1u
F330
E E
100R BZX79-B4V7
3326 B12 9398 E9
2336
5 5 5 LOW_PWR_CNTRL 3327 B6 9399 B9
47u
LOW_PWR
F3A15 1307-B
6325
2310
_CNTRL 18.5V
L00 3328 B5 F300 A1
1u
6 6 6 PWR_DWN 3354 1 9398 YKD21-0026 3329 C14 F301 A1
PWR_DWN
F325
CLIPPING 7 7 7 CLIPPING 22K NON-CDR ONLY S30 4
LEFT
3330 C14
3331 B2
F302 A1
F303 A1
F326
100K
3355
3356
3
2K2
3332 C3 F304 A1
8 F327 7302
2337
8 8
3357
3333 B6 F305 A4
10u
AMP_ON
+5V6 AN17850A 12 F328 2 3336 C5 F306 B9
S00 Overvoltage
TO AF BOARD
9 9 9 3343 3310 3337 C6 F307 B13
-Vkk
Protection Φ VCC F331 1 RIGHT
3345 BZX79-C6V8
5 3338 C2 F308 B2
10 10 10 470K IN LF-POWER 4R7 3339 D4 F309 C1
F1 9.5V 5302
BC368
6316
7323 0.6V 19.5V AMP VOUTp 10
2318 2317 YKD21-0026
3340 D14 F310 D13
F2 11 11 11 BC547B 6 3341 E14 F311 C3
MUTE 1u 1307-A
F 12 12
7324
BC547B
0.6V 0V 7319
2
VOUTn
7
A96 100n 100n F 3343 F3
3344 E6
F312 C1
F313 C9
4
1
NC STDBY 5300
FE-BT-VK-N 3345 F5 F314 C1
13 F329 1308
270R
150R
2338
2332
100n
2320
2322
2319
2321
3358
3346 G2 F315 D1
A00
47n
47n
47n
47n
1 8 1u
1u
VCD_ON NC1 NC3 EH-B
A95FE-BT-VK-N
2333
3347 G2 F316 D1
47u
4 11
NC2 NC4 3312 Left Right 3348 G4 F317 D1
FE-BT-VK-N 9.5V 3349 H4 F318 D13
INGND PWRGND for matrix surround only
1314 1310 4R7 3350 H5 F319 E3
C60
3
CDR ONLY
LOW_PWR 1 1 F332 LOW_PWR_SUP 3351 H5 F320 D2
3300
F340
_SUPPLY 3352 I5 F322 E2
2 2 F333 3354 E3 F324 E2
+11V_A +12V_A 3K9 3355 E3 F325 E11
3 3 3306 3356 E4 F326 E11
TO AF BOARD
GND_A 3357 F5 F327 E2
F334 7320 5V Regulation 47K
G 4
G
2308
220p
3358 F5 F328 F11
3308
4
4K7
+5V6 VCD_ON
+11V_M 3346 6319 5.6V BD438 5V 5V_VCD 3359 I3 F329 F2
5 5 +12V_D +5V6 2316 3360 H3 F330 E9
GND_M 1K8 1N4148 VCD_ON_DET 3361 I3 F331 F11
6 F338 +5V6 4n7 3362 H3 F332 G1
3348
6
10K
D
1N4148
+5V6 3347
W00
6321
3363 I3 F333 G1
7 7 5.1V 3364 H12 F334 G1
1K8 F337 3365 I12 F336 H1
2334
GND_D
BZX79-B3V9
47u
8 F336 3366 I13 F337 G4
EH-B LRIN 3367 I14 F338 G1
6322
5V_VCD
6320 +12V_D Fan Control
150R 3397
5V_VCD 3368 I6 F340 G9
3K3
EH-B
A95 W00
OCD
uP-Overvoltage +12V_D +5V6
1N4148 4.5V
3369 H7
3370 I7
F341 H5
F342 D3
detection 3371 H8 F343 E4
150R
2335
100K
1312
3349
3374
3350
10u
5V_VCD only for not
A1 3372 H11 F344 D6
H +11V_CDR
1 switchable 5V
Clipping Detection H 3373 I10 F345 I14
180R
3351
3374 H4 F346 H7
270R
A11
3371
2
3369
5R6
1N4148
1N4148
5V 3375 I13 F347 I9
6326
6327
3360
3362
15K
6K8
3376 H7 F348 E2
TO CDR
3 4.5V
GND_D BC557B 3377 A10 F349 I1
7334 0.6V 11.6V 6330
F341 VCD_ON_DET 7328 3372 OCD 3378 A10
100K
0V 7321
3364
4 7325 BC547B 3376 F346 11V 7327 3379 D13
5 D
BC547B BC547B
2344
BC327-25
F347
1313 A96 4.5V 0V 47K 1N4148 7326 3375 3380 A7
470R 3381 A8
100K
3359
120R
3361
3363
3352
7.5V 1
+ BC557B
47u
1K
1K
2339
10K 3382 A8
3370
6 FAN 5V_VCD short circuit
1K
5V_CDR 7322 40V 3366 F345 3383 A8
4n7
3368
2 5V
F349 BC547B 0V - detection CLIPPING 3390 B7
t
6329
A95 PH-B +12V_CDR 10K 3391 I8
3373
41V
10K
BZX79-B4V7
10k
I VCD+CDR ONLY C60 3391
EH-B
I 3392 A2
3393 A8
2341
100u
6328
2340
100n
220K
BZX79-C3V9 0.6V
3365
3367
t.b.f.
7332
68K
3394 A9
A60
2342
100u
3K9 BC337-40 5V_VCD 3395 A5
3396 A4
3397 H4
W00 3398 A4
5300 F10
D CDR ONLY CDR ONLY CL_DET 5301 C10
5302 F10
5303 B10
6300 E12
6301 E12
6302 E13
1 2 3 4 5 6 7 8 9 10 11 12 13 14
Downloaded from www.Manualslib.com manuals search engine
11-8 11-8
ELECTRICAL PARTSLIST P2001 30-70W AN17850 (PWR313)
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– ELECTRICAL PARTSLIST POWER2001 MODULE
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
MISCELLANEOUS CAPACITORS RESISTORS DIODES
––––––––––––––––––––––––––––––––––––––––––––––––––––– ––––––––––––––––––––––––––––––––––––––––––––––––––––– ––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––
1200 ! 2422 086 10963 FUSE RAD 5A 250V IEC 2341 4822 124 23052 100µF 20% 16V 3368 2322 640 63103 10kΩ NTC 6327 4822 130 30621 1N4148
1202 ! 4822 071 51252 FUSE 1.25A for sets without 5203 2342 4822 124 23052 100µF 20% 16V 3369 4822 116 83876 270Ω 5% 0.16W 6329 4822 130 31981 BZX79-B3V9
1202 ! 4822 071 51602 FUSE 1,6A for sets with 5203 2343 4822 124 21913 1µF 20% 63V 3370 4822 050 11002 1kΩ 5% 0,2W 6330 4822 130 30621 1N4148
1202 ! 4822 253 10126 FUSE T4A 3371 4822 052 10568 5,6Ω 5% 0,33W 6331 4822 130 30621 1N4148
1204 ! 2422 030 00328 MAINS SOCKET /37 RESISTORS 3372 4822 116 83884 47kΩ 5% 0,16W 6332 4822 130 34281 BZX79-C15
–––––––––––––––––––––––––––––––––––––––––––––––––––––
1204 ! 4822 265 31015 MAINS SOCKET /21, /22 3200 4822 053 21106 10MΩ 5% 0,5W 3373 4822 050 21003 10kΩ 2% 0,25W 6333 4822 130 34173 BZX79-B5V6
1205 ! 2422 086 10786 FUSE RAD 4A 250V IEC 3201 4822 116 52283 4,7kΩ 5% 0,5W 3374 4822 116 52213 180Ω 5% 0,5W
1206 ! 2422 129 16478 VOLTAGE SELECTOR 3202 4822 116 52276 3,9kΩ 5% 0,5W 3376 4822 116 83883 470Ω 5% 0,16W TRANSISTORS
1207 ! 2422 086 10786 FUSE RAD 4A 250V IEC 3204 4822 116 52228 680Ω 5% 0,5W 3377 4822 050 21003 10kΩ 2% 0,25W –––––––––––––––––––––––––––––––––––––––––––––––––––––
1208 ! 4822 071 51252 FUSE 1.25A for sets without 5203 3205 4822 116 52283 4,7k Ω 5% 0,5W 3378 4822 116 52231 820Ω 5% 0,5W 7200 4822 130 40917 BD238
7201 4822 130 41246 BC327-25
1208 ! 4822 071 51602 FUSE 1,6A for sets with 5203 3206 4822 050 21003 10kΩ 2% 0,25W 3379 4822 116 83872 220Ω 5% 0,5W 7202 4822 130 40959 BC547B
1209 4822 267 10953 FLEX FOIL CONNECTOR 7P 3207 4822 116 52283 4,7kΩ 5% 0,5W 3380 4822 050 11002 1kΩ 5% 0,2W 7303 4822 130 44568 BC557B
1210 ! 2422 132 07402 RELAY 1P 12V 3208 4822 116 52283 4,7kΩ 5% 0,5W 3381 4822 116 52234 100kΩ 5% 0,5W 7304 4822 130 10847 BDW94C
1211 ! 2422 086 10771 FUSE RAD 160mA 250V IEC 3209 4822 116 52234 100kΩ 5% 0,5W 3382 4822 116 52234 100kΩ 5% 0,5W
1212 ! 4822 071 51001 FUSE 100mA 3211 4822 052 10478 4,7Ω 5% NFR 3383 4822 116 52234 100kΩ 5% 0,5W 7305 9322 139 23687 BDX53BFP
7306 4822 130 40995 BD438
1304 4822 267 10953 FLEX FOIL CONNECTOR 7P 3212 4822 050 23303 33kΩ 1% 0,6W 3391 4822 116 52276 3,9kΩ 5% 0,5W 7307 4822 130 41691 BC556B
1305 ! 4822 071 51002 FUSE T1A for sets without 5203 3300 4822 116 52276 3,9kΩ 5% 0,5W 3392 4822 116 52283 4,7kΩ 5% 0,5W 7308 4822 130 40855 BC337-40
1305 ! 4822 071 52502 FUSE T 2,5A for sets with 5203 3305 4822 116 83884 47kΩ 5% 0,16W 7309 4822 130 11336 STP16NE06FP
1306 4822 267 10738 FFC-CONNECTOR 13P 3306 4822 116 83884 47kΩ 5% 0,16W COILS
1307 4822 267 31176 SPEAKER TERMINAL 3307 4822 116 52283 4k7Ω 5% 0,16W ––––––––––––––––––––––––––––––––––––––––––––––––––––– 7310 4822 130 44568 BC557B
5202 4822 157 11832 400µH 7311 4822 130 40959 BC547B
5203 ! 3103 308 30600 STANDBY TRANSFORMER /21 3308 4822 116 52283 4k7Ω 5% 0,16W 5220 4822 157 11832 400µH 7312 4822 130 40959 BC547B
5203 ! 3103 308 30610 STANDBY TRANSFORMER /22 3309 4822 050 24708 4,7Ω 1% 0,6W 5300 4822 157 62255 COIL 18,5 TURNS 7314 4822 130 44503 BC547C
5203 ! 3103 308 30800 STANDBY TRANSFORMER /37 3310 4822 050 24708 4,7Ω 1% 0,6W 5301 4822 157 62255 COIL 18,5 TURNS 7315 4822 130 40959 BC547B
8010 3139 110 34600 FLEX FOIL CABLE 7Pin, 280mm 3311 4822 050 24708 4,7Ω 1% 0,6W 5302 4822 157 62255 COIL 18,5 TURNS
4822 492 11735 SPRING FIXATION TRANSISTOR 3312 4822 050 24708 4,7Ω 1% 0,6W 7316 4822 130 40959 BC547B
5303 4822 157 62255 COIL 18,5 TURNS 7317 4822 130 10847 BDW94C
CAPACITORS 3313 4822 116 83961 6,8kΩ 5% 0,16W 7319 5322 130 44647 BC368
––––––––––––––––––––––––––––––––––––––––––––––––––––– 3314 4822 116 83883 470Ω 5% 0,16W DIODES 7320 4822 130 40995 BD438
2200 4822 124 12012 4700µF 20% 25V 3315 4822 116 52219 330Ω 5% 0,5W ––––––––––––––––––––––––––––––––––––––––––––––––––––– 7321 4822 130 40959 BC547B
2201 4822 124 42367 3300µF 20% 35V 3316 4822 050 11002 1kΩ 5% 0,2W 6200 ! 4822 130 31878 1N4003G
2202 5322 121 42386 100nF 5% 63V 3317 4822 116 83876 270Ω 5% 0.16W 6201 ! 4822 130 31878 1N4003G 7322 4822 130 40959 BC547B
2203 5322 121 42386 100nF 5% 63V 6202 4822 130 11139 GBU8D 7323 4822 130 40959 BC547B
2204 5322 121 42386 100nF 5% 63V 3318 4822 116 52269 3,3kΩ 5% 0,5W 6203 4822 130 30621 1N4148 7324 4822 130 40959 BC547B
3319 4822 050 11002 1kΩ 5% 0,2W 6204 3198 010 58280 BZX79-B8V2 7325 4822 130 40959 BC547B
2205 4822 124 80415 4700µF 20% 50V only for /37 3320 4822 050 11002 1kΩ 5% 0,2W 7327 4822 130 41246 BC327-25
2205 8203 303 85640 3300µF 20% 50V not for /37 3321 4822 050 11002 1kΩ 5% 0,2W 6206 4822 130 31878 1N4003G
2206 5322 121 42386 100nF 5% 63V 3322 4822 116 83884 47kΩ 5% 0,16W 6207 4822 130 34142 BZX79-B33 7328 4822 130 44568 BC557B
2207 4822 122 33449 47nF 30% 50V 6208 4822 130 30621 1N4148 7330 4822 130 11336 STP16NE06FP
2208 5322 124 41948 0,47µF 20% 50V 3324 4822 116 52244 15kΩ 5% 0,5W 6209 4822 130 30621 1N4148 7331 4822 130 40959 BC547B
3325 4822 116 52269 3,3kΩ 5% 0,5W 6210 4822 130 31878 1N4003G 7332 4822 130 40855 BC337-40
2209 2020 012 93547 100µF 20% 63V 3326 4822 116 52283 4,7kΩ 5% 0,5W
2211 4822 121 43526 47nF 5% 100V 3327 4822 116 52213 180Ω 5% 0,5W 6211 4822 130 31878 1N4003G INTEGRATED CIRCUITS
2212 4822 121 43526 47nF 5% 100V 3328 4822 050 11002 1kΩ 5% 0,2W 6212 4822 130 31878 1N4003G –––––––––––––––––––––––––––––––––––––––––––––––––––––
2213 4822 124 40255 100µF 20% 50V 6213 4822 130 31878 1N4003G 7301 9322 203 61682 AN17850A, Power amplifier
2214 4822 124 40207 100µF 20% 25V 3329 4822 053 11221 220Ω 5% 2W 6214 4822 130 31878 1N4003G 7302 9322 203 61682 AN17850A, Power amplifier
3330 4822 053 11221 220Ω 5% 2W 6215 4822 130 31878 1N4003G 7318 4822 209 31841 L7805CP, Stabilizer 5V
2217 4822 124 12012 4700µF 20% 25V 3331 4822 050 23303 33kΩ 1% 0,6W
2307 4822 122 10466 220pF 10% 50V 3332 4822 116 52256 2,2kΩ 5% 0,16W 6216 4822 130 34382 BZX79-B8V2
2308 4822 122 10466 220pF 10% 50V 3333 4822 116 52199 68Ω 5% 0,16W 6217 4822 130 31878 1N4003G
2309 4822 124 21913 1µF 20% 63V 6218 4822 130 30621 1N4148
2310 4822 124 21913 1µF 20% 63V 3336 4822 050 21003 10kΩ 2% 0,25W 6220 ! 4822 130 31878 1N4003G
3337 4822 116 52206 120Ω 5% 0,5W 6221 ! 4822 130 31878 1N4003G
2315 4822 126 11714 4,7nF 20% 16V 3338 4822 116 52176 10Ω 5% 0,5W
2316 4822 126 11714 4,7nF 20% 16V 3339 4822 116 52269 3,3kΩ 5% 0,5W 6300 4822 130 31878 1N4003G
2317 4822 126 12882 100nF 20% 50V 3340 4822 116 83872 220Ω 5% 0,5W 6301 4822 130 31878 1N4003G
2318 4822 126 12882 100nF 20% 50V 6302 4822 130 31878 1N4003G
2319 4822 121 43526 47nF 5% 100V 3341 4822 116 52283 4,7kΩ 5% 0,5W 6303 4822 130 31878 1N4003G
3343 4822 116 52285 470kΩ 5% 0,5W 6304 9340 550 66112 BYV28-200/24
2320 4822 121 43526 47nF 5% 100V 3344 4822 050 21003 10kΩ 2% 0,25W
2321 4822 121 43526 47nF 5% 100V 3345 4822 116 83876 270Ω 5% 0.16W 6305 4822 130 61219 BZX79-C10
2322 4822 121 43526 47nF 5% 100V 3346 4822 116 52249 1,8kΩ 5% 0,16W 6306 4822 130 30621 1N4148
2323 4822 124 40248 10µF 20% 63V 6307 3198 010 53980 BZX79-B3V9
2324 4822 122 33069 33pF 5% 50V 3347 4822 116 52249 1,8kΩ 5% 0,16W 6308 5322 130 31938 BYV27-200
3348 4822 050 21003 10kΩ 2% 0,25W 6309 4822 130 34281 BZX79-C15
2325 4822 124 40433 47µF 20% 25V 3349 4822 116 52213 180Ω 5% 0,5W
2326 4822 124 22652 2,2µF 20% 50V 3350 4822 050 21003 10kΩ 2% 0,25W 6310 3198 010 58280 BZX79-B8V2
2327 4822 124 40248 10µF 20% 63V 3351 4822 116 83868 150Ω 5% 0,5W 6311 4822 130 31878 1N4003G
2328 4822 126 12882 100nF 20% 50V 6312 4822 130 30621 1N4148
2329 4822 124 21913 1µF 20% 63V 3352 4822 116 52206 120Ω 5% 0,5W 6313 4822 130 30621 1N4148
3354 4822 116 52257 22kΩ 5% 0,5W 6314 4822 130 30621 1N4148
2330 4822 126 12882 100nF 20% 50V 3355 4822 116 52256 2,2kΩ 5% 0,16W
2331 4822 126 12882 100nF 20% 50V 3356 4822 116 52234 100kΩ 5% 0,5W 6315 4822 130 34398 BZX79-C24
2332 4822 126 12882 100nF 20% 50V 3357 4822 116 52175 100Ω 5% 0,5W 6316 4822 130 34278 BZX79-C6V8
2333 4822 124 40433 47µF 20% 25V 6317 4822 130 30621 1N4148
2334 4822 124 40433 47µF 20% 25V 3358 4822 116 83868 150Ω 5% 0,5W 6318 4822 130 31878 1N4003G
3359 4822 116 52234 100kΩ 5% 0,5W 6319 4822 130 30621 1N4148
2335 4822 124 40248 10µF 20% 63V 3360 4822 116 52244 15kΩ 5% 0,5W
2336 4822 124 40433 47µF 20% 25V 3361 4822 050 11002 1kΩ 5% 0,2W 6321 4822 130 30621 1N4148
2337 4822 124 40248 10µF 20% 63V 3362 4822 116 83961 6,8kΩ 5% 0,16W 6322 3198 010 53980 BZX79-B3V9
2338 4822 124 21913 1µF 20% 63V 6325 4822 130 34174 BZX79-B4V7
2339 4822 124 40433 47µF 20% 25V 3363 4822 050 11002 1kΩ 5% 0,2W 6326 4822 130 30621 1N4148
Downloaded from www.Manualslib.com manuals search engine
12-1 12-1
BRIEF INTRODUCTION OF THE AF9 BOARD
The AF9 Board consists of the following features :
a. TDA7468D
TDA7468D (7501) provides the basic sound processing - loudness, bass, treble, volume & mute controls and source selection - TUNER,
TAPE, CD & AUX including Mic mixing for the set.
Sound features such as ALC, DBB, DSC and IS are controlled by the microprocessor IC on the Front Board via I2C Bus.
Undesirable noise during source switching are muted off by via the software of the microprocessor IC on the Front Board.
b. MIC MIXING
Simple Mic mixing is provided by pin 2 of TDA7468D. During Mic mixed a 1nF capacitor is connected across this pin to ground instead
of a chip connector(0R).
AF9 BOARD c. DOLBY PRO LOGIC (DPL) INTERFACE
The AF9 Board has provisions to cater for DPL. External DPL Board would be required.
d. LINE OUT
Line out cinch socket (1504) is catered including tranistors muting circuitry.
e. SUB-WOOFER OUT
Sub-woofer out cinch socket (691) for connection to active sub-woofer speaker is catered.
f. INCREDIBLE SURROUND (IS)
The AF9 provides 2 possible IS namely:
a) Simple IS using TDA7468D with addition of passive network.
TABLE OF CONTENTS b) Full IS using transistor circuitry to create phase shifting and spatial effect.
Brief Introduction of the AF9 Board .......................................... 12-1 g. HEADPHONE AMPLIFIER
Variation Table .......................................................................... 12-1 Headphone amplifier NJM4556AM (7601) is provided after the Sound processor (7501) to drive 32 ohm to 1kohm headphone.
Chip layout Main part ............................................................... 12-2
Component Main part ............................................................... 12-3 h. M62320FP
Source Selection and Sound Processing Circuit ..................... 12-4 The M62320FP (7403) I2C Expander provides additional controls reqired.
Headphone Amplifier & I2C Expander Circuit .......................... 12-5
Digital Out and Interconnection Circuit .................................... 12-6 i. CD STANDBY CONTROL
Video Out Part - Layouts & Circuit diagram ............................. 12-7 Transistors 7401 & 7402 ensures the +5V_CD supply is switched only during CD mode.
Electrical parts list .................................................................... 12-7
j. CD DIGITAL OUT
CD Digital out cinch socket (1801) for connection to external digital audio decoders.
VARIATION TABLE:
Type /Versions: FWM390
/21 /22 /25 /30
Features:
Line In x x x x
Line Out - - - -
Sub-woofer Out - - - -
Digital Out - - - -
Video Out - - - -
Mic mix / Mic Detect - - - -
Simple IS x x x x
Full IS - - - -
Dolby ProLogic (DPL) - - - -
Voice Control (VC) - - - -
Downloaded from www.Manualslib.com manuals search engine
12-2 12-2
CHIP LAYOUT
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.
3139 113 3435 pt4 dd wk0142
Downloaded from www.Manualslib.com manuals search engine
12-3 12-3
COMPONENT LAYOUT
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list.
3139 113 3435 pt4 dd wk0142
Downloaded from www.Manualslib.com manuals search engine
12-4 12-4
SOURCE SELECTION & SOUND PROCESSING CIRCUIT
Downloaded from www.Manualslib.com manuals search engine
12-5 12-5
HEADPHONE AMPLIFIER & I2C EXPANDER CIRCUIT
1K
Downloaded from www.Manualslib.com manuals search engine
12-6 12-6
DIGITAL OUT & INTERCONNECTION CIRCUIT
1100 F6 T054 C1
1 2 3 4 5 6 7 8 9 1201 C1
1202 E1
T055 C1
T056 C1
1203 C1 T057 C1
3412 1204 E1 T058 D1
+5V 1205 C1 T059 D1
UV55 UE55 UX50 CW00 WE00 1206 C1 T060 D1
P 4909 FE-BT-VK-N 1K
1521 1401 A9 T061 D1
FE-BT-VK-N 1402 D9 T062 D1
P 4910 P 4911 T085 23
D_Text GND_D
WW00 4.5V
1403 1401 1405 1403 A9 T063 D1
1 1 1404 D9 T064 D1
3802 22 UP_CLK T086 NTC 1 NTC
3806
75R
+5V_CD 3804 T052 1405 A9 T065 E1
3808 T112
A P
22K 21 DQSY T087 GND_D
2 2
2 GND_D A 1520 E6
1521 A7
T066 E1
T067 E1
220R 22K 2810 T113 3
2.9V
FE-BT-VK-N T088 3 1522 A6 T068 F1
5802 20 SRDT
I2C_Data 3 I2C_DATA 1523 D6 T069 F1
47p GND_D 1522 T114 4 4 1524 A5 T070 F1
2u2 EH-B 19 T089 19 I2C_Clk 4 I2C_CLK 1525 B5 T071 F1
7802 1524 GND_D T115 5 1541 D4 T072 F1
5
14 74LVU04D 4906 3 18 T090 18 GND_D 5 GND_D 1542 D4 T073 F1
FROM/TO 3CDC
T130 6 1801 B1 T074 E4
2803
1801 VCC SHIELD
6
1u
YKC21-3416 2 1Y 1A
1 3801 2801 2 17 T091 17 +5V6_Con 6 +5V6_CON 2207 D3 T075 E4
3 T050 3809 COAX2 P 4912 7 2208 F2 T076 E4
+12V_M 7
5801 4 2Y 2A
3 470R 100n 1 16 T092 16 7 +11V_D 2209 E3 T077 E4
47R 6RG 3807 COAX1
4913 8 8 2210 F2 T078 E4
2 T051 3805 6 1 6 3Y 3A
5 15 15 15 +5V6 8 +5V6 2211 F3 T079 F4
2804 2K2 GND_D
GND_D 9 9 2520 E7 T080 F4
2 14T093 -Vkk
220R 2801 B4 T081 F4
B 4A
B
4801
14 9 -VKK
2806
150p
2809
100n
8 4Y 9 14
COAX 1 CD_PORE PORE / DSA_STB
10 10
2802 C3 T082 F4
2803 B3 T084 F4
DIGITAL 4 3 100n 10 5Y 5A
11 For VCD version only 13 13 T094 13 GND_D F1 10 F1
P 2808 2804 B3 T085 A6
OUT 4914 11 11
F2 2805 B2 T086 A7
12 6Y 6A 13 GND_M 1525 12 12 T095 12 SILD 11 F2
2806 B2 T087 A7
100n FE-BT-VK-N 12 12 2807 B1 T088 A7
11 T096
560R
12 CD_SH_DATA
3803
GND 11 11 CD_SH_DATA 4903 2808 B4 T089 A6
4921 2807 2805 +12V_M 9 13 13
7 2809 B4 T090 A6
10 10 T097 10 SICL 13 CD_SH_CLK
2810 A4 T091 B6
100n 100n 8 14 14 2901 F6 T092 B6
9 9 T098 9 CD_SH_CLK 14 CD_SH_STR
2950 E7 T093 B6
1N4003
GND_EMC 7
6207
P 4907 9405 15 15 2951 E7 T094 B6
T099 8 CD_SH_STR 15 GND_D
2802
8 8 2952 E7 T095 B6
1n
FE-BT-VK-N SW00 6 GND_D 16 16 2953 E7 T096 B6
T053 T100
C 1206 1203 1201 1205
1
T054
GND_D
5
7 7 7 SW_INFO
4908 17
16 SW_INFO
C 2954 E6
2955 E1
T097 C6
T098 C6
1 AMP_LEFT 6208 6 6 17 SICL 3205 D2 T099 C6
T055 6 +12V_M 3412 A8 T100 C6
2 4 P 4915 18
2 aa 1N4003 5 5 18 SILD 3801 B4 T101 C6
T056 GND_M 5 GND_M 3802 A4 T102 D6
3 For CDR version only For VCD version only 3 19
3 AMP_RIGHT
4802 4 4 T101 DSA_STB 19 DSA_STB/GND_D 3803 B3 T103 D6
T057 CD_PORE DSA_STB +5V_CD 4 +5V_CD 3804 A3 T104 D6
4 4905 +12V_M 2
4 NTC +5V6 3 3 T102 20 UP_CLK 3805 B2 T105 D6
T058 9484 CD_Right 3 CD_RIGHT 3806 A1 T106 D6
5 1 T103 3807 B4 T107 E6
FROM / TO Power Board
5 Low_Pw_Ctrl 21 DQSY
FROM/TO
T059 GND_D For Non-VCD version only A_CD
2 2
2 GND_A 3808 A3 T108 E6
FRONT
6
Pw_Dn T104 3809 B2 T109 E6
6 1 1 22 SRDT
T060 CD_Left 1 CD_LEFT 3820 E3 T110 E6
7 3821 E2 T111 E6
D_Text 23 GND_D
D 7
8
T061
Clipping
-Vkk FE-BT-VK-N D 3822 F3
4801 B4
T112 A8
T113 A8
8 AmOn 1523 1404 1402
T062 -CMOS 4802 C4 T114 A8
9 3205 -10V FE-BT-VK-N FE-BT-VK-N 4903 B8 T115 A8
9 1541 8 T105 1 4904 F7 T116 E3
BZX79-C10
T063 -32V 5K6 1 TU_STEREO
10 FE-BT-VK-N TU_STEREO 4905 D3 T117 E8
10 F1 1542 14 7 T106
6205
2207
2
47u
4906 A5 T118 E8
T064
FROM/TO TUNER
11
FE-BT-VK-N AMP_CS_DC TU_CLK 2 TU_CLK 4907 C8 T119 E8
11 F2 13 6 T107 3
13 4908 C8 T120 F8
12
T065 AmOn TU_DATA 3 TU_DATA 4909 A3 T121 E1
AMP_CS_DC
GND_D GND_D +5V6_Con 12 12 T074 5 T108 4 4910 A3 T122 F6
13
T066 DPL_Clk TU_ENAB 4 TU_ENAB 4911 A4 T123 F6
FROM/TO
VCDorCDRon 11 T075 +12V_A T117
4
2955
11 5 4912 B8 T124 E1
FRONT
+12V_A
1n
T124 T116 9614 DPL_Data 5 Tu_Gnd
100p 2951
2953
4913 B8 T130 B8
2950 470p
2952 470p
14 9486
7202 10 T076 T109 T118 3.5V
E DVD_ON 3
E 4914 B5
2954
47n
10 6
MC78L05 D_DPL TU_Right P HP_DET 6 HP_DET 4915 C8
GND_D 3821 3820 T077 2520 T119 4921 C1
9 2
470p
9 7
FROM / TO DPL Board
1204 1202 IN OUT
DPL_Vol_Clk GND_A SA_IN 7 SA_IN 5801 B2
EH-B EH-B
GND
10R 8 T078 T111 1 T110 10n 8 5802 A3
T121 10R 8
DPL_Req TU_Left Pw_Dn
8.5V
8 POWER_DOWN 6204 F7
1 1 9.3V
A_TU
7 6205 D3
2209
9
47u
7
1N4003
T067 9634 +12V_A FE-BT-VK-N Clipping 9 CLIP 6206 F2
BZX79-C6V8
FROM / TO Power Board
6206
2 2 1520
+12V_A 6 T079 RW00 6207 C5
6209
6 4.9V 10
6208 C5
3 3 T068 SS_L Low_Pw_Ctrl 10 LOW_PWR_CTRL
GND_A T080 T120 6209 F3
5 5 11
4 4 T069 A_DPL QE10 MIC_DET 11 MIC_DET 7202 E3
+12V_M GND_D GND_D T081 MIC_DET 7404 F3
4 4 12 7802 A3
5 T070 7404 SS_R 1100 DPL_Vol_Clk DPL_VOL_CLK
2208
220n
5 9405 C8
GND_M BC817-25 T082 JW00
F 3
F
BZX79-B3V3
3 13 9483 F6
6 T071 DPL_R DPL_Clk DPL_CLK
2901 T122
6 9484 D4
+5V6 2
4904
9904
9483
6204
2 14 9486 E7
T072 A_DPL DPL_Data
270R
T123 DPL_DATA
3822
2210
220n
2211
100n
7 7 9614 E3
GND_D 1 1 T084 100n 9634 E2
15
8 T073 DPL_L GND_D
9904 F7
8 GND_D GND_EMC aa GND_A
+5V_VCD D_DPL T050 B1
DW00 GND_D
GND_D GND_D GND_D GND_D SE00 JE00 T051 B1
T052 A3
T053 C4
1 2 3 4 5 6 7 8 9
Updated on 15 SEPT 2003
Downloaded from www.Manualslib.com manuals search engine
12-7 12-7
VIDEO OUT PART - COMPONENT & CHIP LAYOUTS ELECTRICAL PARTSLIST - AF-9 BOARD
- MISCELLANEOUS - - CAPACITORS -
1100 4822 267 10676 CONNECTOR 2535 4822 124 40769 4,7µF 20% 100V
1102 4822 267 10676 CONNECTOR 2536 4822 124 40769 4,7µF 20% 100V
1103 4822 267 10676 CONNECTOR 2541 4822 124 41407 0,47µF 20% 63V
This assembly drawing shows a summary of all possible versions. This assembly drawing shows a summary of all possible versions. 1204 2422 025 17467 CONNECTOR V 8P 2542 4822 124 41407 0,47µF 20% 63V
For components used in a specific version see schematic diagram For components used in a specific version see schematic diagram
and respective parts list. and respective parts list. 1206 4822 267 11039 CONNECTOR 2543 5322 126 11583 10nF 10% X7R 50V
1401 4822 265 11553 CONNECTOR 19P 2544 5322 126 11583 10nF 10% X7R 50V
1402 4822 267 11039 CONNECTOR 11P 2546 4822 121 43856 4,7nF 5% 250V
1501 4822 265 20553 CONNECTOR 2547 5322 126 11579 3,3nF 10% X7R 63V
1506 2412 020 00724 CONNECTOR V 2P 2548 5322 126 11579 3,3nF 10%X7R 63V
1520 4822 265 11515 CONNECTOR V 8P 2565 4822 121 43856 4,7nF 5% 250V
1523 4822 265 10981 CONNECTOR 2567 3198 016 31020 1nF NP0 25V
1531 4822 267 10953 CONNECTOR 2568 3198 016 31020 1nF NP0 25V
1603 4822 267 10733 CONNECTOR 2589 4822 121 42408 220nF 5% 63V
2590 4822 121 42408 220nF 5% 63V
- CAPACITORS - 2591 5322 121 42661 330nF 5% 63V
2201 4822 124 40207 100µF 20% 25V 2592 5322 121 42661 330nF 5% 63V
3139 113 3435 pt4 dd wk0123 3139 113 3435 pt4 dd wk0123 2202 4822 124 81151 22µF 50V 2593 4822 121 51252 470nF 5% 63V
2203 4822 124 40433 47µF 20% 25V 2594 4822 121 51252 470nF 5% 63V
2204 4822 124 40196 220µF 20% 16V 2601 3198 016 31020 1nF NP0 25V
2205 4822 126 14238 2,2nF X7R 50V 2602 3198 016 31020 1nF NP0 25V
2206 2238 916 15641 22nF 10%X7R 25V 2603 4822 124 81151 22µF 50V
2207 4822 124 40433 47µF 20% 25V 2604 4822 124 81151 22µF 50V
CIRCUIT DIAGRAM - VIDEO OUT PART 2208 4822 126 13879 220nF +80-20% 16V 2605 2020 552 94427 100pF 5% NP0 50V
2209 4822 124 41751 47µF 20% 50V 2606 2020 552 94427 100pF 5% NP0 50V
2210 4822 126 13879 220nF +80-20% 16V 2607 4822 126 13881 470pF 5% 50V
20 A3 1803 A1 1809 A1 2885 A1
2401 2020 552 94427 100pF 5% NP0 50V 2608 4822 126 13881 470pF 5% 50V
2402 2020 552 94427 100pF 5% NP0 50V 2609 4822 126 14508 180pF 5% 50V NP0
2403 2238 586 59812 100nF +80-20% Y5V 50V 2610 4822 126 14508 180pF 5% 50V NP0
1 2 3 2404
2501
2238 586 59812
2020 552 94427
100nF +80-20% Y5V 50V
100pF 5% NP0 50V
2611
2612
4822 124 81151
4822 124 81151
22µF 50V
22µF 50V
1809 2502 2020 552 94427 100pF 5% NP0 50V 2621 4822 124 81151 22µF 50V
1 2503 2022 020 00734 1µF 20% 50V 2622 4822 126 13881 100pF 5% NP0 50V
2504 2022 020 00734 1µF 20% 50V 2623 4822 124 40433 47µF 20% 25V
2885
CE50 2505 2020 552 94427 100pF 5% NP0 50V 2624 3198 017 42230 22nF Y5V 50V
2506 2020 552 94427 100pF 5% NP0 50V 2625 4822 124 40207 100µF 20% 25V
100p
2507 2238 586 59812 100nF +80-20% Y5V 50V 2626 4822 124 40769 4,7µF 20% 100V
2511 2022 020 00734 1µF 20% 50V 2641 3198 016 31020 1nF NP0 25V
A 3
A 2512 2022 020 00734 1µF 20% 50V 2642 3198 016 31020 1nF NP0 25V
2513 3198 016 31020 1nF NP0 25V 2653 2020 552 94427 100pF 5% NP0 50V
20
DIPMATE 2514 3198 016 31020 1nF NP0 25V 2654 2020 552 94427 100pF 5% NP0 50V
1
1
2 2515 2020 552 94427 100pF 5% NP0 50V 2669 2238 586 59812 100nF +80-20% Y5V 50V
2 2516 2020 552 94427 100pF 5% NP0 50V 2681 4822 124 40433 47µF 20% 25V
YKC21-3564 2521 2238 586 59812 100nF +80-20% Y5V 50V 2682 4822 122 33752 15pF 5% NP0 50V
1803 CM50 2522 2238 586 59812 100nF +80-20% Y5V 50V 2683 2238 586 59812 100nF +80-20% Y5V 50V
2523 2020 552 94427 100pF 5% NP0 50V 2691 2020 552 94427 100pF 5% NP0 50V
CW50
2524 2020 552 94427 100pF 5% NP0 50V 2707 2020 552 94427 100pF 5% NP0 50V
2531 4822 124 40769 4,7µF 20% 100V 2708 2020 552 94427 100pF 5% NP0 50V
2532 4822 124 40769 4,7µF 20% 100V 2771 4822 124 41407 0,47µF 20% 63V
2533 2020 552 94427 100pF 5% NP0 50V 2902 3198 017 44740 470nF Y5V 10V
2534 2020 552 94427 100pF 5% NP0 50V 2905 3198 017 42230 22nF Y5V 50V
1 2 3
Downloaded from www.Manualslib.com manuals search engine
12-8 12-8
ELECTRICAL PARTSLIST - AF-9 BOARD ELECTRICAL PARTSLIST - AF-9 BOARD
- CAPACITORS - - RESISTORS - - RESISTORS - - COILS & FILTERS -
2908 2238 586 59812 100nF +80-20% Y5V 50V 3608 4822 116 83961 6,8K 5% 4100 4822 051 30008 0Ω JUMPER 5621 4822 157 62552 2,2µH
2922 2020 552 94427 100pF 5% NP0 50V 3609 4822 051 30273 27K 5% 0,062W 4101 4822 051 30008 0Ω JUMPER
2923 4822 121 51387 10nF 20% 16V 3610 4822 051 30273 27K 5% 0,062W 4104 4822 051 30008 0Ω JUMPER
3611 4822 051 30479 47Ω 5% 0,062W 4108 4822 051 30008 0Ω JUMPER
- RESISTORS - 3612 4822 051 30479 47Ω 5% 0,062W 4110 4822 051 30008 0Ω JUMPER - DIODES -
3201 4822 117 12968 820Ω 5% 0,62W 3613 4822 051 30102 1K 5% 0,062W 4111 4822 051 30008 0Ω JUMPER 6201 4822 130 30621 1N4148
3202 4822 051 30151 150Ω 5% 0,062W 3614 4822 051 30102 1K 5% 0,062W 4112 4822 051 30008 0Ω JUMPER 6202 4822 130 30862 BZX79-B9V1
3205 4822 116 52289 5,6K 5% 0,5W 3615 4822 051 30339 33Ω 5% 0,062W 4113 4822 051 30008 0Ω JUMPER 6205 4822 130 61219 BZX79-B10
3401 4822 051 30471 470Ω 5% 0,062W 3616 4822 051 30339 33Ω 5% 0,062W 4114 4822 051 30008 0Ω JUMPER 6206 4822 130 31878 1N4003G
3402 4822 051 30471 470Ω 5% 0,062W 3621 4822 051 30103 10K 5% 0,062W 4115 4822 051 30008 0Ω JUMPER 6207 4822 130 31878 1N4003G
3403 4822 116 52175 100Ω 5% 0,5W 3622 4822 051 30103 10K 5% 0,062W 4116 4822 051 30008 0Ω JUMPER 6208 4822 130 31878 1N4003G
3405 4822 051 30103 10K 5% 0,062W 3623 4822 051 30102 1K 5% 0,062W 4119 4822 051 30008 0Ω JUMPER 6401 4822 130 30621 1N4148
3408 4822 051 30103 10K 5% 0,062W 3624 4822 051 30562 5,6K 5% 0,063W 4122 4822 051 30008 0Ω JUMPER 6774 4822 130 30621 1N4148
3409 4822 051 30102 10K 5% 0,062W 3625 4822 051 30472 4,7K 5% 0,062W 4124 4822 051 30008 0Ω JUMPER
3412 4822 050 11002 1K 1% 0,4W 3626 4822 051 30472 4,7K 5% 0,062W 4125 4822 051 30008 0Ω JUMPER - IC & TRANSISTORS -
3435 4822 050 11002 1K 1% 0,4W 3627 4822 052 10109 10Ω 5% 0,33W 4126 4822 051 30008 0Ω JUMPER 7201 5322 130 60159 BC846B
3436 4822 050 11002 1K 1% 0,4W 3628 4822 116 52283 4,7K 5% 0,062W 4127 4822 051 30008 0Ω JUMPER 7202 4822 209 72042 L78L05ACZ
3501 4822 051 30472 4,7K 5% 0,062W 3629 4822 051 30472 4,7K 5% 0,062W 4128 4822 051 30008 0Ω JUMPER 7401 4822 130 41246 BC327-25
3502 4822 051 30472 4,7K 5% 0,062W 3631 4822 050 11002 1K 1% 0,4W 4130 4822 051 30008 0Ω JUMPER 7402 5322 130 60159 BC846B
3503 4822 051 30123 12K 5% 0,062W 3633 4822 051 30102 1K 5% 0,062W 4132 4822 051 30008 0Ω JUMPER 7403 4822 209 17345 M62320FP
3504 4822 051 30123 12K 5% 0,062W 3634 4822 051 30562 5,6K 5% 0,063W 4133 4822 051 30008 0Ω JUMPER 7501 9322 150 74668 TDA7468D
3505 4822 051 30153 15K 5% 0,062W 3635 4822 051 30103 10K 5% 0,062W 4134 4822 051 30008 0Ω JUMPER 7601 4822 209 31378 NJM4556MB
3506 4822 051 30153 15K 5% 0,062W 3636 4822 051 30472 4,7K 5% 0,062W 4135 4822 051 30008 0Ω JUMPER 7603 4822 130 42804 BC817-25
3511 4822 117 12968 820Ω 5% 0,62W 3637 4822 051 30103 10K 5% 0,062W 4137 4822 051 30008 0Ω JUMPER 7604 4822 130 42804 BC817-25
3512 4822 117 12968 820Ω 5% 0,62W 3638 4822 051 30472 4,7K 5% 0,062W 4138 4822 051 30008 0Ω JUMPER 7621 5322 130 60159 BC846B
3513 4822 117 12903 1,8K 1% 0,063W 3640 4822 116 52289 5,6K 5% 0,5W 4139 4822 051 30008 0Ω JUMPER 7622 4822 130 60373 BC856B
3514 4822 117 12903 1,8K 1% 0,063W 3644 4822 051 30102 1K 5% 0,062W 4141 4822 051 30008 0Ω JUMPER 7623 5322 130 60159 BC846B
3521 4822 051 30102 10K 5% 0,062W 3645 4822 051 30221 220Ω 5% 0,062W 4142 4822 051 30008 0Ω JUMPER 7635 4822 130 60373 BC856B
3522 4822 051 30102 10K 5% 0,062W 3646 4822 051 30221 220Ω 5% 0,062W 4143 4822 051 30008 0Ω JUMPER 7636 5322 130 60159 BC846B
3525 4822 051 30471 470Ω 5% 0,062W 3651 4822 051 30102 1K 5% 0,062W 4144 4822 051 30008 0Ω JUMPER 7651 4822 130 42804 BC817-25
3526 4822 051 30471 470Ω 5% 0,062W 3652 4822 051 30102 1K 5% 0,062W 4145 4822 051 30008 0Ω JUMPER 7652 4822 130 42804 BC817-25
3531 4822 051 30152 1,5K 5% 0,062W 3653 4822 051 30102 1K 5% 0,062W 4146 4822 051 30008 0Ω JUMPER 7653 4822 130 42804 BC817-25
3532 4822 051 30152 1,5K 5% 0,062W 3654 4822 051 30102 1K 5% 0,062W 4147 4822 051 30008 0Ω JUMPER 7654 4822 130 42804 BC817-25
3533 4822 051 30273 27K 5% 0,062W 3655 4822 051 30102 1K 5% 0,062W 4148 4822 051 30008 0Ω JUMPER 7681 4822 130 60373 BC856B
3534 4822 051 30273 27K 5% 0,062W 3656 4822 051 30102 1K 5% 0,062W 4151 4822 051 30008 0Ω JUMPER 7682 5322 130 60159 BC846B
3543 4822 117 12925 47K 1% 0,063W 3657 4822 051 30102 1K 5% 0,062W 4152 4822 051 30008 0Ω JUMPER 7803 5322 130 60159 BC846B
3544 4822 117 12925 47K 1% 0,063W 3658 4822 051 30102 1K 5% 0,062W 4153 4822 051 30008 0Ω JUMPER
3545 4822 051 30562 5,6K 5% 0,063W 3683 4822 051 30154 150K 5% 0,062W 4501 4822 051 30008 0Ω JUMPER
3546 4822 051 30562 5,6K 5% 0,063W 3684 4822 051 30154 150K 5% 0,062W 4641 4822 051 30008 0Ω JUMPER Note: Only these parts mentioned in the list are
3547 4822 051 30103 10K 5% 0,062W 3686 4822 117 12864 82K 5% 0,6W 4642 4822 051 30008 0Ω JUMPER normal service parts.
3548 4822 051 30103 10K 5% 0,062W 3687 4822 117 11817 1,2K 1% 1/16W 4802 4822 051 30008 0Ω JUMPER
3549 4822 051 30183 18K 5% 0,062W 3688 4822 051 30391 390Ω 5% 0,062W 4811 4822 051 30008 0Ω JUMPER
3550 4822 051 30183 18K 5% 0,062W 3689 4822 051 30151 150Ω 5% 0,062W 4812 4822 051 30008 0Ω JUMPER
3591 5322 117 13056 8,2K 1% 0,063W 3692 4822 051 30334 330K 5% 0,062W 4904 4822 051 30008 0Ω JUMPER
3592 5322 117 13056 8K2 1% 0,063W 3694 4822 051 30222 2,2K 5% 0,062W 4907 4822 051 30008 0Ω JUMPER
3593 4822 051 30562 5,6K 5% 0,063W 3707 4822 051 30102 1K 5% 0,062W 4913 4822 051 30008 0Ω JUMPER
3594 4822 051 30562 5,6K 5% 0,063W 3708 4822 051 30102 1K 5% 0,062W 4915 4822 051 30008 0Ω JUMPER
3601 4822 116 52238 12K 5% 0,5W 3711 4822 051 30562 5,6K 5% 0,063W 4920 4822 051 30008 0Ω JUMPER
3602 4822 116 52238 12K 5% 0,5W 3820 4822 116 52176 10Ω 5% 0,5W
3607 4822 051 30682 6,8K 5% 0,062W 3821 4822 052 10109 10Ω 5% 0,33W
Downloaded from www.Manualslib.com manuals search engine
13-1 13-1
EXPLODED VIEW - MAIN UNIT
Downloaded from www.Manualslib.com manuals search engine
13-2 13-2
MECHANICAL PARTSLIST ACCESSORIES SCREW LISTS - MAIN UNIT
101 3140 117 71061 CAB FRONT /21/30 350 3140 118 51711 BOX SPK ASSY
185 D3 x 12
101 3140 117 71051 CAB FRONT /22/25 351 4822 303 50063 FM ANTENNA
186 D3 x 12
103 3140 117 69751 COVER FRONT CDC /21/30 356 3139 238 06131 REMOTE CONTROL
103 3140 117 71831 COVER FRONT CDC /22/25 384 2422 549 45067 ANT AM LOOP LAN-006 B 211 D3 x 12
105 3140 117 64710 BTN SET C/CDC SEL /21/30 385 ! 2422 070 98151 MAINSCORD /21/22 212 D3 x 12
213 D3 x 12
105 3140 117 64540 BTN SET CDC LPS C390 /22/25 385 ! 2422 070 98147 MAINSCORD /25
106 3140 117 71021 COVER TRAY CDC 385 ! 2422 070 98248 MAINSCORD /30
214 D3 x 12
107 3140 117 69761 BUTTON SET OPEN/CLOSE 386 ! 4822 263 21092 ADAPTER PLUG /21
108 4822 454 13408 BADGE PHILIPS 215 D3 x 12
1201 3139 110 34600 FFC FOIL /21/22/30
128 3140 117 69771 WINDOW DISPLAY /21/30 1300 3139 110 35350 FFC FOIL 11P/220/11P AD 226 M3 x 6
227 M3 x 10
128 3140 117 69891 WINDOW DISPLAY /22/25 1400 3139 110 35110 FFC FOIL 04P/220/04P AD 229 M3 x 10
129 3140 117 69781 COVER FRONT DISPLAY 1401 4822 320 12703 7P - 140MM
130 3140 117 69791 COVER FRONT ORNA. 1402 3139 110 35100 FFC FOIL 19P/140/19P AD
230 D3 x 10
131 3139 114 71350 LIGHTGUIDE SOURCE SELECT 1403 3139 110 34610 FFC FOIL 11P/180/11P AD
1500 3139 110 33960 FFC FOIL 04P/120/04P BD 231 M3 x 10
132 3140 117 69801 BUTTON SET SOURCE
232 M3 x 6
134 3140 117 71031 BTN SET C/PROG N VCD 1501 3139 110 33960 FFC FOIL 04P/120/04P BD /21 276 M3 x 6
135 3140 117 69811 BUTTON MAX 1600 3139 110 35050 FFC FOIL 08P/220/08P AD 277 M3 x 10
136 3140 117 69822 BUTTON DSC/DBB/VEC/IS 1700 4822 320 12752 7P - 180MM
137 3140 117 71071 RING VOLUME 1800 3139 110 35880 FFC FOIL 15P/180/15P BD
278 D3 x 16
138 3139 118 16230 KNOB ROTARY 5001 ! 3103 308 30640 TRANSF. MAINS /21
279 D3 x 12
139 3139 118 13190 KNOB VOLUME CHROME 5001 ! 3103 308 30630 TRANSF. MAINS /22/25/30 280 D3 x 12
140 3139 114 71330 LIGHTGUIDE DSC/DBB/VEC/IS 283 D3 x 12
142 3140 117 64750 BUT SET RDS/NEWS /22/25 287 D3 x 12
158 3140 117 69851 COVER CASS RIGHT
159 3140 117 69861 COVER CASS LEFT
292 D3 x 12
293 D3 x 12
160 3140 117 69871 LENS CASS RIGHT
161 3140 117 69881 LENS CASS LEFT 294 M3 x 10
197 3139 114 68630 DOOR CASSETTE RIGHT ETF 295 D3 x 12
198 3139 114 68620 DOOR CASSETTE LEFT ETF 296 D3 x 12
199 4822 402 10621 PUSH-CATCH
297 D3 x 12
200 4822 529 10322 DAMPER ASSY
299 D3 x 12
201 3139 114 68640 PUSH CATCH LEFT
203 4822 492 11344 SPRING COMPRESSION 300 D3 x 12
204 4822 402 11246 BRACKET RIGHT 301 D3 x 12
205 4822 402 11245 BRACKET LEFT 302 D3 x 12
206 3139 111 01380 SPRING TORSION RIGHT
304 D3 x 12
207 3139 111 01390 SPRING TORSION LEFT
209 4822 492 42787 SPRING CASSETTE
242 4822 462 40683 RUBBER FOOT Note: Only these parts mentioned in the list are
251 3139 114 70970 BRACKET CDC LEFT normal service parts.
252 3139 114 70980 BRACKET CDC RIGHT
253 3139 114 73570 PANEL LEFT
254 3139 114 73580 PANEL RIGHT
255 3139 114 73590 COVER TOP
256 3140 114 63231 PANEL REAR /21/30
256 3140 114 63241 PANEL REAR /22/25
271 3139 114 71010 STOPPER HEATSINK
Downloaded from www.Manualslib.com manuals search engine
14-1
REVISION LIST
1.1 Manual 3140 785 32811
Chapter 11, the power board and the parts list of the Power 2001 Module have been updated. Refer to page
11-6 to 11-8.
Downloaded from www.Manualslib.com manuals search engine
You might also like
- Philips - mcm240 21 21m 22 25 37 - Ver 1.0 - SMNo ratings yetPhilips - mcm240 21 21m 22 25 37 - Ver 1.0 - SM33 pages
- Philips-MCM8 Micro Stereo System - Ver-1.2 - SMNo ratings yetPhilips-MCM8 Micro Stereo System - Ver-1.2 - SM77 pages
- LTE eNodeB Health Check Report ILL08605RNo ratings yetLTE eNodeB Health Check Report ILL08605R12 pages
- Energy Absorption and Ballistic Impact Behaviour of Kevlar Woven FabricsNo ratings yetEnergy Absorption and Ballistic Impact Behaviour of Kevlar Woven Fabrics10 pages
- CBSE Chemistry: Colligative Properties & SolutionsNo ratings yetCBSE Chemistry: Colligative Properties & Solutions5 pages
- Civil Engineer Profile: Oil & Gas ExperienceNo ratings yetCivil Engineer Profile: Oil & Gas Experience2 pages
- Aysel Bakhshalizada - Volkswagen's EV (Electric Vehicle) Production ChallengesNo ratings yetAysel Bakhshalizada - Volkswagen's EV (Electric Vehicle) Production Challenges3 pages
- Blueprint Class 9 Practice Test January 2022No ratings yetBlueprint Class 9 Practice Test January 20222 pages
- Jlu-Soet Sem-1 Mid Semester Time Table 2023No ratings yetJlu-Soet Sem-1 Mid Semester Time Table 20231 page
- Types and Strategies of Organizational ChangeNo ratings yetTypes and Strategies of Organizational Change13 pages
- Tradfri Tradloes Dimmer Smart Vit - AA 2171511 2 2No ratings yetTradfri Tradloes Dimmer Smart Vit - AA 2171511 2 252 pages
- XNX Uni Transmitter - QSG - 1998M0813 - MAN0881 - Rev11 - EMEAI PDFNo ratings yetXNX Uni Transmitter - QSG - 1998M0813 - MAN0881 - Rev11 - EMEAI PDF102 pages
- The Antediluvian Patriarchs and The Sumerian King List 4n4774ei70No ratings yetThe Antediluvian Patriarchs and The Sumerian King List 4n4774ei7011 pages
