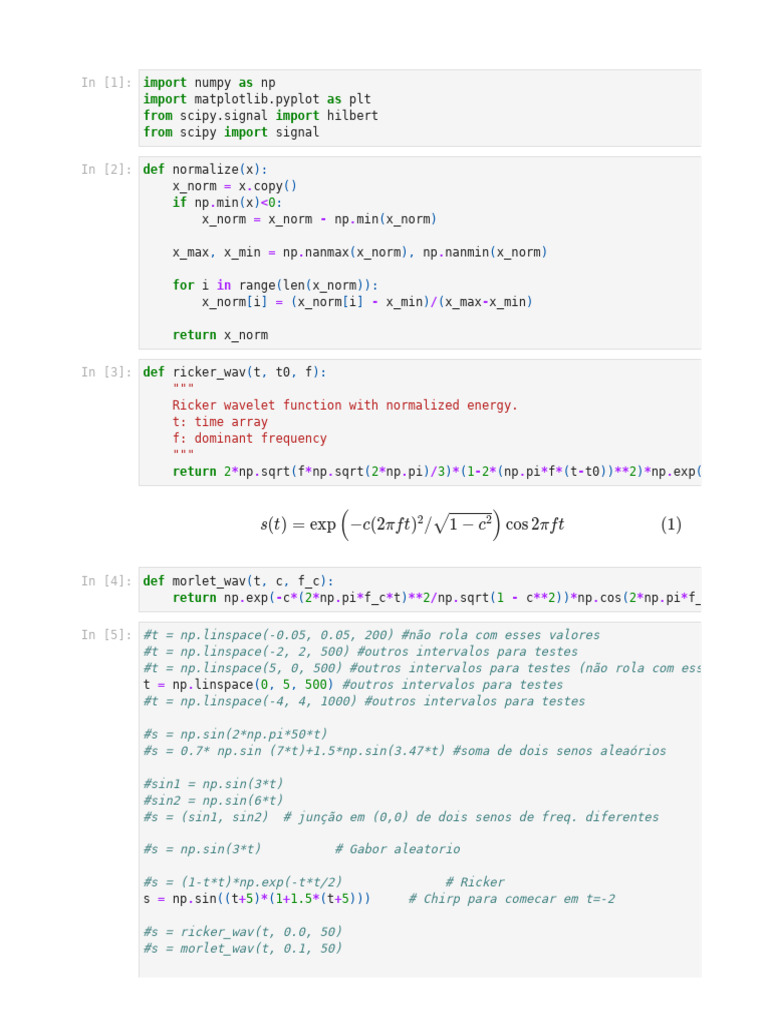

In [1]: import numpy as np
import [Link] as plt
from [Link] import hilbert
from scipy import signal
In [2]: def normalize(x):
x_norm = [Link]()
if [Link](x)<0:
x_norm = x_norm - [Link](x_norm)
x_max, x_min = [Link](x_norm), [Link](x_norm)
for i in range(len(x_norm)):
x_norm[i] = (x_norm[i] - x_min)/(x_max-x_min)
return x_norm
In [3]: def ricker_wav(t, t0, f):
"""
Ricker wavelet function with normalized energy.
t: time array
f: dominant frequency
"""
return 2*[Link](f*[Link](2*[Link])/3)*(1-2*([Link]*f*(t-t0))**2)*[Link](
s(t) = exp (−c(2πft)2/√1 − c2) cos 2πft (1)
In [4]: def morlet_wav(t, c, f_c):
return [Link](-c*(2*[Link]*f_c*t)**2/[Link](1 - c**2))*[Link](2*[Link]*f_
In [5]: #t = [Link](-0.05, 0.05, 200) #não rola com esses valores
#t = [Link](-2, 2, 500) #outros intervalos para testes
#t = [Link](5, 0, 500) #outros intervalos para testes (não rola com ess
t = [Link](0, 5, 500) #outros intervalos para testes
#t = [Link](-4, 4, 1000) #outros intervalos para testes
#s = [Link](2*[Link]*50*t)
#s = 0.7* [Link] (7*t)+1.5*[Link](3.47*t) #soma de dois senos aleaórios
#sin1 = [Link](3*t)
#sin2 = [Link](6*t)
#s = (sin1, sin2) # junção em (0,0) de dois senos de freq. diferentes
#s = [Link](3*t) # Gabor aleatorio
#s = (1-t*t)*[Link](-t*t/2) # Ricker
s = [Link]((t+5)*(1+1.5*(t+5))) # Chirp para comecar em t=-2
#s = ricker_wav(t, 0.0, 50)
#s = morlet_wav(t, 0.1, 50)
s = [Link](s, dtype=np.float32) #Pq redefinir o s?
dt = t[1] - t[0] #Dúvida nesses valores!
[Link](t, s )
[Link]('t')
[Link]('s(t)')
[Link]()
In [6]: #valores de testes
fmin = 1
fmax = 7
fn = 100
#fmin = 1
#fmax = 100
#fn = 300
#fmin = 10
#fmax = 100
#fn = 300
#valores originais
#fmin = 0.1
#fmax = 100
#fn = 300
f = [Link](fmin, fmax, fn)
In [7]: def dom_freq(s, t, r, sigma):
"""Compute the dominant frequency by weight averaging the instantaneous
using a Gaussian low-pass filter.
Parameters
----------
s : array
the time signal
t : array
the time components of signal s
r: float
the scaling factor
sigma: float
the spread parameter for the Gaussian filter
"""
dt = t[1]-t[0] # timestep
a_s = hilbert(s)
x = [Link](a_s)
dx = [Link](x)
y = [Link](a_s)
dy = [Link](y)
a = [Link](a_s)
f0 = (-(dx/dt)*y + (dy/dt)*x)/(2*[Link]*a**2) # instantaneous frequency
L = [Link](len(s), std=sigma)
dom_freq = [Link](f0*a, L, mode='same')
const = [Link](a, L, mode='same')
return r*dom_freq/const
r ∫ finst (t − τ)a(t − τ)L(t; σ) dt
fdom (τ; r, σ) = (2)
∫ a(t − τ)L(t; σ) dt
In [8]: r = 1.0
#sigma = 10
#sigma = 50
#sigma = 75
sigma = 100
#sigma = 20 # 20 pontos para fazer a janela
f0 = dom_freq(s, t, r, sigma)
[Link](t, f0)
[Link](fmin, fmax)
[Link]('Time (s)')
[Link]('Frequency (Hz)')
[Link]()
In [9]: def DWT(x, tau, f, f0, k1, k2, p):
"""
Function to calculate the
discrete W Transform of a 1D real-valued signal xN
x: signal
"""
t = [Link]()
f = [Link](f, (len(f), 1))
# WT(t, f) a matrix Nt x Nf
X = [Link]((len(f), len(t)), dtype=complex)
f0_interp = [Link]()
for i in range(len(t)):
sigma = 1/((f0_interp[i]/k1)**p + ([Link](f0_interp[i] - f)/k2)**p)*
a = [Link](-(tau-t[i])**2/(2*sigma**2))/(sigma*[Link](2*[Link]))
e = [Link](-2j*[Link]*f*tau)*a
X[:, i] = [Link](e, x)
return X, t, f
In [10]: #Valores de teste
#k1 = 0.5
#k2 =1
#p = 5.0
#k1 = 1.0
#k2 = 0.5
#p = 5.0
#k1 = 1.5
#k2 = 1.0
#p = 5.0
#k1 = 1.0
#k2 = 2.0
#p = 5.0
k1 = 1.0
k2 = 2.5
p = 5.0
#k1 = 1.0
#k2 = 1.5
#p = 5.0
#Valor original
#k1 = 1.0
#k2 = 0.9
#p = 5.0
WT, _, _ = DWT(s, t, f, f0, k1, k2, p)
ST, _, _ = DWT(s, t, f, [Link](len(f0)), 1.0, 1.0, 1.0)
#Valores de testes
#ST, _, _ = DWT(s, t, f, [Link](len(f0)), 0.5, 0.5, 0.5)
#ST, _, _ = DWT(s, t, f, [Link](len(f0)), 2.0, 2.0, 2.0)
#ST, _, _ = DWT(s, t, f, [Link](len(f0)), 5.0, 5.0, 5.0)
In [11]: import [Link] as ticker
from [Link] import NullFormatter
from mpl_toolkits.axes_grid1 import make_axes_locatable
fig = [Link](constrained_layout=True)
gs = fig.add_gridspec(3, 1)
################################################
f_ax1 = fig.add_subplot(gs[0, 0])
[Link](t, s, color='red', ls='dotted', linewidth=0.5)
f_ax1.set_xticks([])
[Link](t[0], t[-1])
[Link]([Link](s), [Link](s))
[Link](r'Amplitude', size= 10)
################################################
f_ax1 = fig.add_subplot(gs[1, 0])
im1= [Link](t, f, normalize([Link](ST)), cmap='jet')
#[Link](t, f0, color='white', ls='--', linewidth=0.5)
#[Link](orientation='horizontal', label='Power Index', pad=0.1)
[Link](t, f0, color='white', ls='--', linewidth=0.9)
[Link](fmin, fmax)
[Link](t[0], t[-1])
[Link](fontsize = 10)
[Link]('Frequency (Hz)', size= 10)
[Link]("ST", loc='left')
################################################
f_ax2 = fig.add_subplot(gs[2, 0])
im2 = [Link](t, f, normalize([Link](WT)), cmap='jet')
[Link](t, f0, color='white', ls='--', linewidth=0.9)
[Link](fmin, fmax)
[Link](t[0], t[-1])
[Link](fontsize = 10)
[Link]("WT", loc='left')
[Link]('Frequency (Hz)', size= 10)
[Link]('Time (s)', size=10)
[Link](orientation='horizontal', label='Normalized Amplitude', pad=0.1
fig.set_size_inches(3, 5)
fig.set_dpi(300)
[Link]("[Link]", bbox_inches='tight')
[Link]()
In [12]: #print([Link](len(f0)))
