Linde Service Guide

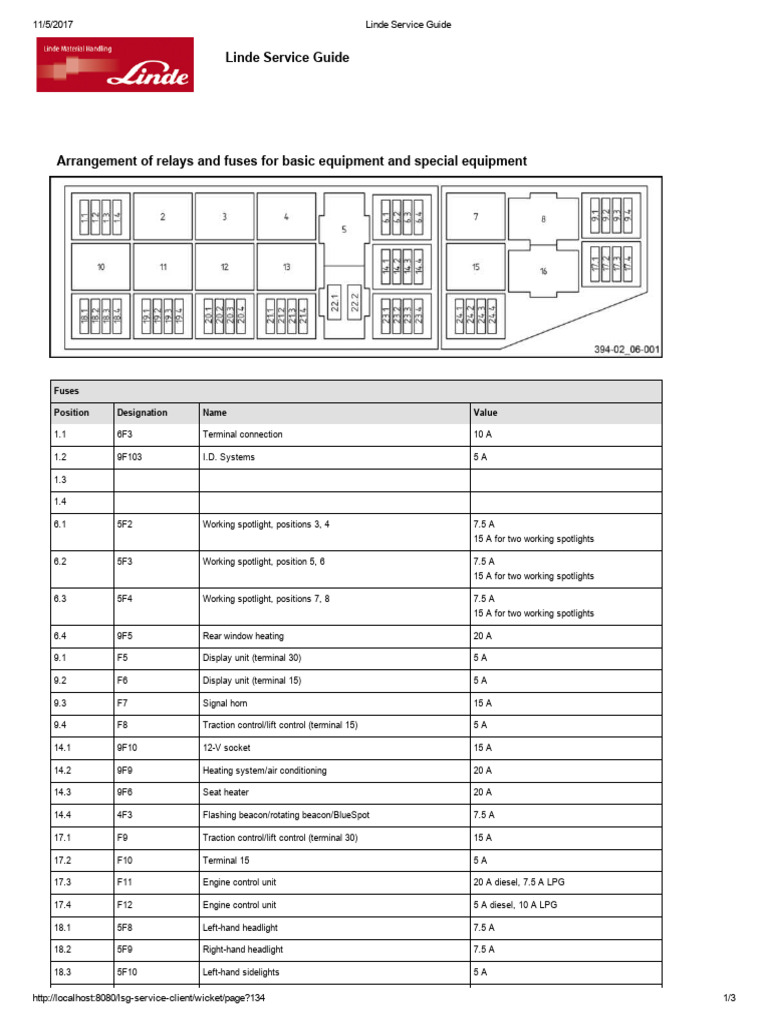

Arrangement of relays and fuses for basic equipment and special equipment
Fuses
Position Designation Name Value
1.1 6F3 Terminal connection 10 A
1.2 9F103 I.D. Systems 5A
1.3
1.4
6.1 5F2 Working spotlight, positions 3, 4 7.5 A
15 A for two working spotlights
6.2 5F3 Working spotlight, position 5, 6 7.5 A
15 A for two working spotlights
6.3 5F4 Working spotlight, positions 7, 8 7.5 A
15 A for two working spotlights
6.4 9F5 Rear window heating 20 A
9.1 F5 Display unit (terminal 30) 5A
9.2 F6 Display unit (terminal 15) 5A
9.3 F7 Signal horn 15 A
9.4 F8 Traction control/lift control (terminal 15) 5A
14.1 9F10 12V socket 15 A
14.2 9F9 Heating system/air conditioning 20 A
14.3 9F6 Seat heater 20 A
14.4 4F3 Flashing beacon/rotating beacon/BlueSpot 7.5 A
17.1 F9 Traction control/lift control (terminal 30) 15 A
17.2 F10 Terminal 15 5A
17.3 F11 Engine control unit 20 A diesel, 7.5 A LPG
17.4 F12 Engine control unit 5 A diesel, 10 A LPG
18.1 5F8 Lefthand headlight 7.5 A
18.2 5F9 Righthand headlight 7.5 A
18.3 5F10 Lefthand sidelights 5A
http://localhost:8080/lsgserviceclient/wicket/page?134 1/3
11/5/2017 Linde Service Guide
18.4 5F11 Righthand sidelights 5A
19.1 5F5/5F1 Lighting/working spotlight, position 1, 2 15 A
19.2 5F6/5F13 Warning light 10 A
19.3 5F7 Brake light 5A
19.4 5F12 Interior light 5A
20.1 9F1 Windscreen wiper 5A
20.2 9F2 Front windscreen wiper 10 A
20.3 9F3 Rear windscreen wiper and roof panel wiper 10 A
20.4 9F4 Wash pumps 10 A
21.1 9F7 Radio, terminal 30 5A
21.2 9F8 Radio, terminal 58 10 A
21.3 4F1 Reverse travel 10 A
21.4 6F1 Truck data management 5A
23.1
23.2
23.3
23.4 0F1 Blower, toothed belt sealing 10 A
F17 Lighting switched off after a delay 5A
24.1 F13 Assistance system (Linde Safety Pilot LSP) 5A
24.2 F14 Terminal 58 5A
24.3 F15 Terminal 15 10 A
24.4 F16 3. Auxiliary hydraulics 5A
Fuse LMH spare part number
2A 7919086800
5A 7919086803
7.5 A 7919086804
10 A 7919086805
15 A 7919086806
20 A 7919086807
30 A 7919086809
Relays
Position Designation Name
2 9K9 Speed limitation via indoor/outdoor sensor
9K118 Relay I.D. Systems (D+)
6K3 Timer relay release delayed by 60 min (weighing system)
3 9K101 Relay for buckle monitoring
4 4K1 Relay for reversing signal
5 K1 Relay for terminal 58 (70 A)
7 0K2 Diesel: Relay for VW controller
0K3 LPG: relay for supply
8 0K3 Fuel delivery pump relay (70 A)
10 5K2 Relay for stop lights
http://localhost:8080/lsgserviceclient/wicket/page?134 2/3
11/5/2017 Linde Service Guide
11 5N1 Flasher unit
5K5 Warning light for reverse travel
12 5K3 Relay for warning light for reverse travel
13 5K4 Relay for working spotlight, position 7, 8
15 K3 Relay for truck deactivation
16 K2 Starter relay
22.1 9K103 Microrelay I.D. Systems (driving signal)
22.2 9K104 Microrelay I.D. Systems (speed limitation)
23 9N1 Controller for wiper and screen heating
X K4 Time delay relay, 60 s
