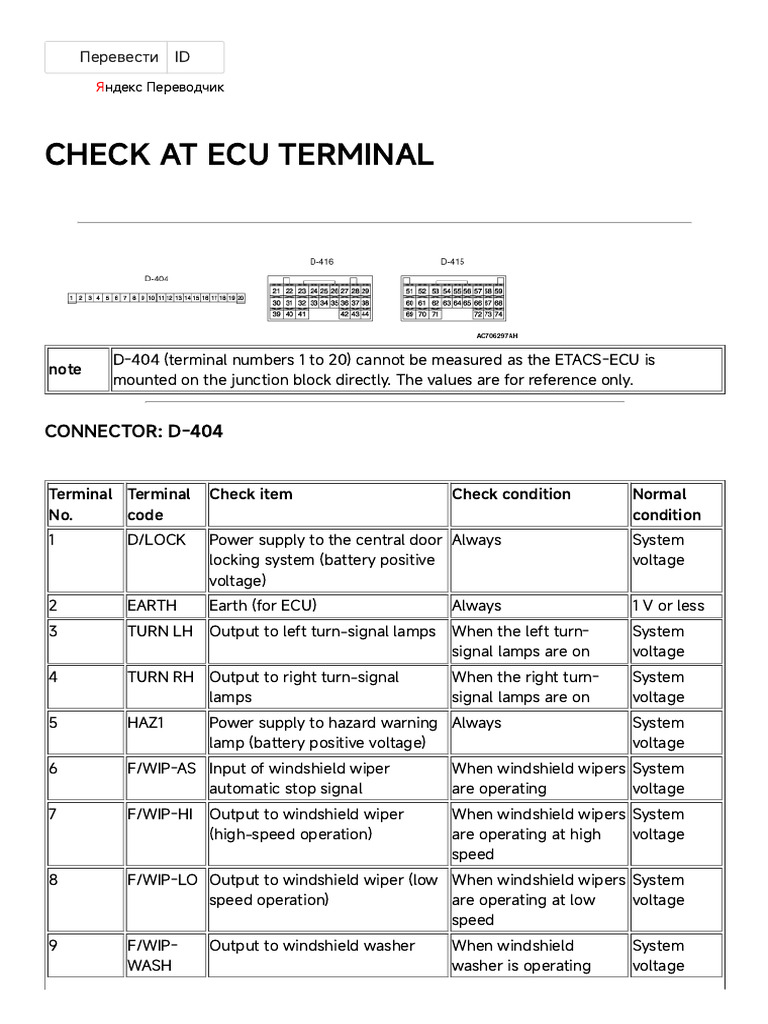

CHECK AT ECU TERMINAL
D-404 (terminal numbers 1 to 20) cannot be measured as the ETACS-ECU is
note
mounted on the junction block directly. The values are for reference only.
CONNECTOR: D-404
Terminal Terminal Check item Check condition Normal
No. code condition
1 D/LOCK Power supply to the central door Always System
locking system (battery positive voltage
voltage)
2 EARTH Earth (for ECU) Always 1 V or less
3 TURN LH Output to left turn-signal lamps When the left turn- System
signal lamps are on voltage
4 TURN RH Output to right turn-signal When the right turn- System
lamps signal lamps are on voltage
5 HAZ1 Power supply to hazard warning Always System
lamp (battery positive voltage) voltage
6 F/WIP-AS Input of windshield wiper When windshield wipers System
automatic stop signal are operating voltage
7 F/WIP-HI Output to windshield wiper When windshield wipers System
(high-speed operation) are operating at high voltage
speed
8 F/WIP-LO Output to windshield wiper (low When windshield wipers System
speed operation) are operating at low voltage
speed
9 F/WIP- Output to windshield washer When windshield System
WASH washer is operating voltage
10 FR WIP Power supply to windshield Ignition switch: ACC System
ACC wiper/washer (ignition switch: voltage
ACC)
11 - 14 - - - -
15 TAIL LP Output to tail lamps When the tail lamps are
System
on voltage
16 TAIL +B Battery power supply (for tail Always System
lamps) voltage
17 H/LP LO Output to low-beam headlamps When low-beam System
headlamps are on voltage
18 ROOM LP Output to room lamp When the room lamp is Pulse signal
on
19 H/LP HI Output to high-beam headlamps When high-beam System
headlamps are on voltage
20 ETACS +B Battery power supply (for ECU) Always System
voltage
CONNECTOR: D-416
Terminal Terminal code Check item Check condition Normal
No. condition
21 - - - -
22 AS-U Output to central door When the door lock System
locking (for unlocking the actuators unlock the doors voltage
doors)
23 AS-L Output to central door When the door lock System
locking (for locking the actuators lock the doors voltage
doors)
24 - 26 - - - -
27 MSW Input from electric remote Electric remote controlled 1 V or less
controlled mirror switch mirror switch
(folding/unfolding switch) (folding/unfolding switch):
ON
28 - 29 - - - -
30 MOLH&MORH Output to electric folding When the electric folding System
door mirror (unfolding) door mirrors are being voltage
unfolded
31 BACK System
voltage
Input to back-up lamp When the back-up
switch <M/T> lamp switch is on
Input to inhibitor <M/T>
switch <A/T> When the inhibitor
switch is on <A/T>
32 RFOG Output to rear fog lamp When the rear fog lamp is System
on voltage
33 - 35 - - - -
36 DSWL Input to front door lock Driver’s door lock: locked 1 V or less
actuator (RH) (lock switch)
37 - - - -
38 DLID Input from hood latch Hood: opened 1 V or less
switch
39 DEL Output to central door When the door lock System
locking (dead lock) actuators lock the doors voltage
40 MSLH&MSRH Output to electric folding When the electric folding System
door mirror (folding) door mirrors are being voltage
folded
41 DSWU Input to front door lock Driver’s door lock: 1 V or less
actuator (unlock switch) Unlocked
42 - - - -
43 HWA Output to headlamp washer When the headlamp 1 V or less
washer is on
44 IG2 Power supply from ignition Ignition switch: ON System
switch (IG2) voltage
CONNECTOR: D-415
Terminal Terminal Check item Check condition Normal
No. code condition
51 DDSW Input from driver’s door Driver’s door switch: ON (door 1 V or less
switch open)
52 DEF1 Output to the rear When the rear window defogger System
window defogger relay are operative voltage
53 HL1+ Input to key reminder Key reminder switch: ON 1 V or less
switch (Ignition key removed)
54 LIN LIN communication line Always 0 to 12 V
(pulse
signal)
55 SLSO Shift lock solenoid When all the following System
conditions are met. voltage
Ignition switch: ON
Brake pedal: depressed
56 CANH CAN_H - -
57 ANT- Output of key ring Always 1V or less
antenna signal
58 ANT+ Input of key ring Always 1V or less
antenna signal
59 B.PW Output to the power When the power windows are System
window relay operative voltage
60 - - - -
61 DOOR Input from the rear door 1 V or less
switches or tailgate
switch One of the rear door
switches: ON (door open)
Tailgate switch: ON
(tailgate open)
62 KYIL Output to key cylinder When the key cylinder Pulse signal
illumination lamp illumination lamp is on
63 ADSW Input from the front One of the front passenger’s 1 V or less
passenger’s door switch door switch: ON (door open)
64 WB/U Back-up input from Windshield low-speed wiper 1 V or less
windshield wiper switch switch or windshield high-speed
wiper switch: ON
65 CANL CAN_L - -
66 LDWS Input from the LDW When the LDW switch is on 1 V or less
switch
67 FOGY Output to front fog lamp When the front fog lamp is on System
voltage
68 IG1 Power supply from Ignition switch: ON or START System
ignition switch (IG1) voltage
69 DFSW Input from rear window Rear window defogger switch: 1 V or less
defogger switch ON
70 SGND Earth (for sensor) Always 1 V or less
71 HAZ Input from hazard Hazard warning lamp switch: 1 V or less
warning lamp switch ON
72 BKLP Input from stop lamp Stop lamp switch: ON System
switch voltage
73 DRL Output to daytime When the daytime running lamp System
running lamp is on voltage
74 ACC1 Power supply from Ignition switch: ON or ACC System
ignition switch (ACC) voltage
