Tr i path Technol ogy, I nc.

- Techni cal I nfor m ati on

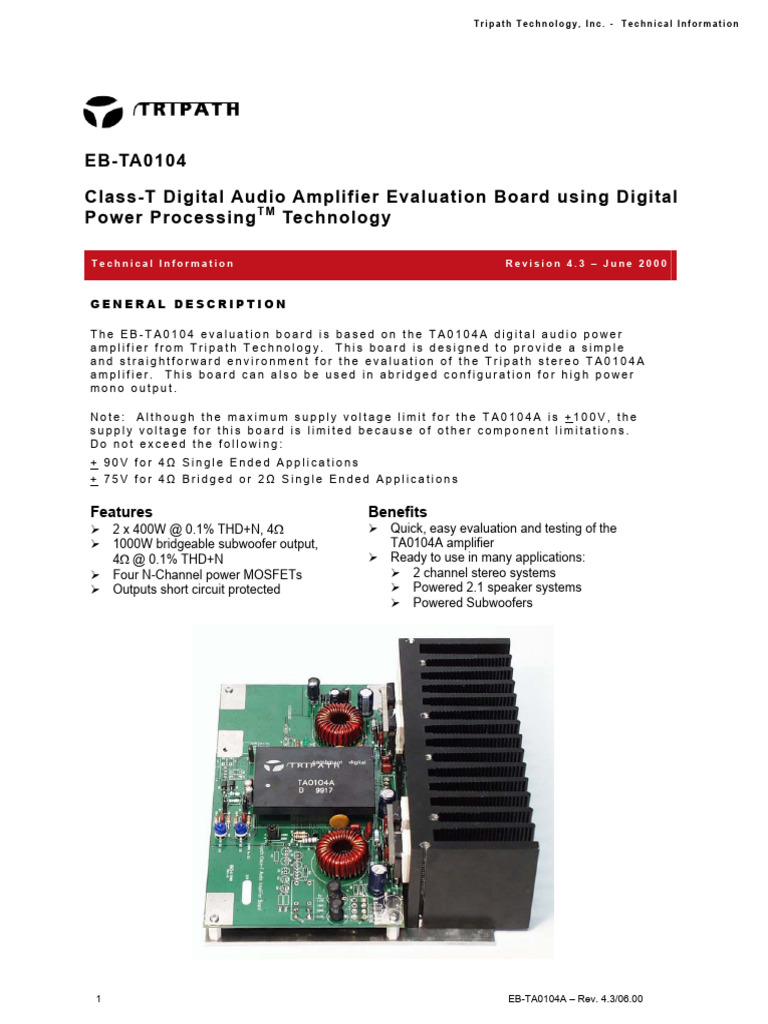

EB-TA0104

Class-T Digital Audio Amplifier Evaluation Board using Digital

Power Processing T M Technology

Technical Information Revision 4.3 – June 2000

GENERAL DESCRIPTION

The EB-TA0104 evaluation board is based on the TA0104A digital audio power
amplifier from Tripath Technology. This board is designed to provide a simple
and straightforward environment for the evaluation of the Tripath stereo TA0104A
amplifier. This board can also be used in abridged configuration for high power
mono output.

Note: Although the maximum supply voltage limit for the TA0104A is +100V, the
supply voltage for this board is limited because of other component limitations.
Do not exceed the following:
+ 90V for 4Ω Single Ended Applications
+ 75V for 4Ω Bridged or 2Ω Single Ended Applications

Features Benefits
2 x 400W @ 0.1% THD+N, 4Ω Quick, easy evaluation and testing of the
1000W bridgeable subwoofer output, TA0104A amplifier
4Ω @ 0.1% THD+N Ready to use in many applications:
Four N-Channel power MOSFETs 2 channel stereo systems
Outputs short circuit protected Powered 2.1 speaker systems
Powered Subwoofers

1 EB-TA0104A – Rev. 4.3/06.00

 Tr i path Technol ogy, I nc. - Techni cal I nfor m ati on

OPERATING INSTRUCTIONS

Power Supply Description

There are three external power supplies required to operate this board: Vspos, Vsneg and +5V (see
Figures 1 and 2). Vspos and Vsneg power the load and so must each be able to provide half of the
desired output power, plus about 20% for overhead and margin. The TA0104A amplifier also requires a
supply, VN12, that is 12V more positive than Vsneg and tracks Vneg. This evaluation board generates
this VN12 voltage on-board. All input, output and power supply connections are made using tinned wire
or female banana connectors (not shown).

Though not required, the following powering-up sequence is usually adhered to during bench
evaluations: 1st) +5V, 2nd) Vsneg and 3rd) Vspos (refer to the Turn-on/off Pop section). The positive
and negative supply voltages do not have to match or track each other, but distortion or clipping
levels will be determined by the lowest (absolute) supply voltage. For applications where VN12 is
supplied separately, make sure this supply tracks the Vsneg as it becomes more negative with
respect to ground.

NOTE: TO AVOID PERMANENT DAMAGE, DO NOT EXCEED THE FOLLOWING:

+90V FOR 4Ω SINGLE ENDED APPLICATIONS
+75V FOR 4Ω BRIDGED OR 2Ω SINGLE ENDED APPLICATIONS

Once power is applied to the evaluation board, the green power light, LED 1, will illuminate. If it
does not, power the unit down and recheck all connections and supplies. If the MUTE jumper is
missing, the LED will not illuminate. To un-mute, short pins 2 and 3 of JP5. Please note that until
the Vspos and Vsneg have powered up and are within the undervoltage and overvoltage limits, the
LED will be illuminated (assuming everything else is properly connected). Once the amplifier is
switching, if the undervoltage or overvoltage limit is violated, LED 1 will turn off until supply voltages
are within specification.

Input Connections
Audio input to the board is located at IN1 and IN2 (see Figures 1 and 2). The input can be a test
signal or music source. Connections are made using tinned wired to IN1, IN2 and Analog Ground,
AGND. These connections are made on the evaluation board using a cable harness with female
banana connectors (not shown).

Output Connections
There are four female banana connectors on the evaluation board for speaker outputs OUT1, OUT2,
and Power Grounds, GND1 and GND2 (see Figures 1 and 2; cable harness connections are not
shown). The TA0104A can be operated as a two- channel single-ended amplifier, bridged mono
output amplifier (see Figure 8) or with a passive crossover for a 2.1 channel application (refer to
Application Note 13). Outputs can be any passive speaker(s) or test measurement equipment with
resistive load (see Application Note 4 for more information on bench testing).

2 EB-TA0104A – Rev. 4.3/06.00

 Tr i path Technol ogy, I nc. - Techni cal I nfor m ati on

Note: To avoid signal degradation, the Analog Ground and Power Grounds should be kept separate.
They are internally connected in the TA0104A amplifier.

Connector Name Channel

IN1 Channel 1 Input
IN2 Channel 2 Input
OUT1 Channel 1 Output
OUT2 Channel 2 Output

Board Operating Conditions

SYMBOL PARAMETER MIN. TYP. MAX. UNITS

VS Supply Voltage (Vspos & Vsneg) 4Ω Single Ended +/-55 +/-75 +/-90 V
4Ω Bridged or 2Ω Single Ended +/-55 +/-75

V5 Positive 5V Bias Supply 4.5 5 5.5 V

See TA0104A data sheet for additional information on Absolute Maximum Ratings, Operating
Conditions, Electrical Characteristics and Performance Characteristics.

Turn-on/off Pop
To avoid turn-on pops, bring the mute from a high to a low state after all power supplies have
settled. To avoid turn-off pops, bring the mute from a low to a high state before turning off the
supplies. The only issue with bringing up the 5V last or turning it off first is clicks/pops. If the mute
line is properly toggled (slow turn-on, quick turn-off), then any power up sequence is fine. In
practice, the 5V will usually collapse before Vspos and Vsneg. This is acceptable and will not cause
any damage to the TA0104A.

3 EB-TA0104A – Rev. 4.3/06.00

 Tr i path Technol ogy, I nc. - Techni cal I nfor m ati on

EB-TA0104 Board
Output Transistors

Power
LED

Mute
Jumper
Input CONNECTIONS
Connections
Vspos (+V)
+5V
Voltage Offset AGND
Adjust DGND
NC
Vsneg (-V)
Break Before
Make Jumpers

Output
Connections Output Transistors

Figure 1
*Please note the Break-Before-Make labels on the PC Board are incorrect and are reversed.

N-Channel
MOSFETs, M1-M4 M1

MUTE M2

+V
MUTE LED
IN2 +5
AGND
HEATSINK

AG
IN1 TA0104A
DG
OFFSET CH2

OFFSET CH1

NC
BBM0 BBM1

+ -V
+

OUT1 M3

GND1
Tripath Class-T Audio GND2 M4
Amplifier Board
EB-TA0104, Rev. 3.3 OUT2

Figure 2

4 EB-TA0104A – Rev. 4.3/06.00

 Tr i path Technol ogy, I nc. - Techni cal I nfor m ati on

ARCHITECTURE
A block diagram of one channel of the evaluation board is shown in Figure 3. The major functional
blocks of the amplifier are described below.

In Output Out
Input Stage TA0104A
Section

VN12

Figure 3

Note: The TA0104A is an inverting amplifier.

Input Stage
Figure 4 shows one channel of the Input Stage. The TA0104A amplifier is designed to accept
unbalanced inputs and provide an overall gain of 14.5, or approximately 23 dB. Please note that the
input stage of the TA0104A is biased at approximately 2.5VDC. Therefore, for an input signal
centered around ground (0VDC), the polarity of the coupling capacitor, CIN, shown in Figure 4 is
correct.
1uF, 6.3V
49.9KΩ
+
Input to TA0104A
RIN (DC Bias ~2.5V)
CIN
+5V
1MΩ

1MΩ
10KΩ

0.1uF, 50V

Figure 4

5 EB-TA0104A – Rev. 4.3/06.00

 Tr i path Technol ogy, I nc. - Techni cal I nfor m ati on

The gain of each channel of the TA0104A amplifier is set by the value of resistor RIN in Figure 4
(labeled R8 and R9 on the schematic), according to the following equation:

Av = 800 x 103 / (RIN + 5000)

where RIN is in Ohms

In this design, RIN is 49.9KΩ, which yields an Av of 14.5 (23 dB). This value is a good compromise
between gain and noise, though reducing RIN by a factor of two will only increase the noise
generated inside the TA0104A by ~1 dB.

The value of the input capacitor, CIN, in Figure 4 (labeled C13 and C16 on the schematic), and the
input resistor, RIN (labeled R8 and R9), set the –3dB point of the input high-pass filter. The
frequency of the input high pass pole, FP, –3dB point can be calculated as follows:

FP = 1/((2π x CIN)(RIN + 5000))

where: CIN = input capacitor value in Farads
RIN = input resistor value in Ohms

Output offset voltages can be nulled by adjusting the 10KΩ potentiometer shown in Figure 4. Once
set, the offset does not typically drift with temperature, so no tracking circuitry is required. Offsets
can typically be set to +/- 25 mV. R43 is used to adjust the offset of CH1, and R42 is used to adjust
the offset of CH2. If a different TA0104A is placed in the EB-TA0104 evaluation board, the offset of
each channel would need to be re-trimmed.

TA0104A Control Circuitry

The 5V supply drives the power light, LED 1, directly to indicate a “good” status. If the LED 1 is off,
the amplifier is in HMUTE (see Figure 5). HMUTE goes high (i.e. LED1 is off), when a fault condition
occurs. If this is caused by an overcurrent condition, the mute pin must be cycled (i.e. low to high to
low) to clear the fault. If the fault was caused by an over- or undervoltage, simply bring the supply
rails to within the OV and UV specifications for the TA0104A (+55V to +92V). Once the supply is
within these limits, the amplifier will automatically reset and LED 1 will illuminate. As stated
previously, until the supplies Vspos and Vsneg are within the specified range, LED 1 will be
illuminated. It would be impossible for the TA0104A to report a supply voltage fault during power up
without requiring a specified supply voltage power sequence that is clearly undesirable.

The MUTE pin is brought out to an external 3-pin header, JP5 (Figure 5). When a jumper is installed
from Pin 4 to ground (by shorting pins 2 and 3 on JP5), the MUTE line is pulled to ground and the
outputs are enabled. Note that if the MUTE jumper is removed, the MUTE pin floats high, the
amplifier is muted and the power LED will not be lit. This is done to remind the user of a possible
“jumper off” condition if there is no output. If the MUTE jumper is driven from the external MUTE
connection to Pin 4 and left floating, the outputs are muted.

+5V +5V
AGND
MUTE

Pin 4

R10 7
10 BBM0 JP3
JP5 OCR2

4
MUTE ROCR +5V
LED 1
11 8
35 OCR1 JP4
HMUTE BBM1
R11
AGND
MUTE
IN2

IN1

Figure 5
The resistors, ROCR in Figure 5 (labeled R10 and R11 in the schematic), set the overcurrent
threshold for the output devices. Note that these are NOT the sense resistors (the overcurrent
sense resistors, RS, are in the output stage). By adjusting the ROCR resistor values, the threshold at
which the amplifier “trips” can be changed. The range that the overcurrent trip point can be adjusted
(by changing ROCR) is determined by the value of the sense resistors.

6 EB-TA0104A – Rev. 4.3/06.00

 Tr i path Technol ogy, I nc. - Techni cal I nfor m ati on

ROCR on this evaluation board is pre-set to 10KΩ for a 4Ω application. For lower impedance
applications (i.e. 4Ω bridged), this board’s overcurrent may trip prematurely. This is indicated by
HMUTE going high; to clear, toggle the mute or cycle the power. To reduce overcurrent sensitivity,
decrease the value of ROCR until the sensitivity meets the desired level. ROCR can be reduced to
0Ω though this may result in an overcurrent threshold that is so high the amplifier will try to drive a
short circuit, possibly damaging the output FETs.

Finally, the Break-Before-Make (or “BBM”) lines are used to control the “dead time” of the output
FETs. The “dead time” is the period of time between the turn-off of one device and the turn-on of the
opposite device on the same channel. If the two devices are both on at the same time, current
“shoots through” from one supply to the other, bypassing the load altogether. Obviously, this will
have a great impact on the overall efficiency of the amplifier. However, if the dead time is too long,
linearity suffers. The optimum BBM setting will change with different output FETs, different operating
voltages, different layouts and different performance requirements. For this reason, Tripath has
provided a means to adjust the BBM setting among four preset levels by moving jumpers JP3 and
JP4 on their 3-pin headers (see Figure 5).

These settings should be verified over the full temperature and load range of the application to
ensure that any thermal rise of the output FETs and TA0104A does not impact the performance of
the amplifier. This amplifier board is set to 65nS, and the table below shows the BBM values for
various settings of the jumpers (Figure 6).

BBM1 BBM0 Delay

1) 0 0 145nS
2) 0 1 105nS
3) 1 0 65nS
4) 1 1 25nS

JP4 + BBM1
(board labeled BBM0)

JUMPER "1"

JP3 + BBM0
(board labeled BBM1)

"0" JUMPER

Figure 6

Output Section
The output section includes the gate resistors, FETs, output filters, the previously mentioned
OVERCURRENT sense resistors, clamping diodes, a Zobel Network, and various bypass
capacitors.

7 EB-TA0104A – Rev. 4.3/06.00

 Tripath Technology, Inc. - Technical Information

OSCH- OSCH+

R1/12 0.01Ω VSPOS

C2/18
0.1uF, 100v C1/19
0.1uF, 100v
M1/3 C3
C6/7, NS 100uF, 100v
HO D1/3

R2/13
5.6Ω L1/2
11.3uH OUT
HOCOM

C4/21
0.22uF, 100v
R3/14 33Ω
D2/4
FDBK C8/20
R4/17 1KΩ
50pF, 100v
C5/22
0.1uF, 100v

M2/4

LO

R5/21
5.6Ω R6/22 0.01Ω VSNEG

C12/27 C9/25 C10/26

0.1uF, 100v 0.1uF, 100v 100uF, 100V

OSCL- LOCOM OSCL+

Figure 7

The gate resistors (labeled R2, R5, R13, and R21 in the schematic and Figure 7) are used to control
MOSFET switching rise/fall times and thereby minimize voltage overshoots. They also dissipate a
portion of the power resulting from moving the gate charge each time the MOSFET is switched. If
RG is too small, excessive heat can be generated in the driver. Large gate resistors lead to slower
gate transitions resulting in longer rise/fall times and thus requiring a larger BBM setting. Tripath
recommends using an RG of 10Ω when the gate charge (Qg) of the output FET is less than 70nC
and 5.6Ω when the Qg is greater than 70nC.

The output FETs, M1-M4, provide the switching function required of a Class-T design. They are
driven directly by the TA0104A through the gate resistors. The devices used on the evaluation
board are ST STW38NB20 MOSFETs. The TA0104A data sheet contains information on output
FET selection as well as Tripath application notes “FETs – Selection and Efficiency” and “Designing
with Switching Amplifiers for Performance and Reliability”.

The output filters L1/C4 and L2/C21 are the low-pass filters that recover the analog audio signal.
One of the benefits of the Class-T design is the ability to use output filters with relatively high cutoff
frequencies. This greatly reduces the speaker interactions that can occur with the use of lower-
frequency filters common in Class-D designs. Also, the higher-frequency operation means that the
filter can be of a lower order (simpler and less costly).

The OEM may benefit from some experimentation in the filter design, but the values provided in the
reference design, 11.3uH and 0.22uF, provide excellent results for most loads between 4 and 8 .

As important as the values themselves, the material used in the core is important to the performance
of the filter. Core materials that saturates too easily will not provide acceptable distortion or
efficiency figures. Tripath recommends a low-mu (permeability of 10) type 2 iron powder core.

8 EB-TA0104A – Rev. 4.3/06.00

 Tripath Technology, Inc. - Technical Information

The clamping diodes D1-D4 are required to limit the reverse voltages seen by the output FETs as a
result of normal operation. The diodes should be mounted as close as possible to the FET.
Depending on the application, these may or may not be necessary.

The Zobel circuits R3/C5 and R14/C22 are there in case an amplifier is powered up with no load
attached. The Q of the LC output filter, with no load attached, rises quickly out to 80kHz. Resonant
currents in the filter and ringing on the output could reduce the reliability of the amplifier. The Zobel
eliminates these problems by reducing the Q of the network significantly above 50kHz. Modifying
the LC output filter should not require a recalculation of the Zobel value.

The bypass capacitors C12/C27 are critical to the reduction of ringing on the outputs of the FETs.
These parts are placed as closely as possible to the leads of the FETs, and the leads of the
capacitors themselves are as short as practical. Their values will not change with different output
FETs.
Connection Diagram for Bridge Mode Operation
The amplifier is connected to the power supplies and load as shown in Figure 8. Note that an
inverter has been added in front of one of the channel inputs (i.e. channel 2). The main reason for
processing the channels out of phase is to avoid potential problems with switching power supplies,
but it also simplifies the connections for bridged-mode operation. For bridged operation, simply
connect the “-“ terminal to the output of the inverted channel (i.e. channel 1) and the “+” terminal to
the output of the non-inverted channel with respect to the input signal (i.e. channel 2). As stated
before, the TA0104A is an inverting amplifier.

*Please note the Break-Before-Make labels on the PC Board are incorrect and are reversed.
.

N-Channel
MOSFETs, M1-M4 M1

MUTE M2

+
70V
-
+V
+

RCA MUTE LED

IN2 +5

+
Audio

5V
AGND
HEATSINK

Input AG
IN1

-
TA0104A
RCA
DG
+

AGND +
.
OFFSET CH2

OFFSET CH1

NC
70V
BBM0 BBM1

+
-

-V
+

OUT1 M3

GND1
Tripath Class-T Audio GND2 M4
Amplifier Board
EB-TA0104, Rev. 3.3 OUT2

Bridged
Subwoofer
+ -

Figure 8

9 EB-TA0104A – Rev. 4.3/06.00

 Tripath Technology, Inc. - Technical Information

VN12 Bias Requirement

The VN12 circuit (Figure 9) is used to provide the voltage rail for the low side FET drivers on the
TA0104A. This supply must track the Vsneg rail, and so, for simplicity, this supply is included on this
amplifier board. The VN12 circuit uses a National LM2594HVN-12 “simple switcher” voltage
regulator for all control. A few passive components complete the design. Tripath does not anticipate
that there will be any reason to modify the operation of this circuit. Should the OEM wish to do so,
however, reference data for the LM2594 is available at www.national.com/pf/LM/LM2594.
JP6
+VIN FB

LM2594
330uH
10uF OUT VN12
C29 GND ON/OFF L3
D5
82uF
C30

VSNEG

Figure 9

FAQ’S
Q. The TA0104A supply voltage rails are rated at +100V. Why is this evaluation board limited
to +90V maximum?
A. IC’s used in the 12V bias supply circuitry as well as the choice of STW38NB20 FETs limit this
boards voltage supply to +90V into 4Ω single ended, +75V for 4Ω Bridged, or +75V for 2Ω
single ended applications. Damage will occur to the board at higher voltages.

Q. Can I use the TA0104A reference design to drive 2Ω (or lower) loads?
A. The reference design can drive 2Ω single ended loads. For use with loads of lower nominal
impedance, a new filter design may be required. Please contact the Tripath Applications group
for support in this area.

Q. Do I need to attach a fan to the heat sink?

A. For normal operation, the heat sink is sized appropriately. Continuous operation at high levels
(especially low impedance loads) may cause excessive power dissipation thus requiring a fan.

DIMENSIONS
The evaluation board dimensions with the heat sink are: 8” x 7.5” x 2.5”.

DOCUMENTATION
Schematics and layout in software or paper form can be provided upon request.

10 EB-TA0104A – Rev. 4.3/06.00

 Tripath Technology, Inc. - Technical Information

CONTACT INFORMATION

World Wide Sales Offices

United States & Europe Jim Hauer jhauer@tripath.com 408.567.3089

SE Asia & China Eugene Hsu ehsu@tripath.com 886.2.2653.7428
Japan & Korea Osamu Ito ito@tripath.com 81.42.334.2433

TRIPATH TECHNOLOGY, INC

3900 Freedom Circle
Santa Clara
CA 95054
408.567.3000
www.tripath.com

11 EB-TA0104A – Rev. 4.3/06.00

 5 4 3 2 1

VSPOS
VP75B
M1 R1
STW38NB20 1 C2 0.01 C1 + C3
1W 0.1UF
2 3 0.1UF D1 1% 100V 100UF
100V MUR120 5% 100V
D V5 V5 R2 5.6 5% D
20%
1W L1 OUT2
5% OUT2
M2 11.3UH
STW38NB20 1 10A C4 R3
+ 10% 0.22UF 33
R50 2 3 D2 100V 2W
2K MUR120 C7 5% 5%
0.25W R5 5.6 NS
5% JP7 1W C5
NS 5% R4 C8 0.1UF

2
LED1 1K 47PF 100V
AMP ON (GREEN LED) 1W 500V 5%
VSPOS 5% 10%
VSPOS GND_2
COM2
VSNEG
VSNEG
VN12REF R6 VSNEG

1
VN12REF 0.01
V5 HMUTE 1W
V5 1% C9 C10
+
V5 C11 0.1UF 100UF

39

38

37

36

35

34

33

32

31

30

29

28
C
0.1UF C12 100V 100V C
50V U1 0.1UF 5% 20%

C_GND

TEST3

TEST2

TEST1

HMUTE

PSNS2P

PSNS2N

NSNS2N

NSNS2P

COM2

FDBKN2

PGND
5% AGND 100V
JP5 5%
1
2
3

3-pin Header 1 27
0.100" R7 AGND LO2
10K Pin3V5 2 26
0.25W OVERLOAD BR2
5% 3 25
V5 HO2
4 24 VSNEG
MUTE TA0104 VSNEG
From
5 23 VSPOS
Preamp IN2 VSPOS
Board 6 IN1 HO1 22
J1 4-Terminals JP3 7 21
BBM0 BR1

GNDKELVIN1

GNDKELVIN2
FB1 R8 C13 3-pin Header V5
4
+

0.100" 8 20

VN12REF
3 BBM1 LO1

NSNS1N

NSNS1P

PSNS1N

PSNS1P

FDBKN1
2 3
1

COM1
OCR2

OCR1
C14 EXC-ELSA35 49.9K
1 2
1

NS 0.25W 1UF
C15 1% 1
50V
AGND
2

NS 20%

10

11

12

13

14

15

16

17

18

19
FB2 JP4
2

9
B B
EXC-ELSA35 R9 C16 3-pin Header V5 VN12REF
+

0.100"

C17 49.9K 3 R10 R11 VP75A VSPOS

2
1

NS C40 0.25W 1UF 10K 10K M3 R12

1% 1 0.25W 0.25W STW38NB20 C18 0.01
NS 50V
5% 5%
1
0.1UF 1W C19
20%
100V D3 1% 0.1UF
2

2 3
5% MUR120 100V
JP1 JP2 R13 5.6 L2 OUT1
5%
2-pin Header 2-pin Header 1W
GPWR 0.100" 0.100" 5% 11.3UH
M4 10A C21
STW38NB20 1 10% 0.22UF R14
D4 + C6 100V 33
Pin3V5 Pin3V5 2 3 MUR120 NS R17 5% 2W
R16 GND_1 AGND GND_2 1K 5%
R15 1M R21 5.6 1W
3

R19 1M 0.25W 1W 5% C22

3

1M 0.25W 5% 5% 0.1UF
0.25W 5% R43 C20 100V
R42 5% 2 10K 47PF 5%
GND_1
10K 2 Single Turn COM1 500V
A Single Turn R20 10% A
C23 C24 1M
0.1UF 0.1UF 0.25W
1

VSNEG
50V 50V 5% R22
1

5% 5% 0.01
C25 + C26 1W Title GND1
0.1UF 100UF 1% C27
AGND AGND 100V 100V 0.1UF
EB-TA0104 2CH AUDIO AMPLIFIER BOARD
5% 20% 100V Size Document Number Rev
5% B EB-TA0104 3.3F3

Date: Tuesday, January 16, 2001 Sheet 2 of 3

5 4 3 2 1
 5 4 3 2 1

VSPOS

V5

Tie pins 1, 2, 3 to VSNEG

(pins 5, 6).
D D
U2
JP6
J2

NOT ON/OFF
7 +VIN FB 4
1 LM2594HVN-12
2 V5 NS
8

GND
3 OUT VN12REF
4

1
GPWR L3 330UH
5
+ C29 0.5A + C30
6 10UF

5
10%
63V D5 82UF
4-Terminals 20% 11DQ09 25V

2
20%

VSNEG

C C

The relay will not be stuffed.

V5
Please short pin 5 to pin 7 and
pin 6 to pin 8 with bare 18AWG
R61 wires. This allows the signal
NS to bypass the relay.
V5 V5
V5
K1
D6 D7 R26 R41 1
NS NS NS NS 2 L5 NS
Q2 3 7
NS 5
Q3 2 1 3
VSNEG NS 3 Q4 3 L4 NS
HMUTE
NS 1 8
2 1 2 1 2 + 6
3 Q5 C31 4 J3
R27 NS NS NS NS 1
B B
R28 2
NS Q6 3
3 4
NS 5
2 1 GND_2
R29 6
NS C38 C32 7
C37 C33 C39 C36 8
NS NS
NS NS NS NS 6-Terminals

+ C34
NS GND_1

+ C35
NS

OUT2
A A

OUT1

Title
EB-TA0104 2CH AUDIO AMPLIFIER BOARD
Size Document Number Rev
B EB-TA0104 3.3F3

Date: Tuesday, January 16, 2001 Sheet 3 of 3

5 4 3 2 1
 EB-TA0104 Bill Of Materials
Revision 8
P/N Qty. Reference Description Value Rating Tol. MFG. Mfg. Part # Vendor Vendor Part #
1 050-00012-0AB 1 PCB Assembly, Tested EB-TA0104
2 040-00012-0AB 1 PCB Assembly, Untested EB-TA0104
10 C1,C2,C5,C9,C12,C18,C19, Stack Metallized Film Caps 0.1UF 100V 5% Panasonic ECQ-V1104JM Digi-Key P4725-ND
3 302-00001-000 C22,C25,C27
4 301-00005-000 3 C3,C10,C26 Radial Lead Aluminum Electrolytic Caps 100UF 100V 20% Panasonic ECA-2AHG101 Digi-Key P5597-ND
5 302-00003-000 2 C21,C4 Stack Metallized Film Caps 0.22UF 100V 5% Panasonic ECQ-V1224JM Digi-Key P4729-ND
6 300-00008-000 2 C8,C20 Ceramic Disk Caps 47PF 500V 10% Panasonic E4008A-ND Digi-Key ECC-D2H470K5
7 302-00007-000 3 C11,C23,C24 Stack Metallized Film Caps 0.1UF 50V 5% Panasonic ECQ-V1H104JL Digi-Key P4525-ND
8 301-00017-000 2 C13,C16 Radial Lead Aluminum Electrolytic Caps 1UF 50V 20% Panasonic ECA-1HM010 Digi-Key P5174-ND
9 301-00006-000 1 C29 Radial Lead Aluminum Electrolytic Caps 10UF 63V 20% Panasonic ECA-1JM100 Digi-Key P5189-ND
10 301-00018-000 1 C30 Radial Lead Aluminum Electrolytic Caps 82UF 25V 20% Panasonic ECA-1EFQ820 Digi-Key P5697-ND
11 400-00005-000 4 D1,D2,D3,D4 Fast Recovery Diode 200v, 1A, DO-41 200V Motorola MUR120
12 400-00013-000 1 D5 Schottky Diode 90v, 1A, DO-41 IR 11DQ09 Digi-Key 11DQ09-ND
2 FB1,FB2 Ferrite Bead, 3.5x6x0.8, 60ohm,@100Mhz EXC-ELSA35 Panasonic EXC-ELSA35
13 215-00001-000
2 JP2,JP1 Header Strips 2-pin Header, 0.100" Phyco 2100-1X2SF1
14 800-00003-000
3 JP3,JP4,JP5 Header Strips 3-pin Header, 0.100" Phyco 2100-1X3SF1
15 800-00016-000
1 LED1 0.100" spacing AMP ON (GREEN open
16 404-00002-000 LED)
2 L2,L1 Iron Powder, 29 Turns of 16 AWG 11.3UH 10A 10% Amidon T-106-2 AMIDON
17 700-00001-000 AMI-10231
18 700-00002-000 1 L3 Inductor 330UH 3A 10% ISI RL622-331K
4 M1,M2,M3,M4 N-Ch Mosfet STW38NB20 200V/38A SGS-Thomson STW38NB20
19 503-00004-000
20 206-00001-000 4 R1,R6,R12,R22 Resistor 0.01 1W 1% Well-Mag MR0100805
21 206-00003-000 4 R2,R5,R13,R21 Resistor, CAR 5.6 1W 5% Panasonic Digi-Key P5.6W-1TR-ND
22 207-00002-000 2 R14,R3 Resistor, CAR 33 2W 5% Panasonic Digi-Key P33W-2TR-ND
23 206-00004-000 2 R4,R17 Resistor, CAR 1K 1W 5% Panasonic Digi-Key P1.0KW-1TR-ND
24 202-00006-000 3 R7,R10,R11 Resistor, CAR 10K 0.25W 5% Yageo Digi-Key 10KQTR-ND
25 202-00007-000 2 R8,R9 Resistor, CAR 49.9K 0.25W 1% Yageo Digi-Key 49.9XTR-ND
26 202-00008-000 4 R15,R16,R19,R20 Resistor, CAR 1M 0.25W 5% Yageo Digi-Key 1MQTR-ND
2 R42,R43 Resistor 10K-Single Turn POT Bourns 3306P-1103 Digi-Key 3306P-103-ND
27 204-00008-000
28 202-00009-000 1 R50 Resistor, CAR 2K 0.25W 5%
1 U1 Audio Amplifier TA0104 Tripath, TA0104

29 050-00006-3AB consigned part

30 601-00003-000 1 U2 IC, DIP 8, 3A, Step Down regulator LM2594HVN-12 NSC LM2594HVN-12
31 800-00017-000 2 U1 1 X 11 female socket Phyco 4150-1X11 SF1
32 800-00018-000 2 U1 1 X 8 female socket Phyco 4150-1X8 SF1
33 850-00003-000 1 Cable Ties 8" T&B 10400
34 180-00003-000 1 Printed Circuit Board Bay Area Ckt TA010X_REV 3.3
35 850-00004-000 4 Aluminum Stand-Offs 4-40 x 0.5" Olander 4C50RF4U
36 850-00005-000 4 Screws for Stand-Offs 4-40 x 1/4" Olander 4C25PPMS
37 850-00006-000 4 Alumina Oxide Spacers Thermalloy 4170 Bisco Industries
1 Heatsink ACK Tech/ CCI CS8157-18070
38 850-00007-000
39 850-00008-000 2 Small, Clamp Bars Abacus 100-3900-002
40 850-00009-000 2 Screws for Clamp Bars 4-40 x 1/2" Olander 4C75PPMS
41 850-00010-000 1 Red Wire 6", 24 AWG Wire open
42 850-00013-000 1 Red Wire 6", 18 AWG Wire open
43 850-00013-000 1 Red Wire 12", 18 AWG Wire open
44 850-00011-000 1 Black Wire 6", 24 AWG Wire open
45 850-00014-000 1 Black Wire 6", 18 AWG Wire open
46 850-00014-000 1 Black Wire 12", 18 AWG Wire open
47 850-00012-000 1 White Wire 6", 24 AWG Wire open
48 850-00015-000 1 White Wire 6", 18 AWG Wire open
49 850-00016-000 1 Yellow Wire 12", 18 AWG Wire open
50 850-00017-000 1 Blue Wire 6", 18 AWG Wire open
51 850-00017-000 1 Blue Wire 12", 18 AWG Wire open
52 850-00018-000 1 Orange Wire 12", 18 AWG Wire open
 2 Female Banana Jack w/ screws Red Johnson Comp. 108-0901-001 Digi-Key J151-ND
53 800-00009-000
2 Female Banana Jack w/ screws Black Johnson Comp. 108-0903-001 Digi-Key J152-ND
54 800-00010-000
2 Female Banana Jack w/ screws Blue Johnson Comp. 108-0910-001 Digi-Key J155-ND
55 800-00012-000
1 Female Banana Jack w/ screws White Johnson Comp. 108-0901-001 Digi-Key J150-ND
56 800-00011-000
1 Female Banana Jack w/ screws Yellow Johnson Comp. 108-0907-001 Digi-Key J154-ND
57 800-00014-000
1 Female Banana Jack w/ screws Orange Johnson Comp. 108-0906-001 Digi-Key J356-ND
58 800-00013-000
33 K1,Q2,Q3,Q4,Q5,Q6,D6,C6,JP7,D7,C NS
7,C14,C15,C17,L4,L5,R26,R27,R28,R
29,C31,
C32,C33,C34,C35,C36,C37,C38,C39,
59 C40,R41,R61, JP6
6 8-32 x 3/8 Phil Flat, Baseplate screw, SS open Orlander
60 850-00019-000
4 4-40 x 1/4 Phil Flat, Baseplate screw, SS open Orlander
61 850-00020-000
1 Baseplate, Aluminum American TA0103, 04 baseplate
62 850-00021-000 Tooling
63 400-00014-000 1 JP6 Zener Diode, 51v, 1w 1N4757 open
64 503-00005-000 1 JP6 MOSFET, NPN, TO-220 2N5494 50v open
65 202-00006-000 1 JP6 Resistor 10K ohm .25w 5% Yageo Digi-Key 10KQTR-ND
66 850-00022-000 1 JP6 Heatsink, TO-220 open
67 800-00019-000 5 JP1, JP2, JP3, JP4, JP5 Jumper Headers, 2 pin open
68 950-00003-000 1 Shipping box w/ foam
69 950-00004-000 1 10 x 12 Anti-static bag
70 850-00031-000 1 JP6 Nut, #6 hex
71 850-00032-000 1 JP6 Screw, #6 x 1/4", Pan Hd, PH

Special Instructions

Note #1 (J1): Use a 24AWG (6" long) stripped at end, 1/4" expose wire leads
Terminal 1: Red Wire
Terminal 2: Black Wire
Terminal 3: White Wire
Terminal 4: No Wire

Note #2 (J2): Use a 18AWG (12" long) terminate with same color female banana jack at the end.
Terminal 1: Yellow Wire
Terminal 2: Red Wire
Terminal 3: Black Wire
Terminal 4: Blue Wire
Terminal 5: No wire
Terminal 6: Orange Wire

Note #3 (J3): Use a 18AWG (6" long) terminate with same color female banana jack at the end.
Terminal 1: Red Wire
Terminal 2: Black Wire
Terminal 3: Blue Wire
Terminal 4: White Wire

Note #4: Use 18 gauge wire-uninsulated, jumper L4 and L5

Use 18 gauge wire uninsulated, jumper K1 location (pins 5 to pin 7 and pins 6 to pin 8)

Note #5: Install Header Jumpers at locations: JP1, JP2, JP3, JP4, JP5
(refer to sample for orientation)

Note #6: JP6, refer to sample for installation/orientation of components
