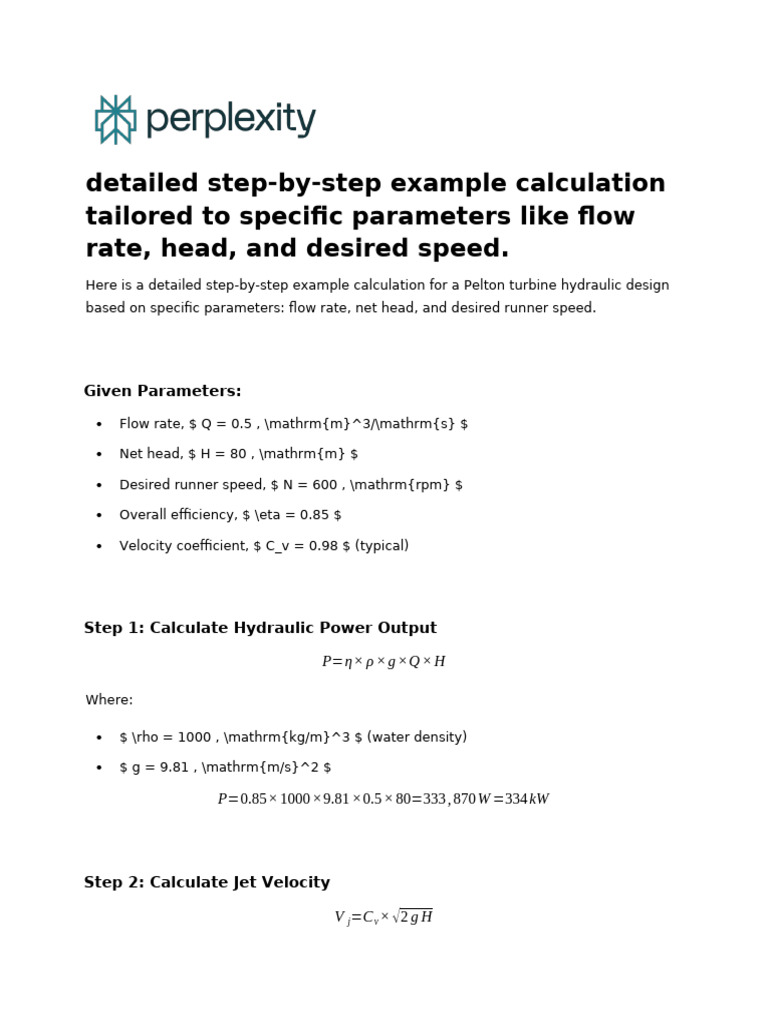

detailed step-by-step example calculation

tailored to specific parameters like flow


rate, head, and desired speed.
Here is a detailed step-by-step example calculation for a Pelton turbine hydraulic design
based on specific parameters: flow rate, net head, and desired runner speed.

Given Parameters:

 Flow rate, $ Q = 0.5 , \mathrm{m}^3/\mathrm{s} $

 Net head, $ H = 80 , \mathrm{m} $

 Desired runner speed, $ N = 600 , \mathrm{rpm} $

 Overall efficiency, $ \eta = 0.85 $

 Velocity coefficient, $ C_v = 0.98 $ (typical)

Step 1: Calculate Hydraulic Power Output

P=η× ρ × g ×Q × H

Where:

 $ \rho = 1000 , \mathrm{kg/m}^3 $ (water density)

 $ g = 9.81 , \mathrm{m/s}^2 $

P=0.85× 1000 ×9.81 ×0.5 × 80=333 , 870 W =334 kW

Step 2: Calculate Jet Velocity

V j=C v × √ 2 g H
V j=0.98 × √ 2 ×9.81 ×80=0.98 ×39.6=38.8 m/s

Step 3: Calculate Jet Diameter

Using the continuity equation:

π
Q= d 2j V j ⟹ d j=
4 √
4Q
πV j

d j=
√ 4 × 0.5
π ×38.8
=
√ 2
121.8
=√ 0.0164=0.128 m

Step 4: Determine Runner Periphery Speed

Optimal peripheral speed $ u $ is about 46% of jet velocity for a Pelton turbine:

u=0.46 ×V j=0.46 ×38.8=17.85 m/s

Step 5: Calculate Runner Diameter

Using:

π DN 60u
u= ⟹ D=
60 πN

60 ×17.85 1071
D= = =0.57 m
π ×600 1885

Step 6: Calculate Jet Ratio $ m $

D 0.57
m= = =4.45
d j 0.128
(Note: Typical jet ratios are between 11 and 15. This suggests you may need to adjust
runner diameter or jet diameter for optimal efficiency or consider multiple jets.)

Step 7: Calculate Number of Buckets

Using the empirical formula:

D 0.57
Z=15+ =15+ =15+2.23=17.23 ≈17 buckets
2dj 2× 0.128

Step 8: Estimate Bucket Dimensions

 Bucket width $ b \approx 3 \times d_j = 3 \times 0.128 = 0.384 , \mathrm{m} $

 Bucket depth $ h \approx 1.2 \times d_j = 1.2 \times 0.128 = 0.154 , \mathrm{m} $

Summary Table

Parameter Value

Flow rate Q 0.5 m³/s

Net head H 80 m

Efficiency η 85%

Jet velocity Vj 38.8 m/s

Jet diameter dj 0.128 m

Runner speed N 600 rpm

Runner diameter D 0.57 m

Jet ratio m 4.45

Number of buckets Z 17
Bucket width b 0.384 m

Bucket depth h 0.154 m

Notes:

 The jet ratio is lower than typical recommendations, meaning to improve efficiency
you might consider increasing the runner diameter or splitting flow into multiple
jets.

 The design can be optimized further using hydraulic testing or computational fluid
dynamics (CFD).

 Detailed mechanical design (e.g., bucket shape, material) and structural


considerations should follow these hydraulic calculations.

This detailed calculation shows how to size a Pelton turbine runner and jet for specified
flow, head, and speed, balancing efficiency and practical design considerations. Let me
know if you'd like further assistance on any of these steps!
