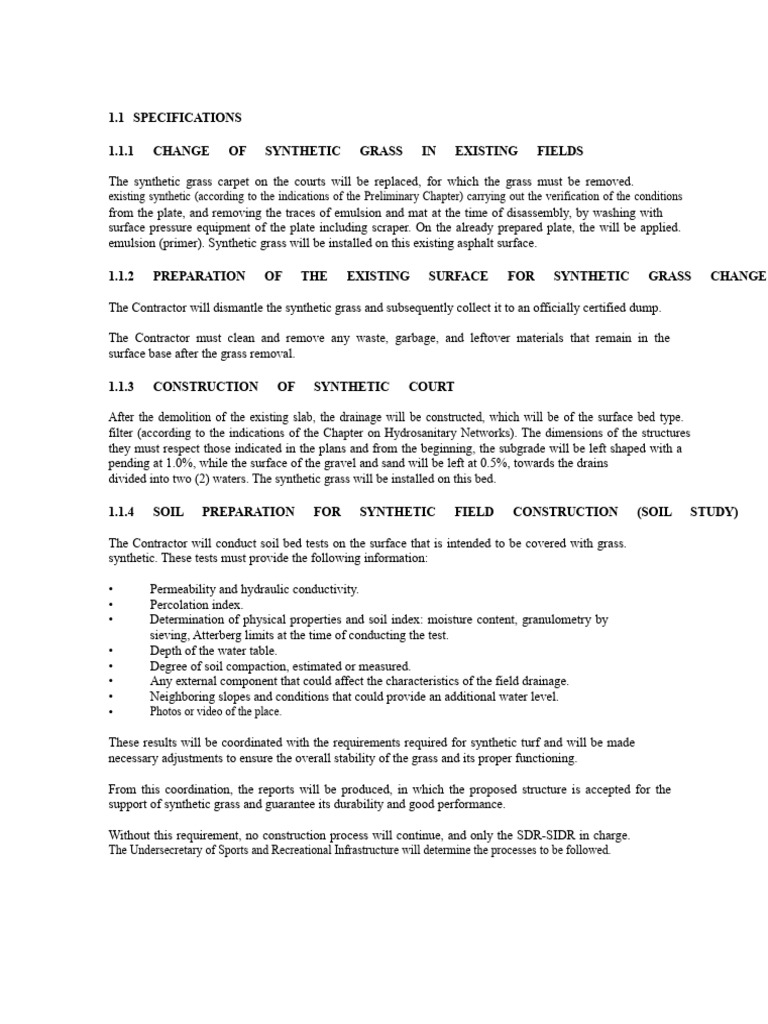

1 SPECIFICATIONS

1.1.1 CHANGE OF SYNTHETIC GRASS IN EXISTING FIELDS

The synthetic grass carpet on the courts will be replaced, for which the grass must be removed.
existing synthetic (according to the indications of the Preliminary Chapter) carrying out the verification of the conditions
from the plate, and removing the traces of emulsion and mat at the time of disassembly, by washing with
surface pressure equipment of the plate including scraper. On the already prepared plate, the will be applied.
emulsion (primer). Synthetic grass will be installed on this existing asphalt surface.

1.1.2 PREPARATION OF THE EXISTING SURFACE FOR SYNTHETIC GRASS CHANGE

The Contractor will dismantle the synthetic grass and subsequently collect it to an officially certified dump.

The Contractor must clean and remove any waste, garbage, and leftover materials that remain in the
surface base after the grass removal.

1.1.3 CONSTRUCTION OF SYNTHETIC COURT

After the demolition of the existing slab, the drainage will be constructed, which will be of the surface bed type.
filter (according to the indications of the Chapter on Hydrosanitary Networks). The dimensions of the structures
they must respect those indicated in the plans and from the beginning, the subgrade will be left shaped with a
pending at 1.0%, while the surface of the gravel and sand will be left at 0.5%, towards the drains
divided into two (2) waters. The synthetic grass will be installed on this bed.

1.1.4 SOIL PREPARATION FOR SYNTHETIC FIELD CONSTRUCTION (SOIL STUDY)

The Contractor will conduct soil bed tests on the surface that is intended to be covered with grass.
synthetic. These tests must provide the following information:

• Permeability and hydraulic conductivity.

• Percolation index.
• Determination of physical properties and soil index: moisture content, granulometry by
sieving, Atterberg limits at the time of conducting the test.
• Depth of the water table.
• Degree of soil compaction, estimated or measured.
• Any external component that could affect the characteristics of the field drainage.
• Neighboring slopes and conditions that could provide an additional water level.
• Photos or video of the place.

These results will be coordinated with the requirements required for synthetic turf and will be made
necessary adjustments to ensure the overall stability of the grass and its proper functioning.

From this coordination, the reports will be produced, in which the proposed structure is accepted for the
support of synthetic grass and guarantee its durability and good performance.

Without this requirement, no construction process will continue, and only the SDR-SIDR in charge.
The Undersecretary of Sports and Recreational Infrastructure will determine the processes to be followed.
The Contractor must clean and remove all organic materials, trash from the subgrade layer,
punching materials, as well as materials that do not allow compaction.

Once the surface has been excavated and stripped, the Contractor will compact the subgrade for which
will use non-vibrating machinery.

The soil will be compacted in both directions to achieve the established compaction level, as indicated.
the study and the Soil Engineer.

The floor bed must have a minimum slope of 1%, depending on the soil analysis from the
longitudinal center of the field towards the sides.

Likewise, it must be prepared to tolerate no more than 0.6 cm over a distance of 3.0 m in height.
nominal to allow for even drainage. It is recommended to perform leveling with surveying equipment,

The use of a geotextile may be required to cover the soil bed, depending on the results of the analysis.
from the ground.

1.1.5 FILLERS: BASE AND SUBBASE

The subbase must be placed without damaging the soil bed.

It is very important that no kind of depression is formed with the use of heavy equipment.

The base at 100% of the modified proctor and subbase at 98% of the modified proctor must comply with the
Recommended specifications. The finished base and subbase must be stable and permeable.

If the required compaction depth of the base exceeds 15 cm, the base will be constructed in two (2) layers.
or more layers of an approximate equivalent thickness.

Each layer must be compacted in both directions to achieve the indicated compactness coefficient.
by the Soil Engineer in his Geotechnical Study.

The base must have a slope of 0.5% from the central longitudinal axis towards the sides, or as specified.
specify.

The surface of the finished base will not vary from the specified slope by more than 0.5 cm in a
distance of 3.0 m measured in any direction.

1.1.6 EMULSION (PRIMER)

The application of this emulsion on the asphalt base plate allows that, during the installation of the
grass carpets, do not disturb the gravel and lose the grade of it. Nothing should be installed.
additional about this emulsion except for the grass mats. Description: League irrigation (EMCRR-1) Includes.
Supply, irrigation, application, and transport, 1 liter per M2, applied by spraying. Unit of measurement: M2

1.1.7 FLOOR STRUCTURES: FIFA SYNTHETIC GRASS

Finally, the synthetic turf will be installed following the manufacturer's instructions regarding maintenance.
installation, types of joints, synthetic anchors, etc.
Objective: To supply and install synthetic grass, as well as the supply and application of infill materials, to allow for
sports practice in the fields where it is installed.

Description: Supply and installation of monofilament synthetic grass, bi-color green of the latest generation.
50mm
total of the product minimum 2,000 gr/m2. special joining tapes for synthetic fields minimum width 30cm and
They must be bonded with two-component polyurethane adhesive according to FIFA quality standards.
concept. stabilization with UV protection against ultraviolet rays, gauge 5/8, 8000 stitches per m2,
warranty for manufacturing defects 8 years. producer certificate fifa preferred
provider licensee FIFA.

A maintenance manual must be delivered, training for the assigned personnel, brush kit for
maintenance. includes marking on synthetic grass in white color. minimum filling of 35 mm composed
of silica sand (20 kg/m2) and ground rubber with fine granulation (0.07 mm - 2 mm) (10 kg/m2). It should be
present certificates of origin and size.

Note 1: The turf supplied for this contract must have a direct representative in Colombia.
certified by the Manufacturer, so that the SDR - SIDR has an immediate response in case of
requirement about the product.

1.1.8 ENCLOSURE IN NYLON NETTING:

This corresponds to the dismantling and removal of the existing nylon mesh enclosure, which is in poor condition, and
subsequent supply, transportation, and installation of new nylon protective mesh, placed around the perimeter and
on top of the synthetic field to prevent the balls from leaving the interior of the court.

Description: Supply, transport, and placement of perimeter protection enclosures at 7 meters.

height and on the court in nylon mesh 90 hole 13*13 cm. Accessories: 1/4 cable to floor, 1/4 cable to ceilings,
¼” intermediate rope, ¼ diagonal roof ropes, shackles, tensioners, retainers, and installation.

Note 1: The contractor must deliver the court enclosure with nylon mesh according to the
specifications described in that item as indicated in the budget. In the same way, you must deliver the
technical sheet of the thread to ensure its quality where it specifies: manufacturing thread,
resistance at the height of each thread, break resistance, elongation at break, color, and twist. In a way
that the lifespan of the mesh is guaranteed by knowing its tenacity and resistance to weathering effects.
