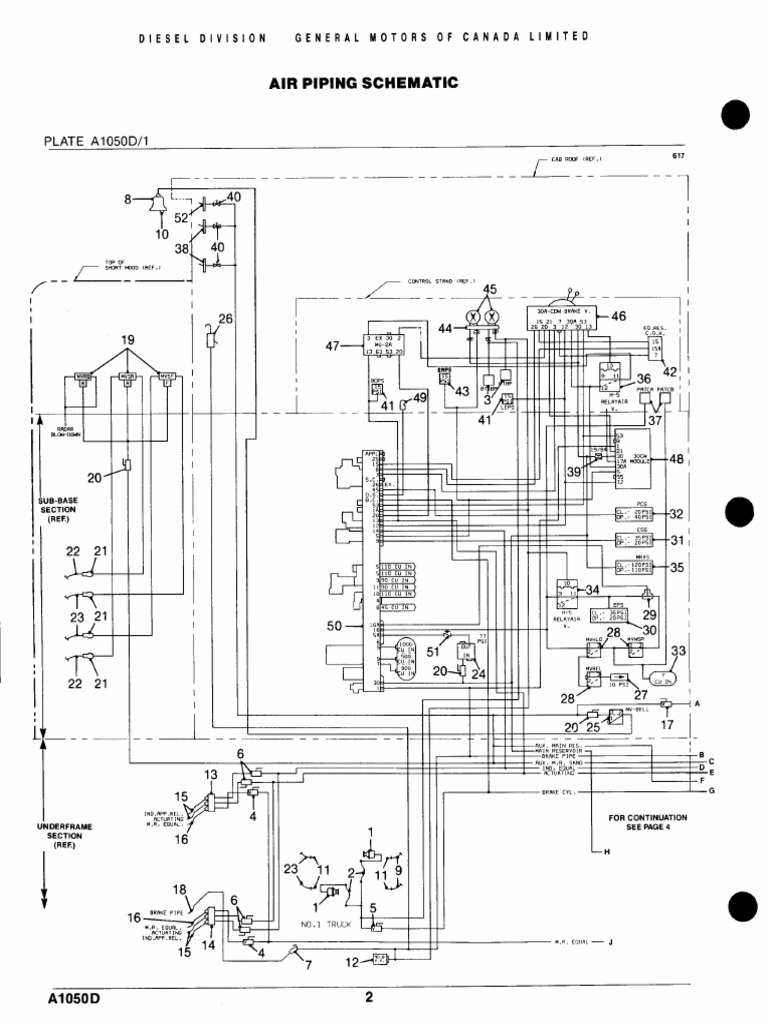

DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
AIR PIPING SCHEMATIC
P LATE A1050D/1
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
AIR PIPING SCHEMATIC
PLATE A1050D/1
Note Ref .No. Part No. Qty. Description Ref . P/L No.
1 8288351 2 CYLINDER - Brake Al 511 D-1
2 10569847 2 HOSE ASSY .
3 10575258 2 SENSOR - Pressure A4331 D-1
4 8412325 2 VALVE - 1 in . Ball - Vented
NI 8413596 1 " REPAIR KIT - Ball Valve
5 8423393 1 VALVE - 3/4 in . Ball
6 9338021 4 VALVE - 1/2 in . Ball
7 10563377 1 VALVE - 1 1/4 in . Ball - Angle
8 8475495 1 BELL - 12 in . Locomotive A2945D
9 8289798 2 HOSE - Sand A1920D
10 8254433 1 RINGER - Bell A2945D
11 8328553 4 NOZZLE - Sand Al 511 D-1
12 8494649 1 VALVE - Vent - No. 8
13 9544788 1 MANIFOLD - 3 Port - Connector
14 9544789 1 MANIFOLD - 3 Port - Connector
15 10569848 4 HOSE ASSY
16 10569845 2 HOSE ASSY
17 9574976 1 VALVE - 3/8 in. Ball
18 10569846 1 HOSE ASSY
19 9574325 3 VALVE - Sander Control A1920D
20 8362821 3 VALVE - 3/8 in . Ball
NI 8362238 1 " REPAIR KIT - Ball Valve
21 8366782 4 TRAP - Sand A1921 D
22 10572504 2 HOSE - Sand A1920D
23 8423910 2 HOSE - Sand A1920D
24 10563667 1 VALVE - N-1 Reducing
25 9535112 1 VALVE - Relay
26 8136987 1 VALVE - 1 1/4 in. - Emergency Brake
27 9314755 1 VALVE - Check
28 9574327 3 VALVE - Solenoid A4710D-3
29 8318372 1 VALVE - Check A1093D-2
30 9518752 1 SWITCH - Pressure
31 9518735 1 SWITCH - Pressure
32 9518740 1 SWITCH - Pressure
33 8186441 1 RESERVOIR - 7 cu . in .
34 9099093 1 VALVE - HB-5 Relayair - 25 Pound Spring
35 8424970 1 SWITCH - Pressure
36 8103430 1 VALVE - H-5 Relayair - 25 Pound Spring A4331 D-1
37 9310202 2 TRANSDUCER A4331 D-1
38 6983606 2 MOTOR - Windshield Wiper A2109D-1
39 8466371 1 FITTING - Choke - 19/64 in. Hole
40 9316239 3 VALVE - Control - Windshield Wiper A2109D-1
41 10576332 2 SWITCH - Pressure A4331 D-1
42 6996403 1 VALVE - Equalizing Reservoir Cut Off A4331 D-1
43 10576070 1 SWITCH - Pressure A4331 D-1
44 9581963 1 VALVE ASSY - Manifold and Shutoff A4331 D-1
45 9540228 2 GAUGE - Air - Duplex A4331 D-1
46 6996401 1 VALVE - Brake - 30A - CDW A4331 D-1
47 6943438 1 VALVE - MU-2-A A4331 D-1
48 6996402 1 MODULE - 30CW
49 8146487 1 WHISTLE - Overspeed A4331 D-1
50 10539208 1 RACK - Unitized 26 LU-L - See Page 6
51 8426034 1 VALVE - Check A1093D-3
52 6983607 1 MOTOR - Windshield Wiper A2109D-1
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
AIR PIPING SCHEMATIC
PLATE A1050D/ 2
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
AIR PIPING SCHEMATIC
PLATE A1050D/2
Note [Link]. Part No. Qty. Description Ref. P/L No.
1 40012945 1 COMPRESSOR - Air - WLNA9AN A1144D-1
2 8408766 2 RESERVOIR - Main Air A1088D
3 10537811 2 VALVE - Manual Drain A1091 D
4 8288351 2 CYLINDER - Brake A1511 D-1
5 8331916 2 VALVE - Check A1093D
6 8324803 2 VALVE - Check A1093D-1
7 10569847 2 HOSE ASSY .
8 9571981 1 VALVE - Dual 1 1/4 Pipe A1088D
9 8412325 4 VALVE - 1 in . Ball - Vented
NI 8413596 1 " REPAIR KIT - Ball Valve
10 8423393 1 VALVE - 3/4 in . Ball
11 9338021 4 VALVE - 1/2 in. Ball
12 10563377 1 VALVE - 1 1/4 in . Ball - Angle
13 10535393 1 FILTER - Air A1095D
14 10535392 1 FILTER - Air A1095D-1
15 8289798 2 HOSE - Sand A1920D
16 8328553 4 NOZZLE - Sand Al 511 D-1
17 9571620 1 DRYER - Air A1096D
18 8494649 1 VALVE - Vent - No. 8
19 9544788 1 MANIFOLD - 3 Port - Connector
20 9544789 1 MANIFOLD - 3 Port - Connector
21 10569848 4 HOSE ASSY
22 10569845 2 HOSE ASSY
23 10569846 1 HOSE ASSY .
24 8092095 1 VALVE - Main Reservoir Cut Off
25 8472216 1 VALVE - Safety - 150 PSI A1088D
26 6950547 1 VALVE - Safety - 175 PSI A1220D-1
27 9574325 2 VALVE - Sander Control A1920D
28 8362821 2 VALVE - 3/8 in . Ball
NI 8362238 1 " REPAIR KIT - Ball Valve
29 8366782 4 TRAP - Sand A1921 D
30 8328868 2 HOSE - Sand A1920D
31 10570977 2 HOSE - Sand A1920D
32 10538664 2 VALVE - 3/8 in . - Ball A1010D
NI 8362238 1 " REPAIR KIT - Ball Valve
33 8439212 1 FITTING - Gauge Test A1010D
34 8055816 1 GAUGE - Air - 0 to 200 PSI A1010D
35 8425336 1 SWITCH - Pressure A1010D
36 9574331 1 VALVE - Solenoid A4710D
37 8461941 1 VALVE - Solenoid A4710D-1
38 9574326 1 VALVE - Solenoid A4710D-2
39 9535112 1 VALVE - Relay
40 9326467 1 HORN ASSY - K-5-LA A2940D
41 8136987 1 VALVE - 1 1/4 in . - Emergency Brake
42 8402067 1 FILTER - Air - Air Compressor A1164D-2
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
AIR PIPING SCHEMATIC
BRAKE RACK EQUIPPED
PLATE A1050D/3
Note [Link]. Part No. Qty. Description
1 10539208 1 BRAKE RACK EQUIPPED - (26 LU-L)
2 40016864 3 " VALVE - Double Check - (24-C)
3 40012477 1 " VALVE - Pilot - Charging Cut-out - (A-1)
4 40010792 1 " VALVE - Brake Application - (P-2-A)
5 40010793 1 " VALVE - Relay - (J1 .6-16)
6 40012478 1 " FILLING PIECE
7 40012476 1 " VALVE - Magnet - Overspeed - (LB-8)
8 40012479 1 " FIXTURE - Dead Engine - (U-1-40-8)
9 40016963 1 " VALVE - Check - Lock Over
10 40010794 1 " VALVE - Control - Service Portion - (26-F)
11 1 " VALVE - Control - Quick Release Portion - (26-F)
12 40012480 1 " STRAINER - And Cut-out Cock
13 1 " PAD - Blanking - Dynamic Interlock
14 1 " PAD - Blanking - Dynamic Interlock
15 1 " PAD - Blanking - Power Knock-out
16 1 " PAD - Blanking - Suppression
17 8363447 1 GASKET
18 8363446 5 GASKET
19 10539207 1 BAR - Header - Complete
All 050 D 6
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
MAIN AIR RESERVOIR EQUIPMENT
RESERVOIR PIPING AND EQUIPMENT APPLICATION
PLATE A1088D/1
Note [Link]. Part No. Oty. Description
1 8408766 2 RESERVOIR - Main Air
2 9568091 2 BRACKET ASSY .
3 10537902 2 BRACKET ASSY
4 9571620 1 DRYER - Air Filter - See Parts List A1096D
5 8472216 1 VALVE - Safety - J1 - 150 PSI
6 8331916 2 VALVE - Check - 2 in . Pipe - See Parts List A1093D
7 8324803 2 VALVE - Check - 2 in . Pipe - See Parts List A1093D-1
8 10533096 1 BRACKET ASSY
9 10570404 1 CLAMP ASSY
10 9310633 2 CLAMP ASSY - Three Way
NI 10570401 1 CLAMP ASSY - Three Way
11 10570402 2 CLAMP ASSY - Two Way
12 9332695 1 CLAMP ASSY - Two Way
13 10570396 1 BRACKET ASSY
14 10570405 1 PIPE ASSY
15 10570407 1 PIPE ASSY
16 10570377 1 PIPE ASSY
17 9310027 1 PIPE ASSY
18 10570380 1 PIPE ASSY
19 10570381 1 PIPE ASSY
20 10570383 1 PIPE ASSY
21 10570385 1 PIPE ASSY
22 10570386 1 PIPE ASSY
23 10570387 1 PIPE ASSY
24 10570388 1 PIPE ASSY
25 10570390 1 PIPE ASSY
26 10570391 1 PIPE ASSY
27 10570394 1 PIPE ASSY
28 10570395 1 PIPE - 1 1/4 in . - 3.72 in. Lg.
29 103868 2 PLUG - 1/2 PT - Square Head - Cast Iron
30 8144051 2 PIPE ASSY
31 180175 4 BOLT - 1/2 - 13 x 1 1/4 - Hex Head
32 271771 2 BOLT - 3/4 - 10 x 2 - Hex Head
33 271773 4 BOLT - 3/4 - 10 x 2 1/2 - Hex Head
34 271767 8 BOLT - 3/4 - 10 x 1 1/2 - Hex Head
35 131046 8 WASHER - Lock - 3/4
36 271776 2 BOLT - 3/4 - 10 x 3 1/4 - Hex Head
37 271775 4 BOLT - 3/4 - 10 x 3 - Hex Head
38 9416541 8 LOCKNUT - 3/4 - 10 - Hex
39 271780 6 BOLT - 3/4 - 10 x 4 1/4 - Hex Head
40 8444172 4 SCREW - Cap - 1/2 - 13 x 4 - 12 Point Drive Head
41 120384 8 WASHER - Lock - 1/2
42 120063 2 ELBOW - 3/8 Street - 90 Degree - Malleable Iron
43 10537811 2 VALVE - Drain - Electric/Manual - See Parts List Al 091 D
44 8034030 2 GASKET- 1 .095 I . D. x 1.438 O. D. x .219 in . Thick
45 8255258 14 GASKET - 2 7/8 I .D. x 3 3/8 O.D. x 21/64 in. Thick
46 8081569 2 GASKET - 1 .891 I .D. x 2.25 O.D. x .234 in . Thick
47 8108220 2 CLAMP ASSY - 1 1/4 Pipe'- 10 1/2 in. Lg.
48 9571981 1 VALVE - Dual Ball - 1 x 1 1/4 Pipe
49 10573583 1 PIPE ASSY
50 180122 2 BOLT - 3/8 - 16 x 1 - Hex Head
51 9416532 2 LOCKNUT - 3/8 - 16 - Hex
52 9569031 1 PIPE ASSY
53 271557 4 BOLT - 5/8 - 11 x 1 3/8 - Hex Head
54 103331 4 WASHER - Lock - 5/8
55 2 SPACER - 1 x 7 x .1196 in. Thick
56 9572655 1 NAMEPLATE - "DRYER VALVE POSITIONS"
57 145386 4 SCREW - Drive - No. 10 x 1/2 - Round Head Metallic
1 A1088 D
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
MAIN AIR RESERVOIR EQUIPMENT
RESERVOIR PIPING AND EQUIPMENT APPLICATION
PLATE A1088D/1
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
DRAIN VALVES
ELECTRIC/MANUAL DRAIN VALVE
PLATE A1091D/1
Note Ref .No . Part No. Qty. Description
10537811 1 VALVE ASSY . - Electric Drain (880-081)
1 8316524 1 " BODY ASSY - Includes Knob
2 8457291 1 " INSERT - Valve Seat - Stainless Steel
A 3 8316528 1 " SEAL - Body and Insert to Base Bracket
10588158 1 " STEM ASSY
4 8390680 1 " " STEM - Valve
5 8390670 1 " " BUTTON - Valve
6 451626 1 " " SCREW AND LOCKWASHER ASSY - No. 8 - 32 x 3/8 Round Head
A 7 8294563 2 " " SEAT - Valve
8 8354397 1 " " WASHER - Valve Seat
9 8351987 1 " " BOLT - Valve Seat and Washer
10 9434134 4 " SCREW AND WASHER ASSY - 1/4 - 20 x 15/16 Round Head
11 8390681 1 " BRACKET - Base
12 8390678 1 " ADAPTOR - Base Bracket to Drain Base
13 138202 3 " SCREW - Cap - 1/4 - 20 x 1
A 14 8382423 3 " SEAL - Adaptor to Base Bracket and Valve Body
10587897 1 " VALVE ASSY - Drain
15 8433431 1 " " CAP - Adaptor
A 16 8369656 1 " " SEAL - Adaptor Cap to Body - Large
A 17 8369655 1 " " SEAL - Adaptor Cap to Body - Small
18 217233 2 " " SCREW AND LOCKWASHER ASSY - 5/16 - 18 x 3/4
19 8433430 1 " " BODY - Valve
20 8294564 1 " " PLUG - Strainer - 3/32 Dia. Orfice
A 21 8156967 1 " " SEAL - Strainer Plug
22 9534498 1 " " HEATER ASSY - Drain Valve
23 8390676 1 " " PISTON ASSY - Drain Valve
A 24 8369654 1 . . . SEAL - Piston - Large
A 25 8156971 1 . . . SEAL - Piston - Small
A 26 8294563 2 . . . SEAT - Valve
27 8351985 1 . . . SPACER - Valve Seat
28 8351984 1 . . . WASHER - Valve Seat
29 8351986 1 . . . BOLT - Valve Stem
30 8382424 1 " " SPRING - Drain Valve Piston
A 31 8369653 1 " " GASKET - Solenoid Valve to Adaptor Cap
32 455527 2 " " SCREW AND LOCKWASHER ASSY - 5/16 - 18 x 1 3/4
33 4 " SCREW AND LOCKWASHER ASSY - 5/16 - 24 x 2
10587896 1 " VALVE ASSY - Solenoid
34 8390674 BODY - Valve
A 35 8362707 1 " " SEAL - Valve Body to Coil Case
36 8250983 1 " " PLUNGER ASSY - Valve
A/B 37 8251091 2 . . . SEAT - Plunger
B 38 8293034 1 . . . SPACER - Plunger
39 8293036 1 . . . CAP - Plunger
40 8288488 SPRING - Plunger
41 10587890 CASE - Coil
42 10587895 PLATE - Coil Case Cover
43 8293030 1 " " GASKET - Coil Case Cover Plate
44 121832 2 " " SCREW - Machine - No. 8 - 32 x 3/8
45 8251649 1 " " GROMMET - Rubber
46 8468748 1 " " COIL - Solenoid
47 8350383 1 " " POLE - Coil
48 8362482 8 " " NUT ASSY
A 49 8305664 1 . . . SEAL
A 50 9582031 1 " " SEAL
51 8391756 1 " DIODE
A NOTE: Parts contained in 1-10536438 Seal Kit .
B NOTE: Parts contained in 1-8447977 Seat Kit.
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
DRAIN VALVES
ELECTRIC/MANUAL DRAIN VALVE
PLATE A1091 D/1
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
CHECK VALVES
CHECK VALVE ASSEMBLY
P LATE A1093D/1
Note [Link] . Part No. Qty.. Description
8331916 1 VALVE ASSY - Check - 2 in. Pipe
1 8353160 1 " BODY - Valve
2 8353159 1 " DISC - Valve
3 8353164 1 " SPRING - Compression
4 8353158 1 " SEAT - Valve
5 9415567 1 " PIN - Spring - 1/8 x 7/16 in . Lg .
6 8353165 1 " SEAL - O-ring - Valve Seat
7 8097592 2 GASKET - Rubber - 2.867 I .D. x 3.375 O.D. x 0.313 in . Thick
1 A1093 D
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
CHECK VALVES
CHECK VALVE ASSEMBLY
PLATE A1093D-1/1
Note [Link] . Part No. Qty.. Description
8324803 1 VALVE ASSY - Check - 2 in . Pipe
1 1 " BODY - Valve
2 8353159 1 " DISC - Valve
3 8353164 1 " SPRING - Compression
4 8353158 1 " SEAT - Valve
5 9415567 1 " PIN - Spring - 1/8 x 7/16 in. Lg.
6 8353165 1 " SEAL - O-ring - Valve Seat
7 8097592 2 GASKET - Rubber - 2.867 I .D. x 3.375 O.D. x 0.313 in. Thick
1 A1093 D-1
DIESEL DIVISION GENERAL MOTORS Of CANADA LIMITED
CHECK VALVES
TWO-WAY CHECK VALVE
PLATE A1093D-2/1
Note [Link]. Part No. Qty. Description
8318372 1 VALVE - Check - Two-Way - Cartridge Type
1 8321186 1 - CARTRIDGE ASSY - Valve
2 8341948 1 - - WASHER - Retainer
3 8293538 1 - - SEAL
4 8321184 1 - - SHUTTLE - Valve - Stainless Steel
5 8321183 1 - - BODY - Cartridge - Stainless Steel
6 8156983 2 - - SEAL
7 8321180 1 - - SEAL
8 8321182 1 - - CAP - Cartridge - Steel
9 8350390 1 - - SEAL
10 8321181 1 - BODY - Valve
1 A1093 D-2
DIESEL DIVISION GENERAL MOTORS OF CANADA LIMITED
CHECK VALVES
ONE-WAY CHECK VALVE
PLATE A1093D-3/1
Note [Link]. Part No. Qty. Description
8426034 1 VALVE - Check - One-Way - Cartridge Type
1 9548873 1 - CARTRIDGE ASSY - Valve
2 1 - - BODY - Cartridge
3 1 - - SPRING - Coil
4 8321184 1 - - SHUTTLE - Valve - Stainless Steel
5 8321180 1 - - SEAL
6 8156983 2 - - SEAL
7 8341948 1 - - WASHER - Retainer
8 8350390 1 - - SEAL
9 1 - BODY - Valve
1 A11093113-3
