Page 1 of 3

Product Catalog\VIBROMAX VM\VMT280 01700000-01701499 VIBROMAX 9802/4800\F AXLES, WHEELS & TRANSMISSION\F01
AXLES, FRONT\F1-1-10 DRUM 1200MM

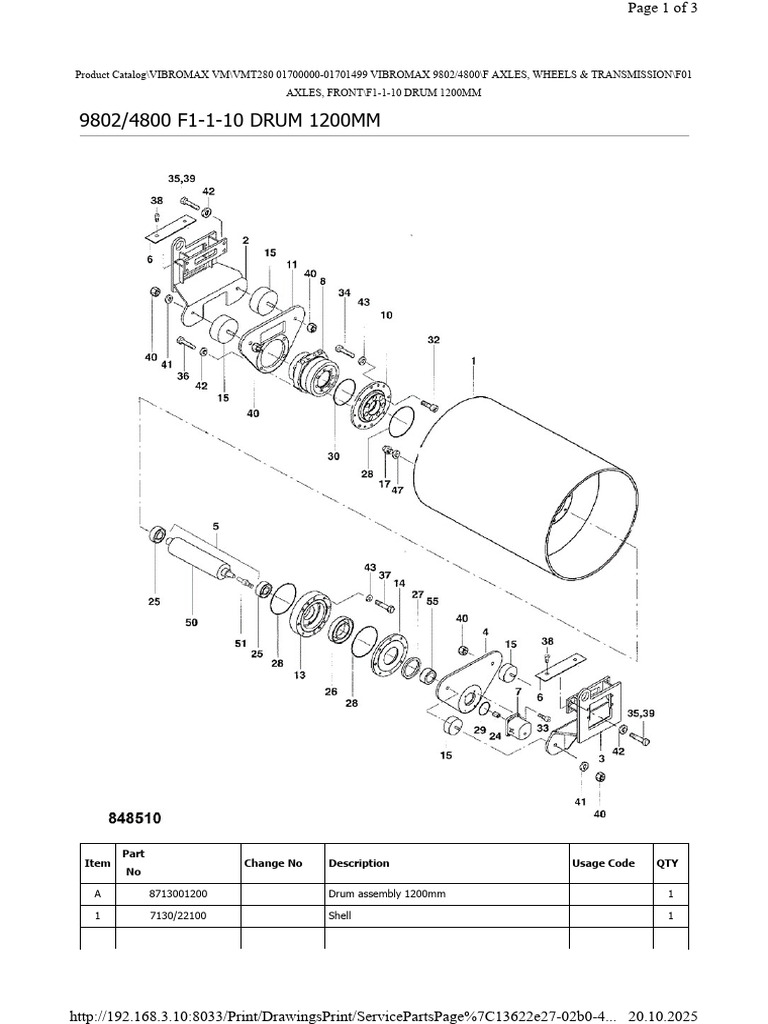

9802/4800 F1-1-10 DRUM 1200MM

Part
Item Change No Description Usage Code QTY
No

A 8713001200 Drum assembly 1200mm 1

1 7130/22100 Shell 1

http://192.168.3.10:8033/Print/DrawingsPrint/ServicePartsPage%7C13622e27-02b0-4... 20.10.2025
Page 2 of 3

2 7130/22200 Absorber 1

3 7130/22300 Absorber 1

Bracket
4 7130/21400 1
Includes item 55

5 8713022500 Shaft Complete Assembly 1

6 7130/22553 Plate 2

7 7131/21700 Motor Vibration 1

7A :20/952120 Kit-seal hyd motor 1

8 7130/21800 Drive 1

10 7130/21010 Flange 1

11 7130/21011 Bracket 1

13 7130/21013 Plate 1

T.B.A
14 **** 1
7130/21024

15 4003/01019 Buffer 4

17 6180/01033 Plug 1

24 6755/00026 Coupling Sleeve 1

25 2712/06081 Bearing 2

26 2700/02180 Bearing 1

27 2773/80105 Seal 1

28 2772/19530 O Ring 3

29 2772/08030 O Ring 1

30 2772/15930 O Ring 1

32 2027/16040 Screw 7

33 2027/08025 Capscrew M8x25 4

34 2018/12035 Screw 8

35 2018/16050 Screw 8

36 2021/16045 Screw Hexagon M16x45 4

37 2017/12090 Screw 8

38 2031/06016 Screw 4

39 2018/16040 Screw 8

40 2118/31600 Nut M16 8

41 2201/00020 Washer M20 4

42 2208/00116 Washer M16 12

43 2208/00012 Washer M12 16

47 2766/01215 Seal 1

50 7130/21501 Shaft 1

51 4004/12252 Stud 1

55 2718/19035 Bush 1

http://192.168.3.10:8033/Print/DrawingsPrint/ServicePartsPage%7C13622e27-02b0-4... 20.10.2025
Page 3 of 3

Applicability Date Ranges:


From: , To:

http://192.168.3.10:8033/Print/DrawingsPrint/ServicePartsPage%7C13622e27-02b0-4... 20.10.2025
