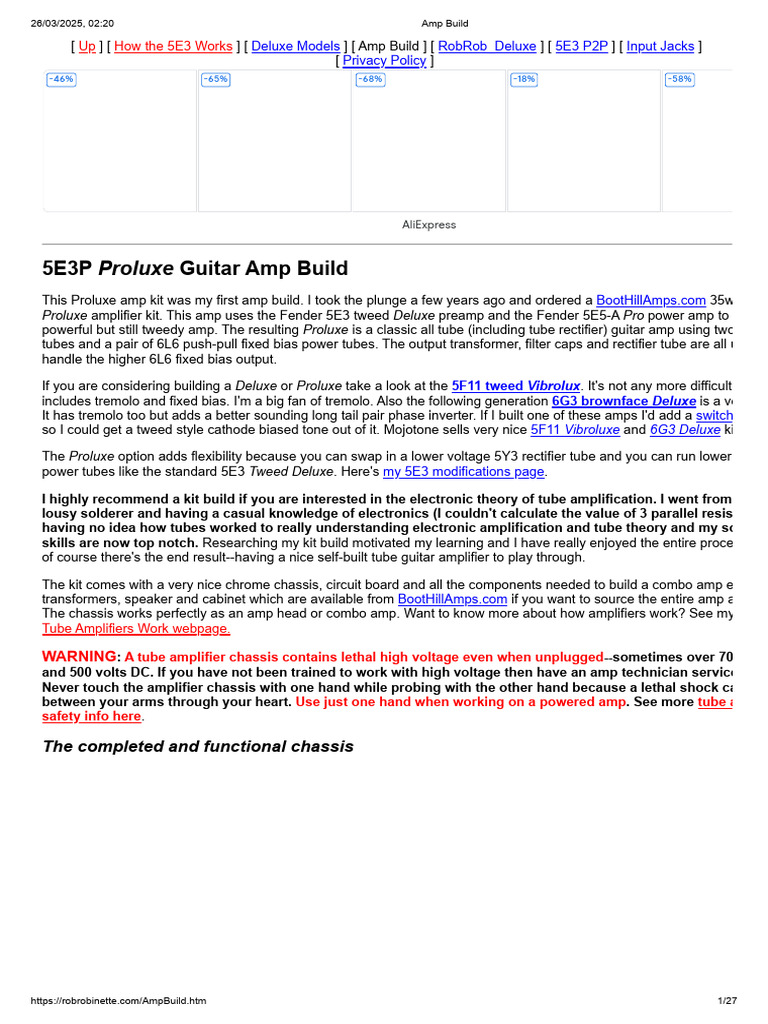

5E3P Proluxe Guitar Amp Build
This Proluxe amp kit was my first amp build. I took the plunge a few years ago and ordered a BootHillAmps.com 35w
Proluxe amplifier kit. This amp uses the Fender 5E3 tweed Deluxe preamp and the Fender 5E5-A Pro power amp to
powerful but still tweedy amp. The resulting Proluxe is a classic all tube (including tube rectifier) guitar amp using two
tubes and a pair of 6L6 push-pull fixed bias power tubes. The output transformer, filter caps and rectifier tube are all u
handle the higher 6L6 fixed bias output.
If you are considering building a Deluxe or Proluxe take a look at the 5F11 tweed Vibrolux. It's not any more difficult
includes tremolo and fixed bias. I'm a big fan of tremolo. Also the following generation 6G3 brownface Deluxe is a ve
It has tremolo too but adds a better sounding long tail pair phase inverter. If I built one of these amps I'd add a switch
so I could get a tweed style cathode biased tone out of it. Mojotone sells very nice 5F11 Vibroluxe and 6G3 Deluxe ki
The Proluxe option adds flexibility because you can swap in a lower voltage 5Y3 rectifier tube and you can run lower
power tubes like the standard 5E3 Tweed Deluxe. Here's my 5E3 modifications page.
I highly recommend a kit build if you are interested in the electronic theory of tube amplification. I went from
lousy solderer and having a casual knowledge of electronics (I couldn't calculate the value of 3 parallel resis
having no idea how tubes worked to really understanding electronic amplification and tube theory and my so
skills are now top notch. Researching my kit build motivated my learning and I have really enjoyed the entire proce
of course there's the end result--having a nice self-built tube guitar amplifier to play through.
The kit comes with a very nice chrome chassis, circuit board and all the components needed to build a combo amp e
transformers, speaker and cabinet which are available from BootHillAmps.com if you want to source the entire amp a
The chassis works perfectly as an amp head or combo amp. Want to know more about how amplifiers work? See my
Tube Amplifiers Work webpage.
WARNING: A tube amplifier chassis contains lethal high voltage even when unplugged--sometimes over 70
and 500 volts DC. If you have not been trained to work with high voltage then have an amp technician service
Never touch the amplifier chassis with one hand while probing with the other hand because a lethal shock ca
between your arms through your heart. Use just one hand when working on a powered amp. See more tube a
safety info here.
The completed and functional chassis
https://robrobinette.com/AmpBuild.htm 1/27
26/03/2025, 02:20 Amp Build
The Complete Combo Cab With 15" Hemp Cone JBL E130
https://robrobinette.com/AmpBuild.htm 2/27
26/03/2025, 02:20 Amp Build
Rear With Standard Open Back
Rear Sealed For Use As Sealed TL806 Extension Cab
https://robrobinette.com/AmpBuild.htm 3/27
26/03/2025, 02:20 Amp Build
Chassis and Speaker Soak attenuator visible.
Thiele TL806 Cab With 4" x 4" Round Port & 15 Inch JBL E130 With Hemp Recone
https://robrobinette.com/AmpBuild.htm 4/27
26/03/2025, 02:20 Amp Build
Note the cool green tint of the big 15 inch cone. The speaker is very efficient (and loud) at 105dB SPL and is rated at
The down side with this speaker is it makes the amp very heavy and at 300 watts I don't get any speaker breakup. Th
this amp can keep up with any drummer and is great for gigging. Carl's Custom Guitar's Speaker Soak attenuator ins
upper right to allow less-than-ear-splitting practice. See this PDF for more info on vented TL806 cabinets.
The Kit
https://robrobinette.com/AmpBuild.htm 5/27
26/03/2025, 02:20 Amp Build
The current Boot Hill kit uses a turret board as seen here at bottom left.
-46% -65% -18% -68% -58% -56%
WARNING
Tube amplifiers use lethal high voltages and have large capacitors that store enough electricity to kill. You MUST
capacitors and verify no voltage remains before disassembling the amp. Once the chassis is removed verify there is
present by testing the large caps with a multi-meter in the DC volts mode. Put the meter's two probes on both ends o
and verify no voltage is read. Also keep in mind the tubes can be very hot.
I started the build by laying out all the circuit board components following the layout diagram.
Circuit Board Laid Out (but not soldered)
https://robrobinette.com/AmpBuild.htm 6/27
26/03/2025, 02:20 Amp Build
It is critical you get the big filter capacitors (center) connected properly. The 'necked down' part of the cap is the + en
Also notice the blue bias filter capacitor on the left is connected positive to ground. You must do this because it is wo
negative voltage. The bias diode stripe indicates its polarity. Now would be a good time to use your multi-meter to me
resistors and compare them to the layout diagram to make sure you haven't mixed any of them up.
Proluxe 35 Watt Upgrade
https://robrobinette.com/AmpBuild.htm 7/27
26/03/2025, 02:20 Amp Build
The $15 Proluxe upgrade gets you larger, upgraded filter capacitors and an adjustable fixed bias system. When comb
6L6 power tubes, a GZ34 rectifier tube and the correct power and output transformers you get 35 watts at the speake
transformer must supply 50 volts AC for the fixed bias system and the output transformer should be rated for at least
output.
Antique Electronic Supply's P-TF41316 Power Transformer (PT)
Left side (primary winding) BLACK & WHITE wires to wall power Black and White wires. Right side (secondary windin
wires to Rectifier tube input. RED/YEL wire is center tap to ground, BLUE to Fixed Bias Diode, two YELLOW wires to
tube heater, two GREEN wires to all other tube heaters.
The Power Transformer converts 120v AC wall power into the four different AC voltages your amp needs to function:
tubes, 50v for the power tube bias, 6.3v for the tube heater filaments and 5v for the rectifier heater.
In retrospect I wish I had gone with a power transformer rated at 4+ amps or more for the 6.3v filament heaters like th
AllenAmps.com TP40D ($95) which would be perfect for a 5E3P Proluxe. That way I would have enough power to ru
and KT88 power tubes. Having extra 6.3v heater current available also opens the possibility of adding tubes for rever
I would also have made sure the power transformer came with a 6.3v filament heater center tap. Since the kit PT did
with one I had to install an 'artificial center tap' by connecting both 6.3v green heater wires to ground through two 100
resistors. If you don't do this the amp will usually suffer from loud 60Hz hum.
Filament Heater Artificial Center Tap
Filament heater artificial center tap consists of two 100 ohm 1/2 watt resistors connected between either power tube
2 and 7 (heater wires) and pin 8 (cathode). This works in both cathode bias amps (elevates the heater ground) or fixe
(grounded cathode). This is not required if your power transformer has a 6.3v center tap.
Hammond P-T1750J Output Transformer (OT)
https://robrobinette.com/AmpBuild.htm 8/27
26/03/2025, 02:20 Amp Build
Left (primary winding) Blue to 6L6GT output tube, Brown to other 6L6GT, Red to first filter capacitor or Standby Switc
DC)
Right (secondary winding) Green to Speaker Jack Tip, Black to Speaker Jack Ground, (speaker should be 4 ohm)
The output transformer takes the high voltage low amperage guitar signal from the power tubes and converts it to low
amperage that a speaker needs.
Again in retrospect, I wish I had gone with an output transformer with 8 and 16 ohm speaker outputs like the Hammo
Allen Amps TO26 ($69) or Mercury Magnetics FBFVO-40M. Update: In May 2014 I replaced the original 4 ohm only
transformer with a Mercury Magnetics ToneClone+ FBFVO-40M output transformer rated at 50 watts with 4, 8, and 1
outputs. I also added a 3-way speaker impedance switch. The Allen Amps TO26 is a good value but fixed bias 6L6G
saturate the core for more compression and sustain where the more expensive MM FBFVO-40M is rated at 50 watts
room to spare and will give maximum volume.
Going with higher output power and output transformers is a good idea and can be beneficial to the amp's tone. Merc
Magnetics is a proponent of big iron and sells big iron kits for small amps. The downside of a higher rated output tran
you won't get the same max volume compression and sustain as the original 5E3's underrated transformer but you w
volume and tighter bass response.
I sourced my tubes from TheTubeStore.com and TubeDepot.com went with a JJ GZ34 rectifier tube, two Sovtek 588
(6L6GB type) output tubes, and two Tung Sol 12AX7 pre-amp & phase inverter (PI, sometimes called the phase split
[Edit: later I discovered I preferred the Tung-Sol 12AX7 and 5881 tube's tone. My 12AY7 is an ElectroHarmonix.]
Completed Circuit Board
https://robrobinette.com/AmpBuild.htm 9/27
26/03/2025, 02:20 Amp Build
I used a cardboard template to aid in estimating wire length and wiring the volume and tone pots. I had to lay the blue
capacitor down to clear the chassis mounted pilot lamp.
Back of Circuit Board
https://robrobinette.com/AmpBuild.htm 10/27
26/03/2025, 02:20 Amp Build
The power transformer blue wire supplies 50v AC for the fixed-bias circuit.
https://robrobinette.com/AmpBuild.htm 11/27
26/03/2025, 02:20 Amp Build
https://robrobinette.com/AmpBuild.htm 12/27
26/03/2025, 02:20 Amp Build
You can see the rectifier 'backup diodes' at lower left mounted on the rectifier tube socket. The 10 cent diodes extend
the tube rectifier and protect the amp from a failed short rectifier tube.
-66% -69% -68% -51% -44%
R$122.59 R$99.39 R$799.99 R$37.29 R$82.29 R$298.48
https://robrobinette.com/AmpBuild.htm 13/27
26/03/2025, 02:20 Amp Build
Grey 100ohm 1/2 watt resistors on tube V3 are the 'artificial center tap' for the tube heater circuit. They are connecte
heater terminals to the cathode terminal.
Preamp Sockets
https://robrobinette.com/AmpBuild.htm 14/27
26/03/2025, 02:20 Amp Build
Input Jacks
Bright input jacks on the left, Normal on the right. The upper jacks are Hi and the lower are Lo (-6dB). Preamp ground
connected to the Normal - Hi input jack's ground. The other three jacks are grounded by their connection to the chass
Fender Input Jacks Work for more info.
Tone, Bright Volume and Normal Volume Pots
https://robrobinette.com/AmpBuild.htm 15/27
26/03/2025, 02:20 Amp Build
Small cap between the Tone and Bright Volume pot is the 500pF 'Bright Cap.' It bleeds high freqs around the Bright V
emphasize high freqs. The larger cap is the .0047µF tone cap which is a low pass filter that bleeds high freqs to grou
First Power Up
I highly recommend you follow the Amp Startup Procedure when adding power to your newly built amp for the first t
Following his procedure will minimize damage from a build error. Before applying power I measured each resistor wit
meter and compared it to the layout diagram to make sure I didn't mix any of them up. With the Standby switch in sta
measured 345v AC on each power transformer output (red) wire with 690v AC between the two wires. This is 5% hig
660v the PT is rated at but not really a problem.
Always unplug your amp before working on it because the fuse and power switch terminals are always hot. Also keep
amp's big filter capacitors will hold their full 400+ volt charge when no power or preamp tubes are installed. If you hav
your amp after you power it up you will need to manually bleed down the capacitors. Once the preamp and power tub
they will use the capacitor power and bleed them down. But you should always use your volt meter to verify the caps
volts before putting a hand inside the amp chassis.
With all the tubes installed the power transformer's bias output measured 51v AC. The bias adjustment pot measured
the input terminal and -40v DC out to the power tube control grids which gave me a bias setting of 38 milliamps of ca
which is about 63% of the tube's max dissipation (70% is considered the max safe dissipation for class AB amps). 63
about the half way point on the bias pot.
My B+ at the Standby Switch measured 435v DC, B+2 at the second filter cap was 389v, and B+3 at the third cap wa
5881WXT Sovtek power tubes measured 430v at the plate, 389v at the screen grid and -39v of fixed-bias at the grid.
Preamp tube V1A measured 201v at the plate and 1.74v on the cathode. V1B measured 209v and 1.65v. Tube V2A m
212v and 1.86v. Tube V2B, the phase inverter (PI) was 238v at the plate, 20.3v at the grid and 57v at the cathode.
With a 12AY7 tube in V1 I measured 148v at the V1A plate and 2.18v on the cathode. V1B measured 144v and 2.3v.
The only issue I had on first power up was I forgot to solder the volume pots' ground wires to the ground bus. The bri
pot was a little scratchy and the tone control wasn't working and then I remembered I needed to solder those last two
https://robrobinette.com/AmpBuild.htm 16/27
26/03/2025, 02:20 Amp Build
The amp sounds beautiful and is much, much louder than my 5 watt amps.
Standard 5E3 DC Voltages
Diagram by Telenut62
Power Output Test
https://robrobinette.com/AmpBuild.htm 17/27
26/03/2025, 02:20 Amp Build
I measured the amp's power output at 35.3 watts. I used a 0.1v peak-to-peak 400Hz sine wave into the Normal Hi jac
a dummy load (4 ohm 50 watt resistor) to the speaker jack, connected my oscilloscope leads to each end of the dum
resistor, turned up the volume until the top of the sine wave began to flatten out then backed off until the distortion we
read the peak-to-peak voltage off the oscope of 33.6 volts. That equals 11.88v AC RMS so 11.88v^2 / 4ohms = 35.3 w
That's with the bias set to 63% of max dissipation. I played with the bias adjustment and watched the waveform. The
crossover distortion showing at 63% which gets more prominent at lower settings but I had to go to almost 80% to ge
crossover bulge. I didn't leave it there very long since 70% is max safe for class AB amps.
Cost
$189 Boot Hill Amps 5E3 kit
$15 Proluxe upgrade (bumps power up to 35watts with fixed-bias and 6L6 type tubes)
$15 Shipping
$70 Power Transformer shipped
$55 Output Transformer shipped
$15 Rectifier Tube JJ GZ34
$30 12AX7 Preamp Tubes Sovtek Reissue (2)
https://robrobinette.com/AmpBuild.htm 18/27
26/03/2025, 02:20 Amp Build
$35 5881WXT Power Tubes Sovtek matched pair
$10 Tube shipping (transformers and tubes sourced from Antique Electronic Supply)
$434 Chassis Subtotal
Finished Tweed 22" x 22" x 14" combo cab $350 + $30 shipping from TRM Guitar Cabinets. It has the JBL recomm
cubic feet of interior space and 4" x 4" round port tube. I ordered it with a three piece back so I can run it as a combo
middle panel out for cooling or seal the cab and use it as a closed back ported extension cab.
$374 JBL E130 15" 300 watt 105dB SPL Speaker (ebay, hemp re-cone and conversion to 4 ohm, shipping)
Hemp re-cone and 4ohm conversion done by A Brown Speaker Repair
Total cost: $1188.
-31% -19% -33%
Troubleshooting
If your new amp has any problems check out the Amp Troubleshooting page.
Here's the Annotated 5E3P Layout Diagram Courtesy of Weber Speakers
https://robrobinette.com/AmpBuild.htm 19/27
26/03/2025, 02:20 Amp Build
Signal flow shown with orange arrows, power flow in red arrows.
Weber 5E3P Proluxe Schematic
https://robrobinette.com/AmpBuild.htm 20/27
26/03/2025, 02:20 Amp Build
Input jacks: J1 & J2 are the 'Bright/Instrument Channel,' J1 is Hi, J2 is Lo (-6dB). Cap C4 is the 'Bright Cap' that all
frequencies to bypass the Volume control. Cap C14 is the standard high frequency low pass filter for the tone control
Input jacks J3 & J4 are the 'Normal/Mic Channel,' J3 is Hi, J4 is Lo (-6dB). See How Fender Input Jacks Work for m
5E3 Signal Flow
https://robrobinette.com/AmpBuild.htm 21/27
26/03/2025, 02:20 Amp Build
Guitar input jack at upper left, speaker jack at upper right.
5E3P Proluxe DIYLC Layout Creator File
Download the 5E3P Proluxe DIYLC file here: 5e3p_Tube_Guitar_Amplifier.diy
Download the standard 5E3 Deluxe file here: 5e3_Tube_Guitar_Amplifier.diy
Turret Wiring Strain Relief
Mil Spec Turret Board Strain Relief
You need some bend in your component leads to allow for expansion and contraction during amplifier heat c
Setting the 5E3P Power Tube Bias
https://robrobinette.com/AmpBuild.htm 22/27
26/03/2025, 02:20 Amp Build
WARNING: The 5E3 amplifier chassis contains lethal high voltage--over 700 volts AC and 360 volts DC. If you have
trained to work with high voltage then have an amp technician adjust the amp's bias. Never touch the grounded chas
hand while probing with the other because a lethal shock can run between your arms through your heart. Use just on
when working on a powered amp.
All of the bias measurements below were done using a Fluke 87 multimeter.
Measure Bias With the Output Transformer Resistance Method
The quiescent (idle or no signal) plate current can be calculated by measuring the output transformer's resistance an
drop between the output transformer's center tap and both power tube plates. This "transformer resistance metho
recommended bias measurement method is just as accurate if not more so than directly measuring the current us
"output transformer shunt method" (detailed in the next section) and it is much safer.
Measurement Overview
1. With a warm amp measure the output transformer center tap voltage and power tube plate voltages.
2. Subtract the plate voltage from the center tap voltage to get the output transformer voltage drop.
3. Turn off the amp and measure the resistance from the center tap to the power tube plates.
4. Divide the voltage drop by the resistance to get the bias current.
Measure and record the plate voltage, voltage drop between the center tap & both power tube plates and the resista
the center tap & both plates. You only have to measure the resistance once for the life of the transforme
1. The first step is with the amp off clip the multimeter ground probe to a good ground. I recommend using the power
center tap ground connection. Doing this will allow you to use only one hand to safely take high voltage measuremen
With the ground probe clipped turn on the amp (standby switch too) and let it warm up for a few minutes. When warm
and record the plate DC voltage on both of the power tubes' pin 3. Pin 3 is connected to the output transformer. Th
voltage DC at 350 to 500 volts. Do not allow the multimeter probe to make contact with the adjacent socket pins.
2. Next we measure the output transformer voltage at the center tap. The standby switch is directly connected to t
so you can measure its voltage there. Record the voltage values down to three decimal places. You then subtract the
from the center tap voltage to get the voltage drop. This is the voltage drop through half the transformer. You can also
voltage drop directly by putting your meter probes on the plate and center tap.
https://robrobinette.com/AmpBuild.htm 23/27
26/03/2025, 02:20 Amp Build
3. Turn the amp off and ensure the filter capacitors are discharged then measure the output transformer resistan
the same two spots as above -- the center tap and both tube plate pins. You want to do this with the output transform
to get the most accurate reading. You only have to measure the transformer resistance once for the life of the t
so write down the resistance and use it for all future bias setting sessions.
4. Next we divide the voltage drop by the ohm reading to get the plate current in amps.
Example: When I measured these values on my 5E3 Deluxe I got:
Tube V3: 1.347 volt drop and 72.0 ohms between the standby switch and plate = 1.347 / 72.0 = .0187 amps or 18.
Tube V4: 1.325 volt drop and 80.7 ohms = 1.325 / 80.7 = .0164 amps or 16.4 milliamps
I used my Fluke 87 multimeter to compare this bias method with directly measuring the bias current using the "transfo
method" (described below in next section) and got results within 1 milliamp.
With the plate voltage and milliamp values go to my Tube Bias Calculator. Select your tube type, enter the plate volta
Calculate button. The 5E3P is a Class AB Fixed Bias amp so 70% of max dissipation is your safe limit. Go down to th
Dissipation Using Plate Current section and plug in your plate current milliamp values and hit any Calculate button to
of max dissipation you are running. I usually set my amps around 70% unless a lower setting sounds better--yes play
after every bias change as you may find you prefer a cooler bias setting. Fender tended to bias their push-pull t
cool from the factory at around 50 to 60%.
Make small changes when adjusting the bias pot and measure the plate voltage and plate current again. You have to
voltage each time because the voltage and current will change with a bias pot change.
Setting a higher % of max dissipation will make the bias 'hotter.' The power tube grid voltage is always negative on fix
amps and a hotter bias will have the grid voltage closer to zero. A hot bias for the 5E3P would be around -44V DC. S
% of max dissipation will make the bias 'cooler' and the grid voltage will be a larger negative number like -50V.
For my Tung-Sol 5881 power tubes rated at 26 watts of max dissipation I ended up with 448v on the plates and 40.0
plate current which equals 69% of max dissipation with 70% (40.6ma) being the max safe dissipation for fixed bias C
amps. The grid voltage was -45.1V DC (yes, a negative voltage). When running a 5Y3 rectifier and 6V6GT power tub
voltage was 367v with 18.7 milliamps of plate current for 6.9w of dissipation (max is 12w) for 57.2% of max.
Measure Bias With the Output Transformer Shunt Method
https://robrobinette.com/AmpBuild.htm 24/27
26/03/2025, 02:20 Amp Build
Bias measuring points using the Output Transformer Shunt Method. Bias current is measured between the Standby S
(Output Transformer center tap) and the power tubes' pin 3 (measure both power tubes). Plate voltage is measured b
power tubes' pin 3 and ground. Turning the bias adjustment pot counterclockwise reduces cathode current and dissip
Another method used to measure bias is the output transformer shunt method. This method has you directly meas
power tube plate current but it is much more dangerous than the previous method for reasons you'll see below. Anoth
avoid this method is typically milliamp measurement is less accurate than volts and ohms for most multimeters.
The first step is to measure and record the plate DC voltage on both of the power tubes' pin 3. Pin 3 usually has a blu
wire coming from the output transformer. The voltage should be between 420v to 460v DC.
Then set your multimeter to measure DC milliamps. This usually involves moving the meter's red probe to another so
meters require you to push a button to set DC or AC, make sure you're measuring DC current. If you have two m
use the best one to measure DC current and the other to measure DC voltage.
WARNING: When measuring milliamps (current) as soon as either meter probe makes contact with a voltage that sa
passes through the meter to the other probe--both meter probes will be hot with high voltage so you must control
carefully. You must wear safety glasses because if a meter probe accidentally contacts a grounded component an arc
and molten metal will spray out from the arc. This procedure is dangerous and if you are not trained for working
voltage I recommend you take your amp to a professional tech.
Place one probe on either power tube's pin 3 (plate). The other meter probe now has over 400v DC on it so be carefu
place it on a standby switch terminal (the standby switch is connected directly to the output transformer's center tap)
plate current in milliamps. Carefully do the same for the other power tube's pin 3. Be careful not to make contact with
you remove both meter probes from the amp chassis.
With the plate voltage and milliamp values go to my Tube Bias Calculator. Select your tube type, enter the plate volta
Calculate button. The 5E3P Proluxe is a Class AB Fixed Bias amp so 70% of max dissipation is your safe limit. Go do
Tube Dissipation Using Plate Current section and plug in your plate current milliamp values and hit any Calculate but
what % of max dissipation you are running.
By Rob Robinette
References
RCA Corporation, RCA Receiving Tube Manual, RC30.
https://robrobinette.com/AmpBuild.htm 25/27
26/03/2025, 02:20 Amp Build
Merlin Blencowe, Designing Tube Preamps for Guitar and Bass, 2nd Edition.
Merlin Blencowe, Designing High-Fidelity Tube Preamps
Morgan Jones, Valve Amplifiers, 4th Edition.
Richard Kuehnel, Circuit Analysis of a Legendary Tube Amplifier: The Fender Bassman 5F6-A, 3rd Edition.
Richard Kuehnel, Vacuum Tube Circuit Design: Guitar Amplifier Preamps, 2nd Edition.
https://robrobinette.com/AmpBuild.htm 26/27
26/03/2025, 02:20 Amp Build
Richard Kuehnel, Vacuum Tube Circuit Design: Guitar Amplifier Power Amps
Robert C. Megantz, Design and Construction of Tube Guitar Amplifiers
Neumann & Irving, Guitar Amplifier Overdrive, A Visual Tour It's fairly technical but it's the only book written specifical
guitar amplifier overdrive. It includes many graphs to help make the material easier to understand.
T.E. Rutt, Vacuum Tube Triode Nonlinearity as Part of The Electric Guitar Sound
[ How Amps Work ] [ Overdrive ] [ 5E3 Mods ] [ 5F6A Mods ] [ AB763 Mods ] [ DRRI & 68 CDR Mods ] [ How the 5
Works ] [ How the AB763 Works ] [ AB763 Models ] [ Tube Bias Calculator ] [ Amp Troubleshooting ] [ Deluxe Mode
Micro Amp ] [ Bassman Micro Amp ] [ Champ Micro Amp ] [ My 5E3 Build ] [ Reverb & Tremolo ] [ SixShooter ] [ Spic
VHT Special 6 Ultra Mods ] [ Telecaster Mods ] [ Android Tube Bias Calculator App ] [ The Trainwreck Pages ] [ Fend
] [ B9A Prototype Board ]
[ Home ] [ Up ] [ How the 5E3 Works ] [ Deluxe Models ] [ Amp Build ] [ RobRob_Deluxe ] [ 5E3 P2P ] [ Input Jacks ]
[ Privacy Policy ]
https://robrobinette.com/AmpBuild.htm 27/27
