Name: Section:
SR-Code Date:

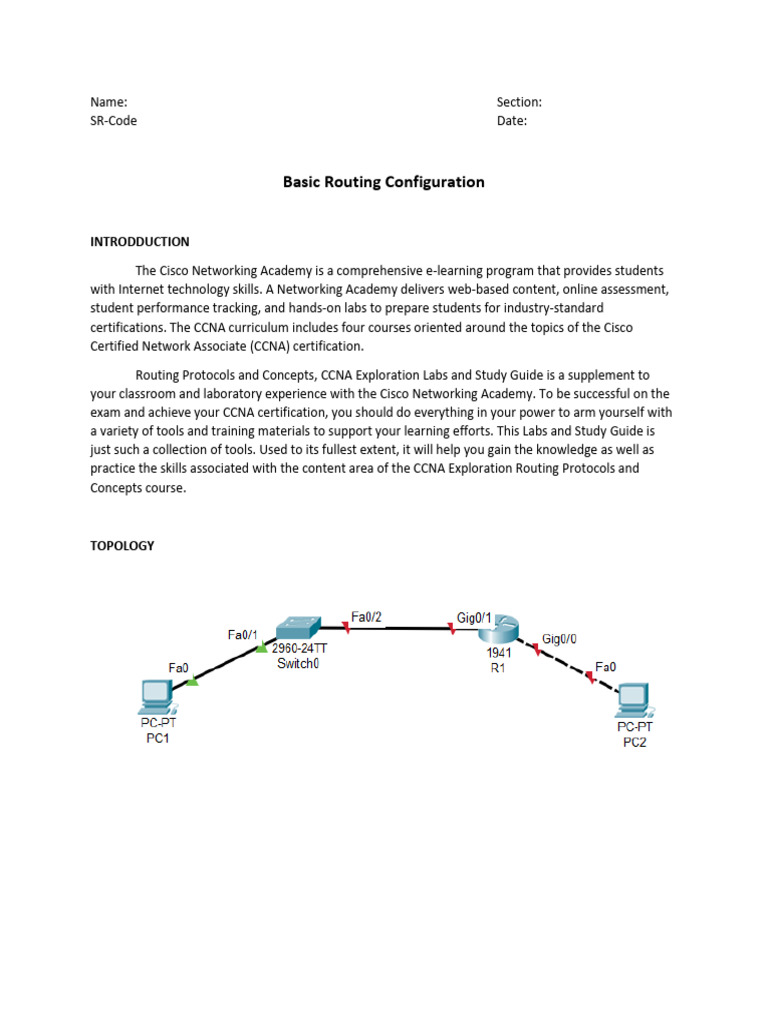

Basic Routing Configuration
INTRODDUCTION
The Cisco Networking Academy is a comprehensive e-learning program that provides students
with Internet technology skills. A Networking Academy delivers web-based content, online assessment,
student performance tracking, and hands-on labs to prepare students for industry-standard
certifications. The CCNA curriculum includes four courses oriented around the topics of the Cisco
Certified Network Associate (CCNA) certification.
Routing Protocols and Concepts, CCNA Exploration Labs and Study Guide is a supplement to
your classroom and laboratory experience with the Cisco Networking Academy. To be successful on the
exam and achieve your CCNA certification, you should do everything in your power to arm yourself with
a variety of tools and training materials to support your learning efforts. This Labs and Study Guide is
just such a collection of tools. Used to its fullest extent, it will help you gain the knowledge as well as
practice the skills associated with the content area of the CCNA Exploration Routing Protocols and
Concepts course.
TOPOLOGY
ADRESSING TABLE
Device Interface IP Address Subnet Mask Gateway
R1 G0/0 [Link] [Link]
G0/1 [Link] [Link]
PC1 [Link] [Link] [Link]
PC2 [Link] [Link] [Link]
OBJECTIVE
• Cable a network according to the Topology Diagram.
• Perform basic configuration on the router.
• Check if the PC is pinging successful from the other PC.
REQUIREMENTS
(Lower left of the screen)
• 2 PCs
• Switch (2960)
• Router (1941)
CONNECTIVITY
• Cable the network as shown in the Topology
• Connect the devices using suitable cable
o From PC1 to switch (F0 – F0/1) and Switch to Router (F0/2 – G0/1) Use Copper
Straight-Through
o Router to PC2 (G0/0 – F0) use Cross Over Cable
CONFIGURATION
• Configure the IP address, subnet mask, and default gateway settings on PC1 and PC2
o Click the PC1 and go to Config>Global>Settings to set the Gateway
o Next go to Interface>FastEthernet0 from IP Configuration set it on Static and set
the proper IP address and Subnet Mask
o Repeat the process on PC2 base on the Addressing Table
• Configure the Router
o Click the router and go to CLI
• Console into the router and enable privileged EXEC mode.
o Router> enable
o Router#
• Enter into global configuration mode.
o Router# config terminal
o Router (config)#
• Set the network hostname to R1
o Router (config)# hostname R1
o R1 (config)#
• Disable DNS lookup to prevent the router from attempting to translate incorrectly entered
commands as though they were hostnames.
o R1 (config)# no ip domain-lookup
• Require that a minimum of 5 characters be used for all passwords
o R1(config)# security passwords min-length 5
• Assign cisco as the privileged EXEC encrypted password
o R1(config)# enable secret cisco
• Assign ciscocon as the console password, set a timeout, enable login, and add the logging
synchronous command.
o R1(config)# line con 0
o R1(config-line)# password ciscocon
o R1(config-line)# exec-timeout 5 0
o R1(config-line)# login
o R1(config-line)# logging synchronous
o R1(config-line)# exit
o R1(config)#
• Set ciscovty as the vty password, set a timeout, enable login, and add the logging synchronous
command
o R1(config)# line vty 0 4
o R1(config-line)# password ciscovty
o R1(config-line)# exec-timeout 5 0
o R1(config-line)# login
o R1(config-line)# logging synchronous
o R1(config-line)# exit
o R1(config)#
• Encrypt the clear text passwords.
o R1(config)# service password-encryption
• Set the banner to “Welcome to Cisco Router1”
o R1(config)# banner motd # Welcome to Cisco Router1#
• IP Configuration
o R1(config)# int g0/0
o R1(config-if)# description Connection to PC2
o R1(config-if)# ip address [Link] [Link]
o R1(config-if)# no shutdown
o R1(config-if)# int g0/1
o R1(config-if)# description Connection to Switch
o R1(config-if)# ip address [Link] [Link]
o R1(config-if)# no shutdown
o R1(config-if)# exit
o R1(config)# exit
o R1#
• Set the clock on the router, for example:
o R1# clock set [Link] 1 Nov 2020
• Save the configuration
o R1# copy running-config startup-config
VERIFY THE NETWORK CONNECTIVITY
• Ping PC2 on the command prompt of PC1
o Click PC1 and go to Desktop>Command Prompt
o Ping PC2 using the Command ping [Link]
Questions
1. Was the Ping Successful?
2. Which device performs the function of determining the path that messages should take through
internetworks?
3. What command enable Privilege Mode?
4. What command Enter into global configuration mode?
5. What Command that Save the running configuration to the startup configuration file?
