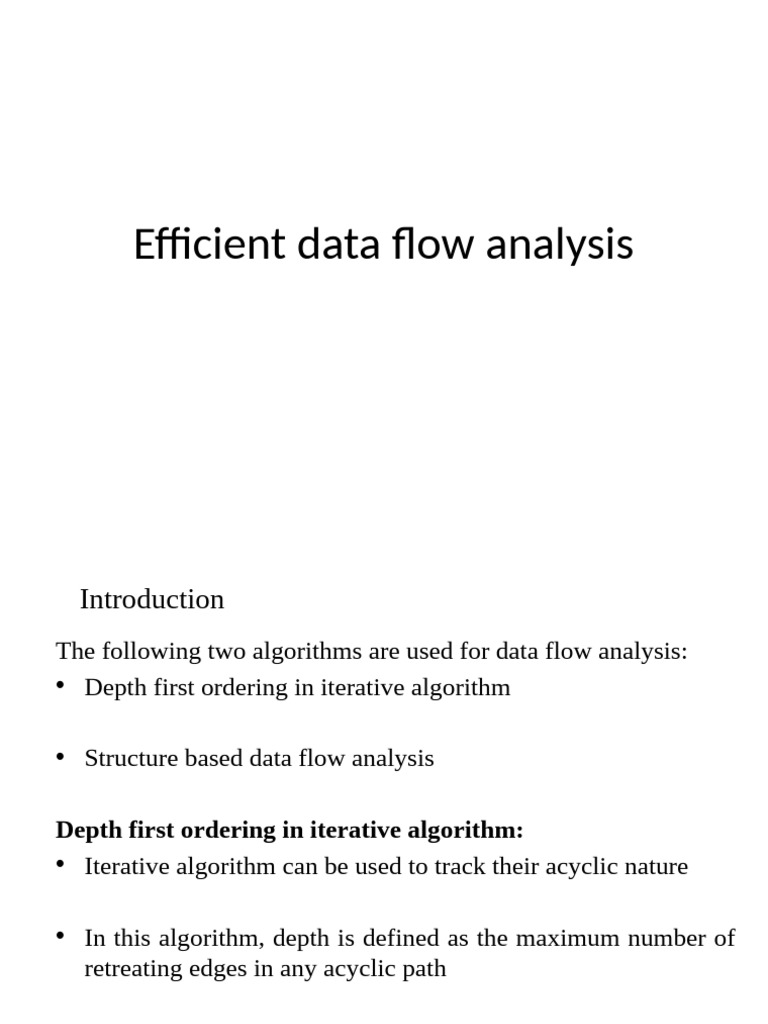

Efficient data flow analysis

Introduction
The following two algorithms are used for data flow analysis:
• Depth first ordering in iterative algorithm

• Structure based data flow analysis

Depth first ordering in iterative algorithm:

• Iterative algorithm can be used to track their acyclic nature

• In this algorithm, depth is defined as the maximum number of

retreating edges in any acyclic path

• Interval depth is defined as the number of times the interval

partition must be applies to reach the limit of the flow graph
Example: perform the depth first traversal of the given tree

5 6

7
 Contd.,
• The depth first ordering is the reverse of the order in which we
last visit the nodes in the pre order traversal

• i.e., visit the root node of the tree first

• In case of ambiguity where no root node is present visit the

node in the right hand side

• The order of visiting the edges in the above tree is:

1346764543121
 Structure based data flow analysis:
• This algorithm is time saving

• This focuses on the multiple exits in the blocks

• Gen r,b indicates the definitions that were generated in the

region R of the basic block B

• Kill R,B indicates the definition that were killed in the region R
of the basic block B

• Transfer function trans R,B of a set S, is the set of definitions

that travel within the region R.
 contd.,

The data flow equation is

trans R,B (S)=Gen R,B U (S-Kill R,B)
The working of the algorithm can be analysed in two cases
Case 1:
If the transformation does not alter any definitions in the basic
block B, then the transfer function of region R, is same as the
transfer function of the block B
Gen B,B = Gen [B]
Kill B.B = Kill[B]
Case 2:
The region R is formed when R1 consumes R2. There are no
edges from R2 to R1. Header of R is the header of R1, R2 does
not affect the transfer function of R1
 Contd.,
Gen R,B = Gen R1,B
Kill R,B = Kill R1,B
For B in R2, a definition can reach the end of B if any of the
following conditions hold

• The definition is generated within R2

• The definition is generated within R1, reaches the end of

predecessor of the header of R2 and is not killed going from
the header of R2 to B

• The definition is in the set S available at the header of R1, not

killed going to some predecessor of the header of R2, and not
killed going from the header of R2 to B
